Overclock.net › Forums › Cooling › Air Cooling › Lapping Practice (help?)
New Posts  All Forums:Forum Nav:

Lapping Practice (help?)

post #1 of 13
Thread Starter
I took a Thermalright SLK-947U and attempted to lap it. Did I do something wrong? Or does it look alright? I used 200, 400, 600, 1000, and 1500 grit sandpaper.

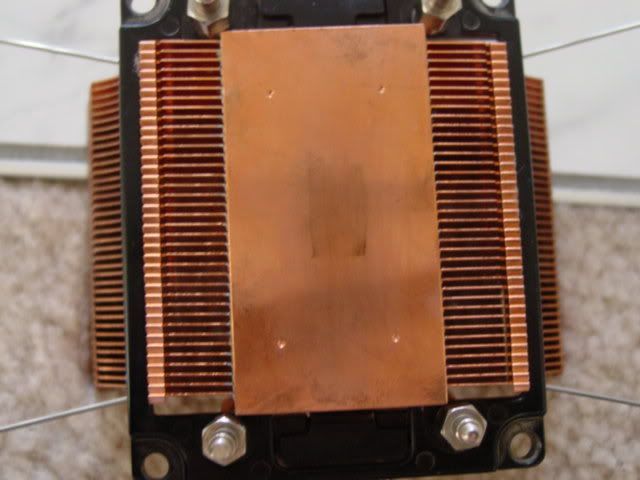

Before:

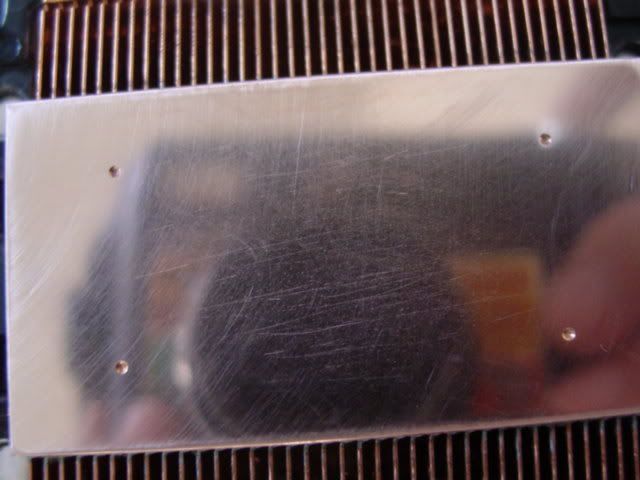

After:

Desktop
(15 items)


Wark!
(13 items)

CPUMotherboardGraphicsRAM
Core i5 750 Gigabyte P55-UD3L F7 OEM Nvidia GTS 240 8GB Kingston HyperX DDR3-1600
Hard DriveHard DriveOptical DriveCooling
Toshiba Q Pro 128GB SSD 1TB Western Digital Blue Samsung DVDRW Logysis GammaX 300
OSMonitorKeyboardPower
Windows 8 Pro w/Mediacenter LG IPS 235V Ducky DK 1008 OCN Edition (MX Blues) Antec 400C
CaseMouseAudio
Cooler Master Centurion 534 Logitech MX518 Asus Xonar DG
CPUGraphicsRAMHard Drive
Core 2 Duo P8600 Intel GMA 4500MHD 4GB DDR3 1333 Intel 530 Series 180GB SSD
Optical DriveOSMonitorKeyboard
None Windows 7 Pro 13.3" 1280x800 TFT LCD Stock
CPUMotherboardGraphicsRAM
Core i5 3470 HP Stock Intel HD 2500 8GB DDR3
Hard DriveOptical DriveOSMonitor
500GB DVDRW Windows 7 Pro 64 Acer AL2002W
KeyboardPowerCaseMouse
Microsoft Standard Generic HP Pro 3500 Microsoft Standard
  hide details
Reply
Desktop
(15 items)


Wark!
(13 items)

CPUMotherboardGraphicsRAM
Core i5 750 Gigabyte P55-UD3L F7 OEM Nvidia GTS 240 8GB Kingston HyperX DDR3-1600
Hard DriveHard DriveOptical DriveCooling
Toshiba Q Pro 128GB SSD 1TB Western Digital Blue Samsung DVDRW Logysis GammaX 300
OSMonitorKeyboardPower
Windows 8 Pro w/Mediacenter LG IPS 235V Ducky DK 1008 OCN Edition (MX Blues) Antec 400C
CaseMouseAudio
Cooler Master Centurion 534 Logitech MX518 Asus Xonar DG
CPUGraphicsRAMHard Drive
Core 2 Duo P8600 Intel GMA 4500MHD 4GB DDR3 1333 Intel 530 Series 180GB SSD
Optical DriveOSMonitorKeyboard
None Windows 7 Pro 13.3" 1280x800 TFT LCD Stock
CPUMotherboardGraphicsRAM
Core i5 3470 HP Stock Intel HD 2500 8GB DDR3
Hard DriveOptical DriveOSMonitor
500GB DVDRW Windows 7 Pro 64 Acer AL2002W
KeyboardPowerCaseMouse
Microsoft Standard Generic HP Pro 3500 Microsoft Standard
  hide details
Reply
post #2 of 13
Looks alright. You might need some finer grit to get the scratches out.

Put some sqaured paper near it. Check see if it is flat
Smallville
(16 items)


CPUMotherboardGraphicsGraphics
Intel i5 3570k Asus Sabertooth Z77 Asus HD7950 DirectCU II Asus HD7950 DirectCU II
RAMHard DriveOptical DriveCooling
8GB DDR3 Corsair Vengeance 1600Mhz 128GB Corsair Force Pro, 2 x 2TB HDD, 500GB Ext... LG Blu-Ray, DVD/CD RW drive Corsair H60
OSMonitorKeyboardPower
Windows 8.1 Pro 64-bit Genuine 27" Crossover 27Q S-IPS 1440p Cyborg V7 Corsair HX1000
CaseMouseMouse PadAudio
NZXT Phantom White Microsoft Sidewinder X8 Wireless Steelseries QcK Sennheiser eH250
  hide details
Reply
Smallville
(16 items)


CPUMotherboardGraphicsGraphics
Intel i5 3570k Asus Sabertooth Z77 Asus HD7950 DirectCU II Asus HD7950 DirectCU II
RAMHard DriveOptical DriveCooling
8GB DDR3 Corsair Vengeance 1600Mhz 128GB Corsair Force Pro, 2 x 2TB HDD, 500GB Ext... LG Blu-Ray, DVD/CD RW drive Corsair H60
OSMonitorKeyboardPower
Windows 8.1 Pro 64-bit Genuine 27" Crossover 27Q S-IPS 1440p Cyborg V7 Corsair HX1000
CaseMouseMouse PadAudio
NZXT Phantom White Microsoft Sidewinder X8 Wireless Steelseries QcK Sennheiser eH250
  hide details
Reply
post #3 of 13
Looks like you didn't keep it in the same direction.

Don't "change" direction. If you go in an up and down direction, stay that way. Rotate 90 degrees, and keep going in up and down. Don't go up and down, then left and right, then figure 8, etc.

Not sure you did, but that's what those fine scratches look like..
2 OP pls nerf
(12 items)


CPUMotherboardGraphicsRAM
i5 6400 Skylake Asus Z170-E ATX Asus GTX 1060 6GB GeIL 8GB DDR4 3600
Hard DriveHard DriveCoolingOS
Sandisk 480GB SSD Western Digital EZRX 3TB Cryorig H7 Windows 10 Pro x64
PowerAudioAudioAudio
Silverstone 500w Gold Lepai LP-2020A+ AudioSource LS100 Polk Audio PSW111
  hide details
Reply
2 OP pls nerf
(12 items)


CPUMotherboardGraphicsRAM
i5 6400 Skylake Asus Z170-E ATX Asus GTX 1060 6GB GeIL 8GB DDR4 3600
Hard DriveHard DriveCoolingOS
Sandisk 480GB SSD Western Digital EZRX 3TB Cryorig H7 Windows 10 Pro x64
PowerAudioAudioAudio
Silverstone 500w Gold Lepai LP-2020A+ AudioSource LS100 Polk Audio PSW111
  hide details
Reply
post #4 of 13
it looks shiney... but, was it just copper plated?
post #5 of 13
Thread Starter
Quote:
Originally Posted by ChielScape View Post
it looks shiney... but, was it just copper plated?
Nah, it's all copper

Quote:
Originally Posted by IcedEarth View Post
Looks alright. You might need some finer grit to get the scratches out.

Put some sqaured paper near it. Check see if it is flat
Um...I don't think I have any more

Quote:
Originally Posted by The Pook View Post
Looks like you didn't keep it in the same direction.

Don't "change" direction. If you go in an up and down direction, stay that way. Rotate 90 degrees, and keep going in up and down. Don't go up and down, then left and right, then figure 8, etc.

Not sure you did, but that's what those fine scratches look like..
I went in small circles on one of my glass tables at home. I think I may have went counter-clockwise instead of clockwise once. I'm not really sure though

Is there any way to fix it?
Desktop
(15 items)


Wark!
(13 items)

CPUMotherboardGraphicsRAM
Core i5 750 Gigabyte P55-UD3L F7 OEM Nvidia GTS 240 8GB Kingston HyperX DDR3-1600
Hard DriveHard DriveOptical DriveCooling
Toshiba Q Pro 128GB SSD 1TB Western Digital Blue Samsung DVDRW Logysis GammaX 300
OSMonitorKeyboardPower
Windows 8 Pro w/Mediacenter LG IPS 235V Ducky DK 1008 OCN Edition (MX Blues) Antec 400C
CaseMouseAudio
Cooler Master Centurion 534 Logitech MX518 Asus Xonar DG
CPUGraphicsRAMHard Drive
Core 2 Duo P8600 Intel GMA 4500MHD 4GB DDR3 1333 Intel 530 Series 180GB SSD
Optical DriveOSMonitorKeyboard
None Windows 7 Pro 13.3" 1280x800 TFT LCD Stock
CPUMotherboardGraphicsRAM
Core i5 3470 HP Stock Intel HD 2500 8GB DDR3
Hard DriveOptical DriveOSMonitor
500GB DVDRW Windows 7 Pro 64 Acer AL2002W
KeyboardPowerCaseMouse
Microsoft Standard Generic HP Pro 3500 Microsoft Standard
  hide details
Reply
Desktop
(15 items)


Wark!
(13 items)

CPUMotherboardGraphicsRAM
Core i5 750 Gigabyte P55-UD3L F7 OEM Nvidia GTS 240 8GB Kingston HyperX DDR3-1600
Hard DriveHard DriveOptical DriveCooling
Toshiba Q Pro 128GB SSD 1TB Western Digital Blue Samsung DVDRW Logysis GammaX 300
OSMonitorKeyboardPower
Windows 8 Pro w/Mediacenter LG IPS 235V Ducky DK 1008 OCN Edition (MX Blues) Antec 400C
CaseMouseAudio
Cooler Master Centurion 534 Logitech MX518 Asus Xonar DG
CPUGraphicsRAMHard Drive
Core 2 Duo P8600 Intel GMA 4500MHD 4GB DDR3 1333 Intel 530 Series 180GB SSD
Optical DriveOSMonitorKeyboard
None Windows 7 Pro 13.3" 1280x800 TFT LCD Stock
CPUMotherboardGraphicsRAM
Core i5 3470 HP Stock Intel HD 2500 8GB DDR3
Hard DriveOptical DriveOSMonitor
500GB DVDRW Windows 7 Pro 64 Acer AL2002W
KeyboardPowerCaseMouse
Microsoft Standard Generic HP Pro 3500 Microsoft Standard
  hide details
Reply
post #6 of 13
Yeah. Start over?

You used 200 grit? Dang... I think I used 220 and cursed myself for it. DEEP scratches. I recommend 400 first. It'll take a lil longer to get it flat but it seems to pay off in the end.
Zach's RIG
(13 items)


CPUMotherboardGraphicsRAM
AMD Opteron 146 at 2.9ghz LAPPED MSI Neo4-F Winfast Geforce 6200 PCI x16 at 600/656 Stock cool G.Skill 1GB DDR400 (512MBx2) at DDR467
Hard DriveOptical DriveOSMonitor
160GB Seagate Barracuda 7200.10 SATA Lite-On 20X DVD-RW/DVD-RAM and TSST Corp DVD-ROM Windows XP Pro/Vista Ultimate/Ubuntu 7.04 Gateway E700 15.4" Viewable
KeyboardPowerCaseMouse
Logitech G11 Coolermaster 450W Coolermaster Centurion 5 Logitech MX518
Mouse Pad
X Trac Ripper XL
  hide details
Reply
Zach's RIG
(13 items)


CPUMotherboardGraphicsRAM
AMD Opteron 146 at 2.9ghz LAPPED MSI Neo4-F Winfast Geforce 6200 PCI x16 at 600/656 Stock cool G.Skill 1GB DDR400 (512MBx2) at DDR467
Hard DriveOptical DriveOSMonitor
160GB Seagate Barracuda 7200.10 SATA Lite-On 20X DVD-RW/DVD-RAM and TSST Corp DVD-ROM Windows XP Pro/Vista Ultimate/Ubuntu 7.04 Gateway E700 15.4" Viewable
KeyboardPowerCaseMouse
Logitech G11 Coolermaster 450W Coolermaster Centurion 5 Logitech MX518
Mouse Pad
X Trac Ripper XL
  hide details
Reply
post #7 of 13
400 for bad heatsinks, 600 for most to start with.

600 -> 800 -> 1000 -> 1200 -> 1500 -> 2000 = What I do.
Micron isn't really needed, but it makes it really good looking.
2 OP pls nerf
(12 items)


CPUMotherboardGraphicsRAM
i5 6400 Skylake Asus Z170-E ATX Asus GTX 1060 6GB GeIL 8GB DDR4 3600
Hard DriveHard DriveCoolingOS
Sandisk 480GB SSD Western Digital EZRX 3TB Cryorig H7 Windows 10 Pro x64
PowerAudioAudioAudio
Silverstone 500w Gold Lepai LP-2020A+ AudioSource LS100 Polk Audio PSW111
  hide details
Reply
2 OP pls nerf
(12 items)


CPUMotherboardGraphicsRAM
i5 6400 Skylake Asus Z170-E ATX Asus GTX 1060 6GB GeIL 8GB DDR4 3600
Hard DriveHard DriveCoolingOS
Sandisk 480GB SSD Western Digital EZRX 3TB Cryorig H7 Windows 10 Pro x64
PowerAudioAudioAudio
Silverstone 500w Gold Lepai LP-2020A+ AudioSource LS100 Polk Audio PSW111
  hide details
Reply
post #8 of 13
The more material you need to take off (for really convex/concave surfaces), the lower the grit you need to use. Also, you should notice that as you go with progressively higher grits, the time you use with each progressively higher grit should be less than the one before it.

(In other words, the lowest grits should take the most time, as you're taking away the most material with these. The higher grits up the ladder are there to smooth out the work you did prior.)

Hope this helps!

CPUMotherboardGraphicsRAM
Phenom II X3 720 BE Gigabyte GA-MA790FXT-UD5P Sapphire Radeon HD 3870 2 x 2GB Crucial Ballistix Tracers PC3 10600
Hard DriveCoolingOSPower
Almost 8TB of storage AMD Stock Cooler Windows Home Server CoolerMaster SilentPro M 700W
Case
Lian Li PC-V2000B (with thlnk3r mods)
  hide details
Reply

CPUMotherboardGraphicsRAM
Phenom II X3 720 BE Gigabyte GA-MA790FXT-UD5P Sapphire Radeon HD 3870 2 x 2GB Crucial Ballistix Tracers PC3 10600
Hard DriveCoolingOSPower
Almost 8TB of storage AMD Stock Cooler Windows Home Server CoolerMaster SilentPro M 700W
Case
Lian Li PC-V2000B (with thlnk3r mods)
  hide details
Reply
post #9 of 13
Thread Starter
Thanks for the help guys! I think I will redo it. The surface does seem flat though.
Desktop
(15 items)


Wark!
(13 items)

CPUMotherboardGraphicsRAM
Core i5 750 Gigabyte P55-UD3L F7 OEM Nvidia GTS 240 8GB Kingston HyperX DDR3-1600
Hard DriveHard DriveOptical DriveCooling
Toshiba Q Pro 128GB SSD 1TB Western Digital Blue Samsung DVDRW Logysis GammaX 300
OSMonitorKeyboardPower
Windows 8 Pro w/Mediacenter LG IPS 235V Ducky DK 1008 OCN Edition (MX Blues) Antec 400C
CaseMouseAudio
Cooler Master Centurion 534 Logitech MX518 Asus Xonar DG
CPUGraphicsRAMHard Drive
Core 2 Duo P8600 Intel GMA 4500MHD 4GB DDR3 1333 Intel 530 Series 180GB SSD
Optical DriveOSMonitorKeyboard
None Windows 7 Pro 13.3" 1280x800 TFT LCD Stock
CPUMotherboardGraphicsRAM
Core i5 3470 HP Stock Intel HD 2500 8GB DDR3
Hard DriveOptical DriveOSMonitor
500GB DVDRW Windows 7 Pro 64 Acer AL2002W
KeyboardPowerCaseMouse
Microsoft Standard Generic HP Pro 3500 Microsoft Standard
  hide details
Reply
Desktop
(15 items)


Wark!
(13 items)

CPUMotherboardGraphicsRAM
Core i5 750 Gigabyte P55-UD3L F7 OEM Nvidia GTS 240 8GB Kingston HyperX DDR3-1600
Hard DriveHard DriveOptical DriveCooling
Toshiba Q Pro 128GB SSD 1TB Western Digital Blue Samsung DVDRW Logysis GammaX 300
OSMonitorKeyboardPower
Windows 8 Pro w/Mediacenter LG IPS 235V Ducky DK 1008 OCN Edition (MX Blues) Antec 400C
CaseMouseAudio
Cooler Master Centurion 534 Logitech MX518 Asus Xonar DG
CPUGraphicsRAMHard Drive
Core 2 Duo P8600 Intel GMA 4500MHD 4GB DDR3 1333 Intel 530 Series 180GB SSD
Optical DriveOSMonitorKeyboard
None Windows 7 Pro 13.3" 1280x800 TFT LCD Stock
CPUMotherboardGraphicsRAM
Core i5 3470 HP Stock Intel HD 2500 8GB DDR3
Hard DriveOptical DriveOSMonitor
500GB DVDRW Windows 7 Pro 64 Acer AL2002W
KeyboardPowerCaseMouse
Microsoft Standard Generic HP Pro 3500 Microsoft Standard
  hide details
Reply
post #10 of 13
Quote:
Originally Posted by numlock2.0 View Post
Thanks for the help guys! I think I will redo it. The surface does seem flat though.
Flat is great.

Smooth is just a touch better. The real key when it's smooth is finding the optimum amount of TIM to use.

Good luck!

CPUMotherboardGraphicsRAM
Phenom II X3 720 BE Gigabyte GA-MA790FXT-UD5P Sapphire Radeon HD 3870 2 x 2GB Crucial Ballistix Tracers PC3 10600
Hard DriveCoolingOSPower
Almost 8TB of storage AMD Stock Cooler Windows Home Server CoolerMaster SilentPro M 700W
Case
Lian Li PC-V2000B (with thlnk3r mods)
  hide details
Reply

CPUMotherboardGraphicsRAM
Phenom II X3 720 BE Gigabyte GA-MA790FXT-UD5P Sapphire Radeon HD 3870 2 x 2GB Crucial Ballistix Tracers PC3 10600
Hard DriveCoolingOSPower
Almost 8TB of storage AMD Stock Cooler Windows Home Server CoolerMaster SilentPro M 700W
Case
Lian Li PC-V2000B (with thlnk3r mods)
  hide details
Reply
New Posts  All Forums:Forum Nav:
  Return Home
  Back to Forum: Air Cooling
Overclock.net › Forums › Cooling › Air Cooling › Lapping Practice (help?)
