List of DDR3/DDR2/DDR IC Chips on various RAM brand Modules (Updating 28/01/08)

post #1 of 33
Thread Starter
Originally posted by ENTERPRISE, currantly managed by PizzaMan. I know some info is old and outdated. It's a work in progress.

Hey there guys I found some Very Nice RAM info on the IC chips used on various Modules. I take no credit for the below information. I have simply gathered the information into one place for easy access. If you have any RAM to add to the list please PM me.

I thought some of you here may like this .

Click to reveal drop down lists.

IC FAQ provided by "BTK" (Click to show)

IC FAQ provided by ''BTK''

Q: What is an IC?

A: An IC is the Integrated Circuit on the RAM, the chips the RAM uses.

Q: Why does an IC matter?

A: The IC of the RAM is everything. Brand name does not matter, the IC does, the IC determines how good the RAM is, basically what MHz it does at certain voltages and what timings. There can be two brands that use the same IC and it's the exact same RAM except for different brand heatspreaders.

Q: I see PC2-5300 RAM and PC2-6400 RAM that use the same IC. Doesn't that mean it will clock the exact same and I should get the PC2-5300 for the reduced price?

A: In general that is the theory but the PC2-6400 may be higher binned and therefore overclock better? It was tested at PC2-6400 Speeds (400 MHz) while the PC2-5300 (333 Mhz) was only tested stable at those speeds. It is basically luck of the draw, I have seen people get PC2-5300 Ballastix that will overclock just as good as high binned PC2-8500 Tracers. Think of it like CPU's, some CPU's clock very good and some don't, but they still are the same chip.

Q: Should I get PC2-8500 or PC2-6400 if they are the same IC

A: I would suggest the PC2-6400 because 400 MHz is a good enough speed for RAM to be tested stable at that they will likely clock just as good as the PC2-8500 if they are they same IC.

Q: What are the best overclocking IC's?

A: MicronD9GMH and MicronD9GKX. D9GMH likes tigher timings while GKX likes higher FSB. The standard is going to be around 4-4-4 450 MHz (DDR2-900) @ 2.1V for D9GMH, give or take same MHz depending on how well binned they are. D9KX standard will be around 650 MHz 5-5-5-15 @2.2V give or take a little depending on how well binned they are.

Q: What does "Handpicked"

A: It means the RAM was picked from a batch of many as the best. Will overclock better than non handpicked. Special Edition RAM is a lot of times handpicked.

Q: How come I hear a lot of store of Micron RAM dying?

A: It seems that the high end Micron IC's have had problems dying at high voltages more than any other IC but you only hear those stories. Most people's are fine like mine for as long as they use them. I would not go over 2.1V for daily use without a fan on D9GMH or D9GKX. it should not be a deciding factor when picking MicronD9 RAM.

Q: What is an average overclocking IC?

A: Promos and MicronD9GCT are good but not great like MicronD9GMH/GKX. Some people like Promos because you can get highly binned promos that clock very well. Promos are voltage friendly and don't die at all really.

Q: What IC should I avoid?

A: Avoid Elpedia and Infeneon

Q: What company has the best RAM for the best price.

A: Depends on your opinion. But I think Crucial, end of story. Crucial uses all Micron chips in their RAM. That's because they are a subdivision of Micron, they have to use Micron. Their D9GMH chips are in their cheap PC2-6400 series. Team Group and G.SKILL are also very good. OCZ has good high end RAM but may be a bit too much. Decide yourself by comparing IC's. You will find Crucial wins.

Q: What Company should I avoid?

A: Corsair. You get the same D9GMH/GKX from Crucial that you do from Corsair Dominators for so much less money. Stay away from Corsair. Their mid low-end stuff is not good. Their good stuff is way too much. PQI, Wintec AMPO. If you haven't heard of it, don't buy it is a good rule.

Q: If RAM has multiple IC's how do I know what one I will get?

A: Luck of the draw.

Q: How do I find out what IC my RAM has if I don't know?

A: Take off the heatspreaders and it will be written on the IC itself. Be careful your warranty may be voided. If your not careful you could end up frying the RAM.

Q: Gah, what do I buy?

A: PC2-6400 Crucial.
http://www.newegg.com/Product/Produc...82E16820146565
*Note some of these use D9GCT now, most likely D9GMh though*

Lanfest PC2-6400 Crucial
*Not on newegg anymore, but D9GMH was the ONLY IC used in it*

PC2-6400 Tracers
http://www.newegg.com/Product/Produc...82E16820148076
*High binned D9GMH or G9GKX*

PC2-8500 Tracers
http://www.newegg.com/Product/Produc...82E16820148070
*High Binned D9GMH or High Binned D9GKX*




NEW IC Chip specifications provided by ''BTK & PizzaMan'' Thankyou !


DDR3 RAM Modules! (Click to show)

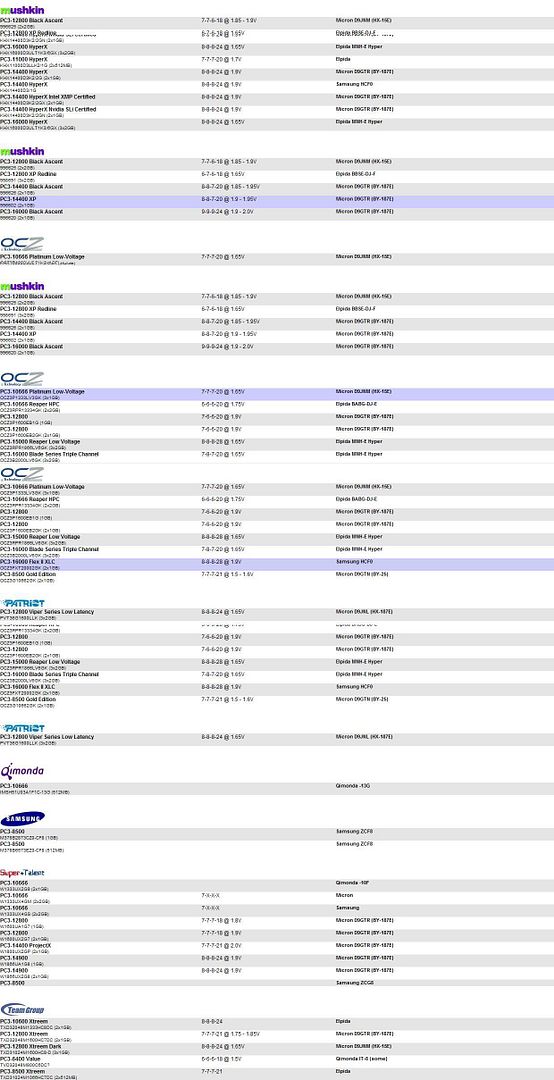

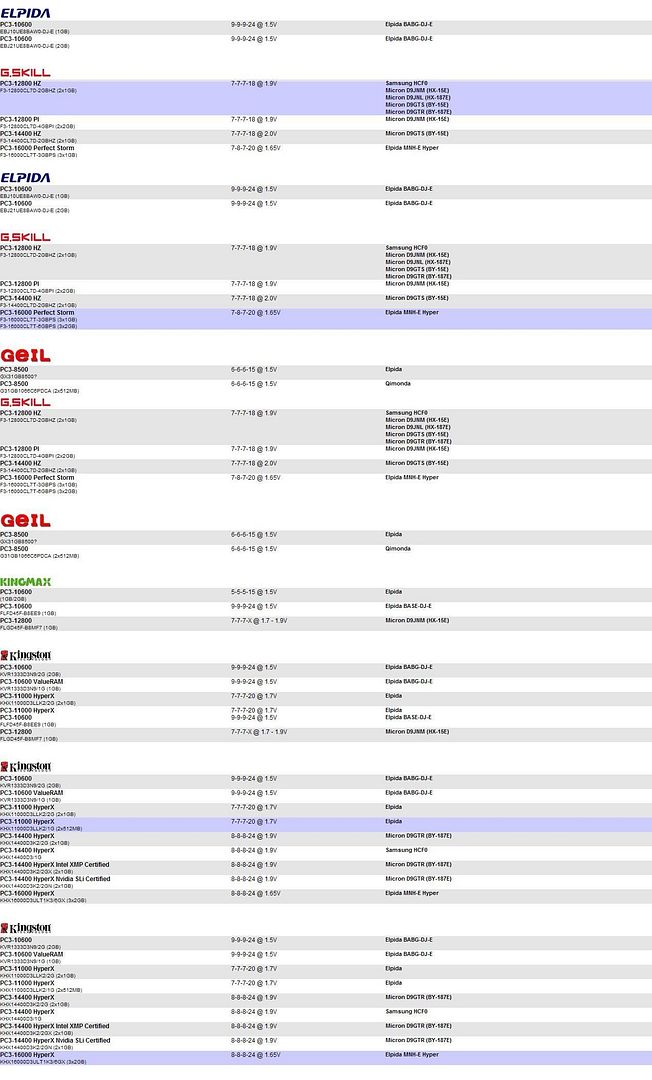

DDR3 RAM Modules





DDR2 RAM Modules! (Click to show)

DDR2 RAM Modules







DDR RAM Modules! (Click to show)

DDR RAM Modules









another Memroy list. Mostly DDR info (Click to show)

*Colour Coding*

DDR D9 IC CHIPS = BLUE


A-DATA


A-Data PC2700 - Winbond BH-6/Winbond AH-6
A-Data PC3200 - Winbond CH-5/Samsung TCCC
A-Data PC3200 Special Edition - Winbond BH-5
A-Data PC3700 - Samsung TCC5
A-Data PC4000 - Hynix D43/Hynix D5/Samsung TCCC
A-Data Vitesta PC4000 - Hynix D43//Hynix D5/Samsung TCCD
A-Data Vitesta PC4500 - Samsung TCCD/Hynix B
A-Data Vitesta PC4800 - Samsung TCCD/Hynix B



APACER


Apacer PC2700 - Winbond BH-6/Winbond AH-6
Apacer PC4000 - Samsung TCCD




BUFFALO

Buffalo FireStix PC3200 - Samsung TCCD
Buffalo FireStix PC4000 - Hynix B
Buffalo PC3200 - Micron 5B C/Micron 5B G/Winbond UTT BH-5/Winbond UTT CH-5 - The Buffalo BH-5 were excellent 250 2-2-2-x were common.
Buffalo PC3700 -Winbond BH-5/Winbond CH-5/Micron 5B C
Buffalo DD4333-1G/MD - Micron - 4V/5B D
PC4200 Value
PC4200 4.0-4-4-10 / D2U533B-1GMBJ
PC8000 FireStix 5.0-5-5-15 / FSX1000D2C-K2G




CENTON ELECTRONICS


Centon Advanced DDR400 - Samsung TCCD
Centon Advanced DDR533 - Hynix D5
Centon Advanced PC3200 - Samsung TCCD
PC4200 4.0-X-X-X / 1GBDDR2KIT533
PC5400 Advanced
PC6400 Advanced




CELL SHOCK

PC6400 4.0-4-4-12 @ 2.1~2.2V / CS2111041 / CS2221041
PC8000 4.0-4-4-12 @ 2.2V / CS2221440
PC8000 5.0-5-5-15 @ 2.1~2.2V / CS2221450



CENTURY

PC5300 Value 5.0-5-5-X - Hynix Y5
PC5300 Value 5.0-5-5-X - Infineon AE-3C




CFD

PC4200 Value / D2U533BK-S256/M
PC4300 Value / D2U533BK-512/M
PC5300 Value / D2U667CK-S256/M
PC5300 Value / D2U667BZK-S256/M
PC4300 Value / D2U533BK-512/S - Samsung GCD5





CORSAIR




CODING:



C2 = Cass 2-3-3-6 & Cass 2.5-3-3-6 On AMD Platform.LL = Cass 2-3-2-6

XL = Cass 2-2-2-5R = Registered

RE = Registered ECC

PT = Platinum Heat Spreader

Pro = Activity LED's

XP = XPert Memory Module with Programmable LED Display With nothing after the part# that would be a standard Black Heat spreader.


CMX256A-2700LLPT v2.2 0404004 = Winbond -5 Rev C
CMX512-3200 XMS3200v5.2 0530185-1 = Promos -5 Rev A
CMX512-3200 XMS3200v1.4 0504060-4 = Samsung TCCX
CMX512-3200 XMS3200v5.1 0045040-3 = Not listed
CMX512-3200 XMS3200v1.1 0410112-0 = Samsung -5 Rev E
CMX1024-3200 XMS3200 v4.1 0523086-0 = INFINEON, Die Rev B
CMX512-3200 XMS3200v1.4 0505107-9 = Samsung TCCX
CMX512-3200PT V2.1 02321 = Incomplete But should be Winbond -5 Rev B
CMX512-3200 XMS3200V1.2 0509099-3 = Samsung TCC5
CMX512-3200PRO XMS3200v4.10413081 = INFINEON, Die Rev B
CMX512-3200 XMS3200v6.1 0516011-0 = Winbond -5 UTT
CMx512-3200PT XMS3200v4.1 0410015-7 = INFINEON, Die Rev B
CMX1024-3200PT XMS3200v4.1 #0522215-2 = INFINEON, Die Rev B
CMX1024-3200PT XMS3200 v4.1 0523076-4 = INFINEON, Die Rev B
CMX512A-3200 XMS3202c2 v3.3 0524143-1 = INFINEON, Die Rev B
CMX512-3200Pro XMS3200 v1.3 0451055-1 = Samsung -5 TCCD
CMX512-3200 XMS3200v5.2 0530171-2 = Promos -5 Rev A*
CMX256A-3000C2PT XMS3000 V1.1 022919 = Winbond -6 Rev B
CMX512-3200C2 XMS3202V4.3 0522193-0= Samsung -5 TCCX
TWINX2048-3200C2 V2.1 XMS3202 0533085-1 = Nanya -5 Rev B
TWINX1024-3200C2 5.2 0531062-1 = Promos -5 Rev A
TWINX1024-3200C2PRO XMS3202v5.2 0530079-1 = Promos -5 Rev A
CMX512-3200C2Pro XMS3202v2.1 0423101-1 = INFINEON, Die Rev B
Twinx1024-3200C2Pt XMS3202v4.2 0520213-2 = Samsung -5 TCCX
CMX512-3200C2 XMS3200 XMS3202 v5.2 0529061-0 = Promos -5 Rev A
CMX1024-3200C2PRO XMS3202 v1.1 0532025-1 = INFINEON, Die Rev B
CMX512-3200C2 XMS3202v5.1 0527100-0 = Promos -5 Rev A
CMX512 3200C2PT 3202v5.2 0530088-0 = Promos -5 Rev A*
CMX512-3200C2PT XMS3202 v4.2 0526072-1 = No matching part found
TWINX2048-3200C2 XMS3200C2v1.4 0531022-1 = INFINEON, Die Rev B
CMX1024-3200C2PT XMS3202v1.2 0531114-2 = INFINEON, Die Rev B
TwinX2048-3200C2PRO XMS3202V1.1 0532025-1 = Winbond -5 Rev C
CMX512 3200C2PT XMS 3202 v4.1 0440059 = INFINEON, Die Rev
CMX512-3200C2PT XMS3202v4.3 0522194-0 = Samsung -5 TCCX
Twinx1024-3200C2Pro XMS3202 v4.1 0513106-7 = Samsung -5 TCCX
CMX512-3200 xms3200v1.4 0505107-9 = 0505107 = Samsung -5 TCCX
CMX512-3200C2 XMS3202v4.2 0520114-0 = Promos -5 Rev A*
TWINX1024 3200C2PT XMS3202v1.5 0516010-0 = Winbond BH5
TWINX1024-3200C2 0531053-0 V 5.1 = Promos -5 Rev A
CMX512-3200C2 v5.2 0529148-1 = Promos -5 Rev A
CMX512-3200C2 XMS3202C2 V4.2 0504045-12 = Samsung -5 TCCX
CMX512-3200 XMS3200PRO v.1.2 0451039-18 = Samsung -5 TCCC
CMX512-3200C2 XMS3202v4.3 0532013-1 = Samsung -5 TCCX
CMX512-3200C2 XMS3202v4.2 0433009-0 = Samsung -5 TCCX
CMX1024-3200C2 XMS3200v2.1 0533084-0 = Nanya -5 Rev B
CMX512-3200c2pro XMS3202 v5.2 0535148-3 = Promos -5 Rev A
CMX512-3200C2 XMS 3203v4.3 0520056-1 = Samsung -5 TCCX
Twinx2048-3200c2 xms3202v1.2, Lot#0528016-1 = INFINEON, Die Rev B
TWINX1024-3200C2 XMS3202v4.3 0530068-1 = No Record Found
CMX1024-3200C2 CMS3202v1.3 = Need more Info, But 90% it’s Infineon Rev B
CMX512-3200LLPT XMS3205v1.2 0321035 = Winbond -5 Rev C
CMX1024-3200C2 XMS3202v1.1 0511077-0 = INFINEON, Die Rev B
CMX512-3200C2PRO XMS3202 v1.0 0350091 = Winbond -5 Rev C
CMX512-3200C2 XMS3202V1.1 0340144 = Winbond -6 Rev B
CMX256A-3200C2PT XMS3202v1.1 0308009-1 = Winbond -6 Rev B
CMX512-3200C2 XMS3202V1.2 0338018 = Winbond -6 Rev C
CMX1024-3200C2 XMS3202v1.2 0522115-2 = INFINEON, Die Rev A 64M X 8
CMX256-3200LL XMS3205v1.2 0321069 = Winbond -5 Rev C
CMX1024-3200C2PT XMS3202v1.2 0521090-2 = INFINEON, Die Rev A 64M X 8
CMX1024-3200C2PT XMS3202 V1.2 0524133-4 = INFINEON, Die Rev A 64M X 8
CMX1024-3200C2 XMS3202V1.2 0528082-2 = INFINEON, Die Rev A 64M X 8
CMX512-3200C2PT XMS3202v1.5 0527030-3 = Winbond -5 UTT
CMX512-3200C2PT XMS3202v1.5 0526040-3 = Winbond -5 UTT
CMX512-3200-C2PT XMS3202 V1.5 0522107-0 = Winbond -5 UTT
CMX512-3200C2PT XMS3202 V1.5 0516010-0 = Winbond -5 UTT
CMX512-3200C2 XMS3202v1.5 0526135-0 = Winbond -5 UTT
CMX512-3200c2 XMS3202v1.5 0522078-1 = Winbond -5 UTT
CMX256A-3200C2PT XMS3202 V1.7 0518029-X = Winbond -5 UTT
CMX256A 3200C2PT XMS3202v1.7 0516007-0 = Winbond -5 UTT
CMX512-3200C2PRO XMS3202 V2.1 0417007-0 = Infineon -5 Rev A
CMX512-3200C2 XMS3202 v2.2 0318031 = Winbond -5 Rev C
CMX512-3200C2 XMS3202z2.2 0312723 = Winbond -5 Rev C
CMX512-3200C2PT XMS3202 V3.1 0428009-0 = Promos -5 Rev A
CMX512-3200C2 XMS3202V3.1 0412080-0 = Promos -5 Rev A
CMX512-3200C2 XMS3202 V3.3 0524143-1 = INFINEON, Die Rev A 64M X 8
CMX512-3200C2 xms3202v3.3 0624143-1 = No Record Found suspect Samsung -5 TCCX
CMX512-3200C2PRO XMS3202v4.1 0527001-1 = Samsung -5 TCCX
CMX512-3200C2PRO XMS3202v4.1 0434110-5 = Samsung -5 TCCX
CMX512-3200C2 XMS3202 V4.2 05090991 = Samsung TCCX
CMX512-3200C2PT XMS3202v4.2 0433036-1 = Samsung TCCX
CMX512-3200C2 XMS3202 v4.2 0433065-1 = Samsung TCCX
CMX512-3200C2 XMS3202 v4.2 0431655-1 = Samsung TCCX
CMX512-3200 C2PT XMS3202v5.1 0527102-0 = Mosel Vitelic -5 Rev A
CMX512-3200 C2PT XMS3202v5.1 0527102-0 = Samsung TCCX
CMX512-3200C2PT XMS3202v4.2 0522182-1 = Samsung TCCX
CMX512-3200C2PT XMS3202v4.2 0522102-1= Lot # does not match part#
CMX512-3200C2PRO XMS3202v4.3 0522092-4 = Samsung TCCX
CMX512-3200C2PRO XMS3208v4.3 0522093-1 = Samsung TCCX
CMX512-3200C2PRO XMS3202 V4.3 0521226-1 = Samsung TCCX
CMX512-3200C2PRO XMS3202Rv4.1 0427016-4 = Samsung TCCX
CMX512-3200C2PRO XMS3202Rv4.1 0429062-8 = Samsung TCCX
CMX512-3200C2 XMS3202 v4.2 0521124-1 = Samsung TCCX
CMX512-3200C2PRO XMS3202v4.1 0513106-7 = Samsung TCC5
CMX512-3200C2 XMS3202 V5.1 0502010-5 = Promos -5 Rev A*
CMX512-3200C2PT XMS3202V5.1 0502040-0 = Promos -5 Rev A*
CMX1024-3200C2 XMS3202v1.2 0523005-2 = Infineon -5 Rev B
CMX512-3200C2PRO XMS3202v4.3 0512044-8 = Samsung TCCX
CMX512-3200C2 XMS3202 V4.3 0522193-0 = Promos -5 Rev A*
CMX512-3200C2PT XMS3202v1.5 0522141-0 = Promos -5 Rev A*
CMX512-3200C2PT XMS3202v4.3 0515054-0 = Promos -5 Rev A*
CMX512-3200C2 XMS3202v1.1 024308 Winbond -6 Rev B
CMX512-3200C2 XMS3202v2.2 0319092 Winbond -5 Rev C
CMX512-3200C2PT XMS3202v4.1 0432048-3= Samsung TCCX
CMX512-3200C2PT XMS3202v4.2 0429043-0= Samsung TCCX
CMX512-3200C2 XMS3202V2.2 0328963 = wrong# or bad data
CMX512-3200C2PT 0449023-1 XMS3202V4.1 = Samsung TCC5
CMX512-3200C2PT 0512147-0 = XMS3202V4.1 = Promos Rev A
CMX1024-3200C2PT 0519042-2 = Infineon -5 Rev B 64M X 8
CMX512-3200C2 XMS3202v5.1 0451032-6 = wrong# or bad data But most likely Promos Rev A
CMX512-3200C2 xms3202v3.2 0429024-0 = Infineon -5 Rev B
CMX512-3200C2PT XMS3202v4.20511102-1 = Samsung TCCX
CMX512-3200C2PRO XMS3202v4.1 0447013-0 = Samsung TCCX
CMX512-3200C2PT XMS3202v4.20434113-1 = Samsung TCCX
CMX512-3200C2PT XMS3202v4.2 0434113-1= Samsung TCCX
CMX512-3200C2 XMS3202v 4.2 0511106-0 = Samsung -5 TCCX
CMX512-3200C2 XMS3202v 1.2 0341086 = Winbond -6 Rev C
CMX512-3200C2PT XMS3202 v5.1 0441050-2 = Winbond -5 Rev C
CMX512-3200C2PT XMS3202 v4.1 0423047-11 = Samsung -5 TCCD
CMX512-3200C2PRO XMS3202 v5.0 0504066-2 = Mosel Vitelic -5 Rev A
CMX512-3200C2 XMS3202v1.5 0517006-0 = Winbond -5 UTT
CMX256A-3200C2 XMS3202v1.2 0404015-12 = Winbond -6 Rev C
CMX512-3200C2PT XMS3202 V1.2 0349073-11 = Winbond -6 Rev C
CMX512-3200C2PT XMS3200C2 V4.2 0520114-0 = Samsung -5 TCCX
CMX512-3200C2 XMS3202v4.1 0449023-6 = Samsung -5 TCCD
CMX512-3200C2PT xms3202v4.2 0434113-1 = Samsung -5 TCCX
CMX256A-3200C2 XMS3202 v1.2 0350096-8 = Winbond -6 Rev C
CMX256A-3200C2 XMS3202 v4.1 0437095-0 = Samsung -5 TCCD
CMX256A-3200C2PT XMS3202 V1.1 0310022 = Winbond -6 Rev B
CMX256A-3200C2PT XMS3202 V1.1 0306036 = Winbond -6 Rev B
CMX512-3200C2 XMS3202 Ver2.2 0322058 = Winbond -6 Rev C
CMX512-3200C2PRO XMS3202v4.1 0512014-1 = Samsung -5 TCCX
CMX512-3200C2PRO XMS3205V1.0 0403079 = Winbond -5 Rev C
CMX512-3200C2 XMS3200v1.5 0513030-0 = Winbond -5 UTT
CMX512-3200C2 XMS3200v1.1 023616 = Winbond -6 Rev B
CMX1024-3200C2 XMS3202v1.1 0446073-1 = Infineon -5 Rev A
CMX512-3200C2PT XMS3202 Rev 5.1 0505028-1 = Promos -5 Rev A
CMX512-3200C2PT XMS3202 Rev5.1 0504089 = Promos -5 Rev A
CMX512-3200C2PT XMS3202 Rev1.4 0515127-0 = Mosel Vitelic -5 Rev A
CMX512-3200C2 XMS3202V5.1 0442013-0 = Mosel Vitelic -5 Rev A
CMX512-3200C2PT XMS3202v5.1 0502065-3= Promos -5 Rev A
CMX512 3200C2PT XMS 3202 V4.1 0437094-14 = Samsung -5 TCCD
CMX512-3200C2PT XMS3202 v1.5 0513011-1 = Winbond -5 UTT
CMX512 3200C2PT v1.5 0512148-0 = Winbond -5 Rev B UTT
CMX512-3200C2 XMS3202 v1.1 024968 = Winbond -6 Rev B
CMX512-3200C2 XMS3203 v1.2 0350099 = Winbond -5 Rev C
CMX512-3200C2 XMS3202 v1.2 0336061 = Winbond -5 Rev C
CMX512-3200C2 XMS3202 v5.1 0449107-0 Promos _5 Rev A
CMX512-3200C2PT XMS3202v4.1 0436085-2 = Samsung TCCX
CMX512-3200C2 XMS3202v1.5 0518087-1 = Winbond -5 UTT
CMX512-3200C2PRO XMS3202v2.1 0417007-1 = Winbond -5 Rev C
CMX512-3200C2 XMS3202v5.1 0508039-0 = Promos -5 Rev A
CMX512-3200C2PT XMS3202 v5.1 0508078-0 Promos _5 Rev A
CMX512-3200C2PT XMS3202 v1.2 0345011 = Winbond -5 Rev C
TWINX1024-3200c2 v4.2 0502061-3 = Samsung Rev F TCCD
TWINX1024-3200c2 v4.2 0508022-5 = Samsung Rev F TCCD
CMX512-3200C2 XMS3202v1.1 0305022 = Winbond -6 Rev B
CMX512-3200C2 xms3202v1.1 0251046 = Winbond -6 Rev B
CMX512-3200C2PT XMS3202v1.5 0516010-0 = Winbond -5 UTT
CMX512-3200C2PT XMS3202v4.2 0521081-3 = Samsung -5 TCCX
TWINX1024-3200C2PT v4.1 0438121-1 = Samsung TCCD
CMX512-3200C2PT XMS 3202C2V4.3 0515054-0 = Data Incomplete but most likely Promos -5
CMX512-3200C2PT XMS3202V1.5 0513011-1 = Winbond -5 UTT
CMX512-3200C2PT XMS3202v4.2 0521100-2 = Samsung -5 TCCX
CMX512-3200C2 XMS3202 v4.2 Lot 0511106-1 = Samsung -5 TCCX
CMX256A-3200C2 v6.1 0505117-1 = Mosel Vitelic -5 Rev A
CMX512-3200C2PT XMS3202v3.1 0425056-1 = Infineon -5
CMX512-3200C2 XMS3202v1.4 0515126-0 = Mosel Vitelic -5 Rev A
CMX512-3200C2 XMS3202v1.4 0513010-1 = Mosel Vitelic -5 Rev A
CMX512-3200C2PRO XMS3208V4.1 0436131-2 = Samsung TCCD
CMX512-3200C2 3202V5.1 0503125-0 = Promos -5 Rev A
CMX512-3200C2PT XMS3202v1.5 0513087-0 = Winbond -5 Rev B UTT
CMX512 3200C2PT XMS 3202 V4.1 0436079-21 = Samsung TCCD
CMX512-3200C2 XMS3202v3.1 0428010-2 = Infineon -5
CMX512-3200C2 XMS3202 v4.3 0509105-1 = Samsung -5 TCCD
CMX512-3200C2 XMS3202 V1.2 0403040 = Winbond -5 Rev C
CMX512-3200C2 XMS3202 v3.1 0427103-1 = Infineon -5
CMX512-3200C2 XMS3202v 1.5 0514010-0 = Winbond -5 UTT
CMX512-3200C2 XMS3202v 1.5 0518063-2 = Winbond -5 UTT
CMX512-3200C2 XMS3202v 4.3 #0515001-0 = Samsung -5 TCCX
CMX512-3200C2 XMS3202v 1.5 0518087-1 = Winbond -5 UTT
CMX512-3200C2 XMS3202v 2.2 0320021 = Winbond -5 Rev C
CMX512-3200C2PT XMS3202v 4.1 0438121-2 = Samsung -5 TCCD
CMX512-3200C2PT XMS3202v 1.2 0347085 = Winbond -6 Rev C
CMX256A-3200LL XMS3205 v1.1 0314040 = Winbond -5 Rev B
CMX512RE-3500LLPT 1.1 0404056 = Winbond -5 Rev C
CMX256-3200LL XMS3205v1.2 0321069= Winbond -5 Rev C
CMX512RE-3500LL Rev 1.1 0404058-1 = Winbond -5 Rev C
CMX256/512-3200LL XMS3205v1.1 0308022 = Winbond -5 Rev B
CMXSD512-3200LL 0508043-0 = Infineon -5
CMXSD512-3200LL 0449005-7 = Infineon -5
CMX512-3200LLPT v1.2 0331028 = Winbond -5 Rev C
CMX512-3200LLPT XMS3205v1.2 0416056-2 = Winbond -5 Rev C
CMX256A-3200LLPT XMS3205v1.2 0325547 = Winbond -5 Rev C
CMX512-3200LL XMS3205 v1.2 0321068 = Winbond -5 Rev C
CMX512-3200LL XMS3205 v1.2 0403006 = Winbond -5 Rev C
CMX512-3200LLPRO XMS3205V.1.1 0408098 = Winbond -5 Rev C
Twinx512-3200LLPT XMS3205 V1.2 0412005-5 = Winbond -5 Rev C
CMX512-3200LLPRO v3.1 0427034-2 = Samsung TCCD
CMX512-3200LL v1.2 0346044 = Winbond -5 Rev C
Twinx512-3200LLPT XMS3205 V3.1 0444035-7 = Samsung -5 TCCD
CMX512-3200XLPT XMS3208 V1.2 0509036-1 Samsung Rev F TCCD
Twinx1024-3200xLPT XMS3208 V1.1 0440046-3 = Samsung -5 TCCD
CMX512-3200XL XMS3208rev 1.2 0516129-1 = Samsung -5 TCCD
CMX512-3200XL XMS3208v 1.1 0433018-1 = Samsung -5 TCCD
CMX256A-3700PT XMS3700 V1.2 0331067 = Samsung -5 TCCC
TWINX512-4000PRO v3.1 0432059-1 = Samsung -5 TCCC
CMX512-4000PRO XMS4000v1.1 0338017 = Hynix -D43
TWINX1024-4000PRO v3.1 0450118-2 = Samsung Rev F TCCC
TWINX1024-4000PRO 0404053 = Hynix -D43
CMX512-4000PT XMS4000v3.4 0526123-1 = Samsung TCCD
CMX512-4000PT XMS4000 v2.1 0404044-11 = Hynix Rev. C
CMX512-4000PT XMS4000 v2.1 0404044-12 = Hynix Rev. C
Corsair ValueSelect VS1GB400C3 - Infineon BE-5
Corsair CMX1024-3200C2 v1.2 - Infineon BE-5
PC4200 ValueSelect 4.0-4-4-11 @ 1.8V / CT2KIT3264AA53E
PC4200 ValueSelect 4.0-4-4-10 @ 1.8V / CT2KIT6464AA53E
PC5400UL TWIN2X 3.0-3-2-8
PC5400C4 Rev 5.2 TWIN2X 4.0-4-4-12
PC6400 TWIN2X 5.0-5-5-12
PC6400C3 TWIN2X 3.0-4-3-9 @ 2.2V
PC8000UL TWIN2X 5.0-4-4-9
PC8500UL TWIN2X 5.0-5-5-15
PC4300C3 TWIN2X 3.0-3-3-8 - Elpida
PC4300C3PRO TWIN2X 3.0-3-3-8 - Elpida
PC5400C4 Rev 1.1 TWIN2X 4.0-4-4-12 - Nanya




CRUCIAL TECHNOLOGY

Crucial Ballistix PC3200 - Micron 5B G
Crucial Ballistix PC4000 - Micron 5B G
Crucial PC3200 - Micron 5B C/Micron 5B G
Crucial Ballistix PC-4000 Z503 - Micron - 4Y/5B D
Crucial Ballistix Tracer - Micron - 4Y/5B D
Crucial Value - Micron - 4Y/5B D
Crucial PC3200 Samsung UCCC ( Submitted by Frostbite )

Crucial Ballistix 1GB (2 x 512MB) 240-Pin DDR2 SDRAM Unbuffered DDR2 1000 (PC2 8000) Dual Channel Kit System Memory

Model #: BL2KIT6464AA1005

Crucial Ballistix 1GB (2 x 512MB) 240-Pin DDR2 SDRAM Unbuffered DDR2 800 (PC2 6400) Dual Channel Kit System Memory

Model #: BL2KIT6464AA804

Crucial Ballistix 1GB (2 x 512MB) 240-Pin DDR2 SDRAM Unbuffered DDR2 667 (PC2 5300) Dual Channel kit System Memory - Retail

Model #: BL2KIT6464AA663

Crucial Ballistix 2GB (2 x 1GB) 240-Pin DDR2 SDRAM Unbuffered DDR2 1000 (PC2 8000) Dual Channel Kit System Memoryl

Model #: BL2KIT12864AA1005

Crucial Ballistix 2GB (2 x 1GB) 240-Pin DDR2 SDRAM Unbuffered DDR2 800 (PC2 6400) Dual Channel Kit System Memory

Model #: BL2KIT12864AA804


GEIL

GeIL Golden Dragon PC3200 - Samsung WLCSP chip package
GeIL Golden Dragon PC3500 - Samsung WLCSP chip package
GeIL Golden Dragon PC3700 - Samsung WLCSP chip package
GeIL Golden Dragon PC4000 - Samsung LCSP chip package
GeIL Ultra Platinum PC3200 - Winbond CH-5/Mosel Vitelic 5ns
GeIL Ultra Platinum PC3500 - Winbond CH-5/Mosel Vitelic 5ns/Winbond UTT BH-5
GeIL Ultra Platinum PC4000 - Hynix D43
GeIL Ultra Platinum PC4200 - Hynix D43
GeIL Ultra Series PC3200 - Winbond BH-6/Samsung TCC5
GeIL Ultra-X PC3200 - Samsung TCCD/Winbond UTT BH-5
GeIL Ultra-X PC4400 - Samsung TCCD
GeIL Value PC3200 Blue - Hynix D43/Hynix D5/Infineon B-5/Winbond UTT BH-5
PC6400 Ultra 800+ 3.0-3-3-8 @ 1.8~2.3V / GX21GB6400PDC / GX22GB6400PDC




G.SKILL

Gskill PC3200 F1-3200BWU2-512MBGH/1GBGH - Winbond UTT BH-5
Gskill PC4000 F1-32005SU2-512LA/1GBLA - Samsung TCC5
Gskill PC4000 F1-32005SU2-512LB/1GBLB - Samsung TCC5
Gskill PC4000 F1-4000PHU2-512LA /1GBLA - Hynix D43/Hynix D5
Gskill PC4400 F1-3200DSU2-512LC/1GBLC - Samsung TCCD
Gskill PC4400 F1-3200DSU2-512LD/1GBLD - Samsung TCCD
Gskill PC4400 F1-3200DSU2-512LE/1GBLE - Samsung TCCD
Gskill PC4400 F1-3200DSU2-512LF/1GBLF - Samsung TCCD
Gskill PC4800 F1-3200DSU2-512LA/1GBLA - Samsung TCCD
Gskill PC4800 F1-3200DSU2-512LB/1GBLB - Samsung TCCD
Gskill PC4800 F1-4800DSU2-512FF/1GBFF - Samsung TCCD
G.Skill F1-3200USU2-2GBHS - Samsung UCCC
G.Skill FX -F1-3200DSU2 Samsung TCCD ( Submitted by Accskyman )
G.Skill F1-3200PHU2-2GBZX - Infineon CE-6
G.Skill F1-4000USU2-2GBHZ UCCC 3-4-4-8 ( Submitted by Slow'Puter )
G.Skill F1-3200USU2-2GBHS UCCC 2.5-3-3-6/3-4-4-8 as read by AMD/Intel systems ( Submitted by Slow'Puter )
G.Skill F1-3200PHU2-2GBNS Infineon BE-5 2.5-3-3-6 ( Submitted by Slow'Puter )
G.Skill F1-4000BIU2-2GBHV Infineon CE-5 3-3-2-8 ( Submitted by Slow'Puter )
PC5400 3.0-4-3-8 @ 2.0~2.2V / F2-5400CL3D-2GBGA
PC6400 3.0-4-3-8 @ 2.2~2.4V / F2-6400CL3D-2GBGA
PC6400 4.0-4-4-12 @ 2.0~2.1V / F2-6400PHU2-2GBHZ
PC8000 5.0-5-5-15 @ 2.2~2.3V / F2-8000PHU2-2GBZX
PC8000 4.0-4-4-5 @ 2.2~2.4V / F2-8000PHU2-2GBHZ
PC8500 4.0-4-4-5 @ 2.4V / F2-8500PHU2-2GBHZ
PC6400 4.0-4-4-12 @ 1.9~2.0V / F2-6400CL4S-2GBPK - Mosel
PC6400 4.0-4-4-12 @ 2.0~2.1V / F2-6400PHU2-2GBZX - Elpida
G.Skill DDR400 F1-3200PHU2-2GBNS -Hynix D43's ( Submitted by txtmstrjoe )




Hynix

PC4200 Value 4.0-4-4-12 / HYMP564U648-C4 AA - Hynix F-C4/Hynix FP-C4
PC4200 Value 4.0-4-4-12 / HYMP564U64P8-C4 AA - Hynix FP-C4
PC4200 Value 4.0-4-4-12 / HYMP512U648-C4 AA - Hynix F-C4




INFINEON

PC4300 Value 4.0-4-4-11 / HYS64T32000HU-3.7-A - Infineon AF-37
PC4300 Value 4.0-4-4-11 / HYS64T32000GU-3.7-A - Infineon AC-37
PC4300 Value 4.0-4-4-11 / HYS64T64000GU-3.7-A - Infineon AC-37



KINGMAX

Kingmax Hardcore PC4000 - Hynix D5


KINGSTON TECHNOLOGY

Kingston HyperX PC 3200 - Winbond BH-5
Kingston HyperX PC 3200AK2 - Winbond CH-5
Kingston HyperX PC 3500 - Winbond BH-5
Kingston HyperX PC2700 - Winbond CH-5/Winbond BH-6/Winbond CH-6/Samsung TCB3
Kingston HyperX PC3000 - Winbond BH-5/Winbond CH-5/Winbond BH-6/Winbond CH-6/Samsung TCB3
Kingston HyperX PC3200K2 - Winbond BH-5
Kingston HyperX PC3200ULK2 - Samsung TCCD
Kingston HyperX PC3500K2 - Winbond CH-5
Kingston HyperX PC4000K2 - Hynix D43/Hynix D5/Samsung TCCC
Kingston HyperX PC4300K2 - Hynix D5
Kingston Ram w/remarked Chips as D328DM-5 - Winbond BH-5
Kingston Ram w/remarked Chips as D328DM-6 - Winbond BH-6
Kingston Ram w/remarked Chips as D328DW-45 - Winbond BH-5/Winbond CH-5
Kingston Ram w/remarked Chips as D328DW-5 - Winbond BH-5
Kingston Ram w/remarked Chips as D328DW-6 - Winbond BH-6
Kingston Value Ram 400Mhz KVR400X64C25 - Winbond BH-5/Winbond CH-5/Hynix
D43/Hynix D5/Samsung TCC5/Micron 5B C/Samsung TCC4/Winbond UTT BH-5/Mosel Vitelic 5ns/Winbond UTT CH-5
Kingston Value Ram PC2700 KVR333X64C25 - Hynix D43/Winbond BH-6/Winbond CH-6/Hynix D5/Winbond AH-6/Micron 5B C/Mosel Vitelic 6ns/Micron 6B
Kingston :KHX3200k2/1G = Winbond BH-5 (Submitted by MjrTom )
Kingston :KHX3200AK2/1G = Samsung TCCD (Submitted by MjrTom )
KINGSTON VALUERAM 128MB,256MB,512MB DDR400 (pre-05): ( Submitted by Gonx )

- CH-5
- BH-5

KINGSTON VALUERAM 128MB,256MB,512MB DDR333 (pre-05 again) ( Submitted by Gonx )

- CH-6
- BH-6
KINGSTON VALUERAM 256MB,512MB (pre march-06) ( Submitted by Gonx )

- UTT BH-5
PC4200 ValueRAM 4.0-X-X-X @ 1.8V / KVR533D2N4 9905260-001.C00LF
PC4200 ValueRAM 4.0-X-X-X @ 1.8V / KVR533D2N4 9905260-001.A00 - Elpida AB-5C-E
PC6400 HyperX 5.0-5-5-15 @ 1.95V / KHX6400D2K2/1G - Infineon AF-3S
PC7200 HyperX 5.0-5-5-15 @ 2.0V / KHX7200D2K2/1G - Infineon AF-3S


MUSHKIN


Early TCCD's were better then newer TCC5's

Mushkin PC2700 (Promo-Build) - Winbond CH-6
Mushkin PC3200 - Winbond BH-5/Samsung TCB3
Mushkin PC3200 (Promo-Build) - Winbond BH-5
Mushkin PC3200 Blue CL2 - Winbond UTT BH-5/Winbond UTT CH-5
Mushkin PC3200 Level II V2 - Samsung TCC5
Mushkin PC3200 Level II - Winbond BH-5/Winbond BH-6
Mushkin PC3200 Level One - Winbond CH-5
Mushkin PC3200 Special 2-2-2 - Winbond BH-6
Mushkin PC3500 Level II - Winbond BH-5
Mushkin PC3500 Level One - Winbond CH-5
Mushkin PC3700 - Samsung TCC5
Mushkin PC4000 - Hynix D43
Mushkin PC4400 - Samsung TCC5
Mushkin XP3200 - TCCD/TCC5
Mushkin HP3200 Redline - UTT-CH
Mushkin XP3500 Redline - UTT-CH
Mushkin XP4000 Redline - UTT CH
Mushkin XP4400 - Samsung TCCD/TCC5
Mushkin XP 4000 - Samsung UCCC
Mushkin Hi-Perf Blue - Infineon BE-5
Mushkin XP 4000 Redline - Infenion CE6

mushkin eXtreme Performance 1GB (2 x 512MB) 240-Pin DDR2 SDRAM Unbuffered DDR2 800 (PC2 6400) System Memory - Retail

Model #: 991472

mushkin eXtreme Performance 2GB (2 x 1GB) 240-Pin DDR2 SDRAM Unbuffered DDR2 800 (PC2 6400) System Memory

Model #: 991473

Mushkin eXtreme Performance 2GB (2 x 1GB) 240-Pin DDR2 SDRAM Dual Channel kit System Memory

Model #: 991382


OC-WEAR

OC-Wear PC3200 TCCD+ Series - Samsung TCCD
OC-Wear PC3200 WB BH 5ns - Winbond UTT BH-5
OC-Wear PC4200 TCCD - Samsung TCCD


OCZ

OCZ DDR PC-3200 Value Winbond Series - Winbond UTT CH-5
OCZ DDR PC4000 - Hynix D43/Hynix D5
OCZ EB DDR PC3200 Platinum Edition - Micron 5B C
OCZ EB DDR PC3500 Platinum Edition - Micron 5B C
OCZ EB DDR PC3700 Platinum Edition - Micron 5B C
OCZ EL DDR PC3200 Gold Edition - Winbond UTT BH-5
OCZ EL DDR PC3200 Gold Edition VX - Winbond UTT CH-5
OCZ EL DDR PC3200 Platinum Edition - Winbond CH-5/Samsung TCB3/Mosel Vitelic 5ns/ProMOS 5ns
OCZ EL DDR PC3200 Platinum Edition rev2 - Samsung TCCD best budget TCCD's and clock to DDR600 in most cases
OCZ EL DDR PC3200 Platinum Edition rev2 (1.1) - Samsung TCC5 best budget TCC5's and clock to DDR600 in most cases
OCZ EL DDR PC3200 Platinum Limited Edition - Winbond BH-6
OCZ EL DDR PC3500 Platinum Edition - Winbond BH-5/Winbond CH-5
OCZ EL DDR PC3500 Platinum Limited Edition - Winbond BH-5
OCZ EL DDR PC3700 Gold Edition rev1 - Samsung TCB3
OCZ EL DDR PC3700 Gold Edition rev2 - Mosel Vitelic 5ns/ProMOS 5ns
OCZ EL DDR PC3700 Gold Edition rev3 - Hynix DT-D5
OCZ EL DDR PC3700 Platinum Edition - Samsung TCCD
OCZ EL DDR PC4000 Gold Edition rev2 - Hynix DT-D5
OCZ EL DDR PC4000 Gold Edition VX - Winbond UTT CH-5
OCZ EL DDR PC4200 - Hynix D43/Hynix D5
OCZ EL DDR PC4400 Gold Edition - Samsung TCCD/Hynix B
OCZ EL DDR PC4800 Platinum Edition - Samsung TCCD/Samsung TCC5
OCZ EL DDR PC5000 Platinum DFI nF4 Special - Samsung TCCD/Samsung TCC5
OCZ PC4000 EL Gold - Samsung UCCC
OCZ PC3200 Platinum Edition - Infineon BE-5
OCZ PC3200 Performance Series - Infineon
OCZ EL DDR PC-4000 Gold Edition 2x1Gb 5002048ELGE-K UCCC 3-4-4-8 ( Submitted by Slow'Puter )
OCZ EB DDR PC-4000 Platinum Edition 2x1Gb 50002048EBPE-K Infineon CE-6 3-3-2-8 ( Submitted by Slow'Puter )
OCZ EL DDR PC-4000 Gold GX XTC 2x1Gb 5002048ELGEGTX-K UCCC 3-4-3-8 ( Submitted by Slow'Puter )
OCZ EL DDR PC-4000 Platinum XTC 2x1Gb 5002048GXTC-K 5B-F 3-3-3-8 ( Submitted by Slow'Puter )
OCZ Platinum Series with Enhanced Bandwidth technology (EB) Dual Channel Kits 1GB (2 x 512MB) 240-Pin DDR2 SDRAM Unbuffered DDR2 800(PC2 6400) System Memory
Model #: OCZ28001024EBDCPE-K
OCZ EB DDR2 PC2-5400 Titanium Dual Channel
1GB Dual Channel Kit P/N-OCZ26671024EBDCTE-K
OCZ DDR2 PC2-8000 Platinum Enhanced Latency Dual Channel
1GB Dual Channel Kit P/N - OCZ210001024ELDCPE-K
OCZ DDR2 PC2-5400 Platinum Enhanced Bandwidth Dual Channel
1GB (2x512) D/C Kit PN – OCZ26671024EBDCPE-K
OCZ DDR2 PC2-4200 Platinum Enhanced Bandwidth Ltd. Revision 2 Dual Channel
1GB (2X512) D/C Kit PN - OCZ25331024EBDCPER2-K
OCZ EB DDR2 PC2-5400 Titanium Dual Channel
2GB Dual Channel Kit P/N-OCZ26672048EBDCTE-K
**OCZ DDR2 PC2-4200 Platinum Enhanced Bandwidth Ltd. Revision 2 Dual Channel
2GB (2X1024) D/C Kit PN - OCZ25332048EBDCPER2-K
**OCZ DDR2 PC2-5400 Platinum Enhanced Bandwidth Dual Channel
2GB (2x1024) D/C Kit PN – OCZ26672048EBDCPE-K
PC4200 Value Series 4.0-4-4-12 @ 1.8V - Elpida AB-5C-E


PATRIOT


PDP PDC5123200+XBLK/PDC1G3200+XBLK - Samsung TCCD


Patriot POWER Series - Winbond UTT

Patriot PC3200 - Infineon CE-6
Patriot PC3200 LL - Infineon BE-5
PC4200XBL 3.0-2-2-4 @ 1.9~2.0V / PDC21G5600+XBLK / PDC22G5600+XBLK
PC5600XBL 4.0-3-3-12 @ 2.0~2.1V / PDC21G5600+XBLK / PDC22G5600+XBLK
PC6400LL 4.0-4-4-12 @ 2.1~2.2V / PDC21G6400+LLK / PDC22G6400+LLK
PC8000LL 5.0-5-5-15 @ 2.1~2.3V / PDC21G8000+LLK / PDC22G8000+LLK
PC8000XBL 4.0-4-4-12 @ 2.2V / PDC21G8000+XBLK / PDC22G8000+XBLK
PC8000EL 5.0-5-5-12 @ 2.1V / PDC21G8000+ELK / PDC22G8000+ELK - Elpida 2B-25A-EL



PQI


PQI Turbo R2 PC4000 - Samsung TCCD
PQI Turbo R3 PC3200 - Samsung TCCD



SAMSUNG

Samsung PC3200 - Samsung TCCC/Samsung TCC4/Samsung UCCC
Samsung PC3700 - Samsung TCC5
Samsung PC4000 - Samsung TCCD
PC4200 Value 4.0-4-4-10 / M378T3253FG0-CD5 - Samsung GCD5
PC5300 Value 5.0-5-5-12 / M378T6553CZ3-CE6 - Samsung ZCE6




SHIKATRONICS



Shikatronics ShikaXram PC4400 - Hynix B


SIMPLE-TECH

SimpleTech Nitro PC3700 - Hynix D43/Hynix D5
SimpleTech Nitro PC4000 - Hynix D5


SUPER-TALENT


SuperTalent PC3500 - Infineon C-5


TEAM GROUP INC

Team Group ASTAK DDR600 PC4800 - Samsung TCCD
PC5300 Xtreem 3.0-3-3-8 @ 1.95~2.3V / TXDD1024M667HC4DC / TXDD2048M667HC4DC
PC6400 Xtreem 4.0-4-4-10 @ 1.95~2.3V / TXDD1024M800HC5DC / TXDD2048M800HC5DC
Team Extreem Poseidon series DDR 400 (2x1Gb) Infineon chips 2-3-2-5 ( Submitted by Slow'Puter )
Team Extreem Cronus M series DDR500 (2x1Gb) 5B-F 3-3-3-8 ( Submitted by Slow'Puter )
Team Extreem Cronus S series DDR500 (2x1Gb) UCCC 3-4-3-8 ( Submitted by Slow'Puter )


TWINMOS



NOTE: TwinMOS just recently decide to switch to Hynix chips on most of their Winbond modules.


Twinmos / TwinMOS DDR400 - Winbond UTT BH-5/Winbond UTT CH-5/PowerChip 5ns - 0.13nm/PowerChip 5ns - 0.11nm
Twinmos / Winbond DDR400 - Winbond BH-5/Winbond CH-5
Twinmos DDR333 - Winbond BH-6/Winbond AH-6/Samsung TCC4/Samsung TCB3
Twinmos M.tec DDR400 - Winbond UTT BH-5/Winbond UTT CH-5/PowerChip 5ns - 0.13nm/PowerChip 5ns - 0.11nm
Twinmos Speed Premium DDR400 - Winbond UTT CH-5/PowerChip 5ns - 0.13nm
Twinmos Speed Premium DDR433 - Winbond UTT BH-5
Twinmos Twinmos Ram /w Sticker ending: 1A4T - Winbond UTT BH-5
Twinmos Twinmos Ram /w Sticker ending: AA4T - Winbond UTT CH-5
Twinmos Twinmos Ram /w Sticker ending: AADT - PowerChip 5ns - 0.13nm
Twinmos Twinmos Ram /w Sticker ending: CADT - PowerChip 5ns - 0.11nm
Twinmos Twister BH-5 DDR400 - Winbond UTT BH-5
Twinmos Twister DDR400 - Hynix D43/Hynix D5/PowerChip WLCSP
Twinmos Twister DDR433 - PowerChip WLCSP
Twinmos Twister DDR466 - Hynix D43/Hynix D5/PowerChip WLCSP
Twinmos Twister DDR500 - Hynix D43/Hynix D5/Samsung TCCC/PowerChip WLCSP
Twinmos TwisterPro PC3200 - Samsung TCCD
Twinmos TwisterPro PC4800 - Samsung TCCD


ULTRA

Ultra Extreme Memory PC3200 DDR 400MHZ - Winbond BH-5/Winbond CH-5



.................................................. .................................................. ..................................




More Info for your liking!




WINBOND INFO




Quote:
BH-5 definitely has the greatest record of overclocking well. It is notorious for holding super tight timings of 2-2-2-5/6 at ~250+Mhz. However, this speed does not come easily. It requires burning in, and extreme voltages to obtain the speeds. The increased production die size of .175 sq.m, rather than 130 sq.m allows for much greater voltage tolerances. CH uses 130 Sq.m.








Understanding DDR Serial Presence Detect (SPD) Table


Quote:

Understanding DDR Serial Presence Detect (SPD) Table



By: DocMemory



Serial Presence Detect (SPD) data is probably the most misunderstood subject in the memory module industry. Most people only know it as the little Eprom device on the DIMM that often kept the module from working properly in the computer. On the contrary, it is quite the opposite. The SPD data actually provide vital information to the system Bios to keep the system working in optimal condition with the memory DIMM. This article attempts to guide you through the construction of an SPD table with "Turbo-Tax" type of multiple choices questions. I hope you will fin the information here interesting and useful.




MICRON IC INFO


ANOTHER GOOD SOURCE OF RAM INFO


MY MAIN SOURCE's


CREDITS + Personal thanks

ericeod
txtmstrjoe
BTK


Enjoy.


Edited by PizzaMan - 11/4/10 at 11:49pm

CPUMotherboardGraphicsRAM
E8400, E8600, 980BE T2RS+, P5E3, TA890FXE 8800GTS's,GTX's,GS,Ultra's,9600GT Lots of D9's and some crap DDR3
Hard DrivePowerCase
Seagate 250GB + 80GB WD for benching TT 875w, Corsair 650TX Custom bench station
  hide details
Reply

CPUMotherboardGraphicsRAM
E8400, E8600, 980BE T2RS+, P5E3, TA890FXE 8800GTS's,GTX's,GS,Ultra's,9600GT Lots of D9's and some crap DDR3
Hard DrivePowerCase
Seagate 250GB + 80GB WD for benching TT 875w, Corsair 650TX Custom bench station
  hide details
Reply
post #2 of 33
Let me give you a few more I have taken notes on:

Team Extreem Poseidon series DDR 400 (2x1Gb) Infineon chips 2-3-2-5
Team Extreem Cronus M series DDR500 (2x1Gb) 5B-F 3-3-3-8
Team Extreem Cronus S series DDR500 (2x1Gb) UCCC 3-4-3-8

G.Skill F1-4000USU2-2GBHZ UCCC 3-4-4-8
G.Skill F1-3200USU2-2GBHS UCCC 2.5-3-3-6/3-4-4-8 as read by AMD/Intel systems
G.Skill F1-3200PHU2-2GBNS Infineon BE-5 2.5-3-3-6
G.Skill F1-4000BIU2-2GBHV Infineon CE-5 3-3-2-8

OCZ EL DDR PC-4000 Gold Edition 2x1Gb 5002048ELGE-K UCCC 3-4-4-8
OCZ EB DDR PC-4000 Platinum Edition 2x1Gb 50002048EBPE-K Infineon CE-6 3-3-2-8
OCZ EL DDR PC-4000 Gold GX XTC 2x1Gb 5002048ELGEGTX-K UCCC 3-4-3-8
OCZ EL DDR PC-4000 Platinum XTC 2x1Gb 5002048GXTC-K 5B-F 3-3-3-8
Back on Intel
(13 items)


CPUMotherboardGraphicsRAM
Q6600 B3 DFI Lan Party P35 UT TR2 8800GTS 320Mb 4x1Gb Corsair Dominator DDR2
Hard DriveOptical DriveOSMonitor
70Gb Raptor + 200Gb Raid 0+1 LiteOn DVD-ROM Vista Home Premium 64 Gateway FPD2275W
KeyboardPowerCaseMouse
MS Internet Keyboard USB P&PC Turbo Cool 1kW Tt Kandalf MS Marblemouse
  hide details
Reply
Back on Intel
(13 items)


CPUMotherboardGraphicsRAM
Q6600 B3 DFI Lan Party P35 UT TR2 8800GTS 320Mb 4x1Gb Corsair Dominator DDR2
Hard DriveOptical DriveOSMonitor
70Gb Raptor + 200Gb Raid 0+1 LiteOn DVD-ROM Vista Home Premium 64 Gateway FPD2275W
KeyboardPowerCaseMouse
MS Internet Keyboard USB P&PC Turbo Cool 1kW Tt Kandalf MS Marblemouse
  hide details
Reply
post #3 of 33
Stickied. Please PM Enterprise or myself if you'd like to add to the list.

CPUMotherboardGraphicsRAM
Q6600 G0 @ 3.42GHz Asus P5K Deluxe XFX 8800 ULTRA 710/2340 2x1Gb Crucial Ballistix Tracers PC2 8500
Hard DriveOSMonitorKeyboard
74Gb Raptor + 750Gb Seagate eSata XP Pro Samsung 226BW 22" LCD Logitech
PowerCaseMouseMouse Pad
Silverstone Zeus 650w N/A Logitech MX-518 Ulti Mat
  hide details
Reply

CPUMotherboardGraphicsRAM
Q6600 G0 @ 3.42GHz Asus P5K Deluxe XFX 8800 ULTRA 710/2340 2x1Gb Crucial Ballistix Tracers PC2 8500
Hard DriveOSMonitorKeyboard
74Gb Raptor + 750Gb Seagate eSata XP Pro Samsung 226BW 22" LCD Logitech
PowerCaseMouseMouse Pad
Silverstone Zeus 650w N/A Logitech MX-518 Ulti Mat
  hide details
Reply
post #4 of 33
Updating majorly. Open to the public.

This will take me a whil so keep checking back for updates.
post #5 of 33
Super Sweet guys, TY for the info. Wish I could rep+ you but since I can't I'll just send out some e-lovin to ya. LOL
A Computer
(13 items)


CPUMotherboardGraphicsRAM
Unlocked X3 710 Gigabyte 790 GX XFX 4850 1 gig version 6 gigs of G. Skill Pi and Crucial Ballistix mixed
Hard DriveOptical DriveOSMonitor
5 x Seagate Sata II -1.64 TB total Phillips SATA DVDR/RW Dual Boot Vista Ultimate 64 bit + Windows 7 Beta Hanns G 22" LCD
PowerCase
Antec NeoPower 650 watt Antec 900
  hide details
Reply
A Computer
(13 items)


CPUMotherboardGraphicsRAM
Unlocked X3 710 Gigabyte 790 GX XFX 4850 1 gig version 6 gigs of G. Skill Pi and Crucial Ballistix mixed
Hard DriveOptical DriveOSMonitor
5 x Seagate Sata II -1.64 TB total Phillips SATA DVDR/RW Dual Boot Vista Ultimate 64 bit + Windows 7 Beta Hanns G 22" LCD
PowerCase
Antec NeoPower 650 watt Antec 900
  hide details
Reply
post #6 of 33
Aww thanks lol. Well I am adding finishing touches and there will be more info likely tommorow.
post #7 of 33
Update now complete. I will also have this copied to the Intel memory section.

Thanks.
post #8 of 33
I am pleased to announce that this thread has been updated 27.01.2008

Thank you BTK for all your help
post #9 of 33
If you have any suggestions please just say !
post #10 of 33
Any word on what chips the Geil Evo One kits use? You say to avoid Elpida, but the Black Dragon series uses them, and supposedly the Evo One kits are the same chips as the Black Dragon only with a fancy heatspreader. I've heard a lot of good things about the Evo One RAM (8-layer PCB, low voltage, etc.) and I'm interested in picking up a good 2x2GB kit, but if Geil is still using Elpida, I'll probably stick with Ballistix just to stay on the safe side.
New Posts  All Forums:Forum Nav:
  Return Home
  Back to Forum: Memory
Overclock.net › Forums › Components › Memory › List of DDR3/DDR2/DDR IC Chips on various RAM brand Modules (Updating 28/01/08)
