Lapping your CPU and Heatsink

post #1 of 181
Thread Starter
ATTENTION: If anyone has anything to add please do. Respect is a must. I won’t put up with disrespectful people and you will be reported.

UPDATE: I will be adding real photos in the near future to better demonstrate my process.

Lapping Kit

Lapping your CPU and Heatsink any make or model

Materials you will need.

Misc: Cotton rags, Rubbing alcohol/Isopropyl alcohol 90%-97% Walgreen’s or Wal-Mart will carry this.

Aluminum Oxide Sandpaper: Grits ranging from 400 to 2500 depending. Normally 400 to 1500 will do. It’s really how far you feel you should go. This can be purchased at any automotive store. I would suggest 4 sheets per grit. So if you want to lap both CPU and Heatsink, then you would need 8 sheets total for each grit.

Product search

Oil: 3in1 oil will work just fine and this can be purchased almost anywhere. Grocery store, drug store…etc

Metal Polish & cloth: I would suggest a high grade metal polish, but the cheaper metal polishes will work. As far as polishing cloth the cotton rags will work fine, but if you want or feel you need the pricey stuff it’s up to you.

Product search

Poduct search

Glass base: ¼ inch thick piece of glass measuring 6x6 inch or 8x8 inch will be just fine. You really do not need to go any bigger. The reason to use a glass base to lap on is the fact that it is perfectly flat and that is exactly what you want.

Tape: Pretty much any tape will do, gift wrap tape/painters tape. Painters tape is probably better.


Starting


Take a Black Sharpie marker and either mark an X on the surface to be lapped or you can cover the entire surface. Either way will work.

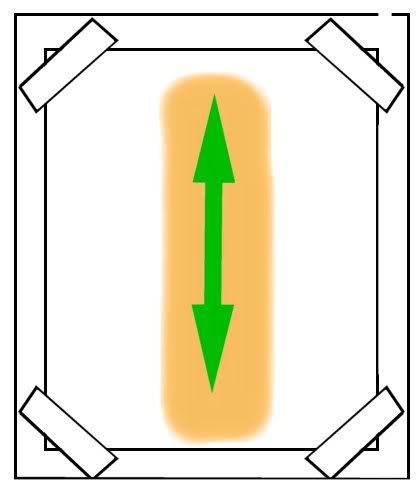

After you have taped the sandpaper down and starting with the lowest grit. You want to start by move the CPU/Heatsink back and forth for a few seconds. Example below

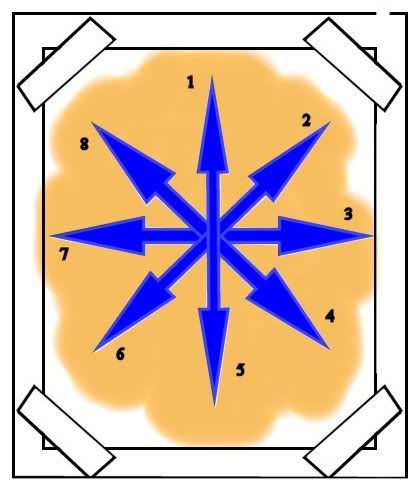

Then rotate the CPU/Heatsink 45 degrees and repeat. Example below



After doing this repeatedly, you will have gone full circle with the CPU/Heatsink. Example below




As the copper starts to build you can now add the oil. Personally I do not add the oil until I reach the 800grit paper. Some people use oil during the entire process. Either way is fine. Just remember when starting on the lower grits “dry” the CPU/Heatsink will want to jump/jitter forward because of the friction.


One important thin to remember is to ALWAYS stay flat. Your hand automatically wants rock back and forth when you sand. Apply even pressure to the CPU/Heatsink, but to not bear down on it or you could damage your parts or even crack the glass.

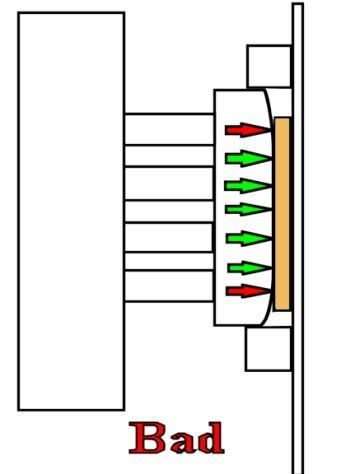

Heatsink: Some people assume just having the middle lapped is fine. That is incorrect. See Examples below. The reason you want both CPU and Heatsink both 100% lapped is to ensure they are both connecting and able to transfer the heat as much as possible. Remember some heatsinks are large and heavy and when mounted onto the CPU they tend to bow the motherboard or lean down. Making sure both are 100% lapped will ensure is does not do this. For those with large heatsinks, it is a good idea to brace/tie down the heatsink so it does not lean down while the PC is standing upright.

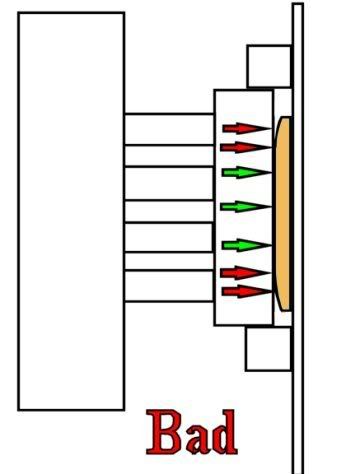

Now if only the middle part is lapped you run the chance of actually having worse temps than when you started and only lapping the CPU or the Heatsink is pointless. Both need to be lapped to drop your temps because neither is perfect from the factory.









Please: Anyone that is experienced please add info or PM me so I can add to this. I am not an expert at this, but I see a lot of people wanting to lap without the knowledge needed. Advise and question are welcome. Rude comments,obnoxious behavior will be reported.

Here is a great tutorial over at DFI boards Picture Tutorial - How to make things shine

Best of luck!

A little help from HatesFury. I will add more and straighten things soon.
Quote:
Originally Posted by HatesFury View Post
Stay with 400 grit until you have a level HSF, the increase in grits is only to incrase smoothness, 400 is what you want to use to remove copper. Look for a pattern to the high spots (such as one side, or one corner). Adjust to correct high spots (apply MORE pressure on the high spot than on the low spot) make a few passes (3-5) and check the level again. Applying more pressure to part of the HSF is going to make drastic changes to it, so you only want to make a few passes then recheck or you'll grind too much off

Every guide i've ever seen tells people to use uniform pressure for lapping. This is true when you're trying to maek the HSF smoother, but not when you're trying to level an uneven HSF. If you're holding uniform pressure on a HSF that has a slop, you're sanding the whole surface at once, which makes the HSF hold the slop. To correct uneven blocks you must apply pressure to the high spots to wear them down, then go to uniform pressure once you've worked the highspot out to get a nice level finish, then you polish. This is more complicated than a simple polish job, and it takes more care.
Master Control
(13 items)


CPUMotherboardGraphicsRAM
Opteron 170 2.9Ghz DFI LANparty NF4 Expert XFX 8800 GT 512Mb + 8600GT 256Mb PhysX Mushkin XP4000 2x1GB RedLine
Hard DriveOptical DriveOSMonitor
Seagate Barracuda 7200.10 ,250GB Memorex / 16x4x16x DVD±RW / 48x24x48x CD-RW / 4x D Windows XP Pro SP3 Acer H233H 1920x1080
KeyboardPowerCaseMouse
Microsoft Pro PC Power & Cooling 750W PowerUp! Microsoft Pro
Mouse Pad
old and busted
  hide details
Reply
Master Control
(13 items)


CPUMotherboardGraphicsRAM
Opteron 170 2.9Ghz DFI LANparty NF4 Expert XFX 8800 GT 512Mb + 8600GT 256Mb PhysX Mushkin XP4000 2x1GB RedLine
Hard DriveOptical DriveOSMonitor
Seagate Barracuda 7200.10 ,250GB Memorex / 16x4x16x DVD±RW / 48x24x48x CD-RW / 4x D Windows XP Pro SP3 Acer H233H 1920x1080
KeyboardPowerCaseMouse
Microsoft Pro PC Power & Cooling 750W PowerUp! Microsoft Pro
Mouse Pad
old and busted
  hide details
Reply
post #2 of 181
This would've been really helpful a couple of days ago... I think I messed up my lap, but only time will tell.
post #3 of 181
Thread Starter
Quote:
Originally Posted by Refresh View Post
This would've been really helpful a couple of days ago...
Yeah, Watching all the comments in your thread made me put it together.
Master Control
(13 items)


CPUMotherboardGraphicsRAM
Opteron 170 2.9Ghz DFI LANparty NF4 Expert XFX 8800 GT 512Mb + 8600GT 256Mb PhysX Mushkin XP4000 2x1GB RedLine
Hard DriveOptical DriveOSMonitor
Seagate Barracuda 7200.10 ,250GB Memorex / 16x4x16x DVD±RW / 48x24x48x CD-RW / 4x D Windows XP Pro SP3 Acer H233H 1920x1080
KeyboardPowerCaseMouse
Microsoft Pro PC Power & Cooling 750W PowerUp! Microsoft Pro
Mouse Pad
old and busted
  hide details
Reply
Master Control
(13 items)


CPUMotherboardGraphicsRAM
Opteron 170 2.9Ghz DFI LANparty NF4 Expert XFX 8800 GT 512Mb + 8600GT 256Mb PhysX Mushkin XP4000 2x1GB RedLine
Hard DriveOptical DriveOSMonitor
Seagate Barracuda 7200.10 ,250GB Memorex / 16x4x16x DVD±RW / 48x24x48x CD-RW / 4x D Windows XP Pro SP3 Acer H233H 1920x1080
KeyboardPowerCaseMouse
Microsoft Pro PC Power & Cooling 750W PowerUp! Microsoft Pro
Mouse Pad
old and busted
  hide details
Reply
post #4 of 181
GREAT im gonna order a lapping kit tonight +rep
Gaming
(13 items)

Alienware M15x
(13 items)


CPUMotherboardGraphicsRAM
3570K 4.0Ghz Asrock Z77 Extreme4 MSI 7870 Twin Frozr OC G.SKILL Sniper Series 8GB 1866
Hard DriveCoolingOSMonitor
SAMSUNG Spinpoint F3 HD103SJ 1TB COOLER MASTER Hyper 212 EVO Windows 7 x64 Pro Dell UltraSharp U2412M E-IPS
PowerCaseMouseMouse Pad
SeaSonic M12II 620 Bronze 620W COOLER MASTER Storm Enforcer Razr Deathadder Razer Goliathus
Audio
Fiio E10
CPUGraphicsRAMHard Drive
i7 720QM Ati Mobility 5850 4GB DDR1333 500Gb
OSMonitorMouseMouse Pad
Windows 7 Pro x64 15.6 1920x1080 Deathadder Goliathus
  hide details
Reply
Gaming
(13 items)

Alienware M15x
(13 items)


CPUMotherboardGraphicsRAM
3570K 4.0Ghz Asrock Z77 Extreme4 MSI 7870 Twin Frozr OC G.SKILL Sniper Series 8GB 1866
Hard DriveCoolingOSMonitor
SAMSUNG Spinpoint F3 HD103SJ 1TB COOLER MASTER Hyper 212 EVO Windows 7 x64 Pro Dell UltraSharp U2412M E-IPS
PowerCaseMouseMouse Pad
SeaSonic M12II 620 Bronze 620W COOLER MASTER Storm Enforcer Razr Deathadder Razer Goliathus
Audio
Fiio E10
CPUGraphicsRAMHard Drive
i7 720QM Ati Mobility 5850 4GB DDR1333 500Gb
OSMonitorMouseMouse Pad
Windows 7 Pro x64 15.6 1920x1080 Deathadder Goliathus
  hide details
Reply
post #5 of 181
Thread Starter
Quote:
Originally Posted by shizdan View Post
GREAT im gonna order a lapping kit tonight +rep
great! Hopefully some more folks that have experience will start posting and help out.

Post some pic's when you start.
Master Control
(13 items)


CPUMotherboardGraphicsRAM
Opteron 170 2.9Ghz DFI LANparty NF4 Expert XFX 8800 GT 512Mb + 8600GT 256Mb PhysX Mushkin XP4000 2x1GB RedLine
Hard DriveOptical DriveOSMonitor
Seagate Barracuda 7200.10 ,250GB Memorex / 16x4x16x DVD±RW / 48x24x48x CD-RW / 4x D Windows XP Pro SP3 Acer H233H 1920x1080
KeyboardPowerCaseMouse
Microsoft Pro PC Power & Cooling 750W PowerUp! Microsoft Pro
Mouse Pad
old and busted
  hide details
Reply
Master Control
(13 items)


CPUMotherboardGraphicsRAM
Opteron 170 2.9Ghz DFI LANparty NF4 Expert XFX 8800 GT 512Mb + 8600GT 256Mb PhysX Mushkin XP4000 2x1GB RedLine
Hard DriveOptical DriveOSMonitor
Seagate Barracuda 7200.10 ,250GB Memorex / 16x4x16x DVD±RW / 48x24x48x CD-RW / 4x D Windows XP Pro SP3 Acer H233H 1920x1080
KeyboardPowerCaseMouse
Microsoft Pro PC Power & Cooling 750W PowerUp! Microsoft Pro
Mouse Pad
old and busted
  hide details
Reply
post #6 of 181
Hi, welldone. I just went into supermarket to purchase sandpaper and a glas for a lap job and I only needed to guide to do it. As I now found it, I can start. Thx a lot for this well-structured guide. +rep.

I've got a question though, what kind of oil can I use as I'm not sure what this 3in1 oil is(I'm not from the US and a non-native English speaker)?
And is a decent lap job possible with sandpaper grit from 400-1000 or do I need higher one's as well?


thx in advance


luk
My System
(13 items)


CPUMotherboardGraphicsRAM
Intel Core 2 Quad Q6600 Gigabyte GA-P35-DS3R Asus 8800GT Crucial Ballistix 2x1GB Kit, DDR2-800, CL4-4-4-12
Hard DriveOptical DriveOSMonitor
Samsung HD501LJ, T166, 7200rpm, 16MB, 500GB, SATA- Samsung WriteMaster SH-S203B MS Vista x64 Ultimate 19"
KeyboardPowerCaseMouse
Logitech standard Corsair CMPSU-620HXEU Antec Case Performance One P182 Logitech MX518
Mouse Pad
woooooood
  hide details
Reply
My System
(13 items)


CPUMotherboardGraphicsRAM
Intel Core 2 Quad Q6600 Gigabyte GA-P35-DS3R Asus 8800GT Crucial Ballistix 2x1GB Kit, DDR2-800, CL4-4-4-12
Hard DriveOptical DriveOSMonitor
Samsung HD501LJ, T166, 7200rpm, 16MB, 500GB, SATA- Samsung WriteMaster SH-S203B MS Vista x64 Ultimate 19"
KeyboardPowerCaseMouse
Logitech standard Corsair CMPSU-620HXEU Antec Case Performance One P182 Logitech MX518
Mouse Pad
woooooood
  hide details
Reply
post #7 of 181
Thread Starter
hey Luk, Here is a pic of the 3-in-1 oil



I do not believe America is the only place to by it, basically any standard household oil/lubricant.

as far as grits,I would suggest a minimum of 1500 grit. You not just trying to get it flat but also the little scratches/dips in the surface of the CPU and Heatsink that are hard to see with the eye. The more contact the better. Good luck and post as many questions as you want=)
Master Control
(13 items)


CPUMotherboardGraphicsRAM
Opteron 170 2.9Ghz DFI LANparty NF4 Expert XFX 8800 GT 512Mb + 8600GT 256Mb PhysX Mushkin XP4000 2x1GB RedLine
Hard DriveOptical DriveOSMonitor
Seagate Barracuda 7200.10 ,250GB Memorex / 16x4x16x DVD±RW / 48x24x48x CD-RW / 4x D Windows XP Pro SP3 Acer H233H 1920x1080
KeyboardPowerCaseMouse
Microsoft Pro PC Power & Cooling 750W PowerUp! Microsoft Pro
Mouse Pad
old and busted
  hide details
Reply
Master Control
(13 items)


CPUMotherboardGraphicsRAM
Opteron 170 2.9Ghz DFI LANparty NF4 Expert XFX 8800 GT 512Mb + 8600GT 256Mb PhysX Mushkin XP4000 2x1GB RedLine
Hard DriveOptical DriveOSMonitor
Seagate Barracuda 7200.10 ,250GB Memorex / 16x4x16x DVD±RW / 48x24x48x CD-RW / 4x D Windows XP Pro SP3 Acer H233H 1920x1080
KeyboardPowerCaseMouse
Microsoft Pro PC Power & Cooling 750W PowerUp! Microsoft Pro
Mouse Pad
old and busted
  hide details
Reply
post #8 of 181
Thats exactly how its done , good info. REP+1

CPUMotherboardGraphicsRAM
OPTERON 175 CCBBE 0617 @ 3.1ghz - 345x9 - 1.42v DFI LANPARTY NF4 DR EXPERT 2x - EVGA 8800GT 512MB {G92} SLI 4 - GB CORSAIR TWINX XMS DDR500 PC4000
Hard DriveOptical DriveOSMonitor
WD6400 AAKS 640GB SONY CDROM R/RW DVD R/RW VISTA BUSINESS {64} VIZIO 37 IN FLAT SCREEN LCD
KeyboardPowerCaseMouse
Logitech Wave Wireless ANTEC TRIO 650W /BE750G APC - UPS 750VA ANTEC900 {customized} LOGITECH WIRELESS
Mouse Pad
Tigerlicous
  hide details
Reply

CPUMotherboardGraphicsRAM
OPTERON 175 CCBBE 0617 @ 3.1ghz - 345x9 - 1.42v DFI LANPARTY NF4 DR EXPERT 2x - EVGA 8800GT 512MB {G92} SLI 4 - GB CORSAIR TWINX XMS DDR500 PC4000
Hard DriveOptical DriveOSMonitor
WD6400 AAKS 640GB SONY CDROM R/RW DVD R/RW VISTA BUSINESS {64} VIZIO 37 IN FLAT SCREEN LCD
KeyboardPowerCaseMouse
Logitech Wave Wireless ANTEC TRIO 650W /BE750G APC - UPS 750VA ANTEC900 {customized} LOGITECH WIRELESS
Mouse Pad
Tigerlicous
  hide details
Reply
post #9 of 181
Hi GuardianOdin,

I've already did that lap job, without higher grits than 1000 and without oil but it had an effect on the temps(might gonna redo it anyway).

Here's the link:

http://www.overclock.net/air-cooling...vs-lapped.html


greets luk
My System
(13 items)


CPUMotherboardGraphicsRAM
Intel Core 2 Quad Q6600 Gigabyte GA-P35-DS3R Asus 8800GT Crucial Ballistix 2x1GB Kit, DDR2-800, CL4-4-4-12
Hard DriveOptical DriveOSMonitor
Samsung HD501LJ, T166, 7200rpm, 16MB, 500GB, SATA- Samsung WriteMaster SH-S203B MS Vista x64 Ultimate 19"
KeyboardPowerCaseMouse
Logitech standard Corsair CMPSU-620HXEU Antec Case Performance One P182 Logitech MX518
Mouse Pad
woooooood
  hide details
Reply
My System
(13 items)


CPUMotherboardGraphicsRAM
Intel Core 2 Quad Q6600 Gigabyte GA-P35-DS3R Asus 8800GT Crucial Ballistix 2x1GB Kit, DDR2-800, CL4-4-4-12
Hard DriveOptical DriveOSMonitor
Samsung HD501LJ, T166, 7200rpm, 16MB, 500GB, SATA- Samsung WriteMaster SH-S203B MS Vista x64 Ultimate 19"
KeyboardPowerCaseMouse
Logitech standard Corsair CMPSU-620HXEU Antec Case Performance One P182 Logitech MX518
Mouse Pad
woooooood
  hide details
Reply
post #10 of 181
Some people mark their cpu before lapping with marker once all the marker is gone its level and you can work on that mirrior finish
My System
(13 items)


CPUMotherboardGraphicsRAM
Pentium d 820 @ 3.72ghz 50c load GIGABYTE GA-P35-DS3L 7900gtx 2x1gb
Hard DriveOSMonitorPower
Old 80gb seagate Vista 32 bit 20 inch widescreen 5ms responce 650 Watt silverstone
Mouse
g5 gaming mouse
  hide details
Reply
My System
(13 items)


CPUMotherboardGraphicsRAM
Pentium d 820 @ 3.72ghz 50c load GIGABYTE GA-P35-DS3L 7900gtx 2x1gb
Hard DriveOSMonitorPower
Old 80gb seagate Vista 32 bit 20 inch widescreen 5ms responce 650 Watt silverstone
Mouse
g5 gaming mouse
  hide details
Reply
