I'm bored so i'm gonna start posting some of my other builds logs into this forum!
Build log for Michael's Antec P182 Build!
Case: Antec P182 Gun Metal Grey
Cooling: CPU on water with a Fuzion, Black Ice 240 and DDC
Modding: Roof mounted 240 rad (external)
PS: yes it's very confusing having 2 incredibly similar builds on at the same time

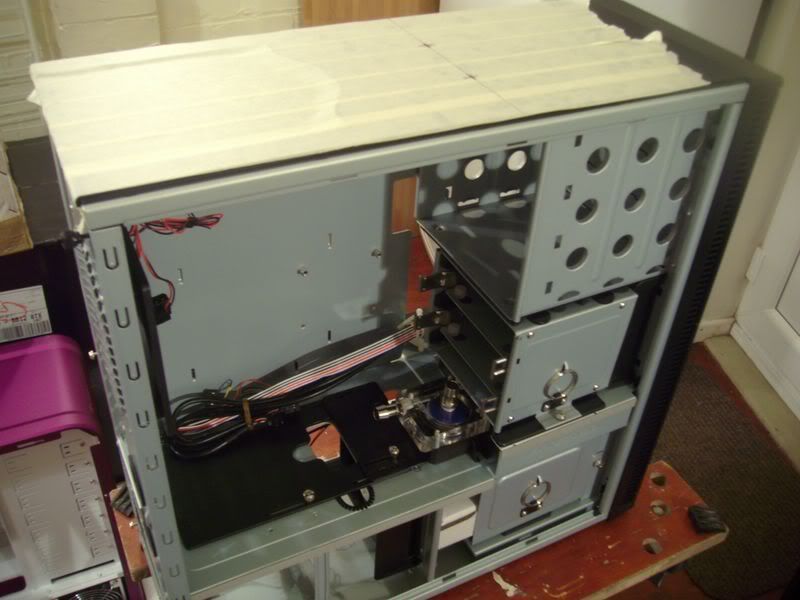

Marking up the holes for cutting

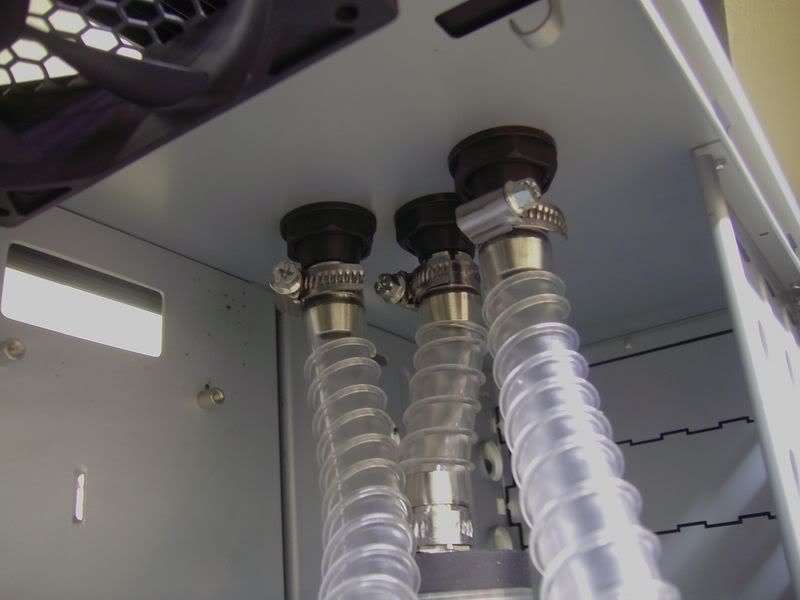

Holes cut using a 4.1mm pilot drill and then in with my 1" hole saw
It took me quite a while to work out the best tubing run for this, I experimented with a Y fitting and an elbow to keep it cleaner but it didn't work.

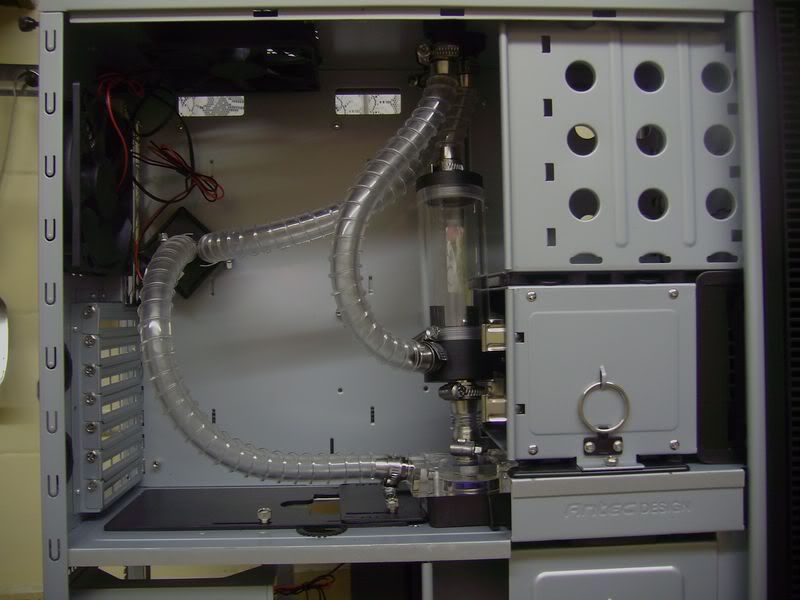

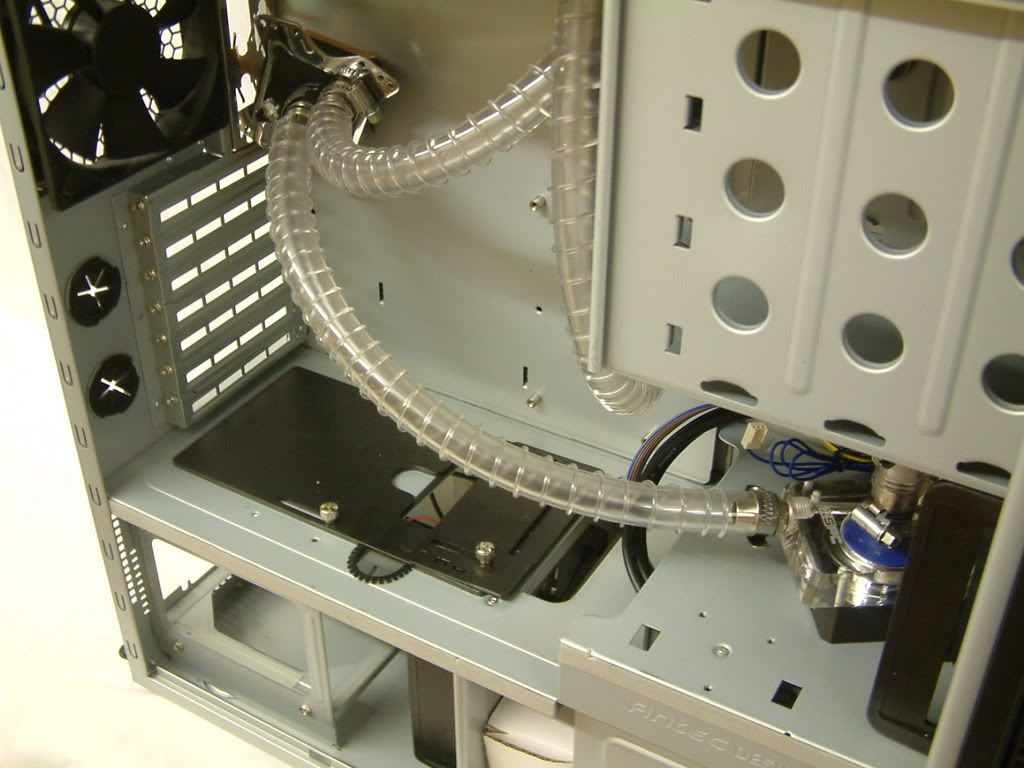

This is what I finished up with, loop order goes:
Pump - CPU - Rad - Res - Pump

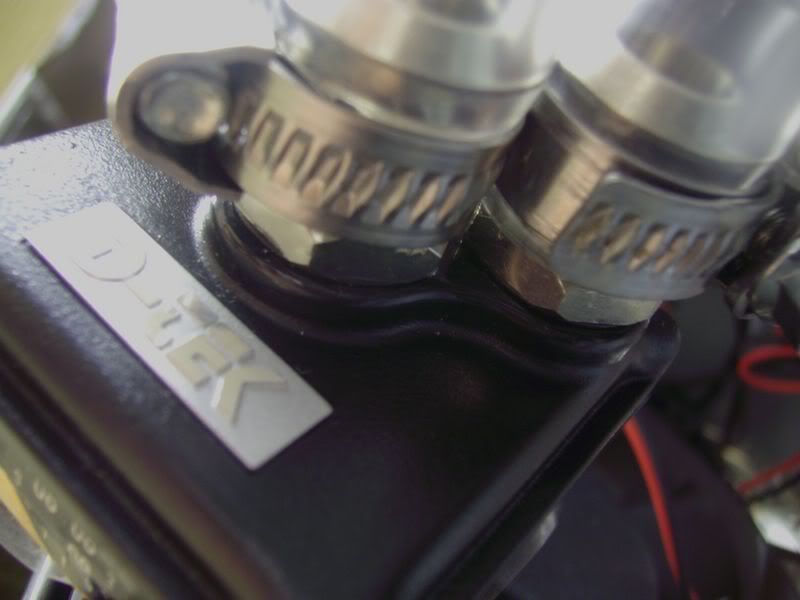

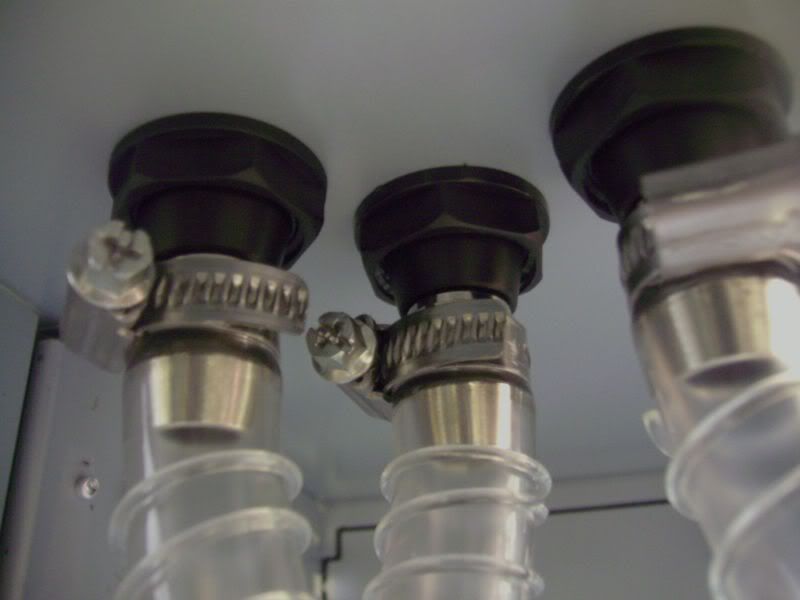

D-Tek Fuzion WITH 1/2" tubing and WITH jubilee clips

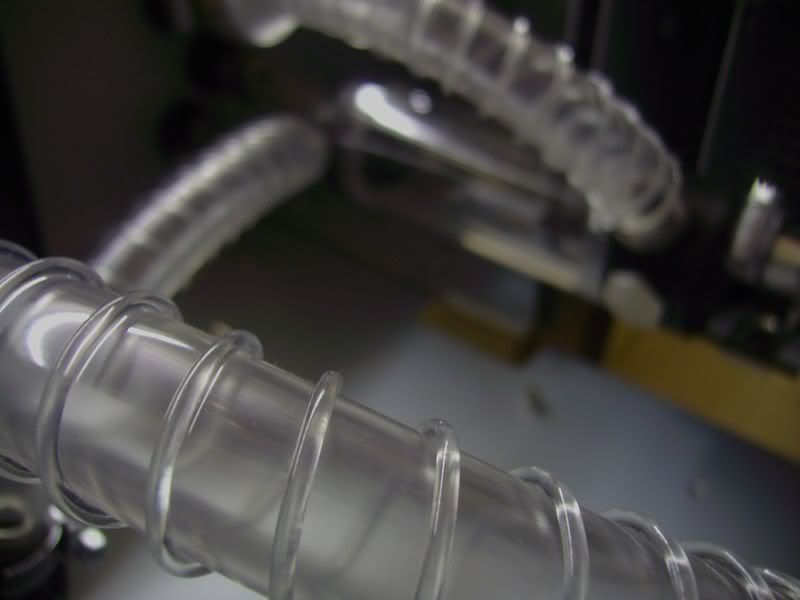

and heres some random arty shots just for the hell of it all
--
OMG... this camera actually does kill mine!! I cant wait to get snaps of the rig with water in now!!
Standard lens
Marco lens + Auto Focus

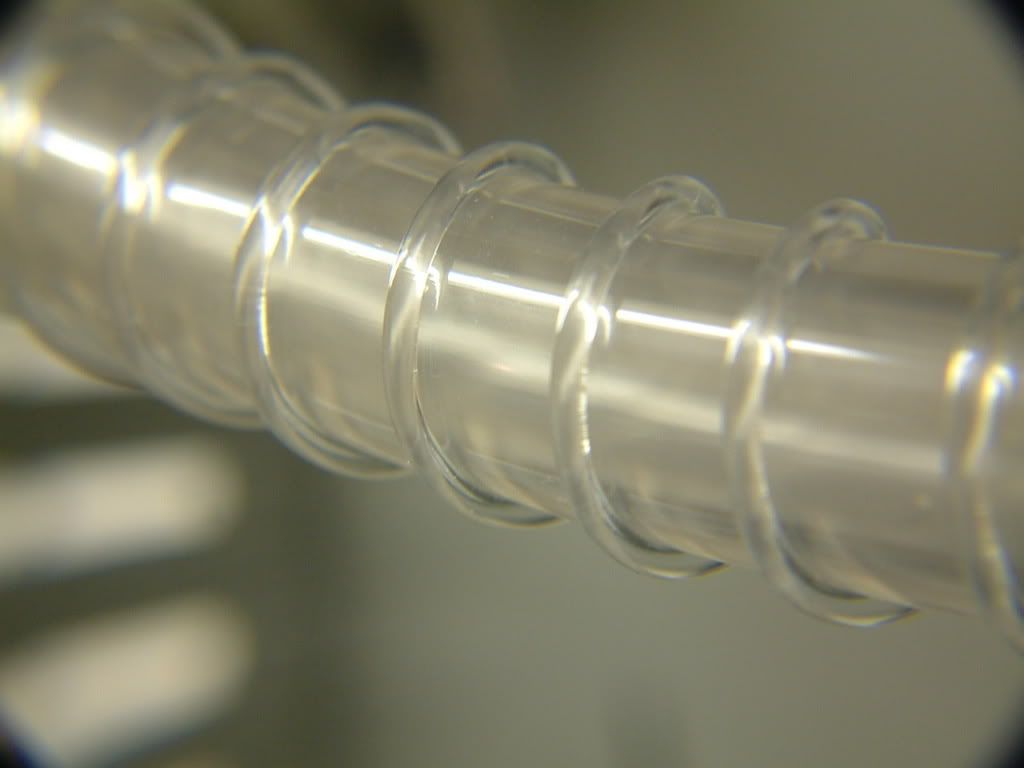

Macro lens and manual focusing
---

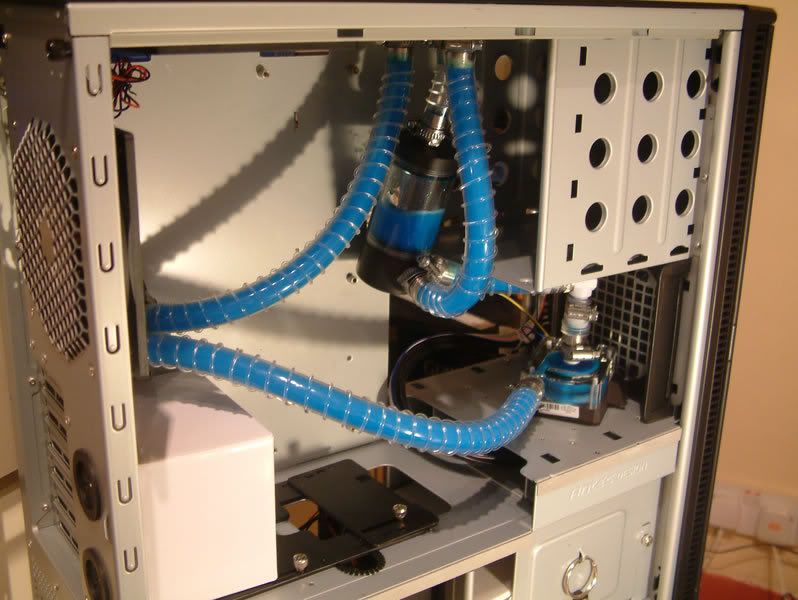

Pic's of it leak testing, and yes i'll be fitting some more coils on the line running from the res to the radiator.
You'll also notice I swapped out the EK 150 for a 100, it looked to big and clumsy in there.
Nice blue
WC porn... WOOOOOO!
Well that's a job well done I think.
