HOW TO: Best $20 NB cooler ever *56K*

post #1 of 30
Thread Starter
Intro Statement:
So I finally sold off my 939 system but was left with my old arctic cooler 64 Pro cooler... no one wanted it because of the extra shipping costs.... so, seeing no other uses for it, it was cannibalized into something you might find kind of nifty

Also, sorry for the bad quality pictures - I have shaky hands and this camera is crazy old

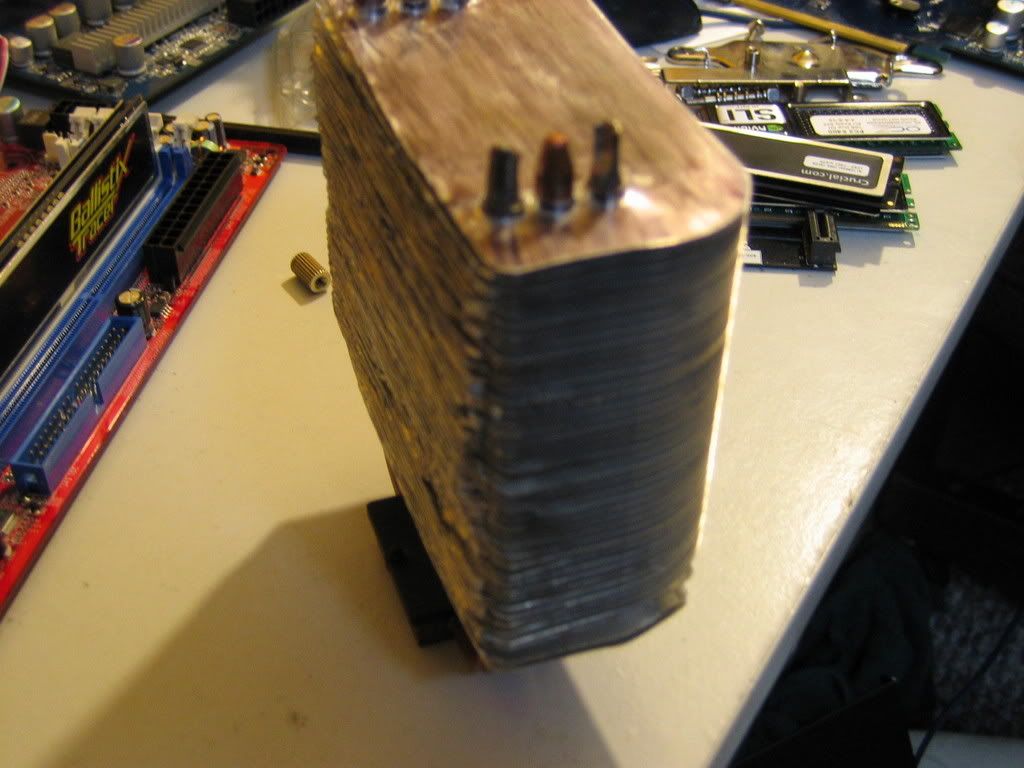

Let's Get Started - The Cooler:

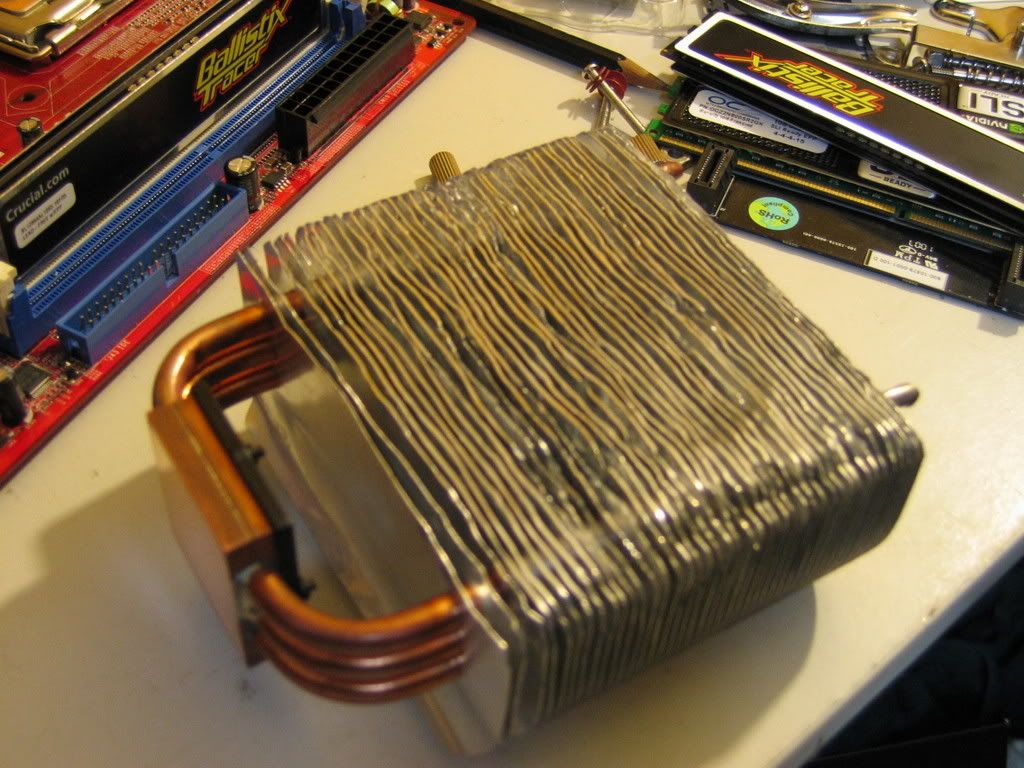

The AC64 Pro's fins were first cut up with tin clippers then sanded down using a belt sander... it was already lapped, but I decided to give it a quick 1500grit polish

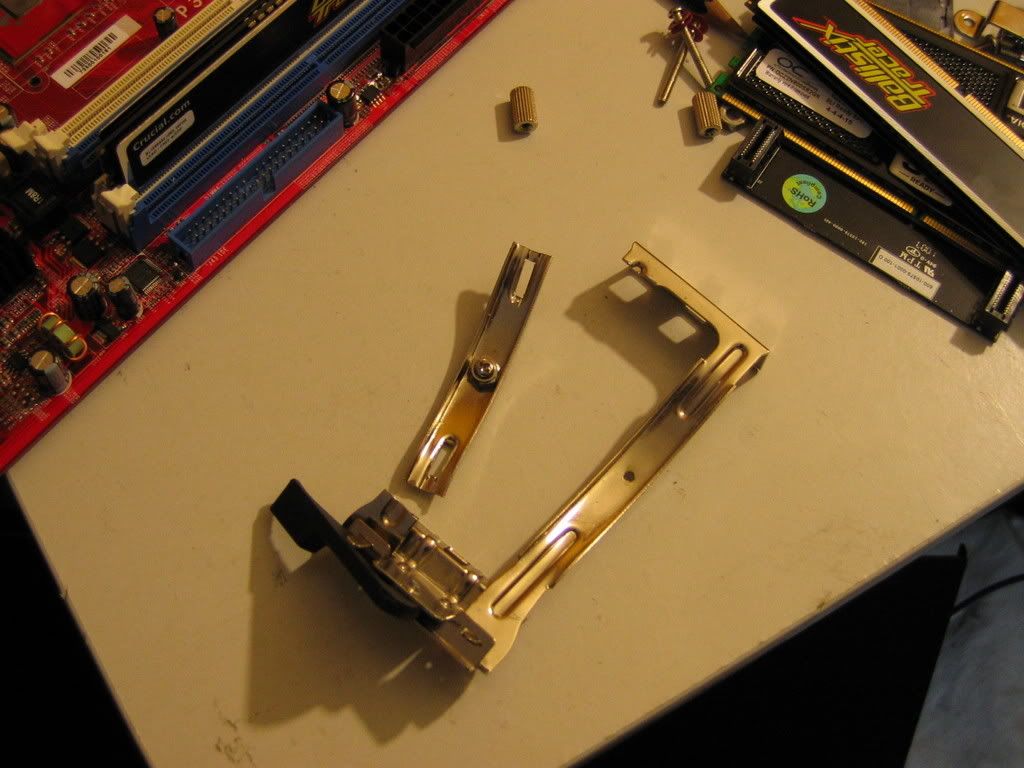

The Retention Mechanism:

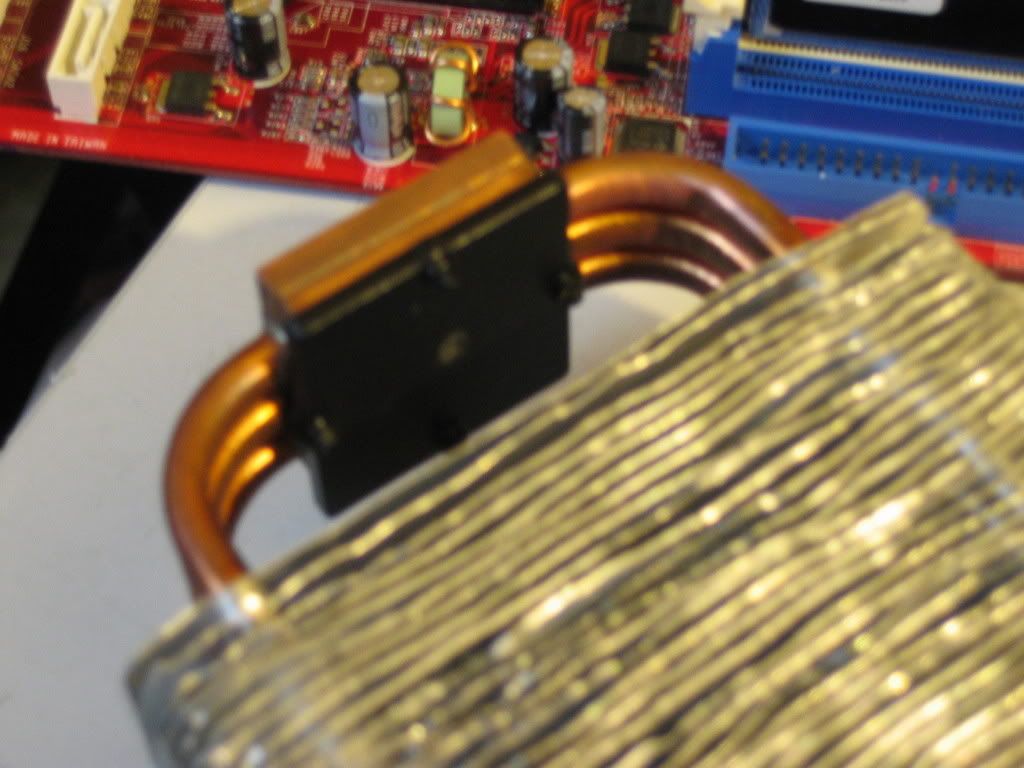

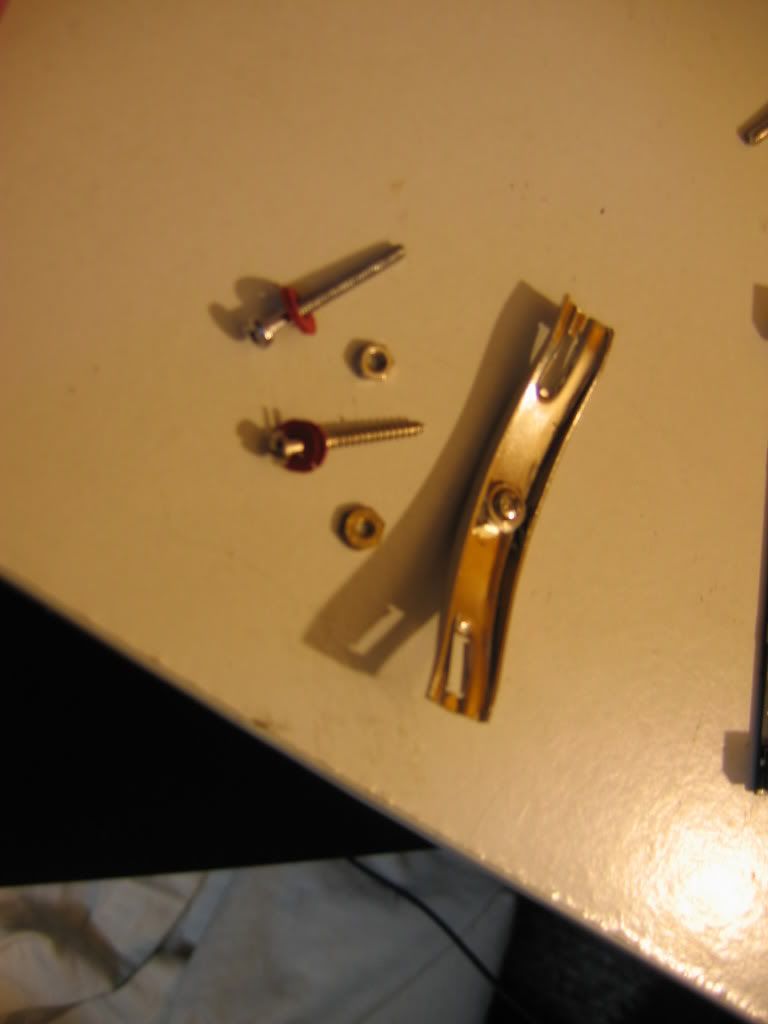

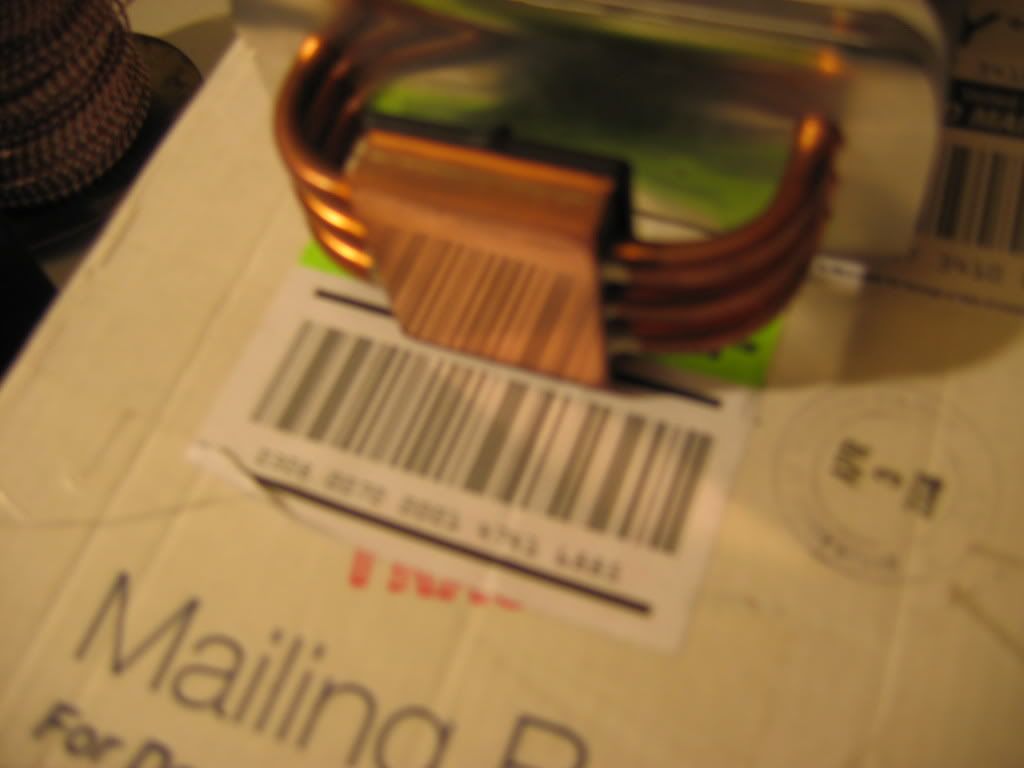

This part took a bit of thinking over... all the items used were found in my home and cost no cash.... the stock 939 retention module was cut up with a dremel: mounting holes, and a screw added to the center... a hole for the screw was cut into the backside of the base of the cooler:







The Mobo:

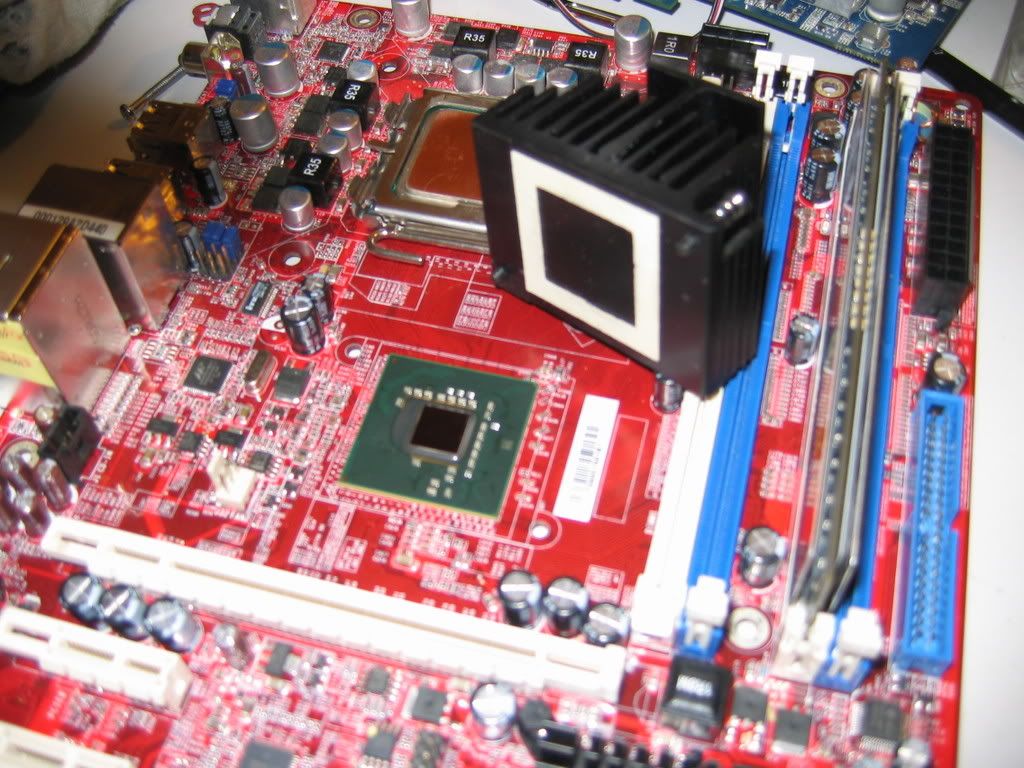

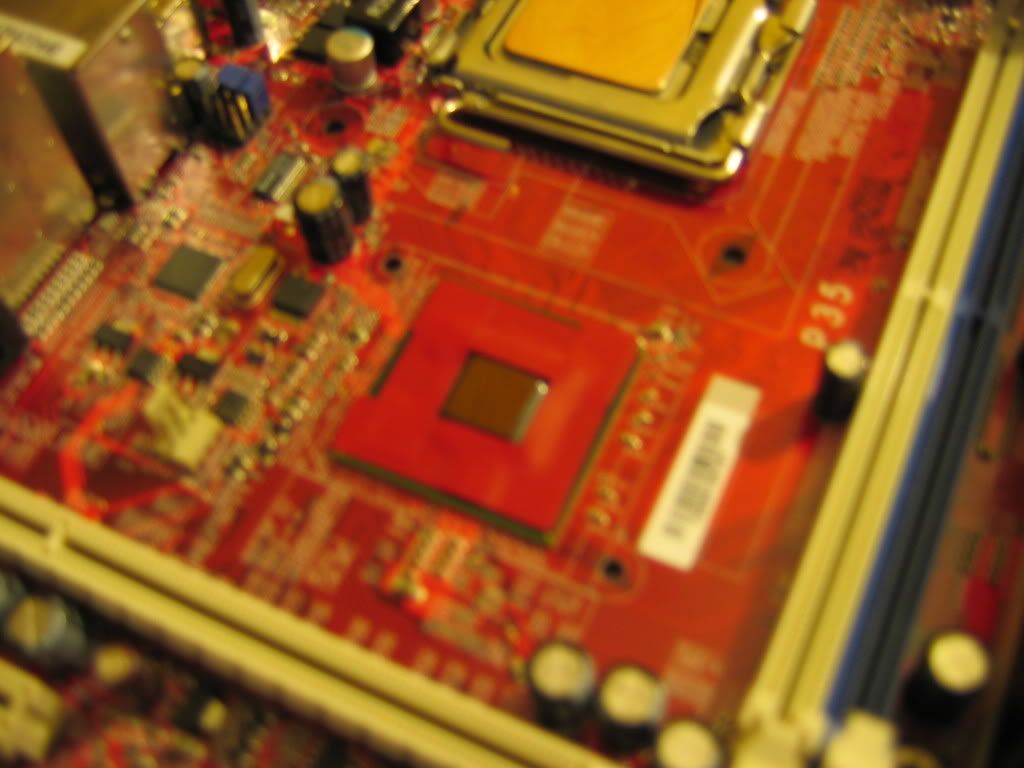

A Blood Iron purchased from Marlaman for $85 (great seller by the way )... The warranty was voided by removing the stock NB cooler (this seemed very silly to me - I thought DFI to be better than that)... the stock compound was cleaned off and the exposed transistors protected from shorting with electrical tape...

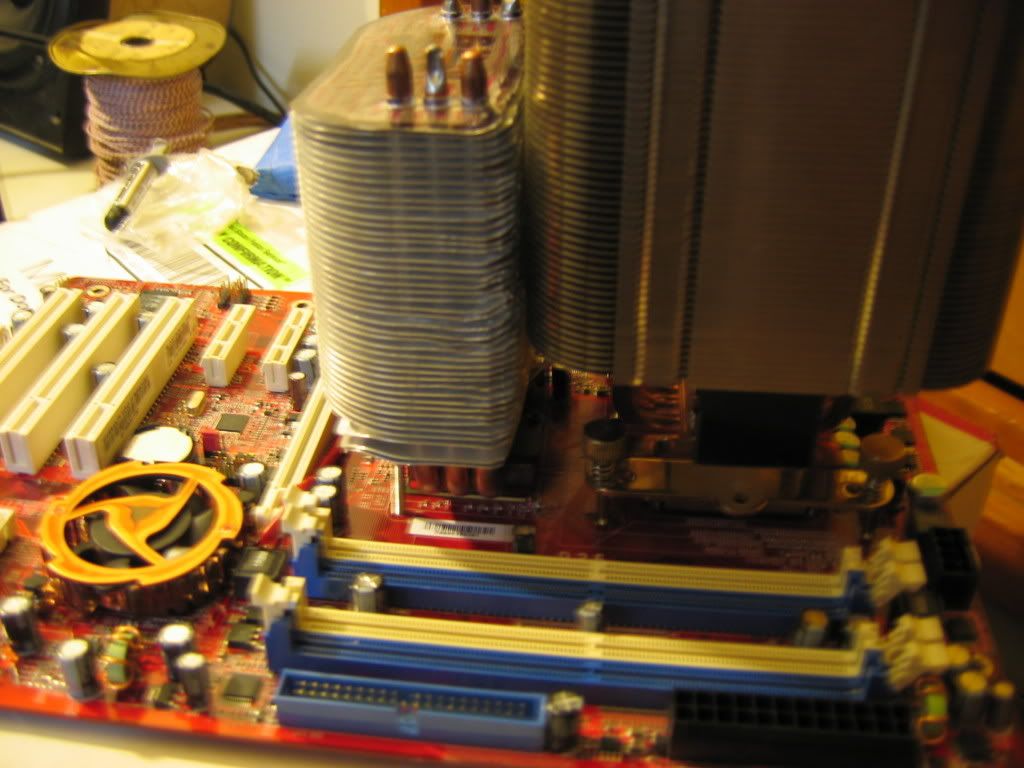

Installation:

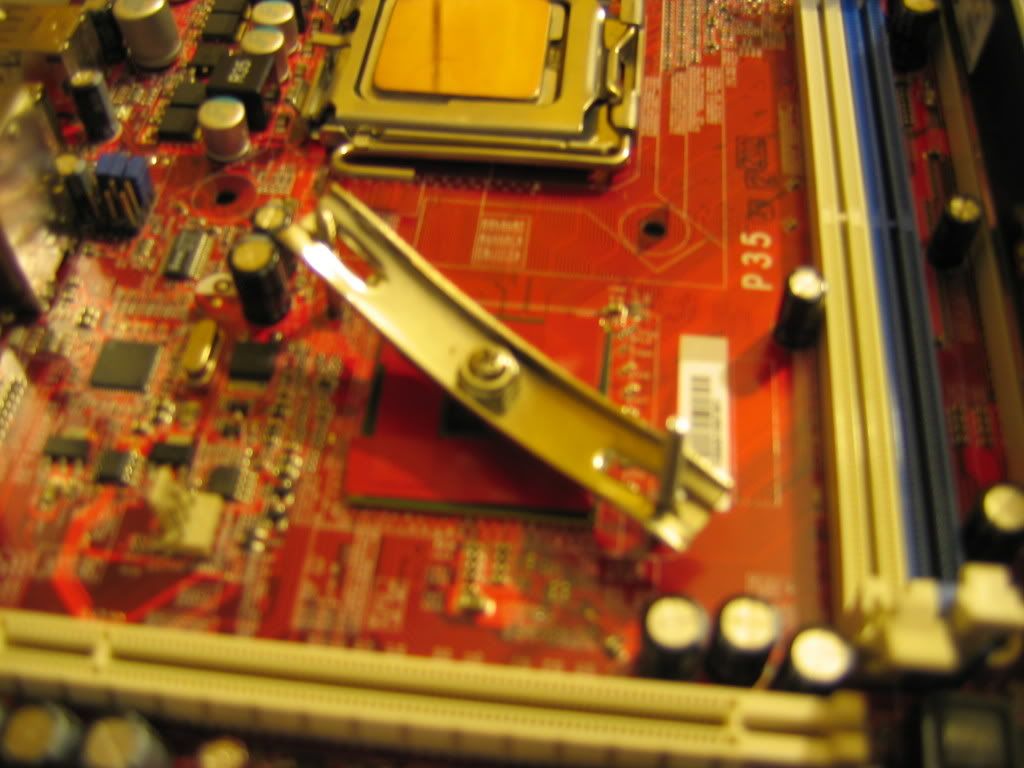

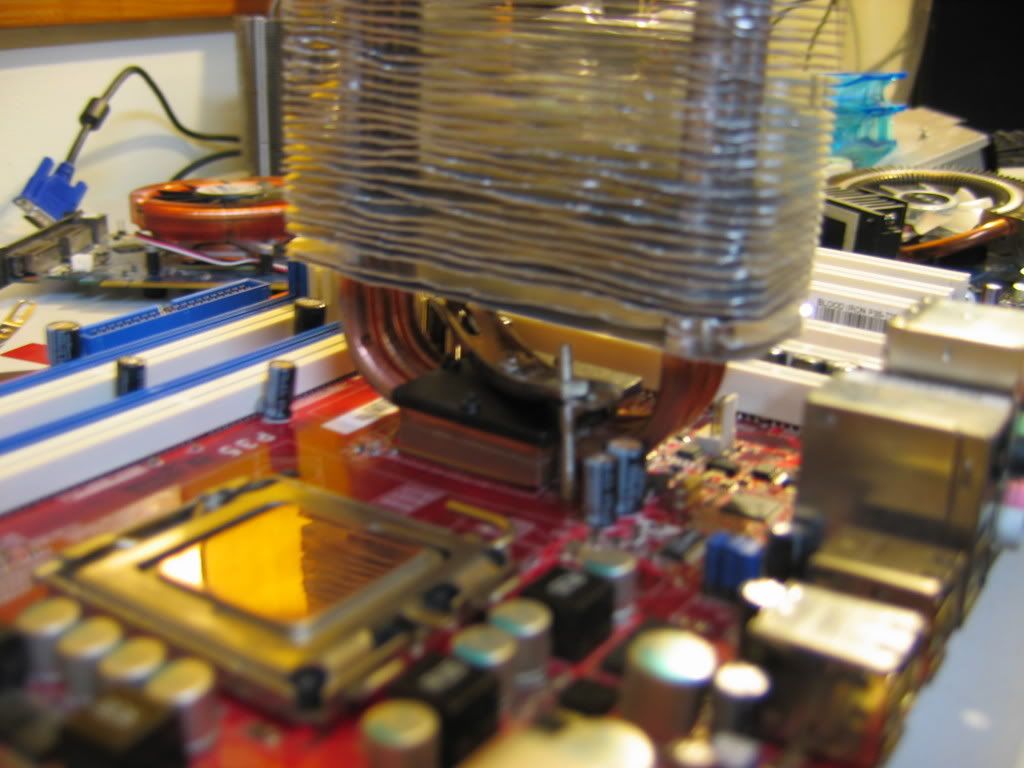

This part was a bit tricky.... it took quite a few goes and a good deal of patience on my part, but it finally got done... the screws I was trying to use were a bit too short so I had to resort to using some HR-05 screws I had lying around:

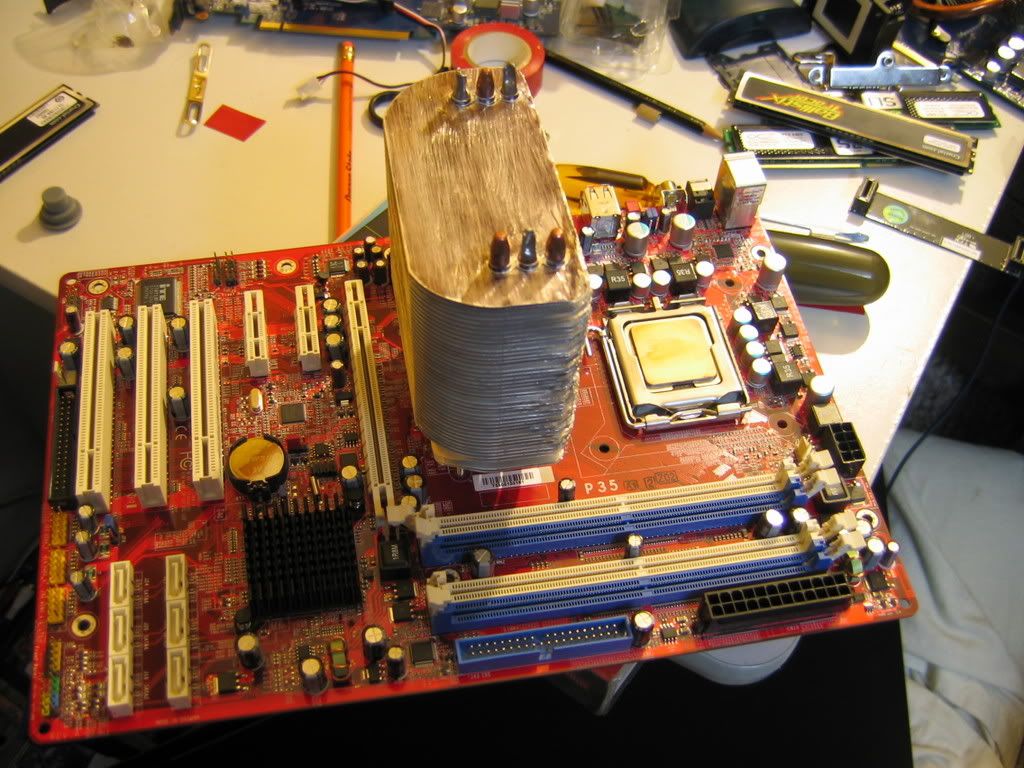

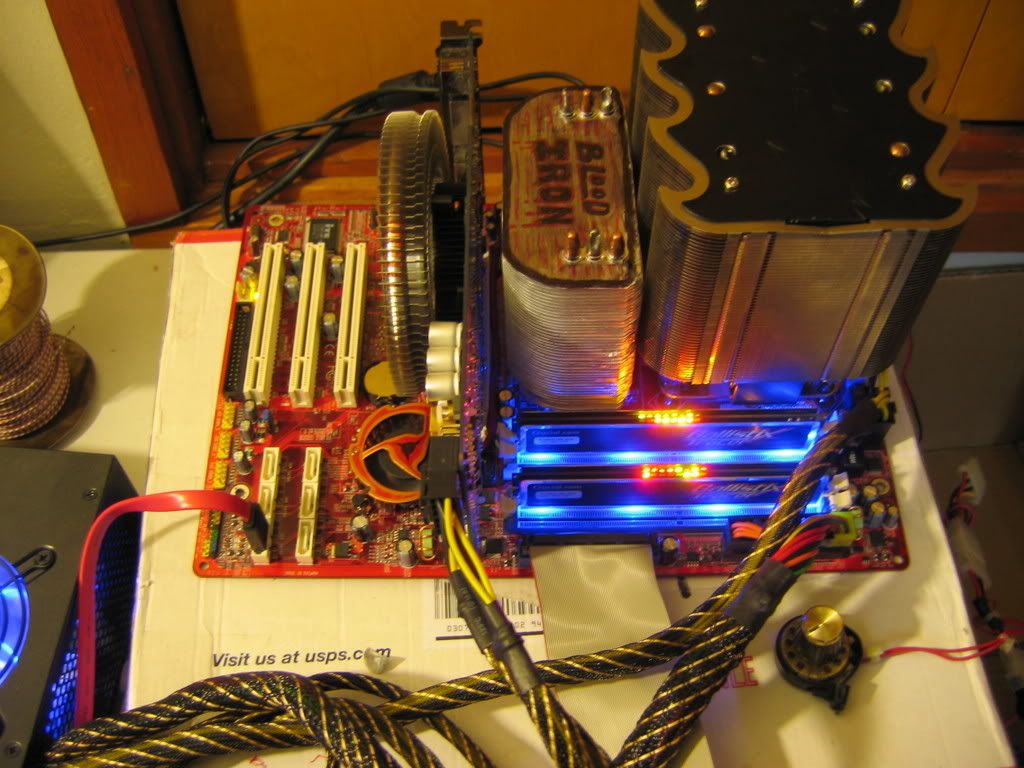

A crappy design I added... never was too good with fonts and my sharpies were blunt as hell (it'll be revised later) The Tuniq also has been installed - with a FM121 on full blast aiming downwards





Boot Up and Check:

I hooked everything up... the processor is my Q6600 (1.28v) - the ram is 2x1GB DDR2-1066 Tracers - the video card is a Galaxy 8800GT... I have yet to load up an OS on this new setup, so the following is only after a minute or two of running in the BIOS

The top most temperature is CPU, followed by PMW area, then the Chipset





Edited by killa_concept - 9/5/09 at 2:30am
post #2 of 30
Wow thats Cool but nb dont get hot on intel chipsets lol
post #3 of 30
That cool, good work. The cooler looks like it was in a garbage disposal tho.
VICE
(19 items)


CPUMotherboardGraphicsRAM
AMD Ryzen 5 1600 ASUS ROG STRIX B350-F GAMING ASUS ROG Strix RX 560 4g OC CORSAIR Vengeance LPX 16GB DDR4-3000
Hard DriveHard DriveHard DriveCooling
Corsair Force MP500 Series M.2 SSD 240GB  256gb Kingston HyperX Savage SSD 240gb Sandisk Extreme SSD  Barrow LTYK3A-04
CoolingCoolingCoolingOS
EK 480mm Radiator 2x XSPC Photon 170 D5 Pump/Res Combos 360mm Swiftech Radiator  Windows 10 64-Bit
MonitorKeyboardPowerCase
Dell UltraSharp U2412M Custom WASD mechanical Evga 750w SuperNOVA G2 CaseLabs Merlin SM8
MouseMouse PadAudio
CM Storm Xornet ROG Asus SupremeFX Realtek 1220
  hide details
Reply
VICE
(19 items)


CPUMotherboardGraphicsRAM
AMD Ryzen 5 1600 ASUS ROG STRIX B350-F GAMING ASUS ROG Strix RX 560 4g OC CORSAIR Vengeance LPX 16GB DDR4-3000
Hard DriveHard DriveHard DriveCooling
Corsair Force MP500 Series M.2 SSD 240GB  256gb Kingston HyperX Savage SSD 240gb Sandisk Extreme SSD  Barrow LTYK3A-04
CoolingCoolingCoolingOS
EK 480mm Radiator 2x XSPC Photon 170 D5 Pump/Res Combos 360mm Swiftech Radiator  Windows 10 64-Bit
MonitorKeyboardPowerCase
Dell UltraSharp U2412M Custom WASD mechanical Evga 750w SuperNOVA G2 CaseLabs Merlin SM8
MouseMouse PadAudio
CM Storm Xornet ROG Asus SupremeFX Realtek 1220
  hide details
Reply
post #4 of 30
Wow those tin snips beat the heck out of that artic cooler, still nice idea.
post #5 of 30
I have an AC7 Pro... hmm...
Rig
(15 items)


CPUMotherboardGraphicsRAM
i7 5820K MSI X99A SLI PLUS EVGA GTX 1070 FTW 4x8GB G.Skill Ripjaws
Hard DriveHard DriveCoolingOS
Samsung 850 Pro Samsung 850 Evo Noctua NH-D15 Windows 10
MonitorKeyboardPowerCase
Dell U2515H Happy Hacking Keyboard 2  EVGA Supernova 750 G2 Corsair 600Q
MouseMouse PadAudio
Logitech G403 Steelseries QcK Mass M-Audio AV40
CPUMotherboardGraphicsRAM
i7 930 @ 3.7 HT Gigabyte X58A-UD3R VisionTek 4870x2 3x4GB's G.Skill Ripjaws 1600
Hard DriveOptical DriveOSMonitor
500GB AAKS, 2x 640GB AAKS, 2x 1TB Samsung SH-S203B Windows 7 Ultimate 64-bit Samsung 245BW
KeyboardPowerCaseMouse
Happy Hacking Keyboard 2 Silverstone OP850 Antec 1200 [Three Nanoxia FX12] [Two San Ace 1011] Logitech G500
Mouse Pad
Razer eXactMat
CPUGraphicsRAMHard Drive
i7 3615QM GT 650M 16GB DDR3 256GB SSD
OS
OS X Mountain Lion
  hide details
Reply
Rig
(15 items)


CPUMotherboardGraphicsRAM
i7 5820K MSI X99A SLI PLUS EVGA GTX 1070 FTW 4x8GB G.Skill Ripjaws
Hard DriveHard DriveCoolingOS
Samsung 850 Pro Samsung 850 Evo Noctua NH-D15 Windows 10
MonitorKeyboardPowerCase
Dell U2515H Happy Hacking Keyboard 2  EVGA Supernova 750 G2 Corsair 600Q
MouseMouse PadAudio
Logitech G403 Steelseries QcK Mass M-Audio AV40
CPUMotherboardGraphicsRAM
i7 930 @ 3.7 HT Gigabyte X58A-UD3R VisionTek 4870x2 3x4GB's G.Skill Ripjaws 1600
Hard DriveOptical DriveOSMonitor
500GB AAKS, 2x 640GB AAKS, 2x 1TB Samsung SH-S203B Windows 7 Ultimate 64-bit Samsung 245BW
KeyboardPowerCaseMouse
Happy Hacking Keyboard 2 Silverstone OP850 Antec 1200 [Three Nanoxia FX12] [Two San Ace 1011] Logitech G500
Mouse Pad
Razer eXactMat
CPUGraphicsRAMHard Drive
i7 3615QM GT 650M 16GB DDR3 256GB SSD
OS
OS X Mountain Lion
  hide details
Reply
post #6 of 30
Sweet, how many times did you run it over with your car?

CPUMotherboardGraphicsRAM
x8 AMD FX 9590 Crosshair Formula V Z Asus R9 390 Strix 8GB G.SKILL DDR3 2400 16GB
Hard DriveCoolingOSMonitor
Enough XSPC CPU block - Phobya pump - Lightech Water T... W 10 Pro 64 Samsung 22'' 2253BW - LG 23'' IPS
KeyboardPowerCaseMouse
Microsoft Natural OCZ Gold z1000 Fatality Thermaltake  Logi MX518
Mouse PadAudio
Aluminum Dell XPS Behringer 192 USB mixer to Presonus Eris E5 stu...
  hide details
Reply

CPUMotherboardGraphicsRAM
x8 AMD FX 9590 Crosshair Formula V Z Asus R9 390 Strix 8GB G.SKILL DDR3 2400 16GB
Hard DriveCoolingOSMonitor
Enough XSPC CPU block - Phobya pump - Lightech Water T... W 10 Pro 64 Samsung 22'' 2253BW - LG 23'' IPS
KeyboardPowerCaseMouse
Microsoft Natural OCZ Gold z1000 Fatality Thermaltake  Logi MX518
Mouse PadAudio
Aluminum Dell XPS Behringer 192 USB mixer to Presonus Eris E5 stu...
  hide details
Reply
post #7 of 30
BRILLANT!!!!!!! i need to do that for my 680i. my NB gets pretty warm
Lurking Ninja
(13 items)


CPUMotherboardGraphicsRAM
Intel Core i7 920 D0 3849B203 4.0GHz/1.164 Evga X58 Classified E759/Koolance X58/BIX 120 TRI SLI GTX 285s.** 6GB 3x2 OCZ Gold 1600mhz
Hard DriveOptical DriveOSMonitor
2x WD3200AAKS (RAID0), 1tb AALS Samsumg Wrigtmaster Sb 204/182 Windows 7 Ultimate X64 Gateway HD2401 24"
KeyboardPowerCaseMouse
Logitech G15 V1 Corsair HX1000W Modded Rocketfish Logitech MX Revolution
Mouse Pad
soft cotton?
  hide details
Reply
Lurking Ninja
(13 items)


CPUMotherboardGraphicsRAM
Intel Core i7 920 D0 3849B203 4.0GHz/1.164 Evga X58 Classified E759/Koolance X58/BIX 120 TRI SLI GTX 285s.** 6GB 3x2 OCZ Gold 1600mhz
Hard DriveOptical DriveOSMonitor
2x WD3200AAKS (RAID0), 1tb AALS Samsumg Wrigtmaster Sb 204/182 Windows 7 Ultimate X64 Gateway HD2401 24"
KeyboardPowerCaseMouse
Logitech G15 V1 Corsair HX1000W Modded Rocketfish Logitech MX Revolution
Mouse Pad
soft cotton?
  hide details
Reply
post #8 of 30
Thread Starter
Quote:
Originally Posted by Xx573v3xX_Z28 View Post
Wow thats Cool but nb dont get hot on intel chipsets lol
I was actually thinking of doing this with my 680i, but it's currently in RMA and I'll be using an IFX-14 on it which kills any space for the NB... this would be perfect for an Antec 900 or CM 690 with a Tuniq or TRUE that's blowing towards the top exhaust

Quote:
Originally Posted by ChrisB17 View Post
That cool, good work. The cooler looks like it was in a garbage disposal tho.
Quote:
Originally Posted by lemans81 View Post
Wow those tin snips beat the heck out of that artic cooler, still nice idea.
Quote:
Originally Posted by porschedrifter View Post
Sweet, how many times did you run it over with your car?
Oh come on guys, get off my back
I sort of attacked it with the tin snips when I got the idea then realized mid-way through that I had full access to all of my technical high school's equipment

The first try is always rough... I'm sure someone will revise this idea and make it look a lot prettier
post #9 of 30
Quote:
Originally Posted by G|F.E.A.D|Killa View Post
BRILLANT!!!!!!! i need to do that for my 680i. my NB gets pretty warm
so does mine i may do this REP+ for having the gonads to pull this stunt off.


ur 1 rep away from 2 Flames
Edited by Xx573v3xX_Z28 - 5/12/08 at 11:42pm
post #10 of 30
Thread Starter
Quote:
Originally Posted by Xx573v3xX_Z28 View Post
so does mine i may do this REP+ for having the gonads to pull this stunt off.


ur 1 rep away from 2 Flames
OMG I wasn't paying attention

I better start trolling the unanswered threads... I just might get 100 rep, 2 flames AND 1337 posts
