How To: Do Radiator Cut-Outs

post #1 of 23
Thread Starter
Theres a few different ways to do this, especially the actual pattern to follow when jigsawing out the main cut-out but this is how I do it.

Some people use a dremel but i've always found a jigsaw to be the best tool for the job.
A Dremel takes forever and a day and I CBA with the Cut-Off discs.

As always, if anyone has any suggestions or finds a mistake please post so I can amend it!


How To: Do Radiator Cut-Outs

Mask up the panel with masking tape to avoid any scratches whilst jigsawing.



Decide where you want the grill to go



Work out where the center of the case is, for this case I drew a line 35mm from the outer edge.



Clamp it and/or tape it down to stop it moving whilst you trace the inside of the grill.



Trace round the inside of the grill and mark out the screw holes with a pencil



Remove the grill and join up any lines



Drill out the fan holes with an M4 or M5 drill bit



I then drill out a load of holes in the middle of the cutout to give me a place to put the jigsaw blade.



ATTENTION:
This is where some people might do it differently, there isn't a right or wrong way to do it.
If someone can suggest a different cut out pattern i'm all ears!






Lets have a look at that bit again on the other side...

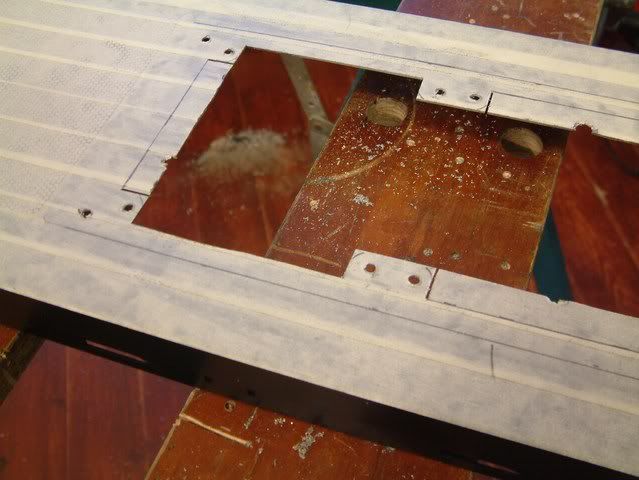

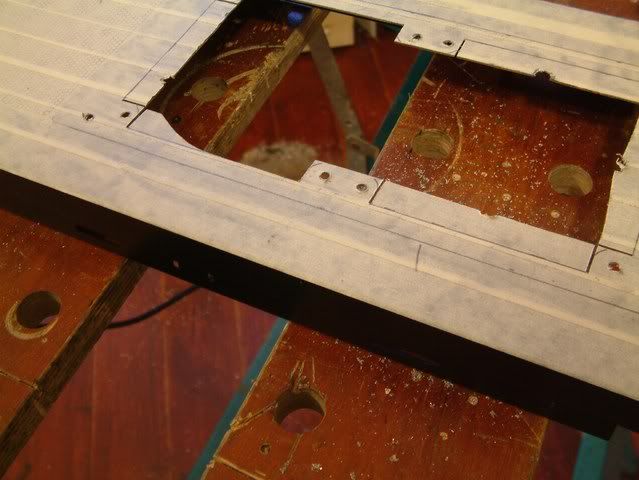

Continue to work all the way around the panel until it's all cut out



Hmm needs filing back a bit...




I still need to go round and file off the corners so it sits under the grill nicely but heres an idea as to how it should look when finished




Now you've got no excuse for not having water cooling!

EDIT: Few pics of it fitted onto a case...





Edited by marcus000 - 5/17/08 at 2:36pm

CPUMotherboardGraphicsRAM
Q6600 Asus P5K3 Leaktek 8800GTS 640Mb 2GB DDR3
Hard DriveOptical DriveOSMonitor
500GB SATA DVD-RW XP 2x 19" Widescreens
KeyboardPowerCaseMouse
Logitech Coolermaster 850W Lasered & Painted Akasa Omega Microsoft Habu
Mouse Pad
Bugs Bunny!
  hide details
Reply

CPUMotherboardGraphicsRAM
Q6600 Asus P5K3 Leaktek 8800GTS 640Mb 2GB DDR3
Hard DriveOptical DriveOSMonitor
500GB SATA DVD-RW XP 2x 19" Widescreens
KeyboardPowerCaseMouse
Logitech Coolermaster 850W Lasered & Painted Akasa Omega Microsoft Habu
Mouse Pad
Bugs Bunny!
  hide details
Reply
post #2 of 23

I don't have anything to cut with, except for a manual saw...
Nice tut though.

CPUMotherboardGraphicsRAM
E8400 GIGABYTE GA-P35-DS3L eVGA 9800GT Stock Speeds GSkill 4GB (2x2GB) PC6400
Hard DriveOptical DriveOSMonitor
Samsung F3 500GB Samsung 22X DVD Drive Windows 7 64-bit 22" Acer x223w
KeyboardPowerCaseMouse
IBM Model M Model 1391401 Antec EarthWatts 500W Troglodytic Tech Terminal Razer Deathadder
Mouse Pad
Steelseries Qck+
  hide details
Reply

CPUMotherboardGraphicsRAM
E8400 GIGABYTE GA-P35-DS3L eVGA 9800GT Stock Speeds GSkill 4GB (2x2GB) PC6400
Hard DriveOptical DriveOSMonitor
Samsung F3 500GB Samsung 22X DVD Drive Windows 7 64-bit 22" Acer x223w
KeyboardPowerCaseMouse
IBM Model M Model 1391401 Antec EarthWatts 500W Troglodytic Tech Terminal Razer Deathadder
Mouse Pad
Steelseries Qck+
  hide details
Reply
post #3 of 23
nice job
Chuckle2Tits
(13 items)


CPUMotherboardGraphicsRAM
Core i7 920 2.66 45nm D0 Foxconn BloodRage x58 EVGA GTX 285 6 GB Corsair Dom. DDR3 1600
Hard DriveOptical DriveOSMonitor
1x300 GB WD Velociraptor Asus 16/48 DVD/CD ROM SATA Windows 7 Pro 64 bit Viewsonic VX2255wmb 22" LCD
KeyboardPowerCaseMouse
Logitech USB wired Silverstone Decathalon 850 PolymorphiX (PMX_v1s) ms optical, wired
Mouse Pad
ancient piece of crap :P
  hide details
Reply
Chuckle2Tits
(13 items)


CPUMotherboardGraphicsRAM
Core i7 920 2.66 45nm D0 Foxconn BloodRage x58 EVGA GTX 285 6 GB Corsair Dom. DDR3 1600
Hard DriveOptical DriveOSMonitor
1x300 GB WD Velociraptor Asus 16/48 DVD/CD ROM SATA Windows 7 Pro 64 bit Viewsonic VX2255wmb 22" LCD
KeyboardPowerCaseMouse
Logitech USB wired Silverstone Decathalon 850 PolymorphiX (PMX_v1s) ms optical, wired
Mouse Pad
ancient piece of crap :P
  hide details
Reply
post #4 of 23
Thread Starter
Cheers guys, 4 more pics added onto the bottom of the 1st post to show it fitted onto a case!

CPUMotherboardGraphicsRAM
Q6600 Asus P5K3 Leaktek 8800GTS 640Mb 2GB DDR3
Hard DriveOptical DriveOSMonitor
500GB SATA DVD-RW XP 2x 19" Widescreens
KeyboardPowerCaseMouse
Logitech Coolermaster 850W Lasered & Painted Akasa Omega Microsoft Habu
Mouse Pad
Bugs Bunny!
  hide details
Reply

CPUMotherboardGraphicsRAM
Q6600 Asus P5K3 Leaktek 8800GTS 640Mb 2GB DDR3
Hard DriveOptical DriveOSMonitor
500GB SATA DVD-RW XP 2x 19" Widescreens
KeyboardPowerCaseMouse
Logitech Coolermaster 850W Lasered & Painted Akasa Omega Microsoft Habu
Mouse Pad
Bugs Bunny!
  hide details
Reply
post #5 of 23
Nice guide! I will use this when my grill arrives in a few days.

Rep+
i7
(14 items)


CPUMotherboardGraphicsRAM
i7 920 D0 Foxconn Bloodrage EVGA 9800GX2 G.SKILL 6GB DDR3
Hard DriveCoolingOSMonitor
WD 640GB MCR 220 + Feser Quad 7  Dell 22"
PowerCase
Corsair 650TX Test bench
  hide details
Reply
i7
(14 items)


CPUMotherboardGraphicsRAM
i7 920 D0 Foxconn Bloodrage EVGA 9800GX2 G.SKILL 6GB DDR3
Hard DriveCoolingOSMonitor
WD 640GB MCR 220 + Feser Quad 7  Dell 22"
PowerCase
Corsair 650TX Test bench
  hide details
Reply
post #6 of 23
Dude! That looks super clean! Very nice! =D
Teh PC!
(24 items)


CPUMotherboardGraphicsRAM
Intel Core i7-2600K ASUS P8Z68-V PRO/GEN3 XFX Double Dissipation R9 290 2 x 8GB G.SKILL Ripjaws X Series
Hard DriveHard DriveHard DriveHard Drive
SanDisk Ultra Plus 2 x Seagate Barracuda 7200.12 ST31000528AS 2 x Seagate Barracuda 7200.10 ST3500630AS Seagate Barracuda 2TB
Optical DriveCoolingOSMonitor
LITE-ON iHAS124 Thermalright Ultra Extreme 120 Windows 8.1 Pro 64-Bit ASUS VN248H-P
KeyboardPowerCaseMouse
Logitech G510 Seasonic SS-760XP2 760W Corsair 650D Logitech G500
Mouse PadAudioAudioAudio
Razer eXactMat ASUS XONAR D1 -7.1 Channel PCI Audio Card Sound... AKG Acoustics K550 Closed-Back Reference Headph... Grado Prestige Series SR325is Headphones
AudioAudioAudioAudio
M-Audio BX5a Deluxe 70-watt Bi-amplified Studio... Dayton SUB-120 12" 150 Watt Powered Subwoofer Millett "Starving Student" Hybrid Amp Sennheiser HD595
  hide details
Reply
Teh PC!
(24 items)


CPUMotherboardGraphicsRAM
Intel Core i7-2600K ASUS P8Z68-V PRO/GEN3 XFX Double Dissipation R9 290 2 x 8GB G.SKILL Ripjaws X Series
Hard DriveHard DriveHard DriveHard Drive
SanDisk Ultra Plus 2 x Seagate Barracuda 7200.12 ST31000528AS 2 x Seagate Barracuda 7200.10 ST3500630AS Seagate Barracuda 2TB
Optical DriveCoolingOSMonitor
LITE-ON iHAS124 Thermalright Ultra Extreme 120 Windows 8.1 Pro 64-Bit ASUS VN248H-P
KeyboardPowerCaseMouse
Logitech G510 Seasonic SS-760XP2 760W Corsair 650D Logitech G500
Mouse PadAudioAudioAudio
Razer eXactMat ASUS XONAR D1 -7.1 Channel PCI Audio Card Sound... AKG Acoustics K550 Closed-Back Reference Headph... Grado Prestige Series SR325is Headphones
AudioAudioAudioAudio
M-Audio BX5a Deluxe 70-watt Bi-amplified Studio... Dayton SUB-120 12" 150 Watt Powered Subwoofer Millett "Starving Student" Hybrid Amp Sennheiser HD595
  hide details
Reply
post #7 of 23
nice, to bad i dont have a metal topped case lol
post #8 of 23
I'd like to add one of these to my case so I can add a few fans on the top. Hmm...
post #9 of 23
Thread Starter
Quote:
Originally Posted by Skullzaflare View Post
nice, to bad i dont have a metal topped case lol
If the case is acrylic it should still work?
Providing it's no thinner than 3mm anyway.

CPUMotherboardGraphicsRAM
Q6600 Asus P5K3 Leaktek 8800GTS 640Mb 2GB DDR3
Hard DriveOptical DriveOSMonitor
500GB SATA DVD-RW XP 2x 19" Widescreens
KeyboardPowerCaseMouse
Logitech Coolermaster 850W Lasered & Painted Akasa Omega Microsoft Habu
Mouse Pad
Bugs Bunny!
  hide details
Reply

CPUMotherboardGraphicsRAM
Q6600 Asus P5K3 Leaktek 8800GTS 640Mb 2GB DDR3
Hard DriveOptical DriveOSMonitor
500GB SATA DVD-RW XP 2x 19" Widescreens
KeyboardPowerCaseMouse
Logitech Coolermaster 850W Lasered & Painted Akasa Omega Microsoft Habu
Mouse Pad
Bugs Bunny!
  hide details
Reply
post #10 of 23
Wow nice, I was wondering how some people did these cuts and made it look like factory cuts IMO.
