Watercooling Shopping List

post #1 of 19
Thread Starter

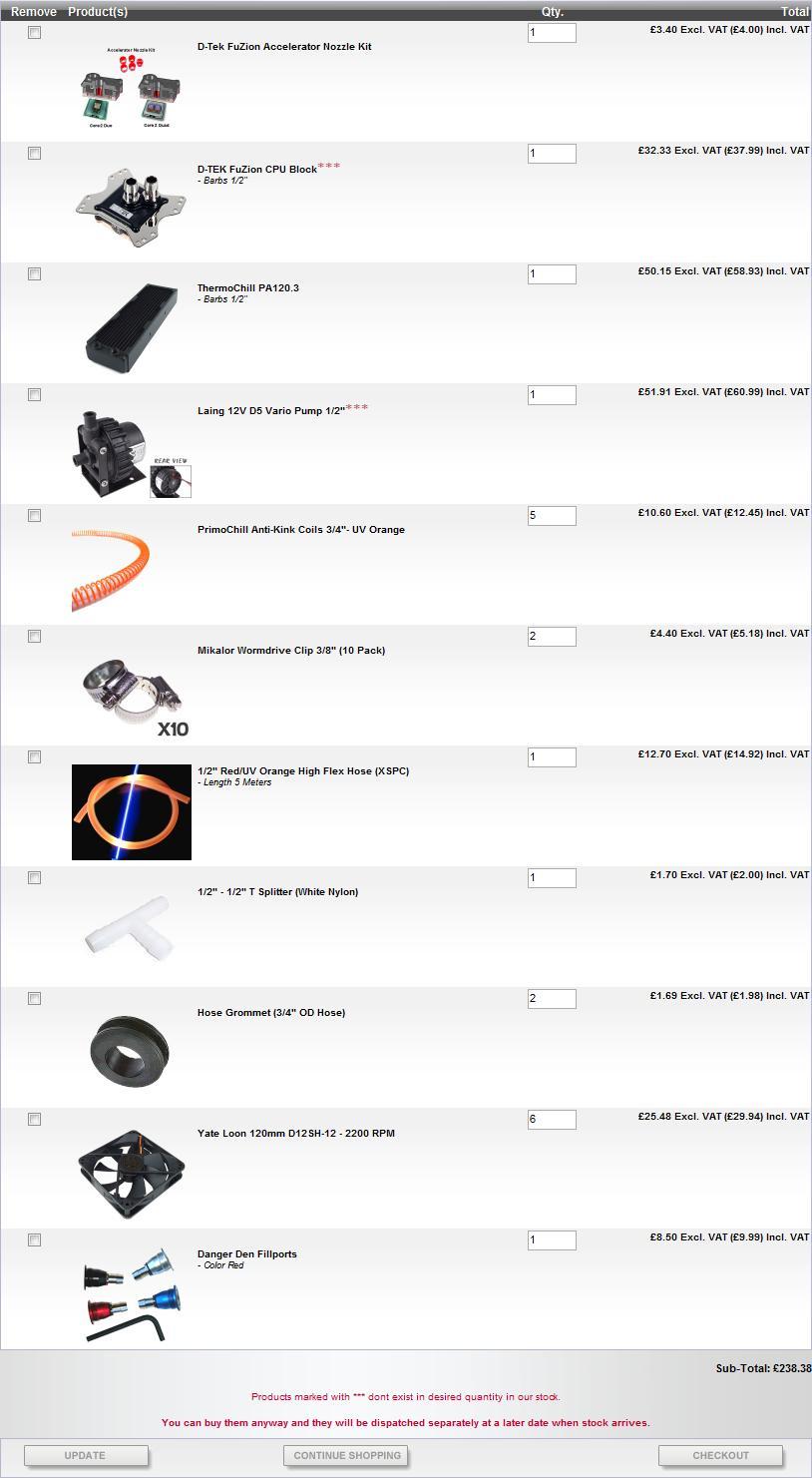

I Hope this is everything. I won't be purchasing until Friday at the earliest and assembling it in the half term.

Please tell me if i missed anything, or you suggest something different.

post #2 of 19
Seeing as the FuZion has been superseeded by the FuZion V2 (which has sold out and is looking impossible to get, just like the first one) I'd go with a XSPC Edge, which has had some very favourable testing results by Martin:

http://www.chilledpc.co.uk/shop/prod...roducts_id=640

Go for a Laing DDC w/ a top (I've got a Petra's one here you could buy off me if your interested) as they take up a lot less space than the D5 while giving very good results

PA120.3 is overkill just for the CPU unless your going GPU at some point?

What coolant are you planning on using?
Main Rig
(13 items)


CPUMotherboardGraphicsRAM
Intel C2D E6700 Asus P5KPL-AM mATX Palit GTS250 2 x 2GB OCZ PC2-8500
Hard DriveOptical DriveOSMonitor
Western Digital 500GB Pioneer DVD-RW Windows 7 Ultimate 64-bit Viewsonic VA2213w
KeyboardPowerCaseMouse
Logitech Media Keyboard Deluxe 750W Thermaltake Toughpower Antec NSW4400 Logitech MX510
  hide details
Reply
Main Rig
(13 items)


CPUMotherboardGraphicsRAM
Intel C2D E6700 Asus P5KPL-AM mATX Palit GTS250 2 x 2GB OCZ PC2-8500
Hard DriveOptical DriveOSMonitor
Western Digital 500GB Pioneer DVD-RW Windows 7 Ultimate 64-bit Viewsonic VA2213w
KeyboardPowerCaseMouse
Logitech Media Keyboard Deluxe 750W Thermaltake Toughpower Antec NSW4400 Logitech MX510
  hide details
Reply
post #3 of 19
Thread Starter
Quote:
Originally Posted by prosser13 View Post
Seeing as the FuZion has been superseeded by the FuZion V2 (which has sold out and is looking impossible to get, just like the first one) I'd go with a XSPC Edge, which has had some very favourable testing results by Martin:

PA120.3 is overkill just for the CPU unless your going GPU at some point?

What coolant are you planning on using?
i have 2l of Feser One Cooling here, with an orange dye bomb in it.

And i had no idea that there was a fuzion v2, thanks alot. I assumed (wrongly) that there was 1. I'll go with the XSPC Edge then, looks like another good choice.

I don't plan on cooling my GPU as i change it too frequently to keep changing the waterblock on it. Should i save some money and get the 120.2 and 4 fans?
post #4 of 19
Get the fuzion V2 and a quad chamber for it.
Xplor
(13 items)


CPUMotherboardGraphicsRAM
Q9450 @ 3.4Ghz (425 x 8) DFI DK P45-T2RS PLUS Palit 9800GT 2GB Corsair XMS2 DDR2-800 @ 850 5-5-5-15
Hard DriveOptical DriveOSMonitor
WD 500GB SataII LG HD DVD, Blu-ray Combo Drive Windows Vista Ultimate Samsung 226BW
KeyboardPowerCaseMouse
Logitech Wireless 550w Generic Lian Li PC-A70B (Soon to be modded) Logitech Wireless
Mouse Pad
Desk :D
  hide details
Reply
Xplor
(13 items)


CPUMotherboardGraphicsRAM
Q9450 @ 3.4Ghz (425 x 8) DFI DK P45-T2RS PLUS Palit 9800GT 2GB Corsair XMS2 DDR2-800 @ 850 5-5-5-15
Hard DriveOptical DriveOSMonitor
WD 500GB SataII LG HD DVD, Blu-ray Combo Drive Windows Vista Ultimate Samsung 226BW
KeyboardPowerCaseMouse
Logitech Wireless 550w Generic Lian Li PC-A70B (Soon to be modded) Logitech Wireless
Mouse Pad
Desk :D
  hide details
Reply
post #5 of 19
Thread Starter
Updated, but i might wait and try find a fuzion V2

post #6 of 19
Many people believe the EK-Supreme water block performs better than the fuzion, I beleive this too based on may cpu water block shootout tests

The reason for this is the EK is much more restrictive, normally that would be a dissadvantage especially when used in a multi loop system but if you just cooling the cpu with this loop the D5 pump is more than powerfull enough.

with this setup you will see better temps with a EK-Supreme than with a fuzion.
However if you planing to add more blocks to this loop then stick with the fuzion

Im planning a triple loop system with the cpu loop being the same as your loop but without the D5, im going with a DDC 18w with a XSPC top.

Regards
Bondy
My System
(13 items)


CPUMotherboardGraphicsRAM
Intel Core2 Duo E6600 @ 3.5ghz Asus P5n32-E SLI 680i 8800GT 650 1750 2000 Corsair Dominator 6400c4s @ 900mhz
Hard DriveOptical DriveOSMonitor
Samsung Spinpoint 250gb + Dstar 250gb Raid Sony DVDWR + Pioneer 112bk Vista Home Prem + XP Home NEC Multisync 20WGX2 Pro
KeyboardPowerCaseMouse
Logitech Media elite Seasonic S12 600 NXTC Lexa 2x 120 ambers Logitech RX300
Mouse Pad
Desk
  hide details
Reply
My System
(13 items)


CPUMotherboardGraphicsRAM
Intel Core2 Duo E6600 @ 3.5ghz Asus P5n32-E SLI 680i 8800GT 650 1750 2000 Corsair Dominator 6400c4s @ 900mhz
Hard DriveOptical DriveOSMonitor
Samsung Spinpoint 250gb + Dstar 250gb Raid Sony DVDWR + Pioneer 112bk Vista Home Prem + XP Home NEC Multisync 20WGX2 Pro
KeyboardPowerCaseMouse
Logitech Media elite Seasonic S12 600 NXTC Lexa 2x 120 ambers Logitech RX300
Mouse Pad
Desk
  hide details
Reply
post #7 of 19
Thread Starter
I quite like the EK-Supreme now. I am beginning to think all i need to decide on is the CPU waterblock, and if i should add any others in the future.

Mosfets?
NB?
RAM?
post #8 of 19
Don't bother with any of those. The only other thing you could consider would be a GPU. You're list looks good although I would get a fuzion v1 or v2. But whichever one you do get, make sure you get a backplate, quad core nozzle, and washer seal. Those enhancements on the v1 just about make it a v2.
quad core madness
(14 items)


CPUMotherboardGraphicsRAM
Lapped Intel Core 2 Quad - Q6600 G0 Stepping Asus P5K Deluxe WiFi ATi Sapphire HD 6950 2GB Unlocked 8GB G.Skill Pi Black DDR2-800 PC2-6400
Hard DriveOptical DriveOSMonitor
60GB OCZ Solid 2 SSD Samsung SATA 18X DVD Burner Windows 7 Ultimate x64 Dell 3007WFP-HC + 2x 2007FP in PLP
KeyboardPowerCaseMouse
Ducky Shine Blue, MX Red Corsair HX620 620W Lian Li V1000 Plus Black Razer Mamba 2012
Mouse PadAudio
XTrack Ripper XL Creative X-Fi XtremeMusic
  hide details
Reply
quad core madness
(14 items)


CPUMotherboardGraphicsRAM
Lapped Intel Core 2 Quad - Q6600 G0 Stepping Asus P5K Deluxe WiFi ATi Sapphire HD 6950 2GB Unlocked 8GB G.Skill Pi Black DDR2-800 PC2-6400
Hard DriveOptical DriveOSMonitor
60GB OCZ Solid 2 SSD Samsung SATA 18X DVD Burner Windows 7 Ultimate x64 Dell 3007WFP-HC + 2x 2007FP in PLP
KeyboardPowerCaseMouse
Ducky Shine Blue, MX Red Corsair HX620 620W Lian Li V1000 Plus Black Razer Mamba 2012
Mouse PadAudio
XTrack Ripper XL Creative X-Fi XtremeMusic
  hide details
Reply
post #9 of 19
I am pretty sure the FuZion beats the EK-Supreme overall. However, the XSPC Edge is probably the best block for bigger loops. It's low restriction and top notch performance make it a contender for the best block.

Drop the Thermochill PA and get a HWLabs 360 GTX instead. You're using higher speed fans so the GTX will beat out the PA.
Once again...
(13 items)


CPUMotherboardGraphicsRAM
i7 920 [4.28GHz, HT] Asus P6T + Broadcom NetXtreme II VisionTek HD5850 [900/1200] + Galaxy GT240 2x4GB G.Skill Ripjaw X [1632 MHz]
Hard DriveOSMonitorKeyboard
Intel X25-M 160GB + 3xRAID0 500GB 7200.12 Window 7 Pro 64 Acer H243H + Samsung 226BW XARMOR-U9BL
PowerCaseMouseMouse Pad
Antec Truepower New 750W Li Lian PC-V2100 [10x120mm fans] Logitech G9 X-Trac Pro
  hide details
Reply
Once again...
(13 items)


CPUMotherboardGraphicsRAM
i7 920 [4.28GHz, HT] Asus P6T + Broadcom NetXtreme II VisionTek HD5850 [900/1200] + Galaxy GT240 2x4GB G.Skill Ripjaw X [1632 MHz]
Hard DriveOSMonitorKeyboard
Intel X25-M 160GB + 3xRAID0 500GB 7200.12 Window 7 Pro 64 Acer H243H + Samsung 226BW XARMOR-U9BL
PowerCaseMouseMouse Pad
Antec Truepower New 750W Li Lian PC-V2100 [10x120mm fans] Logitech G9 X-Trac Pro
  hide details
Reply
post #10 of 19
just my 2 pennys worth

scrap the red fill port. they make a black derlin one now. it the same just derlin
my ali ones started to corode after a year or so.
Big Black Box
(15 items)


CPUMotherboardGraphicsRAM
I7-4770k asus sabertooth z87 GTX 680 16gig corsair vengeance red
Hard DriveCoolingOSMonitor
120gig crucial m500 ssd,120gig corsair ssd ,1TB... corsair h80i Win7 64bit Hanns-G hz281
KeyboardPowerCaseMouse
corsair vengeance k70 Corsair HX850 Cooler Master HAF X Razer deathadder
Mouse PadAudio
Razer Vespula SB Recon 3D
  hide details
Reply
Big Black Box
(15 items)


CPUMotherboardGraphicsRAM
I7-4770k asus sabertooth z87 GTX 680 16gig corsair vengeance red
Hard DriveCoolingOSMonitor
120gig crucial m500 ssd,120gig corsair ssd ,1TB... corsair h80i Win7 64bit Hanns-G hz281
KeyboardPowerCaseMouse
corsair vengeance k70 Corsair HX850 Cooler Master HAF X Razer deathadder
Mouse PadAudio
Razer Vespula SB Recon 3D
  hide details
Reply
