I want to put 2 LED's in my Danger Den Bay Res as it's built to house two small ones. I know nothing about working with LEDs. Can someone help me out? What do I need? I'd like UV ones if at all possible since my coolant is UV reactive.
post #2 of 20
Well LED's are light emitting diodes. It's just a small square in a plastic shell of a bulb. They are very easy to wire anywhere and require very little power. The bulbs are sealed of course and they put out very little if any heat. You would be cool to put some in there. I will look for a link for you

:EDIT: Here is the link I promised you
http://www.instructables.com/id/LEDs-for-Beginners/

:EDIT: They do sell UV LED's
http://www.nichia.com/product/led-lamp-uv.html
Edited by se7en56 - 5/22/08 at 10:30am
Vegeta 2.0
(13 items)


CPUMotherboardGraphicsRAM
Q6600 @ 3.2GHz (400 x 8 @ 1.4v) «Lapped» DFI Lan Party UT P35 T2R BFG 8800GTS 640MB (625/1950/1400) 4GB (2 x 2GB) OCZ Platinum 1066MHz
Hard DriveOptical DriveOSMonitor
Seagate 320GB and 160GB || Western Digital 250GB DVD-RW Vista Ultimate x64 2 x 19" Widescreens (2880x900)
KeyboardPowerCase
Eclipse II Antec Earthwatts 500W Thermaltake Armor
  hide details
Reply
Vegeta 2.0
(13 items)


CPUMotherboardGraphicsRAM
Q6600 @ 3.2GHz (400 x 8 @ 1.4v) «Lapped» DFI Lan Party UT P35 T2R BFG 8800GTS 640MB (625/1950/1400) 4GB (2 x 2GB) OCZ Platinum 1066MHz
Hard DriveOptical DriveOSMonitor
Seagate 320GB and 160GB || Western Digital 250GB DVD-RW Vista Ultimate x64 2 x 19" Widescreens (2880x900)
KeyboardPowerCase
Eclipse II Antec Earthwatts 500W Thermaltake Armor
  hide details
Reply
post #3 of 20
2 UV 5mm LED.
If in parallel, a 270Ohm resistor.
If in series, two 220Ohm resistors.
Wire.
Molex plug.
2 Molex pins.


http://www.quickar.com/noqbestledcalc.htm
Once again...
(13 items)


CPUMotherboardGraphicsRAM
i7 920 [4.28GHz, HT] Asus P6T + Broadcom NetXtreme II VisionTek HD5850 [900/1200] + Galaxy GT240 2x4GB G.Skill Ripjaw X [1632 MHz]
Hard DriveOSMonitorKeyboard
Intel X25-M 160GB + 3xRAID0 500GB 7200.12 Window 7 Pro 64 Acer H243H + Samsung 226BW XARMOR-U9BL
PowerCaseMouseMouse Pad
Antec Truepower New 750W Li Lian PC-V2100 [10x120mm fans] Logitech G9 X-Trac Pro
  hide details
Reply
Once again...
(13 items)


CPUMotherboardGraphicsRAM
i7 920 [4.28GHz, HT] Asus P6T + Broadcom NetXtreme II VisionTek HD5850 [900/1200] + Galaxy GT240 2x4GB G.Skill Ripjaw X [1632 MHz]
Hard DriveOSMonitorKeyboard
Intel X25-M 160GB + 3xRAID0 500GB 7200.12 Window 7 Pro 64 Acer H243H + Samsung 226BW XARMOR-U9BL
PowerCaseMouseMouse Pad
Antec Truepower New 750W Li Lian PC-V2100 [10x120mm fans] Logitech G9 X-Trac Pro
  hide details
Reply
post #4 of 20
Nice find DuckieHo!
Vegeta 2.0
(13 items)


CPUMotherboardGraphicsRAM
Q6600 @ 3.2GHz (400 x 8 @ 1.4v) «Lapped» DFI Lan Party UT P35 T2R BFG 8800GTS 640MB (625/1950/1400) 4GB (2 x 2GB) OCZ Platinum 1066MHz
Hard DriveOptical DriveOSMonitor
Seagate 320GB and 160GB || Western Digital 250GB DVD-RW Vista Ultimate x64 2 x 19" Widescreens (2880x900)
KeyboardPowerCase
Eclipse II Antec Earthwatts 500W Thermaltake Armor
  hide details
Reply
Vegeta 2.0
(13 items)


CPUMotherboardGraphicsRAM
Q6600 @ 3.2GHz (400 x 8 @ 1.4v) «Lapped» DFI Lan Party UT P35 T2R BFG 8800GTS 640MB (625/1950/1400) 4GB (2 x 2GB) OCZ Platinum 1066MHz
Hard DriveOptical DriveOSMonitor
Seagate 320GB and 160GB || Western Digital 250GB DVD-RW Vista Ultimate x64 2 x 19" Widescreens (2880x900)
KeyboardPowerCase
Eclipse II Antec Earthwatts 500W Thermaltake Armor
  hide details
Reply
post #5 of 20
Thread Starter
So I have to wire them myself? You can't buy them just ready to be powered?
post #6 of 20
So what exactly do you need to know about them? The "small" ones are probably 3mm ones. There's also a little larger ones that are 5mm and then 8mm and 10mm but those are big ones.

Basically the longest of the 2 legs is the positive(+) and the shorter one is the negative(-).

You can hook them up to any 5V or 12V source, but 5V would be the easiest because it's closer to the actual voltage of the LED so you can use a smaller resistor. YOU MUST USE A RESISTOR.

So if you're using 2 UV LED's, wire them in parallel and hook them to a 5V source. Parallel wiring is when you connect all the possitive legs together and connect it to the power source and then connect all the negative legs together and connect it to the grounding source. A series wiring is like what most people think of when you just connect all the LED's in a row end to end.

Examples :

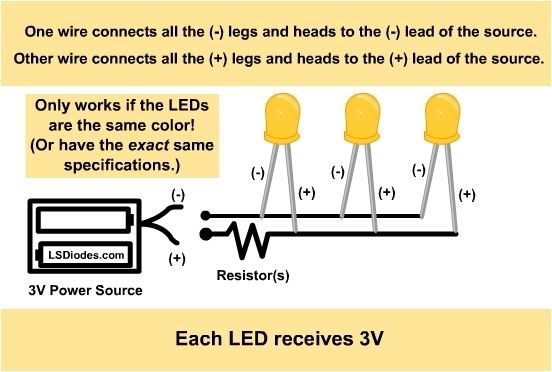

Parallel -

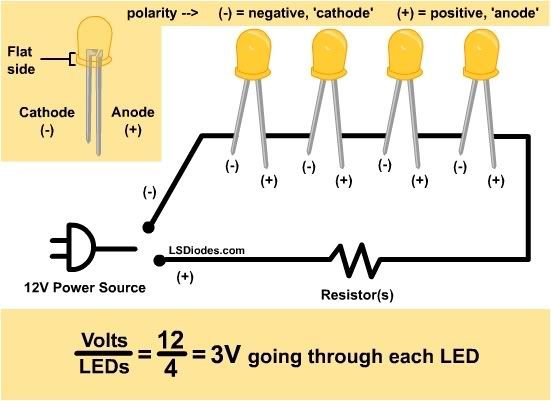

Series -
