Updates:

This will be my first time modding a case, and my first time building a computer...


Plan:

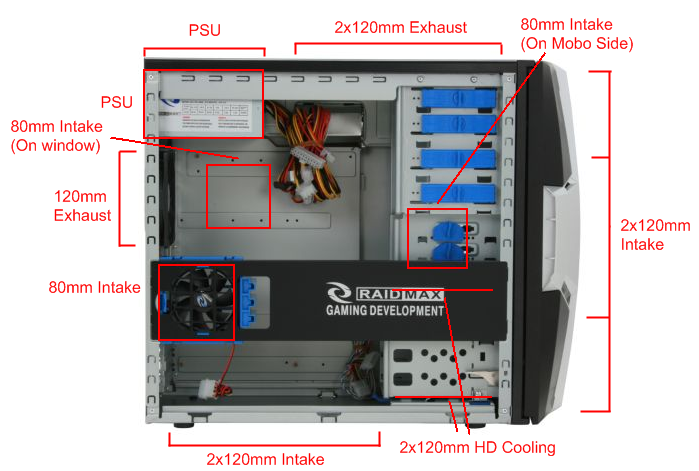

The top will be cut for 2 120mm fans, and another hole for the PSU. Side panel will stay the same, except the support bar will be cut such that only the 80mm fan stays. Bottom will also be cut for 2 120mm fans. 2 120mm fans will also be mounted on the HD cage, pushing air from the bottom to the top 2 120mm exhaust fans. Top top 3 DVD drive slots will be modded with mesh to mount a 120mm fan there. All parts will be painted black, except for the tool-less mounts.

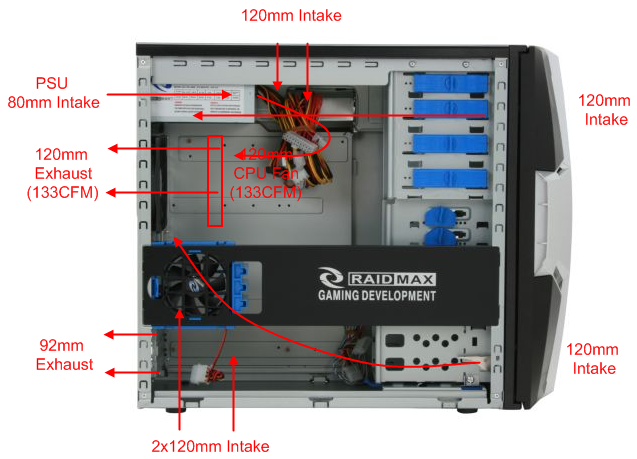

Revised Airflow:
