Overclocking E7200 What Do I Need!

post #1 of 12
Thread Starter
So this is my first overclock i wanna make it good. i was wondering what things i would need. i left speed fan on last night and my system idles at 29 c. 3d mark did the cpu test and my comp lagged pretty bad on it kinda dispointed. i wanna oc it now i just bought so i wanna make it a safe oc heard you could do a niice without switching voltage this is my first oc where can i get good manual on how to oc right and what good progs to use Thx.
ScarFace
(13 items)


CPUMotherboardGraphicsRAM
Core 2 Duo E7200 Gigabyte P35-DS3L 8800 GT 2x1GB OCZ DDR2800
Hard DriveOptical DriveOSMonitor
160 GB Western Dig DVD BURNER windows xp 22inch Viewsonic HD
PowerCase
BFG 650 watt antec 900
  hide details
Reply
ScarFace
(13 items)


CPUMotherboardGraphicsRAM
Core 2 Duo E7200 Gigabyte P35-DS3L 8800 GT 2x1GB OCZ DDR2800
Hard DriveOptical DriveOSMonitor
160 GB Western Dig DVD BURNER windows xp 22inch Viewsonic HD
PowerCase
BFG 650 watt antec 900
  hide details
Reply
post #2 of 12
I'm a new overclocker. but for this chip just make sure you keep the V Core under 1.36v They can overclock like crazy with the right motherboard. i think mine will push to near 3.5 but you can take them right up 4.0ghz.

P.S do all your overclocking from bios
post #3 of 12
This post right here has a couple useful links to learn how to o/c. Also, 3dmark always lags on the cpu test. I get like 2fps tops on it with a Q6600 at 3.6ghz. Since you have never o/c'ed just take your time and go in small steps to see how things react when you up the FSB and you will get the idea of how much voltage you need to add. I know you said you don't want to, but you are pretty safe unless you pass the recommended max voltage.
Daily
(15 items)


CPUMotherboardGraphicsRAM
5960x Asus X99A II Asus GTX 1060 Dual Team Vulcan (4 x 8GB) DDR4 3000
Hard DriveOptical DriveCoolingOS
Samsung 960 evo LG Bluray  Thermaltake Water 3.0 Ultimate Windows 7 64
MonitorKeyboardPowerCase
Dell U3415W OCN Ducky  Seasonic X750 Corsair Carbide 600Q
MouseMouse PadAudio
Razer DeathAdder Black Edition Glorious  Creative Sound Blaster Z
  hide details
Reply
Daily
(15 items)


CPUMotherboardGraphicsRAM
5960x Asus X99A II Asus GTX 1060 Dual Team Vulcan (4 x 8GB) DDR4 3000
Hard DriveOptical DriveCoolingOS
Samsung 960 evo LG Bluray  Thermaltake Water 3.0 Ultimate Windows 7 64
MonitorKeyboardPowerCase
Dell U3415W OCN Ducky  Seasonic X750 Corsair Carbide 600Q
MouseMouse PadAudio
Razer DeathAdder Black Edition Glorious  Creative Sound Blaster Z
  hide details
Reply
post #4 of 12
Thread Starter
Quote:
Originally Posted by Mikecdm View Post
This post right here has a couple useful links to learn how to o/c. Also, 3dmark always lags on the cpu test. I get like 2fps tops on it with a Q6600 at 3.6ghz. Since you have never o/c'ed just take your time and go in small steps to see how things react when you up the FSB and you will get the idea of how much voltage you need to add. I know you said you don't want to, but you are pretty safe unless you pass the recommended max voltage.
i noticed you have the same board im using what bios do you use
ScarFace
(13 items)


CPUMotherboardGraphicsRAM
Core 2 Duo E7200 Gigabyte P35-DS3L 8800 GT 2x1GB OCZ DDR2800
Hard DriveOptical DriveOSMonitor
160 GB Western Dig DVD BURNER windows xp 22inch Viewsonic HD
PowerCase
BFG 650 watt antec 900
  hide details
Reply
ScarFace
(13 items)


CPUMotherboardGraphicsRAM
Core 2 Duo E7200 Gigabyte P35-DS3L 8800 GT 2x1GB OCZ DDR2800
Hard DriveOptical DriveOSMonitor
160 GB Western Dig DVD BURNER windows xp 22inch Viewsonic HD
PowerCase
BFG 650 watt antec 900
  hide details
Reply
post #5 of 12
Quote:
Originally Posted by Mikecdm View Post
This post right here has a couple useful links to learn how to o/c. Also, 3dmark always lags on the cpu test. I get like 2fps tops on it with a Q6600 at 3.6ghz. Since you have never o/c'ed just take your time and go in small steps to see how things react when you up the FSB and you will get the idea of how much voltage you need to add. I know you said you don't want to, but you are pretty safe unless you pass the recommended max voltage.
Thanks for the link. I started overclocking last night, haha.
Misk
(13 items)


CPUMotherboardGraphicsRAM
Intel Core 2 Quad Q6600 (G0) Kentsfield 2.4GHz EVGA NVIDIA nForce 780i SLI EVGA NVIDIA GeForce 8800GTS (G92) 512MB 256-bit 4GB (2 x 2GB) Mushkin DDR2 800 (Going 4 x 2GB)
Hard DriveOSMonitorPower
500GB Samsung SpinPoint T Series HD501LJ 7200 RPM XP Professional (Going Vista 64) Dell 1905FP 1280x1024 60Hz OCZ GameXStream OCZ700GXSSLI 700W
Case
Cosmos 1000
  hide details
Reply
Misk
(13 items)


CPUMotherboardGraphicsRAM
Intel Core 2 Quad Q6600 (G0) Kentsfield 2.4GHz EVGA NVIDIA nForce 780i SLI EVGA NVIDIA GeForce 8800GTS (G92) 512MB 256-bit 4GB (2 x 2GB) Mushkin DDR2 800 (Going 4 x 2GB)
Hard DriveOSMonitorPower
500GB Samsung SpinPoint T Series HD501LJ 7200 RPM XP Professional (Going Vista 64) Dell 1905FP 1280x1024 60Hz OCZ GameXStream OCZ700GXSSLI 700W
Case
Cosmos 1000
  hide details
Reply
post #6 of 12
Hi bro if you go in to Bios remeber to set the memory and fsb to unlinked then you beable to reach good clock set your FSB or QDR to 1333mhz but make sure you have an after market such as a TRUE or Zalman or Asus. you should easily reach 3.33ghz like me I'm now going to run a 3Dmark06 test
post #7 of 12
Quote:
Originally Posted by STYLE View Post
i noticed you have the same board im using what bios do you use
I'm pretty sure its F8a, when I got my board that was the latest one out and I just flashed it to that. Never really had a problem with it so I never looked further into it.

Have you looked at the DS3L thread. The first page has some basic info about the board in regards to the settings that you should turn off in order to o/c and to prevent speed step from messing with you.

I would set the memory 1:1 or 2.0 in the bios, possibly relax the memory timings by pushing ctrl + F1 in the main bios screen, then you should have settings for it once you enter M.I.T. screen.
Daily
(15 items)


CPUMotherboardGraphicsRAM
5960x Asus X99A II Asus GTX 1060 Dual Team Vulcan (4 x 8GB) DDR4 3000
Hard DriveOptical DriveCoolingOS
Samsung 960 evo LG Bluray  Thermaltake Water 3.0 Ultimate Windows 7 64
MonitorKeyboardPowerCase
Dell U3415W OCN Ducky  Seasonic X750 Corsair Carbide 600Q
MouseMouse PadAudio
Razer DeathAdder Black Edition Glorious  Creative Sound Blaster Z
  hide details
Reply
Daily
(15 items)


CPUMotherboardGraphicsRAM
5960x Asus X99A II Asus GTX 1060 Dual Team Vulcan (4 x 8GB) DDR4 3000
Hard DriveOptical DriveCoolingOS
Samsung 960 evo LG Bluray  Thermaltake Water 3.0 Ultimate Windows 7 64
MonitorKeyboardPowerCase
Dell U3415W OCN Ducky  Seasonic X750 Corsair Carbide 600Q
MouseMouse PadAudio
Razer DeathAdder Black Edition Glorious  Creative Sound Blaster Z
  hide details
Reply
post #8 of 12
Hi man i just completed my 3D Mark tests

Mark05 18000+
Mark06 11900+

These tests where ran on 8800 GTS 512mb OCed Slightly 690core 990memory, E7200 @ 3.3ghz. the gpu doesn't make much diff when it comes to benchmarking
post #9 of 12
Thread Starter
i cant find how to change the fsb in the bios
ScarFace
(13 items)


CPUMotherboardGraphicsRAM
Core 2 Duo E7200 Gigabyte P35-DS3L 8800 GT 2x1GB OCZ DDR2800
Hard DriveOptical DriveOSMonitor
160 GB Western Dig DVD BURNER windows xp 22inch Viewsonic HD
PowerCase
BFG 650 watt antec 900
  hide details
Reply
ScarFace
(13 items)


CPUMotherboardGraphicsRAM
Core 2 Duo E7200 Gigabyte P35-DS3L 8800 GT 2x1GB OCZ DDR2800
Hard DriveOptical DriveOSMonitor
160 GB Western Dig DVD BURNER windows xp 22inch Viewsonic HD
PowerCase
BFG 650 watt antec 900
  hide details
Reply
post #10 of 12

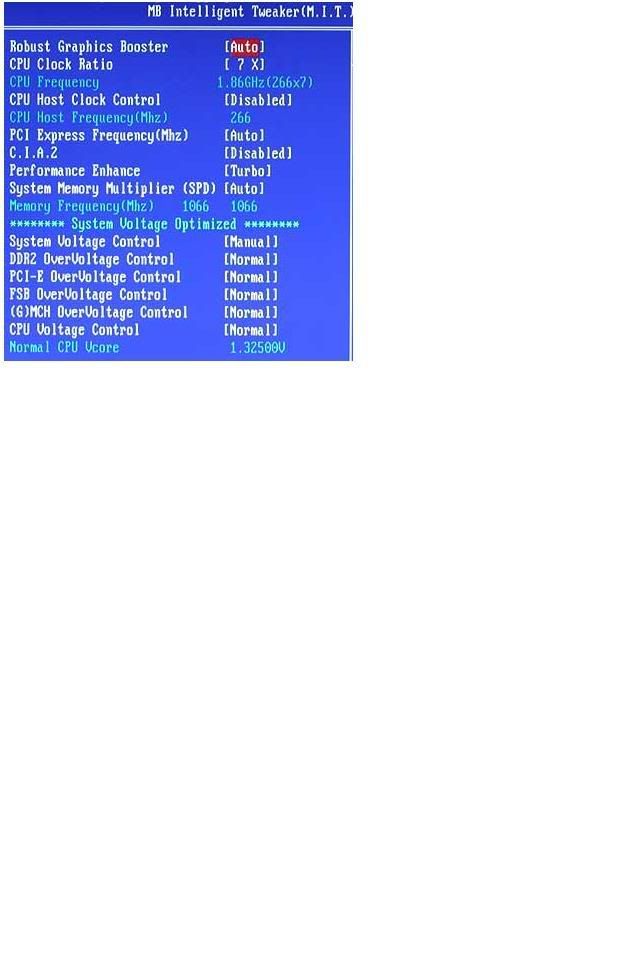

If this is your BIOS try changing CPU host clock control. Change it to enable,manual, or whatever the option is.
G0
(13 items)


CPUMotherboardGraphicsRAM
Q6600G0 L728B205 OC to3.6 Asus Maximus Formula Sapphire Radeon 3870 4X1GB Crucial Ballistix
Hard DriveOptical DriveOSMonitor
WD 320GB 2 X Sony DVD combo Vista ultimate 64 ViewSonic VX2235wm 22-inc
PowerCase
PC Power & Cooling Silencer 750 Quad Cheap
  hide details
Reply
G0
(13 items)


CPUMotherboardGraphicsRAM
Q6600G0 L728B205 OC to3.6 Asus Maximus Formula Sapphire Radeon 3870 4X1GB Crucial Ballistix
Hard DriveOptical DriveOSMonitor
WD 320GB 2 X Sony DVD combo Vista ultimate 64 ViewSonic VX2235wm 22-inc
PowerCase
PC Power & Cooling Silencer 750 Quad Cheap
  hide details
Reply
