UPDATE
heres a little update of what i done a few days ago but just uploaded pics now.
Ok so it was time to paint cut a 120mm hole in the front case panel..so i broke the dremel out and make a nice circle..well as nice as i could by hand..the only tool i really have to help with modding is a dremel. Also i bondod the little indents and lines in the case as you can see in the pic


So i drew out the circle on the backside as it was quite tricky to do it on the front as it wasnt a flat surface


First just used a cutting disc to make a rough hole so i could work on it


i found this piece invaluable to making a nice circle by hand


The finished circle came out ok..but i wasnt fussed about it because it will be covered by the metal sheet and acrylic.



So now it was time for some more paint..decided to paint the dvd drive black...I used gloss black but this will just be a temporary drive as i need to pick up a litescribe black Sata drive.



Roughly sanded to get it flat


And after a couple coats of clear to get it shiny...note i wasnt very happy with thie results as dust and particles got stuck in the clear coat as i was painting but as i said, its only temp so itll do.




So now i moved onto painting the little usb cover on the bottom of the front case panel..after the first coat it looked like this

Yup horrible orange peel..but dont fret, a nice wetsand sading should fix this so some quick wetsanding with some 400grade paper


Another coat of black, from this angle you can see its flatter and smoother


Wait for that to dry and then sand with some 1500 grit paper to get it real smooth..looks like this


And after 2 coats of clear, quite a nice finish i think.


Thats all for today..stay tuned for more!.
My System
(15 items)


CPUMotherboardGraphicsRAM
4790K delidded @4.9ghz Asus Z97 Deluxe Wifi EVGA GTX 980 SC 2 x 8GB Corsair Vengence 2400
Hard DriveOptical DriveCoolingOS
Crucial MX200 250gb + 1tb Lg Bluray EK Supreme, TC PA120.3, D5 Vario, San Ace Windows 7 Ultimate
MonitorKeyboardPowerCase
32" LG7000 1920x1080 Logitech S510 XFX 650Watt XXX Modular Edition Custom Modded
MouseAudio
Logitech S510 Mission M74 Denon PMA 355
  hide details
Reply
My System
(15 items)


CPUMotherboardGraphicsRAM
4790K delidded @4.9ghz Asus Z97 Deluxe Wifi EVGA GTX 980 SC 2 x 8GB Corsair Vengence 2400
Hard DriveOptical DriveCoolingOS
Crucial MX200 250gb + 1tb Lg Bluray EK Supreme, TC PA120.3, D5 Vario, San Ace Windows 7 Ultimate
MonitorKeyboardPowerCase
32" LG7000 1920x1080 Logitech S510 XFX 650Watt XXX Modular Edition Custom Modded
MouseAudio
Logitech S510 Mission M74 Denon PMA 355
  hide details
Reply
post #15 of 27
Good painting skills.
Old Skool Redux
(13 items)


CPUMotherboardGraphicsRAM
Q6600 GO Lan Party DK P35 T2RS Diamond HD 6870 4x1G GSkill HZ
Hard DriveOptical DriveOSMonitor
2x WD Caviar Black 1TB Sony DRU 800 Vista Ultimate 2x gt35h 1x g245h
KeyboardPowerCaseMouse
6GV2 750 watt Old Skool G700
Mouse Pad
SteelSeries cloth
  hide details
Reply
Old Skool Redux
(13 items)


CPUMotherboardGraphicsRAM
Q6600 GO Lan Party DK P35 T2RS Diamond HD 6870 4x1G GSkill HZ
Hard DriveOptical DriveOSMonitor
2x WD Caviar Black 1TB Sony DRU 800 Vista Ultimate 2x gt35h 1x g245h
KeyboardPowerCaseMouse
6GV2 750 watt Old Skool G700
Mouse Pad
SteelSeries cloth
  hide details
Reply
post #16 of 27
lookin good dude, can't wait to see it finished
Boot Scootin'
(13 items)


CPUMotherboardGraphicsRAM
AMD FX-8120 GA-990FXA-UD3 MSI R9 390X Corsair
RAMHard DriveHard DriveOptical Drive
Corsair  ocz vertex 3 seagate Samsung
Optical DriveCoolingOSPower
LG bluray Cooler Master 612 Windows 7 xfx
Case
Antec Dark Fleet
  hide details
Reply
Boot Scootin'
(13 items)


CPUMotherboardGraphicsRAM
AMD FX-8120 GA-990FXA-UD3 MSI R9 390X Corsair
RAMHard DriveHard DriveOptical Drive
Corsair  ocz vertex 3 seagate Samsung
Optical DriveCoolingOSPower
LG bluray Cooler Master 612 Windows 7 xfx
Case
Antec Dark Fleet
  hide details
Reply
post #17 of 27
You went to town with that dremel on that hole. Nice work.
zoso
(13 items)


CPUMotherboardGraphicsRAM
Q6600 (3.96ghz) DFI LP DK P35 EVGA GTX 285 (710/1325) GSkill 4gb DDR2
Hard DriveOSMonitorKeyboard
2 x Vraptors Raid 0 Vista 64 V2400W Logitech G15
PowerCaseMouseMouse Pad
620HX TJ07 Diamondback Steel
  hide details
Reply
zoso
(13 items)


CPUMotherboardGraphicsRAM
Q6600 (3.96ghz) DFI LP DK P35 EVGA GTX 285 (710/1325) GSkill 4gb DDR2
Hard DriveOSMonitorKeyboard
2 x Vraptors Raid 0 Vista 64 V2400W Logitech G15
PowerCaseMouseMouse Pad
620HX TJ07 Diamondback Steel
  hide details
Reply
post #18 of 27
Thread Starter
UPDATE 14/06/08

Have not had an update in a while b/c ive been busy with college coursework, work and stuff so heres a few pics of what i did get done in my spare time..

So i painted the Front case panel this time round and nice gloss black..so first i sanded it all down and gave it a couple coats of grey primer for good adheasion for the paint. I use this car spray paint because its finish it nice and it is pretty tough and scratch resistant


Then sand down the primer with some 400 grit paper to get it smooth again, dont want that nasty orange peel finish..Ahh nice and smooth


Then it was time to give it its first coat of paint..Heres a little tip, heat the can up in a bucket of warm water, it pressurises the can and the paint sprays out in a much finer mist, resulting in a much better paint job


First coat of paint


Then sand down this first coat so the second coat can be even more smoother, You will get down to the primer again but only on edges, but it doesnt matter because one coat is more than enough to cover it up.


2nd coat of paint applied, looks better with the second coat


After that dries we sand it down with some 1500 grade to get it ready for clear coat. Wet sand it so the paper doesnt clog up and start scraping the paint of in places

Sanded


And after 2 coats of clear it looks kinda like this



Ofcourse i had to catch the OCN flame in the reflection

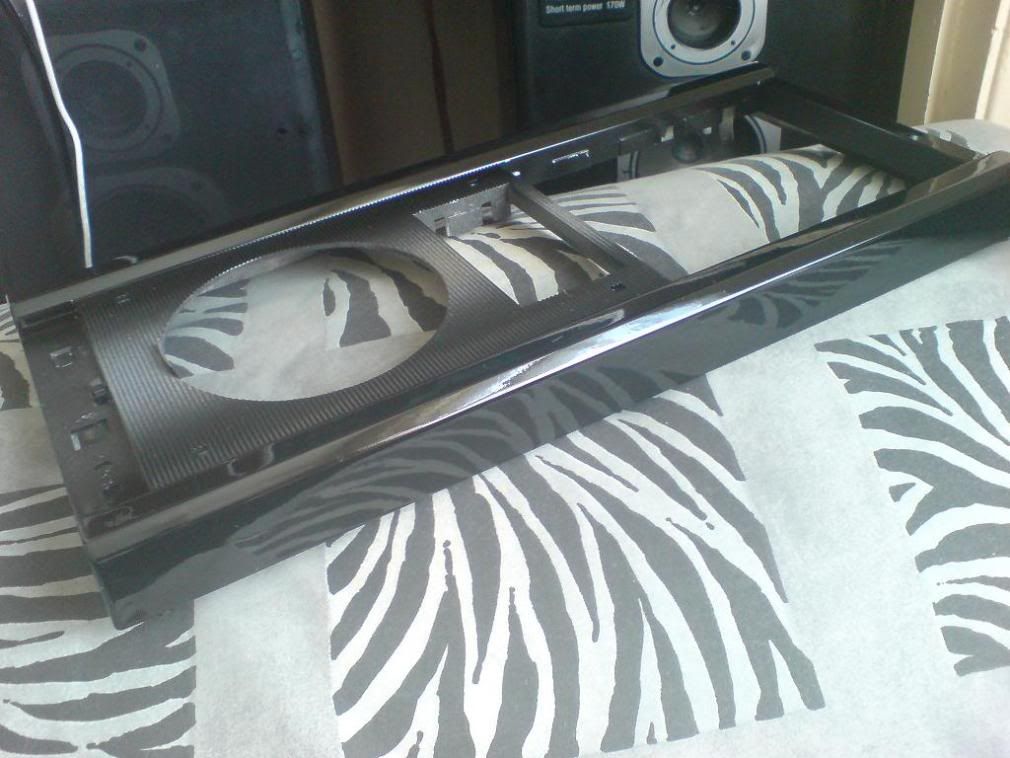

Ok so thats the front panel and bezels painted...So now it was time to cut a hole for the 120mm fan in that piece of acrylic for the front. It looked like this before i cut it, you can see where I started to cut it but then remembered to take a pic.


This was the circle finished, remember i done it by hand with a dremel and some sand paper, I was pretty happy with the result. I used some 1500 sand paper to polish the inner edge of the hole as i had no flame to polish it.


Came out very nice actually but the camera doesnt seem to capture it.
