DFI P35 T2RS Vtt/GTL Guide Needed

post #1 of 6
Thread Starter

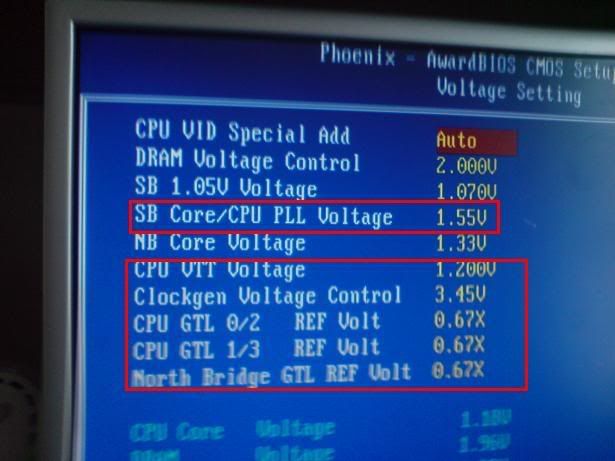

Well basically i have no idea what to do with these voltage option. Im no newbie to DFI as ive only dealt with DFI mobos but this ones voltage options has me stumped because this is my first intel build..Im currently at 3.15ghz at stock volts +25mV. Ive seen people hitting 3.6ghz with less than 1.3v, i pushed 1.35v and 2 cores in prime would fail instantly, shortly followed by the other 2. Ive not messed around with the highlighted options but ive heard GTL and VTT are essential in overclocking a Quad properly. My VID is 1.2125 so i would assume id be able to hit 3.6ghz at reletivly low Vcore. Ive read this other guide on VTT and stuff but its too much to read and makes no sence to me. I did however once come accross a guide which seemed very good, i think it was over at Clunks forum but i forgot to bookmark it. Also i have no idea how to read THESE tables and make sence of them. I just need a easy to understand guide/tut on GTL and VTT so i can overclock my quad properly.
Anyhelp is appreciated and will be rewarded...with cake..and rep.
My System
(15 items)


CPUMotherboardGraphicsRAM
4790K delidded @4.9ghz Asus Z97 Deluxe Wifi EVGA GTX 980 SC 2 x 8GB Corsair Vengence 2400
Hard DriveOptical DriveCoolingOS
Crucial MX200 250gb + 1tb Lg Bluray EK Supreme, TC PA120.3, D5 Vario, San Ace Windows 7 Ultimate
MonitorKeyboardPowerCase
32" LG7000 1920x1080 Logitech S510 XFX 650Watt XXX Modular Edition Custom Modded
MouseAudio
Logitech S510 Mission M74 Denon PMA 355
  hide details
Reply
My System
(15 items)


CPUMotherboardGraphicsRAM
4790K delidded @4.9ghz Asus Z97 Deluxe Wifi EVGA GTX 980 SC 2 x 8GB Corsair Vengence 2400
Hard DriveOptical DriveCoolingOS
Crucial MX200 250gb + 1tb Lg Bluray EK Supreme, TC PA120.3, D5 Vario, San Ace Windows 7 Ultimate
MonitorKeyboardPowerCase
32" LG7000 1920x1080 Logitech S510 XFX 650Watt XXX Modular Edition Custom Modded
MouseAudio
Logitech S510 Mission M74 Denon PMA 355
  hide details
Reply
post #2 of 6
I needed to mess with my GTL and VTT for anything above 3.0 on my q6600, no amount of vcore could make up for it. It's hard to say exactly what settings are good, just play around and remember that if a few steps of vcore doesnt help you probably need to raise the GTLs. Don't raise it too much though as I can't say if it will cause damage or instability. I've given mine up to +150mv, so you can raise it quite a bit and cause no harm.
post #3 of 6
I try to keep my CPU VTT voltage at the same voltage as my NB voltage (unless it is a 45nm CPU, in which case I dont ever go over 1.4v).

Your CPU GTL Ref should be at x.63 while your NB GTL Ref should be at x.67.

IDK about the clockgen. I assume that is the PLL voltage, in which case by the looks of it, you'r board has a different PLL clockgen chip then my board, becasue i only set mine to 1.52v and the max recommended is 1.75v (it doesnt even go up to 3.0v like yous seems to be at). So I cant really help with that one.
