Should I have NOT lapped My EK Supreme

post #1 of 7
Thread Starter
Ok so now im thinking maybe i shouldnt have lapped my EK Supreme, It has a natural bow to it from the factory and by me lapping it that bow is either complete gone or reduce alot, would this have be bad for my temps and is there anyway i can get a bow back in the block?..thanks.
My System
(15 items)


CPUMotherboardGraphicsRAM
4790K delidded @4.9ghz Asus Z97 Deluxe Wifi EVGA GTX 980 SC 2 x 8GB Corsair Vengence 2400
Hard DriveOptical DriveCoolingOS
Crucial MX200 250gb + 1tb Lg Bluray EK Supreme, TC PA120.3, D5 Vario, San Ace Windows 7 Ultimate
MonitorKeyboardPowerCase
32" LG7000 1920x1080 Logitech S510 XFX 650Watt XXX Modular Edition Custom Modded
MouseAudio
Logitech S510 Mission M74 Denon PMA 355
  hide details
Reply
My System
(15 items)


CPUMotherboardGraphicsRAM
4790K delidded @4.9ghz Asus Z97 Deluxe Wifi EVGA GTX 980 SC 2 x 8GB Corsair Vengence 2400
Hard DriveOptical DriveCoolingOS
Crucial MX200 250gb + 1tb Lg Bluray EK Supreme, TC PA120.3, D5 Vario, San Ace Windows 7 Ultimate
MonitorKeyboardPowerCase
32" LG7000 1920x1080 Logitech S510 XFX 650Watt XXX Modular Edition Custom Modded
MouseAudio
Logitech S510 Mission M74 Denon PMA 355
  hide details
Reply
post #2 of 7
idk bout the supreme, but lap your CPU instead.
post #3 of 7
You will get better results if the CPU is lapped and the block lapped than with CPU lapped and block bowed.
Obsidian
(13 items)


CPUMotherboardGraphicsRAM
i7 930 3.6ghz 1.146v EVGA x58 GTX470 water 6GB 1600mhz 6-8-6-18 1.6V
Hard DriveOSMonitorKeyboard
SSD (80+60GB) HDD (2+2TB) Windows 7 x64 24" + 22" G15
PowerCaseMouse
M12D 850W 800D G9
  hide details
Reply
Obsidian
(13 items)


CPUMotherboardGraphicsRAM
i7 930 3.6ghz 1.146v EVGA x58 GTX470 water 6GB 1600mhz 6-8-6-18 1.6V
Hard DriveOSMonitorKeyboard
SSD (80+60GB) HDD (2+2TB) Windows 7 x64 24" + 22" G15
PowerCaseMouse
M12D 850W 800D G9
  hide details
Reply
post #4 of 7
Thread Starter

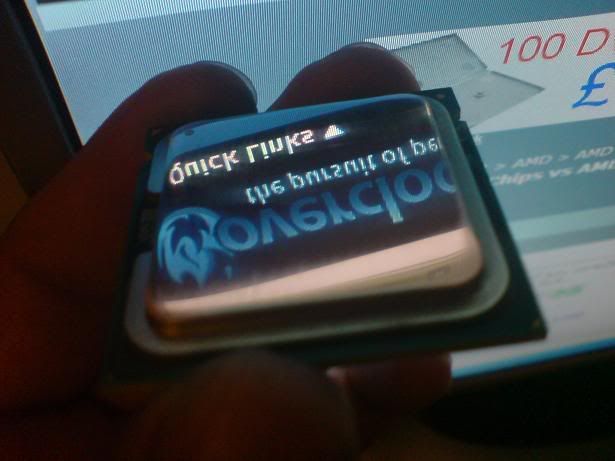

well ive already lapped my cpu..see

It did net a good 5C drop on all cores but im thinking i shouldnt have lapped the EK..maybe i should have left it..im thinking of getting an Edge acrylic though.

Quote:
You will get better results if the CPU is lapped and the block lapped than with CPU lapped and block bowed.
Ahhh..Good stuff..well i guess im ok then..but i think im going to lap the block again then, because i dont think i did an extremely good job at it.
My System
(15 items)


CPUMotherboardGraphicsRAM
4790K delidded @4.9ghz Asus Z97 Deluxe Wifi EVGA GTX 980 SC 2 x 8GB Corsair Vengence 2400
Hard DriveOptical DriveCoolingOS
Crucial MX200 250gb + 1tb Lg Bluray EK Supreme, TC PA120.3, D5 Vario, San Ace Windows 7 Ultimate
MonitorKeyboardPowerCase
32" LG7000 1920x1080 Logitech S510 XFX 650Watt XXX Modular Edition Custom Modded
MouseAudio
Logitech S510 Mission M74 Denon PMA 355
  hide details
Reply
My System
(15 items)


CPUMotherboardGraphicsRAM
4790K delidded @4.9ghz Asus Z97 Deluxe Wifi EVGA GTX 980 SC 2 x 8GB Corsair Vengence 2400
Hard DriveOptical DriveCoolingOS
Crucial MX200 250gb + 1tb Lg Bluray EK Supreme, TC PA120.3, D5 Vario, San Ace Windows 7 Ultimate
MonitorKeyboardPowerCase
32" LG7000 1920x1080 Logitech S510 XFX 650Watt XXX Modular Edition Custom Modded
MouseAudio
Logitech S510 Mission M74 Denon PMA 355
  hide details
Reply
post #5 of 7
Quote:
Originally Posted by waqasr View Post
Ok so now im thinking maybe i shouldnt have lapped my EK Supreme, It has a natural bow to it from the factory and by me lapping it that bow is either complete gone or reduce alot, would this have be bad for my temps and is there anyway i can get a bow back in the block?..thanks.
Just mount it with TIM, then take it back off and see if it has a good even spread...I don't know if you have a o-ring in that block that bows it, if there is you might just use a thicker o-ring to get your bow back...The frame might bow it also..You might want to take it out of the frame to lap it so the center doesn't get to thin...

Really most new water blocks that you will get have a good finish on them, flat and true come to mind...But since you already lapped it once anyway you might as well again........Let us know if it knocks your down temp's any...
My System
(13 items)


CPUMotherboardGraphicsRAM
E8600 4545Mhz*9 w/1.29V DFI DK P45 XFX 8800 GS D9GKX & D9GMH
Hard DriveOptical DriveOSPower
2x Seagate 160 Perp. RD-1 2x Asus Vista Premium Corsair HX 620
Case
Open Bench
  hide details
Reply
My System
(13 items)


CPUMotherboardGraphicsRAM
E8600 4545Mhz*9 w/1.29V DFI DK P45 XFX 8800 GS D9GKX & D9GMH
Hard DriveOptical DriveOSPower
2x Seagate 160 Perp. RD-1 2x Asus Vista Premium Corsair HX 620
Case
Open Bench
  hide details
Reply
post #6 of 7
Thread Starter
thanks for the info Irak, yea it does have an o-ring..well 2 actually..but i think i will just relap it again..properly making sure it and the cpu are totally flat..
My System
(15 items)


CPUMotherboardGraphicsRAM
4790K delidded @4.9ghz Asus Z97 Deluxe Wifi EVGA GTX 980 SC 2 x 8GB Corsair Vengence 2400
Hard DriveOptical DriveCoolingOS
Crucial MX200 250gb + 1tb Lg Bluray EK Supreme, TC PA120.3, D5 Vario, San Ace Windows 7 Ultimate
MonitorKeyboardPowerCase
32" LG7000 1920x1080 Logitech S510 XFX 650Watt XXX Modular Edition Custom Modded
MouseAudio
Logitech S510 Mission M74 Denon PMA 355
  hide details
Reply
My System
(15 items)


CPUMotherboardGraphicsRAM
4790K delidded @4.9ghz Asus Z97 Deluxe Wifi EVGA GTX 980 SC 2 x 8GB Corsair Vengence 2400
Hard DriveOptical DriveCoolingOS
Crucial MX200 250gb + 1tb Lg Bluray EK Supreme, TC PA120.3, D5 Vario, San Ace Windows 7 Ultimate
MonitorKeyboardPowerCase
32" LG7000 1920x1080 Logitech S510 XFX 650Watt XXX Modular Edition Custom Modded
MouseAudio
Logitech S510 Mission M74 Denon PMA 355
  hide details
Reply
post #7 of 7
Quote:
Originally Posted by waqasr View Post
thanks for the info Irak, yea it does have an o-ring..well 2 actually..but i think i will just relap it again..properly making sure it and the cpu are totally flat..
Hey NP...Yeah flats more important then shiny, flat and shiny are cool..

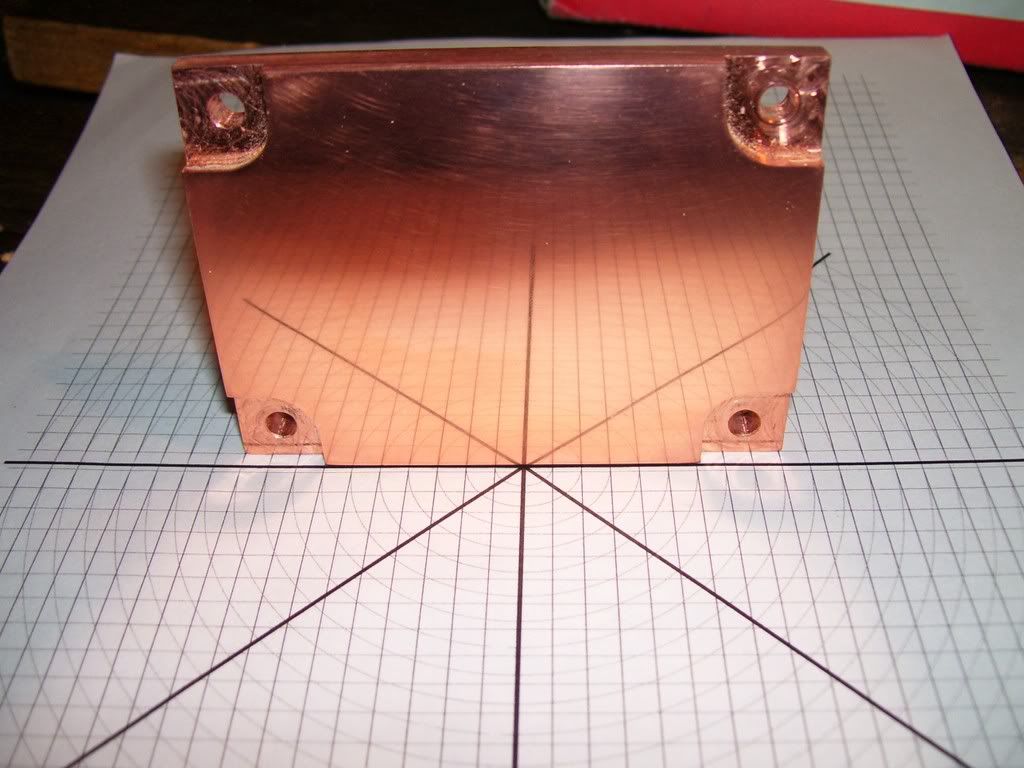

You might already do this, just make a piece of graph paper and hold it at a 90 degree's to your piece your lapping...If its flat the lines will look straight, if its not they will look broken and wavy....


Man if you can find a piece of plate glass to lap on grab it quick...Its a lot flatter then window glass, and if you get a 3/8-3/4" piece it wont flex on you either...I dropped mine and broke it about six months ago, I miss it to...I bought it from a local glass shop, the guy even beveled the edges of it for me..It was just a couple of bux back then, I need to try and find another piece...
