post #3251 of 23536
You figure out a way to get that panel to fit our case, make me one too. Also glad to hear that DA:O is a good game. Quite a few people on my Xfire list have been playing it.

@ SPEEDemon, how are you painting the outside of the case? I want to paint over the letters HAF on the side with NHB, just for that extra personal touch, but I'm not sure how to get it to look just right. Glad to see you're so helpful already. 5 Rep in 6 posts, very impressive. Keep up that good work.
HAFaestus
(18 items)


CPUMotherboardGraphicsRAM
FX-8120 ASUS Sabertooth 990FX ASUS DirectCU GTX 460 2 x 4GB Samsung
Hard DriveHard DriveHard DriveOptical Drive
128GB M4 250GB Seagate 1TB WD Black LG 20X DualLayer
OSMonitorKeyboardPower
Windows 7 Professional 64-bit HP w2338h Chicony KB-2961 SeaSonic X750 80+Gold
CaseMouseMouse PadAudio
Cooler Master HAF 932 Black Interior Logitech G9x Razer Goliathus Extended Razer Carcharias
AudioAudio
Denon AVR-1712 Klipsch Qunitet
  hide details
Reply
HAFaestus
(18 items)


CPUMotherboardGraphicsRAM
FX-8120 ASUS Sabertooth 990FX ASUS DirectCU GTX 460 2 x 4GB Samsung
Hard DriveHard DriveHard DriveOptical Drive
128GB M4 250GB Seagate 1TB WD Black LG 20X DualLayer
OSMonitorKeyboardPower
Windows 7 Professional 64-bit HP w2338h Chicony KB-2961 SeaSonic X750 80+Gold
CaseMouseMouse PadAudio
Cooler Master HAF 932 Black Interior Logitech G9x Razer Goliathus Extended Razer Carcharias
AudioAudio
Denon AVR-1712 Klipsch Qunitet
  hide details
Reply
post #3252 of 23536
Quote:
Originally Posted by Nhb93 View Post
You figure out a way to get that panel to fit our case, make me one too. Also glad to hear that DA:O is a good game. Quite a few people on my Xfire list have been playing it.

@ SPEEDemon, how are you painting the outside of the case? I want to paint over the letters HAF on the side with NHB, just for that extra personal touch, but I'm not sure how to get it to look just right. Glad to see you're so helpful already. 5 Rep in 6 posts, very impressive. Keep up that good work.
Modding that panel onto another one will be a lot of work, but not necessarily too much more to do two at the same time. PM me if you are serious about that.

As far as painting the outside of the case, use RUSTOLEUM SATIN BLACK for the base. It will match pretty much exactly to the rest of the case. Then just paint your letters over it with another color. If you do it right, you shouldn't need to paint the whole panel to start anyways. What I did was make my letters just a hair larger than what was there. Check out these pictures of how I did mine.

Painting letters onto the side panel:
  1. Wash the side panel with liquid dish soap. I've found that works best due to it's grease cutting ability.
  2. Dry it and your hands completely.
  3. Be sure you are working with freshly washed hands or wearing latex/vinyl gloves.
  4. Use some good tape to mask out your design or letters.
  5. Use something like the back of your fingernails to be sure the tape is adhered completely.
  6. Scuff up the metal surface you are going to paint with a painter's scuff/prep pad. The tape will stay fine as long as you don't go crazy. It doesn't take a ton of pressure.
  7. Use compressed air or a clean cotton rag to remove any dust from the surface prior to...
  8. Painting acording to the instrctions on the can. Usually a number of thin coats applied a few minutes apart.
  9. Remove the tape approximately 30 minutes to 1 hour after painting. Doing so will avoid any chance of the paint peeling away with the tape. While removing the tape, pull away from the painted edge of the tape. This will leave the best edges as possible.

*NOTE: RUSTOLEUM TEXTURED BLACK will match your plastic parts in color and texture perfectly.

**There is no need for primer unless you are painting over bare metal. The back side of these panels and the inside of the case comes primed from the factory. Even if you get down to bare metal in some spots while you are prepping the factory primed surface, you still don't need primer with Rustoleum paint.
































post #3253 of 23536

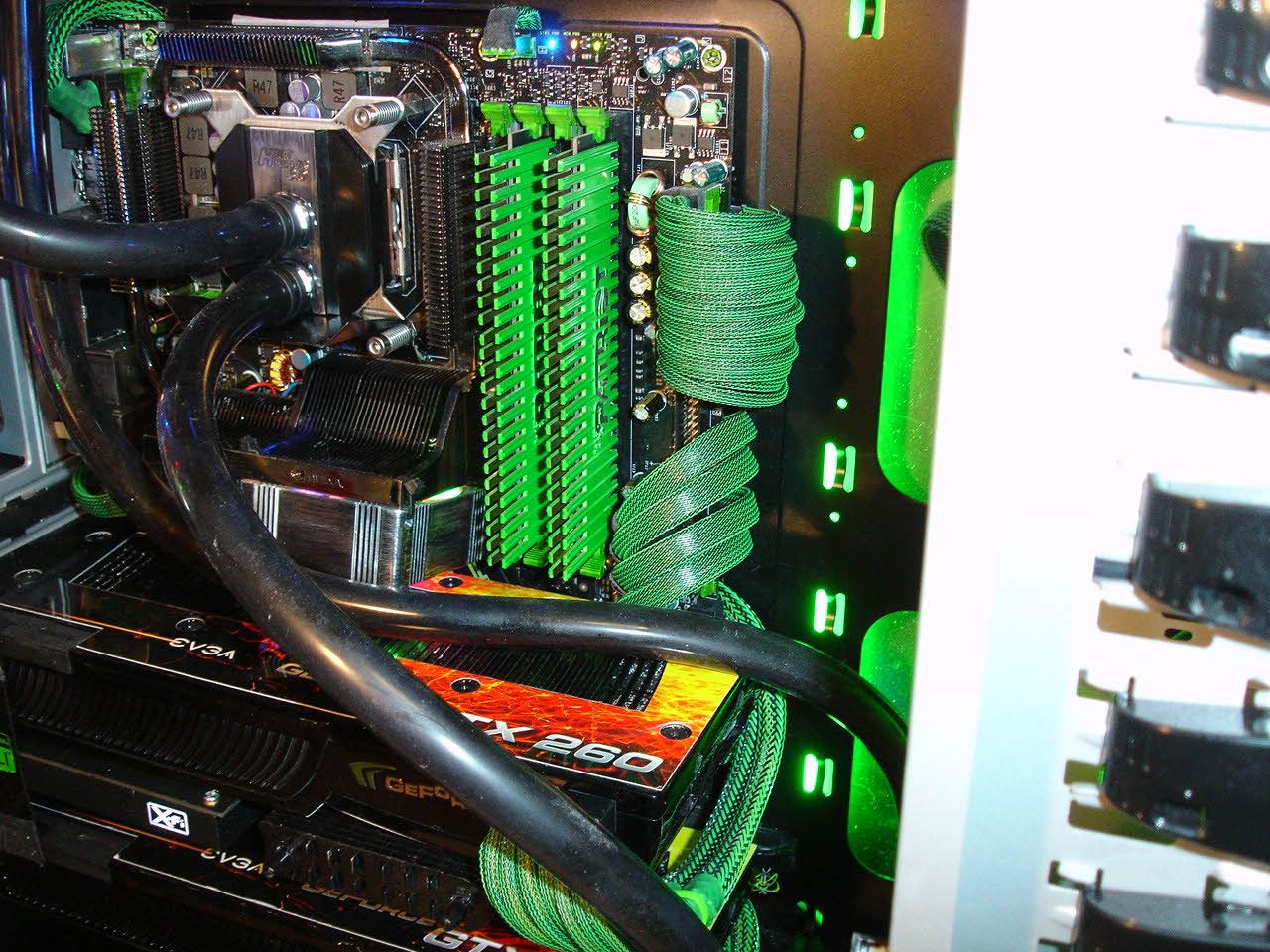

Okay, so I got a little carried away with pictures. WTH... .. . Here's some more! I figure some of the new members of the thread can enjoy them.


























post #3254 of 23536
Quote:
Originally Posted by Paraleyes View Post
Major EDIT

How come I could never find sata cables that angled up like that?? The only ones I ever saw bent down. I want some like that?
post #3255 of 23536
Quote:
Originally Posted by FalloutBoy View Post
How come I could never find sata cables that angled up like that?? The only ones I ever saw bent down. I want some like that?
Hmm Those ones came with my 790i Ultra SLI I think I got six with it. I have some red ones that came with my Striker Extreme that are 90* upwards as well.
post #3256 of 23536
how much volt should my new leds for fans be? ( 1 x120 ,1x230,1x200)
Edited by johnko1 - 11/15/09 at 5:23am
post #3257 of 23536
Quote:
Originally Posted by FalloutBoy View Post
How come I could never find sata cables that angled up like that?? The only ones I ever saw bent down. I want some like that?
AC Ryan makes SATA cables that go every direction. They have all of them to choose from over at Performance-PC's, that's where I got mine. Here ya go:

SATA Cables

CPUMotherboardGraphicsRAM
Intel Core-I5 7600K ASUS ROG Maximus VIII Formula ASUS GTX 1080 Strix OC Corsair Dominator Platinum DDR4 16GB 3000Mhz C15
Hard DriveHard DriveHard DriveCooling
Samsung 850 Evo SSD 250GB (OS) WD Cavier Black 1TB (Data) WD Velociraptor 150GB (Flight Sim) EK-Supremacy EVO CPU Water Block - Nickel
CoolingOSMonitorKeyboard
EK-FC1080 GTX Strix - Nickel Windows 10 64-Bit LG 34UM68-P 34" 21:9 UltraWide Full HD IPS LED WASD Custom Mechanical w/ Cherry MX Blues
PowerCaseMouseMouse Pad
CoolerMaster V1200 Platinum Thermaltake View 27 Logitech G602 Logitech G440
AudioOtherOtherOther
Bose Companion 3 Series II Saitek Pro Flight Yoke / Throttle Quadrant  Saitek Pro Flight Rudder Pedals Saitek X52 Flight System
  hide details
Reply

CPUMotherboardGraphicsRAM
Intel Core-I5 7600K ASUS ROG Maximus VIII Formula ASUS GTX 1080 Strix OC Corsair Dominator Platinum DDR4 16GB 3000Mhz C15
Hard DriveHard DriveHard DriveCooling
Samsung 850 Evo SSD 250GB (OS) WD Cavier Black 1TB (Data) WD Velociraptor 150GB (Flight Sim) EK-Supremacy EVO CPU Water Block - Nickel
CoolingOSMonitorKeyboard
EK-FC1080 GTX Strix - Nickel Windows 10 64-Bit LG 34UM68-P 34" 21:9 UltraWide Full HD IPS LED WASD Custom Mechanical w/ Cherry MX Blues
PowerCaseMouseMouse Pad
CoolerMaster V1200 Platinum Thermaltake View 27 Logitech G602 Logitech G440
AudioOtherOtherOther
Bose Companion 3 Series II Saitek Pro Flight Yoke / Throttle Quadrant  Saitek Pro Flight Rudder Pedals Saitek X52 Flight System
  hide details
Reply
post #3258 of 23536
I used flat black Krylon paint for the interior of my case. I wanted it as minimally reflective as possible. Still have a little bit of that left. I wonder how that would look on the side panel of the case. I'd get another panel, but then I would have to redo the interior paint job, and I just don't have enough paint to do that right. I wish I have another side panel to try it out on.
HAFaestus
(18 items)


CPUMotherboardGraphicsRAM
FX-8120 ASUS Sabertooth 990FX ASUS DirectCU GTX 460 2 x 4GB Samsung
Hard DriveHard DriveHard DriveOptical Drive
128GB M4 250GB Seagate 1TB WD Black LG 20X DualLayer
OSMonitorKeyboardPower
Windows 7 Professional 64-bit HP w2338h Chicony KB-2961 SeaSonic X750 80+Gold
CaseMouseMouse PadAudio
Cooler Master HAF 932 Black Interior Logitech G9x Razer Goliathus Extended Razer Carcharias
AudioAudio
Denon AVR-1712 Klipsch Qunitet
  hide details
Reply
HAFaestus
(18 items)


CPUMotherboardGraphicsRAM
FX-8120 ASUS Sabertooth 990FX ASUS DirectCU GTX 460 2 x 4GB Samsung
Hard DriveHard DriveHard DriveOptical Drive
128GB M4 250GB Seagate 1TB WD Black LG 20X DualLayer
OSMonitorKeyboardPower
Windows 7 Professional 64-bit HP w2338h Chicony KB-2961 SeaSonic X750 80+Gold
CaseMouseMouse PadAudio
Cooler Master HAF 932 Black Interior Logitech G9x Razer Goliathus Extended Razer Carcharias
AudioAudio
Denon AVR-1712 Klipsch Qunitet
  hide details
Reply
post #3259 of 23536
OK, before anyone says anything, I've extensively reviewed this thread, and I am very impressed with all of the custom jobs I've seen. However, I'm a family man with a kid who commutes 3 hours a day, so while I would like to custome paint my rig, "there's never enough hours in the day." Especially when I'd rather spend my free time playing games with my kid and watching movies with the missus than painting. So please, no wisecracking about how plain it looks, I already know that! I'm just thrilled with the function and proud to be a fellow owner! The other reason I wanted to post pics is I haven't seen many set-up's like mine with A) Cooler Master 4-in-3 units, B) tri-SLI set-up's, and C) the bottom hard drive rack removed. I don't have that many internal drives (I prefer to use an external eSATA hard drive dock), and I bought the Cooler Master 4-in-3 hard drive unit with cooling fan for my two internal drives (which I can add two more), so I removed the lower hard drive for maximum air flow from the front intake fan. That offers better cooling of the NB/SB (it's very difficult to keep a NB/SB cool with a tri-SLI set-up and 8GB of RAM). Attachment 129358Attachment 129359

Again, congrats on all of the awesome custom jobs. I wish I had more time to do so, but such is life!

post #3260 of 23536
Great looking case. Just a little heads up. If you go to your profile you can put your rig automatically into your sig, since OCN has a max of 8 lines per sig, and yours is over that right now. It's nice to have a painted case, but it is a fair bit of work. Hopefully one day you can find the time to get it finished.
HAFaestus
(18 items)


CPUMotherboardGraphicsRAM
FX-8120 ASUS Sabertooth 990FX ASUS DirectCU GTX 460 2 x 4GB Samsung
Hard DriveHard DriveHard DriveOptical Drive
128GB M4 250GB Seagate 1TB WD Black LG 20X DualLayer
OSMonitorKeyboardPower
Windows 7 Professional 64-bit HP w2338h Chicony KB-2961 SeaSonic X750 80+Gold
CaseMouseMouse PadAudio
Cooler Master HAF 932 Black Interior Logitech G9x Razer Goliathus Extended Razer Carcharias
AudioAudio
Denon AVR-1712 Klipsch Qunitet
  hide details
Reply
HAFaestus
(18 items)


CPUMotherboardGraphicsRAM
FX-8120 ASUS Sabertooth 990FX ASUS DirectCU GTX 460 2 x 4GB Samsung
Hard DriveHard DriveHard DriveOptical Drive
128GB M4 250GB Seagate 1TB WD Black LG 20X DualLayer
OSMonitorKeyboardPower
Windows 7 Professional 64-bit HP w2338h Chicony KB-2961 SeaSonic X750 80+Gold
CaseMouseMouse PadAudio
Cooler Master HAF 932 Black Interior Logitech G9x Razer Goliathus Extended Razer Carcharias
AudioAudio
Denon AVR-1712 Klipsch Qunitet
  hide details
Reply
