Help. New mobo and cpu. comp not even booting. (pics)

post #1 of 22
Thread Starter
FYI. Im new. first time doing this.

I just purchased an ASRock 4CoreDual SATA2 LGA 775 VIA PT880 Pro/PT880 Ultra ATX Intel Motherboard. http://www.newegg.com/Product/Produc...82E16813157115

and..

An Intel Core 2 Quad Q6600 Kentsfield 2.4GHz 2 x 4MB L2 Cache LGA 775 Quad-Core Processor http://www.newegg.com/Product/Produc...82E16819115018

Installed everything to the best of my ability and the computer wont start when i press the power button. Nothing at all. I followed the directions but there were 2 cords that I couldnt find pins for. here they are..

cause pc to not start?


cause pc to not start?


I also took my little "jumper" off my old mobo and put it here...


My RAM is pc3200 so I believe thats not a problem. Im pretty sure i put them in the right slots.

Edit. I also didnt use the new IDE cables that came with the mobo. Used the old bent ass crusty ones.
Edited by Candlebox - 12/26/08 at 12:06pm
post #2 of 22

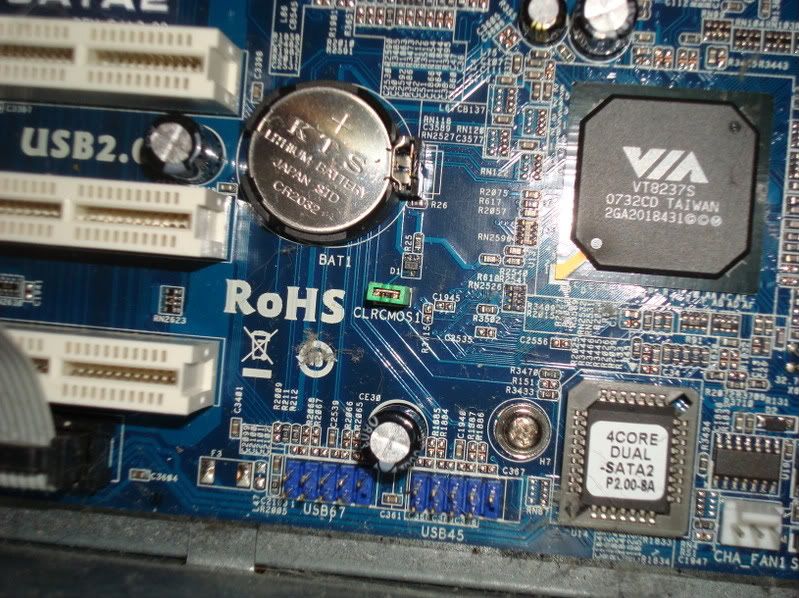

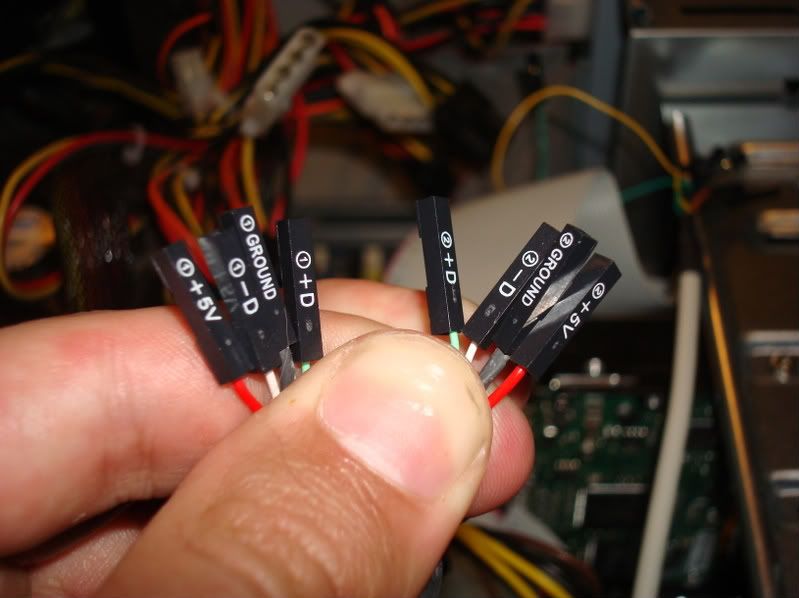

You only put the Jumper there to CLR Cmos take it back off as the Borad wont boot with it on, and the other plugs in pic 1 look like there for your usb header at bottom of borad check your manual for correct pin locations

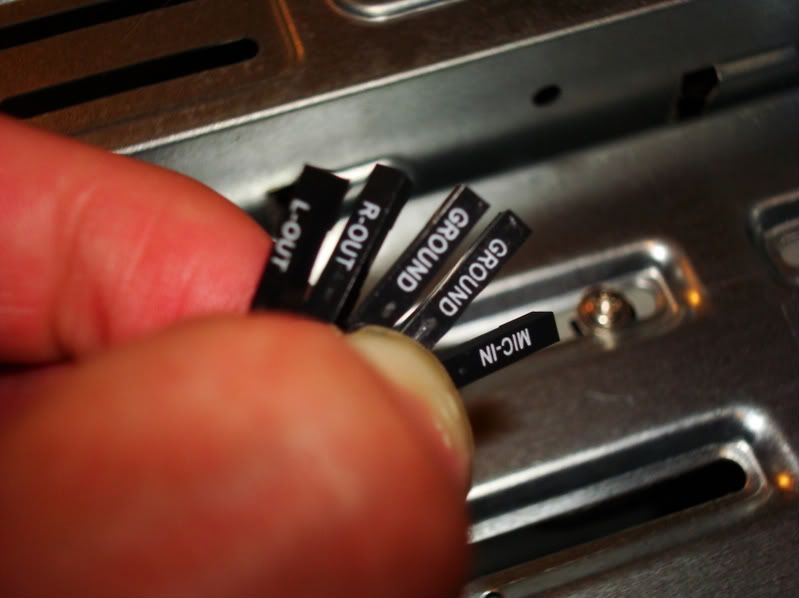

the second pic shows the connections for Audio out and they go on the AC97 header are usually located near the PCIe slot again check your manual

CPUMotherboardGraphicsRAM
E8500 @ 4.275Ghz GA-X48T-DQ6 EVGA-GTX-295 + Palit 9800GT 512 G-Skill Ripjaws DDR3 1333 4GB
Hard DriveOptical DriveOSMonitor
Sata 250GB +320GB Liteon DVD-RW Windows 7 Ultimate x64 BenQ E2200-HD 1080p
KeyboardPowerCaseMouse
Logitech-LX-310 Antec EA-750W Modular Custom CM-690 Acentos de Cobre Logitech LX-7
Mouse Pad
CyberSniper -Tracer
  hide details
Reply

CPUMotherboardGraphicsRAM
E8500 @ 4.275Ghz GA-X48T-DQ6 EVGA-GTX-295 + Palit 9800GT 512 G-Skill Ripjaws DDR3 1333 4GB
Hard DriveOptical DriveOSMonitor
Sata 250GB +320GB Liteon DVD-RW Windows 7 Ultimate x64 BenQ E2200-HD 1080p
KeyboardPowerCaseMouse
Logitech-LX-310 Antec EA-750W Modular Custom CM-690 Acentos de Cobre Logitech LX-7
Mouse Pad
CyberSniper -Tracer
  hide details
Reply
post #3 of 22
Thread Starter
OK i took my cmos jumper off. but the manual doesnt say anything about the ac97 header. and i checked the manual for the audio pin locations. They dont really match. I either have to do some guesswork or I can post a picture of the manual page and a picture of the pins its supposed to go into.
post #4 of 22
Quote:
Originally Posted by Candlebox View Post
OK i took my cmos jumper off. but the manual doesnt say anything about the ac97 header. and i checked the manual for the audio pin locations. They dont really match. I either have to do some guesswork or I can post a picture of the manual page and a picture of the pins its supposed to go into.
The USB and audio pins have nothing to do with your system starting up. Do you have the pins that run to the power button hooked up correctly? Can't think of the technical name.
Quadzilla
(13 items)


CPUMotherboardGraphicsRAM
i7 920 C0 | 3.8ghz HT on | 1.3v |20x191 Gigabyte EX58-UD5 Gigabyte 6850 - 975/1100 1.2v Gskill (6 x 2GB) DDR3-1600mhz [6GBPI]
Hard DriveOSMonitorKeyboard
3x640 WDAAKS (Cavier Blue) Raid 0, Seagate Storage Windows 7/ Windows XP L246WP 24" MVA Panel Tarantula
PowerCaseMouseMouse Pad
Corsair 750TX Lian Li PC-201 MX 518 Icemat
  hide details
Reply
Quadzilla
(13 items)


CPUMotherboardGraphicsRAM
i7 920 C0 | 3.8ghz HT on | 1.3v |20x191 Gigabyte EX58-UD5 Gigabyte 6850 - 975/1100 1.2v Gskill (6 x 2GB) DDR3-1600mhz [6GBPI]
Hard DriveOSMonitorKeyboard
3x640 WDAAKS (Cavier Blue) Raid 0, Seagate Storage Windows 7/ Windows XP L246WP 24" MVA Panel Tarantula
PowerCaseMouseMouse Pad
Corsair 750TX Lian Li PC-201 MX 518 Icemat
  hide details
Reply
post #5 of 22
Consult your manual. Its gives you the exact pin-out for each one, and those are the USB connectors, not the correct area for what you need to plug 5v and others into. Those are the black connectors near the SATA ports and IDE channels. The manual will give you the areas to place those.
Edited by heathmcabee - 12/26/08 at 12:42pm

CPUMotherboardGraphicsRAM
Q6600 (1.2 VID) @ 3.7 1.38v UD3P MSI GTX 970 4G Corsair XMS2 1066
Hard DriveOptical DriveOSMonitor
2x160GB Velociraptor [Raid 0]/ 200&40GB WD 7200.10 DVD-R Windows 7 Professional Syncmaster 2333 23" - 19 in IBM extended
PowerCaseMouse
OCZ StealthXStream SXS600 Antec 1200 G5 Logitec
  hide details
Reply

CPUMotherboardGraphicsRAM
Q6600 (1.2 VID) @ 3.7 1.38v UD3P MSI GTX 970 4G Corsair XMS2 1066
Hard DriveOptical DriveOSMonitor
2x160GB Velociraptor [Raid 0]/ 200&40GB WD 7200.10 DVD-R Windows 7 Professional Syncmaster 2333 23" - 19 in IBM extended
PowerCaseMouse
OCZ StealthXStream SXS600 Antec 1200 G5 Logitec
  hide details
Reply
post #6 of 22
Thread Starter
Quote:
Originally Posted by chavez885 View Post
The USB and audio pins have nothing to do with your system starting up. Do you have the pins that run to the power button hooked up correctly? Can't think of the technical name.
It booted

ok ok . There seems to be a problem in that area. The Power SW( power switch) plug wasnt hooked up to the right area. but the reset sw, led, and some other plug are supposed to go all into the same area. but there is a pin missing or something. I cant put them all there!
post #7 of 22
Thread Starter
Ok next problem. It boots. I hit F2 to load boot menu. I load defaults and it boots, flashes windows for 1 second then reboots. Again. My CMOS jumper is off completely. Could this be the new problem? or because my reset plug is not connected to the proper pin? Or none of the above?
post #8 of 22
So you can access the BIOS? Make sure your memory voltage is set correctly, I've seen that do some weird things.
Quadzilla
(13 items)


CPUMotherboardGraphicsRAM
i7 920 C0 | 3.8ghz HT on | 1.3v |20x191 Gigabyte EX58-UD5 Gigabyte 6850 - 975/1100 1.2v Gskill (6 x 2GB) DDR3-1600mhz [6GBPI]
Hard DriveOSMonitorKeyboard
3x640 WDAAKS (Cavier Blue) Raid 0, Seagate Storage Windows 7/ Windows XP L246WP 24" MVA Panel Tarantula
PowerCaseMouseMouse Pad
Corsair 750TX Lian Li PC-201 MX 518 Icemat
  hide details
Reply
Quadzilla
(13 items)


CPUMotherboardGraphicsRAM
i7 920 C0 | 3.8ghz HT on | 1.3v |20x191 Gigabyte EX58-UD5 Gigabyte 6850 - 975/1100 1.2v Gskill (6 x 2GB) DDR3-1600mhz [6GBPI]
Hard DriveOSMonitorKeyboard
3x640 WDAAKS (Cavier Blue) Raid 0, Seagate Storage Windows 7/ Windows XP L246WP 24" MVA Panel Tarantula
PowerCaseMouseMouse Pad
Corsair 750TX Lian Li PC-201 MX 518 Icemat
  hide details
Reply
post #9 of 22
Thread Starter
Quote:
Originally Posted by chavez885 View Post
So you can access the BIOS? Make sure your memory voltage is set correctly, I've seen that do some weird things.
All I did was put the disc in. I can ascess the setup screen by pressing F2. Memory frequency is set at Auto if thats what you mean. I set it to the lowest voltage to see what it did. no change. I reset it back to defaults.
post #10 of 22
There will be couple pins still available, that you don't need to worry about. As long as you put all the pins the corresponding areas you should be fine. What pin is it that you have left over?

CPUMotherboardGraphicsRAM
Q6600 (1.2 VID) @ 3.7 1.38v UD3P MSI GTX 970 4G Corsair XMS2 1066
Hard DriveOptical DriveOSMonitor
2x160GB Velociraptor [Raid 0]/ 200&40GB WD 7200.10 DVD-R Windows 7 Professional Syncmaster 2333 23" - 19 in IBM extended
PowerCaseMouse
OCZ StealthXStream SXS600 Antec 1200 G5 Logitec
  hide details
Reply

CPUMotherboardGraphicsRAM
Q6600 (1.2 VID) @ 3.7 1.38v UD3P MSI GTX 970 4G Corsair XMS2 1066
Hard DriveOptical DriveOSMonitor
2x160GB Velociraptor [Raid 0]/ 200&40GB WD 7200.10 DVD-R Windows 7 Professional Syncmaster 2333 23" - 19 in IBM extended
PowerCaseMouse
OCZ StealthXStream SXS600 Antec 1200 G5 Logitec
  hide details
Reply
