9600GT voltmod - Page 15

post #141 of 151
Thread Starter
Quote:
Originally Posted by xxpenguinxx View Post

I have the PCIe clock set to 100. Also when I OC both the cards, I do each card separately, only having on installed at a time. I'm using the first PCIe slot which runs at x16.
Here's a pic of the EVGA 9600GT.

Where are your measuring vGPU from on the card?

Quote:
Originally Posted by cdoublejj View Post

I got my xfx9600gt at 800 core and i'm not sure on the shader clock but, it'd definitely over 1ghz on just stock clocks and cooling and the temps are great and to top it off it is a single slot card. The only down side is i keep the fan at 75 percent. If i could raise the voltage via bios i could probably break 800 because after 800 on stock volts is starts artifacting.

This post confuses me. Are you saying 1Ghz shader or core clock? 1Ghz core clock will take sub-zero temps. I don't remember what my air OC was, but running +2Ghz shader on water.

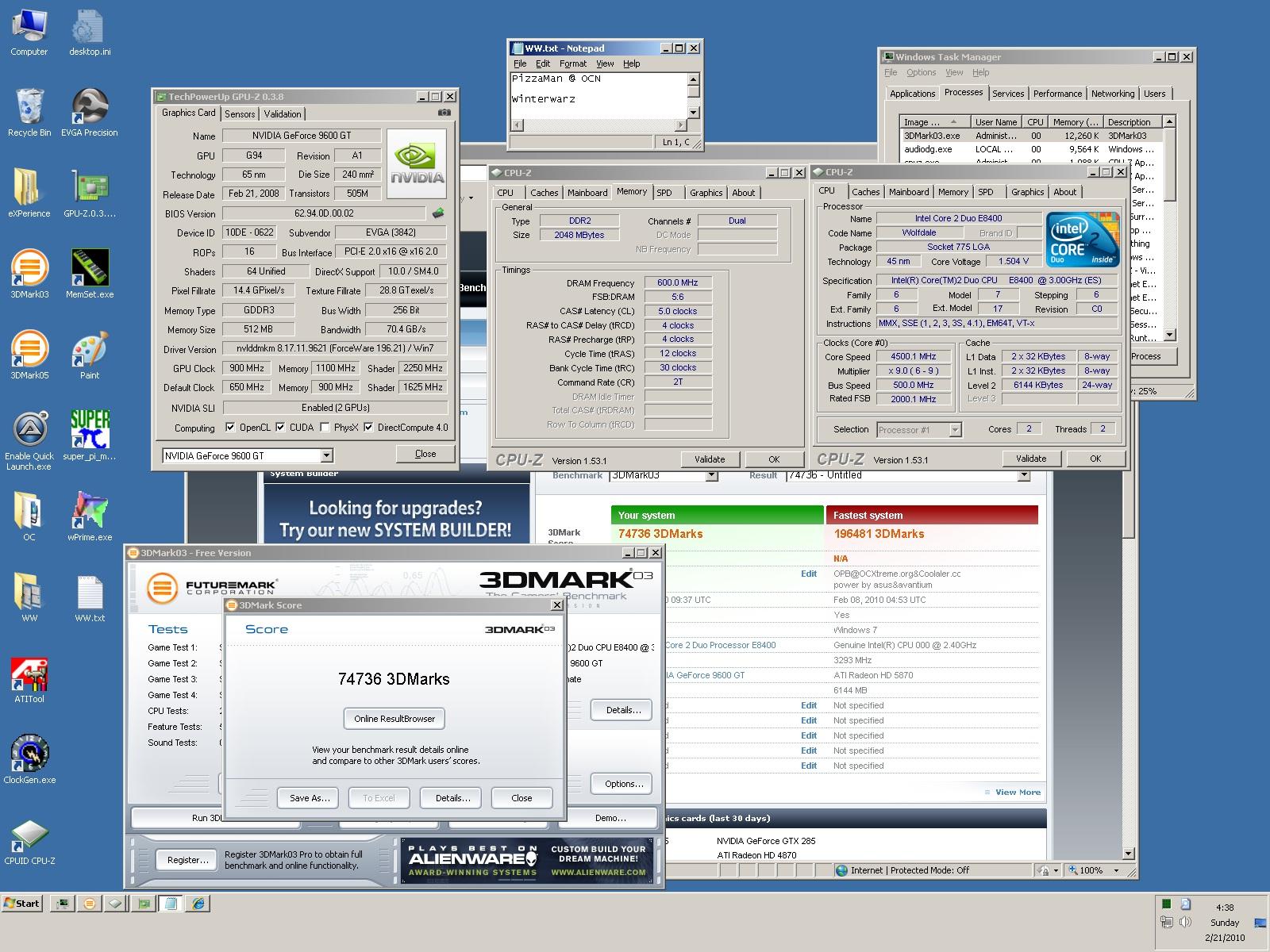

http://img.hwbot.org/u18954/image_id_334744.jpg

http://img.hwbot.org/u18954/image_id_271575.jpg

I couldn't find my LN2 screenshots, but I think I was ~1060Mhz core and 2350 shader.

FYI, increasing PCI bus with these cards will increase the core/shader freq. 110 PCI bis = 10% OC, even thought GPUz will not read the increase. Benchmarks reflect the increase.

CPUMotherboardGraphicsRAM
E8400, E8600, 980BE T2RS+, P5E3, TA890FXE 8800GTS's,GTX's,GS,Ultra's,9600GT Lots of D9's and some crap DDR3
Hard DrivePowerCase
Seagate 250GB + 80GB WD for benching TT 875w, Corsair 650TX Custom bench station
  hide details
Reply

CPUMotherboardGraphicsRAM
E8400, E8600, 980BE T2RS+, P5E3, TA890FXE 8800GTS's,GTX's,GS,Ultra's,9600GT Lots of D9's and some crap DDR3
Hard DrivePowerCase
Seagate 250GB + 80GB WD for benching TT 875w, Corsair 650TX Custom bench station
  hide details
Reply
post #142 of 151
Quote:
Originally Posted by PizzaMan View Post

Where are your measuring vGPU from on the card?
This post confuses me. Are you saying 1Ghz shader or core clock? 1Ghz core clock will take sub-zero temps. I don't remember what my air OC was, but running +2Ghz shader on water.
http://img.hwbot.org/u18954/image_id_334744.jpg
http://img.hwbot.org/u18954/image_id_271575.jpg
I couldn't find my LN2 screenshots, but I think I was ~1060Mhz core and 2350 shader.
FYI, increasing PCI bus with these cards will increase the core/shader freq. 110 PCI bis = 10% OC, even thought GPUz will not read the increase. Benchmarks reflect the increase.

800mhz core (stock volts)

i forgot the exact shared clock but, it is over 1ghz it may even be closer to 2ghz.

With extra voltage i could make it more stable and break 800mhz.

After 800mhz on stock volts you get artifacts, so my thinking is more volts = more mhz.

I'm thinking with such great temps and the given clocks and the fact it is a single slot that it's a pretty decent card/performer.
Chris-PC
(17 items)

Core 2 Haf
(16 items)

Acer 5920G
(13 items)

CPUMotherboardGraphicsGraphics
Phenom II 1100T AsRock Extreme4 990FX HD4850 HD4850
RAMRAMHard DriveHard Drive
MV-3V2G3D/US  MV-3V4G3D/US  Barracuda 7200.10 WD Green
Hard DriveCoolingOSMonitor
Crucial M4 EVGA Superclock CPU Cooler Win 7 Ultimate 64bit Hanns,G Hi221
MonitorKeyboardPowerCase
Dell E198WFP Saitek Eclipse Corsair TX850W NZXT M59
Audio
Asus Xonar D1
CPUMotherboardGraphicsRAM
C2Q Q9550 ASUS P5E3 Deluxe Wifi-AP GTX 480 Kingston HyperX DDR3 KHX1600C9D3K2/8G
RAMHard DriveCoolingOS
PNY 1333 55gb, 320Gb, 500GB, 1TB Hyper 212 EVO Win 7 Ultimate 64bit
OSOSPowerCase
Lubuntu 13.04 x64 OS X 10.8.5 TX750 Haf 912
CPUGraphicsRAMHard Drive
T9300 GT 240M DDR2  WD10JPVT
OS
Win 7 Ultimate 64bit
  hide details
Reply
Chris-PC
(17 items)

Core 2 Haf
(16 items)

Acer 5920G
(13 items)

CPUMotherboardGraphicsGraphics
Phenom II 1100T AsRock Extreme4 990FX HD4850 HD4850
RAMRAMHard DriveHard Drive
MV-3V2G3D/US  MV-3V4G3D/US  Barracuda 7200.10 WD Green
Hard DriveCoolingOSMonitor
Crucial M4 EVGA Superclock CPU Cooler Win 7 Ultimate 64bit Hanns,G Hi221
MonitorKeyboardPowerCase
Dell E198WFP Saitek Eclipse Corsair TX850W NZXT M59
Audio
Asus Xonar D1
CPUMotherboardGraphicsRAM
C2Q Q9550 ASUS P5E3 Deluxe Wifi-AP GTX 480 Kingston HyperX DDR3 KHX1600C9D3K2/8G
RAMHard DriveCoolingOS
PNY 1333 55gb, 320Gb, 500GB, 1TB Hyper 212 EVO Win 7 Ultimate 64bit
OSOSPowerCase
Lubuntu 13.04 x64 OS X 10.8.5 TX750 Haf 912
CPUGraphicsRAMHard Drive
T9300 GT 240M DDR2  WD10JPVT
OS
Win 7 Ultimate 64bit
  hide details
Reply
post #143 of 151
Quote:
Originally Posted by PizzaMan View Post

Where are your measuring vGPU from on the card?
I'm messuring it from these points:
took the tape off so it's easier to see.

My Minecraft Box
(11 items)


CPUMotherboardGraphicsGraphics
Phenom II x6 1090t GA-990XA-UD3 EVGA GTX 580 PNY GTX 580
RAMHard DriveHard DriveHard Drive
Crucial Ballistix Tactical 8GB Low Profile Kingston V300 120GB Seagate Sata II 1TB Seagate Sata II 500GB
Hard DriveOptical DriveCoolingCooling
WD Sata II 500GB Sata II DVD burner Coolermaster Hyper 212+  XIGMATEK XAF-F1255 (1 for Hyper 212+ and 1 for ...
OSMonitorKeyboardPower
Windows 7 Ultimate 64bit Dell 2009W IBM Model M Corsair HX850
CaseMouseMouse PadAudio
Rosewill DESTROYER Logitech g400 SteelSeries QcK HD201s
AudioOther
Asus Xonar DG + LM4562 Mod Broadcom Ethernet Adatper PCIe
  hide details
Reply

My Minecraft Box
(11 items)


CPUMotherboardGraphicsGraphics
Phenom II x6 1090t GA-990XA-UD3 EVGA GTX 580 PNY GTX 580
RAMHard DriveHard DriveHard Drive
Crucial Ballistix Tactical 8GB Low Profile Kingston V300 120GB Seagate Sata II 1TB Seagate Sata II 500GB
Hard DriveOptical DriveCoolingCooling
WD Sata II 500GB Sata II DVD burner Coolermaster Hyper 212+  XIGMATEK XAF-F1255 (1 for Hyper 212+ and 1 for ...
OSMonitorKeyboardPower
Windows 7 Ultimate 64bit Dell 2009W IBM Model M Corsair HX850
CaseMouseMouse PadAudio
Rosewill DESTROYER Logitech g400 SteelSeries QcK HD201s
AudioOther
Asus Xonar DG + LM4562 Mod Broadcom Ethernet Adatper PCIe
  hide details
Reply
post #144 of 151
Thread Starter
Those are the leg from the inductors/chokes. I've had some inconsistent results taking my measurement from those. Would you mind probing the legs of the caps above them? BTW, what voltage are you at with that GPU?

CPUMotherboardGraphicsRAM
E8400, E8600, 980BE T2RS+, P5E3, TA890FXE 8800GTS's,GTX's,GS,Ultra's,9600GT Lots of D9's and some crap DDR3
Hard DrivePowerCase
Seagate 250GB + 80GB WD for benching TT 875w, Corsair 650TX Custom bench station
  hide details
Reply

CPUMotherboardGraphicsRAM
E8400, E8600, 980BE T2RS+, P5E3, TA890FXE 8800GTS's,GTX's,GS,Ultra's,9600GT Lots of D9's and some crap DDR3
Hard DrivePowerCase
Seagate 250GB + 80GB WD for benching TT 875w, Corsair 650TX Custom bench station
  hide details
Reply
post #145 of 151
These are my current readouts/settings:

Idle:
1.222V on the bottom leg of the chokes (short white wire)
1.216V on the top leg of the chokes
1.216V on the bottom leg of the caps
0V on the top leg of the caps (guess it's ground)

Load:
1.280V on bottom leg of the chokes, fluctuates +/-0.001V
1.26V on top leg of the chokes, fluctuates +/- 0.001V
1.26V on bottom leg of the caps, fluctuates +/- 0.001V
0V on top leg of the caps.

I guess I should take the vGPU from the caps or top of the chokes instead.

My Minecraft Box
(11 items)


CPUMotherboardGraphicsGraphics
Phenom II x6 1090t GA-990XA-UD3 EVGA GTX 580 PNY GTX 580
RAMHard DriveHard DriveHard Drive
Crucial Ballistix Tactical 8GB Low Profile Kingston V300 120GB Seagate Sata II 1TB Seagate Sata II 500GB
Hard DriveOptical DriveCoolingCooling
WD Sata II 500GB Sata II DVD burner Coolermaster Hyper 212+  XIGMATEK XAF-F1255 (1 for Hyper 212+ and 1 for ...
OSMonitorKeyboardPower
Windows 7 Ultimate 64bit Dell 2009W IBM Model M Corsair HX850
CaseMouseMouse PadAudio
Rosewill DESTROYER Logitech g400 SteelSeries QcK HD201s
AudioOther
Asus Xonar DG + LM4562 Mod Broadcom Ethernet Adatper PCIe
  hide details
Reply

My Minecraft Box
(11 items)


CPUMotherboardGraphicsGraphics
Phenom II x6 1090t GA-990XA-UD3 EVGA GTX 580 PNY GTX 580
RAMHard DriveHard DriveHard Drive
Crucial Ballistix Tactical 8GB Low Profile Kingston V300 120GB Seagate Sata II 1TB Seagate Sata II 500GB
Hard DriveOptical DriveCoolingCooling
WD Sata II 500GB Sata II DVD burner Coolermaster Hyper 212+  XIGMATEK XAF-F1255 (1 for Hyper 212+ and 1 for ...
OSMonitorKeyboardPower
Windows 7 Ultimate 64bit Dell 2009W IBM Model M Corsair HX850
CaseMouseMouse PadAudio
Rosewill DESTROYER Logitech g400 SteelSeries QcK HD201s
AudioOther
Asus Xonar DG + LM4562 Mod Broadcom Ethernet Adatper PCIe
  hide details
Reply
post #146 of 151
Thread Starter
That's not to drastic of a different between the chokes and caps. Looks like you're at about your limit for air though.

CPUMotherboardGraphicsRAM
E8400, E8600, 980BE T2RS+, P5E3, TA890FXE 8800GTS's,GTX's,GS,Ultra's,9600GT Lots of D9's and some crap DDR3
Hard DrivePowerCase
Seagate 250GB + 80GB WD for benching TT 875w, Corsair 650TX Custom bench station
  hide details
Reply

CPUMotherboardGraphicsRAM
E8400, E8600, 980BE T2RS+, P5E3, TA890FXE 8800GTS's,GTX's,GS,Ultra's,9600GT Lots of D9's and some crap DDR3
Hard DrivePowerCase
Seagate 250GB + 80GB WD for benching TT 875w, Corsair 650TX Custom bench station
  hide details
Reply
post #147 of 151
Bob
Edited by K404 - 12/8/12 at 6:36am
post #148 of 151
Quote:
Originally Posted by xxpenguinxx View Post

These are my current readouts/settings:
Idle:
1.222V on the bottom leg of the chokes (short white wire)
1.216V on the top leg of the chokes
1.216V on the bottom leg of the caps
0V on the top leg of the caps (guess it's ground)
Load:
1.280V on bottom leg of the chokes, fluctuates +/-0.001V
1.26V on top leg of the chokes, fluctuates +/- 0.001V
1.26V on bottom leg of the caps, fluctuates +/- 0.001V
0V on top leg of the caps.
I guess I should take the vGPU from the caps or top of the chokes instead.
The differences between the choke voltages are because of the small resistence in the chokes and the fact that current is running through them, which produces a small voltage drop on the output (the top leg of the choke).

Cecilia 2.0
(15 items)


CPUMotherboardGraphicsRAM
FX-8120, and a bunch more AM3/AM2+ Crosshair V, Crosshair IV Lots of green Dominator GT
RAMRAMHard DriveCooling
Dominator GT Perfect Storm M4 64Gb Dihydrogen monoxide, Carbon dioxide, Liquid Nit...
CoolingCoolingOSPower
OCN Marksman pot k|ngp|n F1 Dark pot Stripped Xp Antec 1200W HCP
Case
Dimastech Hard
CPUMotherboardGraphicsRAM
2600K @ 4.8g's with lots of v's Maximus IV Extreme P67 580 SLI 1866mhz RipjawX
Hard DriveCoolingCoolingOS
Intel ssd, some 1Tb F3s Di-hydrogen Monoxide I don't allow air cooling in my house Win7
PowerCase
XFX 850 Phobya WaCoolT Test Bench
  hide details
Reply

Cecilia 2.0
(15 items)


CPUMotherboardGraphicsRAM
FX-8120, and a bunch more AM3/AM2+ Crosshair V, Crosshair IV Lots of green Dominator GT
RAMRAMHard DriveCooling
Dominator GT Perfect Storm M4 64Gb Dihydrogen monoxide, Carbon dioxide, Liquid Nit...
CoolingCoolingOSPower
OCN Marksman pot k|ngp|n F1 Dark pot Stripped Xp Antec 1200W HCP
Case
Dimastech Hard
CPUMotherboardGraphicsRAM
2600K @ 4.8g's with lots of v's Maximus IV Extreme P67 580 SLI 1866mhz RipjawX
Hard DriveCoolingCoolingOS
Intel ssd, some 1Tb F3s Di-hydrogen Monoxide I don't allow air cooling in my house Win7
PowerCase
XFX 850 Phobya WaCoolT Test Bench
  hide details
Reply
post #149 of 151
Bob
Edited by K404 - 12/8/12 at 6:35am
post #150 of 151
Bumping this thread for my glorious Zotac 9600gt Synergy 512MB.

I was able to run this with 750 core and 2000mhz ram without artifact with msi afterburner approximately 60c under load.
Now i am thinking of renewing the thermal glue and vmodding this to get maximum out of my $$ in its last days of it and before i kill the card to upgrade to a new shine dx11 one.

Now i am using it at 730 core and 2000mhz memory via modifying bios. I think the shader must be around 1800.

1- Should i completely revert the bios to default and use software to increase mhz and voltage after vmod? Or can i do it with bios without any software. ( Dont like stuff loading after windows)
2- Can you guys help me how to do it if i take detailed pictures of my card. Because i am totally noob about this. I will obtain a cheap soldering (gun? machine?) and post pictures here.

Thanks, Munky.
