RAID-0 Benchmarks: OCZ Vertex SSD vs WD Raptor

post #1 of 8
Thread Starter
Summary: OCZ Vertexes in RAID-0 outperform WD Raptors in RAID-0 by a factor of four.

Both RAID block sizes are set to 128k, because the X38 onboard RAID controller doesn't allow larger sizes.

Pay close attention to the scale of the graphs. They are very different.


My first test was using HD Tach in compatibility mode. I like HD Tach, but it made me nervous to use it in compatibility mode.

Vertex Results:




Raptor Results:

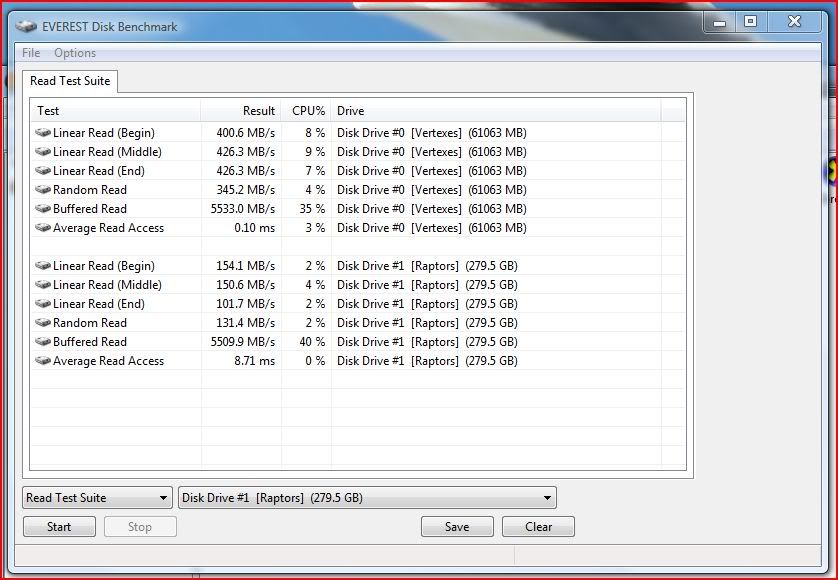

Then, I ran an Everest "read suite" test on both:




Finally, I did an HD Tune on both volumes using the default 64k chunk size (let me know if any of you want different chunk sizes tested; these can dramatically affect performance in RAID-0)

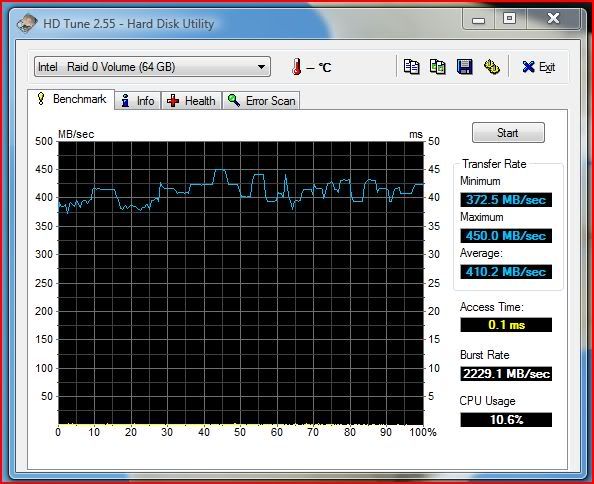

Vertex Results (notice the access times pegged at the bottom):




Raptor Results (not sure about the down-spike):

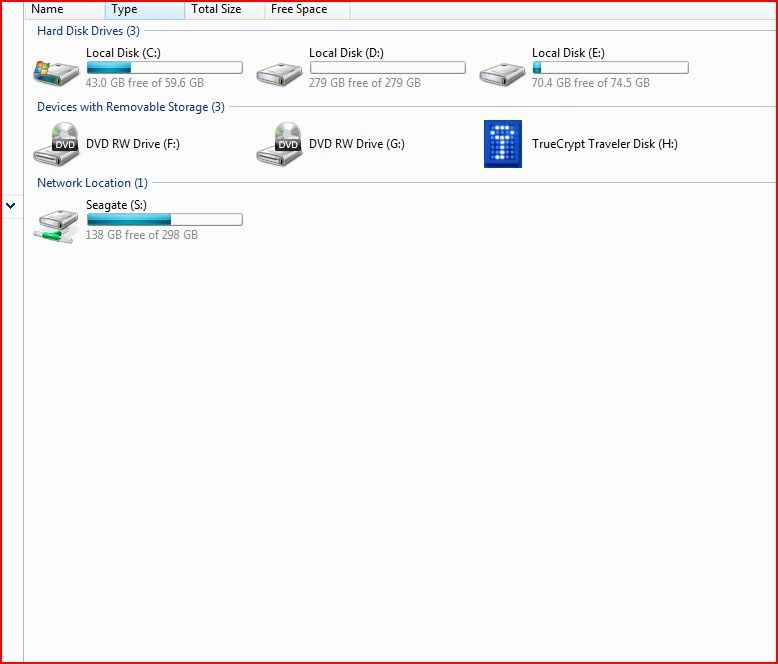

Finally, you can see that all of Vista with drivers installed leaves plenty of room for other stuff on the SSDs. Note that the Raptors are currently empty (perfect place for program files) and that I have a networked drive for all media/backup stuff in case my RAIDs die. Also, note the 80GB drive (e:\\), whose sole function is to handle the pagefile.


Edited by Dostoyevsky77 - 4/24/09 at 2:10pm
Wolfdale 836 CFM
(13 items)


CPUMotherboardGraphicsRAM
E8400 @ 4.23 (470x9, 1.40v) ASUS Rampage Formula X38 0403 (Maximus 1.03G Hack) EVGA GTX 280 670/2430/1458 & EVGA 9600GT SC 4x1GB Ballistix PC2-8500, 1128MHz, 2.18v
Hard DriveOptical DriveOSMonitor
2xWD Raptor 150 @ RAID 0 + Pagefile HDD 2 Sony DVD/RW Vista Ultimate x64 SP1 Samsung 244T & Samsung 940B
KeyboardPowerCaseMouse
Logitech G15 1.1kW Tagan TG1100-U96 NZXT Zero (Modded) Logitech MX Revolution
Mouse Pad
QPAD XT-R
  hide details
Reply
Wolfdale 836 CFM
(13 items)


CPUMotherboardGraphicsRAM
E8400 @ 4.23 (470x9, 1.40v) ASUS Rampage Formula X38 0403 (Maximus 1.03G Hack) EVGA GTX 280 670/2430/1458 & EVGA 9600GT SC 4x1GB Ballistix PC2-8500, 1128MHz, 2.18v
Hard DriveOptical DriveOSMonitor
2xWD Raptor 150 @ RAID 0 + Pagefile HDD 2 Sony DVD/RW Vista Ultimate x64 SP1 Samsung 244T & Samsung 940B
KeyboardPowerCaseMouse
Logitech G15 1.1kW Tagan TG1100-U96 NZXT Zero (Modded) Logitech MX Revolution
Mouse Pad
QPAD XT-R
  hide details
Reply
post #2 of 8
Try using the smallest blocks the benchmarks allow...
Once again...
(13 items)


CPUMotherboardGraphicsRAM
i7 920 [4.28GHz, HT] Asus P6T + Broadcom NetXtreme II VisionTek HD5850 [900/1200] + Galaxy GT240 2x4GB G.Skill Ripjaw X [1632 MHz]
Hard DriveOSMonitorKeyboard
Intel X25-M 160GB + 3xRAID0 500GB 7200.12 Window 7 Pro 64 Acer H243H + Samsung 226BW XARMOR-U9BL
PowerCaseMouseMouse Pad
Antec Truepower New 750W Li Lian PC-V2100 [10x120mm fans] Logitech G9 X-Trac Pro
  hide details
Reply
Once again...
(13 items)


CPUMotherboardGraphicsRAM
i7 920 [4.28GHz, HT] Asus P6T + Broadcom NetXtreme II VisionTek HD5850 [900/1200] + Galaxy GT240 2x4GB G.Skill Ripjaw X [1632 MHz]
Hard DriveOSMonitorKeyboard
Intel X25-M 160GB + 3xRAID0 500GB 7200.12 Window 7 Pro 64 Acer H243H + Samsung 226BW XARMOR-U9BL
PowerCaseMouseMouse Pad
Antec Truepower New 750W Li Lian PC-V2100 [10x120mm fans] Logitech G9 X-Trac Pro
  hide details
Reply
post #3 of 8
Quote:
Originally Posted by Dostoyevsky77 View Post
Raptor Results (not sure about the down-spike):

Strange... Shouldn't you get 250+ MB/s on average? Something looks wrong... unless I'm just mistaken.

CPUMotherboardGraphicsRAM
Core i7 920 Asus P6T WS Pro Asus EAH4350 fanless Corsair Dominator 6Gb DDR3-1600
Hard DriveHard DriveOSMonitor
Perc5i + 4x300 Gb SAS Seagate Cheetah 15k.6 Vertex 3 120 Gb Windows 7 x64 Dell S2309W
KeyboardPowerCaseMouse
Logitech Illuminated Silverstone NightJar ST45NF fanless LianLi PC-V2110B Evoluent Vertical Mouse
Mouse Pad
Razer ExactMat X Control
  hide details
Reply

CPUMotherboardGraphicsRAM
Core i7 920 Asus P6T WS Pro Asus EAH4350 fanless Corsair Dominator 6Gb DDR3-1600
Hard DriveHard DriveOSMonitor
Perc5i + 4x300 Gb SAS Seagate Cheetah 15k.6 Vertex 3 120 Gb Windows 7 x64 Dell S2309W
KeyboardPowerCaseMouse
Logitech Illuminated Silverstone NightJar ST45NF fanless LianLi PC-V2110B Evoluent Vertical Mouse
Mouse Pad
Razer ExactMat X Control
  hide details
Reply
post #4 of 8
Thread Starter
Quote:
Originally Posted by DuckieHo View Post
Try using the smallest blocks the benchmarks allow...
The following are the results for 512 byte (smallest HD Tune allows) blocks...

Vertexes:



Raptors:

Wolfdale 836 CFM
(13 items)


CPUMotherboardGraphicsRAM
E8400 @ 4.23 (470x9, 1.40v) ASUS Rampage Formula X38 0403 (Maximus 1.03G Hack) EVGA GTX 280 670/2430/1458 & EVGA 9600GT SC 4x1GB Ballistix PC2-8500, 1128MHz, 2.18v
Hard DriveOptical DriveOSMonitor
2xWD Raptor 150 @ RAID 0 + Pagefile HDD 2 Sony DVD/RW Vista Ultimate x64 SP1 Samsung 244T & Samsung 940B
KeyboardPowerCaseMouse
Logitech G15 1.1kW Tagan TG1100-U96 NZXT Zero (Modded) Logitech MX Revolution
Mouse Pad
QPAD XT-R
  hide details
Reply
Wolfdale 836 CFM
(13 items)


CPUMotherboardGraphicsRAM
E8400 @ 4.23 (470x9, 1.40v) ASUS Rampage Formula X38 0403 (Maximus 1.03G Hack) EVGA GTX 280 670/2430/1458 & EVGA 9600GT SC 4x1GB Ballistix PC2-8500, 1128MHz, 2.18v
Hard DriveOptical DriveOSMonitor
2xWD Raptor 150 @ RAID 0 + Pagefile HDD 2 Sony DVD/RW Vista Ultimate x64 SP1 Samsung 244T & Samsung 940B
KeyboardPowerCaseMouse
Logitech G15 1.1kW Tagan TG1100-U96 NZXT Zero (Modded) Logitech MX Revolution
Mouse Pad
QPAD XT-R
  hide details
Reply
post #5 of 8
Thread Starter
Here's a picture. Two of them fit into one 3.5" bay...

Wolfdale 836 CFM
(13 items)


CPUMotherboardGraphicsRAM
E8400 @ 4.23 (470x9, 1.40v) ASUS Rampage Formula X38 0403 (Maximus 1.03G Hack) EVGA GTX 280 670/2430/1458 & EVGA 9600GT SC 4x1GB Ballistix PC2-8500, 1128MHz, 2.18v
Hard DriveOptical DriveOSMonitor
2xWD Raptor 150 @ RAID 0 + Pagefile HDD 2 Sony DVD/RW Vista Ultimate x64 SP1 Samsung 244T & Samsung 940B
KeyboardPowerCaseMouse
Logitech G15 1.1kW Tagan TG1100-U96 NZXT Zero (Modded) Logitech MX Revolution
Mouse Pad
QPAD XT-R
  hide details
Reply
Wolfdale 836 CFM
(13 items)


CPUMotherboardGraphicsRAM
E8400 @ 4.23 (470x9, 1.40v) ASUS Rampage Formula X38 0403 (Maximus 1.03G Hack) EVGA GTX 280 670/2430/1458 & EVGA 9600GT SC 4x1GB Ballistix PC2-8500, 1128MHz, 2.18v
Hard DriveOptical DriveOSMonitor
2xWD Raptor 150 @ RAID 0 + Pagefile HDD 2 Sony DVD/RW Vista Ultimate x64 SP1 Samsung 244T & Samsung 940B
KeyboardPowerCaseMouse
Logitech G15 1.1kW Tagan TG1100-U96 NZXT Zero (Modded) Logitech MX Revolution
Mouse Pad
QPAD XT-R
  hide details
Reply
post #6 of 8
Nice results, how much did the SSDs cost?

CPUMotherboardGraphicsRAM
C2Q Q9550 @ 3.5ghz 1.3v Asus P5Q Deluxe Sapphire Radeon 4890 G.SKILL F2-8500CL5D-4GBPK
Hard DriveOptical DriveOSMonitor
WD Caviar Black 640GB Samsung SH-S223Q Windows 7 64bit Samsung SyncMaster 2443BW
KeyboardPowerCaseMouse
Microsoft Comfort Curve 2000 Cooler Master Silent Pro 700w Compucase 69R5 Logitech G500
Mouse Pad
Steelseries Pad
  hide details
Reply

CPUMotherboardGraphicsRAM
C2Q Q9550 @ 3.5ghz 1.3v Asus P5Q Deluxe Sapphire Radeon 4890 G.SKILL F2-8500CL5D-4GBPK
Hard DriveOptical DriveOSMonitor
WD Caviar Black 640GB Samsung SH-S223Q Windows 7 64bit Samsung SyncMaster 2443BW
KeyboardPowerCaseMouse
Microsoft Comfort Curve 2000 Cooler Master Silent Pro 700w Compucase 69R5 Logitech G500
Mouse Pad
Steelseries Pad
  hide details
Reply
post #7 of 8
60g will cost you $199.99
My System
(13 items)


CPUMotherboardGraphicsRAM
Intel Q9650 Core 2 Quad Gigabyte EP45-UD3R EVGA Geforce GTX 580 8G Mushkin DDR2
Hard DriveOptical DriveOSMonitor
160g Intel X25-M SSD Asus DVRW /w Lightscribe Windows 7 HP 64 Dell 27" Widescreen
KeyboardPowerCaseMouse
Logitech Elite LE Thermaltake toughpower modular w/ESA 850w Thermaltake Element G Logitech G700 Wireless
Mouse Pad
N/A
  hide details
Reply
My System
(13 items)


CPUMotherboardGraphicsRAM
Intel Q9650 Core 2 Quad Gigabyte EP45-UD3R EVGA Geforce GTX 580 8G Mushkin DDR2
Hard DriveOptical DriveOSMonitor
160g Intel X25-M SSD Asus DVRW /w Lightscribe Windows 7 HP 64 Dell 27" Widescreen
KeyboardPowerCaseMouse
Logitech Elite LE Thermaltake toughpower modular w/ESA 850w Thermaltake Element G Logitech G700 Wireless
Mouse Pad
N/A
  hide details
Reply
post #8 of 8
Err, to explain your results: onboard raid solutions aren't a reliable comparison source at all. Using a real dedicated raid card will produce a night and day difference.

Now, obviously ssd vs raptor is not much of a contest so why would 2ssd vs 2raptor be :S ?

Sorry to dig an old thread up btw.
