[Official] MSI 790FX-GD70 Owners Club - Page 415

post #4141 of 9641
Quote:
Originally Posted by Mastiffman View Post
What's up rewind? Been kind of laying low lately huh?

I should be getting my Tuniq TX-3 tomorrow or tuesday (Hopefully tomorrow) and I'll be replacing the Old TIM with TX-3.... SO hopefully that will put a cap on my temps!
School sucks

I definitely need to get some better TIM in...iv got AS5 installed throughout most of my systems now and im sure something like TX-3 could do a better job and i could ditch the annoying set in time of AS5

Gear mentioned in this thread:

post #4142 of 9641
Quote:
Originally Posted by Rewindlabs View Post
I cleaned the thermal tape off (Pet hair/dust) as best i could and left it on there...i see no reason to remove it and from the looks of how everything goes together in that area it should be doing a pretty good job of assisting the transfer of heat and making sure there isn't much flex with the whole NB/Mosfet cooler
I did the same thing.
New
(11 items)


CPUMotherboardGraphicsRAM
2500k @5ghz Asus P8P67 Evo 6970 @ 1000/1450 8GB Ripjaws DDR31600 Cas8
Hard DriveCoolingOSMonitor
Samsung 850 Pro 128GB + WD 1TB XSPC Rasa,RX360,D5 w/EK top,Ek150 res,AP-15's 7 Pro Asus VW266H
KeyboardPowerCase
G11 AX850 Corsair 800D
  hide details
Reply
New
(11 items)


CPUMotherboardGraphicsRAM
2500k @5ghz Asus P8P67 Evo 6970 @ 1000/1450 8GB Ripjaws DDR31600 Cas8
Hard DriveCoolingOSMonitor
Samsung 850 Pro 128GB + WD 1TB XSPC Rasa,RX360,D5 w/EK top,Ek150 res,AP-15's 7 Pro Asus VW266H
KeyboardPowerCase
G11 AX850 Corsair 800D
  hide details
Reply
post #4143 of 9641
I just use the plain-jane white tim.
Always Changing
(13 items)


CPUGraphicsRAMHard Drive
12 threads of euphemism Bash me! It's not your color! Loose. THAT'S WHAT SHE SAID! Just enough for all my cp
OSMonitorPower
linux for gaming plethora of pixels plethora of watts
  hide details
Reply
Always Changing
(13 items)


CPUGraphicsRAMHard Drive
12 threads of euphemism Bash me! It's not your color! Loose. THAT'S WHAT SHE SAID! Just enough for all my cp
OSMonitorPower
linux for gaming plethora of pixels plethora of watts
  hide details
Reply
post #4144 of 9641
Possible 790FX-GD70 owner has some questions ..

Would a Thermalright True Black with a 25mm deep fans fit on this mobo without potentially causing clearance issues with RAM with large heat spreaders/sinks (i.e Corsair Dominator GT.. G.Skill Trident etc etc) ?

Also anyone here running a 8x PCI-E Raid card in one of the 16x slots ?.. would like to use a LSI 9260-4i you see..
post #4145 of 9641
Quote:
Originally Posted by Xs1nX View Post
Also anyone here running a 8x PCI-E Raid card in one of the 16x slots ?.. would like to use a LSI 9260-4i you see..
An 8x card will work just fine a 16x slot don't worry
post #4146 of 9641
Quote:
Originally Posted by mav2000 View Post
$ Ghz is what its running at stocks.....2 Ghz X 2.
That's Correct. 2Ghz up and 2Ghz Down. 8 or 16 bit I believe.

Quote:
Originally Posted by pendrago View Post
Mastiffman, you are great! I've used OC Booster with Step 2 and maybe that's why I couldn't make my RAM stable ... for example --> that's the max what I could get ...

http://i546.photobucket.com/albums/h...s/6bb0672e.jpg

and that's only with 1:2.66 divider so actually stock frequency 1,066 MHz

My BIOS settings were:
CPU V = 1.38
CPU NB = 1.27 ( why in full load this voltage goes up automatically?)
CPU DDR PHY = 1.23
(this is quite interesting because it helped me stabilize my Ram but I don't know how much I can put without having my RAM modules burnt )

DRAM V = 1.89 V (though I can put 1.9 according to specification ... what do you think how much can I add to this 1.9 more?

I think it's all because my RAM... I should have bought these ones -- > DDR3 Gamer Series for AMD Black Edition - PC3-12800 - 1600MHz Memory Modules (AMD Series)
instead of these
DDR3 Viper II Series - PC3-12800 - 1600MHz Memory Module
...

Well, they work with 1:4 divider with 800 MHz of clock speed but with terrible timings and w/o CPU overclocked - everything at stock voltages.

Any tips to tighten these timings ? (I have already moved them to slot 3 & 4 as you've told me but I don't know if it made any difference)
You just have to experiment. That's pretty much how I've learned everything on this board.... I don't think that it's the ram, but more of the Chips IMC. Just keep working at it.... Be careful not to givev the IMC to much volts though... Whatever you do.

Quote:
Originally Posted by NCspecV81 View Post
I just use the plain-jane white tim.
Really, nothing speacial eh? Other than that Enormous HS for the CPU and NB! LOL

Supposed to get my 955 today! UPS usually stops by between 1:30 and 5pm.

Has anyone ever seen a Shipping Number from UPS Mail (Not parcel service, that is All numbers instead of mixing letters with the numbers..?
Edited by Mastiffman - 1/25/10 at 9:25am
SAM3 Water Rig
(13 items)


CPUMotherboardGraphicsRAM
Phenom II x4 C3 955 @ 4.1Ghz w/3Ghz NB MSI 790FX-GD70 Sapphire VAPOR-X 5770 1060/1515mhz 4Gb Kit OCZ FlexEX WaterCooled 1600mhz 6-6-6-18
Hard DriveOptical DriveOSMonitor
OCZ Vertex 32Gb, WD Green 500Gb, WD Green 2Tb 1x Sammy DVD/ 1x LiteOn BD-Rom Windows 7 Professional 64bit Acer H243H 24" 1080P HD
KeyboardPowerCaseMouse
MS Media Raidmax 850W Silverstone Raven RV02B-W Labtech
Mouse Pad
Gen
  hide details
Reply
SAM3 Water Rig
(13 items)


CPUMotherboardGraphicsRAM
Phenom II x4 C3 955 @ 4.1Ghz w/3Ghz NB MSI 790FX-GD70 Sapphire VAPOR-X 5770 1060/1515mhz 4Gb Kit OCZ FlexEX WaterCooled 1600mhz 6-6-6-18
Hard DriveOptical DriveOSMonitor
OCZ Vertex 32Gb, WD Green 500Gb, WD Green 2Tb 1x Sammy DVD/ 1x LiteOn BD-Rom Windows 7 Professional 64bit Acer H243H 24" 1080P HD
KeyboardPowerCaseMouse
MS Media Raidmax 850W Silverstone Raven RV02B-W Labtech
Mouse Pad
Gen
  hide details
Reply
post #4147 of 9641
no, but I have fedex.
Always Changing
(13 items)


CPUGraphicsRAMHard Drive
12 threads of euphemism Bash me! It's not your color! Loose. THAT'S WHAT SHE SAID! Just enough for all my cp
OSMonitorPower
linux for gaming plethora of pixels plethora of watts
  hide details
Reply
Always Changing
(13 items)


CPUGraphicsRAMHard Drive
12 threads of euphemism Bash me! It's not your color! Loose. THAT'S WHAT SHE SAID! Just enough for all my cp
OSMonitorPower
linux for gaming plethora of pixels plethora of watts
  hide details
Reply
post #4148 of 9641
Okay, this DOENS"T make Any sense......

HTH, Does a PC prime fine for hours on Blend and then just reboot. NO HTSF Error or anything....

And now this 965 is requiring more CPU Core Voltage to be stable...

AND I really need someone to Check on something for me! Bad!

Can Someone check to see if there is a difference in power between System Fan 1 and System Fan 2 on the Motherboard 3pin fan connectors?

Set them both to 50% first and check them with the same fan. and then 100%....

I would be REALLY greatful! Because If no one else is getting this issue, I may have a power issue with my Motherboard...

@ 50% on both Sys Fan1 and Sys Fan 2 with the Same fans (Scythe 120x38 133cfm) Fan connector 1 registers @ 1525-1544 Rpm's
Fan Connector 2 registers @ 1312- 1328 Rpm's

And even when I switch the Fans, there is only about a 45rpm difference when I swap fans...

So putting fan 1 on connector 2 would still be lower than if the fan was on connector 1 and Vise versa.

EDIT: It looks like @ the 50% setting in the BIOS for Fan control of Connector 2, the BIOS is not actually setting it o 50% but more like 44%.... Son of B!!!

At 75% for System Fans Connectors 1 &2 they both run the same speed...

I'm on 1.84beta. Maybe I'll change to 1.8Official or 1.92bets to see if it's fixed. If it's not fix then i will contact MSI, ALONG with them taking away the ability to view the 12v+Rail power output in Power Management..
Edited by Mastiffman - 1/25/10 at 11:23am
SAM3 Water Rig
(13 items)


CPUMotherboardGraphicsRAM
Phenom II x4 C3 955 @ 4.1Ghz w/3Ghz NB MSI 790FX-GD70 Sapphire VAPOR-X 5770 1060/1515mhz 4Gb Kit OCZ FlexEX WaterCooled 1600mhz 6-6-6-18
Hard DriveOptical DriveOSMonitor
OCZ Vertex 32Gb, WD Green 500Gb, WD Green 2Tb 1x Sammy DVD/ 1x LiteOn BD-Rom Windows 7 Professional 64bit Acer H243H 24" 1080P HD
KeyboardPowerCaseMouse
MS Media Raidmax 850W Silverstone Raven RV02B-W Labtech
Mouse Pad
Gen
  hide details
Reply
SAM3 Water Rig
(13 items)


CPUMotherboardGraphicsRAM
Phenom II x4 C3 955 @ 4.1Ghz w/3Ghz NB MSI 790FX-GD70 Sapphire VAPOR-X 5770 1060/1515mhz 4Gb Kit OCZ FlexEX WaterCooled 1600mhz 6-6-6-18
Hard DriveOptical DriveOSMonitor
OCZ Vertex 32Gb, WD Green 500Gb, WD Green 2Tb 1x Sammy DVD/ 1x LiteOn BD-Rom Windows 7 Professional 64bit Acer H243H 24" 1080P HD
KeyboardPowerCaseMouse
MS Media Raidmax 850W Silverstone Raven RV02B-W Labtech
Mouse Pad
Gen
  hide details
Reply
post #4149 of 9641
Quote:
Originally Posted by Xs1nX View Post
Possible 790FX-GD70 owner has some questions ..

Would a Thermalright True Black with a 25mm deep fans fit on this mobo without potentially causing clearance issues with RAM with large heat spreaders/sinks (i.e Corsair Dominator GT.. G.Skill Trident etc etc) ?

Also anyone here running a 8x PCI-E Raid card in one of the 16x slots ?.. would like to use a LSI 9260-4i you see..

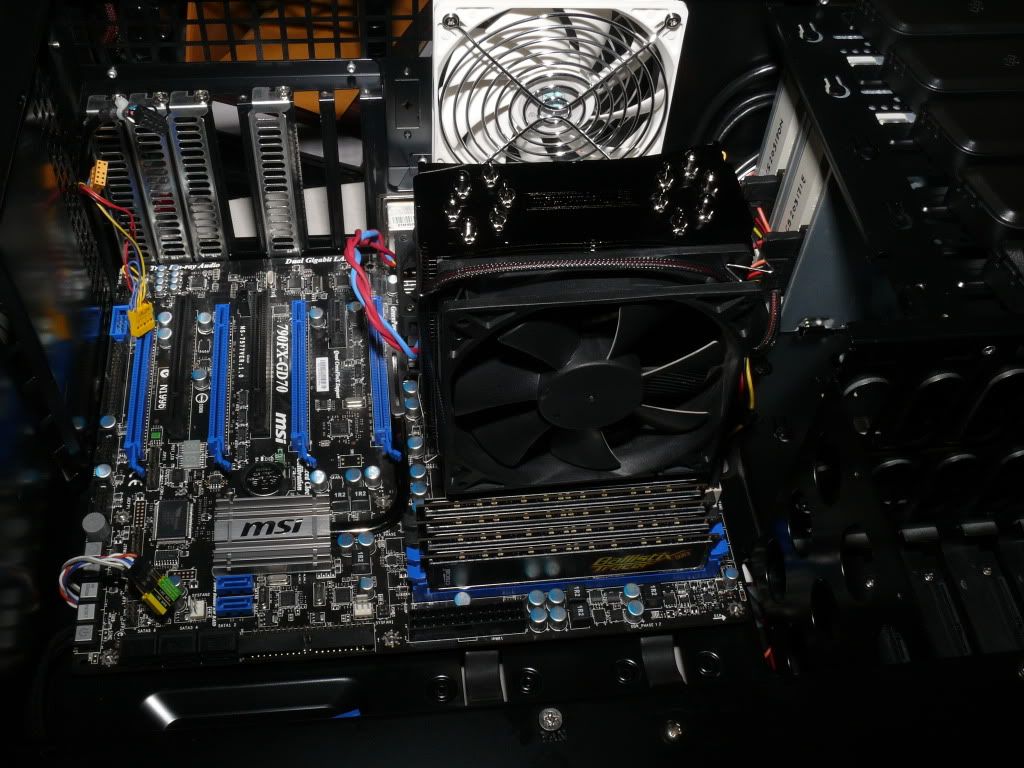

Depending on where you locate your fans, I'd say yes. I've got a TRUE 120 Black, with a fan mounted to push, and while the True itself does not hamper the standard height crucial ballistix, the fan sits right over the first stick. (Of course if you use a 120x20mm fan here...problem solved)



Taller sticks will definitely pose a problem in this orientation. I'm not sure about if it were rotated 90 degrees though...somebody?

WRT the RAID card, I've tried a 4x HighPoint RocketRaid with mixed results. Most times the raid card's bios would not post. HighPoint support indicated there may be not enough memory availble to load the RocketRaid's BIOS. Of course YMMV and the last time I tried was with the 1.5 version of the GD-70's BIOS.
GUNDAM-GD70-RVN
(13 items)


CPUMotherboardGraphicsRAM
Phenom II X6 1090T MSI 790FX-GD70 2 HD 4870X2 in CrossfireX 8GB DDR3 1600 Crucial Ballistix
Hard DriveOptical DriveOSMonitor
2x500GB RAID0, 4x1.5TB RAID5 2x Samsung SH-S223Q DVD Writer Win 7 Ult. 64-bit, Slackware 13 24" HP LP2475w LCD
KeyboardPowerCaseMouse
Logitech G19 PC Power and Cooling Silencer 910 Silverstone Raven RV01 Logitech G9x
  hide details
Reply
GUNDAM-GD70-RVN
(13 items)


CPUMotherboardGraphicsRAM
Phenom II X6 1090T MSI 790FX-GD70 2 HD 4870X2 in CrossfireX 8GB DDR3 1600 Crucial Ballistix
Hard DriveOptical DriveOSMonitor
2x500GB RAID0, 4x1.5TB RAID5 2x Samsung SH-S223Q DVD Writer Win 7 Ult. 64-bit, Slackware 13 24" HP LP2475w LCD
KeyboardPowerCaseMouse
Logitech G19 PC Power and Cooling Silencer 910 Silverstone Raven RV01 Logitech G9x
  hide details
Reply
post #4150 of 9641
Well I finally got my box from the egg with all my new new toys. I wish I could post picks, but unfortunately I have no damn camera, at work. I should have everything up and running later and definatly have some pics for you guys. Finally after sitting in the UPS warehouse all weekend.

965 C3
790FX-GD70
OCZ AMD Black Edition DDR3 4GB
Corsair 850w Modular PSU
9800GTX+ (till Friday going to 5850)

CPUMotherboardGraphicsRAM
AMD Phenom II X6 1055T@ 4.0Ghz 1.465v MSI 790FX-GD70 Palit GTX480 OCZ AMD BE 1600Mhz 4GB
Hard DriveOptical DriveOSMonitor
Corsair 32GB SSD/WD Blue 500GB/ 1TB External SAMSUNG Black Blu-ray Combo Drive Windows 7 Ultimate 64bit Mitsubishi WD-60735 60", 3D Ready! w/3D Vision
KeyboardPowerCaseMouse
Rocketfish Bluetooth Corsair HX 850w Modular NZXT Tempest, Clear Side, 2 Yate Loon's/ 4 CM R4 RocketFish Bluetooth
Mouse Pad
Don't need one works on any surface
  hide details
Reply

CPUMotherboardGraphicsRAM
AMD Phenom II X6 1055T@ 4.0Ghz 1.465v MSI 790FX-GD70 Palit GTX480 OCZ AMD BE 1600Mhz 4GB
Hard DriveOptical DriveOSMonitor
Corsair 32GB SSD/WD Blue 500GB/ 1TB External SAMSUNG Black Blu-ray Combo Drive Windows 7 Ultimate 64bit Mitsubishi WD-60735 60", 3D Ready! w/3D Vision
KeyboardPowerCaseMouse
Rocketfish Bluetooth Corsair HX 850w Modular NZXT Tempest, Clear Side, 2 Yate Loon's/ 4 CM R4 RocketFish Bluetooth
Mouse Pad
Don't need one works on any surface
  hide details
Reply
