How to: Modify Your Heatsink

post #1 of 120
Thread Starter
How to modify your heatsink for lower temps.


Better Thermal Interface Material (TIM)

The most common way's to lower your temperatures are to buy better fans or to apply a better Thermal Interface Material (TIM).
The best TIM's are MX-2,OCZ Freeze or IC7 Diamond.
A 5mm "Pea Sized" amount of TIM is recommended for best performance.



There is a guide on how to apply TIM for a HDT style heatsink here.

Better Fans

The best fans for heatsinks are 38mm thick fans such as Delta's, San Ace's or Panaflow's but they can be loud.


Heatsink & CPU Lapping

This can lower your temperatures by 3-10*C (depending on how concave/convex your CPU/HS are to begin with). Lapping works by making the contact area between the CPU and Heatsink as flat as possible.
Here is a guide on how to lap your CPU and Heatsink.
You can find the sandpaper at a local home improvement store or here.
There are videos here on how to lap.



This does void your CPU and Heatsink's warranty


Using A Bolt Through Kit

This can lower your temperatures by 3-7*C. Some CPU Heatsinks use Push-Pins which don't give enough mounting pressure. You can increase the mounting pressure by modding a store bought Bolt Through Kit. This technique works on the Arctic Cooling Pro 7 and OCZ Vendetta 2 Heatsink's. Here is a guide on how to do this. I didn't want to pay $15 for a pre-made kit so I made my own.
What you need are 4 bolts, 8 rubber washers, 4 metal washers and 8 hex nuts.
*will post pictures later*

The Washer Mod

This can lower your temps by 6*C or so. The original mount on the True 120 doesn't apply enough pressure on the CPU. (After lapping you lose pressure too.) By adding a Washer or grommet you increase the pressure on the CPU which lowers the temps. Here is a thread with pictures about it.
This idea would work on any heatsink that doesn't have enough mounting pressure.



Fan Shrouds

This mod can lower your temps by 2*C. This helps by reducing the dead spot of the fan and by directing the air over the fins. Here is some pictures of a Dark Knight with fan shrouds. Here is a guide on how to make fan shrouds.
This would work on any cooler like the Dark Knight or True 120.


Covering Up The Sides

This mod can help lower your temps by 1-7*C. This mod helps by ensuring no air is lost out the side of the heatsink. You could also do it with any type of tape.

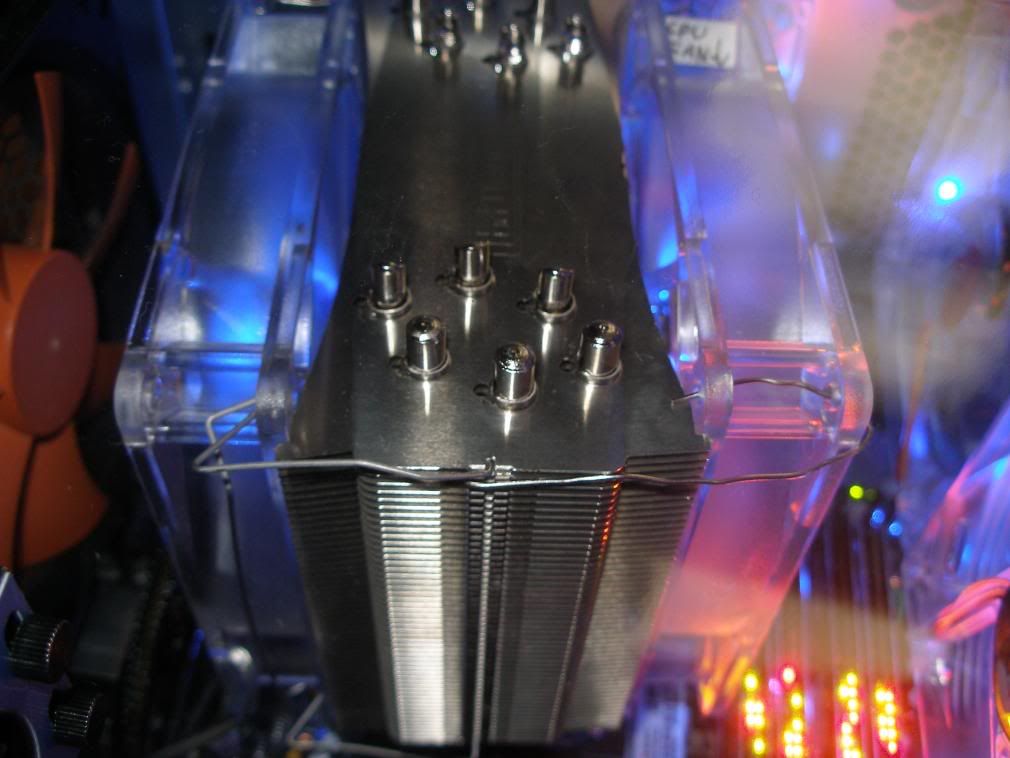

Push+Pull

This mod can help lower your temps by 2-4*C. It helps by increasing the air flow through out the heatsink. The only thing you need is an extra fan and some fan clips to mount it on your heatsink.




Increased Surface Area

This mod adds little heatsinks to your big heatsink. It helps by increasing the total surface area of your heatsink which help dissipate more heat.




::Sources::
~Crimson Mango (The Lapping Guide)
~LaoFX (The Push-Pin to Bolt-Through Guide)
~Marin (The Washer Mod Thread+Picture)
~apt2vanish (The Dark Knight with Fan Shrouds+Lapping Videos)
~born2killU (How to make the fan shrouds)
~Audi (TIM Application)
~Google
~Overclock.Net
~Word Pad
~Petra's Tech Shop
~Performance Pc's
~adrienspawn (Push+Pull Picture)
~ORCACommander (HDT TIM application Link)

If you have comments or other ideas PM me!
Edited by Angmaar - 5/3/10 at 2:13pm
post #2 of 120
Very nice.
Gunmetal Tower
(23 items)


CPUMotherboardGraphicsRAM
Intel 2600K ASUS P8Z68-V GEN3 Asus GTX 580 CORSAIR Vengeance 16GB 1600
Hard DriveHard DriveOptical DriveCooling
Samsung 830 256GB Western Digital Caviar Black 640GB LG DVD Corsair H80
OSMonitorMonitorKeyboard
Microsoft Windows 8.1 Professional 64 Bit Asus PB278Q Dell 1907FPc  Ducky 9008-G2 Browns and Reds
PowerCaseMouseMouse Pad
ABS SL1050 1050W Antec P280 Logitech G700 Mionix Propus 380
AudioAudioAudioAudio
HT | OMEGA Claro Halo Audio Technica ATH-A900X Audio Technica ATH-AD900 M-Audio AV 40
OtherOtherOther
Logitech USB Desktop Microphone APC Back-UPS XS 1500 Wacom Intuos4
  hide details
Reply
Gunmetal Tower
(23 items)


CPUMotherboardGraphicsRAM
Intel 2600K ASUS P8Z68-V GEN3 Asus GTX 580 CORSAIR Vengeance 16GB 1600
Hard DriveHard DriveOptical DriveCooling
Samsung 830 256GB Western Digital Caviar Black 640GB LG DVD Corsair H80
OSMonitorMonitorKeyboard
Microsoft Windows 8.1 Professional 64 Bit Asus PB278Q Dell 1907FPc  Ducky 9008-G2 Browns and Reds
PowerCaseMouseMouse Pad
ABS SL1050 1050W Antec P280 Logitech G700 Mionix Propus 380
AudioAudioAudioAudio
HT | OMEGA Claro Halo Audio Technica ATH-A900X Audio Technica ATH-AD900 M-Audio AV 40
OtherOtherOther
Logitech USB Desktop Microphone APC Back-UPS XS 1500 Wacom Intuos4
  hide details
Reply
post #3 of 120
nice dude +rep
post #4 of 120
Nice.

There isn't anything wrong with it but all you have done is put all the other threads into one thread and im sure they are stickied in the air cooling section.
post #5 of 120
Thread Starter
Quote:
Originally Posted by jeffries7 View Post
Nice.

There isn't anything wrong with it but all you have done is put all the other threads into one thread and im sure they are stickied in the air cooling section.
The only threads I found there were the Lapping and Washer Mod. Also, I wanted to make a thread with just little mods not threads on how heatsinks work.
post #6 of 120
Quote:
Originally Posted by jeffries7 View Post
Nice.

There isn't anything wrong with it but all you have done is put all the other threads into one thread and im sure they are stickied in the air cooling section.
This is true. Maybe change your title so it doesn't say Guide but simply How to... Make sure you give credit where credit is due to the makers of the other guides. I'd write them PM's to let them know they are linked in this thread. Just common courtesy.
Gunmetal Tower
(23 items)


CPUMotherboardGraphicsRAM
Intel 2600K ASUS P8Z68-V GEN3 Asus GTX 580 CORSAIR Vengeance 16GB 1600
Hard DriveHard DriveOptical DriveCooling
Samsung 830 256GB Western Digital Caviar Black 640GB LG DVD Corsair H80
OSMonitorMonitorKeyboard
Microsoft Windows 8.1 Professional 64 Bit Asus PB278Q Dell 1907FPc  Ducky 9008-G2 Browns and Reds
PowerCaseMouseMouse Pad
ABS SL1050 1050W Antec P280 Logitech G700 Mionix Propus 380
AudioAudioAudioAudio
HT | OMEGA Claro Halo Audio Technica ATH-A900X Audio Technica ATH-AD900 M-Audio AV 40
OtherOtherOther
Logitech USB Desktop Microphone APC Back-UPS XS 1500 Wacom Intuos4
  hide details
Reply
Gunmetal Tower
(23 items)


CPUMotherboardGraphicsRAM
Intel 2600K ASUS P8Z68-V GEN3 Asus GTX 580 CORSAIR Vengeance 16GB 1600
Hard DriveHard DriveOptical DriveCooling
Samsung 830 256GB Western Digital Caviar Black 640GB LG DVD Corsair H80
OSMonitorMonitorKeyboard
Microsoft Windows 8.1 Professional 64 Bit Asus PB278Q Dell 1907FPc  Ducky 9008-G2 Browns and Reds
PowerCaseMouseMouse Pad
ABS SL1050 1050W Antec P280 Logitech G700 Mionix Propus 380
AudioAudioAudioAudio
HT | OMEGA Claro Halo Audio Technica ATH-A900X Audio Technica ATH-AD900 M-Audio AV 40
OtherOtherOther
Logitech USB Desktop Microphone APC Back-UPS XS 1500 Wacom Intuos4
  hide details
Reply
post #7 of 120
Nice organization of info! Here is another nice trick you can add to your thread:

http://www.overclock.net/air-cooling...od-thread.html

Quote:
Originally Posted by Audi View Post
Thought of this at work today: I got so tired of trying to apply thread-thin lines like the AS5 site says that I went Ghetto on the AS5 applicator! Before I did this I was getting 30c and 31c Idles on three different re-seats. It was pissing me off ROYALY.

Mechanical Pencil dethroned of it's head:


Mechanical Pencil Top on AS5 end. PERFECT FIT!:


Perfect Application:
My System
(18 items)


CPUMotherboardGraphicsRAM
i7 3930k ASUS P9X79 Deluxe ASUS 7970 DC2T 32Gb G.Skill Sniper 1866 Cas10
Hard DriveHard DriveHard DriveHard Drive
OS: Mushkin Cronos DX SSD Intel X25-M SSD Seagate HHD Samsung F3
Optical DriveCoolingOSMonitor
LG BluRay x12 Noctua NH-D14 Windows 8 Pro 64 ASUS VW226H 26" x3 Eyefinity
KeyboardPowerCaseMouse
Logitech G19 Seasonic 1250w 80+ Gold Silverstone Fortress FT02 Logitech G9X
Audio
ASUS Xonar DX
  hide details
Reply
My System
(18 items)


CPUMotherboardGraphicsRAM
i7 3930k ASUS P9X79 Deluxe ASUS 7970 DC2T 32Gb G.Skill Sniper 1866 Cas10
Hard DriveHard DriveHard DriveHard Drive
OS: Mushkin Cronos DX SSD Intel X25-M SSD Seagate HHD Samsung F3
Optical DriveCoolingOSMonitor
LG BluRay x12 Noctua NH-D14 Windows 8 Pro 64 ASUS VW226H 26" x3 Eyefinity
KeyboardPowerCaseMouse
Logitech G19 Seasonic 1250w 80+ Gold Silverstone Fortress FT02 Logitech G9X
Audio
ASUS Xonar DX
  hide details
Reply
post #8 of 120
Thread Starter
Quote:
Originally Posted by IEATFISH View Post
This is true. Maybe change your title so it doesn't say Guide but simply How to... Make sure you give credit where credit is due to the makers of the other guides. I'd write them PM's to let them know they are linked in this thread. Just common courtesy.
Thanks! Thats a good idea. I gave them credit in the "sources" part at the bottom but I will PM them.
post #9 of 120
Quote:
Originally Posted by ericeod View Post
Nice organization of info! Here is another nice trick you can add to your thread
WOW, so simple yet effective
post #10 of 120
Quote:
Originally Posted by jeffries7 View Post
WOW, so simple yet effective
It has always been one of my favorite tricks. Audi hasnt been around for a while, but he always had great posts.
