Ray's Bong Build "How to" 56k warning. COME SEE

post #1 of 55
Thread Starter
Ok so I've been needing to make this for the bong lovers thread for a couple weeks. Here we go!!!


Benefits of a bong
The great part about bongs is simply you can get below ambient temps with no radiators and only one high flow fan which makes your case pretty much completely silent. And it also creates a lot of room inside the case. Can be done for like 30-60$ depending on skill and what you have laying around. (+ creativity) Bongs add a max of 1% humidity to your room. You will never feel that 1%.

Materials:
- (2) 2ft peices of 4in pvc 11$
- (1) 4 in y pipe 9$
- 38 quart cooler 18$ (how big you want your res is up to you)
- Full plastic shower head 2$
- Couple brass or copper barbs to
adapt shower head 3-9$?
- Ultra Black silicone 6$
- Couple feet of extra tubing varies (probably have some in your closet)
- High static fan 3-12$ (free if you have one laying around)
- Fan guard/filter (optional)
- Window screen material (optional) (plastic)
http://www.homedepot.com/webapp/wcs/...3+90401+500967

Tools
- Drill (and bits)
- Permanent marker
- scisors
- saw (or dremel)

Obviously you will need a pump with atleast 5ft of head but i would suggest more. I use a mcp355 which has 20ft of head.

I chose a 38court cooler because its big and sturdy I don't have to worry about my bong falling over and i can hold more water which allows me to refill less often. Due to this being an evaporative cooling system water loss is a side effect.


Ok so Take a peice of pvc and place it on your cooler lid and mark where you want it to go. Drill holes around the circle so you can cut it accurately on the inside. Cut it out and place on cooler, then slide the pvc down until it hits the bottom. Now you can mark how much you want to stick up to mount your elbow. (should be like 2 inces above the top) Notch the bottom of pvc or drill holes for water to go through. Silicone that bad boy up and this is what you should have.


Now some of you might choose to run a submerged pump, I chose to run a mcp355 externally so I drilled a hole through the side as low as possible 1 size smaller than the tube.
Refrence: If you have 1/2 od tube drill 7/16
5/8 OD drill 9/16
This will allow the tube to slide in very tight but not squish it.
I chose to cut 2 small acrylic squares and drill the same size hole and put silicone in between acrylic and cooler for a home made gasket. Sand the surface where you will apply silicone.




Ok now for your shower head. Most shower heads are restricted internally. Pull it apart it will be pretty obvious. Find a drill bit that matches the internal diameter of your barbs and drill it out to that size. Thats done.

Now I used a fan guard to mount my showerhead. Simply drilled a hole in the top and put my fittings through it and tightened the fittings. Bent down the screw parts to sit over the edges.




Now pretty much Clean everything out and assemble the y fitting on the base and the 2 ft piece on top of that. I used zipties to mount my fan and to hold the shower head mount.
DO NOT PVC GLUE ANY ITEMS
I run 5 gallons of water in my cooler. How much you want to use is up to you and the size of your resivor.



Turn that beast on and see how it runs.

Now here are some optional mods you can do to make your bong quieter and increase performance. (this is where screen comes in handy)

Take note of where your shower head spray hits the sides of the bong tube. Mark about an inch before it hits. Cut out a circle of screen to just fit inside of the tube. I ran a X of 2 zip ties weaved through the mesh. Drill 4 holes just large enough through the sides for the zip ties to go through and place a little silicone in the hole. This will help to break up the water droplets even more making more surface area. This allows for more evaporation.



Now pop out the base and see what your water level you chose to run is.
And mark about 2-3 inches above the water line And repeat what was done to the top peice. This will reduce the bong noise DRASTICALLY!




OK so take not of how much more room is in my case.

Before bong


After Bong

Ill get a better pic of that in a minute.



Now TEMPS
Before bong
Idle c Load c
Cpu 44 52
Gpu1 40 48
Gpu2 39 47

With BONG (avg 80f room)
Idle c Load c
Cpu 35 44
Gpu1 30 38
gpu2 29 38

On Cool nights cpu drops to 32i 40l
gpu's 25i-36l



So I think I covered most of the bases but its late and I'm tires so who knows what I screwed up. Lemme know what ya think and if you have questions ask away.
Edited by motoray - 8/13/09 at 7:17am
New beginning
(13 items)


CPUMotherboardGraphicsRAM
Ryzen 1700 Msi x370 Titanium  Nano Gskill tridentZ 3200
Hard DriveHard DriveCoolingOS
WD blue m.2 SSD Intel 370 SSD custom loop W10
MonitorPowerCaseMouse
asus 24" Corsair RMx 850 gold Custom Define S cube Razer naga
Mouse Pad
Rocketfish
  hide details
Reply
New beginning
(13 items)


CPUMotherboardGraphicsRAM
Ryzen 1700 Msi x370 Titanium  Nano Gskill tridentZ 3200
Hard DriveHard DriveCoolingOS
WD blue m.2 SSD Intel 370 SSD custom loop W10
MonitorPowerCaseMouse
asus 24" Corsair RMx 850 gold Custom Define S cube Razer naga
Mouse Pad
Rocketfish
  hide details
Reply
post #2 of 55
Epic xD but isnt that a waste of space?
post #3 of 55
Thread Starter
Quote:
Originally Posted by SinX7 View Post
Epic xD but isnt that a waste of space?
HECK NO lol (my opinion)
They can be made much smaller But this was just what I wanted.
New beginning
(13 items)


CPUMotherboardGraphicsRAM
Ryzen 1700 Msi x370 Titanium  Nano Gskill tridentZ 3200
Hard DriveHard DriveCoolingOS
WD blue m.2 SSD Intel 370 SSD custom loop W10
MonitorPowerCaseMouse
asus 24" Corsair RMx 850 gold Custom Define S cube Razer naga
Mouse Pad
Rocketfish
  hide details
Reply
New beginning
(13 items)


CPUMotherboardGraphicsRAM
Ryzen 1700 Msi x370 Titanium  Nano Gskill tridentZ 3200
Hard DriveHard DriveCoolingOS
WD blue m.2 SSD Intel 370 SSD custom loop W10
MonitorPowerCaseMouse
asus 24" Corsair RMx 850 gold Custom Define S cube Razer naga
Mouse Pad
Rocketfish
  hide details
Reply
post #4 of 55
So the water is just "showering" down from the top?

Can you break down how this system works a little more?

Or at least steer me in the right direction?


Seems very cool but I will admit I am slightly confused on what exactly is going on here.

This deserves a +1 btw.

MotherboardGraphicsRAMRAM
TF8200 A2+ Radeon HD 5770 G. Skill G. Skill
Hard DriveOptical DriveCoolingOS
ST3500418AS Samsung DVDRW Corsair H50 Windows 7 Ultimate x64
MonitorKeyboardPowerCase
S231HLbid @ 1080p Logitech G110 Antec NeoHE 500 XION Predator
MouseAudio
Microsoft Intellimouse 3.0 ALC888 , Saitek GH 30
  hide details
Reply

MotherboardGraphicsRAMRAM
TF8200 A2+ Radeon HD 5770 G. Skill G. Skill
Hard DriveOptical DriveCoolingOS
ST3500418AS Samsung DVDRW Corsair H50 Windows 7 Ultimate x64
MonitorKeyboardPowerCase
S231HLbid @ 1080p Logitech G110 Antec NeoHE 500 XION Predator
MouseAudio
Microsoft Intellimouse 3.0 ALC888 , Saitek GH 30
  hide details
Reply
post #5 of 55
Thread Starter

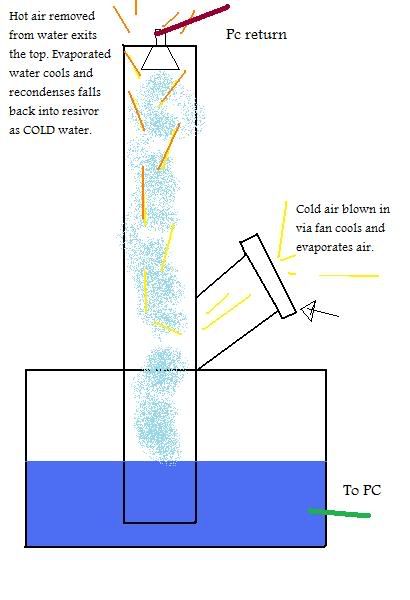

I made this quickly ill explain more tomarow im off to bed.
New beginning
(13 items)


CPUMotherboardGraphicsRAM
Ryzen 1700 Msi x370 Titanium  Nano Gskill tridentZ 3200
Hard DriveHard DriveCoolingOS
WD blue m.2 SSD Intel 370 SSD custom loop W10
MonitorPowerCaseMouse
asus 24" Corsair RMx 850 gold Custom Define S cube Razer naga
Mouse Pad
Rocketfish
  hide details
Reply
New beginning
(13 items)


CPUMotherboardGraphicsRAM
Ryzen 1700 Msi x370 Titanium  Nano Gskill tridentZ 3200
Hard DriveHard DriveCoolingOS
WD blue m.2 SSD Intel 370 SSD custom loop W10
MonitorPowerCaseMouse
asus 24" Corsair RMx 850 gold Custom Define S cube Razer naga
Mouse Pad
Rocketfish
  hide details
Reply
post #6 of 55
Yep nice bong! If you want more info there is a whole bunch here http://www.overclock.net/water-cooli...-56k-fail.html

There are a bunch of links of other peoples builds. Also a bunch of pages of banter and debate about everything that has to do with bongs and evaporative cooling.

As you can see, a bong can greatly reduce the temps from a normal water cooling setup. If you have the extra room and want to toy around with some experimental cooling then this is a good start. The idea is once you have a bong down you can insulate your motherboard and turn your bong into a slush box...you can also add a TEC/Pelter to your bong, the bong is great for a TEC because they can handle the temps the hot side of the TEC puts off and can bring down the temps on the cold side of the TEC that much more....When every degree counts then a bong can really get you there for a very small price.
Bong Rig
(13 items)


CPUMotherboardGraphicsRAM
E6750 @3.6 1.40v P5N-D SLI 750i EVGA 9800GX2 4Gigs G.Skill 800
Hard DriveOptical DriveOSMonitor
40G WD IDE/250G sata 40xDVDRW Vista 64bit 22" hp A4576A
KeyboardPowerCaseMouse
Logitech Antec 650w Neopower herbal green Logitech
Mouse Pad
Rotting blue/black neo
  hide details
Reply
Bong Rig
(13 items)


CPUMotherboardGraphicsRAM
E6750 @3.6 1.40v P5N-D SLI 750i EVGA 9800GX2 4Gigs G.Skill 800
Hard DriveOptical DriveOSMonitor
40G WD IDE/250G sata 40xDVDRW Vista 64bit 22" hp A4576A
KeyboardPowerCaseMouse
Logitech Antec 650w Neopower herbal green Logitech
Mouse Pad
Rotting blue/black neo
  hide details
Reply
post #7 of 55
Quote:
Originally Posted by motoray View Post
I made this quickly ill explain more tomarow im off to bed.
the cold air cools and evaporates air?
post #8 of 55
Very cool. I would have never thought based on looks that these things would work so well.

I'm guessing maintenance on these is kind of a PITA??

MotherboardGraphicsRAMRAM
TF8200 A2+ Radeon HD 5770 G. Skill G. Skill
Hard DriveOptical DriveCoolingOS
ST3500418AS Samsung DVDRW Corsair H50 Windows 7 Ultimate x64
MonitorKeyboardPowerCase
S231HLbid @ 1080p Logitech G110 Antec NeoHE 500 XION Predator
MouseAudio
Microsoft Intellimouse 3.0 ALC888 , Saitek GH 30
  hide details
Reply

MotherboardGraphicsRAMRAM
TF8200 A2+ Radeon HD 5770 G. Skill G. Skill
Hard DriveOptical DriveCoolingOS
ST3500418AS Samsung DVDRW Corsair H50 Windows 7 Ultimate x64
MonitorKeyboardPowerCase
S231HLbid @ 1080p Logitech G110 Antec NeoHE 500 XION Predator
MouseAudio
Microsoft Intellimouse 3.0 ALC888 , Saitek GH 30
  hide details
Reply
post #9 of 55
Quote:
Originally Posted by ChielScape View Post
the cold air cools and evaporates air?
The water evaporates and cools down it's surroundings, in this case, more water, which falls into the cooler, then is pumped into your computer. Works the same way sweating cools you off. The fan speeds up the evaporating process.

CPUMotherboardGraphicsRAM
x5670 ASUS P6T Evga GTX970 Corsair Vengeance 12GB
Hard DriveOSMonitorKeyboard
SG 500gb 7200.12 OS, WD 640 GB, SG 3 TB Windows 7 Professional x64 Acer G257HU 1440p Logitech G15
PowerCase
PCP&C Silencer 610 Cooler Master 690
  hide details
Reply

CPUMotherboardGraphicsRAM
x5670 ASUS P6T Evga GTX970 Corsair Vengeance 12GB
Hard DriveOSMonitorKeyboard
SG 500gb 7200.12 OS, WD 640 GB, SG 3 TB Windows 7 Professional x64 Acer G257HU 1440p Logitech G15
PowerCase
PCP&C Silencer 610 Cooler Master 690
  hide details
Reply
post #10 of 55
And it also adds loads of humidity to your room... Definately not doing a bong cooler since I live in Louisiana lol. I get 90% humidity nearly every day as it is.
