Construction of a ATX cabinet!





About the project:

When the time has come for a new cabinet. Enclosure will be built from scratch and look to be a fairly common tower, but with a somewhat spessiel front. In front will be mounted two 120mm fans and the pattern you see in the sketch above shall spit out. Inside I will divide the cabinet into two chambers. In the bottom will be the power supply and hard drives and put in the upper chamber will you find the rest of the parts. As the distinction between the chamber should I try to create an arc that you can see in the picture below. A window will be placed in one side door.
External dimensions of the box is: 56 x 54 x 24.5 cm

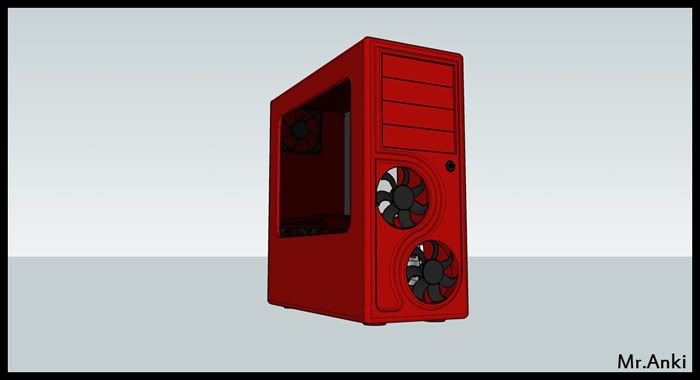

Sketch:










- Thanks to Nitrob for help with the sketches!


Sponsors:


Gigabyte sponsoring the project with the Gigabyte GA-EX58-UD5 and Gigabyte Radeon HD 4890 1 GB!



Enermaxsponsoring the project with a Revolution85 + 1050W and Apollish fans!



- Roccat sponsoring the project with ROCCAT Kone, ROCCAT Taito and various stash!







- OCZ Technology to sponsor the project with various hardware!




- Dremel sponsor the project with a Dremel 400 Digital!




- Vendur.no to sponsor the project with 150,-




Microplex.no to sponsor the project with discounts on the goods!


Thanks for sponsorship!
Edited by MrAnki - 9/22/09 at 9:24am
Reply
Reply
post #2 of 138
8/23/09 at 8:00am
Thread Starter
I have taken MFD disc and got cut up most of the plates. Have used the 16mm thick plates and screws 3mm, MDF'en tend to stretch so it is important to drilling in the disc before it will screw it up.




Plates I had was to big for that Climb saga was too little, when I had to jack up the saga:




This lowered the screws:




Here is the first wall ready to be tightened:






Now the front and bakplate in place:





And here the top and bottom in place:





Reply
Reply
post #3 of 138
8/23/09 at 8:06am
Thread Starter
Then it was time for a new update, have been cut to the motherboard tray. And the driver to think out a smart solution for hiding the cables under the motherboard tray. Will have at least possible with cables visible.

Here, I marked where to cut:




Right after cutting:




Used the Dremel and file to get a finer result:




And here I am finished:




Sorry bad pictures, Tite was a little light, where I drove on.

The second is on the program now is cutting the backplate and solutions for cable pulling.
Reply
Reply
post #4 of 138
8/23/09 at 8:08am
looking good! +1
PC
(13 items)

CPUMotherboardGraphicsRAM
Q6600 Gigabyte UD3R MSI gtx465 2Gb Patriot
Hard DriveOptical DriveOSMonitor
Samsung 750gb + Seagate 250gb LG Super Multi Vista Home Premium 32-bit Samsung Syncmaster 19"
KeyboardPowerCaseMouse
Logitech G11 OCZ ModXStream 500w Raidmax Aura 'really black' Logitech Mx518
Mouse Pad
blue..
View all
  hide details
Reply
PC
(13 items)

CPUMotherboardGraphicsRAM
Q6600 Gigabyte UD3R MSI gtx465 2Gb Patriot
Hard DriveOptical DriveOSMonitor
Samsung 750gb + Seagate 250gb LG Super Multi Vista Home Premium 32-bit Samsung Syncmaster 19"
KeyboardPowerCaseMouse
Logitech G11 OCZ ModXStream 500w Raidmax Aura 'really black' Logitech Mx518
Mouse Pad
blue..
View all
  hide details
Reply
post #5 of 138
8/23/09 at 8:20am
Thread Starter
Update 3:

Now, I've been cutting holes for motherboard tray and PSU'en. But missing some Scrub even before I'm satisfied: wee:

Have also been made four round cabinet feet, but has not been refurbished yet these either. It is made in the course of the weekend I think


Marked and cutting:






How was it:




Has been raised and motherboard tray with a 16mm so I can fit all the cables under which:




This motherboard has the board come up:




Have also created holes for PSU'en:




To create cabinet feet I used a hole-saw at 55mm:







These should be repaired part before they are finished
Reply
Reply
post #6 of 138
8/23/09 at 8:56am
nice work so far

when cutting the feet did you use a bi-metal holesaw?
reason I ask is I got the same discoloration/burning when I used a bi-metal holesaw to cut fan openings in mdf.
Chuckle2Tits
(13 items)

CPUMotherboardGraphicsRAM
Core i7 920 2.66 45nm D0 Foxconn BloodRage x58 EVGA GTX 285 6 GB Corsair Dom. DDR3 1600
Hard DriveOptical DriveOSMonitor
1x300 GB WD Velociraptor Asus 16/48 DVD/CD ROM SATA Windows 7 Pro 64 bit Viewsonic VX2255wmb 22" LCD
KeyboardPowerCaseMouse
Logitech USB wired Silverstone Decathalon 850 PolymorphiX (PMX_v1s) ms optical, wired
Mouse Pad
ancient piece of crap :P
View all
  hide details
Reply
Chuckle2Tits
(13 items)

CPUMotherboardGraphicsRAM
Core i7 920 2.66 45nm D0 Foxconn BloodRage x58 EVGA GTX 285 6 GB Corsair Dom. DDR3 1600
Hard DriveOptical DriveOSMonitor
1x300 GB WD Velociraptor Asus 16/48 DVD/CD ROM SATA Windows 7 Pro 64 bit Viewsonic VX2255wmb 22" LCD
KeyboardPowerCaseMouse
Logitech USB wired Silverstone Decathalon 850 PolymorphiX (PMX_v1s) ms optical, wired
Mouse Pad
ancient piece of crap :P
View all
  hide details
Reply
post #7 of 138
8/23/09 at 10:51am
Thread Starter
Update 4:

As you saw in the previous update, I have cut out four rounds of cabinet feet, now is the polished finish


The first thing I did was to attach all the feet of a bolt and mounted it on the drill:






I took the polish paper (P150) in hand and started the machine, is the result:






After that I took and polished edge that will stand on the table, so that it was round and nice:




Should have cleaned several parts of the cabinet for the weekend, so stay tuned!
