[OFFICIAL]Athlon II X2 Regor Series OC Club - Page 89

post #881 of 1106
hey guys

xavierutberg: mines stable at 3.675ghz, and max temps ive seen under prime95 is 43c

xavierutberg and Menace: what volts you 2 running? i had to bump mine to 1.44v to make it stable, and i dropped my hypertransport to 1600mhz as well, after OC it ended at 1960mhz

EDIT:

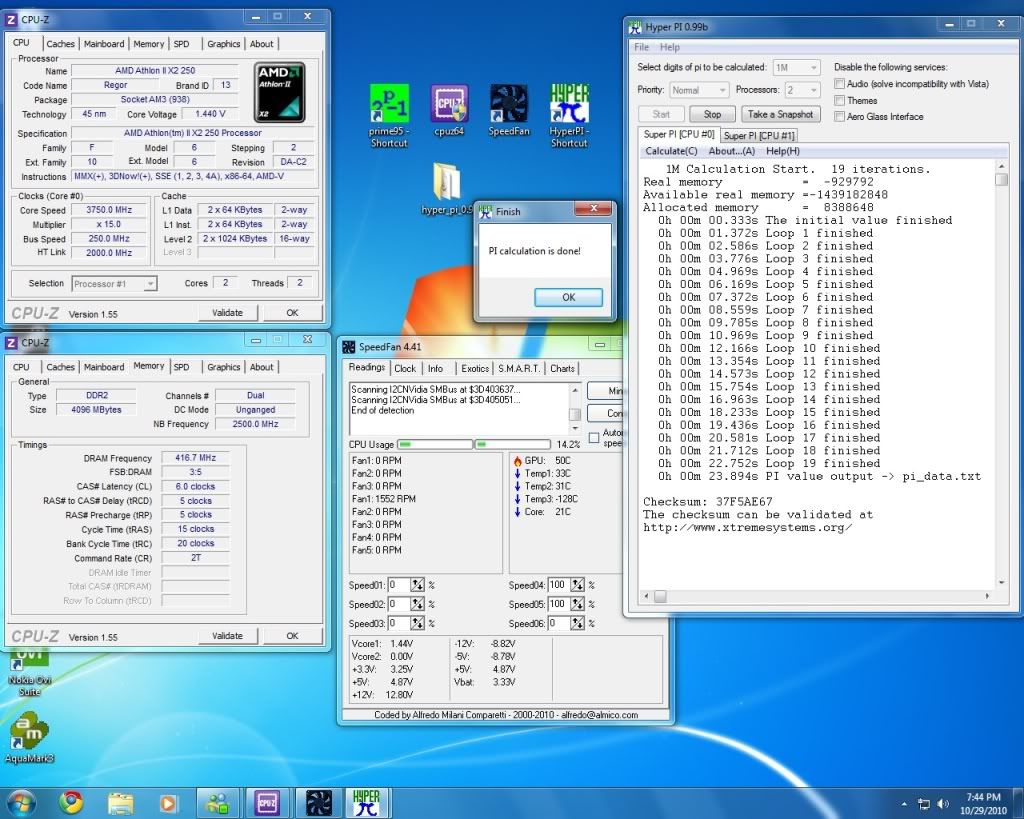

Had a quick play around, set it to 15 x 250mhz got it booted at 3.750gHz. Hypertransport is sitting dead on 2000mhz. Bumped volts0.01 to 1.45v



http://valid.canardpc.com/show_oc.php?id=1454156
Edited by AMD_Lynx - 10/29/10 at 4:50am
My System
(13 items)


CPUMotherboardGraphicsRAM
Athlon II x2 250 Asus M4A77TD Inno3d 8800gts OC 320Mb 4Gb DDR3-1333
OSCaseMouse
Vista Antec 200 Gigabyte GM-M6880
  hide details
Reply
My System
(13 items)


CPUMotherboardGraphicsRAM
Athlon II x2 250 Asus M4A77TD Inno3d 8800gts OC 320Mb 4Gb DDR3-1333
OSCaseMouse
Vista Antec 200 Gigabyte GM-M6880
  hide details
Reply
post #882 of 1106
Quote:
Originally Posted by AMD_Lynx View Post
hey guys

xavierutberg: mines stable at 3.675ghz, and max temps ive seen under prime95 is 43c

xavierutberg and Menace: what volts you 2 running? i had to bump mine to 1.44v to make it stable, and i dropped my hypertransport to 1600mhz as well, after OC it ended at 1960mhz

EDIT:

Had a quick play around, set it to 15 x 250mhz got it booted at 3.750gHz. Hypertransport is sitting dead on 2000mhz. Bumped volts0.01 to 1.45v

http://valid.canardpc.com/show_oc.php?id=1454156
What's your "Chipset" voltage at, and HT voltage as well. I have those two options in my bios, defaults are 1.15 and 1.30 respectively.

I think my ram is what is preventing from going further. I may either have to losen the timings or switch em out for a Patriot set that I've taken up to 950Mhz.

I can boot at 3.72 but I crash within a minute of prime.
post #883 of 1106
Hey

I couldnt actually tell you, as i havent touched them, just left it on auto. As for ram, im just using generic kingston ram, nothing fancy
My System
(13 items)


CPUMotherboardGraphicsRAM
Athlon II x2 250 Asus M4A77TD Inno3d 8800gts OC 320Mb 4Gb DDR3-1333
OSCaseMouse
Vista Antec 200 Gigabyte GM-M6880
  hide details
Reply
My System
(13 items)


CPUMotherboardGraphicsRAM
Athlon II x2 250 Asus M4A77TD Inno3d 8800gts OC 320Mb 4Gb DDR3-1333
OSCaseMouse
Vista Antec 200 Gigabyte GM-M6880
  hide details
Reply
post #884 of 1106
Quote:
Originally Posted by AMD_Lynx View Post
Hey

I couldnt actually tell you, as i havent touched them, just left it on auto. As for ram, im just using generic kingston ram, nothing fancy
You can push the CPU to 3.85,
See:http://valid.canardpc.com/show_oc.php?id=1219166
Black Edition
(17 items)


CPUMotherboardGraphicsRAM
AMD Athlon X4 870K @ 4.60 ASUS A68HM-Plus FM2+ MSI GeForce GTX 970 OC Crucial Ballistix Sports (8GB.) (DDR3-1600)
Hard DriveHard DriveHard DriveHard Drive
SanDisk SSD Plus 240GB. Toshiba (500GB.) Hitachi Deskstar (500GB.) WD Ultra Passport
Optical DriveCoolingOSMonitor
Samsung DVD Burner 24X SH-224DB/BEBE Cooler Master Hyper T4 Windows 10 Pro x64 Samsung S23A350H 23" 1080p
KeyboardPowerCaseMouse
Logitech G105 Gaming Keyboard CORSAIR CX series CX600M 600W Thermaltake V3 Black Edition Logitech G300s Gaming Mouse
Audio
ASUS DG 5.1 DD
  hide details
Reply
Black Edition
(17 items)


CPUMotherboardGraphicsRAM
AMD Athlon X4 870K @ 4.60 ASUS A68HM-Plus FM2+ MSI GeForce GTX 970 OC Crucial Ballistix Sports (8GB.) (DDR3-1600)
Hard DriveHard DriveHard DriveHard Drive
SanDisk SSD Plus 240GB. Toshiba (500GB.) Hitachi Deskstar (500GB.) WD Ultra Passport
Optical DriveCoolingOSMonitor
Samsung DVD Burner 24X SH-224DB/BEBE Cooler Master Hyper T4 Windows 10 Pro x64 Samsung S23A350H 23" 1080p
KeyboardPowerCaseMouse
Logitech G105 Gaming Keyboard CORSAIR CX series CX600M 600W Thermaltake V3 Black Edition Logitech G300s Gaming Mouse
Audio
ASUS DG 5.1 DD
  hide details
Reply
post #885 of 1106
Quote:
Originally Posted by AMD_Lynx View Post
Hey

I couldnt actually tell you, as i havent touched them, just left it on auto. As for ram, im just using generic kingston ram, nothing fancy
I think what is holding me back is my motherboard. I think it's at its limits, I may have to swap it out for something with more BIOS options. I know I can push this chip higher, I just want to stabilize 3.7.
post #886 of 1106
well i can vouch for asus. This board has been rock solid for me. I think this board cost me $70au
My System
(13 items)


CPUMotherboardGraphicsRAM
Athlon II x2 250 Asus M4A77TD Inno3d 8800gts OC 320Mb 4Gb DDR3-1333
OSCaseMouse
Vista Antec 200 Gigabyte GM-M6880
  hide details
Reply
My System
(13 items)


CPUMotherboardGraphicsRAM
Athlon II x2 250 Asus M4A77TD Inno3d 8800gts OC 320Mb 4Gb DDR3-1333
OSCaseMouse
Vista Antec 200 Gigabyte GM-M6880
  hide details
Reply
post #887 of 1106
* Username: ku4jb
* Stepping: naegc ae
* Revision: c3
* CPU: x2 445
* CPU Clock: 4102.3
* HTT Clock: 293
* CPU Multiplier: 14
* CPU Voltage: 1.6
* CPU-NB VID: auto
* NB Clock: 2051
* NB Voltage: auto
* HT Link Frequency: 1758
* RAM Speed: 1172
* Motherboard: Asus M4A77TD
* Cooler: CCF 120
* CPU-Z Validation Link: http://valid.canardpc.com/show_oc.php?id=1457115
rig
(9 items)

kids rig
(11 items)


CPUMotherboardGraphicsRAM
6700k Z170-A 530 2x F4-2400C15-8NT
Hard DriveCoolingOSPower
Zotac PE 240 D15 10 G Series 550
Case
bench
CPUMotherboardGraphicsRAM
6300 M5A99FX Pro 270 8G Rip-Z's
Hard DriveOptical DriveCoolingOS
240/460a Asus  H110 8.1
MonitorPowerCase
19 in. Sam. TPN-650 Source 530
CPUMotherboardGraphicsRAM
B35 Asus M4A77TD 5770 4GB ECO
Hard DriveCoolingOSMonitor
240/460a CCF 120 10 SyncMaster 2033
Power
MS12 ll EVO
  hide details
Reply
rig
(9 items)

kids rig
(11 items)


CPUMotherboardGraphicsRAM
6700k Z170-A 530 2x F4-2400C15-8NT
Hard DriveCoolingOSPower
Zotac PE 240 D15 10 G Series 550
Case
bench
CPUMotherboardGraphicsRAM
6300 M5A99FX Pro 270 8G Rip-Z's
Hard DriveOptical DriveCoolingOS
240/460a Asus  H110 8.1
MonitorPowerCase
19 in. Sam. TPN-650 Source 530
CPUMotherboardGraphicsRAM
B35 Asus M4A77TD 5770 4GB ECO
Hard DriveCoolingOSMonitor
240/460a CCF 120 10 SyncMaster 2033
Power
MS12 ll EVO
  hide details
Reply
post #888 of 1106
congrats on the very nice OC there ku4jb
My System
(13 items)


CPUMotherboardGraphicsRAM
Athlon II x2 250 Asus M4A77TD Inno3d 8800gts OC 320Mb 4Gb DDR3-1333
OSCaseMouse
Vista Antec 200 Gigabyte GM-M6880
  hide details
Reply
My System
(13 items)


CPUMotherboardGraphicsRAM
Athlon II x2 250 Asus M4A77TD Inno3d 8800gts OC 320Mb 4Gb DDR3-1333
OSCaseMouse
Vista Antec 200 Gigabyte GM-M6880
  hide details
Reply
post #889 of 1106
I think this particular club should be scratched as the original thread member doesn't log on frequently and update the members list or cpu spreadsheet. Check his last log-in date 9-22-10, is there anyway for anyone else to update the member list and spreadsheet?
post #890 of 1106
Quote:
Originally Posted by AMD_Lynx View Post
congrats on the very nice OC there ku4jb
Thank you
rig
(9 items)

kids rig
(11 items)


CPUMotherboardGraphicsRAM
6700k Z170-A 530 2x F4-2400C15-8NT
Hard DriveCoolingOSPower
Zotac PE 240 D15 10 G Series 550
Case
bench
CPUMotherboardGraphicsRAM
6300 M5A99FX Pro 270 8G Rip-Z's
Hard DriveOptical DriveCoolingOS
240/460a Asus  H110 8.1
MonitorPowerCase
19 in. Sam. TPN-650 Source 530
CPUMotherboardGraphicsRAM
B35 Asus M4A77TD 5770 4GB ECO
Hard DriveCoolingOSMonitor
240/460a CCF 120 10 SyncMaster 2033
Power
MS12 ll EVO
  hide details
Reply
rig
(9 items)

kids rig
(11 items)


CPUMotherboardGraphicsRAM
6700k Z170-A 530 2x F4-2400C15-8NT
Hard DriveCoolingOSPower
Zotac PE 240 D15 10 G Series 550
Case
bench
CPUMotherboardGraphicsRAM
6300 M5A99FX Pro 270 8G Rip-Z's
Hard DriveOptical DriveCoolingOS
240/460a Asus  H110 8.1
MonitorPowerCase
19 in. Sam. TPN-650 Source 530
CPUMotherboardGraphicsRAM
B35 Asus M4A77TD 5770 4GB ECO
Hard DriveCoolingOSMonitor
240/460a CCF 120 10 SyncMaster 2033
Power
MS12 ll EVO
  hide details
Reply
