My HAF has no HAF

Poll Results: What option should i take for my R/H panel

This is a multiple choice poll
  • 28% of voters (15)
    Leave as is
  • 46% of voters (24)
    Cut large window (maybe logo)
  • 25% of voters (13)
    Cut indents to form X (+maybe logo)
52 Total Votes
post #1 of 167
Thread Starter
Thanks for having a look at my log, please feel free to say hi and/or comment on my work and ideas

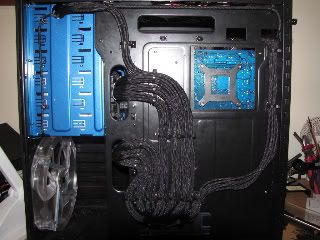

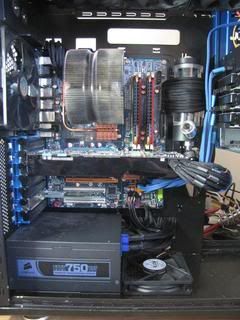

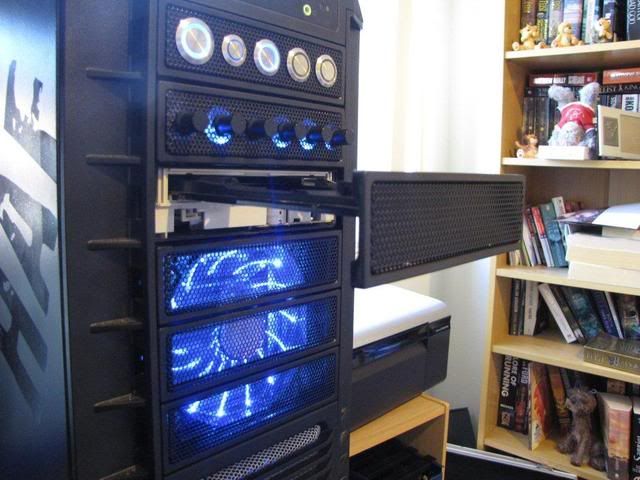

Current pics....(before i disassembled it again)



....................



I am currently in the process of updating this build log with links to the different stages of the build, please bear with me while i get it sorted.

While the above pics are the most current, I have just disassembled the case again to repaint (a color change is planned), and replace pretty much everything except the hard-drives.

Version 1 - The first attempt

Painting the case:
Preparation, My "oh S**t" moment, blue bits done, black bits done and case assembled

Custom switch panel:
Parts, planning and some prep, Switch panel completed

Changing fan LEDs:
From red to blue, blue LED testing

Cable sleeving management:
PCI-E v.1, PSU, PCI-e v2, SATA and others, installing components and early cable management, cable management done

Customising the fan controller:
The controller, rough fit, and stealthing , reducing light bleed between rheostats

Stealthing the optical drive:
Prep DVD drive for paint and front bezel finished, painted, fitted and woking (incl vid)

Removing/replacing the HDD rack
The new HDD cage, swapping and modding the HDD caddy fan plus inistallation,



Version 2 - The evolution (to be called a more appropriate name closer to completion)

Planned parts:
Standard parts:
PSU: Corsair AX1200 or Enermax Revolution85+1250W
HDD: Corsair Nova 120Gb SSD
WC loop.
CPU waterblock: My dream, ApogeeXT in da flesh
Pumps: 2 x Swiftech MCP355 (DDC) and pump-top EK duell DDC v2
Rad 1 - XSPC RX240 Radiator: Damaged, manufacturing fault
Everything I have at the moment

Tools of the trade:
The tools I'm using for this build

Paint stripping:
Naked 5.25" rack and MB tray

Door panels:
R/H panel - Poll what should I do, pics on options i'm thinking of and why
L/H panel - marked out and initial cuts, action shot, finished window cutting and filing, marked out HAF logo for cutting, L/H H initial cuts, cutting out the rest of the HAF logo and the finished panel

Bottom panel: Layout and rough cuts


5.25" drive caddy:
Initial plans, Cutting, filing and bashing - part 1, straightening - part 2, straightening - part 3

.
.
.

Edited by MIH - 7/11/10 at 10:35pm
Interim
(13 items)


CPUMotherboardGraphicsRAM
i7 950 ASUS RIIIE Gigabyte GTX275 Corsair Dominator GT 1600C7
Hard DriveOSMonitorKeyboard
Corsair Reactor 120Gb SSD & 2xWD 640Gb (raid 1) Windows 7 - 64bit LG W2242T Logitech G15
PowerCaseMouseMouse Pad
Corsair HX750 Silverstone TJ07 Logitech G9 Razer exactmat
  hide details
Reply
Interim
(13 items)


CPUMotherboardGraphicsRAM
i7 950 ASUS RIIIE Gigabyte GTX275 Corsair Dominator GT 1600C7
Hard DriveOSMonitorKeyboard
Corsair Reactor 120Gb SSD & 2xWD 640Gb (raid 1) Windows 7 - 64bit LG W2242T Logitech G15
PowerCaseMouseMouse Pad
Corsair HX750 Silverstone TJ07 Logitech G9 Razer exactmat
  hide details
Reply
post #2 of 167
Welcome to OCN!
Great choice, it's a good case and I'm interested to see your final product
i7 Build
(13 items)


CPUMotherboardGraphicsRAM
Intel Core i7 920 D0 Asus P6T Deluxe V2 Asus GTX 275 OCZ Platinum DDR3 3X2GB
Hard DriveOSMonitorKeyboard
Western Digital 500G SATA Windows Vista Ultimate Samsung 2443BW + NEC 1970GX Logitech Cordless Desktop LX 700
PowerCaseMouse
Corsair TX850W CoolerMaster HAF 932 Logitech Cordless Desktop LX 700
  hide details
Reply
i7 Build
(13 items)


CPUMotherboardGraphicsRAM
Intel Core i7 920 D0 Asus P6T Deluxe V2 Asus GTX 275 OCZ Platinum DDR3 3X2GB
Hard DriveOSMonitorKeyboard
Western Digital 500G SATA Windows Vista Ultimate Samsung 2443BW + NEC 1970GX Logitech Cordless Desktop LX 700
PowerCaseMouse
Corsair TX850W CoolerMaster HAF 932 Logitech Cordless Desktop LX 700
  hide details
Reply
post #3 of 167
Thread Starter
Welcome to OCN!
Great choice, it's a good case and I'm interested to see your final product

Thanks.

Ok, so I have now disassembled the case and sanded it ready for painting....the trouble i have had is finding a shop on the Gold Coast that has a good range of aerosol primers and paints by the same manufacturer.

This has meant that i have had to purchase primers and paints from different manufacturers to get the colors I want...its funny, i used to complain that it seemed too easy for idiots to get hold of spray paint and deface property but now that I want some (albeit high quality stuff) I actually find that its not so easy.

I have also cut a small section out of the case and left cover for my contact connection to eventually go, as well as cut a hole in the drive bay box for cable management.

All sanded and pretty


Cutting the case


Cutting the side panel


Hole drilled


All masked up

Edited by MIH - 10/14/09 at 5:25pm
Interim
(13 items)


CPUMotherboardGraphicsRAM
i7 950 ASUS RIIIE Gigabyte GTX275 Corsair Dominator GT 1600C7
Hard DriveOSMonitorKeyboard
Corsair Reactor 120Gb SSD & 2xWD 640Gb (raid 1) Windows 7 - 64bit LG W2242T Logitech G15
PowerCaseMouseMouse Pad
Corsair HX750 Silverstone TJ07 Logitech G9 Razer exactmat
  hide details
Reply
Interim
(13 items)


CPUMotherboardGraphicsRAM
i7 950 ASUS RIIIE Gigabyte GTX275 Corsair Dominator GT 1600C7
Hard DriveOSMonitorKeyboard
Corsair Reactor 120Gb SSD & 2xWD 640Gb (raid 1) Windows 7 - 64bit LG W2242T Logitech G15
PowerCaseMouseMouse Pad
Corsair HX750 Silverstone TJ07 Logitech G9 Razer exactmat
  hide details
Reply
post #4 of 167
Thread Starter
After having carefully sanded and masked my case i set about priming. All went well for the coats of self-etching and the first coat of std primer...then disaster struck. My highly professional and expensive paper clips that i was using to hold the pieces up gave way/let go of a piece...

Note to self....dropping a piece of steel casing from a height will damage said piece.





Time to bring out the hammer (goes with my 2 simple tools for everything philosophy "if it moves and it shouldn't, use duct tape; if it doesn't move and it should...use a hammer"). Well maybe i'll use a few more...yay for rotary tools.





Not quite as good as new....but certainly better than before. Now i just have to re-sand and prime..../sigh.
Edited by MIH - 7/11/10 at 6:04pm
Interim
(13 items)


CPUMotherboardGraphicsRAM
i7 950 ASUS RIIIE Gigabyte GTX275 Corsair Dominator GT 1600C7
Hard DriveOSMonitorKeyboard
Corsair Reactor 120Gb SSD & 2xWD 640Gb (raid 1) Windows 7 - 64bit LG W2242T Logitech G15
PowerCaseMouseMouse Pad
Corsair HX750 Silverstone TJ07 Logitech G9 Razer exactmat
  hide details
Reply
Interim
(13 items)


CPUMotherboardGraphicsRAM
i7 950 ASUS RIIIE Gigabyte GTX275 Corsair Dominator GT 1600C7
Hard DriveOSMonitorKeyboard
Corsair Reactor 120Gb SSD & 2xWD 640Gb (raid 1) Windows 7 - 64bit LG W2242T Logitech G15
PowerCaseMouseMouse Pad
Corsair HX750 Silverstone TJ07 Logitech G9 Razer exactmat
  hide details
Reply
post #5 of 167
Is there supposed to be some pictures cause I'm not seeing any?
post #6 of 167
Thread Starter
There is....they show up in my screen....wonder why you cant see them
Interim
(13 items)


CPUMotherboardGraphicsRAM
i7 950 ASUS RIIIE Gigabyte GTX275 Corsair Dominator GT 1600C7
Hard DriveOSMonitorKeyboard
Corsair Reactor 120Gb SSD & 2xWD 640Gb (raid 1) Windows 7 - 64bit LG W2242T Logitech G15
PowerCaseMouseMouse Pad
Corsair HX750 Silverstone TJ07 Logitech G9 Razer exactmat
  hide details
Reply
Interim
(13 items)


CPUMotherboardGraphicsRAM
i7 950 ASUS RIIIE Gigabyte GTX275 Corsair Dominator GT 1600C7
Hard DriveOSMonitorKeyboard
Corsair Reactor 120Gb SSD & 2xWD 640Gb (raid 1) Windows 7 - 64bit LG W2242T Logitech G15
PowerCaseMouseMouse Pad
Corsair HX750 Silverstone TJ07 Logitech G9 Razer exactmat
  hide details
Reply
post #7 of 167
Yay!! Now I can see them. Looking good so far.
post #8 of 167
Thread Starter
Quote:
Originally Posted by FalloutBoy View Post
Yay!! Now I can see them. Looking good so far.
Sweet. thanks for the PM... I had uploaded the photos to OCN but had made the album private for some reason...its nice to know that private really is private and you cant even link the photos into other threads.

Checked out your project btw....very nice....I'm planning to sleeve cables also....but not sure if ill go all the way back to the PSU yet.
Interim
(13 items)


CPUMotherboardGraphicsRAM
i7 950 ASUS RIIIE Gigabyte GTX275 Corsair Dominator GT 1600C7
Hard DriveOSMonitorKeyboard
Corsair Reactor 120Gb SSD & 2xWD 640Gb (raid 1) Windows 7 - 64bit LG W2242T Logitech G15
PowerCaseMouseMouse Pad
Corsair HX750 Silverstone TJ07 Logitech G9 Razer exactmat
  hide details
Reply
Interim
(13 items)


CPUMotherboardGraphicsRAM
i7 950 ASUS RIIIE Gigabyte GTX275 Corsair Dominator GT 1600C7
Hard DriveOSMonitorKeyboard
Corsair Reactor 120Gb SSD & 2xWD 640Gb (raid 1) Windows 7 - 64bit LG W2242T Logitech G15
PowerCaseMouseMouse Pad
Corsair HX750 Silverstone TJ07 Logitech G9 Razer exactmat
  hide details
Reply
post #9 of 167
Thread Starter
K...to keep myself busy while waiting for paint to dry (not a big fan in watching the process) I have been working on my front switch panel.

I have purchased these sweet switches



And have cut out a piece of acrylic to mount them in one of the front mesh drive covers.

Note: I was planning to use the saw pictured in first pic.... i did manage to persevere through one cut before running to Bunnings to buy a $40 rotary driver....mmmm power. BTW I am soooo glad that i did...cos if i got frustrated cutting plastic by hand i wouldn't have had a hope in hell of cutting the case with that saw.



.

Now my next dilemma is the switch layout, which i have to decide on soon so i can drill holes and paint panel. My two current thoughts (in general i sometimes have more...but 2 will do for now) is to either have the switches flush along the bottom or to center them vertically. Other people's points of view would be greatly appreciated at this time. (think i am swaying towards vertically centered). This is sort of how the 2 options would look. The switches all have a illuminated blue ring around them.



Power switch will be 25mm in diameter, reset 18mm, and light switches 22mm.
Edited by MIH - 10/15/09 at 5:28am
Interim
(13 items)


CPUMotherboardGraphicsRAM
i7 950 ASUS RIIIE Gigabyte GTX275 Corsair Dominator GT 1600C7
Hard DriveOSMonitorKeyboard
Corsair Reactor 120Gb SSD & 2xWD 640Gb (raid 1) Windows 7 - 64bit LG W2242T Logitech G15
PowerCaseMouseMouse Pad
Corsair HX750 Silverstone TJ07 Logitech G9 Razer exactmat
  hide details
Reply
Interim
(13 items)


CPUMotherboardGraphicsRAM
i7 950 ASUS RIIIE Gigabyte GTX275 Corsair Dominator GT 1600C7
Hard DriveOSMonitorKeyboard
Corsair Reactor 120Gb SSD & 2xWD 640Gb (raid 1) Windows 7 - 64bit LG W2242T Logitech G15
PowerCaseMouseMouse Pad
Corsair HX750 Silverstone TJ07 Logitech G9 Razer exactmat
  hide details
Reply
post #10 of 167
Thread Starter
Ok...so i havn't updated this for a little bit...but at least i have been progressing. In between coats of primer and color coat i have started the job of putting blue LEDs into the case fans. The first job was to replace the red LEDs in the front fan.



I have decided that i want to be able to turn all the fan LEDs on and off so not only will i be replacing but trying to do so in a way that will allow me to connect it to my switch panel.

First up was to remove the existing LEDs. easy job with needle nose pliers and soldering iron.



The next issue was finding some wire that would fit in the existing wire channels. I COULD NOT FIND ANYTHING....very frustrating. What i am most annoyed about is the trusty Dick Smith Electronics that used to stock all the electronic components you could want, has sold out and is now a lame phone/tv/camera store....very generic. I ended up getting some CAT5 cable from Jaycar and pulling the 8 wires out.



NOTE: for anyone else thinking of replacing wires in their case this is the cheapest and possibly best option for getting some quality wire. The wire itself is solid core so will carry a better current and should make for slightly easier routing as will hold a bend/curve better, plus at AU$1.25/m for 8 strands beats most other wires in price.

for neatness i decided to wire the negative LED legs to the fan so i didnt have to run too many cables around.



And then it was just a case of daisy chaining the positive legs and leaving a long tail to route to the switch.



.

Also. I have finished the coats of blue...which i think turned out quite well.




Now to do the black parts and leave all to cure for about a week before i wet sand and clear coat.
Interim
(13 items)


CPUMotherboardGraphicsRAM
i7 950 ASUS RIIIE Gigabyte GTX275 Corsair Dominator GT 1600C7
Hard DriveOSMonitorKeyboard
Corsair Reactor 120Gb SSD & 2xWD 640Gb (raid 1) Windows 7 - 64bit LG W2242T Logitech G15
PowerCaseMouseMouse Pad
Corsair HX750 Silverstone TJ07 Logitech G9 Razer exactmat
  hide details
Reply
Interim
(13 items)


CPUMotherboardGraphicsRAM
i7 950 ASUS RIIIE Gigabyte GTX275 Corsair Dominator GT 1600C7
Hard DriveOSMonitorKeyboard
Corsair Reactor 120Gb SSD & 2xWD 640Gb (raid 1) Windows 7 - 64bit LG W2242T Logitech G15
PowerCaseMouseMouse Pad
Corsair HX750 Silverstone TJ07 Logitech G9 Razer exactmat
  hide details
Reply
