How to: Mount a radiator behind your case w/o a radbox

post #1 of 12
Thread Starter
I find my PC modding habits to be incredibly contradictory, I will drop money on lots of prime hardware, GPUs to sling solder at and a over the top WC system, but when it came to mounting my WC setup I decided to come up with the cheapest and easiest solution available to me which in my opinion (minus all the scratches on my case/rads) look far better than a radbox.

All you need is:

-a case that with an 120mm back exhaust fan
-A radiator you want to mount
-Fans for the radiator (120mm)
-A spare 120mm fan in which the screw holes on each side are not connected
-4x 6-32 threading screws (size varies but usually over 1inch)
-8x 6-32 threading Nuts (optional)
-4x more screws (either threading for a back radiator or 6-32 threading w/ nuts, around 1/2 inch)
-alluminum spacers (optional)
-screw driver
-needle nose pliers (optional)


Option 1: Mount Radiator straight to a back exhaust fan

1) Screw the top fan to your radiator with a short screw (1/2 inch or under, this depends on width of your fan's plastic mounting walls) like so, so the screw mount only uses on of the mounting "feet" all the while making sure the airflow is going in the correct direction.

-in this case (since my radiator 6-32 threaded) I was able to use the hardware screws you would use in securing a HDD or a pci-e slot



2) Once the fan is mounted to the back of your radiator line up the 4 set of feet holes on the other side of the fan with a fan mounted on the back 120mm exhaust fan on your case. Then use the appropriate hardware to secure the two fans together.

there are several options for this:
-use the screws that come with fans (most risk of cracking plastic)
-bolt through with a 1/2-3/4 inch 6-32 screw and secure with a nut
-use whatever thread the radiator behind it is (if applicable)

-in this case I mounted to the back of another radiator so I used 6-32 threaded screws to mount onto my 120mm GTX radiator over my exhaust

-be patient securing them you may need to use something to prop up your radiator to line up the holes correctly, needle nose plier and hexagonal screws help a lot although you can use flathead screws and the side of a flathead screw driver like a level to tighten the screws

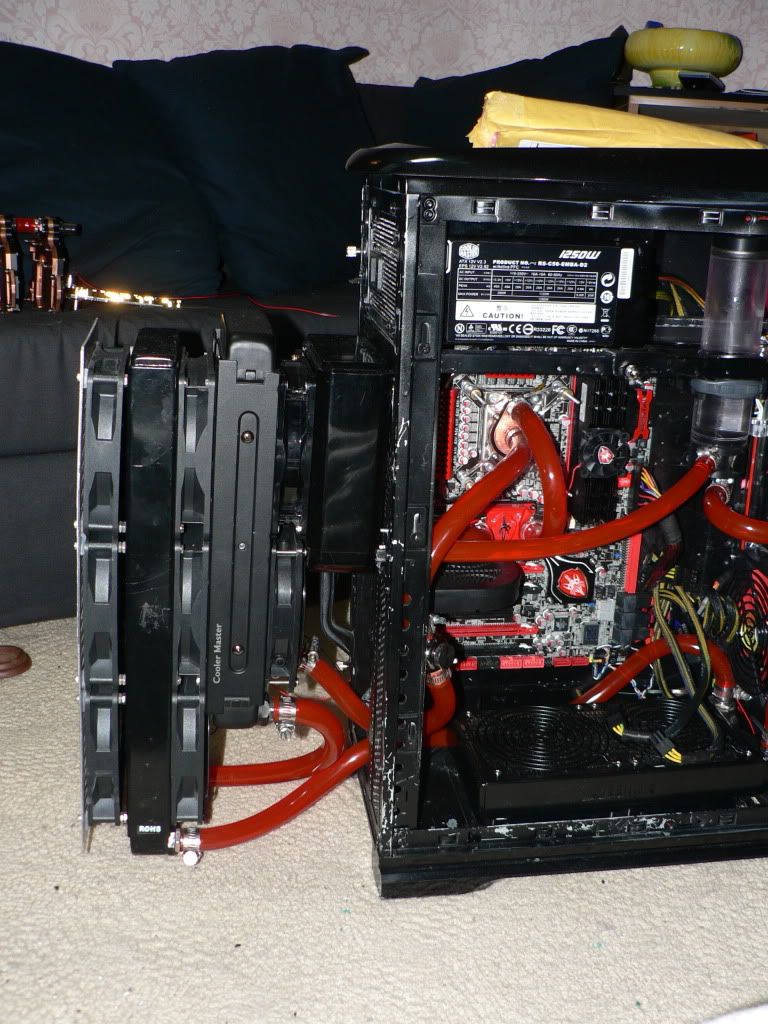

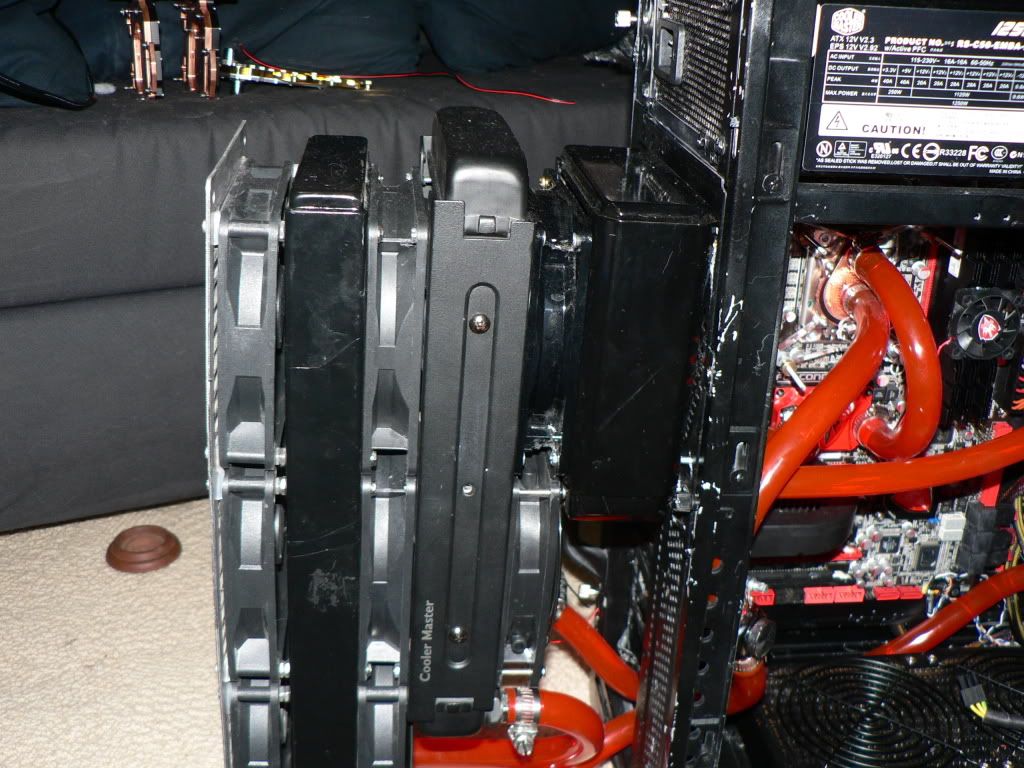

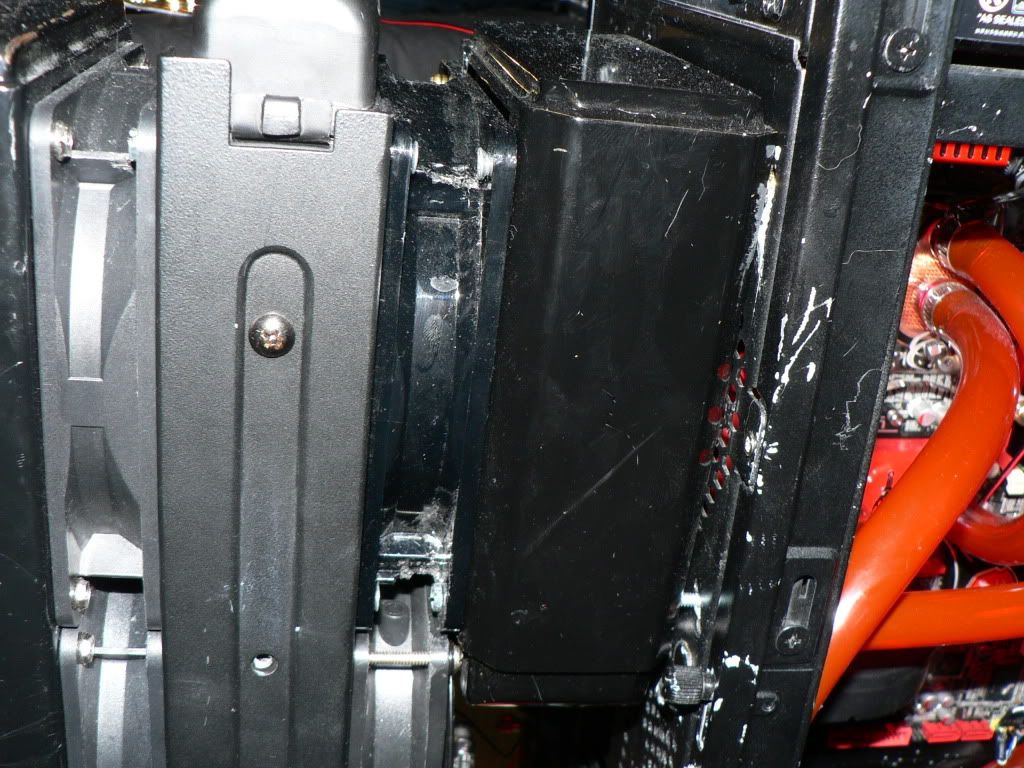

Final Product:






Method 2
: Back mounting with fresh air flow spacing

If you prefer not to directly stack the exhaust fan and your radiator or one radiator ontop of another you can create a gap between the two while still maintaining a solid mount.

1) Take 4x 6-32 threaded screws (length depends on the size gap you would like. You want to put the tip if the screw through the fan mounting holes (make sure you are doing this to the PULL side of the fan).Push the screw firmly through the hole until it is kind of wedged, it will barely go in due to the size of the screw, see below.

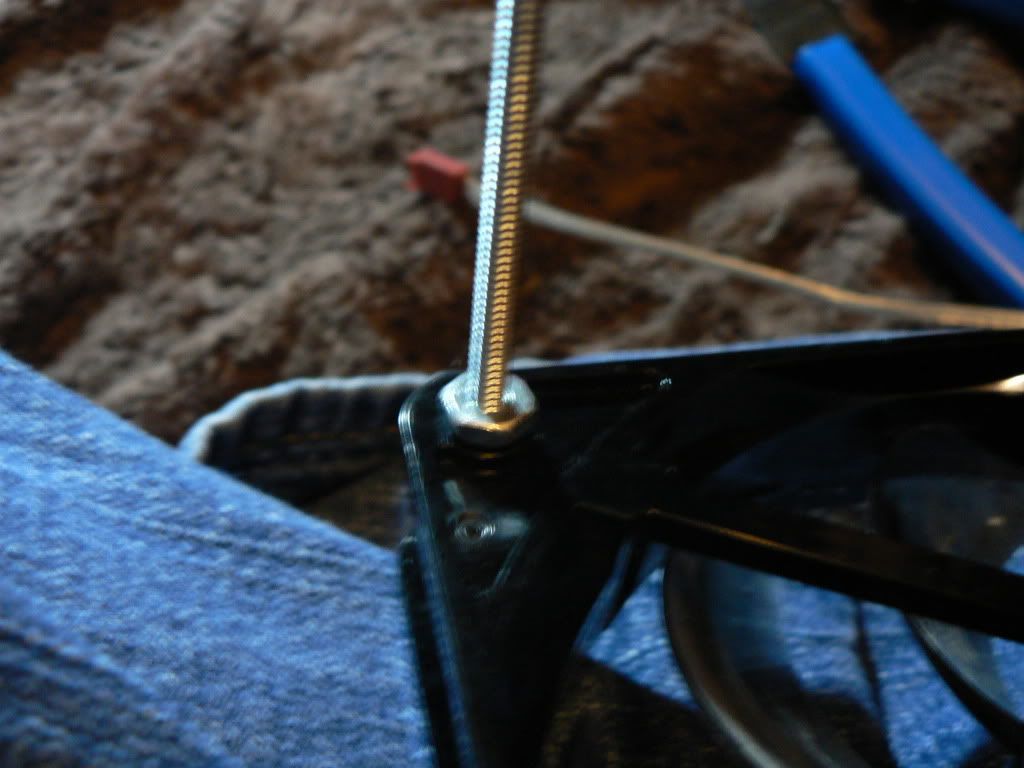

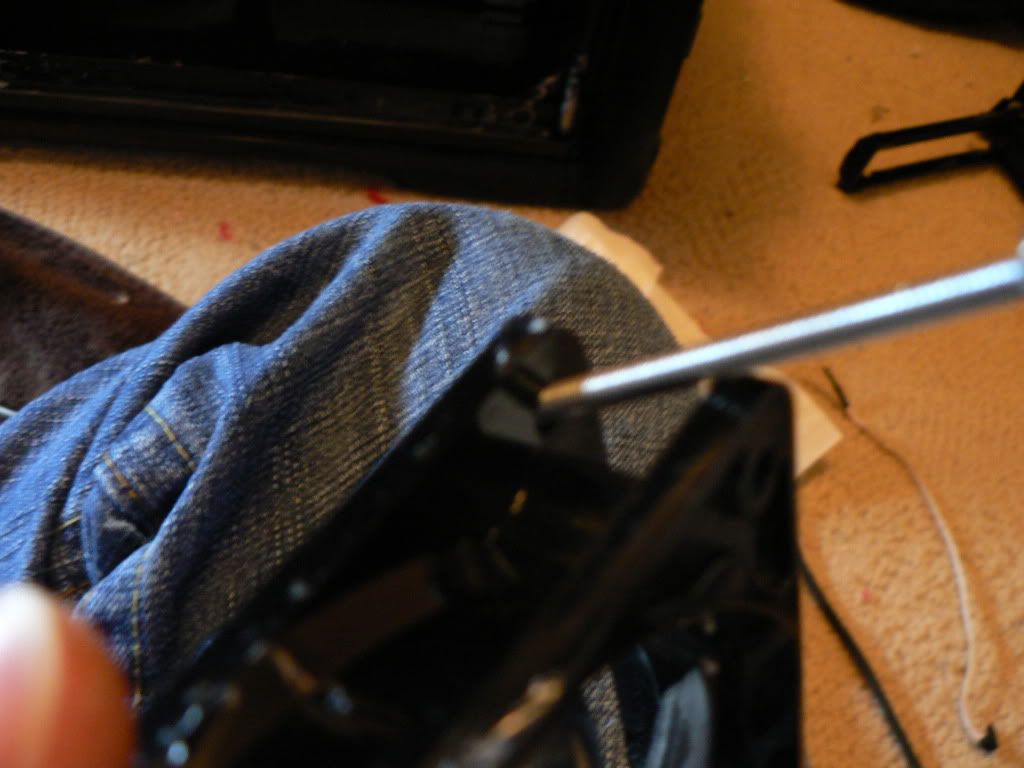

2) Now take the appropriate screw driver and begin to torque the screw, it should begin to make it's own threads through the plastic fan holes as you begin to push it through. Make sure the feet near the fan holes are not bending too much, apply pressure to counter act any warping to avoid cracking the plastic.



3) Once you get the screw all the way through, screw a nut onto the bolted through screw on the other side and tighten. Do this to all 4 sides.



4) Apply spacers if you would like and place another nut above that. Repeat with all 4.

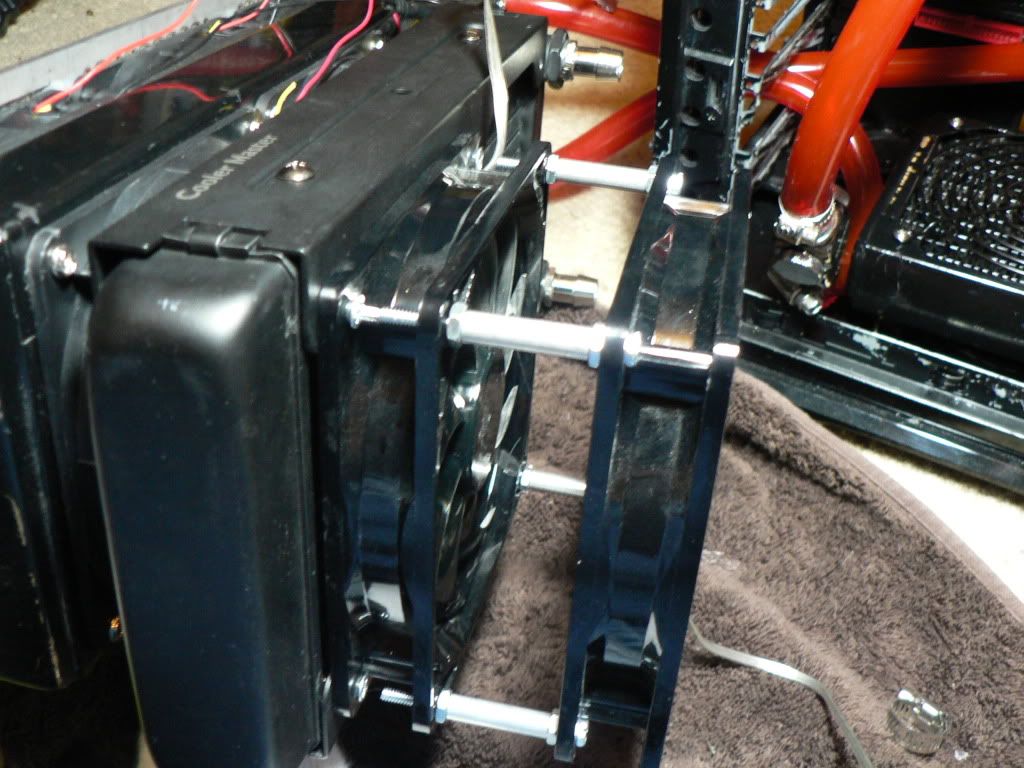

5) Then place the 4 exposed parts of the screws through the fan mounted to your radiator and use a nut on the inside of the fan to secure the two fans together just like in the first method could put the screws though your case and secure with nuts and attach your radiator to the bolted through fan.



There are a number of options that, as long as you use the mounting technique from the first method , should work. I would avoid using incredibly heavy setups with this method seeing how the father back you mount it the more force is placed on the fan and hardware.


Hope this helped! Using the same method to mount the fans in method one you can also stack radiators that generally wouldn't be able to stack, like the swifty 320 and coolermaster 240 I stacked on my rig that are all mounted to a GTX 120.
