What SSD benching tool should we use

Subscribe Search This Thread

« Previous
1
2
Next »

Start a New Thread

post #1 of 13

1/16/10 at 12:20pm

Thread Starter

ACHILEE5
5906x1080

Joined: Apr 2008
Location: Dorset UK
Posts: 9,136
Trader Rating: 5
Select All Posts By This User

I was reading a post and someone said "are there any sites comparing SSD benches"?

And so if one of us was to start a thread for SSD benches "What bench do ya think we should use"?

I'm thinking "ATTO" because it does "Write test"

And maybe "HD Tune Pro" as it does Random Access tests

But would like to here what you guys think

These are from my Crucial 64GB SSDs in Raid0!

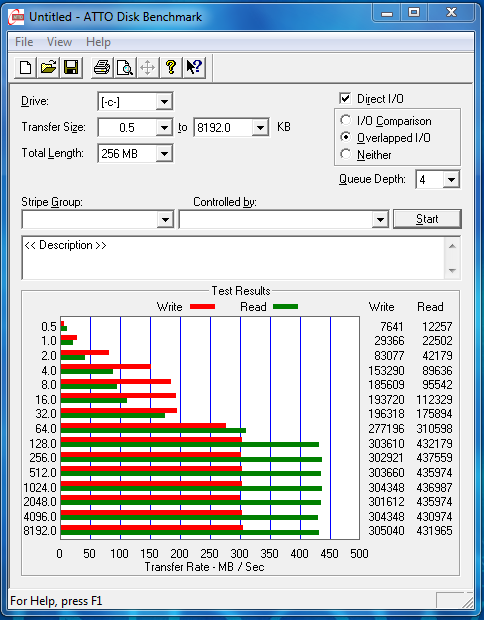

ATTO

HD Tune Pro

CPU	Motherboard	Graphics	RAM
Intel Core i7-2600K 4.6GHz	Asus P8P67 Pro Bios 3207	GTX480 SLI 760/1520/1900	Ripjaws-X 16GB 1600MHz
Hard Drive	Hard Drive	Optical Drive	Cooling
80GB Intel & 128GB 830	2 x WD640 Caviar Black	LG DVD-RW	Noctua NH-D14
OS	Monitor	Keyboard	Power
Windows 7 HP 64bit	Acer 5906x1080 3D	Logitech G15	Corsair TX850W
Case	Mouse	Mouse Pad	Audio
Antec Dark Fleet DF-85	Logitec G700	Razer Goliathus	Sharkoon X-Tatic 5.1 Headset
View all

CPU	Motherboard	Graphics	RAM
Intel® Core™ i5-3210M	Laptop	HD 4000	Corsair Vengeance 8GB
Hard Drive	Optical Drive	OS	Monitor
Samsung 840 250GB	DVD Multi	Windows 8	15.5 inch display (1366 x 768)
Keyboard
LED Back lit
View all

hide details

CPU	Motherboard	Graphics	RAM
Intel Core i7-2600K 4.6GHz	Asus P8P67 Pro Bios 3207	GTX480 SLI 760/1520/1900	Ripjaws-X 16GB 1600MHz
Hard Drive	Hard Drive	Optical Drive	Cooling
80GB Intel & 128GB 830	2 x WD640 Caviar Black	LG DVD-RW	Noctua NH-D14
OS	Monitor	Keyboard	Power
Windows 7 HP 64bit	Acer 5906x1080 3D	Logitech G15	Corsair TX850W
Case	Mouse	Mouse Pad	Audio
Antec Dark Fleet DF-85	Logitec G700	Razer Goliathus	Sharkoon X-Tatic 5.1 Headset
View all

CPU	Motherboard	Graphics	RAM
Intel® Core™ i5-3210M	Laptop	HD 4000	Corsair Vengeance 8GB
Hard Drive	Optical Drive	OS	Monitor
Samsung 840 250GB	DVD Multi	Windows 8	15.5 inch display (1366 x 768)
Keyboard
LED Back lit
View all

hide details

post #2 of 13

1/17/10 at 3:40am

Spartan8
1.3ghz

Joined: Dec 2007
Location: Mississauga, Canada
Posts: 293
Rep: 39 (Unique: 36)
Trader Rating: 2
Select All Posts By This User

ATTO and HD Tune are great hard drive benchmark tools. AS SSD Benchmark and Crystal Disk Marks are nice tools as well.

All four or a combination should give readers a good idea of how each drive performs.
Edited by Spartan8 - 1/17/10 at 12:41pm

CPU	Motherboard	Graphics	RAM
Phenom ll X6 1090T	Asus Crosshair IV	Evga 465 GTX	2 X 2GB Mushkin Redline DDR3 1600
Hard Drive	OS	Monitor	Power
OCZ Vertex 2 - 120GB & WD 640GB AAKS	Windows 7 - 64 Bit	Asus VW246H	Seasonic X750
Case
Cooler Master HAF 932
View all

hide details

CPU	Motherboard	Graphics	RAM
Phenom ll X6 1090T	Asus Crosshair IV	Evga 465 GTX	2 X 2GB Mushkin Redline DDR3 1600
Hard Drive	OS	Monitor	Power
OCZ Vertex 2 - 120GB & WD 640GB AAKS	Windows 7 - 64 Bit	Asus VW246H	Seasonic X750
Case
Cooler Master HAF 932
View all

hide details

post #3 of 13

1/17/10 at 3:50am

the_beast
Stickler for details

Joined: Feb 2009
Location: London, UK
Posts: 5,313
Rep: 542 (Unique: 398)
Folding Team Name: Laundromatic
Select All Posts By This User

The IOPS test (as done by HDTune Pro) is really the only way of differentiating SSDs based on performance - the sequential read speed is not really very helpful in determining the best drives to buy.

Sequential rates are only really useful to check basic setup options for SSDs, and most of the 'usual' benches only serve to confuse people as to which drives really are best.

post #4 of 13

1/17/10 at 12:28pm

iquark
3.0ghz

Joined: Aug 2009
Location: Seattle, WA
Posts: 514
Rep: 79 (Unique: 63)
Trader Rating: 2
Select All Posts By This User

HDTune wasn't designed with SSD levels of performance in mind, its best left to magnetic hard drives.

ATTO will give you a good reading of IOPS, but for the most accurate info you'll want to start using IOmeter. IOmeter will give you very results for just about any kind of operation you want to throw at the drive, and it is dead on accurate when repeated.

For everyday quick comparisons crystal disk mark and HDTune will suffice, but if you want to know exactly how well your drive is running, download IOmeter.

I'd like to see a sort of 'benchmarking suite for SSD' get posted in this forum sometime so that we can all compare our results over the exact same tests!

CPU	Motherboard	Graphics	RAM
Q9550 4.01Ghz 1.26V bios	Giga EP45-UD3R	MSI GTX460 1GB Cyclone (885/4k)	Corsair DOM DDR2-800 @ 944Mhz
Hard Drive	Optical Drive	OS	Monitor
SSDNow 40GBx2 Raid 0, Raptor 74GB Raid 0	"Newegg Special" DVD-RW	Windows 7 Pro x64	ASUS VW266H
Power	Case	Mouse
OCZ StealthXStream 600W	Antec Performance Plus PLUS1080AMG	Logitech G9X
View all

hide details

CPU	Motherboard	Graphics	RAM
Q9550 4.01Ghz 1.26V bios	Giga EP45-UD3R	MSI GTX460 1GB Cyclone (885/4k)	Corsair DOM DDR2-800 @ 944Mhz
Hard Drive	Optical Drive	OS	Monitor
SSDNow 40GBx2 Raid 0, Raptor 74GB Raid 0	"Newegg Special" DVD-RW	Windows 7 Pro x64	ASUS VW266H
Power	Case	Mouse
OCZ StealthXStream 600W	Antec Performance Plus PLUS1080AMG	Logitech G9X
View all

hide details

post #5 of 13

1/17/10 at 8:17pm

Thread Starter

ACHILEE5
5906x1080

Joined: Apr 2008
Location: Dorset UK
Posts: 9,136
Trader Rating: 5
Select All Posts By This User

So how about we rate them just by "Random Read IOPS"
And so my Raid scores 487 IOPS

And I see the "free trial" of HD Tune Pro will do that

http://www.hdtune.com/download.html

CPU	Motherboard	Graphics	RAM
Intel Core i7-2600K 4.6GHz	Asus P8P67 Pro Bios 3207	GTX480 SLI 760/1520/1900	Ripjaws-X 16GB 1600MHz
Hard Drive	Hard Drive	Optical Drive	Cooling
80GB Intel & 128GB 830	2 x WD640 Caviar Black	LG DVD-RW	Noctua NH-D14
OS	Monitor	Keyboard	Power
Windows 7 HP 64bit	Acer 5906x1080 3D	Logitech G15	Corsair TX850W
Case	Mouse	Mouse Pad	Audio
Antec Dark Fleet DF-85	Logitec G700	Razer Goliathus	Sharkoon X-Tatic 5.1 Headset
View all

CPU	Motherboard	Graphics	RAM
Intel® Core™ i5-3210M	Laptop	HD 4000	Corsair Vengeance 8GB
Hard Drive	Optical Drive	OS	Monitor
Samsung 840 250GB	DVD Multi	Windows 8	15.5 inch display (1366 x 768)
Keyboard
LED Back lit
View all

hide details

CPU	Motherboard	Graphics	RAM
Intel Core i7-2600K 4.6GHz	Asus P8P67 Pro Bios 3207	GTX480 SLI 760/1520/1900	Ripjaws-X 16GB 1600MHz
Hard Drive	Hard Drive	Optical Drive	Cooling
80GB Intel & 128GB 830	2 x WD640 Caviar Black	LG DVD-RW	Noctua NH-D14
OS	Monitor	Keyboard	Power
Windows 7 HP 64bit	Acer 5906x1080 3D	Logitech G15	Corsair TX850W
Case	Mouse	Mouse Pad	Audio
Antec Dark Fleet DF-85	Logitec G700	Razer Goliathus	Sharkoon X-Tatic 5.1 Headset
View all

CPU	Motherboard	Graphics	RAM
Intel® Core™ i5-3210M	Laptop	HD 4000	Corsair Vengeance 8GB
Hard Drive	Optical Drive	OS	Monitor
Samsung 840 250GB	DVD Multi	Windows 8	15.5 inch display (1366 x 768)
Keyboard
LED Back lit
View all

hide details

post #6 of 13

1/17/10 at 8:28pm

iquark
3.0ghz

Joined: Aug 2009
Location: Seattle, WA
Posts: 514
Rep: 79 (Unique: 63)
Trader Rating: 2
Select All Posts By This User

Quote:

Originally Posted by ACHILEE5

So how about we rate them just by "Random Read IOPS"
And so my Raid scores 487 IOPS

And I see the "free trial" of HD Tune Pro will do that

http://www.hdtune.com/download.html

I think Atto would be a more appropriate program to use for 'everyday' benching. At least it has a few options on command que depth and length of tests.

CPU	Motherboard	Graphics	RAM
Q9550 4.01Ghz 1.26V bios	Giga EP45-UD3R	MSI GTX460 1GB Cyclone (885/4k)	Corsair DOM DDR2-800 @ 944Mhz
Hard Drive	Optical Drive	OS	Monitor
SSDNow 40GBx2 Raid 0, Raptor 74GB Raid 0	"Newegg Special" DVD-RW	Windows 7 Pro x64	ASUS VW266H
Power	Case	Mouse
OCZ StealthXStream 600W	Antec Performance Plus PLUS1080AMG	Logitech G9X
View all

hide details

CPU	Motherboard	Graphics	RAM
Q9550 4.01Ghz 1.26V bios	Giga EP45-UD3R	MSI GTX460 1GB Cyclone (885/4k)	Corsair DOM DDR2-800 @ 944Mhz
Hard Drive	Optical Drive	OS	Monitor
SSDNow 40GBx2 Raid 0, Raptor 74GB Raid 0	"Newegg Special" DVD-RW	Windows 7 Pro x64	ASUS VW266H
Power	Case	Mouse
OCZ StealthXStream 600W	Antec Performance Plus PLUS1080AMG	Logitech G9X
View all

hide details

post #7 of 13

1/18/10 at 7:40pm

Thread Starter

ACHILEE5
5906x1080

Joined: Apr 2008
Location: Dorset UK
Posts: 9,136
Trader Rating: 5
Select All Posts By This User

I have now read that nearly all these test are not accurate with SSD cos they "Spot Test"
And that Everest was the only one that came close for Bench

And HD Tune Pro was OK ish for Random Access IOPS!
And ATTO, although it does spot test. Was still usable, so it said

IDK

But I bet there are bods out there right now, making SSD bench tools

CPU	Motherboard	Graphics	RAM
Intel Core i7-2600K 4.6GHz	Asus P8P67 Pro Bios 3207	GTX480 SLI 760/1520/1900	Ripjaws-X 16GB 1600MHz
Hard Drive	Hard Drive	Optical Drive	Cooling
80GB Intel & 128GB 830	2 x WD640 Caviar Black	LG DVD-RW	Noctua NH-D14
OS	Monitor	Keyboard	Power
Windows 7 HP 64bit	Acer 5906x1080 3D	Logitech G15	Corsair TX850W
Case	Mouse	Mouse Pad	Audio
Antec Dark Fleet DF-85	Logitec G700	Razer Goliathus	Sharkoon X-Tatic 5.1 Headset
View all

CPU	Motherboard	Graphics	RAM
Intel® Core™ i5-3210M	Laptop	HD 4000	Corsair Vengeance 8GB
Hard Drive	Optical Drive	OS	Monitor
Samsung 840 250GB	DVD Multi	Windows 8	15.5 inch display (1366 x 768)
Keyboard
LED Back lit
View all

hide details

CPU	Motherboard	Graphics	RAM
Intel Core i7-2600K 4.6GHz	Asus P8P67 Pro Bios 3207	GTX480 SLI 760/1520/1900	Ripjaws-X 16GB 1600MHz
Hard Drive	Hard Drive	Optical Drive	Cooling
80GB Intel & 128GB 830	2 x WD640 Caviar Black	LG DVD-RW	Noctua NH-D14
OS	Monitor	Keyboard	Power
Windows 7 HP 64bit	Acer 5906x1080 3D	Logitech G15	Corsair TX850W
Case	Mouse	Mouse Pad	Audio
Antec Dark Fleet DF-85	Logitec G700	Razer Goliathus	Sharkoon X-Tatic 5.1 Headset
View all

CPU	Motherboard	Graphics	RAM
Intel® Core™ i5-3210M	Laptop	HD 4000	Corsair Vengeance 8GB
Hard Drive	Optical Drive	OS	Monitor
Samsung 840 250GB	DVD Multi	Windows 8	15.5 inch display (1366 x 768)
Keyboard
LED Back lit
View all

hide details

post #8 of 13

1/18/10 at 7:45pm

iquark
3.0ghz

Joined: Aug 2009
Location: Seattle, WA
Posts: 514
Rep: 79 (Unique: 63)
Trader Rating: 2
Select All Posts By This User

Quote:

Originally Posted by ACHILEE5

I have now read that nearly all these test are not accurate with SSD cos they "Spot Test"
And that Everest was the only one that came close for Bench

And HD Tune Pro was OK ish for Random Access IOPS!
And ATTO, although it does spot test. Was still usable, so it said

IDK

But I bet there are bods out there right now, making SSD bench tools

That's why I said to use IOmeter if you want accurate results!

Here's a good page form Tony at OCZ explaining how to setup IOmeter for testing. It also includes some custom pre-setup tests which you can run.

EDIT: Oh and I wouldn't use the 10GB size that he uses for his tests, repeated use of those can cause a decent amount of wear on the NAND.

Really, 1 GB is pretty close to being as accurate as a 10GB test for SSD performance. About 2 million sectors should be enough.
Edited by iquark - 1/18/10 at 7:49pm

CPU	Motherboard	Graphics	RAM
Q9550 4.01Ghz 1.26V bios	Giga EP45-UD3R	MSI GTX460 1GB Cyclone (885/4k)	Corsair DOM DDR2-800 @ 944Mhz
Hard Drive	Optical Drive	OS	Monitor
SSDNow 40GBx2 Raid 0, Raptor 74GB Raid 0	"Newegg Special" DVD-RW	Windows 7 Pro x64	ASUS VW266H
Power	Case	Mouse
OCZ StealthXStream 600W	Antec Performance Plus PLUS1080AMG	Logitech G9X
View all

hide details

CPU	Motherboard	Graphics	RAM
Q9550 4.01Ghz 1.26V bios	Giga EP45-UD3R	MSI GTX460 1GB Cyclone (885/4k)	Corsair DOM DDR2-800 @ 944Mhz
Hard Drive	Optical Drive	OS	Monitor
SSDNow 40GBx2 Raid 0, Raptor 74GB Raid 0	"Newegg Special" DVD-RW	Windows 7 Pro x64	ASUS VW266H
Power	Case	Mouse
OCZ StealthXStream 600W	Antec Performance Plus PLUS1080AMG	Logitech G9X
View all

hide details

post #9 of 13

1/19/10 at 9:23am

Thread Starter

ACHILEE5
5906x1080

Joined: Apr 2008
Location: Dorset UK
Posts: 9,136
Trader Rating: 5
Select All Posts By This User

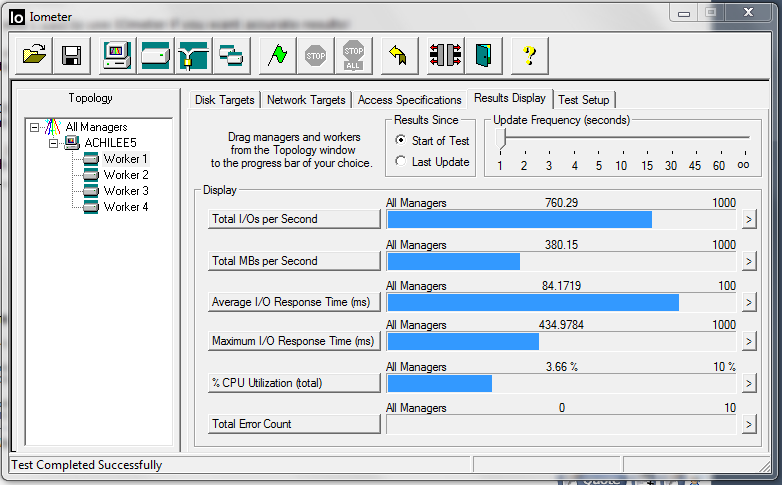

Well I had a go with Iometer, and it's not the easiest one to use by a long shot. But this is what I got

Oh, I did the 10GB test. Mainly cos I didn't see where to change it

CPU	Motherboard	Graphics	RAM
Intel Core i7-2600K 4.6GHz	Asus P8P67 Pro Bios 3207	GTX480 SLI 760/1520/1900	Ripjaws-X 16GB 1600MHz
Hard Drive	Hard Drive	Optical Drive	Cooling
80GB Intel & 128GB 830	2 x WD640 Caviar Black	LG DVD-RW	Noctua NH-D14
OS	Monitor	Keyboard	Power
Windows 7 HP 64bit	Acer 5906x1080 3D	Logitech G15	Corsair TX850W
Case	Mouse	Mouse Pad	Audio
Antec Dark Fleet DF-85	Logitec G700	Razer Goliathus	Sharkoon X-Tatic 5.1 Headset
View all

CPU	Motherboard	Graphics	RAM
Intel® Core™ i5-3210M	Laptop	HD 4000	Corsair Vengeance 8GB
Hard Drive	Optical Drive	OS	Monitor
Samsung 840 250GB	DVD Multi	Windows 8	15.5 inch display (1366 x 768)
Keyboard
LED Back lit
View all

hide details

CPU	Motherboard	Graphics	RAM
Intel Core i7-2600K 4.6GHz	Asus P8P67 Pro Bios 3207	GTX480 SLI 760/1520/1900	Ripjaws-X 16GB 1600MHz
Hard Drive	Hard Drive	Optical Drive	Cooling
80GB Intel & 128GB 830	2 x WD640 Caviar Black	LG DVD-RW	Noctua NH-D14
OS	Monitor	Keyboard	Power
Windows 7 HP 64bit	Acer 5906x1080 3D	Logitech G15	Corsair TX850W
Case	Mouse	Mouse Pad	Audio
Antec Dark Fleet DF-85	Logitec G700	Razer Goliathus	Sharkoon X-Tatic 5.1 Headset
View all

CPU	Motherboard	Graphics	RAM
Intel® Core™ i5-3210M	Laptop	HD 4000	Corsair Vengeance 8GB
Hard Drive	Optical Drive	OS	Monitor
Samsung 840 250GB	DVD Multi	Windows 8	15.5 inch display (1366 x 768)
Keyboard
LED Back lit
View all

hide details

post #10 of 13

1/19/10 at 9:37am

iquark
3.0ghz

Joined: Aug 2009
Location: Seattle, WA
Posts: 514
Rep: 79 (Unique: 63)
Trader Rating: 2
Select All Posts By This User

Must be a 512k sequential read run?

CPU	Motherboard	Graphics	RAM
Q9550 4.01Ghz 1.26V bios	Giga EP45-UD3R	MSI GTX460 1GB Cyclone (885/4k)	Corsair DOM DDR2-800 @ 944Mhz
Hard Drive	Optical Drive	OS	Monitor
SSDNow 40GBx2 Raid 0, Raptor 74GB Raid 0	"Newegg Special" DVD-RW	Windows 7 Pro x64	ASUS VW266H
Power	Case	Mouse
OCZ StealthXStream 600W	Antec Performance Plus PLUS1080AMG	Logitech G9X
View all

hide details

CPU	Motherboard	Graphics	RAM
Q9550 4.01Ghz 1.26V bios	Giga EP45-UD3R	MSI GTX460 1GB Cyclone (885/4k)	Corsair DOM DDR2-800 @ 944Mhz
Hard Drive	Optical Drive	OS	Monitor
SSDNow 40GBx2 Raid 0, Raptor 74GB Raid 0	"Newegg Special" DVD-RW	Windows 7 Pro x64	ASUS VW266H
Power	Case	Mouse
OCZ StealthXStream 600W	Antec Performance Plus PLUS1080AMG	Logitech G9X
View all

hide details

« Previous
1
2
Next »

Start a New Thread

Subscribe Search This Thread

New Posts All Forums:Forum Nav:

Return Home

Back to Forum: SSD

Forums
Components
Hard Drives & Storage
SSD
What SSD benching tool should we use

I honestly love this cooler, but I think I'm gonna move on to another one soon, it just looks... A bit to bland compared to other flaming red (literally) coolers on the market.

Metro 2033 is one of the greatest FPS games ever made. Although not usually recognized as such, due to the horrible state the gaming industry is in, it succeeds largely on its storytelling,...

This is an update of the original Fractal Design Arc Midi. The solid left panel has been replaced by a panel with a plexiglass window and the top USB ports are now USB-3.0. Let me state at the...

I've used this headset extensively for MAG on PS3. The sounds were wonderful, the mic was crisp, and the ability to adjust peoples voice volume is absolutely invaluable. For $100 ( or less ) this...

The Pros The reason this card is one of the better non-Tahiti 7870s is because of Gigabyte's custom PCB. Gigabyte took the 7870 and replaced it's memory chips with Hynix memory so they perform a...

Recent Reviews

What SSD benching tool should we use

Recent Discussions

Recent Reviews

New Articles

Featured Sponsors

Recent Reviews

What SSD benching tool should we use

Recent Discussions

Recent Reviews

New Articles
