post #272 of 2207
Thread Starter
IM BACK TO WORK! kinda...

i am actually at work but i had 45 mins before a delivery truck i was waiting for showed up so i took that time and made a prototype of part of my reservoir

here are some pictures


seance i last did any real picture worthy work i got my dog shaved (she doesn't deal with heat too well so we just shave her in the summer)

hehe.... she looks ridiculous but i kinda like her when shes not messing up my paint

and i got my tubing the other day as you know and i cut off a part to play with here at work.

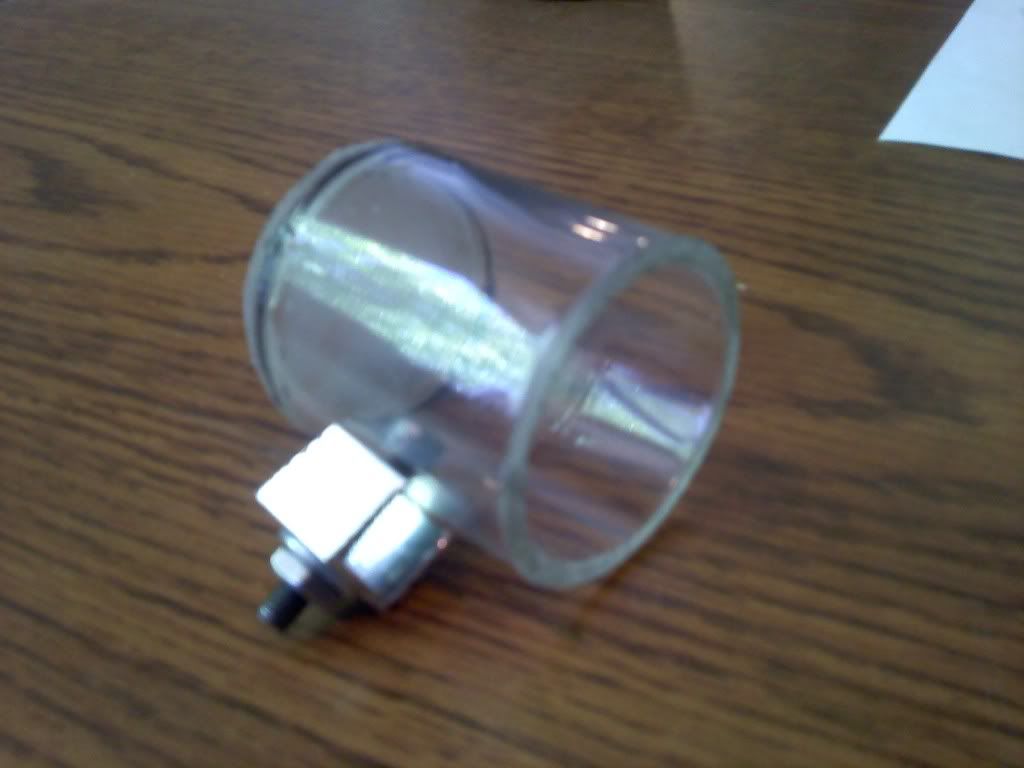

this is what i came up with.

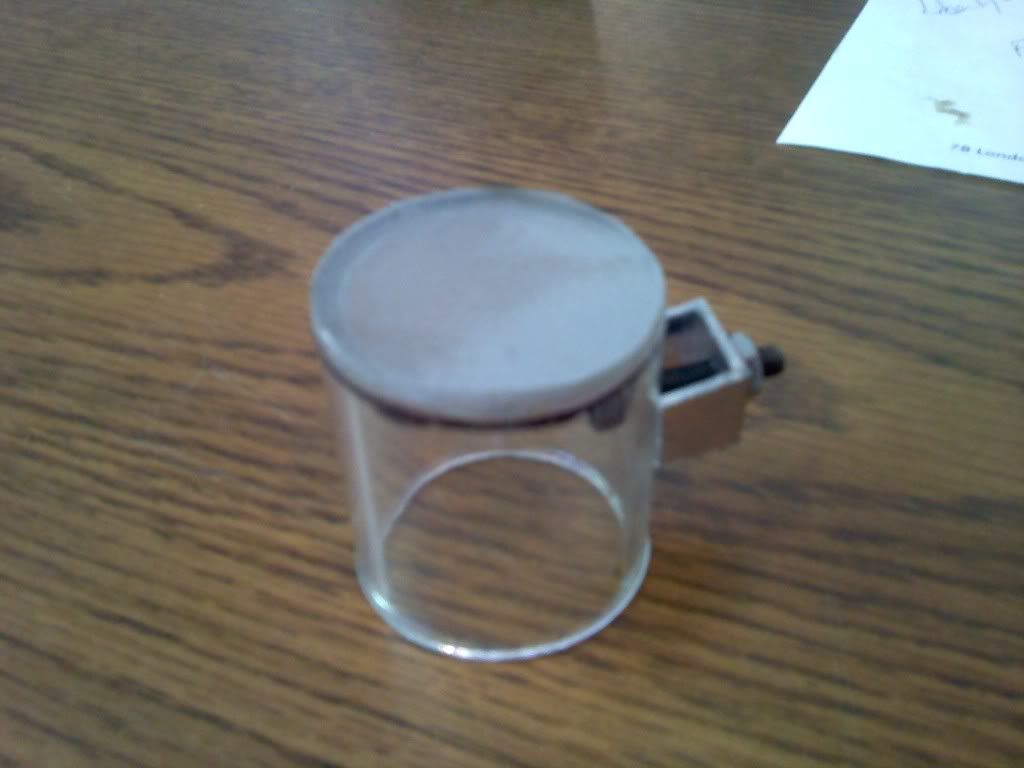

i made the top out of a chunk of scrap lexan we were replacing in a pulp grinder for a paper mill we are rebuilding machines for. i just took a disk sander and a small square i broke off the scrap and made it fit. then glued it on with some 5 minuet water proof epoxy, it not too pretty but its just a prototype


and to attach the rez to the case i drilled a hole into the side of the acrylic tube (DEFIANTLY NOT LEXAN ) and threaded it for a 4/40 alen screw and i cut a piece of aluminum U channel and drilled a slightly larger hole in that so i didn't need to thread it. then a washer and nut on the end to hold it all together.

now i need to wait a couple days for a box im expecting to come in with some other stuff to get any farther on this.

sorry for the crappy pictures. i ended up using my phone to take them.

hope you liked my minny update!

questions, comments, and suggestions welcomed as always. i sorta want some input on the project..

-Striker36
Edited by Striker36 - 5/17/10 at 9:33am
