post #452 of 2207
Thread Starter
we got some new tool sets at work and i got a tap that is the correct size for the compression fittings that Bri sent me.

that being said im making another prototype reservoir to test a couple ideas i have floating arround.


its an easy day at work and i remembered to bring my camera


PICTURE TIME!
Edited by Striker36 - 6/22/10 at 2:20pm
Reactor
(13 items)


CPUMotherboardGraphicsRAM
i5-750 @4.2ghz @1.3V-Core EVGA P55-FTW-200 EVGA GTX 470 (x2 SLI) @800/1600 @.925mV 1674 mem 4 (2x2) gig Corsair Dominators
Hard DriveOSPowerCase
WD 1tb Black (SSD comming soon) Win 7 Home Premium 64 bit Corsair AX 850 CM Storm Scout
  hide details
Reply
Reactor
(13 items)


CPUMotherboardGraphicsRAM
i5-750 @4.2ghz @1.3V-Core EVGA P55-FTW-200 EVGA GTX 470 (x2 SLI) @800/1600 @.925mV 1674 mem 4 (2x2) gig Corsair Dominators
Hard DriveOSPowerCase
WD 1tb Black (SSD comming soon) Win 7 Home Premium 64 bit Corsair AX 850 CM Storm Scout
  hide details
Reply
post #453 of 2207
Thread Starter
SO i decided to make it a new post.

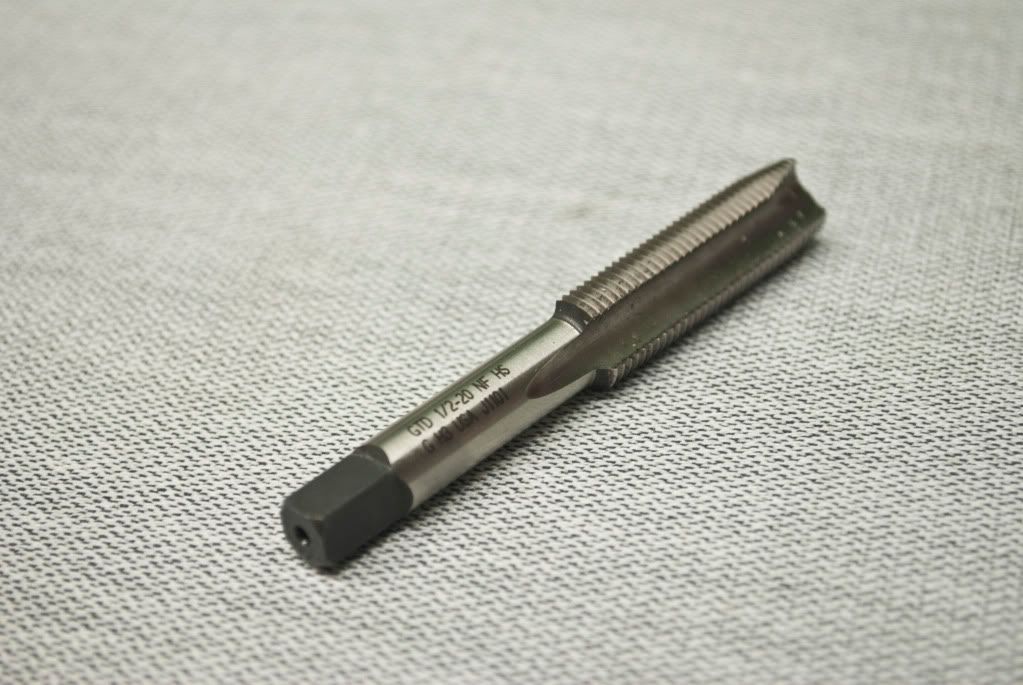

like i said before. we got a couple new tool kits in the mail today and one of them happened to be a Tap and Die set. after looking through it (who doesn't tare open new stuff right away?) i found THIS!

it happens to be the perfect tap for my compression fittings!

thanks again BriSleep!

i then decided to prototype my reservoir today seance i had some spare time. (working on this is more fun than watching paint dry which i would have been doing )

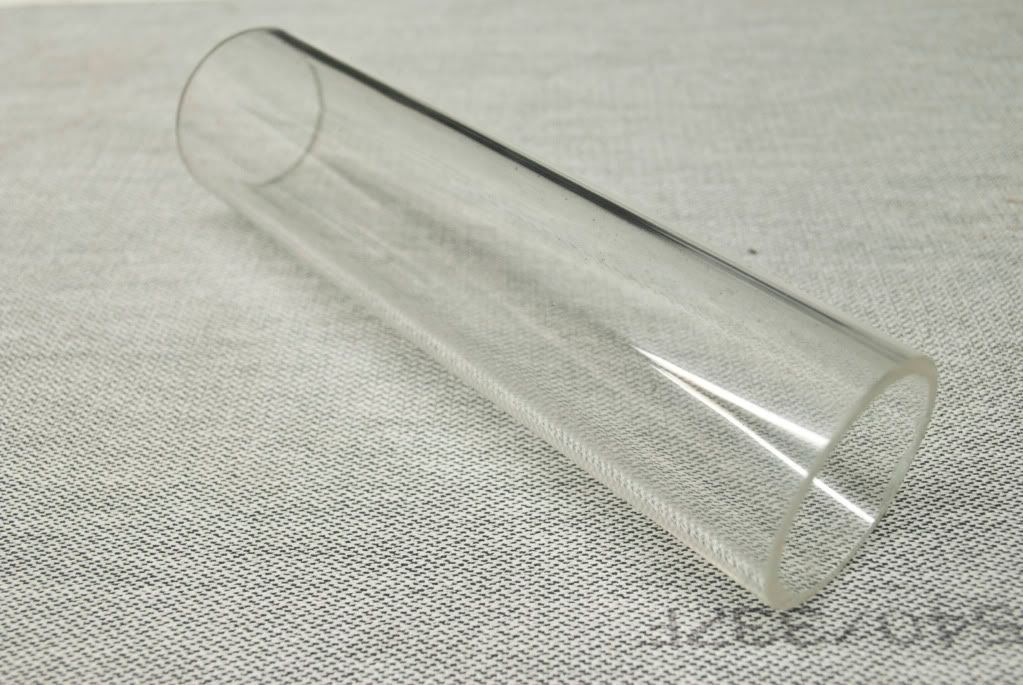

so i cut a length of my acrylic tube

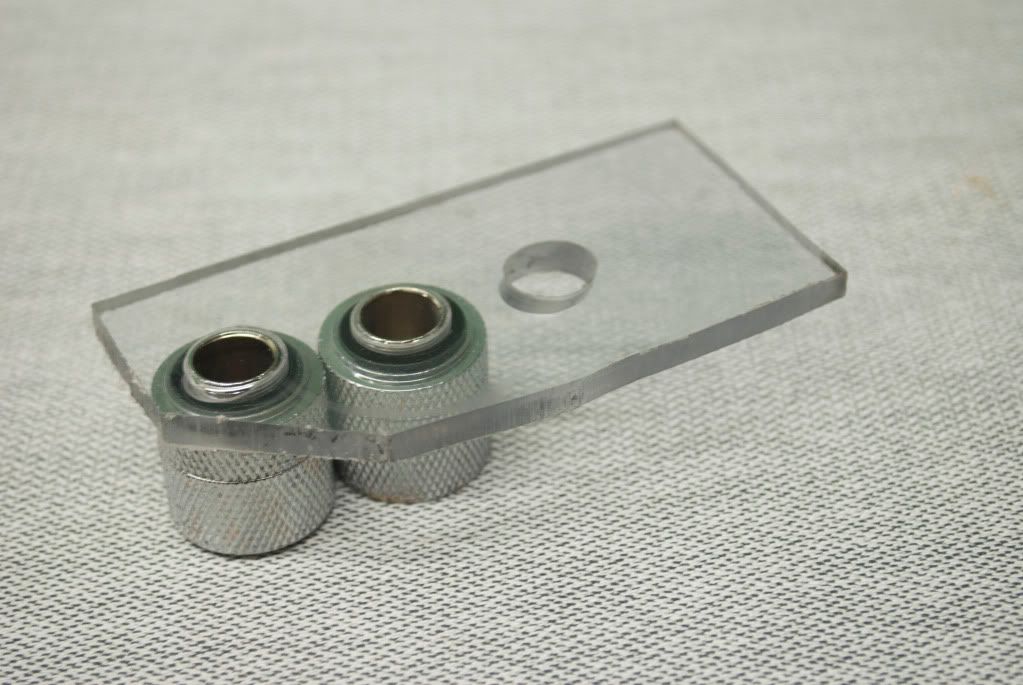

then i decided i wanted two fitting on one end or the the other so it was time to see what kind of spacing i needed to see if this was even possible

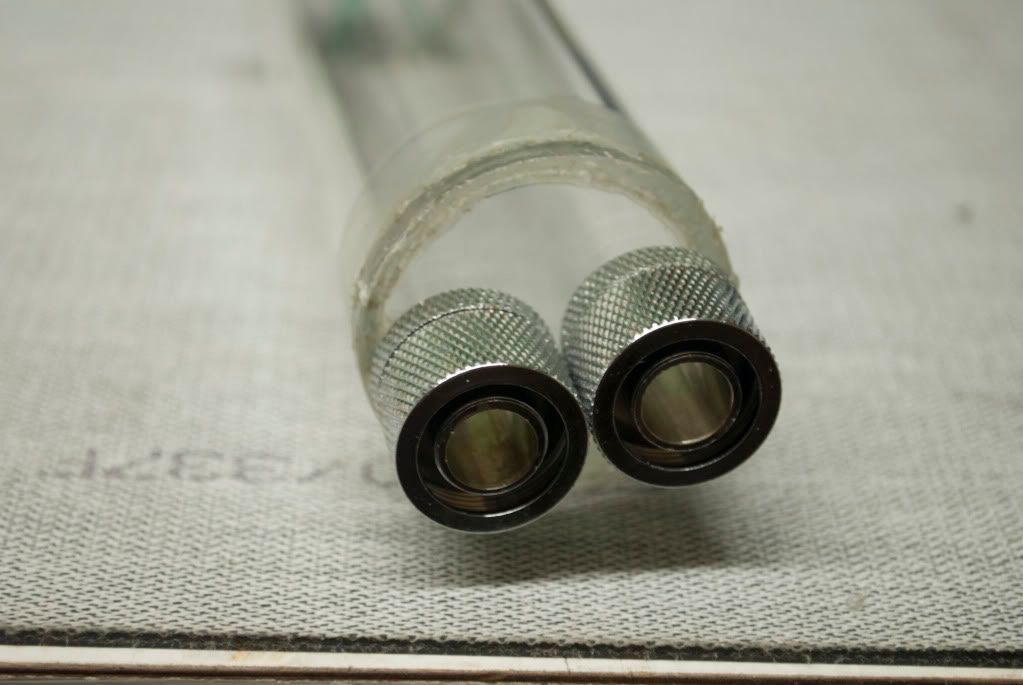

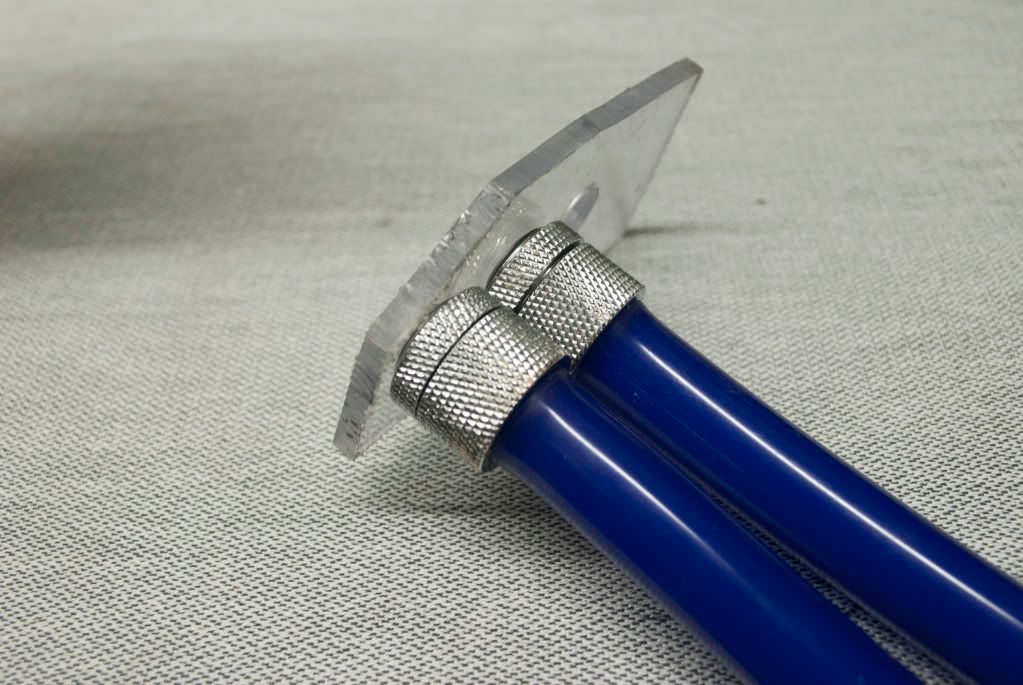

then i wanted to see how difficult it would be to get 2 tubes on the fittings that close together


it was difficult but it IS possible


then i made some slugs out of a piece of Lexan we had laying around for the past couple weeks. i used a hack saw and a sander for this. but i didnt think to take any pictures of that process... sorry!

then could have come out better but overall im happy with it seance its just a test rig

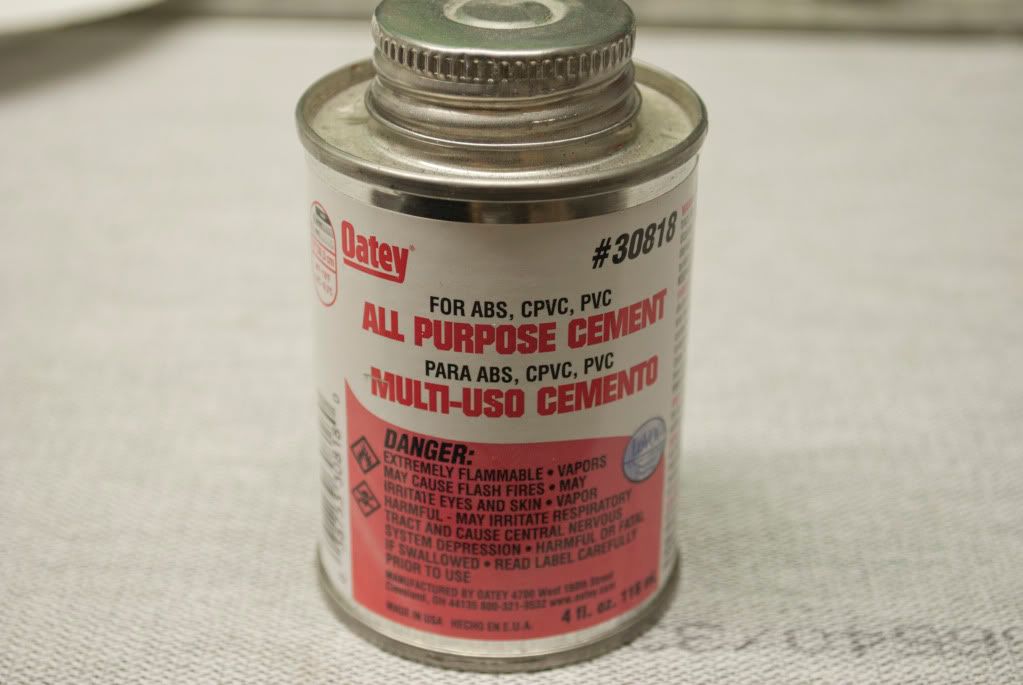

before i used this stuff to glue the ends onto the tube

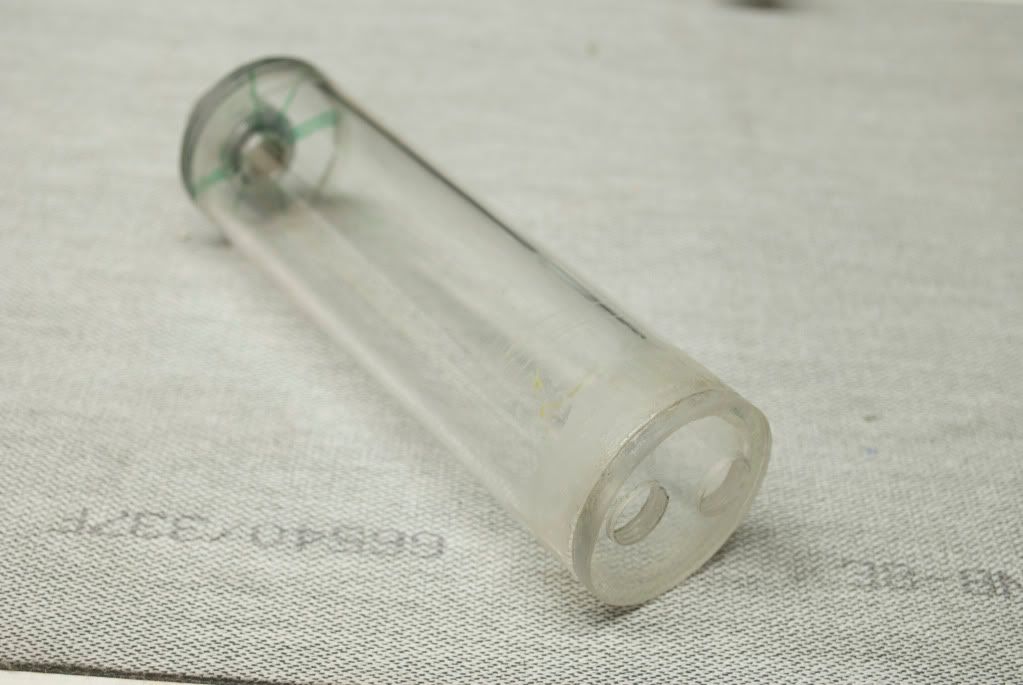

i drilled 2 holes in one slug and one in the other then taped them for fittings and finally glued them on the ends


as you can see they aren't quite centered but that's not a HUGE deal at this stage so i don't care.

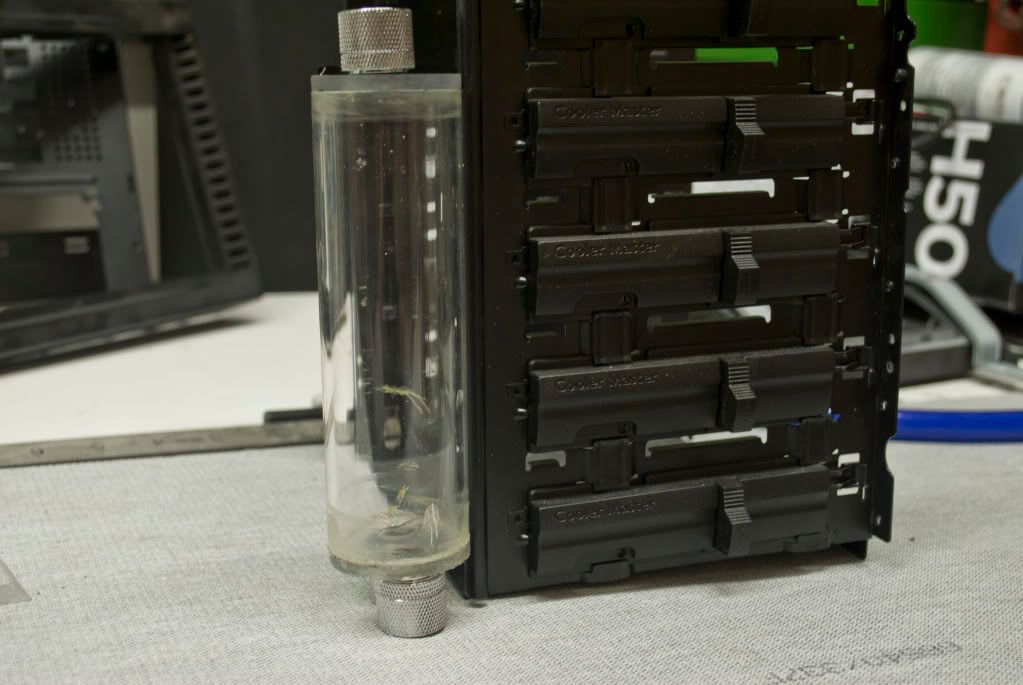

and because i liked Charles's placement so much in his scout i decided to see how my res would fit in the same location.



overall im rather happy with how it turned out and i think the size is just about perfect as well.

i think im going to change a couple things before the final is made but that's what prototyping is for!


questions, comments, and suggestions are ALWAYS welcomed

-Striker36

P.S. what do you guys think of the photography? i tried playing with some settings to get the best shots i could with my limited time frame... AND i used a tripod!
