so i took my chase with me to work today in the hopes that i would have some time to work on it before i went home and guess what! i did i worked off and on all day! so here is what i got done.

sorry in advance... most of the pictures from work are kinda junk... i forgot my camera and needed to use a really junky one we have for insurance stuff.

i started by marking where i wanted to cut with a grease pencil and a square


time to get my tools ready. and as always safety first! but yea i just used an angle grinder with a cut off disk on it.


did a quick test cut to see how it would work with the disk and speed of the rig (the disk was a bit more aggressive than i would have liked but my boss wouldn't let me use the good ones

Walter approves

REALLY strait cuts and not too messy for a plunge cut with an angle grinder


got the 4 long cuts done first just so i wouldn't mess up the steel sheet that the top is formed out of.

then i started the angled cuts (if i could do it again i would have given my self some more room around the fan screw holes from the beginning. it would have made things look allot nicer and more finished, but more on that in a second)

all cut out.

as you can see i cut a little too deep and hit the spacer on the grinder on the paint and you can see what i was talking about a bit better about the giving my self more room

the front is marked out and waiting

i gave my self a little more room (but still not enough....)

crappy picture but Walter thinks these cuts are good, a bit messy as a result of the disk falling apart from getting passed around the shop all day

i cut just a bit too far on a couple of them... but the lines are strait


we are building another media blasting booth and we got the hardware for it today and i got a chuckle out of the company that we got it from


this was what the dog and i showed up to this morning and our office manager looked confused (thats part of the frame of the new bead-blasting booth that the boss man built over the weekend)


BACK ON TOPIC!

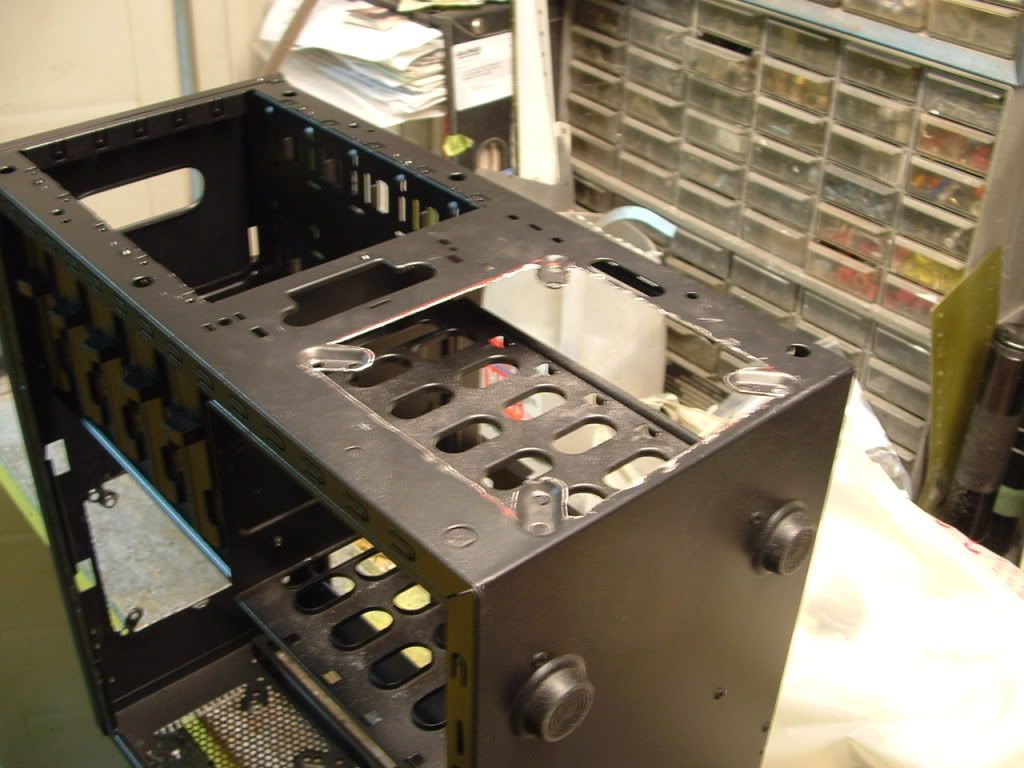

back home and you can see what i was talking about for the jagged edges


cleaning up with my trusty round file

front and top all cleaned up



this has made me wish i had some hole punch out tools like Bill Owen used on his Overkill project (you should check it out if you haven't already its REALLY pretty and makes my work look like a monkey with a hack saw)

a couple more of the finished (for now) chase that i took with my sisters D-300

the front vent

this is the one i messed up on the worst... good thing it will be behind a mesh screen

that's all i have for now but i might have another minny update before tomorrow morning even if its just some high quality pictures
