post #62 of 96
i'll take that as a yes
post #63 of 96
Thread Starter
I was up at 3 am and it took a while to get home like 3 hrs then all the testing. Figured the pic was the quickest way to reply until I could sum up well more like a sub total lol.

Yes it is indeed pulling the cores down sub ambient under 100% load. I haven't tried to lower the vcore yet. Running 4.2 GHZ prime stable at 1v would be interesting. Hyper Threading ON yielded an average core temp of 25.5c. This run (HT OFF) yielded 19c or less depending on which software you want to look at. In the end it's 6c lower hottest core or average of the cores which is why I said the average is of more importance to me. That one core can spike 2c for 2 seconds in a 30 min run. So depending on which system you want to use it is at least 4c under ambient.

I am happy with the fact that the TEC's can run off a single 600w Mean Well @23v. Wasn't positive it would work but it does and does so well. This allows me to continue easily onto the next part where I make the chiller and try that which can now be run off of the newly spare Mean Well. The plates are flat but fortunately I have 2 dead TEC's to test mount with. So the second set of CT TEC's will be used in the chiller.
Edited by Elloquin - 6/5/10 at 1:26pm

CPUMotherboardGraphicsRAM
4930k EVGA X79 Dark EVGA GTX 980 Hydrocopper GSKILL
Hard DriveHard DriveOptical DriveCooling
6 x 300 GB Western Digital Velociraptors Raid 0 Western Digital Velociratpr 10k LG Custom Water Cooled
OSMonitorKeyboardPower
Windows 7 Ultimate 64 AOC - 27" Widescreen Flat-Panel IPS Razer  EVGA 1300w G2
CaseMouseAudio
Danger Den Torture Rack Razer Creative Sound Blaster X-FI Titanium HD
  hide details
Reply

CPUMotherboardGraphicsRAM
4930k EVGA X79 Dark EVGA GTX 980 Hydrocopper GSKILL
Hard DriveHard DriveOptical DriveCooling
6 x 300 GB Western Digital Velociraptors Raid 0 Western Digital Velociratpr 10k LG Custom Water Cooled
OSMonitorKeyboardPower
Windows 7 Ultimate 64 AOC - 27" Widescreen Flat-Panel IPS Razer  EVGA 1300w G2
CaseMouseAudio
Danger Den Torture Rack Razer Creative Sound Blaster X-FI Titanium HD
  hide details
Reply
post #64 of 96
Thread Starter
So I really need to get the AMD rig up and running to replace the rig in my sig as my 24/7 rig well and it kills me to see it just sit there. I am going to have to get it it's own dedicated cooling. SO the 2 pumps I mentioned will be used for that. I will be using 2 of these instead to pump the chilled water from the cold side:
Swiftech MCP600's since I have them layin about.
Technical specifications
Nominal voltage
12 V DC
Nominal power
9 W
Motor type Brushless, microprocessor controlled
Maximum head
3.2m 10.5 ft
Maximum discharge
700 L/HR - 185 GPH
Rotational speed
3000 RPM
Connection size
½" barbs
Electrical connector
Molex 4 pin
Weight
1.4 Lb (650 gr)
Motor casing material Aluminum
Insulation
E Class
Our noise measurement (non lab environment) 31 ~ 34 dbA in a quiet room @ 1', after 48 hrs of operations

CPUMotherboardGraphicsRAM
4930k EVGA X79 Dark EVGA GTX 980 Hydrocopper GSKILL
Hard DriveHard DriveOptical DriveCooling
6 x 300 GB Western Digital Velociraptors Raid 0 Western Digital Velociratpr 10k LG Custom Water Cooled
OSMonitorKeyboardPower
Windows 7 Ultimate 64 AOC - 27" Widescreen Flat-Panel IPS Razer  EVGA 1300w G2
CaseMouseAudio
Danger Den Torture Rack Razer Creative Sound Blaster X-FI Titanium HD
  hide details
Reply

CPUMotherboardGraphicsRAM
4930k EVGA X79 Dark EVGA GTX 980 Hydrocopper GSKILL
Hard DriveHard DriveOptical DriveCooling
6 x 300 GB Western Digital Velociraptors Raid 0 Western Digital Velociratpr 10k LG Custom Water Cooled
OSMonitorKeyboardPower
Windows 7 Ultimate 64 AOC - 27" Widescreen Flat-Panel IPS Razer  EVGA 1300w G2
CaseMouseAudio
Danger Den Torture Rack Razer Creative Sound Blaster X-FI Titanium HD
  hide details
Reply
post #65 of 96
Thread Starter
Quote:
Originally Posted by Krow View Post
he put in some new TECs instead of the ones Ultra used which were something (can't think of the name) and he's using ones from Heibi iirc. Mind if I ask what the best way to apply the TIM? Your pic of it woulda made me think that that was the right way to do it. Does the IHS need to be completely covered.
As I promised Krow your pics will be up tonight when I get home. Battery in the camera went dead yesterday. But to answer your question yes it should make a fairly even layer across the entire IHS/bottom of the block. Like I said I needed to remount anyway so I can reapply the torque to the screws if needed. I may just pull it apart and get the TEC's perfectly centered and/or swap the second set in there for testing. *Shrugs* we'll see how motivated I feel.

*Note* Lapping the CPU in this application would most likely show a slight decrease in temps. Anywhere from 3 to 6c maybe more depends on your lapping skills.

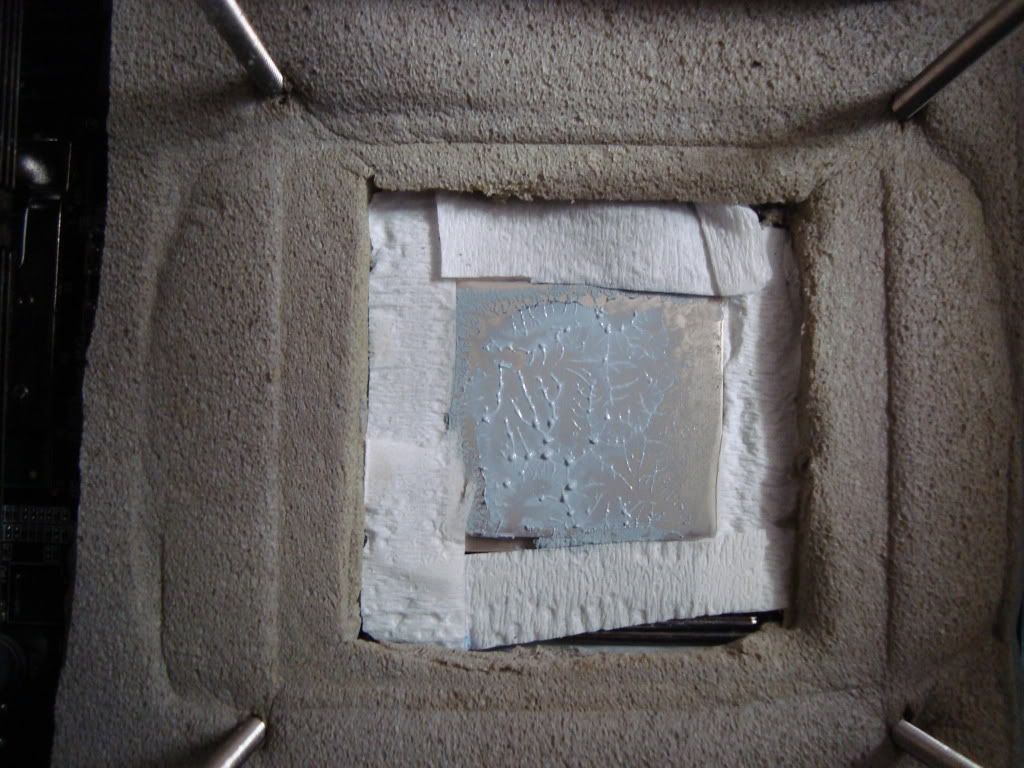

PICS:
