Post Your Server!!! - Page 6

post #51 of 4205
OOOO

AMD X4 630
MSI 785G
8GB DDR3 1600
1x250GB
1x750GB
Server 2008 R2

And I suppose pics to come when I Get home

Full SCCM 2007 setup.
Full Application virtualization setup.




Edited by rpm666 - 5/19/10 at 10:42am
Wall-E
(16 items)


CPUMotherboardGraphicsGraphics
i7 2600K GA-Z68X-UD3H-B3 6990 6990
RAMHard DriveHard DriveHard Drive
16GB Kingston Hyper-X DDR3-1600 PNY SSD OS [RAID0][2x] 512GB WD 600GB Raptor 10K WD Black 1TB
Optical DriveOSMonitorPower
Samsung DVD-RAM Windows 8.1 Enterprise 28" Hanns-G BFG 1200W
Case
Custom Wallhanger - see sig
  hide details
Reply
Wall-E
(16 items)


CPUMotherboardGraphicsGraphics
i7 2600K GA-Z68X-UD3H-B3 6990 6990
RAMHard DriveHard DriveHard Drive
16GB Kingston Hyper-X DDR3-1600 PNY SSD OS [RAID0][2x] 512GB WD 600GB Raptor 10K WD Black 1TB
Optical DriveOSMonitorPower
Samsung DVD-RAM Windows 8.1 Enterprise 28" Hanns-G BFG 1200W
Case
Custom Wallhanger - see sig
  hide details
Reply
post #52 of 4205

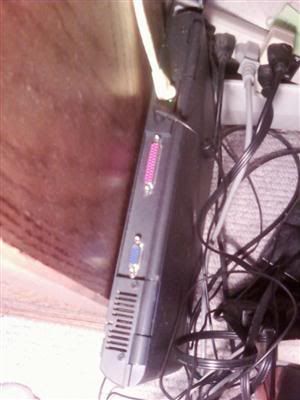

I converted an old Gateway laptop into my server... didn't cost me anything, low power usage, compact form factor, built-in uninterruptible power supply (the battery), and it has a built-in screen for when I need physical access to it. Thus it's perfect for a small server.


(Click for full. Please pardon the low quality of the photo.)

Specs:
OS: Windows Server 2003
CPU: Intel Pentium M @ 1.6 GHz
RAM: 512 MB
HDD: 40GB

I access it via RDP (Remote Desktop) most of the time, and I've even forwarded it through the router so I can access it outside the house.

My primary uses for it are:

File server, obviously for storing files on the network. I set it up with user-level access control, so every user in the house can access only their files; some folders are readable/writable by all users, while others are read-only, and still others are completely inaccessible to all but the authorized users.

Download and upload server. Instead of leaving my sig rig on all night, I delegate the downloads and uploads of large files to the server (i.e. downloading a Linux image, uploading a YouTube video, or uploading my off-site backup).

Demo server via RDP. I haven't made serious use of this yet, but let's say I design a website for a client and I want them to preview it while minimizing the chance of them stealing the design without paying. I will temporarily create a restricted account for them on the server, and will watch them via Windows Server 2003's "Remote Control" feature. This also works for giving demos of any software I write.

Mini web/HTTP server. No, I don't host my blog on it, but I do have an intranet site for the house as well as an internet-accessible site where I post files I want to send to people. Since Pidgin (my IM client) regularly fails to upload a file I'm sharing with a friend, I just put it on the server and give them a link to it.

Folding rig? I thought of making this into a folding rig, since it's basically on 24/7, but I don't know how practical it would be. A modest GPU can fold considerably better than this machine. What are your thoughts on this?

I would have set up a print server, but since we have an all-in-one printer/scanner/copier, this would not work. I also thought about setting up a domain controller, but decided against it because it would likely drive my family crazy.
The Beast
(12 items)


CPUCPUMotherboardGraphics
Xeon x5670 Xeon X5670 Supermicro X8DT3-LN4F NVIDIA Quadro FX 580
RAMHard DriveMonitorKeyboard
96GB DDR3 RDIMM Corsair Force GT HP LP2480zx Corsair K95 RGB with Brown switches
PowerCaseMouseAudio
Corsair RM1000i Corsair Obsidian 750D Logitech MX1100 Creative X-Fi Platinum
  hide details
Reply
The Beast
(12 items)


CPUCPUMotherboardGraphics
Xeon x5670 Xeon X5670 Supermicro X8DT3-LN4F NVIDIA Quadro FX 580
RAMHard DriveMonitorKeyboard
96GB DDR3 RDIMM Corsair Force GT HP LP2480zx Corsair K95 RGB with Brown switches
PowerCaseMouseAudio
Corsair RM1000i Corsair Obsidian 750D Logitech MX1100 Creative X-Fi Platinum
  hide details
Reply
post #53 of 4205
Thread Starter
@nookkin the laptop server seems like a good idea, however, you won't be able to store much data internally...
post #54 of 4205
Yeah, 40GB isn't much, but I can always a) upgrade the internal drive to something bigger or b) add a USB-powered external hard drive.

Of course, a laptop isn't the best idea for a serious server, simply because it was never designed to be under so much stress. That's why you'd need to buy server-grade SCSI/SAS drives, ECC/buffered RAM, etc. if you wanted something to run an office building's Active Directory, for example.
The Beast
(12 items)


CPUCPUMotherboardGraphics
Xeon x5670 Xeon X5670 Supermicro X8DT3-LN4F NVIDIA Quadro FX 580
RAMHard DriveMonitorKeyboard
96GB DDR3 RDIMM Corsair Force GT HP LP2480zx Corsair K95 RGB with Brown switches
PowerCaseMouseAudio
Corsair RM1000i Corsair Obsidian 750D Logitech MX1100 Creative X-Fi Platinum
  hide details
Reply
The Beast
(12 items)


CPUCPUMotherboardGraphics
Xeon x5670 Xeon X5670 Supermicro X8DT3-LN4F NVIDIA Quadro FX 580
RAMHard DriveMonitorKeyboard
96GB DDR3 RDIMM Corsair Force GT HP LP2480zx Corsair K95 RGB with Brown switches
PowerCaseMouseAudio
Corsair RM1000i Corsair Obsidian 750D Logitech MX1100 Creative X-Fi Platinum
  hide details
Reply
post #55 of 4205
Thread Starter
I mean it is a good idea for low stress, home use.
post #56 of 4205

Pics









(Description)
It's just a silly little media server I made. Was fiddling around with it, got bored and decided that I would enjoy getting to stream my music everywhere. Used LAMP for it, seemed pretty easy. I was following a tutorial online, and some of the commands were broken/outdated or he was missing info. So I created my own for other people to use (finding that guide took about two days worth of searching to find it).
Right now it's out of commission... Didn't feel like updating the DNS address so now it's gone for a while. The backlight is busted so I need to hook it up to an external monitor to see what I'm doing as well. Don't feel like sinking the cash into it to make it work nice, as I got it for free because of the backlight not working. Just for funsies and so I can get my music wherever
Going to try to use a Server Edition later on to make it much better... The GUI just rapes it.
Also want to keep it in my basement connected to my hardline... But I don't want to have to go all the way downstairs with a monitor to refresh the damn thing. Oh well, not everything can be amazingly easy.

OS: Ubuntu Linux 9.04 Desktop Edition. Looking to retry with the Server Edition though.
Case: Just a laptop case
CPU: It's a mobile CPU... Dual Core... Thinking it's about 1.6GHz?
Motherboard: Stock Dell board.
Cooling: Stock fans.
Memory: About 1 gig if I remember correctly... Can't check right now though.
PSU:Umm...
HDD: 30GB when unformatted. About 25 gigs left after the OS. Just enough for my music!
Server maker: Dell

(What you use it for Ex: Print server, backups, file server, etc.)
Media server.
( If you have temps/ loudness / etc. thay should be posted HERE)
Very quiet. Although it does get quite hot.
(do you have any additional software that you use?)
Just Linux/Apache/MySQL/Python, as well as DynDNS for internet access. I use another program to get it going, but I forget what it's called



Sandy Goodness
(17 items)

Sandy Mininess
(14 items)

Simply the best
(13 items)

CPUMotherboardGraphicsRAM
Intel i5 2500k @ 3.7GHz Gigabyte GA-Z68XP-UD4 EVGA GeForce GTX 760 2GB G.SKILL Ripjaws 16GB 4x4GB 2133MHz
Hard DriveHard DriveHard DriveCooling
60GB OCZ Vertex 3 60GB OCZ Vertex 3 2x 1TB Western Digital Caviar Black (RAID 0) XSPC Rasa RX360 (CPU)
OSOSMonitorKeyboard
Windows 8 x64 Professional ArchLinux x64 Dell UltraSharp U2312HM Das S Professional
PowerCaseMouseAudio
Seasonic X650 Coolermaster HAF X Razer Naga Asus Xonar Essence STX
CPUMotherboardGraphicsRAM
Something slow and mobile No idea The best Leaking
Hard DriveOptical DriveOSMonitor
Not nearly enough for my CP It's removable! Linux - ta best!!!1!!! Bigger than yours
KeyboardPowerCaseMouse
Mine has twenty eight keys A battery derrr Fat and blocky They scare elephants
Mouse Pad
Useless
  hide details
Reply
Sandy Goodness
(17 items)

Sandy Mininess
(14 items)

Simply the best
(13 items)

CPUMotherboardGraphicsRAM
Intel i5 2500k @ 3.7GHz Gigabyte GA-Z68XP-UD4 EVGA GeForce GTX 760 2GB G.SKILL Ripjaws 16GB 4x4GB 2133MHz
Hard DriveHard DriveHard DriveCooling
60GB OCZ Vertex 3 60GB OCZ Vertex 3 2x 1TB Western Digital Caviar Black (RAID 0) XSPC Rasa RX360 (CPU)
OSOSMonitorKeyboard
Windows 8 x64 Professional ArchLinux x64 Dell UltraSharp U2312HM Das S Professional
PowerCaseMouseAudio
Seasonic X650 Coolermaster HAF X Razer Naga Asus Xonar Essence STX
CPUMotherboardGraphicsRAM
Something slow and mobile No idea The best Leaking
Hard DriveOptical DriveOSMonitor
Not nearly enough for my CP It's removable! Linux - ta best!!!1!!! Bigger than yours
KeyboardPowerCaseMouse
Mine has twenty eight keys A battery derrr Fat and blocky They scare elephants
Mouse Pad
Useless
  hide details
Reply
post #57 of 4205
Quote:
Originally Posted by nookkin View Post
Yeah, 40GB isn't much, but I can always a) upgrade the internal drive to something bigger or b) add a USB-powered external hard drive.

Of course, a laptop isn't the best idea for a serious server, simply because it was never designed to be under so much stress. That's why you'd need to buy server-grade SCSI/SAS drives, ECC/buffered RAM, etc. if you wanted something to run an office building's Active Directory, for example.
Add in a second NIC and you could use the system as an iSCSI front-end with an iSCSI SAN....
ESXi Host 1
(15 items)


CPUMotherboardGraphicsRAM
(2x) Intel Xeon E5520 Dell OnBoard Matrox G200 24GB DDR3 12x2GB UDIMMS (18 slots total)
Hard DriveHard DriveHard DriveHard Drive
PERC6-RAID50 Intel 730 480GB Intel 320 300GB Synology DS414 iSCSI SAN
OSMonitorKeyboardPower
VMWare vSphere5 Enterprise Plus Dell iDRAC6 Remote Management [KVM-Over-IP] Dell iDRAC6 KVM Dell Hot-Swap Redundant 1100W
CaseMouse
Dell PowerEdge T710 Stock Dell iDRAC6 KVM
  hide details
Reply
ESXi Host 1
(15 items)


CPUMotherboardGraphicsRAM
(2x) Intel Xeon E5520 Dell OnBoard Matrox G200 24GB DDR3 12x2GB UDIMMS (18 slots total)
Hard DriveHard DriveHard DriveHard Drive
PERC6-RAID50 Intel 730 480GB Intel 320 300GB Synology DS414 iSCSI SAN
OSMonitorKeyboardPower
VMWare vSphere5 Enterprise Plus Dell iDRAC6 Remote Management [KVM-Over-IP] Dell iDRAC6 KVM Dell Hot-Swap Redundant 1100W
CaseMouse
Dell PowerEdge T710 Stock Dell iDRAC6 KVM
  hide details
Reply
post #58 of 4205
or add a couple of eSATA ports via the PC Card slot and run a few 2TB drives directly. If you currently manage with 40GB, 4TB should see you ok for the foreseeable...
post #59 of 4205
Quote:
Originally Posted by Jtvd78 View Post
What happened to all the specs and pics?
Sorry, thought the thread had died. Was really sad to because I really like it!!! Will repost in a few hours.

Quote:
Originally Posted by ComGuards View Post
Unknown. I live in a condo and the electrical bill is included in the monthly management/maintenance fees, which includes electricity, water, air-con/heat, & digital cable-TV.
Jerk... (j/k)

Quote:
Originally Posted by phasezero View Post
So......................... Clean.............................?!

Quote:
Originally Posted by metallicamaster3 View Post
Subbed. Just wait until I get home ...
tick tock tick tock.

------

Also, all the little lap top file storage systems look great! Great idea!

CPUMotherboardGraphicsRAM
Pentium III @ 533MHz QDI Advance 10F lol 255MB
Hard DriveOSPower
IDE TC Hamster wheel
  hide details
Reply

CPUMotherboardGraphicsRAM
Pentium III @ 533MHz QDI Advance 10F lol 255MB
Hard DriveOSPower
IDE TC Hamster wheel
  hide details
Reply
post #60 of 4205
well here is mine....i macgyvered it so done laugh xD

its a old compaq case and prapiatary psu.

Specs:
Atom 230 intel d945gclf
200gig wd pata hdd
200gig maxtor pata hdd
640gig seagate 7200.11 sata
1gig of generic ram
win7 OS

i manely use it for network storage and backups. i have tried running a l4d and a vent/team speak servers on it but my internet connection sucks major monkey balls.
all in all i like it. just need to upgrade it to 2gigs of ram some day. never had any problems and if you look closely i used a molex connector for the 4 pin power plug.

oo and BTW that is a win ME key on the front.



Edited by bobfig - 5/20/10 at 8:44pm
Cherry Orange
(20 items)

The Traveler
(8 items)

Server
(14 items)

CPUMotherboardGraphicsRAM
i5 3230m 2.6ghz Lenovo Y500 2 GTX 650 in SLI Corsair Vengeance 2x4gb 1600mhz - CMSX8GX3M2B16...
Hard DriveHard DriveOptical DriveOS
CT256M4SSD3 256Gb ssd Samsung ST1000LM024 1Tb Liteon eUAU108 usb dvd drive Win 8 + Pro Pack
  hide details
Reply
Cherry Orange
(20 items)

The Traveler
(8 items)

Server
(14 items)

CPUMotherboardGraphicsRAM
i5 3230m 2.6ghz Lenovo Y500 2 GTX 650 in SLI Corsair Vengeance 2x4gb 1600mhz - CMSX8GX3M2B16...
Hard DriveHard DriveOptical DriveOS
CT256M4SSD3 256Gb ssd Samsung ST1000LM024 1Tb Liteon eUAU108 usb dvd drive Win 8 + Pro Pack
  hide details
Reply
