My dive into watercooling (Stage 4 IT WORKS)

post #1 of 35
Thread Starter
So i have been thinking going WC, since the fan on my 5850 is getting pretty annoying, and i ordered my first part, so now im ready for the ride. Going to go full CPU/GPU loop now. This is a budget build,Cost is at $276 right now. Will be adding pics when i get everything


Parts list
Swiftech MCR220QP-K (Ordered from smartasien) HERE
Heatkiller GPUX3 (Ordered from Deagle50ae) HERE Pics
Heatkiller 3.0 (Ordered from the3lement) HERE
2x Yate Loon (Medium Speed)[2x Ordered from Jab-tech] 1x HERE Pic
Swiftech MicroRes (Ordered from Jab-tech) HERE Pic
PT Nuke -PHN (Ordered from the3lement) HERE
MCP655 (With Speed Control) [Ordered off eBay] HERE Pic

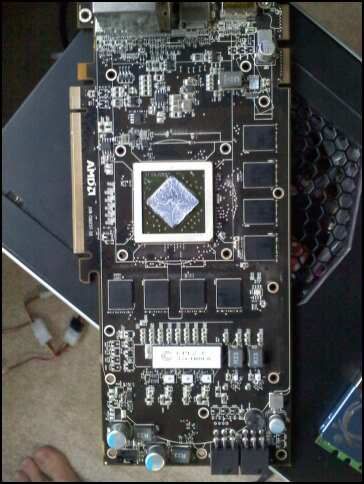

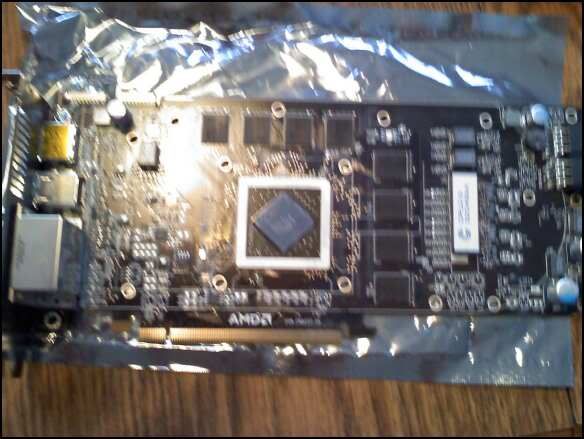

Sexy ATI 5850


All Pasted up


Sexy lapped CPU


Look at that block!


Blocks in

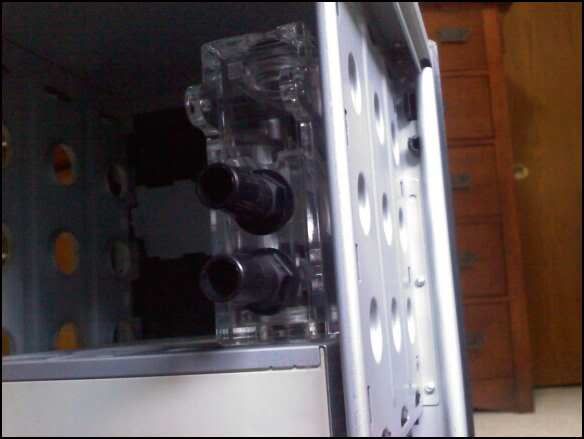

But wheres the res!

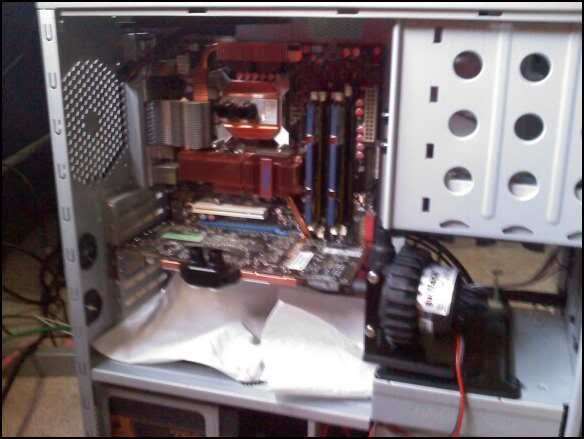

Pump and Blocks in

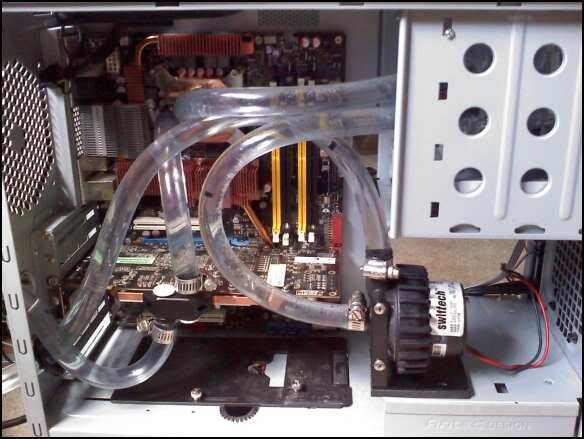

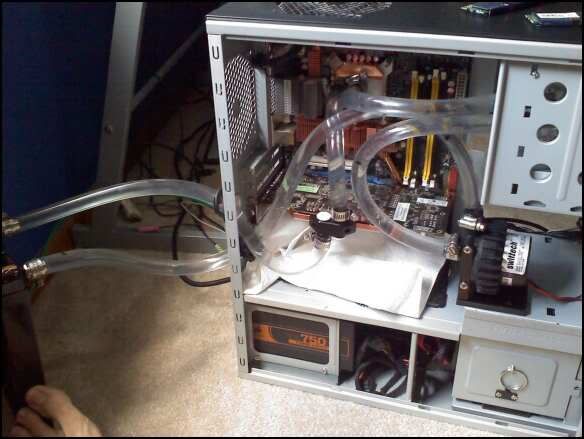

All connected


But is there a rad?\\

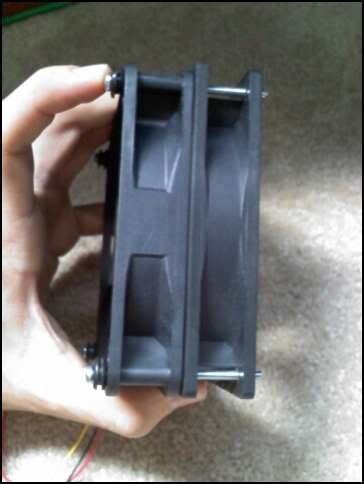

Whats blowing on the rad, you ask

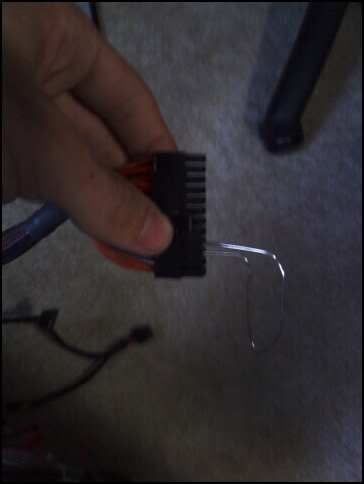

(Took 3 inch 6/32 screws and cut them down with trusty wire cutters) All powered by


And a few bubbles still left


All bubbles are out now

Idle Temps-CPU(on Air-45) now 42
(30 Minutes OCCT) Load Temps-CPU(On Air-66) now 58
Idle Temps-GPU(On Air-61) now 24
(5 minutes MSI Kombustor) Load Temps-GPU(On Air-73) now 33


Rad will be mounted (as shown in pic below) everything else internal



Edited by coltsrock - 6/23/10 at 5:44pm
Forever Young
(13 items)


CPUMotherboardGraphicsRAM
E8400 Q815A182 @3.42 (Stock Volts) Asus P5E Sapphire 5850 G.Skill 4GBPQ 1000
Hard DriveOptical DriveOSMonitor
Seagate 7200.12 1TB Samsung 22X SATA DVD Burner (Ordered) Vista Home Premium x64/ Ubuntu 10.04 x64 Samsung T240 24'
KeyboardPowerCaseMouse
Saitek Eclipse Corsair 750TX Antec P180 MX518
Mouse Pad
Allsop Raindrops
  hide details
Reply
Forever Young
(13 items)


CPUMotherboardGraphicsRAM
E8400 Q815A182 @3.42 (Stock Volts) Asus P5E Sapphire 5850 G.Skill 4GBPQ 1000
Hard DriveOptical DriveOSMonitor
Seagate 7200.12 1TB Samsung 22X SATA DVD Burner (Ordered) Vista Home Premium x64/ Ubuntu 10.04 x64 Samsung T240 24'
KeyboardPowerCaseMouse
Saitek Eclipse Corsair 750TX Antec P180 MX518
Mouse Pad
Allsop Raindrops
  hide details
Reply
post #2 of 35
Looking for suggestions? Looks like a good start. What's the Primochill Pure Performance, tubing?
Black Dynamite
(13 items)


CPUMotherboardGraphicsRAM
Core i7 875K ~ 4.027Ghz(22x183)@1.388v HT on EVGA P55 SLI E655 EVGA GTX 480 SC - [903c/2100m] G.Skill PC17600-(2200Mhz)-CL7-4GB Pi's
Hard DriveOptical DriveOSMonitor
64GB Corsair C300 (OS)-300GB Vraptor-1TB WD Black Samsung Super Writemaster DVD-R/RW Windows 7 Home Prem. 64 bit 40" Toshiba 1080p HD
KeyboardPowerCaseMouse
Logitech G15 Corsair TX850W Silverstone TJ09-B Logitech G9x
Mouse Pad
Rocketfish game pad
  hide details
Reply
Black Dynamite
(13 items)


CPUMotherboardGraphicsRAM
Core i7 875K ~ 4.027Ghz(22x183)@1.388v HT on EVGA P55 SLI E655 EVGA GTX 480 SC - [903c/2100m] G.Skill PC17600-(2200Mhz)-CL7-4GB Pi's
Hard DriveOptical DriveOSMonitor
64GB Corsair C300 (OS)-300GB Vraptor-1TB WD Black Samsung Super Writemaster DVD-R/RW Windows 7 Home Prem. 64 bit 40" Toshiba 1080p HD
KeyboardPowerCaseMouse
Logitech G15 Corsair TX850W Silverstone TJ09-B Logitech G9x
Mouse Pad
Rocketfish game pad
  hide details
Reply
post #3 of 35
Thread Starter
Quote:
Originally Posted by R00ST3R View Post
Looking for suggestions? Looks like a good start. What's the Primochill Pure Performance, tubing?
its coolant, figure it'll work as an anti-microbial, and look good while doing it
and yeah im not sure if i should go with a standalone pump and a t-line or what?
Forever Young
(13 items)


CPUMotherboardGraphicsRAM
E8400 Q815A182 @3.42 (Stock Volts) Asus P5E Sapphire 5850 G.Skill 4GBPQ 1000
Hard DriveOptical DriveOSMonitor
Seagate 7200.12 1TB Samsung 22X SATA DVD Burner (Ordered) Vista Home Premium x64/ Ubuntu 10.04 x64 Samsung T240 24'
KeyboardPowerCaseMouse
Saitek Eclipse Corsair 750TX Antec P180 MX518
Mouse Pad
Allsop Raindrops
  hide details
Reply
Forever Young
(13 items)


CPUMotherboardGraphicsRAM
E8400 Q815A182 @3.42 (Stock Volts) Asus P5E Sapphire 5850 G.Skill 4GBPQ 1000
Hard DriveOptical DriveOSMonitor
Seagate 7200.12 1TB Samsung 22X SATA DVD Burner (Ordered) Vista Home Premium x64/ Ubuntu 10.04 x64 Samsung T240 24'
KeyboardPowerCaseMouse
Saitek Eclipse Corsair 750TX Antec P180 MX518
Mouse Pad
Allsop Raindrops
  hide details
Reply
post #4 of 35
Quote:
Originally Posted by coltsrock View Post
its coolant, figure it'll work as an anti-microbial, and look good while doing it
and yeah im not sure if i should go with a standalone pump and a t-line or what?
I'd recommend sticking with distilled and some ptnuke/silver killcoil. My first loop had dye, and well, never again. If your starting out GPU only, I'd definitely add a drian plug of some sort, makes it easier to maintain/expand.
Black Dynamite
(13 items)


CPUMotherboardGraphicsRAM
Core i7 875K ~ 4.027Ghz(22x183)@1.388v HT on EVGA P55 SLI E655 EVGA GTX 480 SC - [903c/2100m] G.Skill PC17600-(2200Mhz)-CL7-4GB Pi's
Hard DriveOptical DriveOSMonitor
64GB Corsair C300 (OS)-300GB Vraptor-1TB WD Black Samsung Super Writemaster DVD-R/RW Windows 7 Home Prem. 64 bit 40" Toshiba 1080p HD
KeyboardPowerCaseMouse
Logitech G15 Corsair TX850W Silverstone TJ09-B Logitech G9x
Mouse Pad
Rocketfish game pad
  hide details
Reply
Black Dynamite
(13 items)


CPUMotherboardGraphicsRAM
Core i7 875K ~ 4.027Ghz(22x183)@1.388v HT on EVGA P55 SLI E655 EVGA GTX 480 SC - [903c/2100m] G.Skill PC17600-(2200Mhz)-CL7-4GB Pi's
Hard DriveOptical DriveOSMonitor
64GB Corsair C300 (OS)-300GB Vraptor-1TB WD Black Samsung Super Writemaster DVD-R/RW Windows 7 Home Prem. 64 bit 40" Toshiba 1080p HD
KeyboardPowerCaseMouse
Logitech G15 Corsair TX850W Silverstone TJ09-B Logitech G9x
Mouse Pad
Rocketfish game pad
  hide details
Reply
post #5 of 35
Hey whats up man. I just started WC too, but I went for the cpu loop instead of the gpu. I bought that XSPC Bay/Pump and the pump is leaking inside the res. Worst thing is its so easy to fix but I cant get to it. Im newb and all but stay away from it. Id say get a mcp655 for a pump. For a res Id say something that can bleed air out easy without shooting it back into the pump. Bitspower makes good ones.
Intel
(13 items)


CPUMotherboardGraphicsRAM
i7 930 4208 MHz 1.35v LLC Rampage III EVGA GTX 260 (3) 8800's f@h 6 GB Mushkin Redlines 1600 6*8*6*24
Hard DriveOSMonitorPower
(2)Intel X25-V (4)2TB WD Green Windows 7 Ultimate x64 Asus 27" 2ms HX1000
Case
800D
  hide details
Reply
Intel
(13 items)


CPUMotherboardGraphicsRAM
i7 930 4208 MHz 1.35v LLC Rampage III EVGA GTX 260 (3) 8800's f@h 6 GB Mushkin Redlines 1600 6*8*6*24
Hard DriveOSMonitorPower
(2)Intel X25-V (4)2TB WD Green Windows 7 Ultimate x64 Asus 27" 2ms HX1000
Case
800D
  hide details
Reply
post #6 of 35
Thread Starter
Quote:
Originally Posted by chriskaz View Post
Hey whats up man. I just started WC too, but I went for the cpu loop instead of the gpu. I bought that XSPC Bay/Pump and the pump is leaking inside the res. Worst thing is its so easy to fix but I cant get to it. Im newb and all but stay away from it. Id say get a mcp655 for a pump. For a res Id say something that can bleed air out easy without shooting it back into the pump. Bitspower makes good ones.
ahh alright thanks, im actually thinking of going with a DangerDen fillport
Forever Young
(13 items)


CPUMotherboardGraphicsRAM
E8400 Q815A182 @3.42 (Stock Volts) Asus P5E Sapphire 5850 G.Skill 4GBPQ 1000
Hard DriveOptical DriveOSMonitor
Seagate 7200.12 1TB Samsung 22X SATA DVD Burner (Ordered) Vista Home Premium x64/ Ubuntu 10.04 x64 Samsung T240 24'
KeyboardPowerCaseMouse
Saitek Eclipse Corsair 750TX Antec P180 MX518
Mouse Pad
Allsop Raindrops
  hide details
Reply
Forever Young
(13 items)


CPUMotherboardGraphicsRAM
E8400 Q815A182 @3.42 (Stock Volts) Asus P5E Sapphire 5850 G.Skill 4GBPQ 1000
Hard DriveOptical DriveOSMonitor
Seagate 7200.12 1TB Samsung 22X SATA DVD Burner (Ordered) Vista Home Premium x64/ Ubuntu 10.04 x64 Samsung T240 24'
KeyboardPowerCaseMouse
Saitek Eclipse Corsair 750TX Antec P180 MX518
Mouse Pad
Allsop Raindrops
  hide details
Reply
post #7 of 35
What ya gonna use for a case? The Antec P180?
Black Dynamite
(13 items)


CPUMotherboardGraphicsRAM
Core i7 875K ~ 4.027Ghz(22x183)@1.388v HT on EVGA P55 SLI E655 EVGA GTX 480 SC - [903c/2100m] G.Skill PC17600-(2200Mhz)-CL7-4GB Pi's
Hard DriveOptical DriveOSMonitor
64GB Corsair C300 (OS)-300GB Vraptor-1TB WD Black Samsung Super Writemaster DVD-R/RW Windows 7 Home Prem. 64 bit 40" Toshiba 1080p HD
KeyboardPowerCaseMouse
Logitech G15 Corsair TX850W Silverstone TJ09-B Logitech G9x
Mouse Pad
Rocketfish game pad
  hide details
Reply
Black Dynamite
(13 items)


CPUMotherboardGraphicsRAM
Core i7 875K ~ 4.027Ghz(22x183)@1.388v HT on EVGA P55 SLI E655 EVGA GTX 480 SC - [903c/2100m] G.Skill PC17600-(2200Mhz)-CL7-4GB Pi's
Hard DriveOptical DriveOSMonitor
64GB Corsair C300 (OS)-300GB Vraptor-1TB WD Black Samsung Super Writemaster DVD-R/RW Windows 7 Home Prem. 64 bit 40" Toshiba 1080p HD
KeyboardPowerCaseMouse
Logitech G15 Corsair TX850W Silverstone TJ09-B Logitech G9x
Mouse Pad
Rocketfish game pad
  hide details
Reply
post #8 of 35
Thread Starter
Quote:
Originally Posted by R00ST3R View Post
I'd recommend sticking with distilled and some ptnuke/silver killcoil. My first loop had dye, and well, never again. If your starting out GPU only, I'd definitely add a drian plug of some sort, makes it easier to maintain/expand.
OP updated with PT Nuke/ Fillport / T line

Quote:
Originally Posted by R00ST3R View Post
What ya gonna use for a case? The Antec P180?
Yes, im keeping my P180, setting the rad on top of the case, since i dont think a Rad/Shroud/Fan would be able to fit inside, and i dont move my case around too much
Forever Young
(13 items)


CPUMotherboardGraphicsRAM
E8400 Q815A182 @3.42 (Stock Volts) Asus P5E Sapphire 5850 G.Skill 4GBPQ 1000
Hard DriveOptical DriveOSMonitor
Seagate 7200.12 1TB Samsung 22X SATA DVD Burner (Ordered) Vista Home Premium x64/ Ubuntu 10.04 x64 Samsung T240 24'
KeyboardPowerCaseMouse
Saitek Eclipse Corsair 750TX Antec P180 MX518
Mouse Pad
Allsop Raindrops
  hide details
Reply
Forever Young
(13 items)


CPUMotherboardGraphicsRAM
E8400 Q815A182 @3.42 (Stock Volts) Asus P5E Sapphire 5850 G.Skill 4GBPQ 1000
Hard DriveOptical DriveOSMonitor
Seagate 7200.12 1TB Samsung 22X SATA DVD Burner (Ordered) Vista Home Premium x64/ Ubuntu 10.04 x64 Samsung T240 24'
KeyboardPowerCaseMouse
Saitek Eclipse Corsair 750TX Antec P180 MX518
Mouse Pad
Allsop Raindrops
  hide details
Reply
post #9 of 35
Quote:
Originally Posted by coltsrock View Post
ahh alright thanks, im actually thinking of going with a DangerDen fillport
For sure, I got that too.
Intel
(13 items)


CPUMotherboardGraphicsRAM
i7 930 4208 MHz 1.35v LLC Rampage III EVGA GTX 260 (3) 8800's f@h 6 GB Mushkin Redlines 1600 6*8*6*24
Hard DriveOSMonitorPower
(2)Intel X25-V (4)2TB WD Green Windows 7 Ultimate x64 Asus 27" 2ms HX1000
Case
800D
  hide details
Reply
Intel
(13 items)


CPUMotherboardGraphicsRAM
i7 930 4208 MHz 1.35v LLC Rampage III EVGA GTX 260 (3) 8800's f@h 6 GB Mushkin Redlines 1600 6*8*6*24
Hard DriveOSMonitorPower
(2)Intel X25-V (4)2TB WD Green Windows 7 Ultimate x64 Asus 27" 2ms HX1000
Case
800D
  hide details
Reply
post #10 of 35
Yea, PT Nuke -PHN is what you want or a silver coil. Also.

1. Scythe GT fans are much better then slipstreams if you can afford them.

2. These would be a better choice for the pump.

http://www.koolertek.com/computer-pa...p-224p1456.htm
OR
http://www.sidewindercomputers.com/swmc12vdcpuw.html
