Jab-Tech Yates vs Petra's Yates [56K no] (pix)

post #1 of 197
7/22/10 at 1:25am
Thread Starter

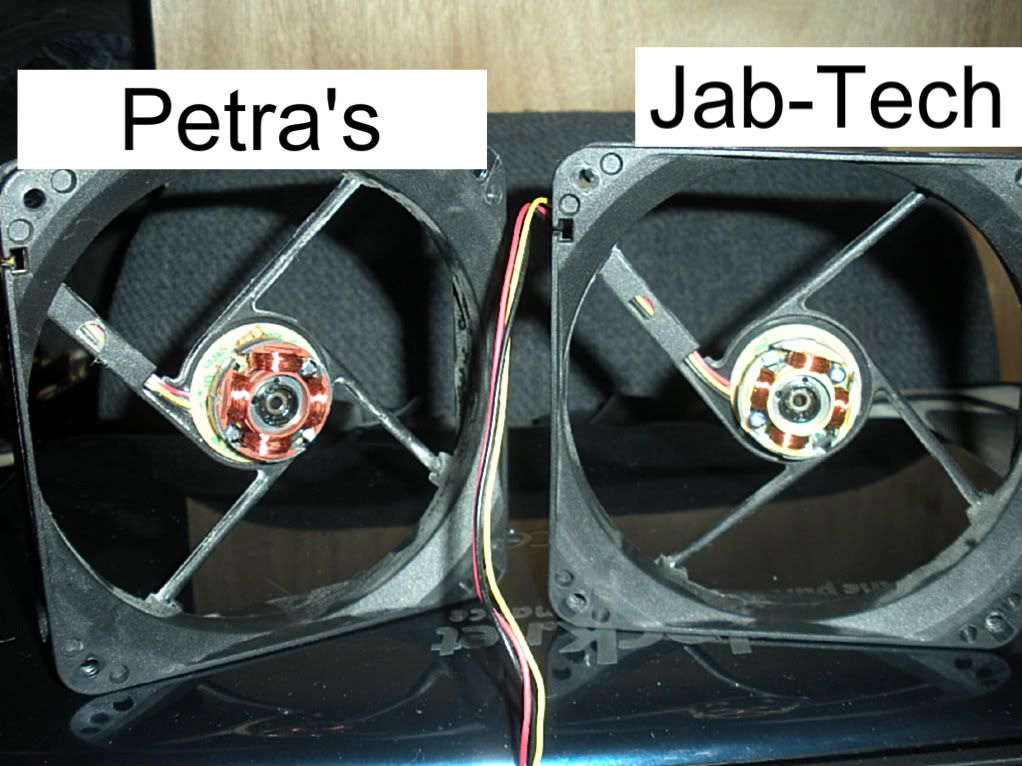

This is just a quick comparison of the two. The coil difference is almost double the size on the Petra-Yate.

It's absolutely staggering how bad these Jab-Tech models are that they try to pass off for the real deal.
Though all 4 of these Jab-Tech's died on me in 4 months of owning them.

Both of these are D12SH-12's (Aka Yate Loon 120mm x 120mm x 25mm High Speed models)

EDIT 3: Check second post for main differences

Edited by Tator Tot - 7/22/10 at 2:29pm
Test Bed
(24 items)

TTTbox
(15 items)

CPUMotherboardGraphicsRAM
Core i5 3570K  Biostar TZ774XE Power Color AX5770 1GB 4x4GB 1866Mhz 9-10-9-27-2T
Hard DriveHard DriveHard DriveHard Drive
Samsung Spinpoint F3 1TB Samsung Spinpoint F3 1TB Western Digital Green 2TB Samsung Spinpoint M4 500GB
Hard DriveOptical DriveCoolingOS
Intel X-25M G2 80GB Lite-On BluRay Drive Arctic Cooling Freezer 13 Pro Windows 7 Ultimate
MonitorKeyboardPowerCase
Dell U2212HM Deck Legend Frost Tactile Silverstone Strider Plus 750w Custom Acrylic Test Bed
MouseMouse PadAudioAudio
Logitech G500 Cooler Master Storm Tactics FPS Beyer Dynamics DT-990 600ohm Samson MediaOne 3A
AudioAudioOtherOther
FiiO E09k QOGIR FiiO E17 ALPEN Microsoft Lifecam Studio Blue Yeti Pro Microphone
View all
CPUMotherboardGraphicsRAM
AMD A10-A5800K ASRock FM2A85X-ITX Radeon HD7770 1GB 2x8GB 1866mhz C9
Hard DriveHard DriveOptical DriveCooling
SanDisk Ultra Plus 128GB 2TB 5400 RPM  24x DVD Drive Noctua L9A
OSMonitorKeyboardPower
Windows 7 Home Premium 32" IPS TV Logitech K400 Seasonic G360
CaseMouseAudio
Cooler Master Elite 120 Advanced Logitech K400 Trackpad Custom 2.1 Home Theater Setup
View all
  hide details
Test Bed
(24 items)

TTTbox
(15 items)

CPUMotherboardGraphicsRAM
Core i5 3570K  Biostar TZ774XE Power Color AX5770 1GB 4x4GB 1866Mhz 9-10-9-27-2T
Hard DriveHard DriveHard DriveHard Drive
Samsung Spinpoint F3 1TB Samsung Spinpoint F3 1TB Western Digital Green 2TB Samsung Spinpoint M4 500GB
Hard DriveOptical DriveCoolingOS
Intel X-25M G2 80GB Lite-On BluRay Drive Arctic Cooling Freezer 13 Pro Windows 7 Ultimate
MonitorKeyboardPowerCase
Dell U2212HM Deck Legend Frost Tactile Silverstone Strider Plus 750w Custom Acrylic Test Bed
MouseMouse PadAudioAudio
Logitech G500 Cooler Master Storm Tactics FPS Beyer Dynamics DT-990 600ohm Samson MediaOne 3A
AudioAudioOtherOther
FiiO E09k QOGIR FiiO E17 ALPEN Microsoft Lifecam Studio Blue Yeti Pro Microphone
View all
CPUMotherboardGraphicsRAM
AMD A10-A5800K ASRock FM2A85X-ITX Radeon HD7770 1GB 2x8GB 1866mhz C9
Hard DriveHard DriveOptical DriveCooling
SanDisk Ultra Plus 128GB 2TB 5400 RPM  24x DVD Drive Noctua L9A
OSMonitorKeyboardPower
Windows 7 Home Premium 32" IPS TV Logitech K400 Seasonic G360
CaseMouseAudio
Cooler Master Elite 120 Advanced Logitech K400 Trackpad Custom 2.1 Home Theater Setup
View all
  hide details
post #2 of 197
7/22/10 at 1:25am
Thread Starter
Differences:
Petra's have - Larger Coils, Larger/Stronger magnets, Better Caps

Jab-Tech's on a 15min run @ full speed (12v) ran @ 2020RPM (outside the 5% deviation level, measured with an FC-5) and were 3.98*C hotter than a Petra's (which ran at 2190 RPM, inside the 5% deviation level)

Similarities:
Same outer housings & fan/blade designs.



Edited by Tator Tot - 7/22/10 at 7:10pm
Test Bed
(24 items)

TTTbox
(15 items)

CPUMotherboardGraphicsRAM
Core i5 3570K  Biostar TZ774XE Power Color AX5770 1GB 4x4GB 1866Mhz 9-10-9-27-2T
Hard DriveHard DriveHard DriveHard Drive
Samsung Spinpoint F3 1TB Samsung Spinpoint F3 1TB Western Digital Green 2TB Samsung Spinpoint M4 500GB
Hard DriveOptical DriveCoolingOS
Intel X-25M G2 80GB Lite-On BluRay Drive Arctic Cooling Freezer 13 Pro Windows 7 Ultimate
MonitorKeyboardPowerCase
Dell U2212HM Deck Legend Frost Tactile Silverstone Strider Plus 750w Custom Acrylic Test Bed
MouseMouse PadAudioAudio
Logitech G500 Cooler Master Storm Tactics FPS Beyer Dynamics DT-990 600ohm Samson MediaOne 3A
AudioAudioOtherOther
FiiO E09k QOGIR FiiO E17 ALPEN Microsoft Lifecam Studio Blue Yeti Pro Microphone
View all
CPUMotherboardGraphicsRAM
AMD A10-A5800K ASRock FM2A85X-ITX Radeon HD7770 1GB 2x8GB 1866mhz C9
Hard DriveHard DriveOptical DriveCooling
SanDisk Ultra Plus 128GB 2TB 5400 RPM  24x DVD Drive Noctua L9A
OSMonitorKeyboardPower
Windows 7 Home Premium 32" IPS TV Logitech K400 Seasonic G360
CaseMouseAudio
Cooler Master Elite 120 Advanced Logitech K400 Trackpad Custom 2.1 Home Theater Setup
View all
  hide details
Test Bed
(24 items)

TTTbox
(15 items)

CPUMotherboardGraphicsRAM
Core i5 3570K  Biostar TZ774XE Power Color AX5770 1GB 4x4GB 1866Mhz 9-10-9-27-2T
Hard DriveHard DriveHard DriveHard Drive
Samsung Spinpoint F3 1TB Samsung Spinpoint F3 1TB Western Digital Green 2TB Samsung Spinpoint M4 500GB
Hard DriveOptical DriveCoolingOS
Intel X-25M G2 80GB Lite-On BluRay Drive Arctic Cooling Freezer 13 Pro Windows 7 Ultimate
MonitorKeyboardPowerCase
Dell U2212HM Deck Legend Frost Tactile Silverstone Strider Plus 750w Custom Acrylic Test Bed
MouseMouse PadAudioAudio
Logitech G500 Cooler Master Storm Tactics FPS Beyer Dynamics DT-990 600ohm Samson MediaOne 3A
AudioAudioOtherOther
FiiO E09k QOGIR FiiO E17 ALPEN Microsoft Lifecam Studio Blue Yeti Pro Microphone
View all
CPUMotherboardGraphicsRAM
AMD A10-A5800K ASRock FM2A85X-ITX Radeon HD7770 1GB 2x8GB 1866mhz C9
Hard DriveHard DriveOptical DriveCooling
SanDisk Ultra Plus 128GB 2TB 5400 RPM  24x DVD Drive Noctua L9A
OSMonitorKeyboardPower
Windows 7 Home Premium 32" IPS TV Logitech K400 Seasonic G360
CaseMouseAudio
Cooler Master Elite 120 Advanced Logitech K400 Trackpad Custom 2.1 Home Theater Setup
View all
  hide details
post #3 of 197
7/22/10 at 1:27am
Certainly contradicts what I'd been saying before, that the high-speed models used the same-size motors... making an edit of my own in a certain sig link.
Deep Blood
(16 items)

CPUMotherboardGraphicsRAM
Intel Core i7 920 D0 (Batch # 3901A240) Foxconn X58 Blood Rage (non-GTI) eVGA GeForce GTX670 2GB 6GB Corsair Dominator 1.6GHz TR3X6G1600C8D Rev 3.2
Hard DriveOptical DriveCoolingOS
Samsung SSD830 128GB / Seagate 640GB+1TB+2TB+4TB Samsung SH-S223Q 22X XTTH | OCZ Freeze | 9G1212H1011 Windows 7 Ultimate x64 SP1
MonitorKeyboardPowerCase
Dell U2410f (rev. A02) OCN-Ducky DK-9008 Antec HCPP-850 CaseLabs SM8
MouseMouse PadAudioOther
Logitech G500 Sharkoon 1337 Asus Xonar DX + Swan D1080MkII08 + MXL Tempo Lifecam Cinema
View all
  hide details
Deep Blood
(16 items)

CPUMotherboardGraphicsRAM
Intel Core i7 920 D0 (Batch # 3901A240) Foxconn X58 Blood Rage (non-GTI) eVGA GeForce GTX670 2GB 6GB Corsair Dominator 1.6GHz TR3X6G1600C8D Rev 3.2
Hard DriveOptical DriveCoolingOS
Samsung SSD830 128GB / Seagate 640GB+1TB+2TB+4TB Samsung SH-S223Q 22X XTTH | OCZ Freeze | 9G1212H1011 Windows 7 Ultimate x64 SP1
MonitorKeyboardPowerCase
Dell U2410f (rev. A02) OCN-Ducky DK-9008 Antec HCPP-850 CaseLabs SM8
MouseMouse PadAudioOther
Logitech G500 Sharkoon 1337 Asus Xonar DX + Swan D1080MkII08 + MXL Tempo Lifecam Cinema
View all
  hide details
post #4 of 197
7/22/10 at 1:34am
Quote:
Originally Posted by Tator Tot View Post
This is just a quick comparison of the two. The coil difference is almost double the size on the Petra-Yate.

It's absolutely staggering how bad these Jab-Tech models are that they try to pass off for the real deal.
Though all 4 of these Jab-Tech's died on me in 4 months of owning them.

Both of these are D12SH-12's (Aka Yate Loon 120mm x 120mm x 25mm High Speed models)
Glad I used the Yates I got from Jab-Tech for shrouds.
Hephaestus
(22 items)

CPUMotherboardGraphicsGraphics
Core i5 2500K [4.5Ghz][100x45][1.29v] MSi P67A-GD65 [1.9 BIOS] MSi GTX670 PE OC MSi GTX670 PE OC
RAMHard DriveHard DriveHard Drive
16GB Corsair Vengeance 1600Mhz [9-9-9-24] Crucial M4 256GB [CORE] WD Caviar Black 1TB [FILEZ] WD Caviar Black 2TB [GAMEZ]
Optical DriveCoolingOSMonitor
LG Blu-Ray Combo Corsair H50 [Push/Pull][UltraKaze 3Ks] Windows 7 Ultimate x64 Retail SP1 Yamakasi Catleap Q270 27" S-IPS
KeyboardPowerCaseMouse
Logitech G110 Antec TP-750 Blue Lian Li Lancool PC-K62 Razer Naga Epic
Mouse PadAudioAudioAudio
Razer Goliathus Fragger Speed  X-Fi Titanium Logitech z5300 5.1 Logitech G930
OtherOther
MS LifeCam Studio 1080p Belkin n52te
View all
  hide details
Hephaestus
(22 items)

CPUMotherboardGraphicsGraphics
Core i5 2500K [4.5Ghz][100x45][1.29v] MSi P67A-GD65 [1.9 BIOS] MSi GTX670 PE OC MSi GTX670 PE OC
RAMHard DriveHard DriveHard Drive
16GB Corsair Vengeance 1600Mhz [9-9-9-24] Crucial M4 256GB [CORE] WD Caviar Black 1TB [FILEZ] WD Caviar Black 2TB [GAMEZ]
Optical DriveCoolingOSMonitor
LG Blu-Ray Combo Corsair H50 [Push/Pull][UltraKaze 3Ks] Windows 7 Ultimate x64 Retail SP1 Yamakasi Catleap Q270 27" S-IPS
KeyboardPowerCaseMouse
Logitech G110 Antec TP-750 Blue Lian Li Lancool PC-K62 Razer Naga Epic
Mouse PadAudioAudioAudio
Razer Goliathus Fragger Speed  X-Fi Titanium Logitech z5300 5.1 Logitech G930
OtherOther
MS LifeCam Studio 1080p Belkin n52te
View all
  hide details
post #5 of 197
7/22/10 at 1:38am
Thread Starter
Quote:
Originally Posted by Demented View Post
Glad I used the Yates I got from Jab-Tech for shrouds.
A perfect job for them. I turned all of mine into spare shrouds as well.

New edit to the OP; all Info once compiled will make it to post #2
Test Bed
(24 items)

TTTbox
(15 items)

CPUMotherboardGraphicsRAM
Core i5 3570K  Biostar TZ774XE Power Color AX5770 1GB 4x4GB 1866Mhz 9-10-9-27-2T
Hard DriveHard DriveHard DriveHard Drive
Samsung Spinpoint F3 1TB Samsung Spinpoint F3 1TB Western Digital Green 2TB Samsung Spinpoint M4 500GB
Hard DriveOptical DriveCoolingOS
Intel X-25M G2 80GB Lite-On BluRay Drive Arctic Cooling Freezer 13 Pro Windows 7 Ultimate
MonitorKeyboardPowerCase
Dell U2212HM Deck Legend Frost Tactile Silverstone Strider Plus 750w Custom Acrylic Test Bed
MouseMouse PadAudioAudio
Logitech G500 Cooler Master Storm Tactics FPS Beyer Dynamics DT-990 600ohm Samson MediaOne 3A
AudioAudioOtherOther
FiiO E09k QOGIR FiiO E17 ALPEN Microsoft Lifecam Studio Blue Yeti Pro Microphone
View all
CPUMotherboardGraphicsRAM
AMD A10-A5800K ASRock FM2A85X-ITX Radeon HD7770 1GB 2x8GB 1866mhz C9
Hard DriveHard DriveOptical DriveCooling
SanDisk Ultra Plus 128GB 2TB 5400 RPM  24x DVD Drive Noctua L9A
OSMonitorKeyboardPower
Windows 7 Home Premium 32" IPS TV Logitech K400 Seasonic G360
CaseMouseAudio
Cooler Master Elite 120 Advanced Logitech K400 Trackpad Custom 2.1 Home Theater Setup
View all
  hide details
Test Bed
(24 items)

TTTbox
(15 items)

CPUMotherboardGraphicsRAM
Core i5 3570K  Biostar TZ774XE Power Color AX5770 1GB 4x4GB 1866Mhz 9-10-9-27-2T
Hard DriveHard DriveHard DriveHard Drive
Samsung Spinpoint F3 1TB Samsung Spinpoint F3 1TB Western Digital Green 2TB Samsung Spinpoint M4 500GB
Hard DriveOptical DriveCoolingOS
Intel X-25M G2 80GB Lite-On BluRay Drive Arctic Cooling Freezer 13 Pro Windows 7 Ultimate
MonitorKeyboardPowerCase
Dell U2212HM Deck Legend Frost Tactile Silverstone Strider Plus 750w Custom Acrylic Test Bed
MouseMouse PadAudioAudio
Logitech G500 Cooler Master Storm Tactics FPS Beyer Dynamics DT-990 600ohm Samson MediaOne 3A
AudioAudioOtherOther
FiiO E09k QOGIR FiiO E17 ALPEN Microsoft Lifecam Studio Blue Yeti Pro Microphone
View all
CPUMotherboardGraphicsRAM
AMD A10-A5800K ASRock FM2A85X-ITX Radeon HD7770 1GB 2x8GB 1866mhz C9
Hard DriveHard DriveOptical DriveCooling
SanDisk Ultra Plus 128GB 2TB 5400 RPM  24x DVD Drive Noctua L9A
OSMonitorKeyboardPower
Windows 7 Home Premium 32" IPS TV Logitech K400 Seasonic G360
CaseMouseAudio
Cooler Master Elite 120 Advanced Logitech K400 Trackpad Custom 2.1 Home Theater Setup
View all
  hide details
post #6 of 197
7/22/10 at 1:46am
  • 88EVGAFTW
  • Автомат Калашникова 47
Weird, I have only bought Jab Tech Yates and have only had 2 bad ones, out of about 10 total. I used some to gut them for shrouds and the rest as case and rad fans. Had some as long as 8 months and they still work fine.
Warranty Void
(13 items)

CPUMotherboardGraphicsHard Drive
i3 530 @ 4.440 Gigabyte P55A UD3 GTX 470 40GB Maxtor IDE Raid 0, 1TB SSD
Optical DriveOSMonitorKeyboard
Sony Optiarc DVDR/CDR SATA Windows 7 Pro X64 Acer 23" 1080P ABS M1
PowerCaseMouseMouse Pad
Cooler Master 600 HAF X9 Logitech G500 desktop
View all
  hide details
Warranty Void
(13 items)

CPUMotherboardGraphicsHard Drive
i3 530 @ 4.440 Gigabyte P55A UD3 GTX 470 40GB Maxtor IDE Raid 0, 1TB SSD
Optical DriveOSMonitorKeyboard
Sony Optiarc DVDR/CDR SATA Windows 7 Pro X64 Acer 23" 1080P ABS M1
PowerCaseMouseMouse Pad
Cooler Master 600 HAF X9 Logitech G500 desktop
View all
  hide details
post #7 of 197
7/22/10 at 1:52am
Thread Starter
Quote:
Originally Posted by 88EVGAFTW View Post
Weird, I have only bought Jab Tech Yates and have only had 2 bad ones, out of about 10 total. I used some to gut them for shrouds and the rest as case and rad fans. Had some as long as 8 months and they still work fine.
Yes but I doubt they perform as well as others. I invite you to open up the fans and take shots of Impeller.
Test Bed
(24 items)

TTTbox
(15 items)

CPUMotherboardGraphicsRAM
Core i5 3570K  Biostar TZ774XE Power Color AX5770 1GB 4x4GB 1866Mhz 9-10-9-27-2T
Hard DriveHard DriveHard DriveHard Drive
Samsung Spinpoint F3 1TB Samsung Spinpoint F3 1TB Western Digital Green 2TB Samsung Spinpoint M4 500GB
Hard DriveOptical DriveCoolingOS
Intel X-25M G2 80GB Lite-On BluRay Drive Arctic Cooling Freezer 13 Pro Windows 7 Ultimate
MonitorKeyboardPowerCase
Dell U2212HM Deck Legend Frost Tactile Silverstone Strider Plus 750w Custom Acrylic Test Bed
MouseMouse PadAudioAudio
Logitech G500 Cooler Master Storm Tactics FPS Beyer Dynamics DT-990 600ohm Samson MediaOne 3A
AudioAudioOtherOther
FiiO E09k QOGIR FiiO E17 ALPEN Microsoft Lifecam Studio Blue Yeti Pro Microphone
View all
CPUMotherboardGraphicsRAM
AMD A10-A5800K ASRock FM2A85X-ITX Radeon HD7770 1GB 2x8GB 1866mhz C9
Hard DriveHard DriveOptical DriveCooling
SanDisk Ultra Plus 128GB 2TB 5400 RPM  24x DVD Drive Noctua L9A
OSMonitorKeyboardPower
Windows 7 Home Premium 32" IPS TV Logitech K400 Seasonic G360
CaseMouseAudio
Cooler Master Elite 120 Advanced Logitech K400 Trackpad Custom 2.1 Home Theater Setup
View all
  hide details
Test Bed
(24 items)

TTTbox
(15 items)

CPUMotherboardGraphicsRAM
Core i5 3570K  Biostar TZ774XE Power Color AX5770 1GB 4x4GB 1866Mhz 9-10-9-27-2T
Hard DriveHard DriveHard DriveHard Drive
Samsung Spinpoint F3 1TB Samsung Spinpoint F3 1TB Western Digital Green 2TB Samsung Spinpoint M4 500GB
Hard DriveOptical DriveCoolingOS
Intel X-25M G2 80GB Lite-On BluRay Drive Arctic Cooling Freezer 13 Pro Windows 7 Ultimate
MonitorKeyboardPowerCase
Dell U2212HM Deck Legend Frost Tactile Silverstone Strider Plus 750w Custom Acrylic Test Bed
MouseMouse PadAudioAudio
Logitech G500 Cooler Master Storm Tactics FPS Beyer Dynamics DT-990 600ohm Samson MediaOne 3A
AudioAudioOtherOther
FiiO E09k QOGIR FiiO E17 ALPEN Microsoft Lifecam Studio Blue Yeti Pro Microphone
View all
CPUMotherboardGraphicsRAM
AMD A10-A5800K ASRock FM2A85X-ITX Radeon HD7770 1GB 2x8GB 1866mhz C9
Hard DriveHard DriveOptical DriveCooling
SanDisk Ultra Plus 128GB 2TB 5400 RPM  24x DVD Drive Noctua L9A
OSMonitorKeyboardPower
Windows 7 Home Premium 32" IPS TV Logitech K400 Seasonic G360
CaseMouseAudio
Cooler Master Elite 120 Advanced Logitech K400 Trackpad Custom 2.1 Home Theater Setup
View all
  hide details
post #8 of 197
7/22/10 at 1:56am
  • 88EVGAFTW
  • Автомат Калашникова 47
Im not going to do it to my High Speeds since they are on my rad, but I could do a medium speed one. I run all of mine on a speed controller also.
Warranty Void
(13 items)

CPUMotherboardGraphicsHard Drive
i3 530 @ 4.440 Gigabyte P55A UD3 GTX 470 40GB Maxtor IDE Raid 0, 1TB SSD
Optical DriveOSMonitorKeyboard
Sony Optiarc DVDR/CDR SATA Windows 7 Pro X64 Acer 23" 1080P ABS M1
PowerCaseMouseMouse Pad
Cooler Master 600 HAF X9 Logitech G500 desktop
View all
  hide details
Warranty Void
(13 items)

CPUMotherboardGraphicsHard Drive
i3 530 @ 4.440 Gigabyte P55A UD3 GTX 470 40GB Maxtor IDE Raid 0, 1TB SSD
Optical DriveOSMonitorKeyboard
Sony Optiarc DVDR/CDR SATA Windows 7 Pro X64 Acer 23" 1080P ABS M1
PowerCaseMouseMouse Pad
Cooler Master 600 HAF X9 Logitech G500 desktop
View all
  hide details
post #9 of 197
7/22/10 at 2:00am
Thread Starter
Quote:
Originally Posted by 88EVGAFTW View Post
Im not going to do it to my High Speeds since they are on my rad, but I could do a medium speed one. I run all of mine on a speed controller also.
Your Mediums most likely will look like the ones up top but perform closer to Petra's yates.

The smaller coils will make less of a difference at lower RPMs.

I use all of my fans on a Fan Controller as well (Lamptron FC-2 Revision 1)
All of my fans work fine (a huge collection) but Jab-Tech yates have been a terrible experience. And gutting them has showed they're low quality.
Test Bed
(24 items)

TTTbox
(15 items)

CPUMotherboardGraphicsRAM
Core i5 3570K  Biostar TZ774XE Power Color AX5770 1GB 4x4GB 1866Mhz 9-10-9-27-2T
Hard DriveHard DriveHard DriveHard Drive
Samsung Spinpoint F3 1TB Samsung Spinpoint F3 1TB Western Digital Green 2TB Samsung Spinpoint M4 500GB
Hard DriveOptical DriveCoolingOS
Intel X-25M G2 80GB Lite-On BluRay Drive Arctic Cooling Freezer 13 Pro Windows 7 Ultimate
MonitorKeyboardPowerCase
Dell U2212HM Deck Legend Frost Tactile Silverstone Strider Plus 750w Custom Acrylic Test Bed
MouseMouse PadAudioAudio
Logitech G500 Cooler Master Storm Tactics FPS Beyer Dynamics DT-990 600ohm Samson MediaOne 3A
AudioAudioOtherOther
FiiO E09k QOGIR FiiO E17 ALPEN Microsoft Lifecam Studio Blue Yeti Pro Microphone
View all
CPUMotherboardGraphicsRAM
AMD A10-A5800K ASRock FM2A85X-ITX Radeon HD7770 1GB 2x8GB 1866mhz C9
Hard DriveHard DriveOptical DriveCooling
SanDisk Ultra Plus 128GB 2TB 5400 RPM  24x DVD Drive Noctua L9A
OSMonitorKeyboardPower
Windows 7 Home Premium 32" IPS TV Logitech K400 Seasonic G360
CaseMouseAudio
Cooler Master Elite 120 Advanced Logitech K400 Trackpad Custom 2.1 Home Theater Setup
View all
  hide details
Test Bed
(24 items)

TTTbox
(15 items)

CPUMotherboardGraphicsRAM
Core i5 3570K  Biostar TZ774XE Power Color AX5770 1GB 4x4GB 1866Mhz 9-10-9-27-2T
Hard DriveHard DriveHard DriveHard Drive
Samsung Spinpoint F3 1TB Samsung Spinpoint F3 1TB Western Digital Green 2TB Samsung Spinpoint M4 500GB
Hard DriveOptical DriveCoolingOS
Intel X-25M G2 80GB Lite-On BluRay Drive Arctic Cooling Freezer 13 Pro Windows 7 Ultimate
MonitorKeyboardPowerCase
Dell U2212HM Deck Legend Frost Tactile Silverstone Strider Plus 750w Custom Acrylic Test Bed
MouseMouse PadAudioAudio
Logitech G500 Cooler Master Storm Tactics FPS Beyer Dynamics DT-990 600ohm Samson MediaOne 3A
AudioAudioOtherOther
FiiO E09k QOGIR FiiO E17 ALPEN Microsoft Lifecam Studio Blue Yeti Pro Microphone
View all
CPUMotherboardGraphicsRAM
AMD A10-A5800K ASRock FM2A85X-ITX Radeon HD7770 1GB 2x8GB 1866mhz C9
Hard DriveHard DriveOptical DriveCooling
SanDisk Ultra Plus 128GB 2TB 5400 RPM  24x DVD Drive Noctua L9A
OSMonitorKeyboardPower
Windows 7 Home Premium 32" IPS TV Logitech K400 Seasonic G360
CaseMouseAudio
Cooler Master Elite 120 Advanced Logitech K400 Trackpad Custom 2.1 Home Theater Setup
View all
  hide details
post #10 of 197
7/22/10 at 3:07am
  • void
  • *cough* Stock *cough*
Very interesting, thanks!
New Posts  All Forums:Forum Nav:
  Return Home
  Back to Forum: Air Cooling
This thread is locked
Overclock.net › Forums › Cooling › Air Cooling › Jab-Tech Yates vs Petra's Yates [56K no] (pix)
