post #1341 of 5083

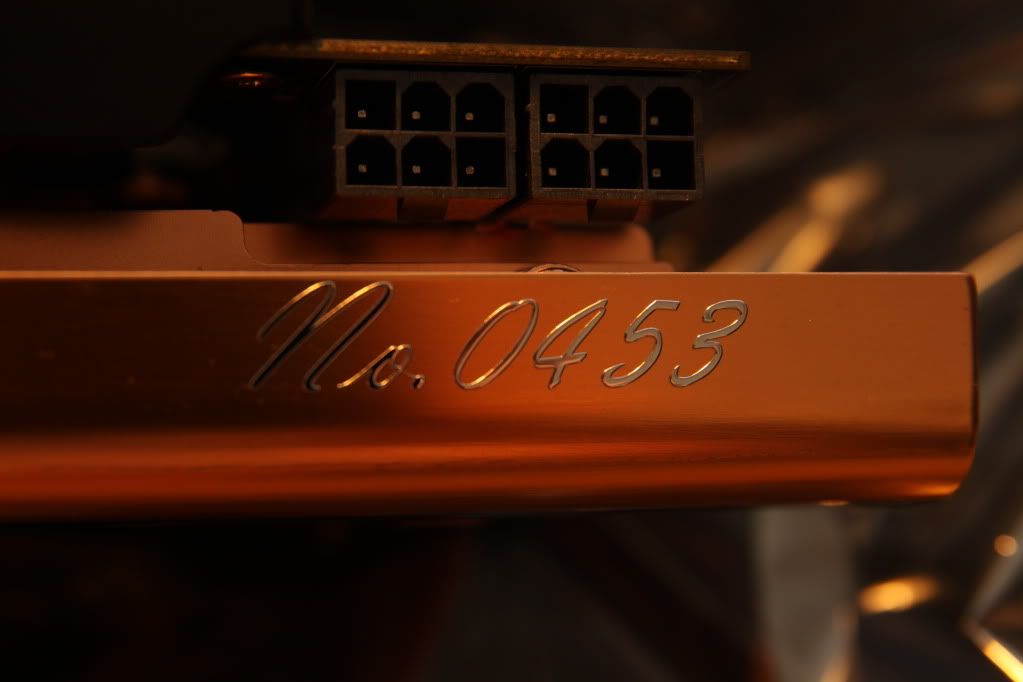

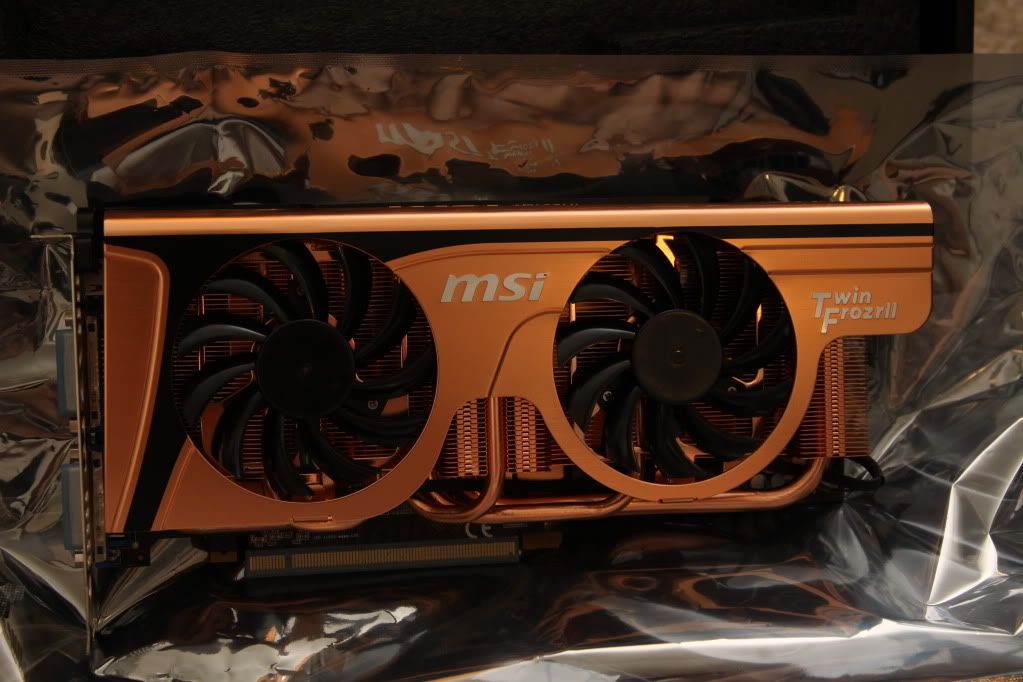

Card #453




Edited by Metonymy - 8/10/10 at 4:51pm
Typhoon
(13 items)


CPUMotherboardGraphicsRAM
Phenom II x6 1055t 95W Gigabyte 890FX-UD5 MSI gtx465 GE (#0304) 4x2GB Gskill ECO 1.35V
Hard DriveOSMonitorPower
WD Black 640 AALS Win7 Ultimate x64 Samsung 40" LCD TV :) Thermaltake Toughpower XT 750W
Case
Antec P183
  hide details
Reply
Typhoon
(13 items)


CPUMotherboardGraphicsRAM
Phenom II x6 1055t 95W Gigabyte 890FX-UD5 MSI gtx465 GE (#0304) 4x2GB Gskill ECO 1.35V
Hard DriveOSMonitorPower
WD Black 640 AALS Win7 Ultimate x64 Samsung 40" LCD TV :) Thermaltake Toughpower XT 750W
Case
Antec P183
  hide details
Reply
post #1342 of 5083
Ahhh you guys are making it sooo hard to wait!
My System
(14 items)


CPUMotherboardGraphicsRAM
Intel Core i5 3570K Asus P8Z77M-Pro Sapphire 7970 Mushkin DDR3
Hard DriveCoolingCoolingOS
Crucial M4 Thermalright HR-02 Macho Accelero Xtreme Windows 7 Ultimate 64bit
MonitorKeyboardPowerCase
Dell 3007WFP-HC Deck Legend Ice Tactile Corsair AX650 Silverstone TJ08-E
MouseMouse Pad
Logitech G500 SteelSeries QcK+
  hide details
Reply
My System
(14 items)


CPUMotherboardGraphicsRAM
Intel Core i5 3570K Asus P8Z77M-Pro Sapphire 7970 Mushkin DDR3
Hard DriveCoolingCoolingOS
Crucial M4 Thermalright HR-02 Macho Accelero Xtreme Windows 7 Ultimate 64bit
MonitorKeyboardPowerCase
Dell 3007WFP-HC Deck Legend Ice Tactile Corsair AX650 Silverstone TJ08-E
MouseMouse Pad
Logitech G500 SteelSeries QcK+
  hide details
Reply
post #1343 of 5083
Ok check it out, this is kinda weird...I can't lower the voltage lower the 1050v on card#2

when I apply to card 1 it only stick to the first card(using MSI afterburner), but not the second, what gives?
The Furnace
(13 items)


CPUMotherboardGraphicsRAM
2600k@4.5ghz Gigabyte Z68X UD3H Gigabyte GTX 680 8GB DDR3
Hard DriveOSMonitorPower
Crucial C300 64GB SSD, Samsung 128GB SSD, Samsu... Vista 64 Asus 27'' Antec 1200 Watt
Case
HAF 932
  hide details
Reply
The Furnace
(13 items)


CPUMotherboardGraphicsRAM
2600k@4.5ghz Gigabyte Z68X UD3H Gigabyte GTX 680 8GB DDR3
Hard DriveOSMonitorPower
Crucial C300 64GB SSD, Samsung 128GB SSD, Samsu... Vista 64 Asus 27'' Antec 1200 Watt
Case
HAF 932
  hide details
Reply
post #1344 of 5083
For those who asked...

Step-by-Step Unlocking Guide for GTX465 Golden Edition

1. Download the Flash Pack here.
This pack includes a backup of the stock 465 ROM in .rom form instead of .bin. Also includes grunion's "Best Performing 470 ROM capped to 1.15v. This is a very solid BIOS with a decent voltage limit to prevent damage to your card, while still allowing some nice OC's.
2. Install GPU-Z.
3. Install HP USB Storage Format Tool.
a. Insert USB Drive.
b. Start HP USB Storage Format Tool.
c. Select the appropriate USB in the drop down menu.
d. Select FAT32 as the File System.
e. Select Quick Format.
f. Check the box for "Create a DOS Startup Disk."
g. Browse to the "USB Image w7" folder and select it.
4. Navigate to the download pack location.
5. Open the "USB Image w7" folder.
6. Copy autoexec.bat from the "USB Image w7" folder to the USB drive.
7. Copy the S465.rom and 470.rom file to the flash drive.
8. Copy the nvflash.exe and CWSDPMI.exe files to the flash drive.
9. Reboot your computer and enter the boot menu (F8, typically) Or set the BIOS boot order to boot from USB Removeable Device.
10. Boot from USB Drive.
11. nvflash.exe will automatically boot and prompt you to update the firmware.
12. Press 'n' or any other key to skip the firmware update.
13. When you are looking at a flashing cursor in the DOS prompt, type
Code:
nvflash --eraseeeprom
14. If you have more than 1 card, keep erasing eeprom until all cards have been erased
15. Now type:
Code:
nvflash --list
16. You will be presented with an index of the cards in your system (the number on the left in () is the index number.
17. Now type the following to proceed with the flash:
Code:
nvflash --index=0 -4 -5 -6 470.rom
18. You should be presented with a message indicating success.
19. If you have more than one card, repeat the flash for the index of the second or third card
20. Power off your computer by holding the power button and boot into Windows.

You have now flashed your GTX465 to a full 470!

EDIT: Added necessary line of code to the AUTOEXEC.BAT file stored in the "USB Image w7" so that it can simply be copied without adding anything to the file.

Also added GPU-Z to the Flash Pack.

If you cannot see AUTOEXEC.BAT or the ROM files, please be sure to view Folder Options in Windows Explorer and check "Show all hidden files, folders, and drives" as well as uncheck "Hide protected OS files."

Edited by kidwolf909 - 8/20/10 at 10:08am
Sandy Beach
(14 items)


CPUMotherboardGraphicsRAM
2500K @ 4.5GHz/1.32v P8P67-PRO [BIOS 1704] MSI GTX780 TFIV G.Skill 4x4GB DDR3-1600 (8-8-8-24-1T)
Hard DriveCoolingOSMonitor
512GB 850EVO, WD Black 1TB & ES.2 1TB & Cuda 3TB XSPC Rasa w/ RS240 Windows 7 Ultimate x64 Dell SX2210
KeyboardPowerCaseMouse
Filco Ninja w/ Browns SilverStone Strider Plus 750W [Sleeved] Custom Stacker 832 Logitech G500
Mouse Pad
Steelseries 4HD
  hide details
Reply
Sandy Beach
(14 items)


CPUMotherboardGraphicsRAM
2500K @ 4.5GHz/1.32v P8P67-PRO [BIOS 1704] MSI GTX780 TFIV G.Skill 4x4GB DDR3-1600 (8-8-8-24-1T)
Hard DriveCoolingOSMonitor
512GB 850EVO, WD Black 1TB & ES.2 1TB & Cuda 3TB XSPC Rasa w/ RS240 Windows 7 Ultimate x64 Dell SX2210
KeyboardPowerCaseMouse
Filco Ninja w/ Browns SilverStone Strider Plus 750W [Sleeved] Custom Stacker 832 Logitech G500
Mouse Pad
Steelseries 4HD
  hide details
Reply
post #1345 of 5083
Quote:
Originally Posted by kidwolf909 View Post
For those who asked...

Step-by-Step Unlocking Guide for GTX465 Golden Edition
...
Very useful, repped!
My System
(14 items)


CPUMotherboardGraphicsRAM
Intel Core i5 3570K Asus P8Z77M-Pro Sapphire 7970 Mushkin DDR3
Hard DriveCoolingCoolingOS
Crucial M4 Thermalright HR-02 Macho Accelero Xtreme Windows 7 Ultimate 64bit
MonitorKeyboardPowerCase
Dell 3007WFP-HC Deck Legend Ice Tactile Corsair AX650 Silverstone TJ08-E
MouseMouse Pad
Logitech G500 SteelSeries QcK+
  hide details
Reply
My System
(14 items)


CPUMotherboardGraphicsRAM
Intel Core i5 3570K Asus P8Z77M-Pro Sapphire 7970 Mushkin DDR3
Hard DriveCoolingCoolingOS
Crucial M4 Thermalright HR-02 Macho Accelero Xtreme Windows 7 Ultimate 64bit
MonitorKeyboardPowerCase
Dell 3007WFP-HC Deck Legend Ice Tactile Corsair AX650 Silverstone TJ08-E
MouseMouse Pad
Logitech G500 SteelSeries QcK+
  hide details
Reply
post #1346 of 5083
Quote:
Originally Posted by Metonymy View Post
Card #453
Very sexy! Get that baby up and running!

CPUMotherboardGraphicsRAM
i7 930 @ 4.13 MSI X58 Pro-E Sapphire HD7970 OC 6GB Corsair XMS3 1600C7
Hard DriveHard DriveHard DriveOptical Drive
Samsung 840 Pro 512GB Samsung F3 1TB Crucial M500 480GB Samsung 22x DVDRW
OSMonitorKeyboardPower
Windows 10 Shimian QH270-Lite Tesoro Durandal Ultimate Antec TPN-750 Blue
CaseMouseMouse PadAudio
NZXT Phantom White Red Logitech G502 Proteus Func 1030 Asus Xonar Essence STX
Other
Emotiva Airmotiv 4
  hide details
Reply

CPUMotherboardGraphicsRAM
i7 930 @ 4.13 MSI X58 Pro-E Sapphire HD7970 OC 6GB Corsair XMS3 1600C7
Hard DriveHard DriveHard DriveOptical Drive
Samsung 840 Pro 512GB Samsung F3 1TB Crucial M500 480GB Samsung 22x DVDRW
OSMonitorKeyboardPower
Windows 10 Shimian QH270-Lite Tesoro Durandal Ultimate Antec TPN-750 Blue
CaseMouseMouse PadAudio
NZXT Phantom White Red Logitech G502 Proteus Func 1030 Asus Xonar Essence STX
Other
Emotiva Airmotiv 4
  hide details
Reply
post #1347 of 5083
Quote:
Originally Posted by chatch15117 View Post
lol are we walking toddlers through making a flash drive bootable? Good effort though. The guide covers every question a clueless, inept person could have.

+1

EDIT: the power button usually looks like this



for people who haven't seen it before.
HAHAHAHA! Hey man, some people were asking for step-by-step walkthroughs so I did them a favor. It's fool-proof now and greatly improves on the poorly worded guides around already.

Quote:
Originally Posted by ebolamonkey3 View Post
No reason to hate lol, some of us are clueless b/c it's our first time flashing bios.

Btw, did everyone use the rom included in the rom pack? Anyone try using the Asus or MSI bios so we can tweak voltage?
You don't need any special BIOS to tweak the voltage. The BIOS in the pack that I uploaded is a tweaked GTX480 BIOS that allows voltage manipulation and is very solid for this unlock. If it isn't what you want eventually, it is a great place to start.
Sandy Beach
(14 items)


CPUMotherboardGraphicsRAM
2500K @ 4.5GHz/1.32v P8P67-PRO [BIOS 1704] MSI GTX780 TFIV G.Skill 4x4GB DDR3-1600 (8-8-8-24-1T)
Hard DriveCoolingOSMonitor
512GB 850EVO, WD Black 1TB & ES.2 1TB & Cuda 3TB XSPC Rasa w/ RS240 Windows 7 Ultimate x64 Dell SX2210
KeyboardPowerCaseMouse
Filco Ninja w/ Browns SilverStone Strider Plus 750W [Sleeved] Custom Stacker 832 Logitech G500
Mouse Pad
Steelseries 4HD
  hide details
Reply
Sandy Beach
(14 items)


CPUMotherboardGraphicsRAM
2500K @ 4.5GHz/1.32v P8P67-PRO [BIOS 1704] MSI GTX780 TFIV G.Skill 4x4GB DDR3-1600 (8-8-8-24-1T)
Hard DriveCoolingOSMonitor
512GB 850EVO, WD Black 1TB & ES.2 1TB & Cuda 3TB XSPC Rasa w/ RS240 Windows 7 Ultimate x64 Dell SX2210
KeyboardPowerCaseMouse
Filco Ninja w/ Browns SilverStone Strider Plus 750W [Sleeved] Custom Stacker 832 Logitech G500
Mouse Pad
Steelseries 4HD
  hide details
Reply
post #1348 of 5083
Quote:
Originally Posted by kidwolf909 View Post
HAHAHAHA! Hey man, some people were asking for step-by-step walkthroughs so I did them a favor. It's fool-proof now and greatly improves on the poorly worded guides around already.

Thanks for the effort, it was great to have everything consolidated.

You don't need any special BIOS to tweak the voltage. The BIOS in the pack that I uploaded is a tweaked GTX480 BIOS that allows voltage manipulation and is very solid for this unlock. If it isn't what you want eventually, it is a great place to start.
Nice, didn't know that's what it was. Also didn't know you could use GTX 480 bios for these lol.
My System
(14 items)


CPUMotherboardGraphicsRAM
Intel Core i5 3570K Asus P8Z77M-Pro Sapphire 7970 Mushkin DDR3
Hard DriveCoolingCoolingOS
Crucial M4 Thermalright HR-02 Macho Accelero Xtreme Windows 7 Ultimate 64bit
MonitorKeyboardPowerCase
Dell 3007WFP-HC Deck Legend Ice Tactile Corsair AX650 Silverstone TJ08-E
MouseMouse Pad
Logitech G500 SteelSeries QcK+
  hide details
Reply
My System
(14 items)


CPUMotherboardGraphicsRAM
Intel Core i5 3570K Asus P8Z77M-Pro Sapphire 7970 Mushkin DDR3
Hard DriveCoolingCoolingOS
Crucial M4 Thermalright HR-02 Macho Accelero Xtreme Windows 7 Ultimate 64bit
MonitorKeyboardPowerCase
Dell 3007WFP-HC Deck Legend Ice Tactile Corsair AX650 Silverstone TJ08-E
MouseMouse Pad
Logitech G500 SteelSeries QcK+
  hide details
Reply
post #1349 of 5083
why are there so many steps? And why does people insist on recreating the wheel with the autoexec.bat file?
Always Changing
(13 items)


CPUGraphicsRAMHard Drive
12 threads of euphemism Bash me! It's not your color! Loose. THAT'S WHAT SHE SAID! Just enough for all my cp
OSMonitorPower
linux for gaming plethora of pixels plethora of watts
  hide details
Reply
Always Changing
(13 items)


CPUGraphicsRAMHard Drive
12 threads of euphemism Bash me! It's not your color! Loose. THAT'S WHAT SHE SAID! Just enough for all my cp
OSMonitorPower
linux for gaming plethora of pixels plethora of watts
  hide details
Reply
post #1350 of 5083
Quote:
Originally Posted by NCspecV81 View Post
why are there so many steps? And why does people insist on recreating the wheel with the autoexec.bat file?
There are so many steps because the existing guides are sloppy and unclear, even to some seasoned OC'ers. The last time I flashed a BIOS, it was with a floppy, so I wanted to be sure nobody could get confused.

Also, the autoexec.bat is just there as a fail safe, am I right? I simply added the lines to it so that it could be copied over directly. It only adds one step.

This guide isn't meant to be the end-all, be-all for everyone on OCN, just the guys that are new to the process. At least I didn't create a new thread for it
Sandy Beach
(14 items)


CPUMotherboardGraphicsRAM
2500K @ 4.5GHz/1.32v P8P67-PRO [BIOS 1704] MSI GTX780 TFIV G.Skill 4x4GB DDR3-1600 (8-8-8-24-1T)
Hard DriveCoolingOSMonitor
512GB 850EVO, WD Black 1TB & ES.2 1TB & Cuda 3TB XSPC Rasa w/ RS240 Windows 7 Ultimate x64 Dell SX2210
KeyboardPowerCaseMouse
Filco Ninja w/ Browns SilverStone Strider Plus 750W [Sleeved] Custom Stacker 832 Logitech G500
Mouse Pad
Steelseries 4HD
  hide details
Reply
Sandy Beach
(14 items)


CPUMotherboardGraphicsRAM
2500K @ 4.5GHz/1.32v P8P67-PRO [BIOS 1704] MSI GTX780 TFIV G.Skill 4x4GB DDR3-1600 (8-8-8-24-1T)
Hard DriveCoolingOSMonitor
512GB 850EVO, WD Black 1TB & ES.2 1TB & Cuda 3TB XSPC Rasa w/ RS240 Windows 7 Ultimate x64 Dell SX2210
KeyboardPowerCaseMouse
Filco Ninja w/ Browns SilverStone Strider Plus 750W [Sleeved] Custom Stacker 832 Logitech G500
Mouse Pad
Steelseries 4HD
  hide details
Reply
