EVGA GTX 460 Superclocked 1GB Edition -Unboxing, opinions, comparisons, and thoughts.

post #1 of 23
Thread Starter
Hey guys, so I bought an EVGA GTX 460 with the 20% coupon recently. I probably could have saved another 8$ if I just went with the stock clocked version, but alas, it was too late. I don't think these are cherry picked... but I'm not sure.

I had the gigabyte version last week, refer to: http://www.overclock.net/nvidia/7873...-gigabyte.html

So lets start this shall we?

UNBOXING (Scroll down for thoughts/benchmarks)

Box was standard. Shipped with foam peanuts


There was slight damage to the box:

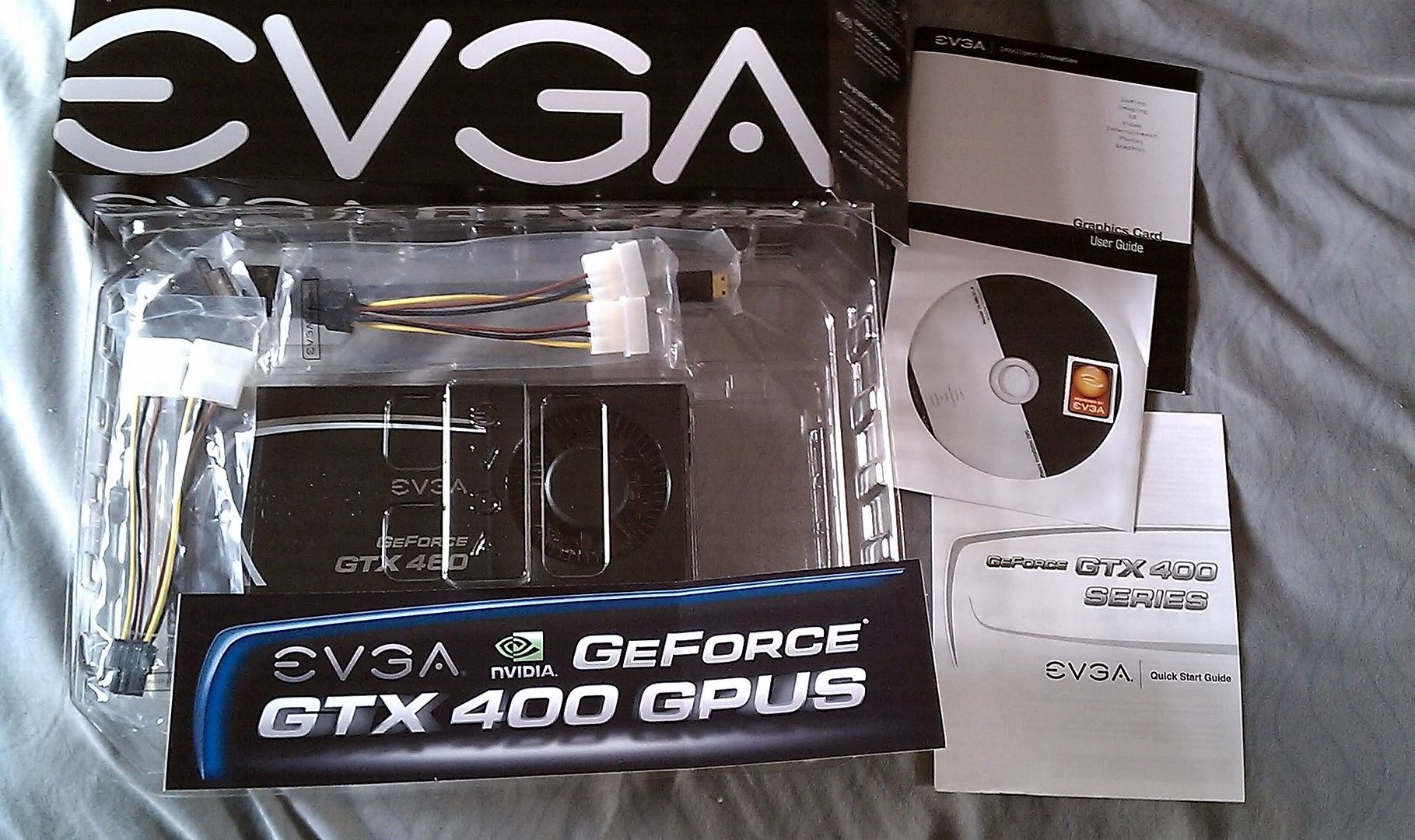

Contents:


Card:

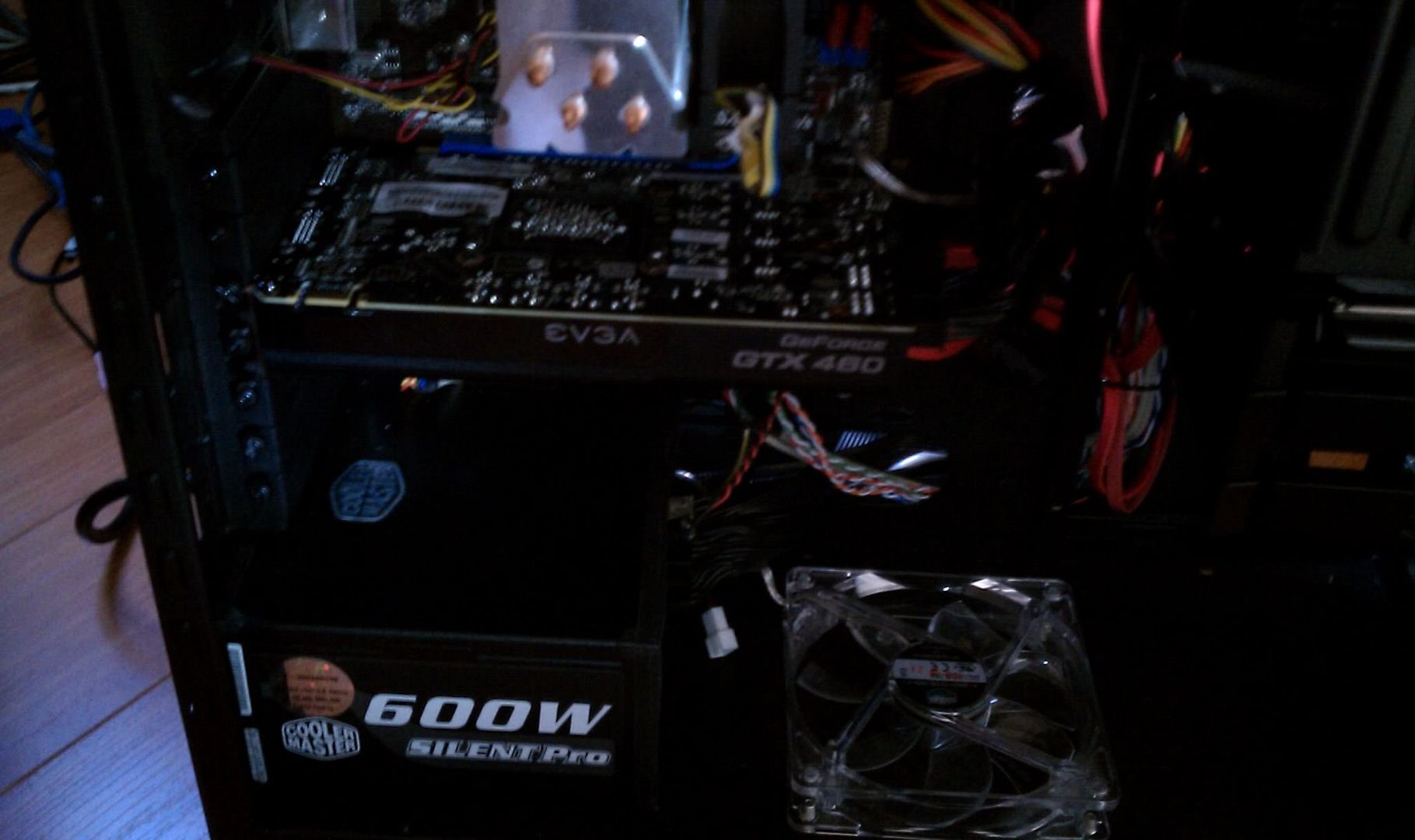

PCB:


Angled:

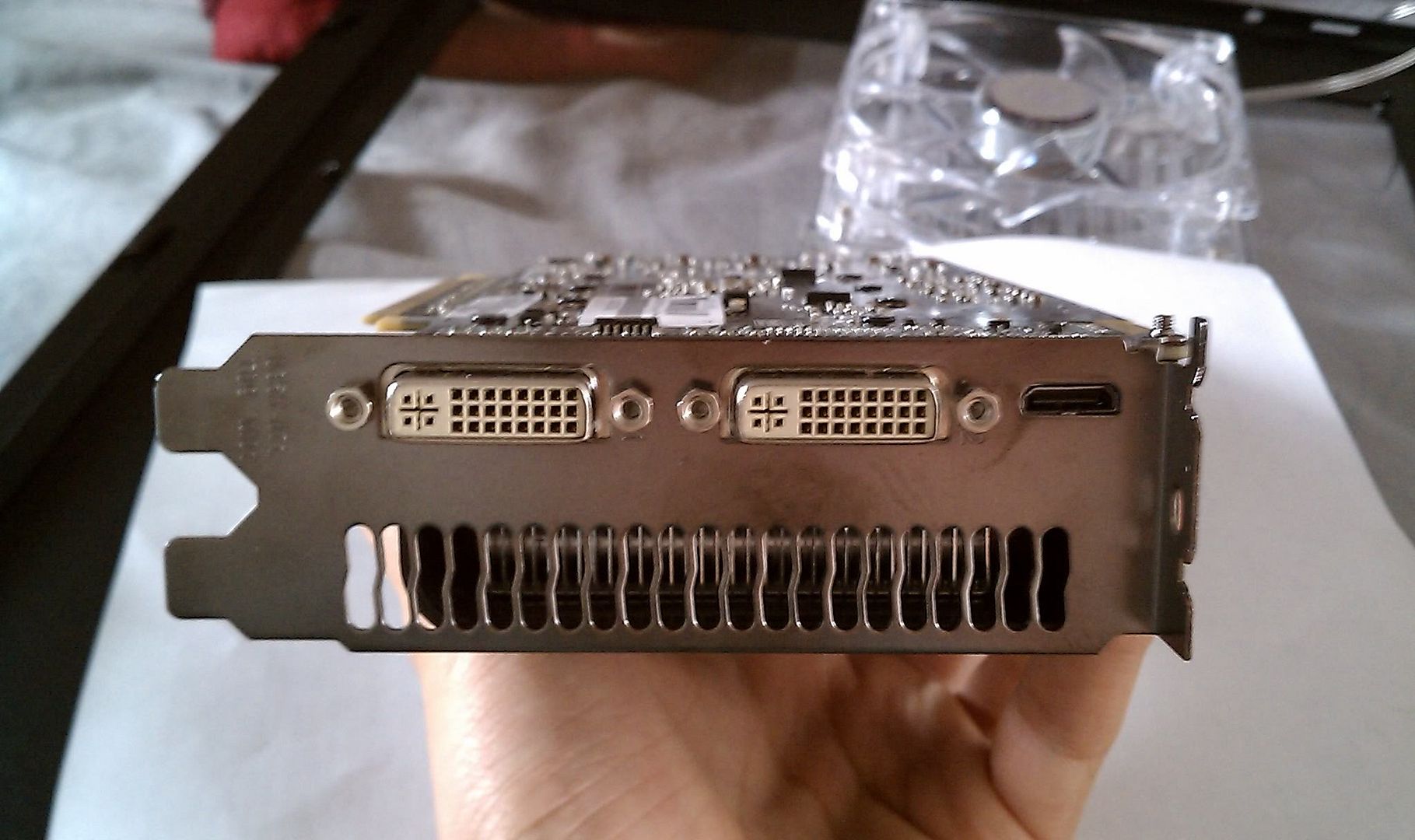

Connectors/Exhaust:

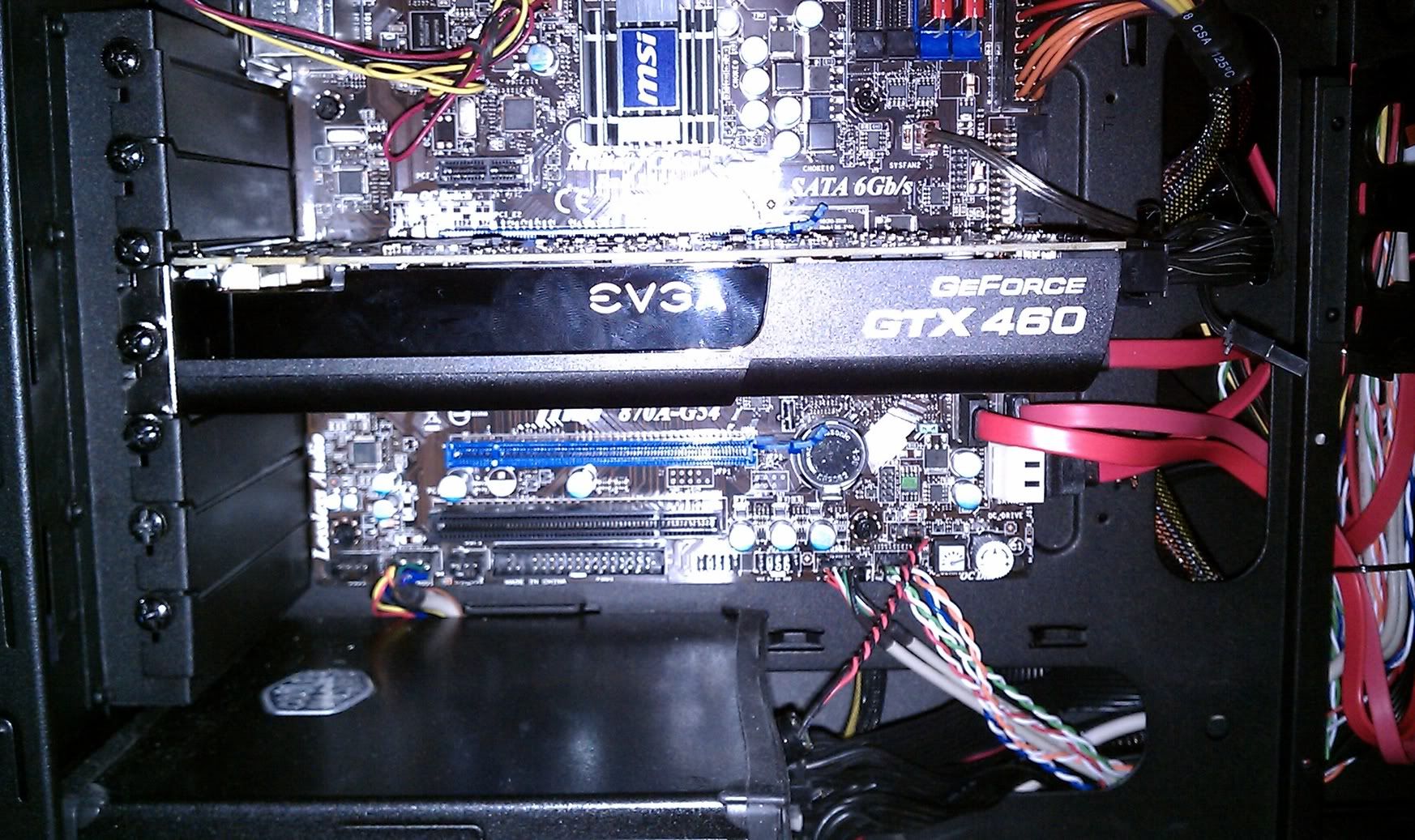

Installed:

No Flash:


Good adapter from EVGA (aka uses a cable)



Fail adapters most others use (expands, not enough space) to fit:


END UNBOXING



Thoughts:


Looks:
It looks sleeker and more compact than open faced, reference coolers such as the MSI Cyclone and the Gigabyte dual fans. I won't say better or worse because i'm truly apathetic about this. The cyclone fan looks unique though, heh.

Fan and sound:
This is definitely louder than the gigabyte model. I tested a little differently, but the difference is still noticeable. Nothing scientific here, just using my ear. With the gigabyte version, my CPU fan (hyper 212+ fan) was set at 62.5%. It's my loudest component on my tower even at 62.5% (which is why I set it lower, my temps are great on my CPU anyway). I have 3x 120mm 3x 140mm fans all running 100%. Testing with MSI afterburner, I set the fan on the card at 100% to check how loud it was. Definitely noticeably louder than the hyper 212+. From there, I put the fan speed lower to check at what speed did I hear it over the hyper 212+. This happened at 65%. Card ranges from 20-100% fan speed.

With the EVGA card, it's a little harder to tell now since I was so used to my temporary card being so loud I can't exactly say the comparison... being a little lazy here. But right now, I can say can notice it at pretty much comparable to the CPU cooler at 62.5% and gpu at 40%. 45% it starts overtaking the cpu cooler. Card ranges from 40%-80% fan speed.

EDIT: After further thought, the EVGA card is pretty loud. It matches/is louder than my CPU fan at 62.5% while the EVGA card runs at 40%.

I'm used to fan noise now, so non issue for me. It doesn't spin up too high in games, actually stays at 40% for the most part. So, for people with silent computing or low noise (aka, minimal fans, low RPM, etc.) I'd suggest looking into another, more quieter card. This one doesn't cut it for your systems, although I wouldn't like the hot air being thrown into the case if you have minimal airflow with other reference coolers.

This is the case set up, except the side fan is now intake. The temps are from the gigabyte model idle on reference 675/1300/1800 clocks. EVGA was able to achieve this too, but from fresh out of sleep, so not fair. Still, it was 24C lowest, hovering at 27C idling.



Temperatures:

The nonreference external exhaust is inefficient compared to the open faced coolers. It's a little saddening, but these cards handle high temps... kind of.

This is the gigabyte running furmark. It topped at 81C after 7 minutes, dropped back to 80C for a while.



With the evga at same settings, I just tested, the temps were running high after a minute. When it reached 84C, the drivers crashed.

Good news though is that the EVGA overclocked was stabler.

More later, but that's the gist of it.

Overclocking:

Even though there were higher temperatures with the EVGA card, I was able to reach a higher overclock than the gigabyte model. Basically, the gigabyte could not run 3dmark vantage at 900/1800/1800. The EVGA runs it with no problems at all (900/1800/1900), topping out at 80C. That is, however, the highest OC I can achieve with no/minimal artifacting on 3DMark Vantage.

Computer specs:
  • Processor: AMD Phenom II X2 555 Black Edition OC'ed to 4100MHz (200x20.5)
  • RAM: G.Skill Ripjaw Series 2x2GB DDR3 RAM 1600MHz PC12800 running @ 1333MHz
  • Motherboard: MSI 870A-G54 AM3
  • Tower: Cooler Master 690 II Advanced with additional 120mm intake side fan, intake 120mm bottom fan, and top 140mm exhaust fan.
  • Video Card: EVGA GTX 460 1GB

Programs used/attempted:
  • MSI Afterburner
  • EVGA Precision
  • FurMark
  • MSI Kombustor
  • HWMonitor
  • GPU-Z
  • 3DMark Vantage

MSI Afterburner was easier to manage than EVGA's precision. While the skin is nice on the precision, I didn't like the GUI, even though both are nearly identical, it's harder to find and tinker with things on EVGA. I might test more later with other EVGA software.

FurMark/Kombustor, stressing.

HWMonitor/GPU-Z monitors.

3DMark Vantage Benchmarks

I ran 3Dmark vantage on performance settings. Took me a couple hours of testing because I mixed results and decided to stay on performance settings (I set extreme).

Stock Clocks: 763/1526/1900 @ 950mV
Stable OC at stock voltage: 820/1640/1900 @ 950mV
Max stable OC: 900/1800/1900 @ 1087mV

As you can see, I did not bother with memory clocks. Also, I couldn't set it the memory any lower than 1900 (wanted to set it at reference 1800).

Stock Clocks 763/1526/1900 @ 950mV, max temps 66C:


Overclocked 820/1640/1900 @ 950mV, max temp 67C:


Overclocked at 900/1800/1900 @ 1087mV, max temp 80C:


Overclocked at 900/1800/1900 @ 1087mV, CPU third core unlocked, 4100MHz, max temp 80C:


Conclusion:

I don't really regret this purchase, which is saying something for someone with an extreme case of buyer's remorse. Actually, I think I could have saved myself 8$ and gone for a stock clocked version, but o well.

The nonreference external exhaust cooling is not as efficient as the open faced coolers that MSI and Gigabyte use (I refer to these because they are regarded as having the best coolers for the GTX 460) but it gets the job done. I initially was concerned about noise/cooling, which is why I went with a gigabyte first. After noticing how quite the gigabyte was and how good the temps were, I sold it to my friend and decided to get myself the EVGA.

The EVGA pros weighed heavily in its favor in this case. It was:
  • About 30$ cheaper (taxes, coupons)
  • It has a lifetime warranty and I assume better customer service, having dealt with gigabyte and MSI
  • 90 day step up, but I don't think I'll use
  • (meh) custom software
  • An appropriate mini-hdmi to hdmi adapter
  • External Exhaust will be advantageous for SLI (future plans)

BUT it does have its flaws as a single card because of the non reference cooling. The non reference cooler is just not as efficient as open faced reference coolers. It is both significantly louder and hotter than reference cards.

In my opinion, from what I've read and what I've tested, the best card to buy for purely the card itself (not the company), it would be the MSI Cyclone. It has the best cooling in the market for the GTX 460, it is quiet on top of that, and it has unlocked voltage to go past the 1087mV cap, at least out of the box. BIOS changes might allow for voltage tweaking, but amateur overclockers might not be comfortable with flashing vBIOS.

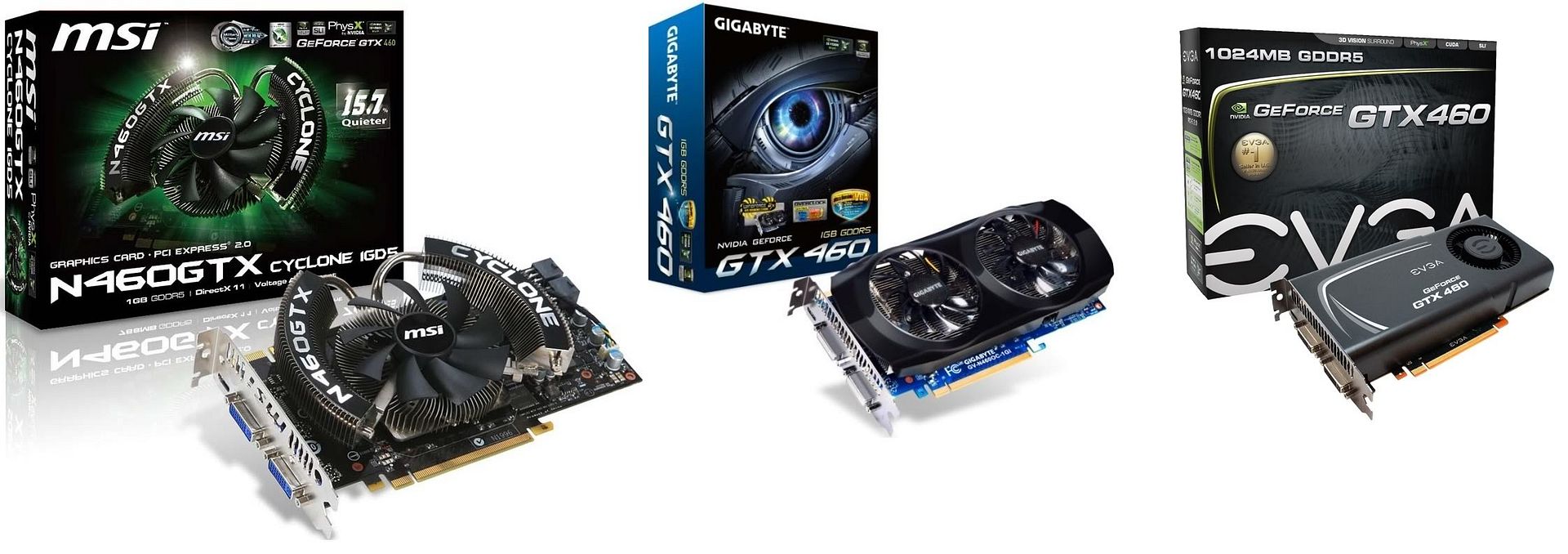

Which card is the best?


Best Single Card: MSI Cyclone.



The cooling on the MSI Cyclone is the best cooling out in the market right now for the GTX 460. It's quiet and cool. Nothing beats it. On top of that, it has voltage tweaking out of the box, so you can overclock even higher than normal cards.

Best SLI Card & Extras: EVGA External Exhaust



The EVGA card does not have the best cooling as a result of going non reference with a turbine External Exhaust. I believe the fan bearings are not great quality either, resulting loud cooling. Though because of the external exhaust system, this card is beneficial for both SLI setups and cases with minimal airflow. In addition, EVGA has the best adapters, lifetime warranty that will cover ANYTHING except physical damage (unlike other warranties, where overclock damage voids a warranty), and customer service backing up its card.


--------------------------------------------------------

So I hope I was helpful. It took me a couple of hours to do all of this, so thanks will be appreciated
Edited by Chango99 - 8/5/10 at 5:40am
Workin it
(13 items)


CPUMotherboardGraphicsRAM
Intel i5-750 4.0GHz Asus Maximus III Gene EVGA GTX 460 1GB EE G.Skill Ripjaw Series 2x2GB 1600MHz PC12800
Hard DriveOptical DriveOSMonitor
Intel 80GB SSD X25M-G2 Asus DVDRW Windows 7 Professional Samsung Syncmaster 245bw 24" 1920x1200 LCD
KeyboardPowerCaseMouse
daskeyboard Professional Model S Silent XFX 650w 80+ Bronze Modular Cooler Master 690 II Advanced w/ Windowed Panel Logitech G9x
Mouse Pad
Steelseries Cloth
  hide details
Reply
Workin it
(13 items)


CPUMotherboardGraphicsRAM
Intel i5-750 4.0GHz Asus Maximus III Gene EVGA GTX 460 1GB EE G.Skill Ripjaw Series 2x2GB 1600MHz PC12800
Hard DriveOptical DriveOSMonitor
Intel 80GB SSD X25M-G2 Asus DVDRW Windows 7 Professional Samsung Syncmaster 245bw 24" 1920x1200 LCD
KeyboardPowerCaseMouse
daskeyboard Professional Model S Silent XFX 650w 80+ Bronze Modular Cooler Master 690 II Advanced w/ Windowed Panel Logitech G9x
Mouse Pad
Steelseries Cloth
  hide details
Reply
post #2 of 23
Thank you, helps me a lot, I am probably going to swap my MSI card in for the EVGA one within the next two weeks just so I'll have the step-up available.(In case nvidia releases a 475 or something, I don't want a GF100).
Glad to see you are stable at 900mhz. My first MSI 460 was stable at 910mhz, 2nd MSI 460 is stable at 880, even though temps never go over 65c...
I think I would actually be happier if the card was running hotter, just seems annoying that I have all this thermal headroom and can't get the clocks any higher. Evga cooler will help with that.
main rig!
(13 items)


CPUMotherboardGraphicsRAM
1055T(95w)/4ghz/1.5v GA-890FXA-UD5 EVGA GTX 460 1gb G.skill 4gb ddr3 1600 ECO
Hard DriveOptical DriveOSMonitor
4tb of random hdds pioneer something dvd-rw 7 x64 2x 21" sony trinitron + 60" PDP
KeyboardPowerCaseMouse
logi G11 corsair hx750 Antec 1200 logi G9x
Mouse Pad
icemat!
  hide details
Reply
main rig!
(13 items)


CPUMotherboardGraphicsRAM
1055T(95w)/4ghz/1.5v GA-890FXA-UD5 EVGA GTX 460 1gb G.skill 4gb ddr3 1600 ECO
Hard DriveOptical DriveOSMonitor
4tb of random hdds pioneer something dvd-rw 7 x64 2x 21" sony trinitron + 60" PDP
KeyboardPowerCaseMouse
logi G11 corsair hx750 Antec 1200 logi G9x
Mouse Pad
icemat!
  hide details
Reply
post #3 of 23
Thanks for the pics, I'm interested in one of these, so this helps me out.

+Rep

CPUMotherboardGraphicsRAM
3970x @4800  R4BE  780ti KPE @1200 /1900  2666 Platinum @2400
Hard DriveOptical DriveCoolingCooling
Vertex 4  BD-R EK HF/rx360/rx120 EK FC/GTs/mcp655
OSMonitorKeyboardPower
Windows 7  275t+ K360  1300 G2
CaseMouseMouse PadAudio
800d MX Aluminum Pro Audio 2.1
  hide details
Reply

CPUMotherboardGraphicsRAM
3970x @4800  R4BE  780ti KPE @1200 /1900  2666 Platinum @2400
Hard DriveOptical DriveCoolingCooling
Vertex 4  BD-R EK HF/rx360/rx120 EK FC/GTs/mcp655
OSMonitorKeyboardPower
Windows 7  275t+ K360  1300 G2
CaseMouseMouse PadAudio
800d MX Aluminum Pro Audio 2.1
  hide details
Reply
post #4 of 23
Thread Starter
Quote:
Originally Posted by shaddix View Post
Thank you, helps me a lot, I am probably going to swap my MSI card in for the EVGA one within the next two weeks just so I'll have the step-up available.(In case nvidia releases a 475 or something, I don't want a GF100).
Glad to see you are stable at 900mhz. My first MSI 460 was stable at 910mhz, 2nd MSI 460 is stable at 880, even though temps never go over 65c...
I think I would actually be happier if the card was running hotter, just seems annoying that I have all this thermal headroom and can't get the clocks any higher. Evga cooler will help with that.
You want hotter? That's odd
Workin it
(13 items)


CPUMotherboardGraphicsRAM
Intel i5-750 4.0GHz Asus Maximus III Gene EVGA GTX 460 1GB EE G.Skill Ripjaw Series 2x2GB 1600MHz PC12800
Hard DriveOptical DriveOSMonitor
Intel 80GB SSD X25M-G2 Asus DVDRW Windows 7 Professional Samsung Syncmaster 245bw 24" 1920x1200 LCD
KeyboardPowerCaseMouse
daskeyboard Professional Model S Silent XFX 650w 80+ Bronze Modular Cooler Master 690 II Advanced w/ Windowed Panel Logitech G9x
Mouse Pad
Steelseries Cloth
  hide details
Reply
Workin it
(13 items)


CPUMotherboardGraphicsRAM
Intel i5-750 4.0GHz Asus Maximus III Gene EVGA GTX 460 1GB EE G.Skill Ripjaw Series 2x2GB 1600MHz PC12800
Hard DriveOptical DriveOSMonitor
Intel 80GB SSD X25M-G2 Asus DVDRW Windows 7 Professional Samsung Syncmaster 245bw 24" 1920x1200 LCD
KeyboardPowerCaseMouse
daskeyboard Professional Model S Silent XFX 650w 80+ Bronze Modular Cooler Master 690 II Advanced w/ Windowed Panel Logitech G9x
Mouse Pad
Steelseries Cloth
  hide details
Reply
post #5 of 23
EVGA GTX460 SC EE has louder noise!!!!


40-55% for me is ok...... 80% ..WOW..... I just confused that is it EVGA's product?

It just a GTX460 not GTX480. Its sound like GTX480's noise.

I have to choose REFUND.......
post #6 of 23
Thread Starter
Quote:
Originally Posted by yym789 View Post
EVGA GTX460 SC EE has louder noise!!!!


40-55% for me is ok...... 80% ..WOW..... I just confused that is it EVGA's product?

It just a GTX460 not GTX480. Its sound like GTX480's noise.

I have to choose REFUND.......
I agree somewhat. I mean I could hear the gigabyte (said to be the quietest) at 100% quite clearly and loudly. Same with the EVGA, but both cards really usually don't spin up that high/at all. Stays at 40% most of the time.
Workin it
(13 items)


CPUMotherboardGraphicsRAM
Intel i5-750 4.0GHz Asus Maximus III Gene EVGA GTX 460 1GB EE G.Skill Ripjaw Series 2x2GB 1600MHz PC12800
Hard DriveOptical DriveOSMonitor
Intel 80GB SSD X25M-G2 Asus DVDRW Windows 7 Professional Samsung Syncmaster 245bw 24" 1920x1200 LCD
KeyboardPowerCaseMouse
daskeyboard Professional Model S Silent XFX 650w 80+ Bronze Modular Cooler Master 690 II Advanced w/ Windowed Panel Logitech G9x
Mouse Pad
Steelseries Cloth
  hide details
Reply
Workin it
(13 items)


CPUMotherboardGraphicsRAM
Intel i5-750 4.0GHz Asus Maximus III Gene EVGA GTX 460 1GB EE G.Skill Ripjaw Series 2x2GB 1600MHz PC12800
Hard DriveOptical DriveOSMonitor
Intel 80GB SSD X25M-G2 Asus DVDRW Windows 7 Professional Samsung Syncmaster 245bw 24" 1920x1200 LCD
KeyboardPowerCaseMouse
daskeyboard Professional Model S Silent XFX 650w 80+ Bronze Modular Cooler Master 690 II Advanced w/ Windowed Panel Logitech G9x
Mouse Pad
Steelseries Cloth
  hide details
Reply
post #7 of 23
Thread Starter
bumpin this
Workin it
(13 items)


CPUMotherboardGraphicsRAM
Intel i5-750 4.0GHz Asus Maximus III Gene EVGA GTX 460 1GB EE G.Skill Ripjaw Series 2x2GB 1600MHz PC12800
Hard DriveOptical DriveOSMonitor
Intel 80GB SSD X25M-G2 Asus DVDRW Windows 7 Professional Samsung Syncmaster 245bw 24" 1920x1200 LCD
KeyboardPowerCaseMouse
daskeyboard Professional Model S Silent XFX 650w 80+ Bronze Modular Cooler Master 690 II Advanced w/ Windowed Panel Logitech G9x
Mouse Pad
Steelseries Cloth
  hide details
Reply
Workin it
(13 items)


CPUMotherboardGraphicsRAM
Intel i5-750 4.0GHz Asus Maximus III Gene EVGA GTX 460 1GB EE G.Skill Ripjaw Series 2x2GB 1600MHz PC12800
Hard DriveOptical DriveOSMonitor
Intel 80GB SSD X25M-G2 Asus DVDRW Windows 7 Professional Samsung Syncmaster 245bw 24" 1920x1200 LCD
KeyboardPowerCaseMouse
daskeyboard Professional Model S Silent XFX 650w 80+ Bronze Modular Cooler Master 690 II Advanced w/ Windowed Panel Logitech G9x
Mouse Pad
Steelseries Cloth
  hide details
Reply
post #8 of 23
I plan on just setting my fan speed to where the gpu hits 95c in furmark. Should be far quieter than what is annoying to most people.
main rig!
(13 items)


CPUMotherboardGraphicsRAM
1055T(95w)/4ghz/1.5v GA-890FXA-UD5 EVGA GTX 460 1gb G.skill 4gb ddr3 1600 ECO
Hard DriveOptical DriveOSMonitor
4tb of random hdds pioneer something dvd-rw 7 x64 2x 21" sony trinitron + 60" PDP
KeyboardPowerCaseMouse
logi G11 corsair hx750 Antec 1200 logi G9x
Mouse Pad
icemat!
  hide details
Reply
main rig!
(13 items)


CPUMotherboardGraphicsRAM
1055T(95w)/4ghz/1.5v GA-890FXA-UD5 EVGA GTX 460 1gb G.skill 4gb ddr3 1600 ECO
Hard DriveOptical DriveOSMonitor
4tb of random hdds pioneer something dvd-rw 7 x64 2x 21" sony trinitron + 60" PDP
KeyboardPowerCaseMouse
logi G11 corsair hx750 Antec 1200 logi G9x
Mouse Pad
icemat!
  hide details
Reply
post #9 of 23
Thread Starter
After further analysis, I have concluded that the MSI Cyclone version is the best GTX 460 currently out there as a card itself. Company wise, EVGA still remains the best for warranty and service.

Ran 1 more benchmark two, but it was more of me unlocking a CPU core and testing higher OCs. Couldn't go past the already tested 900/1800/1900.

Card OC maxes out better than the gigabyte, but basically 900/1800/1900 is the most stable @ 1087mV.

Edited original post to reflect.
Workin it
(13 items)


CPUMotherboardGraphicsRAM
Intel i5-750 4.0GHz Asus Maximus III Gene EVGA GTX 460 1GB EE G.Skill Ripjaw Series 2x2GB 1600MHz PC12800
Hard DriveOptical DriveOSMonitor
Intel 80GB SSD X25M-G2 Asus DVDRW Windows 7 Professional Samsung Syncmaster 245bw 24" 1920x1200 LCD
KeyboardPowerCaseMouse
daskeyboard Professional Model S Silent XFX 650w 80+ Bronze Modular Cooler Master 690 II Advanced w/ Windowed Panel Logitech G9x
Mouse Pad
Steelseries Cloth
  hide details
Reply
Workin it
(13 items)


CPUMotherboardGraphicsRAM
Intel i5-750 4.0GHz Asus Maximus III Gene EVGA GTX 460 1GB EE G.Skill Ripjaw Series 2x2GB 1600MHz PC12800
Hard DriveOptical DriveOSMonitor
Intel 80GB SSD X25M-G2 Asus DVDRW Windows 7 Professional Samsung Syncmaster 245bw 24" 1920x1200 LCD
KeyboardPowerCaseMouse
daskeyboard Professional Model S Silent XFX 650w 80+ Bronze Modular Cooler Master 690 II Advanced w/ Windowed Panel Logitech G9x
Mouse Pad
Steelseries Cloth
  hide details
Reply
post #10 of 23
Quote:
Originally Posted by Chango99 View Post
You want hotter? That's odd
oh missed this post before.

Yeah doesn't it seem like a waste to be running at 65c and not able to get any higher OC? What the hell is that!? OC should be limited because you're about to burn up the GPU not because you're about to burn up the VRMs(I ran my 460 at 1.2v and could only get 930mhz stable out of it, compared to 910 with 1.087). And even at 1.2v it wasn't getting very hot lol.

This is why I'm going with an evga 460 so I can step up(hopefully) to a full GF104 which will give more overclocking satisfaction. BURN YOU BASTARD!!!!!! BURN!!!!!
main rig!
(13 items)


CPUMotherboardGraphicsRAM
1055T(95w)/4ghz/1.5v GA-890FXA-UD5 EVGA GTX 460 1gb G.skill 4gb ddr3 1600 ECO
Hard DriveOptical DriveOSMonitor
4tb of random hdds pioneer something dvd-rw 7 x64 2x 21" sony trinitron + 60" PDP
KeyboardPowerCaseMouse
logi G11 corsair hx750 Antec 1200 logi G9x
Mouse Pad
icemat!
  hide details
Reply
main rig!
(13 items)


CPUMotherboardGraphicsRAM
1055T(95w)/4ghz/1.5v GA-890FXA-UD5 EVGA GTX 460 1gb G.skill 4gb ddr3 1600 ECO
Hard DriveOptical DriveOSMonitor
4tb of random hdds pioneer something dvd-rw 7 x64 2x 21" sony trinitron + 60" PDP
KeyboardPowerCaseMouse
logi G11 corsair hx750 Antec 1200 logi G9x
Mouse Pad
icemat!
  hide details
Reply
New Posts  All Forums:Forum Nav:
  Return Home
  Back to Forum: NVIDIA
Overclock.net › Forums › Graphics Cards › NVIDIA › EVGA GTX 460 Superclocked 1GB Edition -Unboxing, opinions, comparisons, and thoughts.
