Thermalright Silver Arrow review

post #1 of 39
Thread Starter

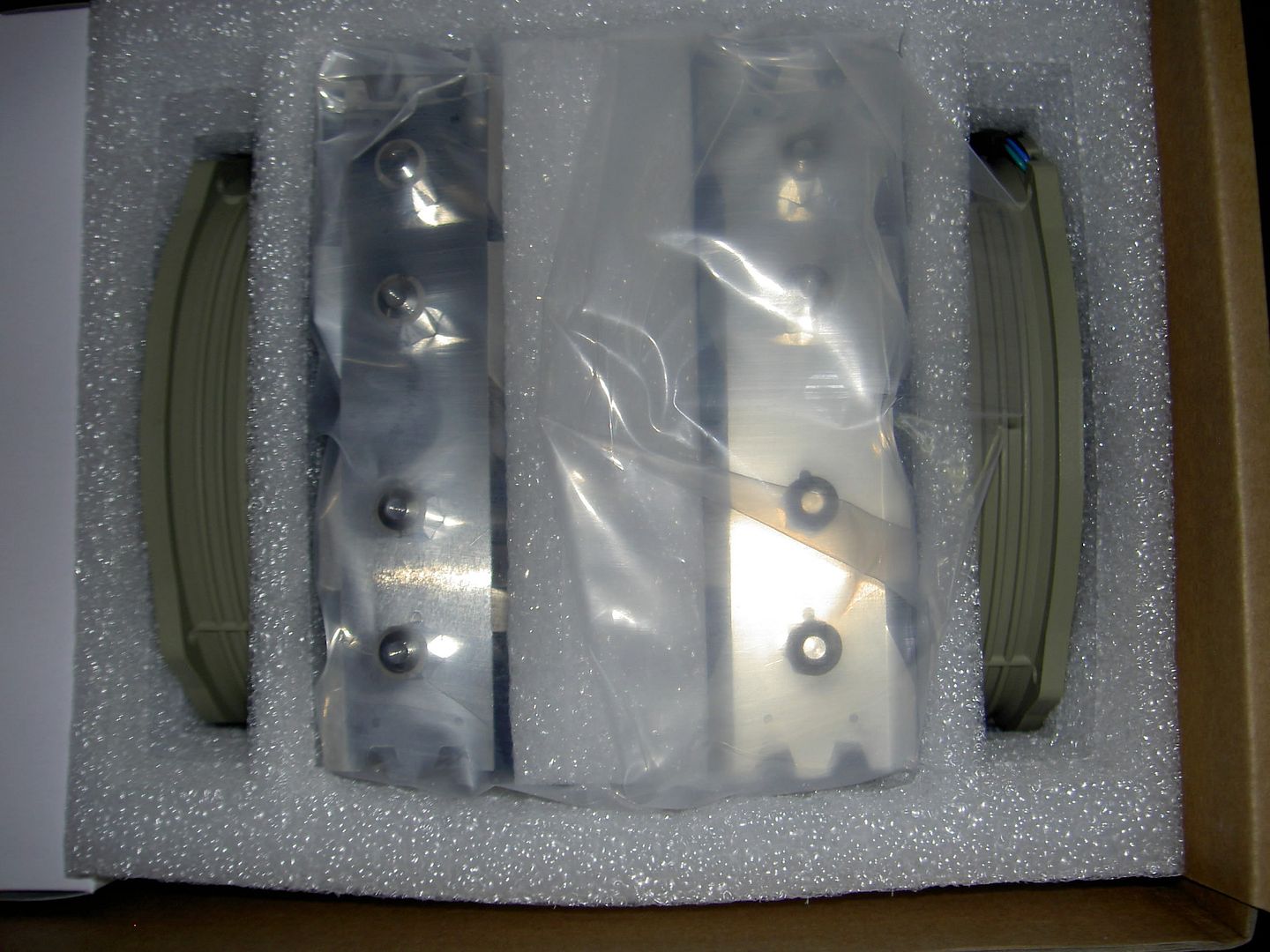

Thermalright Silver Arrow, I will do what little of a review I can do but I only have one cooler to compare it to which is my Sunbeam Core Contact. Maybe someone in Denver wants to come over with their H50 because I know a lot of people were disappointed that the single review of this cooler didn't compare it.

So here it goes, also, I forgot that I have a 100+ CFM from Silverstone, I believe, courtesy of Juggalo23451.

3.2 Ghz using 1.337 volts (no joking)
Sunbeam Core Contact
IDLE: All four cores at 39C
LOAD: All four cores at 51C
Current Ambient temp at 47C

3.2 Ghz using 1.337volts

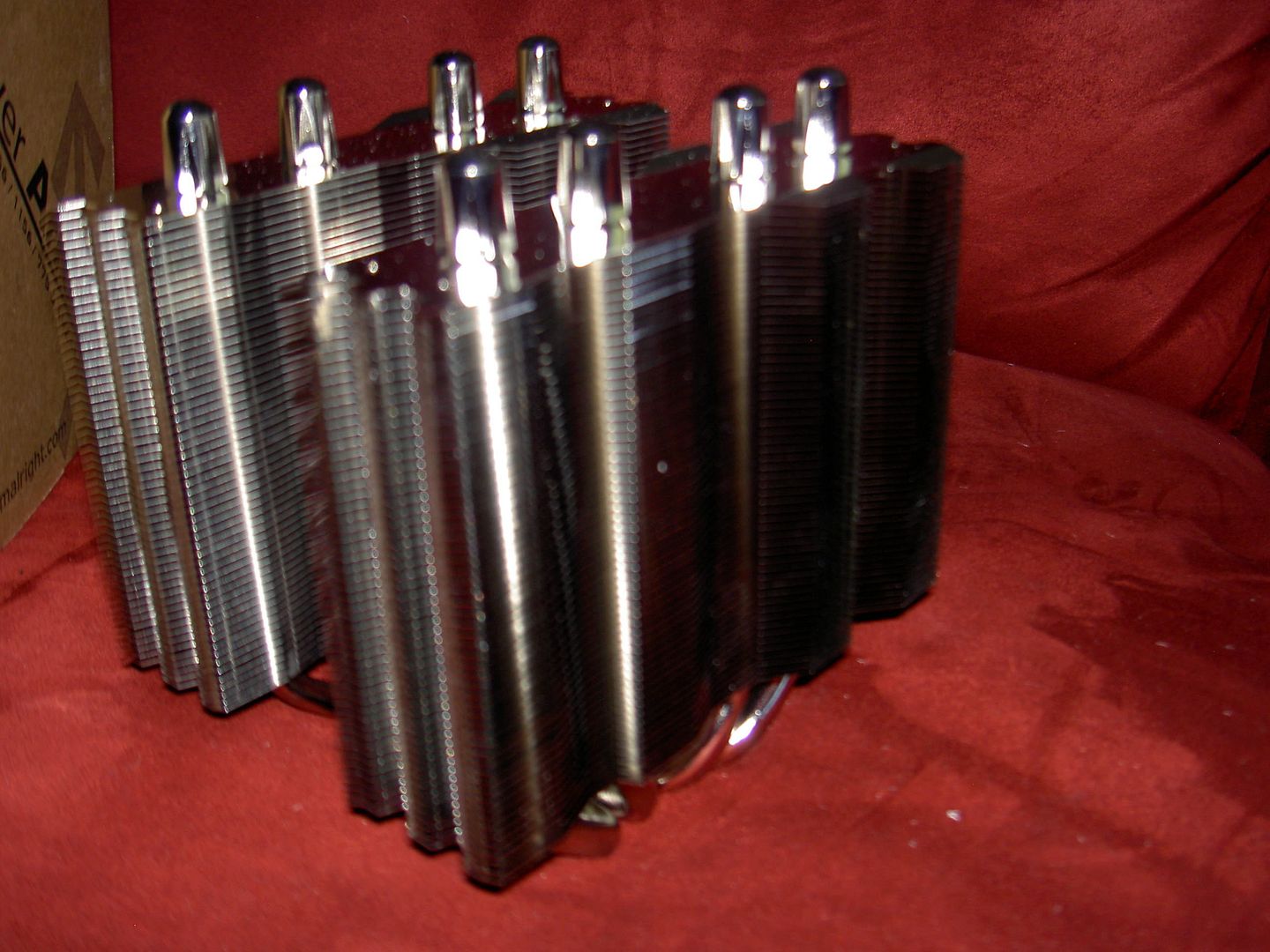

Thermalright Silver Arrow
IDLE: All four cores at 33C (Even, as noted above, with a slightly higher voltage)
LOAD: All four cores at 43C (8C less than Core Contact)
Current Ambient temp at 41C (Not sure what to make of the temperature drop, original tests performed less than an hour ago)

3.84 Ghz using 1.478 volts (way overkill but I am using it to show what I am betting will be a large temperature difference between the two)
Sunbeam Core Contact
IDLE: All four cores at 44C
LOAD: All four cores at 59C
Current Ambient temp at 54C (Getting the feeling that I am not venting my heat well enough as compared to 47C above)

3.84 Ghz using 1.478 volts (way overkill but I am using it to show what I am betting will be a large temperature difference between the two)
Thermalright Silver Arrow
IDLE: All four cores at 38C
LOAD: All four cores at 51C (8C less than Core Contact)
Current Ambient temp at 47C

As you can see, the Silver Arrow at 3.84 Ghz using a high voltage, performs just as well as the Core Contact at stock clocks and a lower voltage.
Edited by joemaniaci - 8/25/10 at 11:20pm
I Love Cheese
(13 items)


CPUMotherboardGraphicsRAM
2600k @ 3.4 Asus P8P67 Basic XFX 5970 2 gig Black Edition 2x 4 gig DDR 1600 G-Skill
Hard DriveOSMonitorPower
2x500 gig WD Vista Ultimate 64-bit Dual 25" Hannspree LCD CM 750 Watt
CaseMouse
Rosewill THOR Logitech Trackball
  hide details
Reply
I Love Cheese
(13 items)


CPUMotherboardGraphicsRAM
2600k @ 3.4 Asus P8P67 Basic XFX 5970 2 gig Black Edition 2x 4 gig DDR 1600 G-Skill
Hard DriveOSMonitorPower
2x500 gig WD Vista Ultimate 64-bit Dual 25" Hannspree LCD CM 750 Watt
CaseMouse
Rosewill THOR Logitech Trackball
  hide details
Reply
post #2 of 39
I've never heard of this cooler.
Interested to see results.
Sandy Goodness
(17 items)

Sandy Mininess
(14 items)

Simply the best
(13 items)

CPUMotherboardGraphicsRAM
Intel i5 2500k @ 3.7GHz Gigabyte GA-Z68XP-UD4 EVGA GeForce GTX 760 2GB G.SKILL Ripjaws 16GB 4x4GB 2133MHz
Hard DriveHard DriveHard DriveCooling
60GB OCZ Vertex 3 60GB OCZ Vertex 3 2x 1TB Western Digital Caviar Black (RAID 0) XSPC Rasa RX360 (CPU)
OSOSMonitorKeyboard
Windows 8 x64 Professional ArchLinux x64 Dell UltraSharp U2312HM Das S Professional
PowerCaseMouseAudio
Seasonic X650 Coolermaster HAF X Razer Naga Asus Xonar Essence STX
CPUMotherboardGraphicsRAM
Something slow and mobile No idea The best Leaking
Hard DriveOptical DriveOSMonitor
Not nearly enough for my CP It's removable! Linux - ta best!!!1!!! Bigger than yours
KeyboardPowerCaseMouse
Mine has twenty eight keys A battery derrr Fat and blocky They scare elephants
Mouse Pad
Useless
  hide details
Reply
Sandy Goodness
(17 items)

Sandy Mininess
(14 items)

Simply the best
(13 items)

CPUMotherboardGraphicsRAM
Intel i5 2500k @ 3.7GHz Gigabyte GA-Z68XP-UD4 EVGA GeForce GTX 760 2GB G.SKILL Ripjaws 16GB 4x4GB 2133MHz
Hard DriveHard DriveHard DriveCooling
60GB OCZ Vertex 3 60GB OCZ Vertex 3 2x 1TB Western Digital Caviar Black (RAID 0) XSPC Rasa RX360 (CPU)
OSOSMonitorKeyboard
Windows 8 x64 Professional ArchLinux x64 Dell UltraSharp U2312HM Das S Professional
PowerCaseMouseAudio
Seasonic X650 Coolermaster HAF X Razer Naga Asus Xonar Essence STX
CPUMotherboardGraphicsRAM
Something slow and mobile No idea The best Leaking
Hard DriveOptical DriveOSMonitor
Not nearly enough for my CP It's removable! Linux - ta best!!!1!!! Bigger than yours
KeyboardPowerCaseMouse
Mine has twenty eight keys A battery derrr Fat and blocky They scare elephants
Mouse Pad
Useless
  hide details
Reply
post #3 of 39
Damn this will be a definite step up from your Core Contact Freezer. Love the shiny nickel coating xD The box is also tauntingly undisclosed.

Definitely do a comparison of this and the H50. I've been going back and forth between these two for a while now.

CPUMotherboardGraphicsRAM
AMD Phenom II X6 1055T MSI 890FXA-GD70 EVGA GTX 260 Core 192 Mushkin Redline Frostbyte DDR3-1600 4 GB
Hard DriveOSMonitorPower
ADATA 120 GB SSD + WD Caviar Green 2 TB Windows 7 Ultimate x64 LG Flatron W2452V Corsair HX650
CaseMouse
CM Storm Sniper Black Edition Logitech G3
  hide details
Reply

CPUMotherboardGraphicsRAM
AMD Phenom II X6 1055T MSI 890FXA-GD70 EVGA GTX 260 Core 192 Mushkin Redline Frostbyte DDR3-1600 4 GB
Hard DriveOSMonitorPower
ADATA 120 GB SSD + WD Caviar Green 2 TB Windows 7 Ultimate x64 LG Flatron W2452V Corsair HX650
CaseMouse
CM Storm Sniper Black Edition Logitech G3
  hide details
Reply
post #4 of 39
Quote:
Originally Posted by Dilyn View Post
I've never heard of this cooler.
Interested to see results.
It's the successor of the IFX-14.
Perpetual debt
(15 items)

Money Pit
(17 items)


CPUMotherboardGraphicsRAM
Intel i7 2600k Asus P8P67 Pro PNY GTX 480 2x4gb G.Skill Ripjaws 2133mhz
Hard DriveCoolingOSMonitor
OCZ Vertex 3 Coolit Freezone Elite Win7 Ultimate Samsung 2233rz
KeyboardPowerCaseMouse
Logitech G15 Corsair HX750 Antec Server case Razer Deathadder
Mouse PadAudioAudio
Thermaltake LCD Mousepad Logitech 5.1 Surround Tritton AX PC Pro 5.1 Surround Headset
CPUMotherboardGraphicsRAM
Intel q6600 @ 3.9ghz (433x9) EVGA 780i FTW evga 8200gs 512mb  4x2gb Corsair XMS TwinX 866mhz @ 5-5-5-5-18
Hard DriveHard DriveOptical DriveCooling
2x 750gb Seagate Baracuda 7200.12 RAID0 5x 1.5tb Seagate Baracuda 7200.11 RAID5 LITE-ON 22X DVD Burner Black SATA Corsair H70
OSMonitorKeyboardPower
Win7 Ultimate x64 22" Acer x223w Logitech G15 Corsair HX750
CaseMouseMouse PadAudio
APEVIA MX-ALIEN Razer Deathadder Thermaltake LCD Mousepad Triton AX Pro PC
Audio
Logitech 5.1 surround sound.
  hide details
Reply
Perpetual debt
(15 items)

Money Pit
(17 items)


CPUMotherboardGraphicsRAM
Intel i7 2600k Asus P8P67 Pro PNY GTX 480 2x4gb G.Skill Ripjaws 2133mhz
Hard DriveCoolingOSMonitor
OCZ Vertex 3 Coolit Freezone Elite Win7 Ultimate Samsung 2233rz
KeyboardPowerCaseMouse
Logitech G15 Corsair HX750 Antec Server case Razer Deathadder
Mouse PadAudioAudio
Thermaltake LCD Mousepad Logitech 5.1 Surround Tritton AX PC Pro 5.1 Surround Headset
CPUMotherboardGraphicsRAM
Intel q6600 @ 3.9ghz (433x9) EVGA 780i FTW evga 8200gs 512mb  4x2gb Corsair XMS TwinX 866mhz @ 5-5-5-5-18
Hard DriveHard DriveOptical DriveCooling
2x 750gb Seagate Baracuda 7200.12 RAID0 5x 1.5tb Seagate Baracuda 7200.11 RAID5 LITE-ON 22X DVD Burner Black SATA Corsair H70
OSMonitorKeyboardPower
Win7 Ultimate x64 22" Acer x223w Logitech G15 Corsair HX750
CaseMouseMouse PadAudio
APEVIA MX-ALIEN Razer Deathadder Thermaltake LCD Mousepad Triton AX Pro PC
Audio
Logitech 5.1 surround sound.
  hide details
Reply
post #5 of 39
Triple high CFM fans. And then fans on those fans. So you can... you know.
It's A Computer!
(13 items)

Also a Computer!
(15 items)


CPUMotherboardGraphicsRAM
i5 2500K Gigabyte Z68X-UD4 Asus HD 5850 G. Skill Ripjaws
Hard DriveHard DriveOptical DriveCooling
Crucial M4 WD Caviar Black Samsund SH-S223A Antec Kuhler 920
OSMonitorPowerCase
Windows 7 Home Samsung 2443BW HAS Silverstone Strider Plus 750W NZXT Source 210 Black
Mouse
Logitech G500
CPUMotherboardGraphicsRAM
AMD PII X4 965BE MSI 790FX-GD70 ASUS HD 4850  G.Skill Ripjaws
Hard DriveHard DriveOptical DriveCooling
Intel X25-V WD Caviar Blue Samsung S222A Thermalright Venomous-X
OSMonitorPowerCase
Windows 7 64 Home Samsung S23A Corsair TX750W NZXT Source 210 Black
Mouse
MX 518
CPUMotherboardGraphicsRAM
Lapped e2180@3.0GHz Gigabyte GA-G41M-ES2L 9500GT Patriot DDR2@800MHz
Hard DriveOSMonitorPower
Hitachi 500gb Windows 7 Viewsonic 19" Cooler Master 500W
  hide details
Reply
It's A Computer!
(13 items)

Also a Computer!
(15 items)


CPUMotherboardGraphicsRAM
i5 2500K Gigabyte Z68X-UD4 Asus HD 5850 G. Skill Ripjaws
Hard DriveHard DriveOptical DriveCooling
Crucial M4 WD Caviar Black Samsund SH-S223A Antec Kuhler 920
OSMonitorPowerCase
Windows 7 Home Samsung 2443BW HAS Silverstone Strider Plus 750W NZXT Source 210 Black
Mouse
Logitech G500
CPUMotherboardGraphicsRAM
AMD PII X4 965BE MSI 790FX-GD70 ASUS HD 4850  G.Skill Ripjaws
Hard DriveHard DriveOptical DriveCooling
Intel X25-V WD Caviar Blue Samsung S222A Thermalright Venomous-X
OSMonitorPowerCase
Windows 7 64 Home Samsung S23A Corsair TX750W NZXT Source 210 Black
Mouse
MX 518
CPUMotherboardGraphicsRAM
Lapped e2180@3.0GHz Gigabyte GA-G41M-ES2L 9500GT Patriot DDR2@800MHz
Hard DriveOSMonitorPower
Hitachi 500gb Windows 7 Viewsonic 19" Cooler Master 500W
  hide details
Reply
post #6 of 39
Quote:
Originally Posted by KusH View Post
It's the successor of the IFX-14.
Never heard of that one either
Sandy Goodness
(17 items)

Sandy Mininess
(14 items)

Simply the best
(13 items)

CPUMotherboardGraphicsRAM
Intel i5 2500k @ 3.7GHz Gigabyte GA-Z68XP-UD4 EVGA GeForce GTX 760 2GB G.SKILL Ripjaws 16GB 4x4GB 2133MHz
Hard DriveHard DriveHard DriveCooling
60GB OCZ Vertex 3 60GB OCZ Vertex 3 2x 1TB Western Digital Caviar Black (RAID 0) XSPC Rasa RX360 (CPU)
OSOSMonitorKeyboard
Windows 8 x64 Professional ArchLinux x64 Dell UltraSharp U2312HM Das S Professional
PowerCaseMouseAudio
Seasonic X650 Coolermaster HAF X Razer Naga Asus Xonar Essence STX
CPUMotherboardGraphicsRAM
Something slow and mobile No idea The best Leaking
Hard DriveOptical DriveOSMonitor
Not nearly enough for my CP It's removable! Linux - ta best!!!1!!! Bigger than yours
KeyboardPowerCaseMouse
Mine has twenty eight keys A battery derrr Fat and blocky They scare elephants
Mouse Pad
Useless
  hide details
Reply
Sandy Goodness
(17 items)

Sandy Mininess
(14 items)

Simply the best
(13 items)

CPUMotherboardGraphicsRAM
Intel i5 2500k @ 3.7GHz Gigabyte GA-Z68XP-UD4 EVGA GeForce GTX 760 2GB G.SKILL Ripjaws 16GB 4x4GB 2133MHz
Hard DriveHard DriveHard DriveCooling
60GB OCZ Vertex 3 60GB OCZ Vertex 3 2x 1TB Western Digital Caviar Black (RAID 0) XSPC Rasa RX360 (CPU)
OSOSMonitorKeyboard
Windows 8 x64 Professional ArchLinux x64 Dell UltraSharp U2312HM Das S Professional
PowerCaseMouseAudio
Seasonic X650 Coolermaster HAF X Razer Naga Asus Xonar Essence STX
CPUMotherboardGraphicsRAM
Something slow and mobile No idea The best Leaking
Hard DriveOptical DriveOSMonitor
Not nearly enough for my CP It's removable! Linux - ta best!!!1!!! Bigger than yours
KeyboardPowerCaseMouse
Mine has twenty eight keys A battery derrr Fat and blocky They scare elephants
Mouse Pad
Useless
  hide details
Reply
post #7 of 39
IFX-14




Silver Arrow

Perpetual debt
(15 items)

Money Pit
(17 items)


CPUMotherboardGraphicsRAM
Intel i7 2600k Asus P8P67 Pro PNY GTX 480 2x4gb G.Skill Ripjaws 2133mhz
Hard DriveCoolingOSMonitor
OCZ Vertex 3 Coolit Freezone Elite Win7 Ultimate Samsung 2233rz
KeyboardPowerCaseMouse
Logitech G15 Corsair HX750 Antec Server case Razer Deathadder
Mouse PadAudioAudio
Thermaltake LCD Mousepad Logitech 5.1 Surround Tritton AX PC Pro 5.1 Surround Headset
CPUMotherboardGraphicsRAM
Intel q6600 @ 3.9ghz (433x9) EVGA 780i FTW evga 8200gs 512mb  4x2gb Corsair XMS TwinX 866mhz @ 5-5-5-5-18
Hard DriveHard DriveOptical DriveCooling
2x 750gb Seagate Baracuda 7200.12 RAID0 5x 1.5tb Seagate Baracuda 7200.11 RAID5 LITE-ON 22X DVD Burner Black SATA Corsair H70
OSMonitorKeyboardPower
Win7 Ultimate x64 22" Acer x223w Logitech G15 Corsair HX750
CaseMouseMouse PadAudio
APEVIA MX-ALIEN Razer Deathadder Thermaltake LCD Mousepad Triton AX Pro PC
Audio
Logitech 5.1 surround sound.
  hide details
Reply
Perpetual debt
(15 items)

Money Pit
(17 items)


CPUMotherboardGraphicsRAM
Intel i7 2600k Asus P8P67 Pro PNY GTX 480 2x4gb G.Skill Ripjaws 2133mhz
Hard DriveCoolingOSMonitor
OCZ Vertex 3 Coolit Freezone Elite Win7 Ultimate Samsung 2233rz
KeyboardPowerCaseMouse
Logitech G15 Corsair HX750 Antec Server case Razer Deathadder
Mouse PadAudioAudio
Thermaltake LCD Mousepad Logitech 5.1 Surround Tritton AX PC Pro 5.1 Surround Headset
CPUMotherboardGraphicsRAM
Intel q6600 @ 3.9ghz (433x9) EVGA 780i FTW evga 8200gs 512mb  4x2gb Corsair XMS TwinX 866mhz @ 5-5-5-5-18
Hard DriveHard DriveOptical DriveCooling
2x 750gb Seagate Baracuda 7200.12 RAID0 5x 1.5tb Seagate Baracuda 7200.11 RAID5 LITE-ON 22X DVD Burner Black SATA Corsair H70
OSMonitorKeyboardPower
Win7 Ultimate x64 22" Acer x223w Logitech G15 Corsair HX750
CaseMouseMouse PadAudio
APEVIA MX-ALIEN Razer Deathadder Thermaltake LCD Mousepad Triton AX Pro PC
Audio
Logitech 5.1 surround sound.
  hide details
Reply
post #8 of 39
Never heard of the Sunbeam Core Contact, was it any good?
Your Silver Arrow on the other hand, grats on that! Those heatpipes are really insane. 2 highspeed fans on it and you're near WC temps.
Stainless Stance
(13 items)


CPUMotherboardGraphicsRAM
i7 920 (3930A226) 4.4 GHz | Lapped | 1.36v | HT on Gigabyte EX58-UD3R | Rev 1.6 | FJ18 Asus GTX470 | 900c 1878m | 1.15v 3x2GB Corsair XMS3 | 1680 MHz
Hard DriveOSMonitorKeyboard
Samsung Spinpoint F1 1TB Windows 7 Ultimate x64 SP1 LG Flatron W2252TQ Microsoft Sidewinder X6
PowerCaseMouseMouse Pad
XFX 850W Core Edition Antec 902 | 3x AP-14 intake Logitech G5 Razer eXactMat
  hide details
Reply
Stainless Stance
(13 items)


CPUMotherboardGraphicsRAM
i7 920 (3930A226) 4.4 GHz | Lapped | 1.36v | HT on Gigabyte EX58-UD3R | Rev 1.6 | FJ18 Asus GTX470 | 900c 1878m | 1.15v 3x2GB Corsair XMS3 | 1680 MHz
Hard DriveOSMonitorKeyboard
Samsung Spinpoint F1 1TB Windows 7 Ultimate x64 SP1 LG Flatron W2252TQ Microsoft Sidewinder X6
PowerCaseMouseMouse Pad
XFX 850W Core Edition Antec 902 | 3x AP-14 intake Logitech G5 Razer eXactMat
  hide details
Reply
post #9 of 39
Thread Starter
Quote:
Originally Posted by Stance View Post
Never heard of the Sunbeam Core Contact, was it any good?
Your Silver Arrow on the other hand, grats on that! Those heatpipes are really insane. 2 highspeed fans on it and you're near WC temps.
It truly was not that bad, you can see it pop up sometimes and it performs very well for the price and stature. But we shall see.
I Love Cheese
(13 items)


CPUMotherboardGraphicsRAM
2600k @ 3.4 Asus P8P67 Basic XFX 5970 2 gig Black Edition 2x 4 gig DDR 1600 G-Skill
Hard DriveOSMonitorPower
2x500 gig WD Vista Ultimate 64-bit Dual 25" Hannspree LCD CM 750 Watt
CaseMouse
Rosewill THOR Logitech Trackball
  hide details
Reply
I Love Cheese
(13 items)


CPUMotherboardGraphicsRAM
2600k @ 3.4 Asus P8P67 Basic XFX 5970 2 gig Black Edition 2x 4 gig DDR 1600 G-Skill
Hard DriveOSMonitorPower
2x500 gig WD Vista Ultimate 64-bit Dual 25" Hannspree LCD CM 750 Watt
CaseMouse
Rosewill THOR Logitech Trackball
  hide details
Reply
post #10 of 39
nice looking cooler you've got there! interested to see how it performs.


Quote:
The original image is sized 3110x2332.
i could see your fingerprints on the last pic if it weren't so blurry
still breathing
(13 items)


CPUMotherboardGraphicsRAM
Q6600 @ stock Abit AB9 QuadGT Radeon HD4890 1Gb Crucial Ballistix 3Gb
Hard DriveOptical DriveOSMonitor
2x Samsung 750/32, 1x Seagate 320/16 Asus DVDRW Windows7 Enterprise x64 Asus VW222S
KeyboardPowerCaseMouse
Logitech Scythe Kamariki4 750W CM HAF 932 Microsoft Intellimouse
  hide details
Reply
still breathing
(13 items)


CPUMotherboardGraphicsRAM
Q6600 @ stock Abit AB9 QuadGT Radeon HD4890 1Gb Crucial Ballistix 3Gb
Hard DriveOptical DriveOSMonitor
2x Samsung 750/32, 1x Seagate 320/16 Asus DVDRW Windows7 Enterprise x64 Asus VW222S
KeyboardPowerCaseMouse
Logitech Scythe Kamariki4 750W CM HAF 932 Microsoft Intellimouse
  hide details
Reply
New Posts  All Forums:Forum Nav:
  Return Home
  Back to Forum: Air Cooling
Overclock.net › Forums › Cooling › Air Cooling › Thermalright Silver Arrow review
