3 Stage is on hold for a short while so I accepted a contract to pump out a quick 2 stage: ETA 2 weeks...

Stage 1: 13200 BTU Tecumseh
Stage 2 11250 BTU Mats
Temprite 900 series floated oil sep
TY Danfoss TXV with 01 Orifice
Parker 2lb reciever
No sight glass
Parker expansion
20 plate HX
r410 stage 1
r1150 stage 2
Dako Electric
Copeland HCO
PID
Non Carted
Kayl Evap
Duniek Hold down

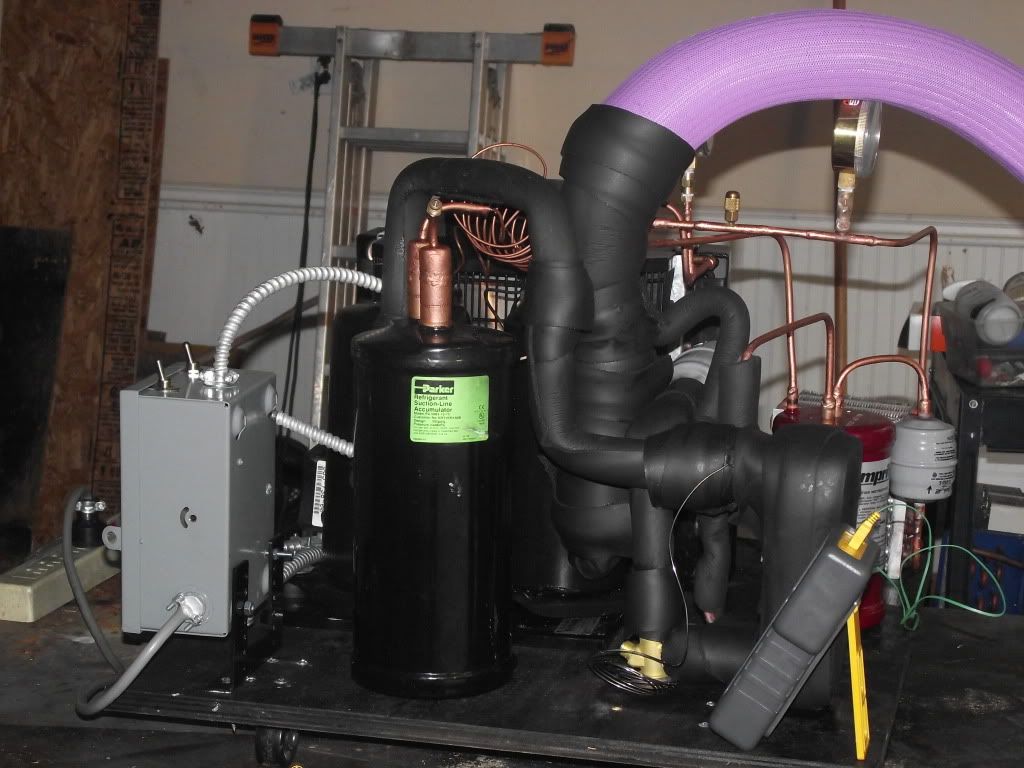

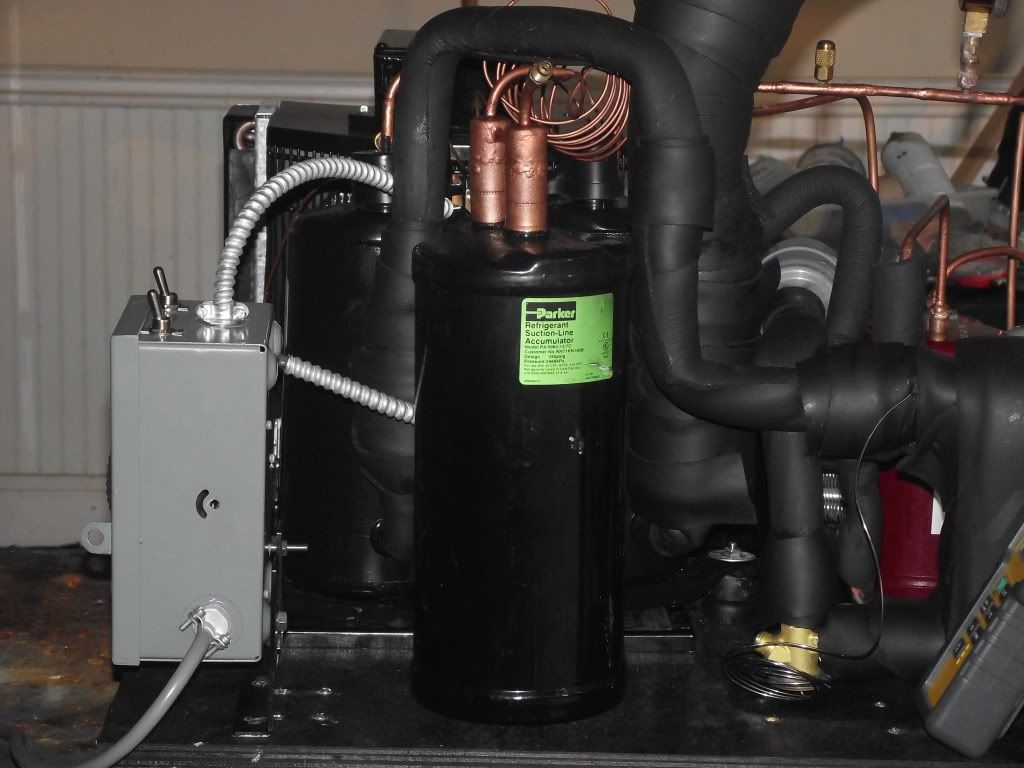

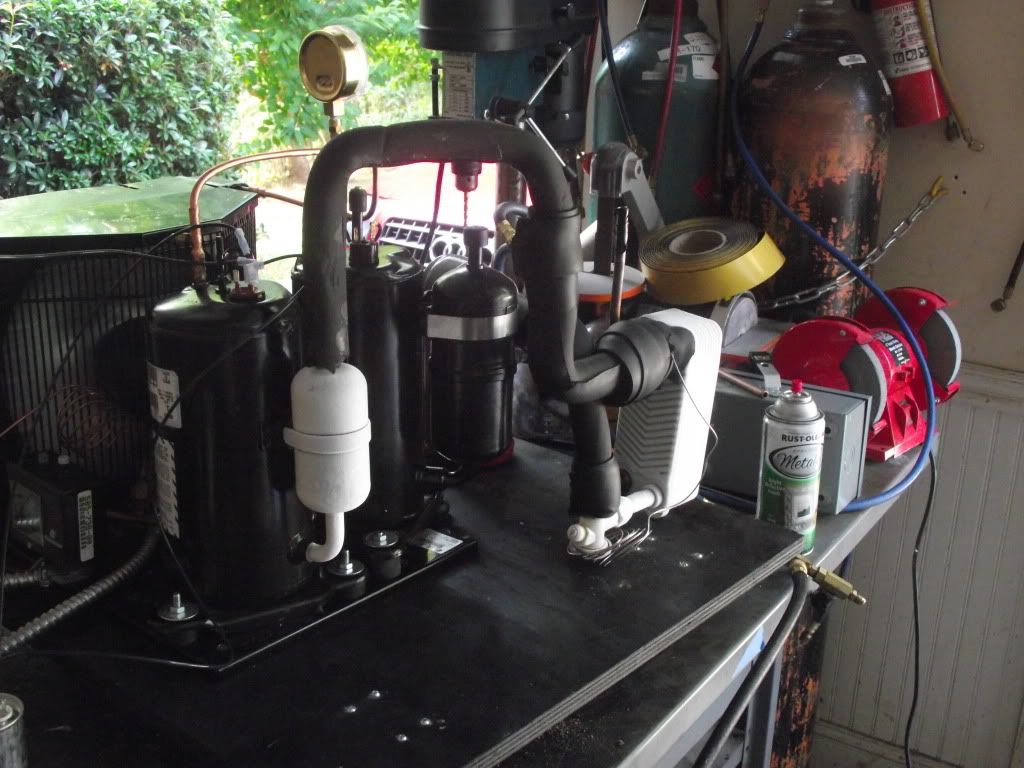

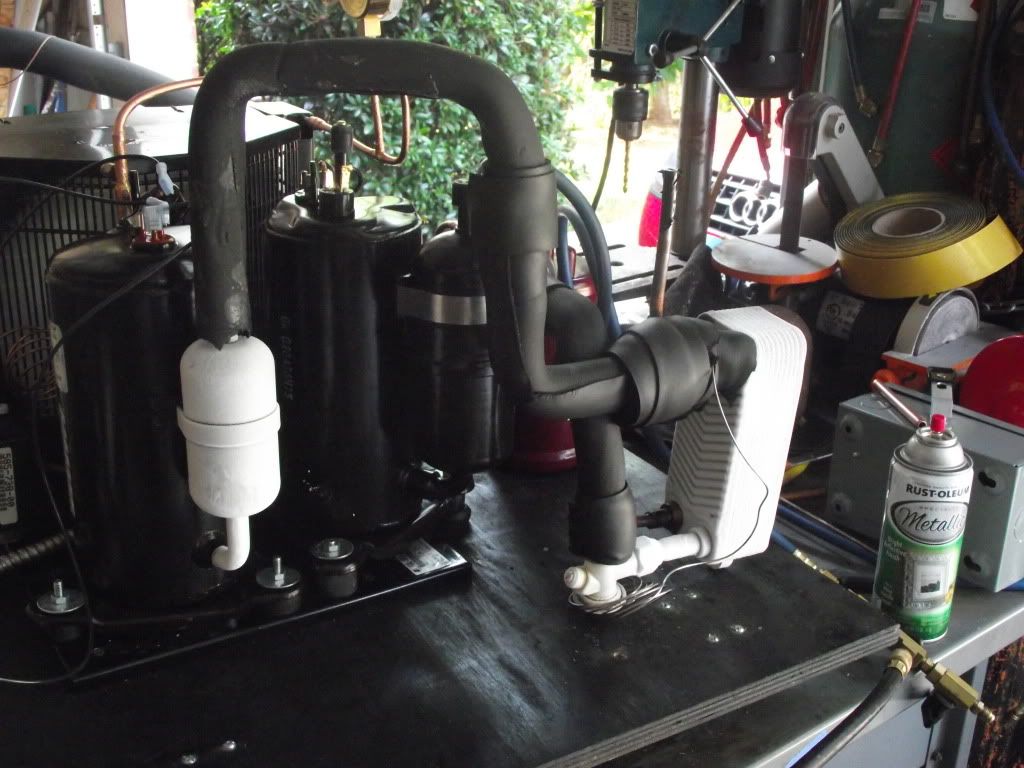

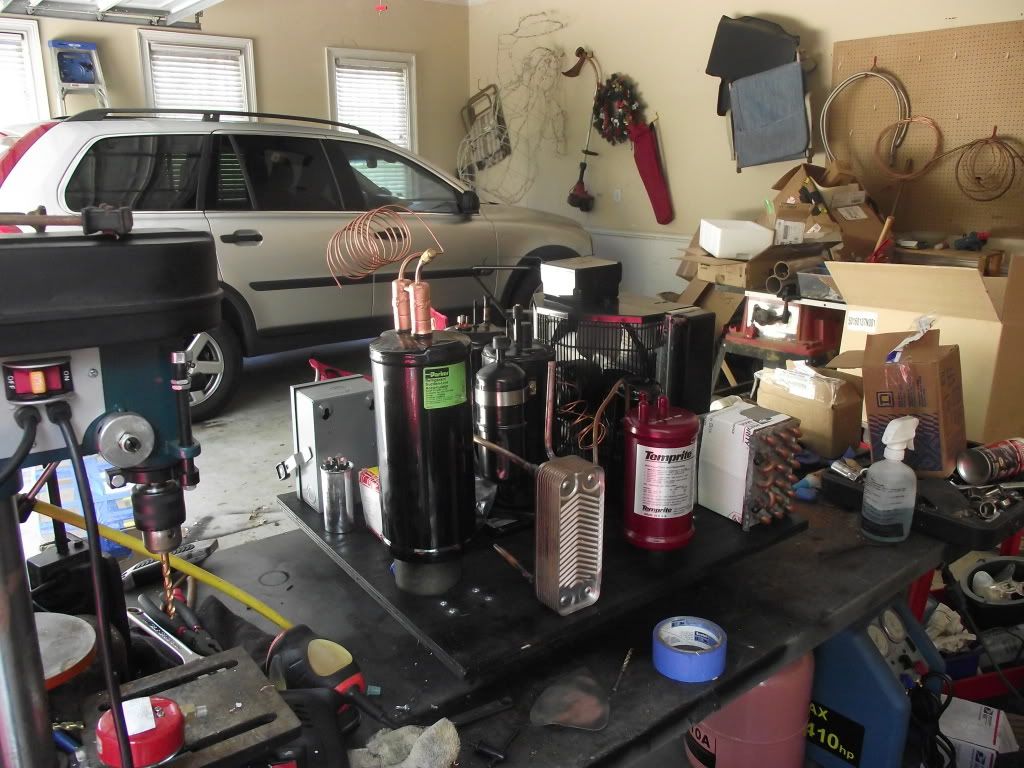

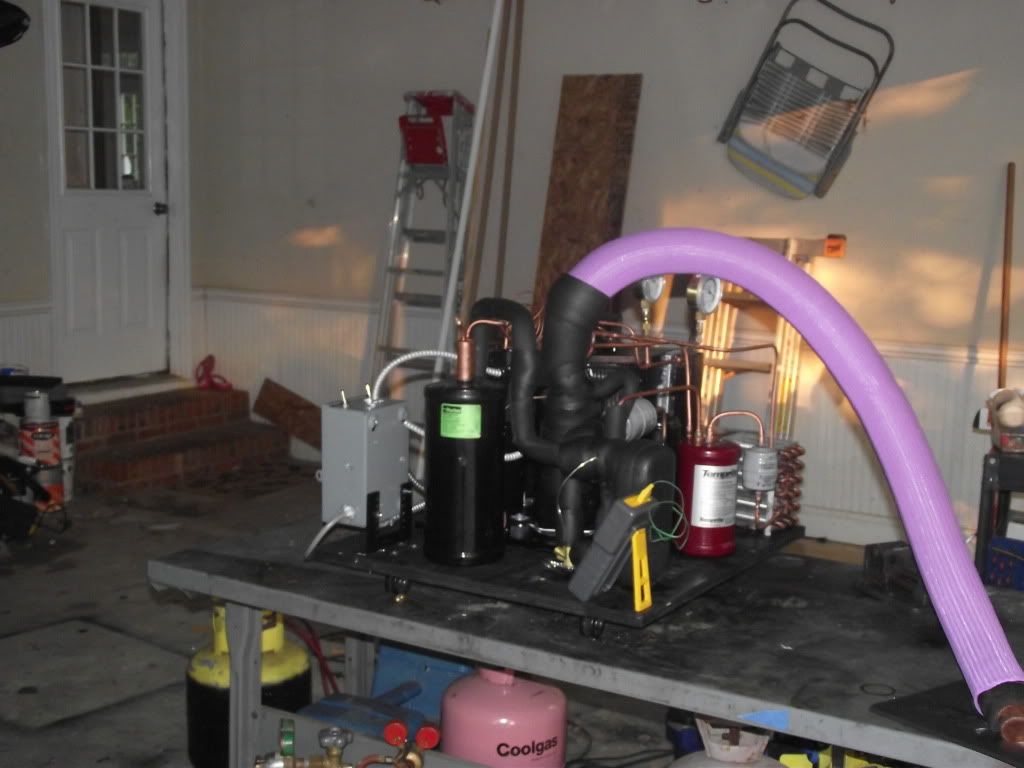

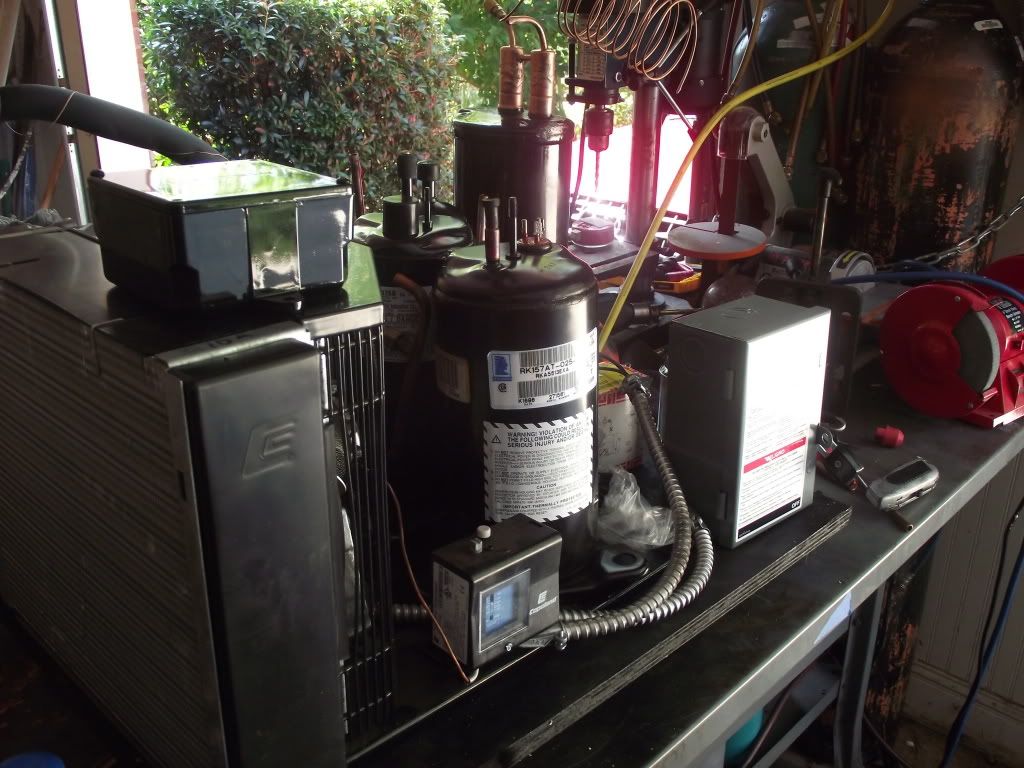

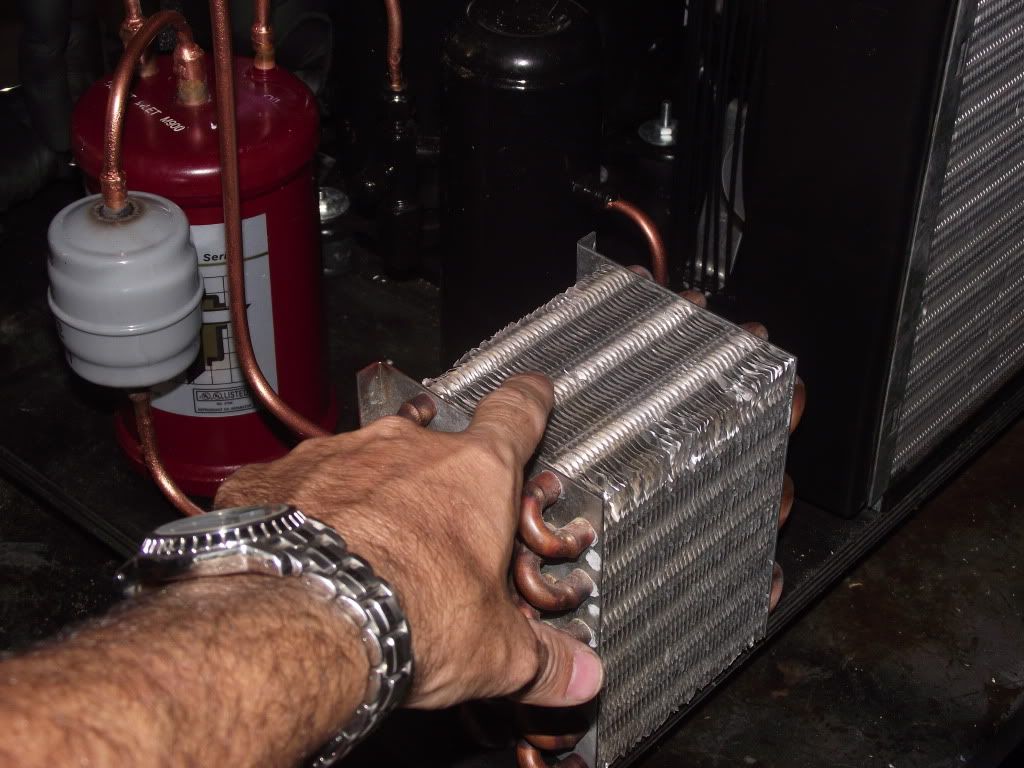

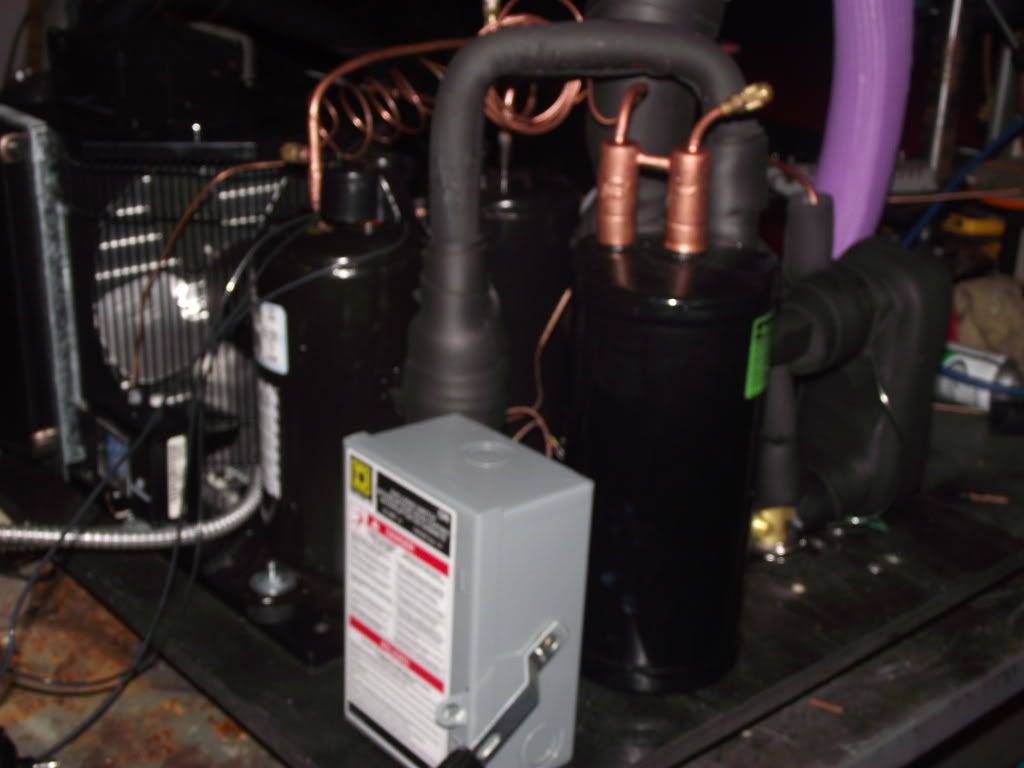

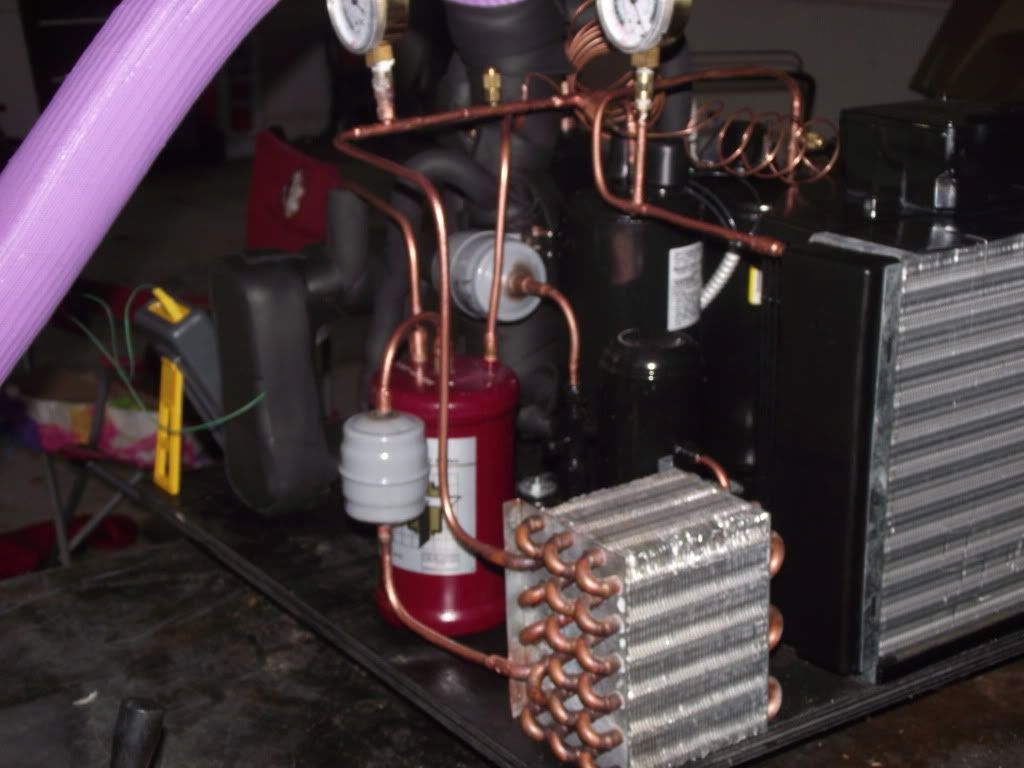

General layout..might change some...

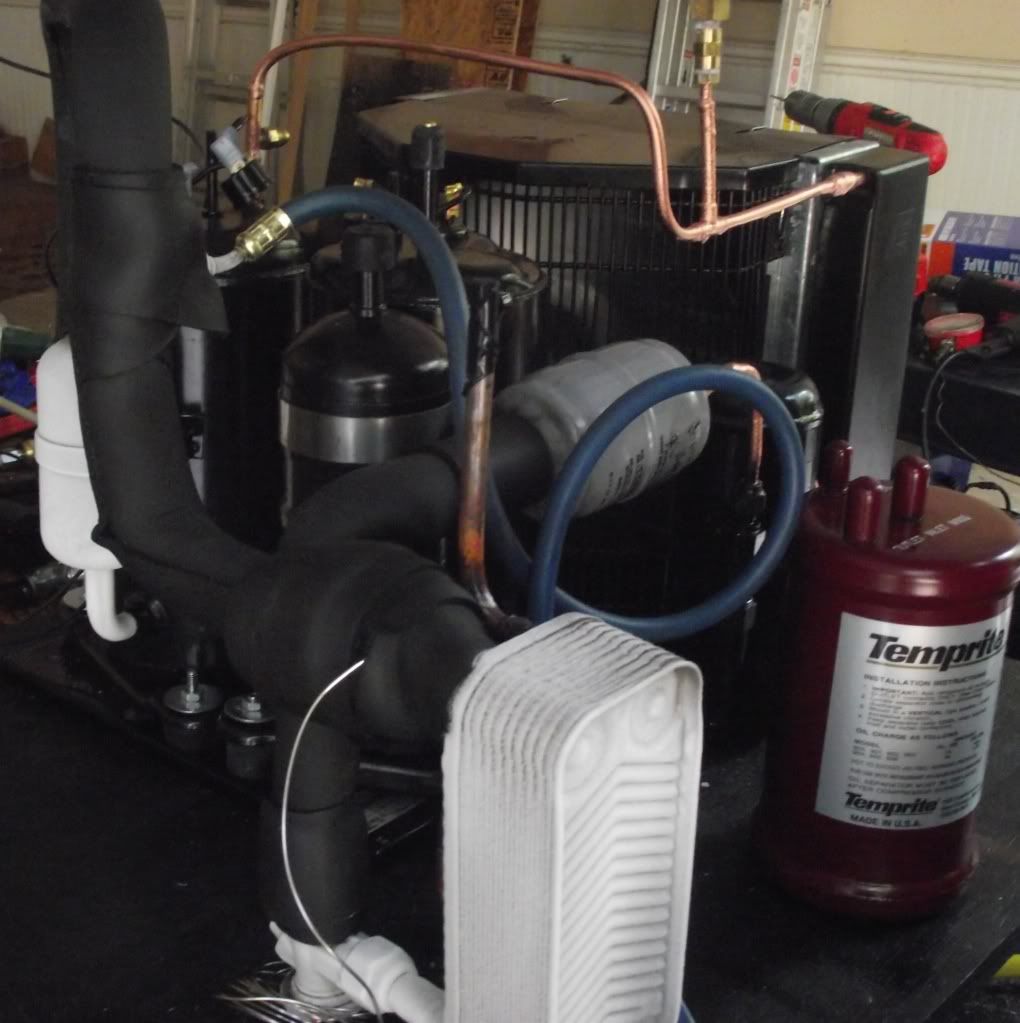

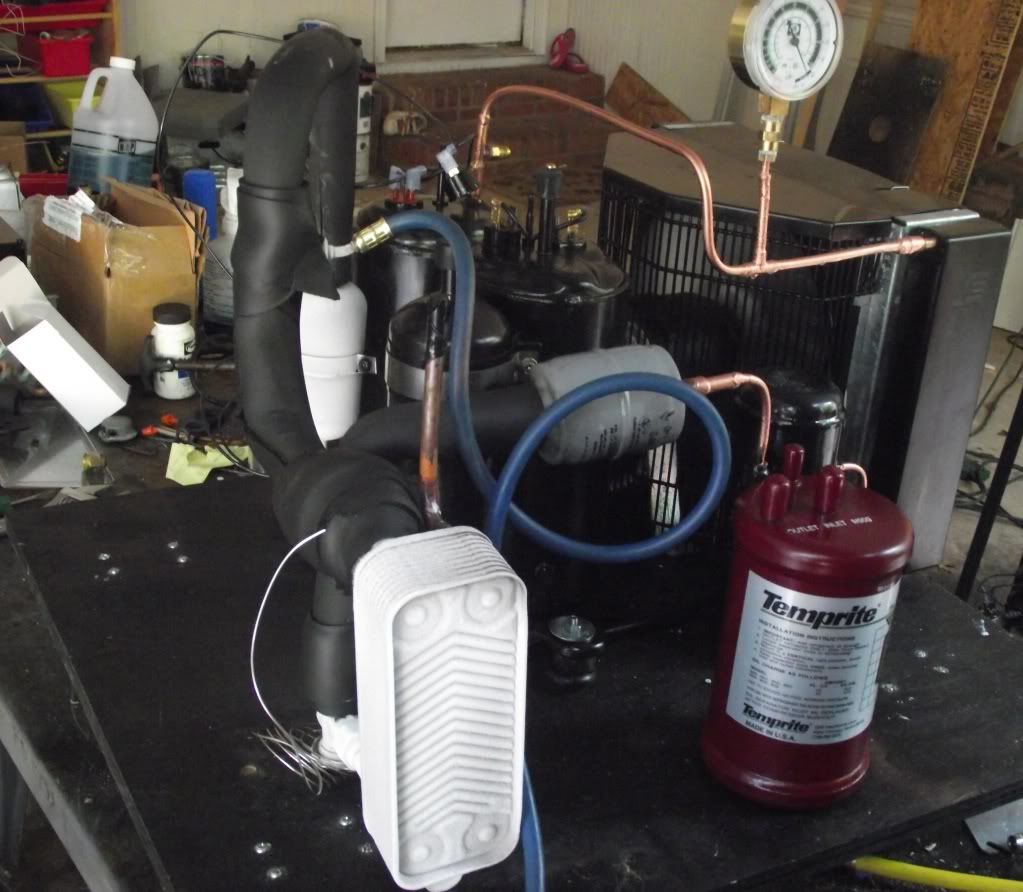

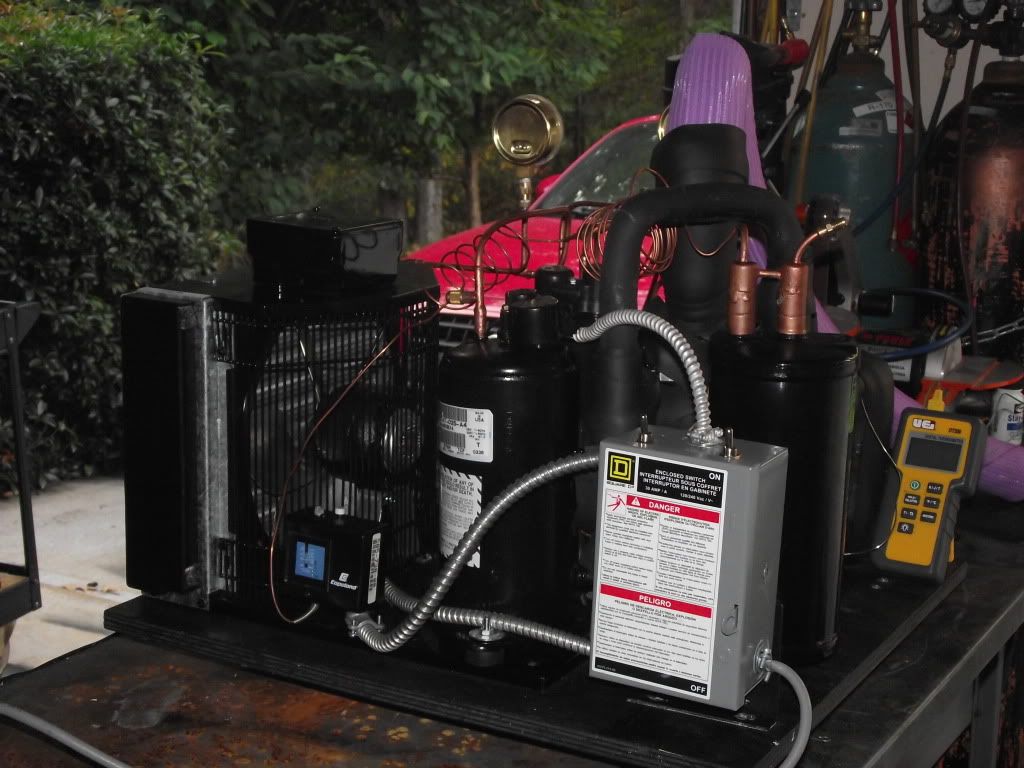

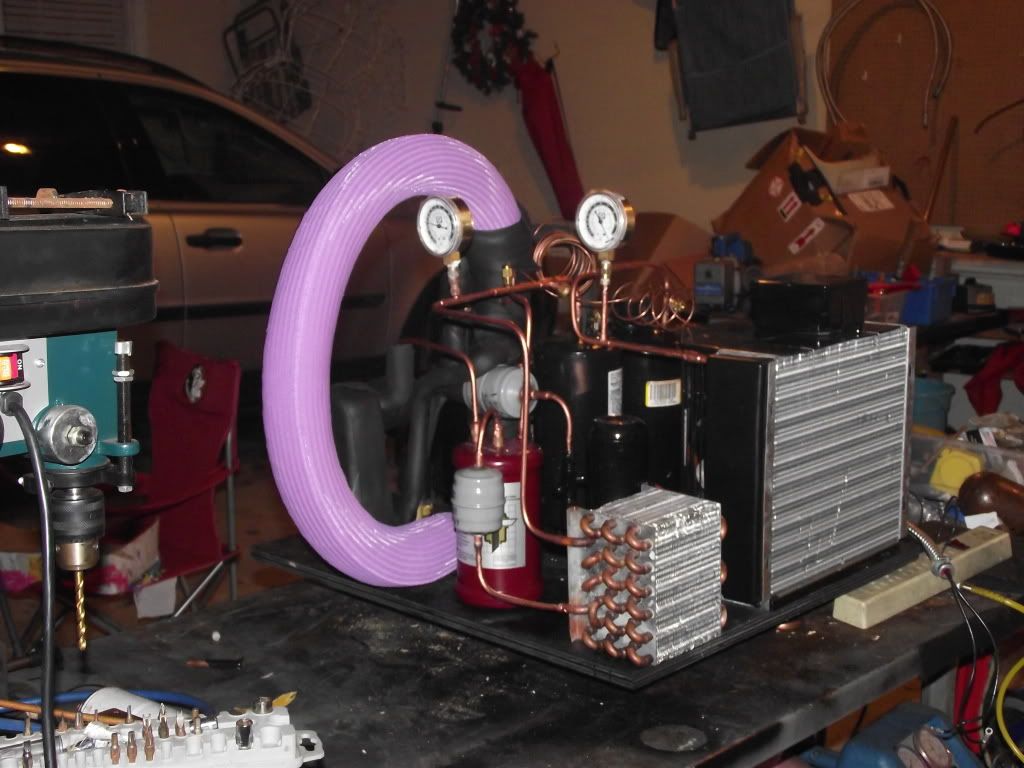

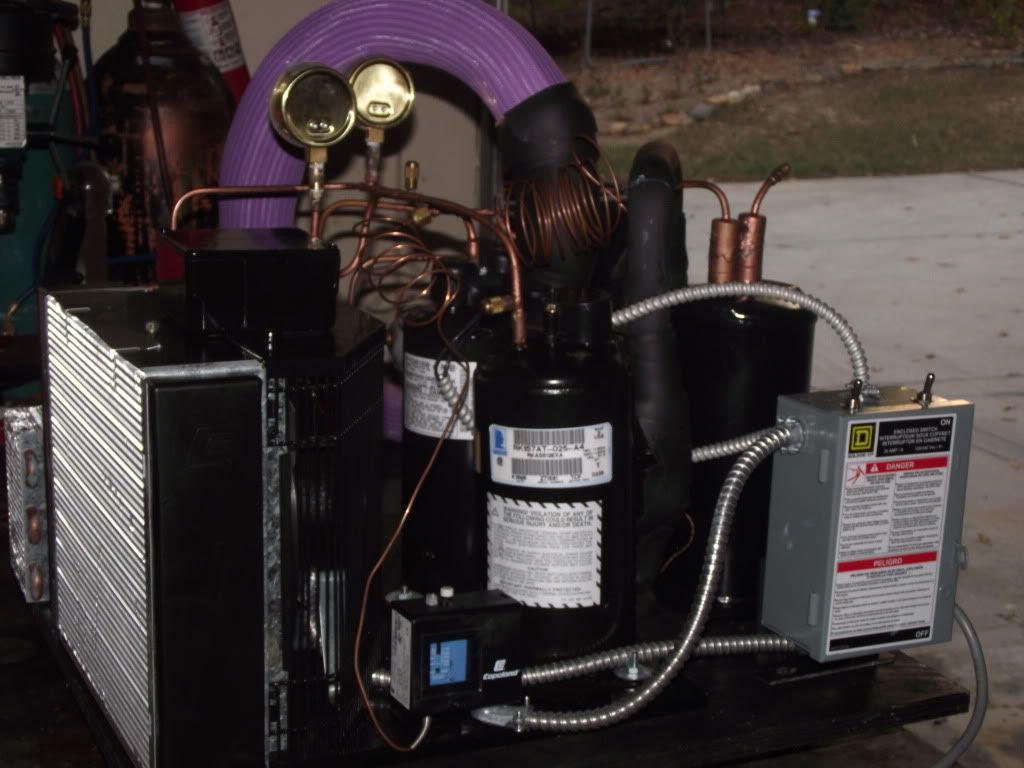

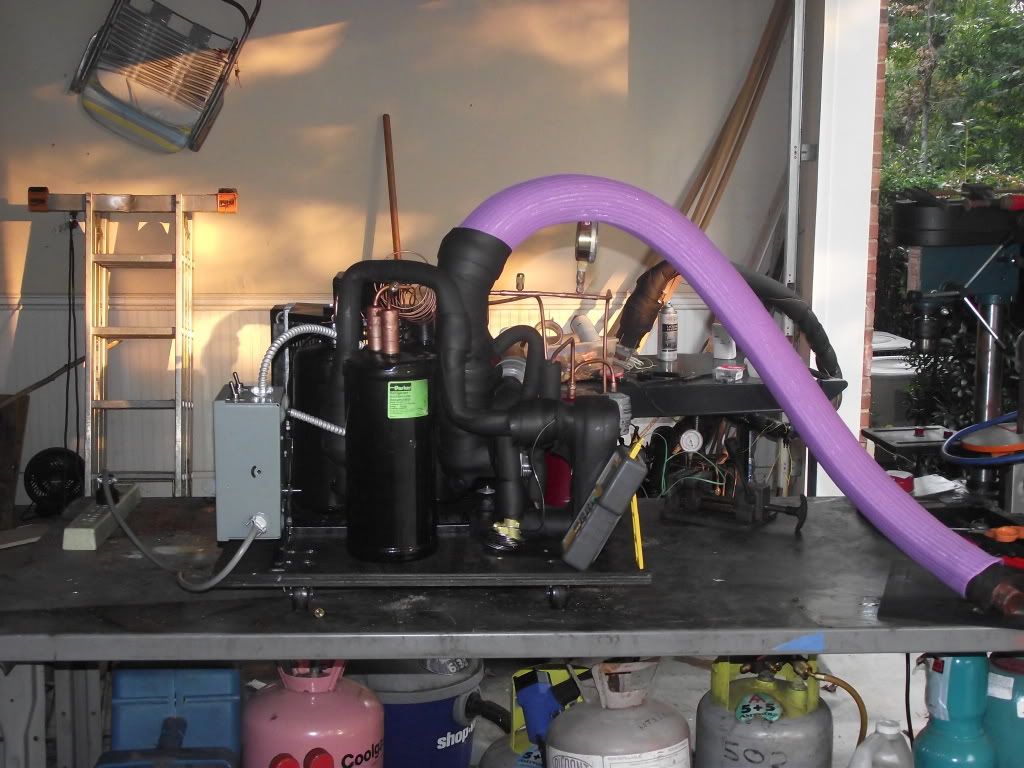

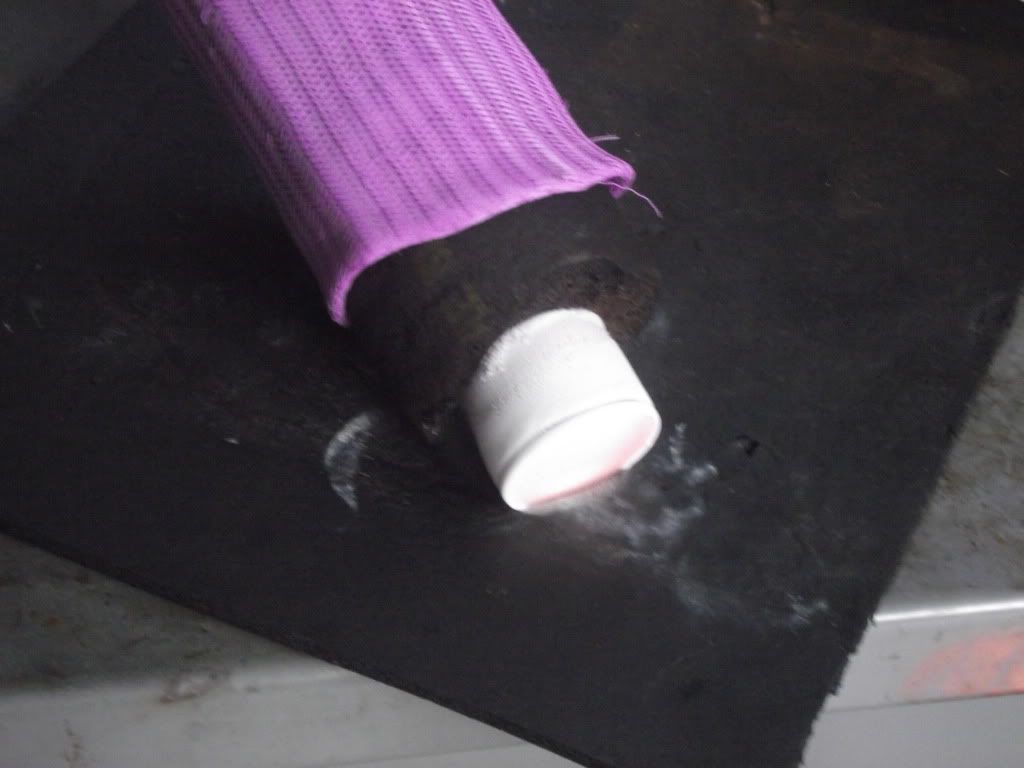

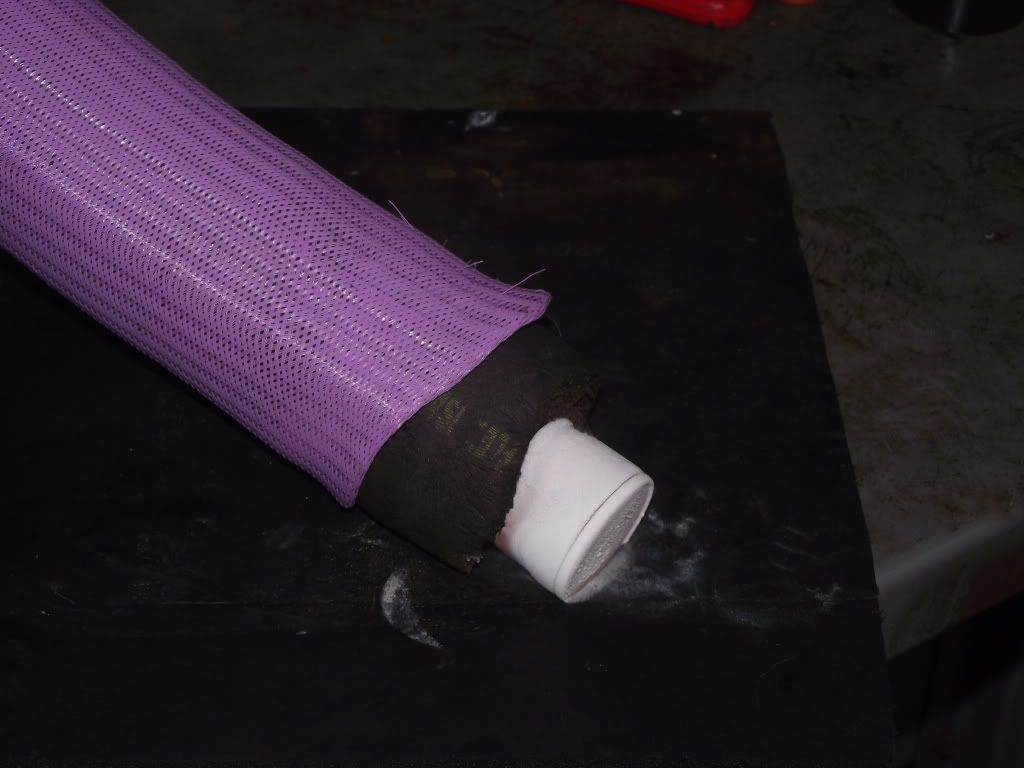

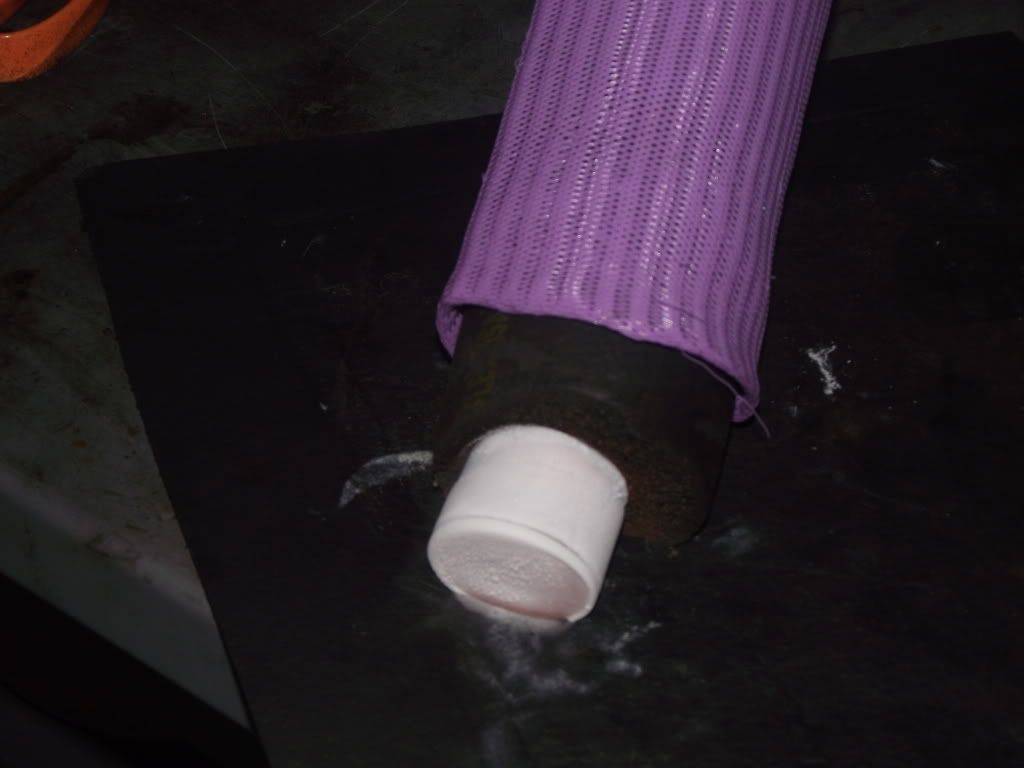

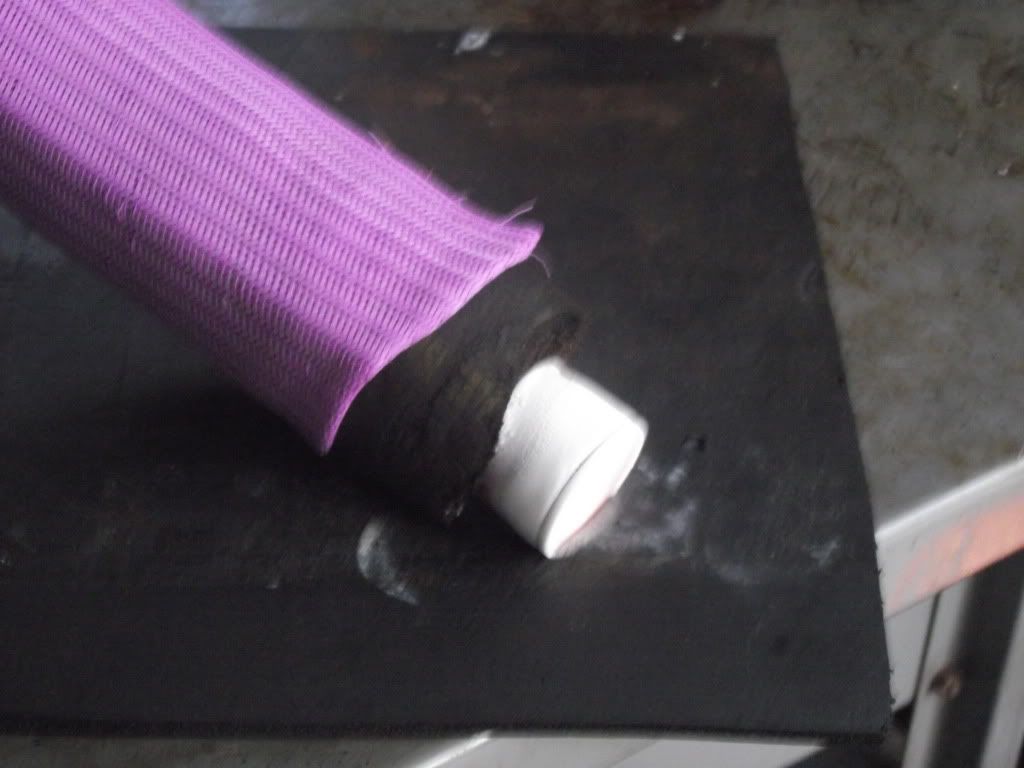

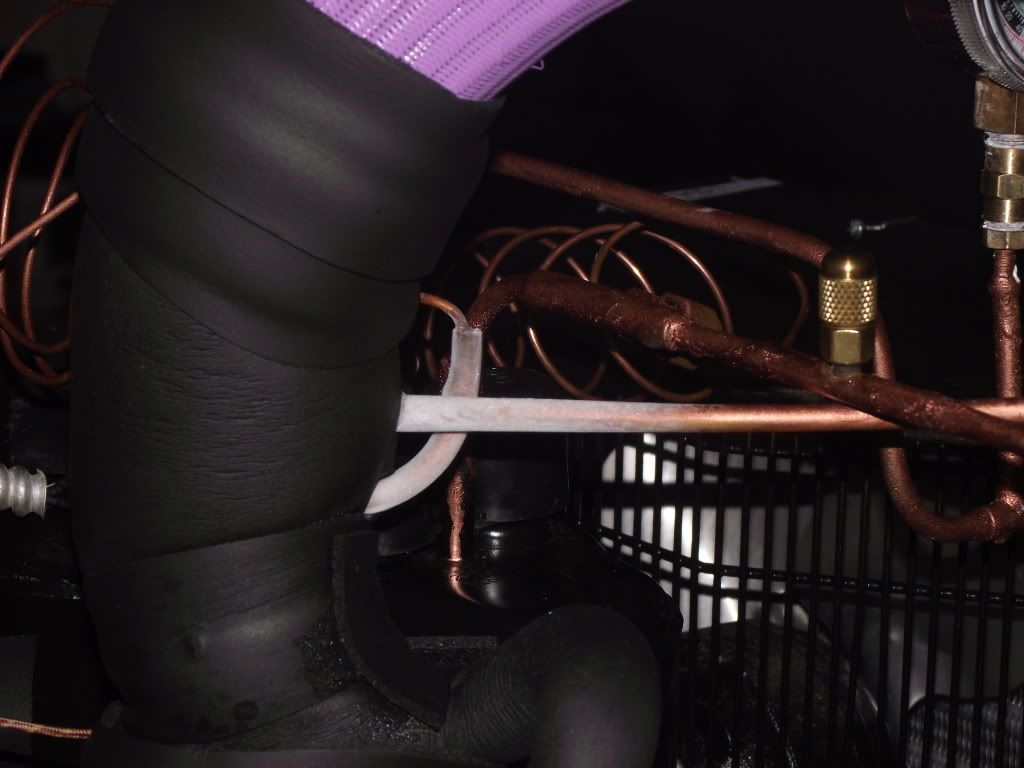

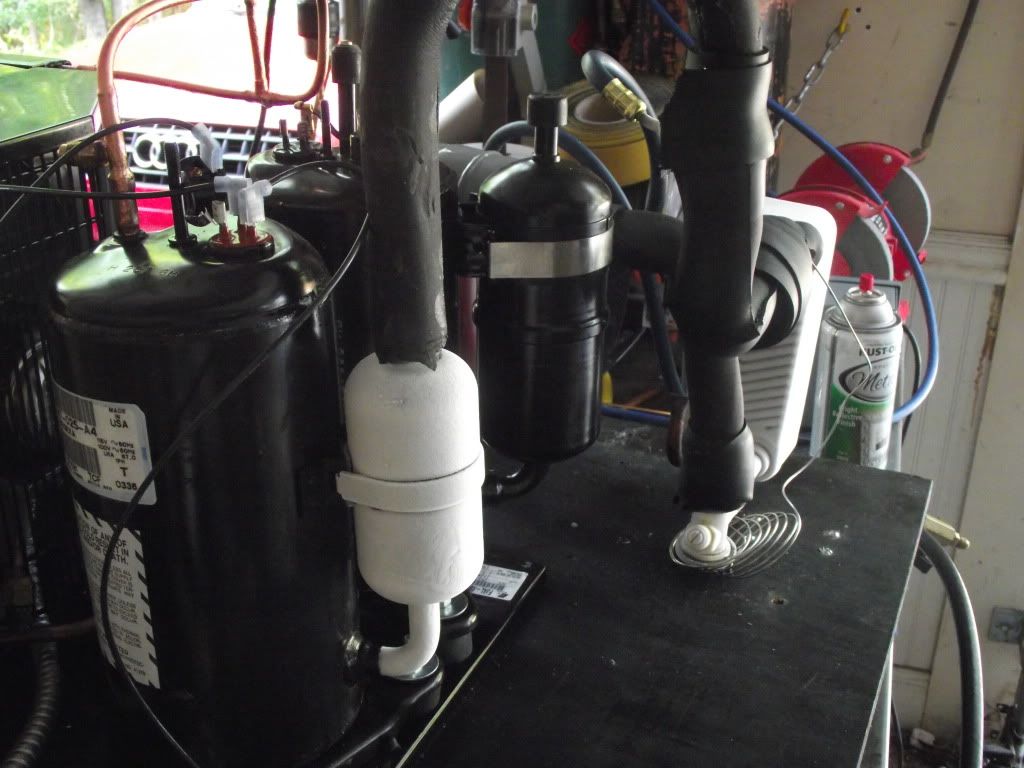

As promised first stage ICE...please excuse the mess the wiring is temporary at the moment just used to show that the first stage is complete and working correctly
































Edited by Sdumper - 9/22/10 at 4:36pm
My System
(15 items)


CPUMotherboardGraphicsGraphics
i5 2500k Biostar TZ77XE4 6950 6950
RAMHard DriveCoolingOS
8gb - DDR3 main: 120gb SSD 830 + 3 1tb drives Air Win7
MonitorPowerCase
3 x DELL ST242OL  OCZ 900W Lian-Li Custom
  hide details
Reply
My System
(15 items)


CPUMotherboardGraphicsGraphics
i5 2500k Biostar TZ77XE4 6950 6950
RAMHard DriveCoolingOS
8gb - DDR3 main: 120gb SSD 830 + 3 1tb drives Air Win7
MonitorPowerCase
3 x DELL ST242OL  OCZ 900W Lian-Li Custom
  hide details
Reply
post #2 of 57
Sweet!
Subbed
Freezing Devil
(16 items)


CPUMotherboardGraphicsRAM
|i7 4930K @ 4.5ghz 1.4v| |Asus Rampage IV Extreme| |2x MSI GTX 780 Lightning SLI @ 1306mhz 1.26v| |4x4gb T. Xtreem @ 2400mhz [9-12-12-31 2T] 1.65v|
Hard DriveHard DriveCoolingCooling
|2x 840 Pro 256gb RAID 0| |840 Evo 1tb| |Vertex 2 120gb| |WD Red 2tb| |EK Supremacy| |2x EK Lightning| |MCP655| |UT60 480 + 240 rad|
CoolingOSMonitorKeyboard
|Lamptron FC8| |6x Gentle Typhoon AP-15| |Windows 8.1 Pro x64| |27" QNIX QX2710 @ 2560x1440 120hz| |Logitech G710+|
PowerCaseMouseAudio
|Corsair AX 1200i + Red sleeved cables| |Fractal Define XL| |Logitech G500S| |QPad BF3 edition| |Asus Xonar D2X| |Logitech Z-906| |DT770 Pro|
  hide details
Reply
Freezing Devil
(16 items)


CPUMotherboardGraphicsRAM
|i7 4930K @ 4.5ghz 1.4v| |Asus Rampage IV Extreme| |2x MSI GTX 780 Lightning SLI @ 1306mhz 1.26v| |4x4gb T. Xtreem @ 2400mhz [9-12-12-31 2T] 1.65v|
Hard DriveHard DriveCoolingCooling
|2x 840 Pro 256gb RAID 0| |840 Evo 1tb| |Vertex 2 120gb| |WD Red 2tb| |EK Supremacy| |2x EK Lightning| |MCP655| |UT60 480 + 240 rad|
CoolingOSMonitorKeyboard
|Lamptron FC8| |6x Gentle Typhoon AP-15| |Windows 8.1 Pro x64| |27" QNIX QX2710 @ 2560x1440 120hz| |Logitech G710+|
PowerCaseMouseAudio
|Corsair AX 1200i + Red sleeved cables| |Fractal Define XL| |Logitech G500S| |QPad BF3 edition| |Asus Xonar D2X| |Logitech Z-906| |DT770 Pro|
  hide details
Reply
post #3 of 57
Thread Starter

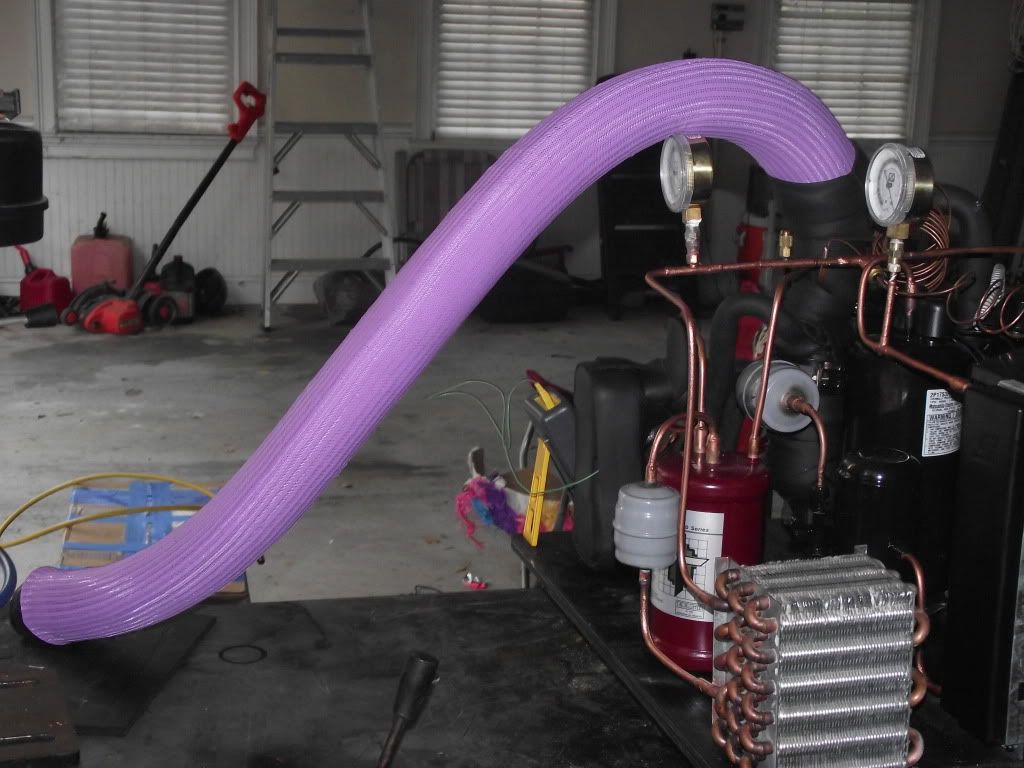

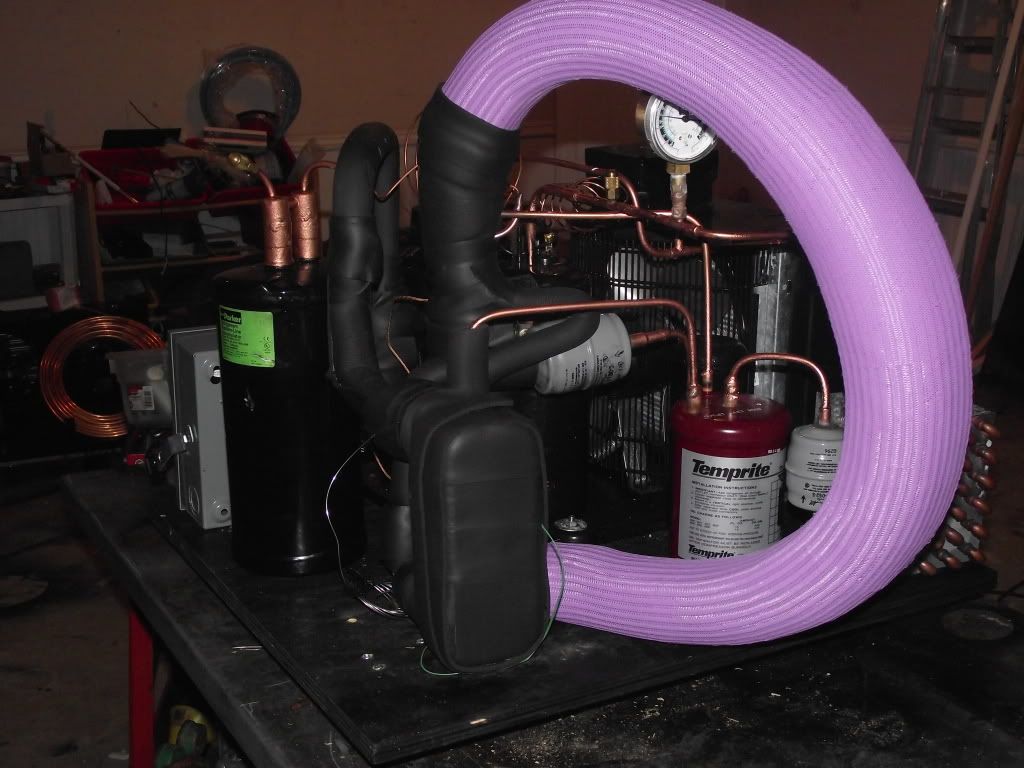

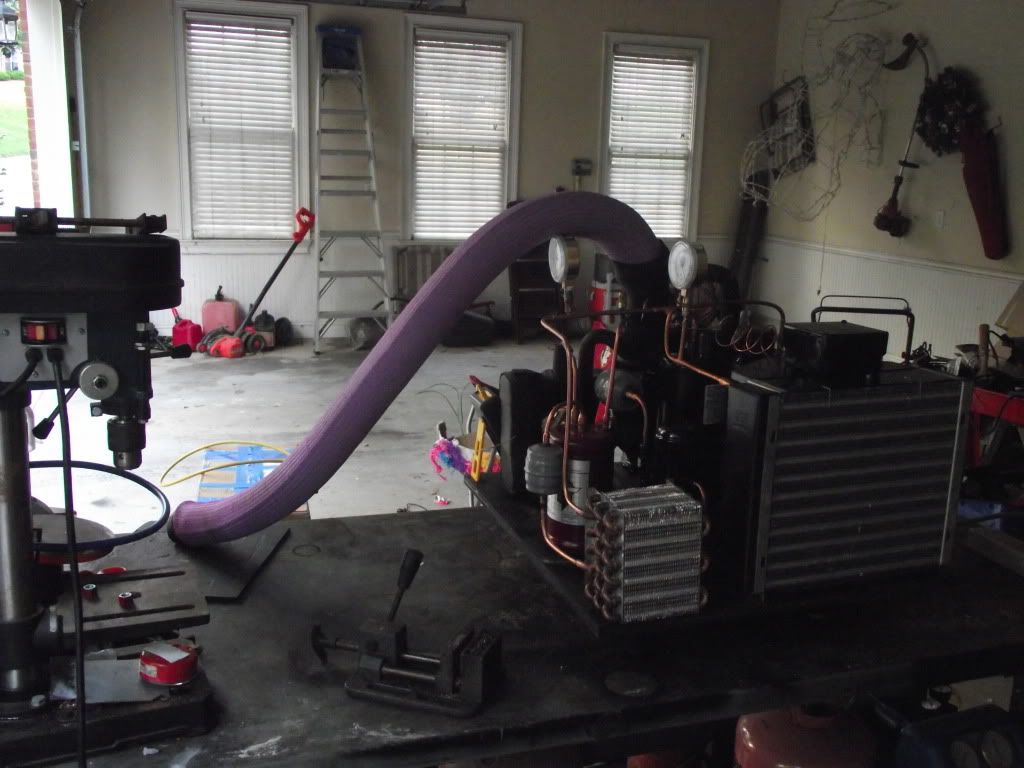

General layout..might change some...

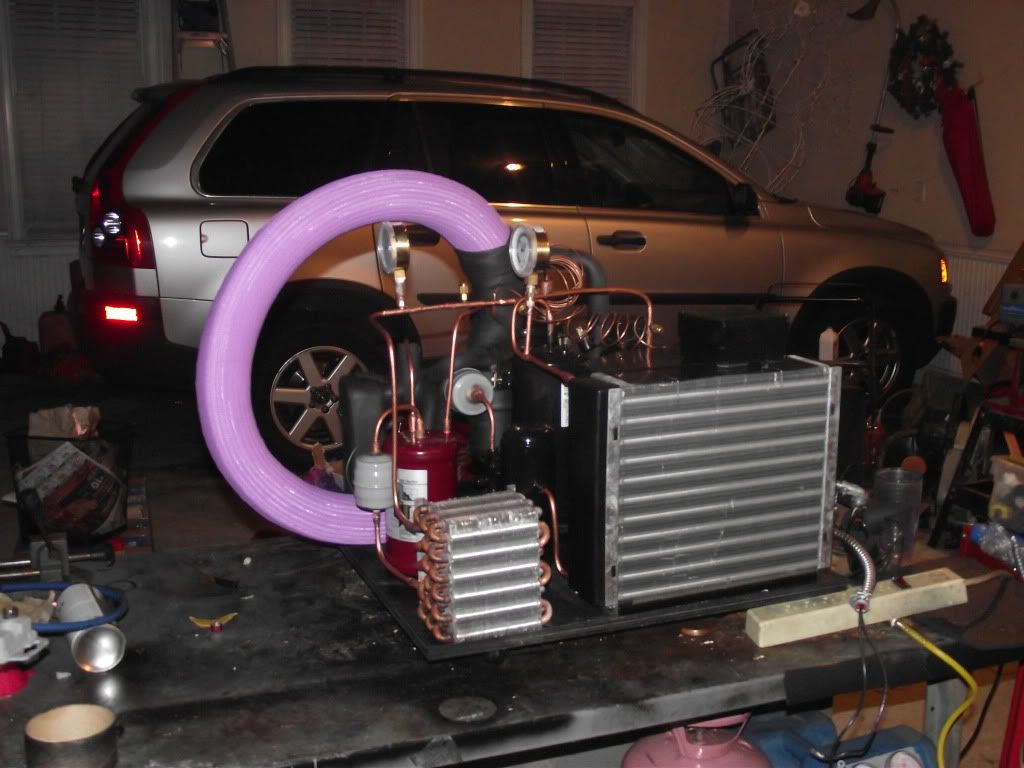

Vacuuming first stage:


Edited by Sdumper - 9/16/10 at 9:26pm
My System
(15 items)


CPUMotherboardGraphicsGraphics
i5 2500k Biostar TZ77XE4 6950 6950
RAMHard DriveCoolingOS
8gb - DDR3 main: 120gb SSD 830 + 3 1tb drives Air Win7
MonitorPowerCase
3 x DELL ST242OL  OCZ 900W Lian-Li Custom
  hide details
Reply
My System
(15 items)


CPUMotherboardGraphicsGraphics
i5 2500k Biostar TZ77XE4 6950 6950
RAMHard DriveCoolingOS
8gb - DDR3 main: 120gb SSD 830 + 3 1tb drives Air Win7
MonitorPowerCase
3 x DELL ST242OL  OCZ 900W Lian-Li Custom
  hide details
Reply
post #4 of 57
Thread Starter
Place holder
My System
(15 items)


CPUMotherboardGraphicsGraphics
i5 2500k Biostar TZ77XE4 6950 6950
RAMHard DriveCoolingOS
8gb - DDR3 main: 120gb SSD 830 + 3 1tb drives Air Win7
MonitorPowerCase
3 x DELL ST242OL  OCZ 900W Lian-Li Custom
  hide details
Reply
My System
(15 items)


CPUMotherboardGraphicsGraphics
i5 2500k Biostar TZ77XE4 6950 6950
RAMHard DriveCoolingOS
8gb - DDR3 main: 120gb SSD 830 + 3 1tb drives Air Win7
MonitorPowerCase
3 x DELL ST242OL  OCZ 900W Lian-Li Custom
  hide details
Reply
post #5 of 57
Im waiting with my popcorn^^
Freezing Devil
(16 items)


CPUMotherboardGraphicsRAM
|i7 4930K @ 4.5ghz 1.4v| |Asus Rampage IV Extreme| |2x MSI GTX 780 Lightning SLI @ 1306mhz 1.26v| |4x4gb T. Xtreem @ 2400mhz [9-12-12-31 2T] 1.65v|
Hard DriveHard DriveCoolingCooling
|2x 840 Pro 256gb RAID 0| |840 Evo 1tb| |Vertex 2 120gb| |WD Red 2tb| |EK Supremacy| |2x EK Lightning| |MCP655| |UT60 480 + 240 rad|
CoolingOSMonitorKeyboard
|Lamptron FC8| |6x Gentle Typhoon AP-15| |Windows 8.1 Pro x64| |27" QNIX QX2710 @ 2560x1440 120hz| |Logitech G710+|
PowerCaseMouseAudio
|Corsair AX 1200i + Red sleeved cables| |Fractal Define XL| |Logitech G500S| |QPad BF3 edition| |Asus Xonar D2X| |Logitech Z-906| |DT770 Pro|
  hide details
Reply
Freezing Devil
(16 items)


CPUMotherboardGraphicsRAM
|i7 4930K @ 4.5ghz 1.4v| |Asus Rampage IV Extreme| |2x MSI GTX 780 Lightning SLI @ 1306mhz 1.26v| |4x4gb T. Xtreem @ 2400mhz [9-12-12-31 2T] 1.65v|
Hard DriveHard DriveCoolingCooling
|2x 840 Pro 256gb RAID 0| |840 Evo 1tb| |Vertex 2 120gb| |WD Red 2tb| |EK Supremacy| |2x EK Lightning| |MCP655| |UT60 480 + 240 rad|
CoolingOSMonitorKeyboard
|Lamptron FC8| |6x Gentle Typhoon AP-15| |Windows 8.1 Pro x64| |27" QNIX QX2710 @ 2560x1440 120hz| |Logitech G710+|
PowerCaseMouseAudio
|Corsair AX 1200i + Red sleeved cables| |Fractal Define XL| |Logitech G500S| |QPad BF3 edition| |Asus Xonar D2X| |Logitech Z-906| |DT770 Pro|
  hide details
Reply
post #6 of 57
Thread Starter
Stage 1 complete pressure testing...
Will vacuum tonight and ice tomorrow.
I am out of town this weekend at the FSU vs BYU game so wont start and finish stage2 until Monday but stage 2 ice Tuesday..
My System
(15 items)


CPUMotherboardGraphicsGraphics
i5 2500k Biostar TZ77XE4 6950 6950
RAMHard DriveCoolingOS
8gb - DDR3 main: 120gb SSD 830 + 3 1tb drives Air Win7
MonitorPowerCase
3 x DELL ST242OL  OCZ 900W Lian-Li Custom
  hide details
Reply
My System
(15 items)


CPUMotherboardGraphicsGraphics
i5 2500k Biostar TZ77XE4 6950 6950
RAMHard DriveCoolingOS
8gb - DDR3 main: 120gb SSD 830 + 3 1tb drives Air Win7
MonitorPowerCase
3 x DELL ST242OL  OCZ 900W Lian-Li Custom
  hide details
Reply
post #7 of 57
Thread Starter
Going to bed but its pulling a nice vacuum so far...


My System
(15 items)


CPUMotherboardGraphicsGraphics
i5 2500k Biostar TZ77XE4 6950 6950
RAMHard DriveCoolingOS
8gb - DDR3 main: 120gb SSD 830 + 3 1tb drives Air Win7
MonitorPowerCase
3 x DELL ST242OL  OCZ 900W Lian-Li Custom
  hide details
Reply
My System
(15 items)


CPUMotherboardGraphicsGraphics
i5 2500k Biostar TZ77XE4 6950 6950
RAMHard DriveCoolingOS
8gb - DDR3 main: 120gb SSD 830 + 3 1tb drives Air Win7
MonitorPowerCase
3 x DELL ST242OL  OCZ 900W Lian-Li Custom
  hide details
Reply
post #8 of 57
Thread Starter

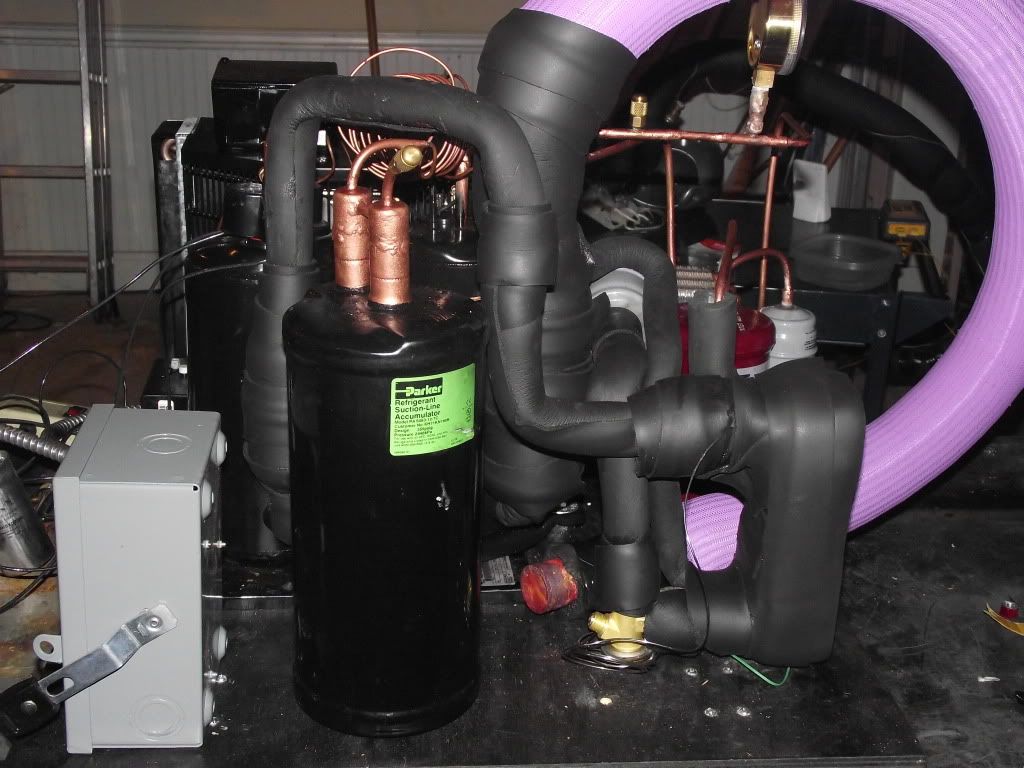

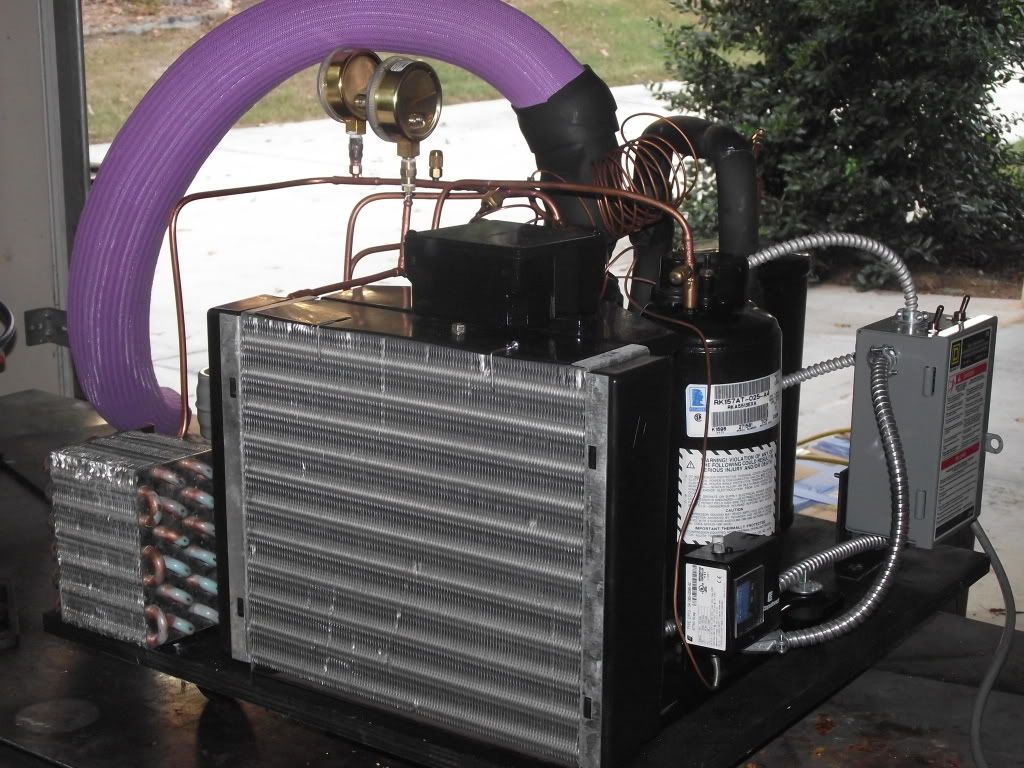

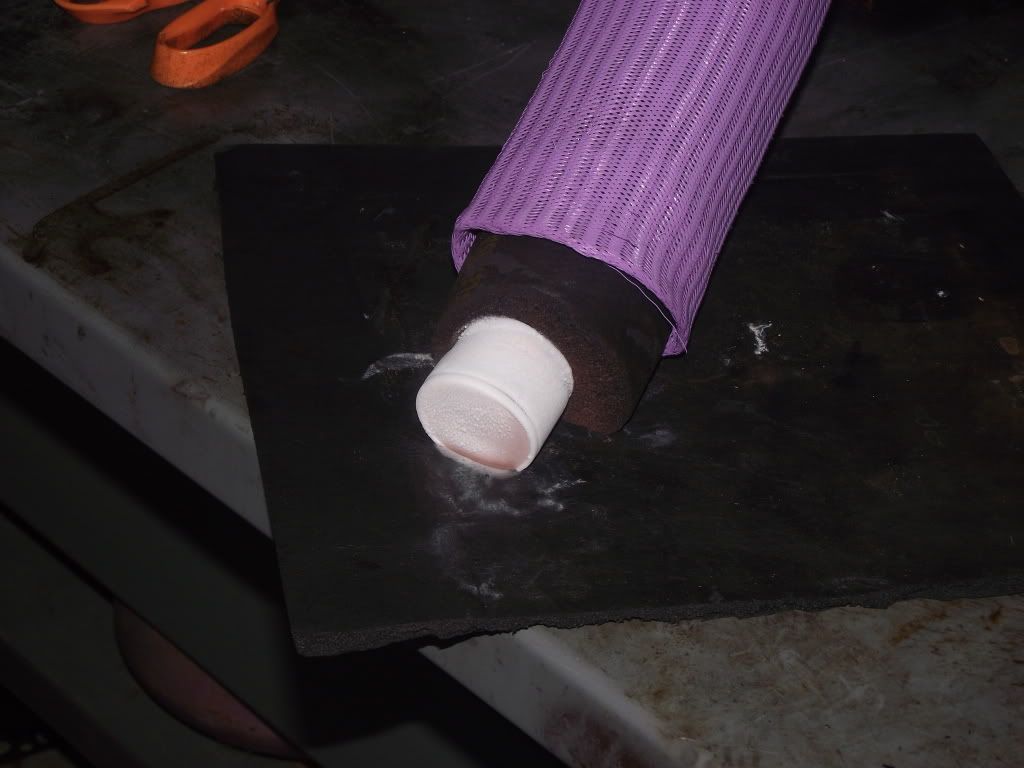

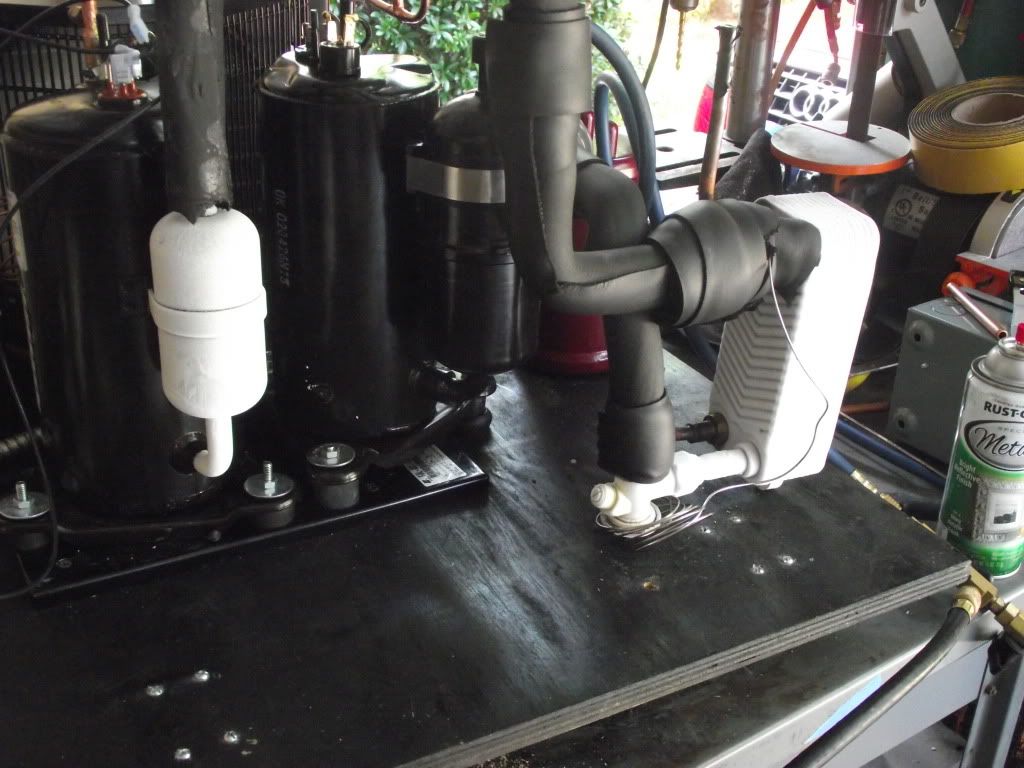

As promised first stage ICE...please excuse the mess the wiring is temporary at the moment just used to show that the first stage is complete and working correctly
