I just understood how it works if you hook up 2-3 cards with the EK bridge or all fittings. Also I am back to SLI with 2 full cover blocks.

My question is, would the water flow be seriously decreased if I did this? And I suppose both cards would run at the same temps? Usually the second card always ran 4-6C hotter than the first when I had SLI 2 months ago. I would only be cooling 2 cards and a CPU. Here is a mock up of how I can do it. I have 2 extra compression fittings as well.

Parallel


Series

Edited by 88EVGAFTW - 10/17/10 at 4:15pm
Warranty Void
(13 items)


CPUMotherboardGraphicsHard Drive
i3 530 @ 4.440 Gigabyte P55A UD3 GTX 470 40GB Maxtor IDE Raid 0, 1TB SSD
Optical DriveOSMonitorKeyboard
Sony Optiarc DVDR/CDR SATA Windows 7 Pro X64 Acer 23" 1080P ABS M1
PowerCaseMouseMouse Pad
Cooler Master 600 HAF X9 Logitech G500 desktop
  hide details
Reply
Warranty Void
(13 items)


CPUMotherboardGraphicsHard Drive
i3 530 @ 4.440 Gigabyte P55A UD3 GTX 470 40GB Maxtor IDE Raid 0, 1TB SSD
Optical DriveOSMonitorKeyboard
Sony Optiarc DVDR/CDR SATA Windows 7 Pro X64 Acer 23" 1080P ABS M1
PowerCaseMouseMouse Pad
Cooler Master 600 HAF X9 Logitech G500 desktop
  hide details
Reply
post #2 of 20
I would do it in series, just personal preference.

CPUMotherboardGraphicsRAM
Xeon w3680 Gigabyte X58A-UD3R GTX 295 Engineering Samples 2X Corsair XMS3
Hard DriveHard DriveCoolingOS
Sandisk SSD Seagate Corsair H50 W7 Ult
MonitorMonitorKeyboardCase
Viewsonic VA1912wb Viewsonic VA912b K350 CM HAF
Mouse
Logitech M570
  hide details
Reply

CPUMotherboardGraphicsRAM
Xeon w3680 Gigabyte X58A-UD3R GTX 295 Engineering Samples 2X Corsair XMS3
Hard DriveHard DriveCoolingOS
Sandisk SSD Seagate Corsair H50 W7 Ult
MonitorMonitorKeyboardCase
Viewsonic VA1912wb Viewsonic VA912b K350 CM HAF
Mouse
Logitech M570
  hide details
Reply
post #3 of 20
Parallel configuration offers higher loop flow rates and more even GPU temperature however, you can run into problems with laminar flow if you use a triple or quadruple parallel configuration with low flow rates.

Basically you need to have 0.7 GPM+ going to each card or else you might start to get laminar flow, which will severely increase your temperatures.
Labor of Love
(14 items)


CPUMotherboardGraphicsRAM
2600k @ 5.0 GHz/1.42v ASUS P8P67 Pro MSI GTX 670 OC 20 GB/1600/7-7-7-24
Hard DriveHard DriveOptical DriveOS
120GB Vertex SSD Western Digital 1TB None! Ubuntu 12.04/Win8/OSX 10.8.2
MonitorKeyboardPowerCase
27" 1440p X-Star OCN Mechanical - MX Browns Seasonic X-560 800D w/RX480 top mounted
Mouse
Logitech USB Generic
  hide details
Reply
Labor of Love
(14 items)


CPUMotherboardGraphicsRAM
2600k @ 5.0 GHz/1.42v ASUS P8P67 Pro MSI GTX 670 OC 20 GB/1600/7-7-7-24
Hard DriveHard DriveOptical DriveOS
120GB Vertex SSD Western Digital 1TB None! Ubuntu 12.04/Win8/OSX 10.8.2
MonitorKeyboardPowerCase
27" 1440p X-Star OCN Mechanical - MX Browns Seasonic X-560 800D w/RX480 top mounted
Mouse
Logitech USB Generic
  hide details
Reply
post #4 of 20
Series, assuming your using a pump with decent head pressure such as a Swiftech MCP655.
J III
(20 items)


CPUMotherboardGraphicsRAM
Intel Core i7-3930K @ 5GHz  Asus Rampage IV Gene X79 Gigabyte GTX 970 OC  16GB G.Skill Trident DDR3 2400 @ 9-11-11-31
Hard DriveHard DriveHard DriveOptical Drive
OCZ Vertex 4 256GB Crucial M4 C400 64GB Western Digital 2TB LG BH10 10x BD-R Burner
CoolingCoolingCoolingCooling
Apogee Extreme XT CPU Waterblock Swiftech MCR-320 Radiator Swiftech MCP655 D5 Vario Pump XSPC Dual Bay Reservoir With D5 Pump Mount
OSMonitorMonitorKeyboard
Windows 8.1 Pro x64 Acer HN274H 3D 27"  Sony Bravia 40EX400 40" Microsoft Sidewinder X4
PowerCaseMouseMouse Pad
Corsair AX1200 Lian-Li PC-T60B Tech Bench Logitech G5 Steelseries I-1 Glass
  hide details
Reply
J III
(20 items)


CPUMotherboardGraphicsRAM
Intel Core i7-3930K @ 5GHz  Asus Rampage IV Gene X79 Gigabyte GTX 970 OC  16GB G.Skill Trident DDR3 2400 @ 9-11-11-31
Hard DriveHard DriveHard DriveOptical Drive
OCZ Vertex 4 256GB Crucial M4 C400 64GB Western Digital 2TB LG BH10 10x BD-R Burner
CoolingCoolingCoolingCooling
Apogee Extreme XT CPU Waterblock Swiftech MCR-320 Radiator Swiftech MCP655 D5 Vario Pump XSPC Dual Bay Reservoir With D5 Pump Mount
OSMonitorMonitorKeyboard
Windows 8.1 Pro x64 Acer HN274H 3D 27"  Sony Bravia 40EX400 40" Microsoft Sidewinder X4
PowerCaseMouseMouse Pad
Corsair AX1200 Lian-Li PC-T60B Tech Bench Logitech G5 Steelseries I-1 Glass
  hide details
Reply
post #5 of 20
Based on your loop, it does not matter. Either way the water is going to have to go through both gpu's then res. It is personal preference.

Here is a thread based on what you are asking, enjoy! http://hardforum.com/showthread.php?p=1036210442

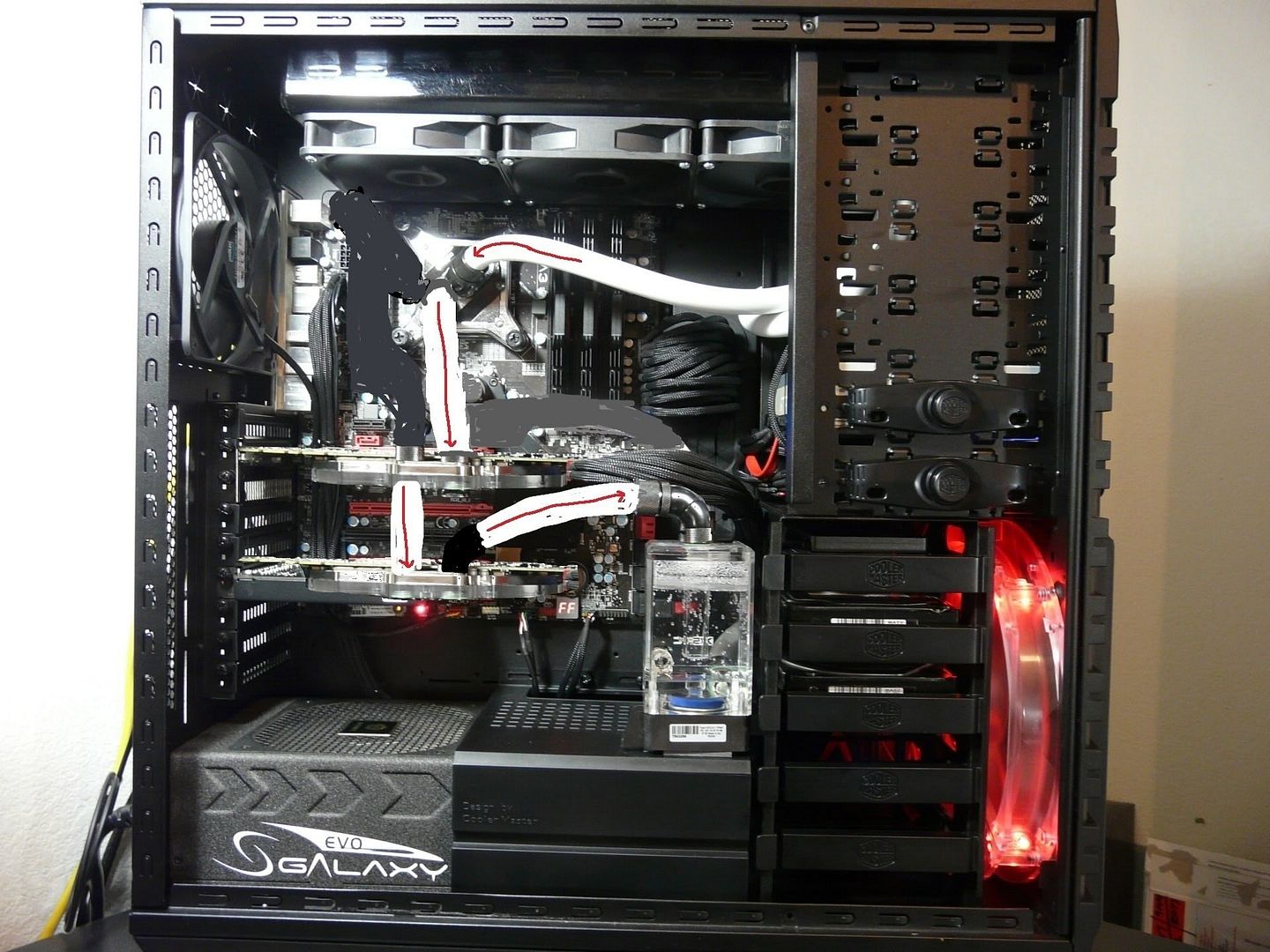

Based on those pics, your setup is always series
