The [Official] Lian Li PC-A05 Club

post #1 of 3675
Thread Starter


Welcome to the LIAN LI PC-A05 Club
The Biggest Little Case in the World.


New Revision Out Now! - The Lian Li PC-A05FN

No Longer Inverted ATX
USB 3.0 Support
SSD Support
Top Blow Hole


So should you get this new version? Consensus is to go for the original inverted design.



Lian Li PC-A05 Aluminum Case

"The Lian Li PC-A05 Aluminum Case is the very first budget style case from Lian Li. This case has four 5.24", one 3.5" and three 3.5" hidden drive bays and One Back fan. This case has been through several different Models since it's inception and a little modding is all you need to allow good air flow. While this case has all the essentials it doesn't have a removable motherboard tray but it's well priced and has great build quality." Rodney Reynold's. Video Reviews.




















Specification

Model.................................................. .................................................. ....... PC-A05N

Case Type............................................ Mini Tower for Full ATX and Large Video Cards

Dimensions............................................. 210mm Wide x 381mm High x 490mm Deep

Front bezel Material.................................................. ....................................Aluminum

Color................................................... .................................................. .. .Silver / Black

Side Panel.......................................Plain No Windows but Windows are easy to install

Body Material.................................................. ..............................................Alum inum

Net Weight.................................................. ...........4kg or 8.8 lbs Very Light and strong.

5.25" drive bay (External)........................................ .................................................. ...2

3.5" drive bay (External)........................................ .................................................. ..1

3.5" drive bay (Internal)........................................ .................................................. .......3

Expansion bay Slots.................................................. ........................................7

Motherboard.................................................. ..........................FULL ATX, M-ATx

System Fan (Top) (Front)........................................... .................12cm Ball-Bearing Fan x 1 (1500RPM)

System Fan (Rear)............................................ .................12cm Ball-Bearing Fan x 1 (1500RPM)

I/O Ports.................................................. .......................USB2.0 x2, HD+AC97 audio





Post a picture of your Lian Li PC-A05 and Tell a little about the Build Mod or Yourself and you're in.





Lian Li PC-A05 FAQ
PLEASE READ BEFORE ASKING QUESTIONS!
This info is regarding the inverted design PC-A05NB


Q: What is the Direction of the Airflow in the Case?

Quote:
Fresh Air is pulled from the back and exhausted through the vents in the front. This means your CPU gets the coolest air first. There are two 120mm fans in the case: one in the rear Bottom and one in the Center front. Exhaust is via the front 120mm fan and the PSU which sits below it.
Q: Doesn't this mean that the PSU will run hot?

Quote:
Not at all. There is about ½†clearance under the PSU for air if you have the fan face down. There are holes under the 3.5†hard drive cage for airflow if you want the fan facing up.
Q: What about graphics cards temps? Won’t they run hot?

Quote:
Graphics cards will run warmer in this type of case by 5c-10c. This problem is easily fixed. Most of us modify the top and add a Blowhole Fan or buy the replacement top panel (T-LM14B-2) which is a replacement Top and has a cut out and Shroud for a 140mm fan. Unfortunately these seem to be out of stock just about everywhere. It is best to use a 4 1/2 inch Hole saw with a drill attachment.
Q: What is the benefit of inverted ATX?

Quote:
For one, the Hot Video card is up high and away from the CPU Cooler. It allows for a smaller more compact case. It also allows your to run very cool since the heat of the Video card is not convecting hot air up into the CPU like most Cases. Instead very cool air is blown onto the CPU heatsink first. You will not find a case that can provide better temps for your CPU.
Q: What is the longest graphics card that can be installed in the case?
Quote:
This is entirely dependent on the layout of your motherboard. If you look at the pictures of the case you can see that if your first PCI-E slot sits in the first two slots nearest the CPU socket then the max length will be around 10.5†because the card will butt up against the 3.5†cage. 11" if you have HDD in the top slot clear. If your GPU sits in the 3rd or 4th slot than you can fit a GPU that is 13†long.
Q: What about SLI or Crossfire?

Quote:
If you are running higher end GPUs then it is highly recommended that you add a top blow hole. Length of the cards also becomes an issue since the 2nd card might butt up against an optical drive. Normal length ODD will allow two 11.5†cards. Blu-ray drives are longer so they will limit your space to about 10.5â€.
Q: Does the case have a CPU back plate cut out and other cable management holes?

Quote:
The newest A05Ns do have these Cable Management and Heatsink removal holes. You should contact the vendor to confirm if you are buying the newer version with or the older version without. The earlier Version of A05N’s did not have these features. No A05B’s have them.
Q: What is the difference between the A05B and A05NB?

Quote:
The A05B was the first revision of this case that was released in 2006 through 2009. The A05N is the newer revision that added a few improvements to the inner design.
These improvements are:
  • A completely Removable top panel
  • A Removable 3.5†Hard drive cage
  • Vented PCI slot covers on the Back
  • Newer HDD cage
  • Cable management holes in the Motherboard Tray
  • Round Status LEDs instead of oval
Q: What are some recommended mods?

Quote:
A top blow hole is the First and most Important thing you can do to make this case great for a enthusiast system. It is also recommended to get fans with a better CFM to noise ratio if you are running higher end hardware. This case is great for modding since it’s made of aluminum which is very easy to cut and the engineering is outstanding.

Window mods are also very simple and easy to buy. The best that I have found is the All in one 10 X 12 inch kit. it fits the case perfectly and only shows the motherboard
Q: What tools do you recommend to mod a top blow hole?

Quote:
The easiest way is to buy a 4.5†hole saw. This is perfect for all Standard 120mm case fans. These are available at any hardware store and cost around $40. I personally prefer using a dremel since it’s a tool that can be used for so many things. Do not get a battery powered version since they don’t have enough torque to cut through the Aluminum. The dremel 300 is a great tool for $40. There are many fan grills that can be Purchased to make these blow holes look very nice. Check out AC Ryan Radgrillz or anything for MNPCtech. These grills usually come with cut outs so you can trace the cut.
Q: What is the longest power supply I can fit into this case?

Quote:
Most times you can use any size from small to large. You can run into a probem with memory slots sitting to high the edge of the Motherboard. The PSU clears the board so if there are no heatsinks/memory slots/24pin power connector close by you can get any size you want. I have seen an Enermax 1250w fit in this case and that is a (7.5in) or (19.05 cm.) long PSU.
Q: What is the tallest CPU heatsink that will fit into Lian Li PC-A05 Case?

Quote:
The A05 is 210 mm wide so it can fit all Heatsinks available at this time.
Q: Does this case have native support for SSDs?

Quote:
No it does not. You can use a 2.5†to 3.5†adapter to put it in the external 3.5†drive bay. You can also just Velcro or tape them behind the motherboard tray since SSD's use very little wattage, heat and have No Moving parts. SSD’s don’t really produce heat so you can hide them just about anywhere.
Q: Why do so many people like this case?

Quote:
This is a hard question to answer. Each users answer will be different of course but, I think most will agree its combination of Small size, elegant looks and uniqueness of the engineering makes this case stand alone in its own Catagory. This is the smallest case that can fit a full size ATX motherboard and for that it is highly regarded. It's straight forward styling makes this case an excellent MOD Case. The Aluminum is easily cut and the case is pretty much a blank slate on to which you can add your own personal touch.


Quote:
Here is a Google SketchUp of the case for all your modding needs

Brought to you by Aerial

Accessories that you can get from Lian Li for the PC-A05


The upgrade top has a 140m fan hole


Bezels to cover the front optical bezels


Official Lian Li A05 Side Window


Nicer case feet


USB 3.0 Bracket


USB 3.0 Adapter for Internal Header



User's Manual Download.


Code for Sig
Code:
[URL="http://www.overclock.net/computer-cases/880913-coolest-lian-li-pc-a05-nb.html"][CENTER][FONT=Tahoma][SIZE=2][B][COLOR=Black]The [COLOR="DimGray"][Official][/COLOR] Lian Li [/COLOR] [COLOR=Gray]PC-A05 [/COLOR] [COLOR=black]CLUB[/COLOR][/B][/SIZE][/FONT][/CENTER][/URL]

A05BEAST
(14 items)


CPUMotherboardGraphicsRAM
Intel Core i7 930 @ 4200mhz Asus Rampage III Extreme Powercolor 6950 2GB Unlocked Patriot 12GB DDR3 1600
Hard DriveCoolingOSMonitor
OCZ Agility 2 128GB SSD Thermalright Venomous X  Windows 7 Ultimate x64 Samsung 2693HM
KeyboardPowerCaseMouse
Logitech G15 V2 Antec TruePower New 750w Lian Li PC-A05B Logitech MX518
Mouse PadAudio
SteelSeries 5L Creative X-Fi Xtreme Music
  hide details
Reply
A05BEAST
(14 items)


CPUMotherboardGraphicsRAM
Intel Core i7 930 @ 4200mhz Asus Rampage III Extreme Powercolor 6950 2GB Unlocked Patriot 12GB DDR3 1600
Hard DriveCoolingOSMonitor
OCZ Agility 2 128GB SSD Thermalright Venomous X  Windows 7 Ultimate x64 Samsung 2693HM
KeyboardPowerCaseMouse
Logitech G15 V2 Antec TruePower New 750w Lian Li PC-A05B Logitech MX518
Mouse PadAudio
SteelSeries 5L Creative X-Fi Xtreme Music
  hide details
Reply
post #2 of 3675
Thread Starter
Members

82 MEMBERS STRONG!
A05BEAST
(14 items)


CPUMotherboardGraphicsRAM
Intel Core i7 930 @ 4200mhz Asus Rampage III Extreme Powercolor 6950 2GB Unlocked Patriot 12GB DDR3 1600
Hard DriveCoolingOSMonitor
OCZ Agility 2 128GB SSD Thermalright Venomous X  Windows 7 Ultimate x64 Samsung 2693HM
KeyboardPowerCaseMouse
Logitech G15 V2 Antec TruePower New 750w Lian Li PC-A05B Logitech MX518
Mouse PadAudio
SteelSeries 5L Creative X-Fi Xtreme Music
  hide details
Reply
A05BEAST
(14 items)


CPUMotherboardGraphicsRAM
Intel Core i7 930 @ 4200mhz Asus Rampage III Extreme Powercolor 6950 2GB Unlocked Patriot 12GB DDR3 1600
Hard DriveCoolingOSMonitor
OCZ Agility 2 128GB SSD Thermalright Venomous X  Windows 7 Ultimate x64 Samsung 2693HM
KeyboardPowerCaseMouse
Logitech G15 V2 Antec TruePower New 750w Lian Li PC-A05B Logitech MX518
Mouse PadAudio
SteelSeries 5L Creative X-Fi Xtreme Music
  hide details
Reply
post #3 of 3675
Thread Starter

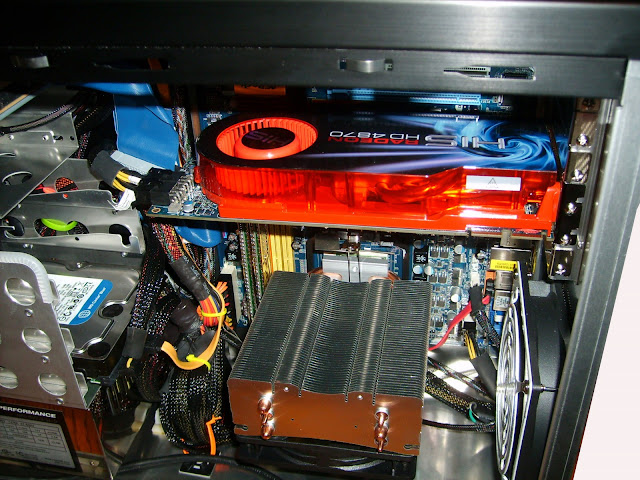

PICS OF OUR BUILDS:

If you would like to be added to this list, PM me pictures of your build (two max) that have been resized to 640x480 (or 480x640) and already image hosted (imgur, photobucket etc).

Ikems beautiful candy white A05





A05 compared to a mid tower (courtesy of Ikem)



996gt2's very nice build



Sexy Bastards A05Beast





Sexybastards build for his brother



OC Maximus's awesome internal watercooled build

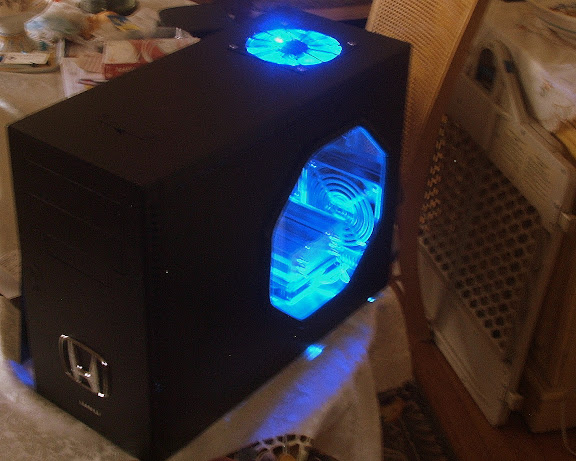

Anthony's Honda Box.





One of Enigma's PC-05 Builds.. I love this case.




Laine's next level A05





esproductions very clean A05



A05BEAST
(14 items)


CPUMotherboardGraphicsRAM
Intel Core i7 930 @ 4200mhz Asus Rampage III Extreme Powercolor 6950 2GB Unlocked Patriot 12GB DDR3 1600
Hard DriveCoolingOSMonitor
OCZ Agility 2 128GB SSD Thermalright Venomous X  Windows 7 Ultimate x64 Samsung 2693HM
KeyboardPowerCaseMouse
Logitech G15 V2 Antec TruePower New 750w Lian Li PC-A05B Logitech MX518
Mouse PadAudio
SteelSeries 5L Creative X-Fi Xtreme Music
  hide details
Reply
A05BEAST
(14 items)


CPUMotherboardGraphicsRAM
Intel Core i7 930 @ 4200mhz Asus Rampage III Extreme Powercolor 6950 2GB Unlocked Patriot 12GB DDR3 1600
Hard DriveCoolingOSMonitor
OCZ Agility 2 128GB SSD Thermalright Venomous X  Windows 7 Ultimate x64 Samsung 2693HM
KeyboardPowerCaseMouse
Logitech G15 V2 Antec TruePower New 750w Lian Li PC-A05B Logitech MX518
Mouse PadAudio
SteelSeries 5L Creative X-Fi Xtreme Music
  hide details
Reply
post #4 of 3675
Modding Ideas as seen here by he1100z LSU Build.









A Great Build by our own Cyber Druid. Have him do a case for you.


Quote:
Window kits are easy with this build. The Aluminum is thin and cuts easily. Here is the size that I like to use but you can custom fit one of the size and Shape you want. The Stop Sign Cut was cut by using an ADT Sign from my front yard. Perfect size. The best wire management for window apps is a small window. just show off what you have to and hide the rest. The small windows really look good on the Case.


Quote:
* Laser Cut
* Dimensions: 11.125" (28.2cm) x 8.69" (22.1cm)
* Kit comes complete with pre-cut molding and locking strip, instructions, and hole marking template
* Molding length: 3' (91.44cm)
* Fan that is pictured is NOT included

Edited by Enigma8750 - 12/8/10 at 4:49pm

CPUMotherboardGraphicsRAM
Phenom II 940 BE ASUS M3A32-MVP DELUXE Wifi Sapphire 5770x2 Crossfire 4 Gb. of G.Skill 5-5-5-15 1066
Hard DriveOptical DriveOSMonitor
SSD 60g OS. 500GB + 300 GB VelociRaptor 10000 rpm PLEXTOR PX-850SA Windows 7 Professional SAMSUNG 920 BW
KeyboardPowerCaseMouse
Saitek Cyborg HX1000 Watt Corsair modular CM STACKER ENIGMA EDITION Microsoft SideWinder Gaming Mouse
Mouse Pad
Black Leather with grey stitching
  hide details
Reply

CPUMotherboardGraphicsRAM
Phenom II 940 BE ASUS M3A32-MVP DELUXE Wifi Sapphire 5770x2 Crossfire 4 Gb. of G.Skill 5-5-5-15 1066
Hard DriveOptical DriveOSMonitor
SSD 60g OS. 500GB + 300 GB VelociRaptor 10000 rpm PLEXTOR PX-850SA Windows 7 Professional SAMSUNG 920 BW
KeyboardPowerCaseMouse
Saitek Cyborg HX1000 Watt Corsair modular CM STACKER ENIGMA EDITION Microsoft SideWinder Gaming Mouse
Mouse Pad
Black Leather with grey stitching
  hide details
Reply
post #5 of 3675
Thread Starter
This is probably the best case available IMHO. For 98% of people who don't need water cooling or TRI SLI or 20 hard drives this case will be perfect.

All you need is a dremel and you can make it cool better then most cases. A top blow hole is highly recommended to keep your graphics cool. I modded mine in 10 minutes top and it looks really nice. I also added a cut out behind the mobo to make switching out HSF's much easier.

Here are some pics of my mods:

the full case


wire management


the top 2 x 120mm blow hole


new power buttons and case feet


cpu cut out


so quite a bit of modding for me lol. I was making this case more and more amazing
Edited by sexybastard - 12/3/10 at 6:17pm
A05BEAST
(14 items)


CPUMotherboardGraphicsRAM
Intel Core i7 930 @ 4200mhz Asus Rampage III Extreme Powercolor 6950 2GB Unlocked Patriot 12GB DDR3 1600
Hard DriveCoolingOSMonitor
OCZ Agility 2 128GB SSD Thermalright Venomous X  Windows 7 Ultimate x64 Samsung 2693HM
KeyboardPowerCaseMouse
Logitech G15 V2 Antec TruePower New 750w Lian Li PC-A05B Logitech MX518
Mouse PadAudio
SteelSeries 5L Creative X-Fi Xtreme Music
  hide details
Reply
A05BEAST
(14 items)


CPUMotherboardGraphicsRAM
Intel Core i7 930 @ 4200mhz Asus Rampage III Extreme Powercolor 6950 2GB Unlocked Patriot 12GB DDR3 1600
Hard DriveCoolingOSMonitor
OCZ Agility 2 128GB SSD Thermalright Venomous X  Windows 7 Ultimate x64 Samsung 2693HM
KeyboardPowerCaseMouse
Logitech G15 V2 Antec TruePower New 750w Lian Li PC-A05B Logitech MX518
Mouse PadAudio
SteelSeries 5L Creative X-Fi Xtreme Music
  hide details
Reply
post #6 of 3675
Mines at the shop being painted. Hopefully pics up within the week!
post #7 of 3675
Thanks Men... I look forward.. I know Sexybastard has a beautiful build. I have seen his case and this case needs a club.. This is one of the best Aluminum Cases around.

CPUMotherboardGraphicsRAM
Phenom II 940 BE ASUS M3A32-MVP DELUXE Wifi Sapphire 5770x2 Crossfire 4 Gb. of G.Skill 5-5-5-15 1066
Hard DriveOptical DriveOSMonitor
SSD 60g OS. 500GB + 300 GB VelociRaptor 10000 rpm PLEXTOR PX-850SA Windows 7 Professional SAMSUNG 920 BW
KeyboardPowerCaseMouse
Saitek Cyborg HX1000 Watt Corsair modular CM STACKER ENIGMA EDITION Microsoft SideWinder Gaming Mouse
Mouse Pad
Black Leather with grey stitching
  hide details
Reply

CPUMotherboardGraphicsRAM
Phenom II 940 BE ASUS M3A32-MVP DELUXE Wifi Sapphire 5770x2 Crossfire 4 Gb. of G.Skill 5-5-5-15 1066
Hard DriveOptical DriveOSMonitor
SSD 60g OS. 500GB + 300 GB VelociRaptor 10000 rpm PLEXTOR PX-850SA Windows 7 Professional SAMSUNG 920 BW
KeyboardPowerCaseMouse
Saitek Cyborg HX1000 Watt Corsair modular CM STACKER ENIGMA EDITION Microsoft SideWinder Gaming Mouse
Mouse Pad
Black Leather with grey stitching
  hide details
Reply
post #8 of 3675
Quote:
Originally Posted by sexybastard View Post
This is probably the best case available IMHO. For 98% of people who don't need water cooling or TRI SLI or 20 hard drives this case will be perfect.

All you need is a dremel and you can make it cool better then most cases. A top blow hole is highly recommended to keep your graphics cool. I modded mine in 10 minutes top and it looks really nice. I also added a cut out behind the mobo to make switching out HSF's much easier.

so quite a bit of modding for me lol. I was making this case more and more amazing
So glad you got back with us ... I love this Build.
Edited by Enigma8750 - 12/3/10 at 7:04pm

CPUMotherboardGraphicsRAM
Phenom II 940 BE ASUS M3A32-MVP DELUXE Wifi Sapphire 5770x2 Crossfire 4 Gb. of G.Skill 5-5-5-15 1066
Hard DriveOptical DriveOSMonitor
SSD 60g OS. 500GB + 300 GB VelociRaptor 10000 rpm PLEXTOR PX-850SA Windows 7 Professional SAMSUNG 920 BW
KeyboardPowerCaseMouse
Saitek Cyborg HX1000 Watt Corsair modular CM STACKER ENIGMA EDITION Microsoft SideWinder Gaming Mouse
Mouse Pad
Black Leather with grey stitching
  hide details
Reply

CPUMotherboardGraphicsRAM
Phenom II 940 BE ASUS M3A32-MVP DELUXE Wifi Sapphire 5770x2 Crossfire 4 Gb. of G.Skill 5-5-5-15 1066
Hard DriveOptical DriveOSMonitor
SSD 60g OS. 500GB + 300 GB VelociRaptor 10000 rpm PLEXTOR PX-850SA Windows 7 Professional SAMSUNG 920 BW
KeyboardPowerCaseMouse
Saitek Cyborg HX1000 Watt Corsair modular CM STACKER ENIGMA EDITION Microsoft SideWinder Gaming Mouse
Mouse Pad
Black Leather with grey stitching
  hide details
Reply
post #9 of 3675
Thread Starter
Quote:
Originally Posted by Enigma8750 View Post
So glad you got back with us ... I love this Build.
thanks man really appreciate it

hopefully some people will see just how baller this case is
Edited by sexybastard - 12/3/10 at 7:16pm
A05BEAST
(14 items)


CPUMotherboardGraphicsRAM
Intel Core i7 930 @ 4200mhz Asus Rampage III Extreme Powercolor 6950 2GB Unlocked Patriot 12GB DDR3 1600
Hard DriveCoolingOSMonitor
OCZ Agility 2 128GB SSD Thermalright Venomous X  Windows 7 Ultimate x64 Samsung 2693HM
KeyboardPowerCaseMouse
Logitech G15 V2 Antec TruePower New 750w Lian Li PC-A05B Logitech MX518
Mouse PadAudio
SteelSeries 5L Creative X-Fi Xtreme Music
  hide details
Reply
A05BEAST
(14 items)


CPUMotherboardGraphicsRAM
Intel Core i7 930 @ 4200mhz Asus Rampage III Extreme Powercolor 6950 2GB Unlocked Patriot 12GB DDR3 1600
Hard DriveCoolingOSMonitor
OCZ Agility 2 128GB SSD Thermalright Venomous X  Windows 7 Ultimate x64 Samsung 2693HM
KeyboardPowerCaseMouse
Logitech G15 V2 Antec TruePower New 750w Lian Li PC-A05B Logitech MX518
Mouse PadAudio
SteelSeries 5L Creative X-Fi Xtreme Music
  hide details
Reply
post #10 of 3675
Great case to work with, I built a computer for my friend with this case.
Black Beauty
(14 items)

Macbook Pro 13"
(8 items)


CPUMotherboardGraphicsRAM
i5-2500k Asrock Z77E-ITX Sapphire Vapor-X 6870 8GB (2x4GB) Samsung DDR3-1600 MV-3V4G3
Hard DriveHard DriveCoolingOS
1TB Samsung Spinpoint F3 Crucial M4 64GB Thermalright AXP-140 Windows 7 Professional 64-bit
MonitorKeyboardPowerCase
Acer S231HL Logitech Wave Silverstone ST45SF 450W Silverstone Sugo SG05
MouseMouse Pad
Logitech LX8 Steelseries Heavy QcK
CPUGraphicsRAMHard Drive
Intel Core 2 Duo P8600 Nvidia GeForce 320M 256MB 8GB (2x4GB) Corsair DDR3 1066 Intel 330 180GB
Optical DriveOS
Superdrive OS X Lion
  hide details
Reply
Black Beauty
(14 items)

Macbook Pro 13"
(8 items)


CPUMotherboardGraphicsRAM
i5-2500k Asrock Z77E-ITX Sapphire Vapor-X 6870 8GB (2x4GB) Samsung DDR3-1600 MV-3V4G3
Hard DriveHard DriveCoolingOS
1TB Samsung Spinpoint F3 Crucial M4 64GB Thermalright AXP-140 Windows 7 Professional 64-bit
MonitorKeyboardPowerCase
Acer S231HL Logitech Wave Silverstone ST45SF 450W Silverstone Sugo SG05
MouseMouse Pad
Logitech LX8 Steelseries Heavy QcK
CPUGraphicsRAMHard Drive
Intel Core 2 Duo P8600 Nvidia GeForce 320M 256MB 8GB (2x4GB) Corsair DDR3 1066 Intel 330 180GB
Optical DriveOS
Superdrive OS X Lion
  hide details
Reply
New Posts  All Forums:Forum Nav:
  Return Home
  Back to Forum: Computer Cases
Overclock.net › Forums › Case Mods & Cases › Computer Cases › The [Official] Lian Li PC-A05 Club
