Biostar TA890FXE VRM heatsink (with pictures)

post #1 of 4
Thread Starter
While I was moving my hardware from one tower to another (spedo to Antec 1200) I decided to redo my loop. I wanted to use the NB block, but seeing as how the NB and VRM are attached I figured out how to separate the two. All you have to do ever so gently twist the heat pipe just enough to break the glue loose. Then try to separate the heat sink a little bit from the heat pipe, by prying with a flat head screw driver.


Once you break it loose, it should slide out very easy. Don't try to force it too much as i'm sure it will just break the heat pipe off. A little gentle force will work fine.

Here it is with the heat pipe and NB heat sink off:


Most people know about the crappy contact between the VRM's so here is a nut that I put on the spring clip to add more tension:

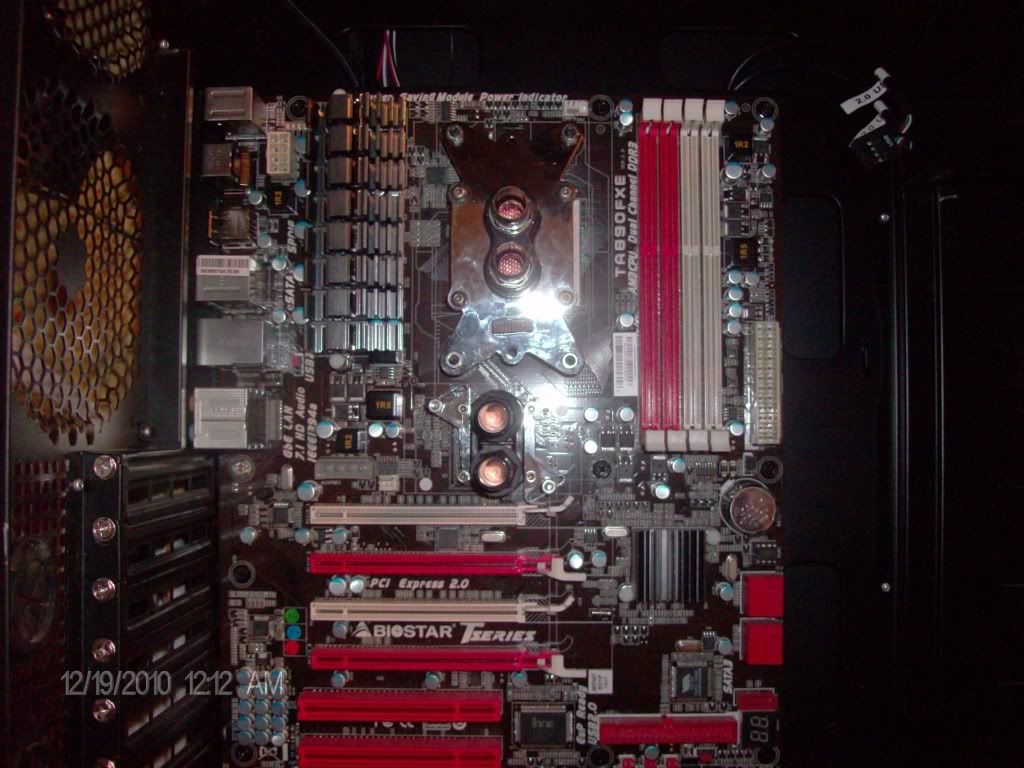

And finally everything is in it's place:


Thanks for checking this out, hope it helps some TA890FX owners who want to water cool their boards.

CPUMotherboardGraphicsGraphics
i7 5930k MSI X99A SLI Krait Edition MSI TF III 7950 MSI TF III 7950
RAMHard DriveHard DriveHard Drive
Rip Jaws 16GB @2400MHz Samsung 850 Evo SSD Seagate 250GB Hitachi 1TB
Optical DriveCoolingOSMonitor
El-generico Cooler Master Hyper 212X 7 ultimate 64bit Tripe Viewsonic 22", 5760x1080 eyefinity secks.
KeyboardPowerCaseMouse
Logitech G15 HX750i Phanteks Enthoo Pro Logitech G402
Mouse Pad
ಠ_ಠSolid oak deskಠ_ಠ
  hide details
Reply

CPUMotherboardGraphicsGraphics
i7 5930k MSI X99A SLI Krait Edition MSI TF III 7950 MSI TF III 7950
RAMHard DriveHard DriveHard Drive
Rip Jaws 16GB @2400MHz Samsung 850 Evo SSD Seagate 250GB Hitachi 1TB
Optical DriveCoolingOSMonitor
El-generico Cooler Master Hyper 212X 7 ultimate 64bit Tripe Viewsonic 22", 5760x1080 eyefinity secks.
KeyboardPowerCaseMouse
Logitech G15 HX750i Phanteks Enthoo Pro Logitech G402
Mouse Pad
ಠ_ಠSolid oak deskಠ_ಠ
  hide details
Reply
post #2 of 4
Nice man Done this on my gigabyte a while ago. Added this to the 800 club.
Edited by el gappo - 12/19/10 at 8:41pm
One gear, GO!
(14 items)


CPUMotherboardRAMHard Drive
FX8150 Crosshair V Formula G.Skill PIS 2200 cl7 Acard ans9010 raid 0+Corsair Force 3
Cooling
OCN Marksman
  hide details
Reply
One gear, GO!
(14 items)


CPUMotherboardRAMHard Drive
FX8150 Crosshair V Formula G.Skill PIS 2200 cl7 Acard ans9010 raid 0+Corsair Force 3
Cooling
OCN Marksman
  hide details
Reply
post #3 of 4
Thread Starter
Thanks El gappo , since I did this I think I can finally hit 4GHz 24/7 stable We'll see though.
Edited by Kratthew D. Kraids - 12/19/10 at 8:43pm

CPUMotherboardGraphicsGraphics
i7 5930k MSI X99A SLI Krait Edition MSI TF III 7950 MSI TF III 7950
RAMHard DriveHard DriveHard Drive
Rip Jaws 16GB @2400MHz Samsung 850 Evo SSD Seagate 250GB Hitachi 1TB
Optical DriveCoolingOSMonitor
El-generico Cooler Master Hyper 212X 7 ultimate 64bit Tripe Viewsonic 22", 5760x1080 eyefinity secks.
KeyboardPowerCaseMouse
Logitech G15 HX750i Phanteks Enthoo Pro Logitech G402
Mouse Pad
ಠ_ಠSolid oak deskಠ_ಠ
  hide details
Reply

CPUMotherboardGraphicsGraphics
i7 5930k MSI X99A SLI Krait Edition MSI TF III 7950 MSI TF III 7950
RAMHard DriveHard DriveHard Drive
Rip Jaws 16GB @2400MHz Samsung 850 Evo SSD Seagate 250GB Hitachi 1TB
Optical DriveCoolingOSMonitor
El-generico Cooler Master Hyper 212X 7 ultimate 64bit Tripe Viewsonic 22", 5760x1080 eyefinity secks.
KeyboardPowerCaseMouse
Logitech G15 HX750i Phanteks Enthoo Pro Logitech G402
Mouse Pad
ಠ_ಠSolid oak deskಠ_ಠ
  hide details
Reply
post #4 of 4
Thread Starter
Sorry to double post but I forgot to add this:

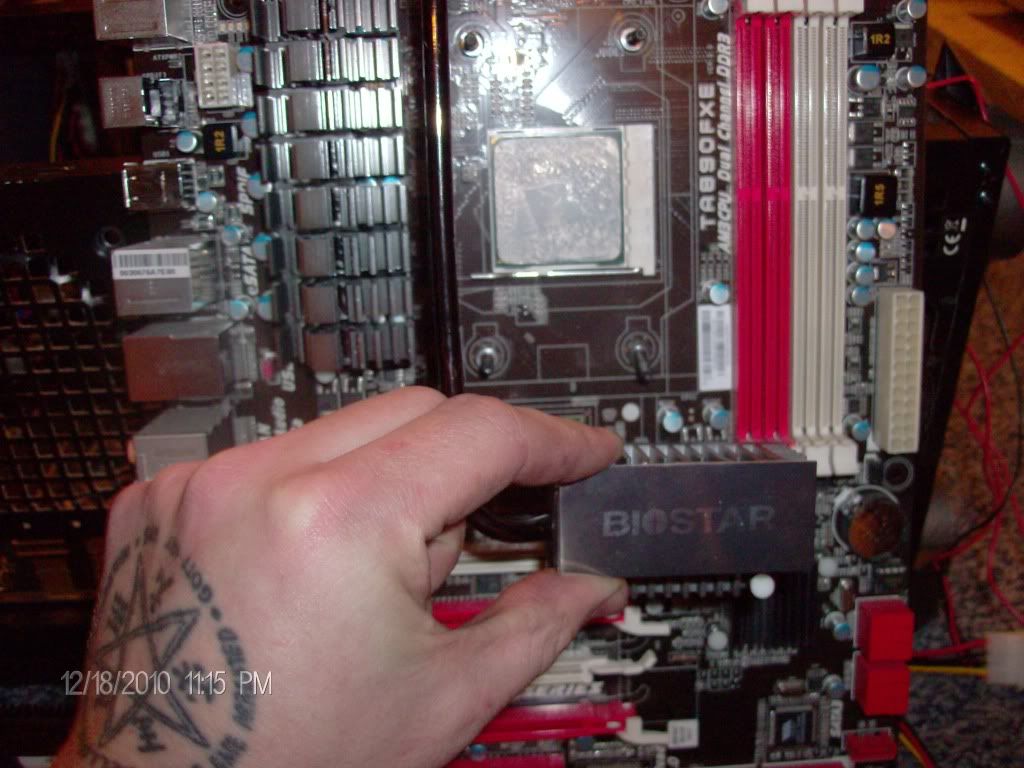

Removing the NB heat sink gives you the coolest Biostar case badge
