CM 690 II Advanced Mobo mounting question

post #1 of 9
Thread Starter
Hey guys so I just bought the CM 690 II Advance Case and when I was putting my mobo into the case I ran into a problem.

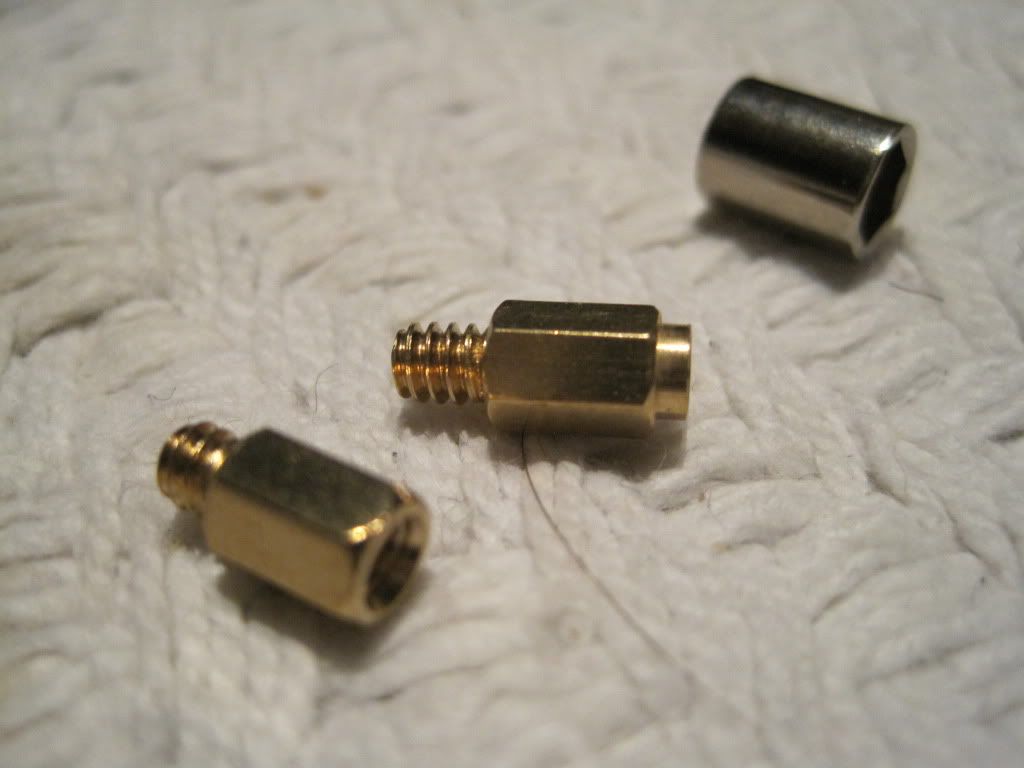

Basically the problem is that they give you 3 types of "screws":


I know the first one goes around the board for the stand
The second one I have no idea what its for and same with the third

I have a micro ATX board, so could someone explain to me where I would use the second and third screw in the picture

I have in total one of the silver one, and 2 of the middle one.
