Benchmarks: i7 Overclock/HT Performance Scaling

post #1 of 27
Thread Starter
I decided to run some tests with my new GTX 570 but it turned into cpu overclock scaling tests. Enjoy.

Test System: *also see sig

i7-930 @ (2.8, 3.36, 3.8, 4.2) with and without hyperthreading
Gigabyte x58A-UD3R
EVGA GTX 570 SC
6GB G.Skill @ 1600
500gb WD black

Methodology: I tried to keep everything as consistent as possible. Every time I would dial in a new processor clock I would load up windows and let it sit a few minutes until it seemed all start-up processes had stopped. I then opened my usual monitoring software ie: realtemp, Fraps, etc. Some of the tests gathered their own min/max/avg data and I used that while other programs I used fraps to gather my own data. I ran each test three times and took the average of that data.

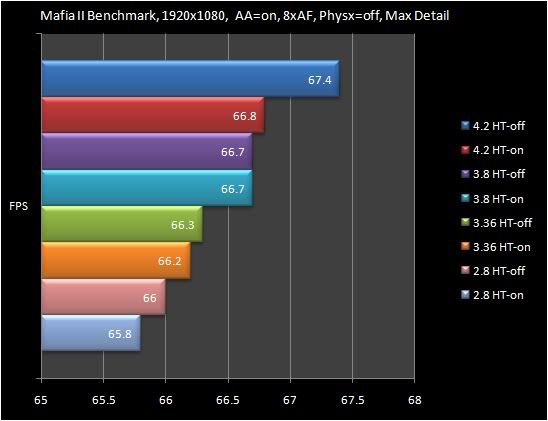

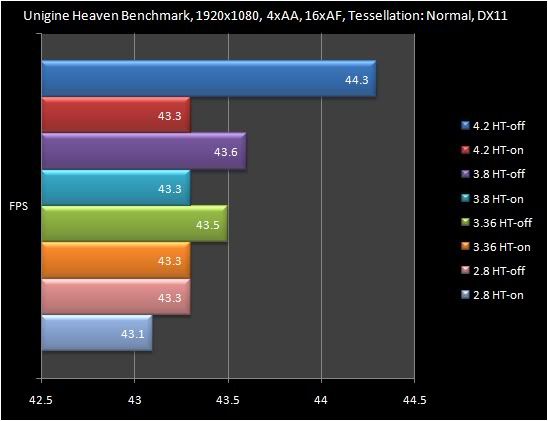

*I've also included a spreadsheet of all the data I gathered including min/max/avg fps scores. I will only show the total average scores here.

Edited by DBEAU - 1/1/11 at 4:20pm
My System
(17 items)


CPUMotherboardGraphicsRAM
i7-2600k @ 4.6ghz Gigabyte Z77X-UD5H Zotac GTX 970 w/ Heatkiller 8GB G.Skill Ares (2133)
Hard DriveHard DriveCoolingOS
Samsung 830 256GB Samsung 840 500GB XSPC Raystorm / RX240 / UT60 / D5 W7 Home Premium 64
MonitorKeyboardPowerCase
X-Star DP2710 1440p CM Quickfire TK (browns) Seasonic X-660 NZXT Switch 810
MouseAudioAudio
Zowie ec1 evo Creative Soundblaster Z Sennheiser HD558
  hide details
Reply
My System
(17 items)


CPUMotherboardGraphicsRAM
i7-2600k @ 4.6ghz Gigabyte Z77X-UD5H Zotac GTX 970 w/ Heatkiller 8GB G.Skill Ares (2133)
Hard DriveHard DriveCoolingOS
Samsung 830 256GB Samsung 840 500GB XSPC Raystorm / RX240 / UT60 / D5 W7 Home Premium 64
MonitorKeyboardPowerCase
X-Star DP2710 1440p CM Quickfire TK (browns) Seasonic X-660 NZXT Switch 810
MouseAudioAudio
Zowie ec1 evo Creative Soundblaster Z Sennheiser HD558
  hide details
Reply
post #2 of 27
Good job (+rep).

I wonder why turning HT off at 3.8GHz would generate lower performance for a majority of the graphs?
post #3 of 27
Thread Starter
I really can't explain it, it's very weird. What struck me most odd is that on the crysis bench, 3.36 got a higher score than 3.8.

And apparently 3dmark is the only program that takes advantage of hyperthreading.
My System
(17 items)


CPUMotherboardGraphicsRAM
i7-2600k @ 4.6ghz Gigabyte Z77X-UD5H Zotac GTX 970 w/ Heatkiller 8GB G.Skill Ares (2133)
Hard DriveHard DriveCoolingOS
Samsung 830 256GB Samsung 840 500GB XSPC Raystorm / RX240 / UT60 / D5 W7 Home Premium 64
MonitorKeyboardPowerCase
X-Star DP2710 1440p CM Quickfire TK (browns) Seasonic X-660 NZXT Switch 810
MouseAudioAudio
Zowie ec1 evo Creative Soundblaster Z Sennheiser HD558
  hide details
Reply
My System
(17 items)


CPUMotherboardGraphicsRAM
i7-2600k @ 4.6ghz Gigabyte Z77X-UD5H Zotac GTX 970 w/ Heatkiller 8GB G.Skill Ares (2133)
Hard DriveHard DriveCoolingOS
Samsung 830 256GB Samsung 840 500GB XSPC Raystorm / RX240 / UT60 / D5 W7 Home Premium 64
MonitorKeyboardPowerCase
X-Star DP2710 1440p CM Quickfire TK (browns) Seasonic X-660 NZXT Switch 810
MouseAudioAudio
Zowie ec1 evo Creative Soundblaster Z Sennheiser HD558
  hide details
Reply
post #4 of 27
wow, it looks like alot of games dont like hyper threading. +1
My System
(13 items)


CPUMotherboardGraphicsRAM
2600k p8p67 deluxe 2x MSI gtx 570 sli Ripjaws(blue)1866, 8-9-8-24-2t
Hard DriveOptical DriveOSMonitor
c300, 2X WD CAVAIAR BLACK 640GB RAID 0 LG Bluray/Dvd Rewriter 7 Ult Gateway 24" lcd 1920x1200
KeyboardPowerCaseMouse
Lycosa Corsair 750w tx Cooler Master HAF 932 black g9
  hide details
Reply
My System
(13 items)


CPUMotherboardGraphicsRAM
2600k p8p67 deluxe 2x MSI gtx 570 sli Ripjaws(blue)1866, 8-9-8-24-2t
Hard DriveOptical DriveOSMonitor
c300, 2X WD CAVAIAR BLACK 640GB RAID 0 LG Bluray/Dvd Rewriter 7 Ult Gateway 24" lcd 1920x1200
KeyboardPowerCaseMouse
Lycosa Corsair 750w tx Cooler Master HAF 932 black g9
  hide details
Reply
post #5 of 27
Kinda discredits 3Dmark.
My First Build
(15 items)


CPUMotherboardGraphicsRAM
I7-860 2.8/OC'ed 3.60 FPO/batch # L935B730 Asus P7P55d Evo MSI 580 TF II OC 8 Gig Corsiar DDR3 1600 XMP
Hard DriveOptical DriveCoolingOS
WD Black 750 Samsung H50, pull/push Win7 Pro 64
MonitorKeyboardPowerCase
HP 2509B 25" 1920x1080 Steelseries backlit Merc Corsiar TX650 Thermatake V9 Black
MouseAudio
Rat 7 Asus Xonar DG
  hide details
Reply
My First Build
(15 items)


CPUMotherboardGraphicsRAM
I7-860 2.8/OC'ed 3.60 FPO/batch # L935B730 Asus P7P55d Evo MSI 580 TF II OC 8 Gig Corsiar DDR3 1600 XMP
Hard DriveOptical DriveCoolingOS
WD Black 750 Samsung H50, pull/push Win7 Pro 64
MonitorKeyboardPowerCase
HP 2509B 25" 1920x1080 Steelseries backlit Merc Corsiar TX650 Thermatake V9 Black
MouseAudio
Rat 7 Asus Xonar DG
  hide details
Reply
post #6 of 27
Thread Starter
It makes you wonder though... If all these other games would take advantage of hyperthreading would they perform significantly better?
My System
(17 items)


CPUMotherboardGraphicsRAM
i7-2600k @ 4.6ghz Gigabyte Z77X-UD5H Zotac GTX 970 w/ Heatkiller 8GB G.Skill Ares (2133)
Hard DriveHard DriveCoolingOS
Samsung 830 256GB Samsung 840 500GB XSPC Raystorm / RX240 / UT60 / D5 W7 Home Premium 64
MonitorKeyboardPowerCase
X-Star DP2710 1440p CM Quickfire TK (browns) Seasonic X-660 NZXT Switch 810
MouseAudioAudio
Zowie ec1 evo Creative Soundblaster Z Sennheiser HD558
  hide details
Reply
My System
(17 items)


CPUMotherboardGraphicsRAM
i7-2600k @ 4.6ghz Gigabyte Z77X-UD5H Zotac GTX 970 w/ Heatkiller 8GB G.Skill Ares (2133)
Hard DriveHard DriveCoolingOS
Samsung 830 256GB Samsung 840 500GB XSPC Raystorm / RX240 / UT60 / D5 W7 Home Premium 64
MonitorKeyboardPowerCase
X-Star DP2710 1440p CM Quickfire TK (browns) Seasonic X-660 NZXT Switch 810
MouseAudioAudio
Zowie ec1 evo Creative Soundblaster Z Sennheiser HD558
  hide details
Reply
post #7 of 27
They can't take advantage of hyperthreading because most aren't even using four cores to begin with. If it does take advantage of HT you lose performance because instead of using one of your four physical cores it's trying to send two threads down one core which results in a performance loss.

CPUMotherboardGraphicsGraphics
Intel Core i5 2500K P8P67 PRO NVIDIA GeForce GTX 470 NVIDIA GeForce GTX 470
GraphicsRAMRAMRAM
NVIDIA GeForce 9800 GT G-Skill A-Data G-Skill
RAMHard DriveOptical DriveOS
A-Data Crucial M4 64GB + 1TB F3 Spinpoint $155 LS/DL DVD RW $?? Windows 8 64-bit "Epic Registry" Edition
MonitorPowerCase
ASUS 21.5 1920x1080 2ms $135 CORSAIR HX850 $120 Mother Earth $free
  hide details
Reply

CPUMotherboardGraphicsGraphics
Intel Core i5 2500K P8P67 PRO NVIDIA GeForce GTX 470 NVIDIA GeForce GTX 470
GraphicsRAMRAMRAM
NVIDIA GeForce 9800 GT G-Skill A-Data G-Skill
RAMHard DriveOptical DriveOS
A-Data Crucial M4 64GB + 1TB F3 Spinpoint $155 LS/DL DVD RW $?? Windows 8 64-bit "Epic Registry" Edition
MonitorPowerCase
ASUS 21.5 1920x1080 2ms $135 CORSAIR HX850 $120 Mother Earth $free
  hide details
Reply
post #8 of 27
Thread Starter
Well by "take advantage of HT" I meant that it was properly optimized to do so and theoretically it should increase performance.
My System
(17 items)


CPUMotherboardGraphicsRAM
i7-2600k @ 4.6ghz Gigabyte Z77X-UD5H Zotac GTX 970 w/ Heatkiller 8GB G.Skill Ares (2133)
Hard DriveHard DriveCoolingOS
Samsung 830 256GB Samsung 840 500GB XSPC Raystorm / RX240 / UT60 / D5 W7 Home Premium 64
MonitorKeyboardPowerCase
X-Star DP2710 1440p CM Quickfire TK (browns) Seasonic X-660 NZXT Switch 810
MouseAudioAudio
Zowie ec1 evo Creative Soundblaster Z Sennheiser HD558
  hide details
Reply
My System
(17 items)


CPUMotherboardGraphicsRAM
i7-2600k @ 4.6ghz Gigabyte Z77X-UD5H Zotac GTX 970 w/ Heatkiller 8GB G.Skill Ares (2133)
Hard DriveHard DriveCoolingOS
Samsung 830 256GB Samsung 840 500GB XSPC Raystorm / RX240 / UT60 / D5 W7 Home Premium 64
MonitorKeyboardPowerCase
X-Star DP2710 1440p CM Quickfire TK (browns) Seasonic X-660 NZXT Switch 810
MouseAudioAudio
Zowie ec1 evo Creative Soundblaster Z Sennheiser HD558
  hide details
Reply
post #9 of 27
Why would it improve performance?

It can only improve performance if four cores would be fully saturated, that is not the case today, and that improved performance would be destroyed by having eight physical cores/threads.

CPUMotherboardGraphicsGraphics
Intel Core i5 2500K P8P67 PRO NVIDIA GeForce GTX 470 NVIDIA GeForce GTX 470
GraphicsRAMRAMRAM
NVIDIA GeForce 9800 GT G-Skill A-Data G-Skill
RAMHard DriveOptical DriveOS
A-Data Crucial M4 64GB + 1TB F3 Spinpoint $155 LS/DL DVD RW $?? Windows 8 64-bit "Epic Registry" Edition
MonitorPowerCase
ASUS 21.5 1920x1080 2ms $135 CORSAIR HX850 $120 Mother Earth $free
  hide details
Reply

CPUMotherboardGraphicsGraphics
Intel Core i5 2500K P8P67 PRO NVIDIA GeForce GTX 470 NVIDIA GeForce GTX 470
GraphicsRAMRAMRAM
NVIDIA GeForce 9800 GT G-Skill A-Data G-Skill
RAMHard DriveOptical DriveOS
A-Data Crucial M4 64GB + 1TB F3 Spinpoint $155 LS/DL DVD RW $?? Windows 8 64-bit "Epic Registry" Edition
MonitorPowerCase
ASUS 21.5 1920x1080 2ms $135 CORSAIR HX850 $120 Mother Earth $free
  hide details
Reply
post #10 of 27
very insightful, thank you very much for this
