Novice i5-750 OC @ 3.8

post #1 of 9
Thread Starter
First post on here and I'm a novice at this so don't be too hard on me!

I've spent the last couple of afternoons trying to get a stable OC and I just wanted one of you experts to cast your eyes over it and see if there's any obvious issues.. Volts, memory timings, temps etc..

These are the volts I'm running in BIOS for this OC -

CPU Vcore -1.28v
CPU VTT - 1.225v
CPU PLL - 1.800v
vDIMM - 1.65v

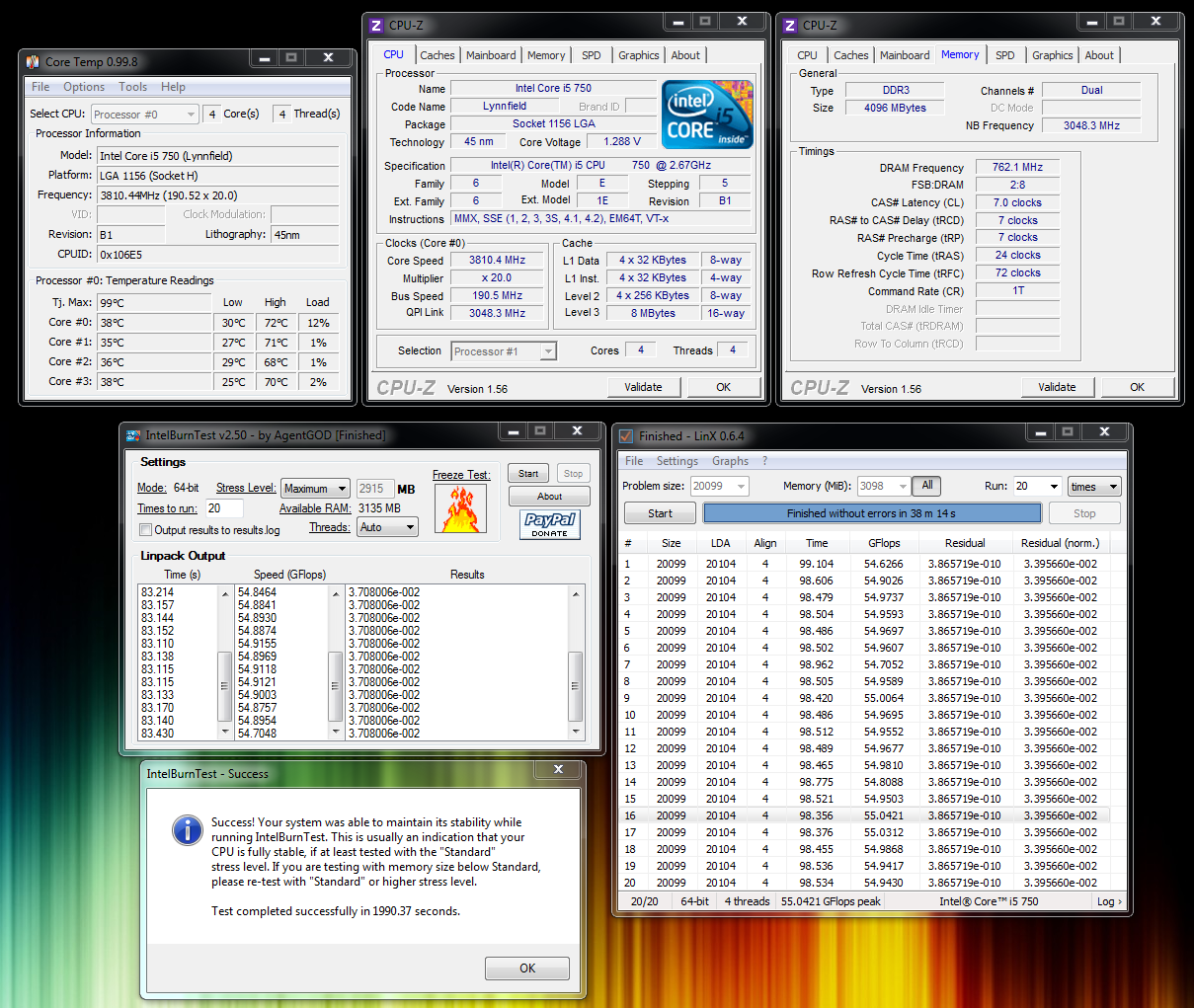

OC results -



Any advice or tips would be greatly appreciated
Gaming Rig
(16 items)

Laptop
(6 items)


CPUMotherboardGraphicsGraphics
i5 4670K @ 4.6GHz MSI Z87 GD65 Gaming MSI R9 280x Gaming MSI R9 280x Gaming
RAMHard DriveCoolingOS
16GB Patriot Viper Samsung 840 Pro Corsair H100 Windows 8 x64
MonitorKeyboardPowerCase
Achieva Shimian QH270-IPSB Logitech G19 Corsair HX 750 Corsair 600T SE
MouseMouse PadAudio
Razer Salmosa Alioth 320 Creative Sound Blaster Z
CPURAMHard DriveOptical Drive
Intel® Pentium® Dual-Core Processor T2060  DDR2 RAM (533 MHz)  5,400 rpm DVD Super Multi (Double Layer) drive
OSMonitor
Windows 7 x86 Ultimate size : 15.4 " type : WXGA TFT display interna...
  hide details
Reply
Gaming Rig
(16 items)

Laptop
(6 items)


CPUMotherboardGraphicsGraphics
i5 4670K @ 4.6GHz MSI Z87 GD65 Gaming MSI R9 280x Gaming MSI R9 280x Gaming
RAMHard DriveCoolingOS
16GB Patriot Viper Samsung 840 Pro Corsair H100 Windows 8 x64
MonitorKeyboardPowerCase
Achieva Shimian QH270-IPSB Logitech G19 Corsair HX 750 Corsair 600T SE
MouseMouse PadAudio
Razer Salmosa Alioth 320 Creative Sound Blaster Z
CPURAMHard DriveOptical Drive
Intel® Pentium® Dual-Core Processor T2060  DDR2 RAM (533 MHz)  5,400 rpm DVD Super Multi (Double Layer) drive
OSMonitor
Windows 7 x86 Ultimate size : 15.4 " type : WXGA TFT display interna...
  hide details
Reply
post #2 of 9
VTT and PLL can be a bit higher
Ryu's Den :3
(19 items)

Ryu's Den
(13 items)


CPUMotherboardGraphicsGraphics
Intel i7 965 Extreme Edition Asus P6T6 WS Workstation XFX 6850 Asus 6850
RAMHard DriveHard DriveHard Drive
Muskin Copperhead WD RE-4GP  WD Raptor Adata S596
Optical DriveCoolingOSMonitor
LG Custom water cooling Windows 7 Ultimate X64 Samsung SyncMaster 2494HS
KeyboardPowerCaseMouse
Ducky 1087 & VorteX Poker & G19 Coolermaster UCP 1100W HAF 932 G9
Mouse PadAudioOther
Hien Hard Custom fusion, Creative Ducky wristrest
CPUMotherboardGraphicsRAM
i7 965 Of DOOM @ 3.33Ghz 1.17V P6T6 WS Revolution EVGA GTX 275 1792MB Voltmodded Mushkin Copperhead 1600Mhz
Hard DriveOSMonitorKeyboard
300gb velociraptor and 2x2TB WD RE4-GP Vista U 64X,Win 7 64X,MAC OS X Snow Leopard 64X samsung synchmaster 2949hs Logitech G19
PowerCaseMouseMouse Pad
1100watt coolermaster UCP Coolermaster HAF932 G9/G5 Hien Hard,Razor exactmat
  hide details
Reply
Ryu's Den :3
(19 items)

Ryu's Den
(13 items)


CPUMotherboardGraphicsGraphics
Intel i7 965 Extreme Edition Asus P6T6 WS Workstation XFX 6850 Asus 6850
RAMHard DriveHard DriveHard Drive
Muskin Copperhead WD RE-4GP  WD Raptor Adata S596
Optical DriveCoolingOSMonitor
LG Custom water cooling Windows 7 Ultimate X64 Samsung SyncMaster 2494HS
KeyboardPowerCaseMouse
Ducky 1087 & VorteX Poker & G19 Coolermaster UCP 1100W HAF 932 G9
Mouse PadAudioOther
Hien Hard Custom fusion, Creative Ducky wristrest
CPUMotherboardGraphicsRAM
i7 965 Of DOOM @ 3.33Ghz 1.17V P6T6 WS Revolution EVGA GTX 275 1792MB Voltmodded Mushkin Copperhead 1600Mhz
Hard DriveOSMonitorKeyboard
300gb velociraptor and 2x2TB WD RE4-GP Vista U 64X,Win 7 64X,MAC OS X Snow Leopard 64X samsung synchmaster 2949hs Logitech G19
PowerCaseMouseMouse Pad
1100watt coolermaster UCP Coolermaster HAF932 G9/G5 Hien Hard,Razor exactmat
  hide details
Reply
post #3 of 9
looks close to stable.. try running prime95 blend over night, let it go for at least 10 hours..

if no errors, your good.. Bump it up to 4.0 and try again
The Money Pit
(15 items)


CPUMotherboardGraphicsRAM
i7-950 - 4.24 @ 1.40v Batch #3941B089 EVGA X58 SLI LE MSI 580 GTX Lightning - 950/1900/2200 @ 1.1v 6GB Mushkin @ 1475 - 6-8-6-24
Hard DriveHard DriveOptical DriveCooling
120GB Vertex Plus 2 x 500GB WD Blues RAID0 Lite-On DVD/CD Custom H20 Loop
OSMonitorPowerCase
Win 7 Ulti-64 25" I-Inc iH253 Antec TruePower New TP-750 CoolerMaster HAF 932
  hide details
Reply
The Money Pit
(15 items)


CPUMotherboardGraphicsRAM
i7-950 - 4.24 @ 1.40v Batch #3941B089 EVGA X58 SLI LE MSI 580 GTX Lightning - 950/1900/2200 @ 1.1v 6GB Mushkin @ 1475 - 6-8-6-24
Hard DriveHard DriveOptical DriveCooling
120GB Vertex Plus 2 x 500GB WD Blues RAID0 Lite-On DVD/CD Custom H20 Loop
OSMonitorPowerCase
Win 7 Ulti-64 25" I-Inc iH253 Antec TruePower New TP-750 CoolerMaster HAF 932
  hide details
Reply
post #4 of 9
Thread Starter
Thanks for the replies.

I should have added that I did run Prime 95 blend test overnight (1am to 11am) and it was fine.

I've tried going for 4Ghz but it BSOD's after seconds in Windows. I dropped the memory divider down from 4 to 3 but it still didn't help.

Are my volts too low to support 4Ghz?
Gaming Rig
(16 items)

Laptop
(6 items)


CPUMotherboardGraphicsGraphics
i5 4670K @ 4.6GHz MSI Z87 GD65 Gaming MSI R9 280x Gaming MSI R9 280x Gaming
RAMHard DriveCoolingOS
16GB Patriot Viper Samsung 840 Pro Corsair H100 Windows 8 x64
MonitorKeyboardPowerCase
Achieva Shimian QH270-IPSB Logitech G19 Corsair HX 750 Corsair 600T SE
MouseMouse PadAudio
Razer Salmosa Alioth 320 Creative Sound Blaster Z
CPURAMHard DriveOptical Drive
Intel® Pentium® Dual-Core Processor T2060  DDR2 RAM (533 MHz)  5,400 rpm DVD Super Multi (Double Layer) drive
OSMonitor
Windows 7 x86 Ultimate size : 15.4 " type : WXGA TFT display interna...
  hide details
Reply
Gaming Rig
(16 items)

Laptop
(6 items)


CPUMotherboardGraphicsGraphics
i5 4670K @ 4.6GHz MSI Z87 GD65 Gaming MSI R9 280x Gaming MSI R9 280x Gaming
RAMHard DriveCoolingOS
16GB Patriot Viper Samsung 840 Pro Corsair H100 Windows 8 x64
MonitorKeyboardPowerCase
Achieva Shimian QH270-IPSB Logitech G19 Corsair HX 750 Corsair 600T SE
MouseMouse PadAudio
Razer Salmosa Alioth 320 Creative Sound Blaster Z
CPURAMHard DriveOptical Drive
Intel® Pentium® Dual-Core Processor T2060  DDR2 RAM (533 MHz)  5,400 rpm DVD Super Multi (Double Layer) drive
OSMonitor
Windows 7 x86 Ultimate size : 15.4 " type : WXGA TFT display interna...
  hide details
Reply
post #5 of 9
Could be, see my system info...

Each cpu is different, I have seen guys at 4.0 with 1.29v core and 1.26v vtt..

Mine needs 1.352 core (load) and 1.34v vtt
The Money Pit
(15 items)


CPUMotherboardGraphicsRAM
i7-950 - 4.24 @ 1.40v Batch #3941B089 EVGA X58 SLI LE MSI 580 GTX Lightning - 950/1900/2200 @ 1.1v 6GB Mushkin @ 1475 - 6-8-6-24
Hard DriveHard DriveOptical DriveCooling
120GB Vertex Plus 2 x 500GB WD Blues RAID0 Lite-On DVD/CD Custom H20 Loop
OSMonitorPowerCase
Win 7 Ulti-64 25" I-Inc iH253 Antec TruePower New TP-750 CoolerMaster HAF 932
  hide details
Reply
The Money Pit
(15 items)


CPUMotherboardGraphicsRAM
i7-950 - 4.24 @ 1.40v Batch #3941B089 EVGA X58 SLI LE MSI 580 GTX Lightning - 950/1900/2200 @ 1.1v 6GB Mushkin @ 1475 - 6-8-6-24
Hard DriveHard DriveOptical DriveCooling
120GB Vertex Plus 2 x 500GB WD Blues RAID0 Lite-On DVD/CD Custom H20 Loop
OSMonitorPowerCase
Win 7 Ulti-64 25" I-Inc iH253 Antec TruePower New TP-750 CoolerMaster HAF 932
  hide details
Reply
post #6 of 9
Quote:
Originally Posted by 10acjed View Post
Could be, see my system info...

Each cpu is different, I have seen guys at 4.0 with 1.29v core and 1.26v vtt..

Mine needs 1.352 core (load) and 1.34v vtt
I think I was really lucky with my 750. This is an old pic from when the ambient temp was -5 in my conservatory



Some people are just lucky I guess
Sony Vaio VPC-SB
(13 items)


CPUGraphicsRAMHard Drive
Intel i5 2520m AMD Radeon HD 6470M 4Gb 128 GB SSD
OS
Windows 7 x64 Home Premium
  hide details
Reply
Sony Vaio VPC-SB
(13 items)


CPUGraphicsRAMHard Drive
Intel i5 2520m AMD Radeon HD 6470M 4Gb 128 GB SSD
OS
Windows 7 x64 Home Premium
  hide details
Reply
post #7 of 9
Quote:
Originally Posted by runeazn View Post
VTT and PLL can be a bit higher
Yes, VTT should be quite a bit higher. Intel recommends max 1.355, though I personally have mine at 1.455 with no real problems.

However, I have NEVER had to raise CPU PLL on a board. I would NOT recommend raising PLL. It causes quick degradation. In fact, most people have more stability when LOWERING CPU PLL. I prefer to keep mine at 1.5-1.6 personally, but sometimes 1.7 is necessary.

I do not recommend raising CPU PLL. It almost never helps stability and causes quick degradation. It is a much better idea to lower it.
Main Rig
(21 items)

Home Theater PC
(12 items)


CPUMotherboardGraphicsGraphics
i7 3930k Asus P9X79 Pro XFX Radeon HD 6870 XFX Radeon HD 6870
RAMHard DriveHard DriveOptical Drive
4x4GB DDR3 1600 Corsair Vengeance Series Seagate 1.5TB 7200rpm Western Digital Caviar Blue 500GB 7200rpm Asus Optical Drive
CoolingCoolingCoolingCooling
XSPC Raystorm Waterblock Black Primochill Tubing 1/2" ID / 3/4" OD XSPC RX240 XSPC Dual Bay Reservoir
CoolingOSMonitorKeyboard
Swiftech MCP655 Windows 7 Ultimate 64 bit Dell U2410 Das Model S Cherry MX Blue
PowerCaseMouseMouse Pad
Corsair TX850 NZXT Phantom Gigabyte M8000X Razer Goliathus
Audio
Logitech X540
CPUMotherboardGraphicsRAM
AMD Athlon 64 X2 5200+ GA-MA78LM-S2H AMD 760G (Microsoft Corporation WDDM 1.1)  PNY Electronics
RAMHard DriveOptical DriveCooling
PNY Electronics  Western Digital Caviar Blue Basic DVD Multi Recorder Stock
OSMonitorPowerCase
Windows 7 Television PC Power & Cooling Silencer Series 500w Silverstone MLO3B
  hide details
Reply
Main Rig
(21 items)

Home Theater PC
(12 items)


CPUMotherboardGraphicsGraphics
i7 3930k Asus P9X79 Pro XFX Radeon HD 6870 XFX Radeon HD 6870
RAMHard DriveHard DriveOptical Drive
4x4GB DDR3 1600 Corsair Vengeance Series Seagate 1.5TB 7200rpm Western Digital Caviar Blue 500GB 7200rpm Asus Optical Drive
CoolingCoolingCoolingCooling
XSPC Raystorm Waterblock Black Primochill Tubing 1/2" ID / 3/4" OD XSPC RX240 XSPC Dual Bay Reservoir
CoolingOSMonitorKeyboard
Swiftech MCP655 Windows 7 Ultimate 64 bit Dell U2410 Das Model S Cherry MX Blue
PowerCaseMouseMouse Pad
Corsair TX850 NZXT Phantom Gigabyte M8000X Razer Goliathus
Audio
Logitech X540
CPUMotherboardGraphicsRAM
AMD Athlon 64 X2 5200+ GA-MA78LM-S2H AMD 760G (Microsoft Corporation WDDM 1.1)  PNY Electronics
RAMHard DriveOptical DriveCooling
PNY Electronics  Western Digital Caviar Blue Basic DVD Multi Recorder Stock
OSMonitorPowerCase
Windows 7 Television PC Power & Cooling Silencer Series 500w Silverstone MLO3B
  hide details
Reply
post #8 of 9
Quote:
Originally Posted by Airolden View Post
Yes, VTT should be quite a bit higher. Intel recommends max 1.355, though I personally have mine at 1.455 with no real problems.

However, I have NEVER had to raise CPU PLL on a board. I would NOT recommend raising PLL. It causes quick degradation. In fact, most people have more stability when LOWERING CPU PLL. I prefer to keep mine at 1.5-1.6 personally, but sometimes 1.7 is necessary.

I do not recommend raising CPU PLL. It almost never helps stability and causes quick degradation. It is a much better idea to lower it.
The strange part is Intel Absolute Maximum for the i5 700 series is.
CPU Core - 1.40v
CPU VTT - 1.40v
CPU PLL - 1.98v


I have not seen anyone need more than the default 1.80 tho...
The Money Pit
(15 items)


CPUMotherboardGraphicsRAM
i7-950 - 4.24 @ 1.40v Batch #3941B089 EVGA X58 SLI LE MSI 580 GTX Lightning - 950/1900/2200 @ 1.1v 6GB Mushkin @ 1475 - 6-8-6-24
Hard DriveHard DriveOptical DriveCooling
120GB Vertex Plus 2 x 500GB WD Blues RAID0 Lite-On DVD/CD Custom H20 Loop
OSMonitorPowerCase
Win 7 Ulti-64 25" I-Inc iH253 Antec TruePower New TP-750 CoolerMaster HAF 932
  hide details
Reply
The Money Pit
(15 items)


CPUMotherboardGraphicsRAM
i7-950 - 4.24 @ 1.40v Batch #3941B089 EVGA X58 SLI LE MSI 580 GTX Lightning - 950/1900/2200 @ 1.1v 6GB Mushkin @ 1475 - 6-8-6-24
Hard DriveHard DriveOptical DriveCooling
120GB Vertex Plus 2 x 500GB WD Blues RAID0 Lite-On DVD/CD Custom H20 Loop
OSMonitorPowerCase
Win 7 Ulti-64 25" I-Inc iH253 Antec TruePower New TP-750 CoolerMaster HAF 932
  hide details
Reply
post #9 of 9
Quote:
Originally Posted by 10acjed View Post
The strange part is Intel Absolute Maximum for the i5 700 series is.
CPU Core - 1.40v
CPU VTT - 1.40v
CPU PLL - 1.98v


I have not seen anyone need more than the default 1.80 tho...
Hmm I always thought that Intel's max CPU PLL was much lower than that.

I still would never recommend raising it.
Main Rig
(21 items)

Home Theater PC
(12 items)


CPUMotherboardGraphicsGraphics
i7 3930k Asus P9X79 Pro XFX Radeon HD 6870 XFX Radeon HD 6870
RAMHard DriveHard DriveOptical Drive
4x4GB DDR3 1600 Corsair Vengeance Series Seagate 1.5TB 7200rpm Western Digital Caviar Blue 500GB 7200rpm Asus Optical Drive
CoolingCoolingCoolingCooling
XSPC Raystorm Waterblock Black Primochill Tubing 1/2" ID / 3/4" OD XSPC RX240 XSPC Dual Bay Reservoir
CoolingOSMonitorKeyboard
Swiftech MCP655 Windows 7 Ultimate 64 bit Dell U2410 Das Model S Cherry MX Blue
PowerCaseMouseMouse Pad
Corsair TX850 NZXT Phantom Gigabyte M8000X Razer Goliathus
Audio
Logitech X540
CPUMotherboardGraphicsRAM
AMD Athlon 64 X2 5200+ GA-MA78LM-S2H AMD 760G (Microsoft Corporation WDDM 1.1)  PNY Electronics
RAMHard DriveOptical DriveCooling
PNY Electronics  Western Digital Caviar Blue Basic DVD Multi Recorder Stock
OSMonitorPowerCase
Windows 7 Television PC Power & Cooling Silencer Series 500w Silverstone MLO3B
  hide details
Reply
Main Rig
(21 items)

Home Theater PC
(12 items)


CPUMotherboardGraphicsGraphics
i7 3930k Asus P9X79 Pro XFX Radeon HD 6870 XFX Radeon HD 6870
RAMHard DriveHard DriveOptical Drive
4x4GB DDR3 1600 Corsair Vengeance Series Seagate 1.5TB 7200rpm Western Digital Caviar Blue 500GB 7200rpm Asus Optical Drive
CoolingCoolingCoolingCooling
XSPC Raystorm Waterblock Black Primochill Tubing 1/2" ID / 3/4" OD XSPC RX240 XSPC Dual Bay Reservoir
CoolingOSMonitorKeyboard
Swiftech MCP655 Windows 7 Ultimate 64 bit Dell U2410 Das Model S Cherry MX Blue
PowerCaseMouseMouse Pad
Corsair TX850 NZXT Phantom Gigabyte M8000X Razer Goliathus
Audio
Logitech X540
CPUMotherboardGraphicsRAM
AMD Athlon 64 X2 5200+ GA-MA78LM-S2H AMD 760G (Microsoft Corporation WDDM 1.1)  PNY Electronics
RAMHard DriveOptical DriveCooling
PNY Electronics  Western Digital Caviar Blue Basic DVD Multi Recorder Stock
OSMonitorPowerCase
Windows 7 Television PC Power & Cooling Silencer Series 500w Silverstone MLO3B
  hide details
Reply
New Posts  All Forums:Forum Nav:
  Return Home
  Back to Forum: Intel CPUs
Overclock.net › Forums › Intel › Intel CPUs › Novice i5-750 OC @ 3.8
