Best Layout For My Loop?

post #1 of 11
Thread Starter
Hey guys, my gear is coming this week, and I just wanted to know your guy's opinion on what would give me the best temps for my loop.

Here are 2 layouts I drew up in paint:

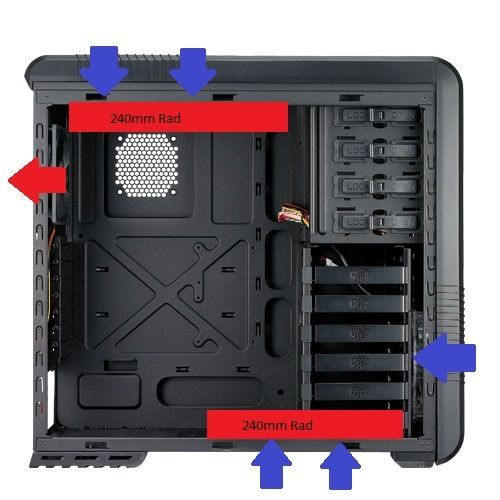

Layout #1
loop2.jpg?t=1294101382

Layout # 2
loop3.jpg?t=1294101420

I'm kind of partial to layout #1, only because all intake points would be covered by dust filters, and I also heard that fans on rads should always be intaking, but what do you guys think?
