**Thermalright**Archon**Testing and Analysis**Contagious Reviews**

post #1 of 15
Thread Starter
This review should have been up a couple weeks ago.
But, due to a mistake made by my part, my CPU was fried and it took a little over a week to get a new CPU in.
It isn't the same CPU as I used in the Silver Arrow review, but, I have configured this one to match the other one.
The one I used before was a Xeon L5506 which is a 4 core/4 thread 1366 chip.
Now, I am using an i7 920, but, for the sake of similarities, I have turned off HT to make it 4 threads.
So, it shouldn't offer a difference among temps. If I am wrong, please, let me know and I will add that info to the review.
I don't want anyone to be misinformed by my lack of consistency.
On to the review!

Introduction

Coolers are always evolving.
New technologies are developed, new ideas, new metals, new looks.
They are, in a general way, like combustion engines.
The basic premise is the same throughout all of them. The same basic structure.
But through innovation and engineering, the creators of these coolers try to get as much out of them as possible.
They try to refine and improve the long-used theories of heat dissipation.
As new coolers are released, they get better and better each time.
Each time they are refined for just a little bit better performance. Companies like Thermalright and Scythe are well known for this.
What I have with me today is the latest from Thermalright.
The Archon.
Just by looking at it, you notice that it is quite a bit smaller than the big, performance monsters such as the NH-D14.
But, Thermalright, being as experienced as they are, may have a few surprises for us.
For instance, it is very thin. But, the total surface area is 1.6 times that of the Venomous X.
Could this be the cooler that matches both size with performance?
Read on my ill-conceived friend. Read on.

The Mutt
(13 items)


CPUMotherboardGraphicsRAM
Intel i5 6600K MSI Gaming M5 EVGA GTX 1080  Corsair 2x 4gb 1600Mhz
Hard DriveCoolingMonitorKeyboard
A lot. Corsair H75 QNIX 1440p Steelseries 6Gv2
PowerCaseMouseAudio
Corsair AX850 Corsair 650D Logitech Tried and True Edition Hifiman HE-400i
Audio
SCHIIT STACK Modi/Magni
  hide details
Reply
The Mutt
(13 items)


CPUMotherboardGraphicsRAM
Intel i5 6600K MSI Gaming M5 EVGA GTX 1080  Corsair 2x 4gb 1600Mhz
Hard DriveCoolingMonitorKeyboard
A lot. Corsair H75 QNIX 1440p Steelseries 6Gv2
PowerCaseMouseAudio
Corsair AX850 Corsair 650D Logitech Tried and True Edition Hifiman HE-400i
Audio
SCHIIT STACK Modi/Magni
  hide details
Reply
post #2 of 15
Thread Starter
Photo Gallery

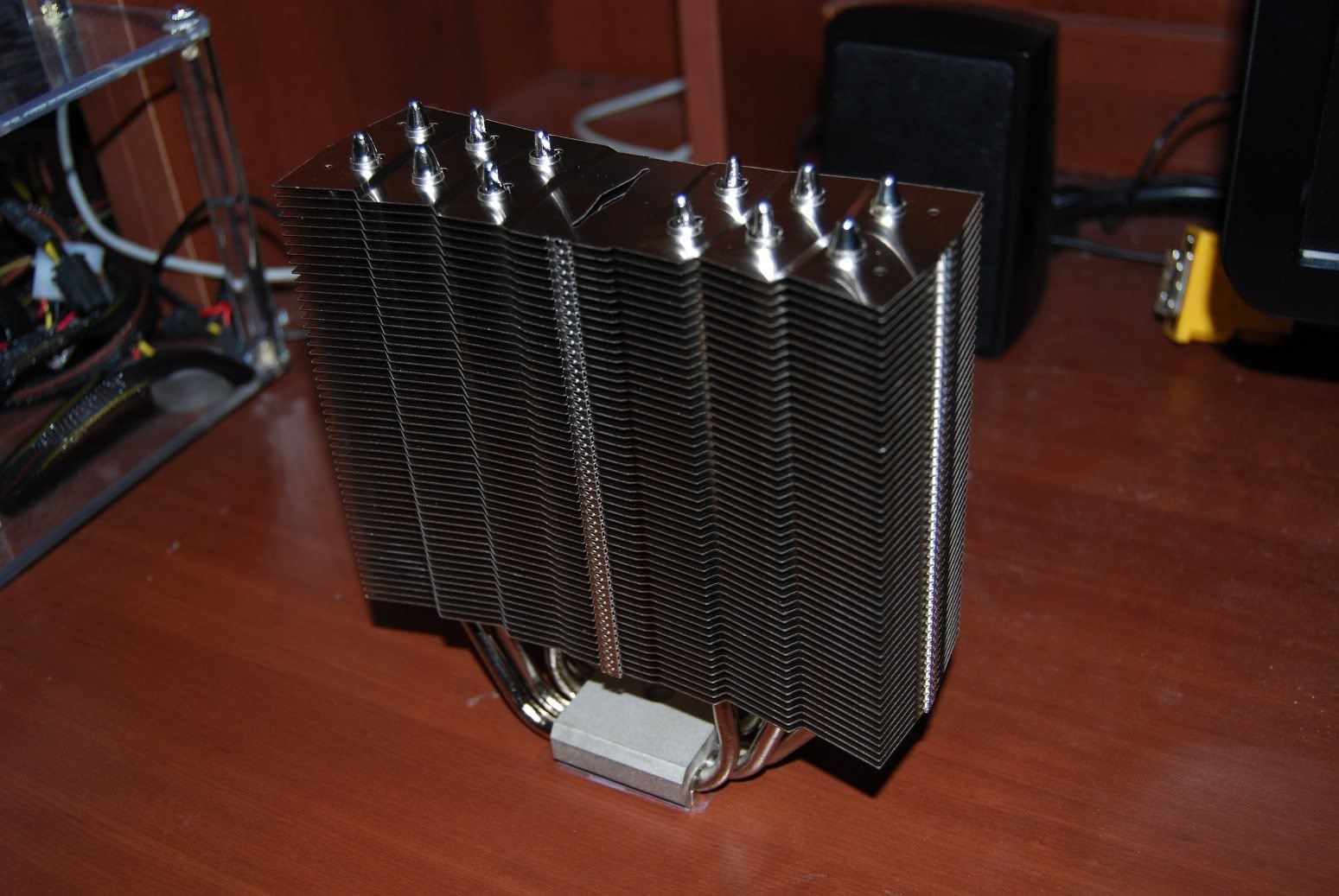

Here is the cooler unboxed and side-by-side with the Silver Arrow.



































The Mutt
(13 items)


CPUMotherboardGraphicsRAM
Intel i5 6600K MSI Gaming M5 EVGA GTX 1080  Corsair 2x 4gb 1600Mhz
Hard DriveCoolingMonitorKeyboard
A lot. Corsair H75 QNIX 1440p Steelseries 6Gv2
PowerCaseMouseAudio
Corsair AX850 Corsair 650D Logitech Tried and True Edition Hifiman HE-400i
Audio
SCHIIT STACK Modi/Magni
  hide details
Reply
The Mutt
(13 items)


CPUMotherboardGraphicsRAM
Intel i5 6600K MSI Gaming M5 EVGA GTX 1080  Corsair 2x 4gb 1600Mhz
Hard DriveCoolingMonitorKeyboard
A lot. Corsair H75 QNIX 1440p Steelseries 6Gv2
PowerCaseMouseAudio
Corsair AX850 Corsair 650D Logitech Tried and True Edition Hifiman HE-400i
Audio
SCHIIT STACK Modi/Magni
  hide details
Reply
post #3 of 15
Thread Starter
Testing

I will be comparing it to the Silver Arrow.
They both will be using 2x TY140 fans and tested on high and low mounting pressures.

Test System:
Intel i7 920
EVGA X58 SLI LE
2x2gb OCZ Platinum DDR3
MSI GTX 470
Sunbeam UCTS TechStation

Testing Software:
Prime95
CPUID HWMonitor
CPUID CPU-Z

Ambient Temperature: 22C

____________________________________________________________________________________________________________

Low Pressure Testing (40lbs):

Silver Arrow:



Idle Temperature - 37.75C
Load Temperature - 60.75C

Archon:



Idle Temperature - 40C
Load Temperature - 65C

____________________________________________________________________________________________________________

High Pressure Testing (70lbs):

Silver Arrow:



Idle Temperature - 33.25C
Load Temperature - 57.75C

Archon:



Idle Temperature - 40C
Load Temperature - 64C
The Mutt
(13 items)


CPUMotherboardGraphicsRAM
Intel i5 6600K MSI Gaming M5 EVGA GTX 1080  Corsair 2x 4gb 1600Mhz
Hard DriveCoolingMonitorKeyboard
A lot. Corsair H75 QNIX 1440p Steelseries 6Gv2
PowerCaseMouseAudio
Corsair AX850 Corsair 650D Logitech Tried and True Edition Hifiman HE-400i
Audio
SCHIIT STACK Modi/Magni
  hide details
Reply
The Mutt
(13 items)


CPUMotherboardGraphicsRAM
Intel i5 6600K MSI Gaming M5 EVGA GTX 1080  Corsair 2x 4gb 1600Mhz
Hard DriveCoolingMonitorKeyboard
A lot. Corsair H75 QNIX 1440p Steelseries 6Gv2
PowerCaseMouseAudio
Corsair AX850 Corsair 650D Logitech Tried and True Edition Hifiman HE-400i
Audio
SCHIIT STACK Modi/Magni
  hide details
Reply
post #4 of 15
Thread Starter
Conclusion



First, I want to say that this cooler is pretty expensive considering its competitors.
Its performance is, from what I've experienced, a tad better than a Venomous X.
That being said, it's as expensive as the Silver Arrow. Which is quite a bit better.
So, its price/performance isn't exactly stellar, or even good.
This is all just on the performance, though.
I cannot deny that this is a great cooler.
Comparing it directly to a Silver Arrow is a little one-sided as they offer different uses.
As I stated in the intro, coolers are about refinement. This cooler is not a Silver Arrow killer. It isn't supposed to be.
It's not supposed to hang with the high performance coolers (at least, I would hope not).
It is a refinement over the Venomous X. Which was a refinement over the TRUE.
When you look at it from other angles than performance, you start to see the reasoning behind it.
Its slim shape doesn't cover any of the ram slots.
Its slim shape makes it quieter.
Its slim shape makes one fan more than enough.
See what I am getting at here?
It isn't a new, performance blasting super-cooler.
It's a a small cooler squeezing out more power.
Or, going back to my engine analogy, it's a small 4-cylinder engine tuned to give just that bit more power without the disadvantages of a big V8 or such.

But unfortunately, all that is spoiled because it costs the same as that big V8.
Most people will suck up the Silver Arrow's size and lack of practicality for the fact that it is just that much better for the same cost.
Unless you really need that extra space, there is no reason to buy this one over the Silver Arrow or another cooler of that class.
That price tag gets even more scary when you figure the cost of adding the second fan that the Archon doesn't come with.
This truly is disappointing.
Something that is so remarkable in that it offers everything you want, but at the cost you don't want.
With all the facts and opinions given, the rest is up to you.

Thermalright Archon - 6.5/10

____________________________________________________________________________________________________________

I hope you guys enjoyed my review.

Special thanks to David at Thermalright.

Contagion out.
Edited by Contagion - 1/7/11 at 4:44pm
The Mutt
(13 items)


CPUMotherboardGraphicsRAM
Intel i5 6600K MSI Gaming M5 EVGA GTX 1080  Corsair 2x 4gb 1600Mhz
Hard DriveCoolingMonitorKeyboard
A lot. Corsair H75 QNIX 1440p Steelseries 6Gv2
PowerCaseMouseAudio
Corsair AX850 Corsair 650D Logitech Tried and True Edition Hifiman HE-400i
Audio
SCHIIT STACK Modi/Magni
  hide details
Reply
The Mutt
(13 items)


CPUMotherboardGraphicsRAM
Intel i5 6600K MSI Gaming M5 EVGA GTX 1080  Corsair 2x 4gb 1600Mhz
Hard DriveCoolingMonitorKeyboard
A lot. Corsair H75 QNIX 1440p Steelseries 6Gv2
PowerCaseMouseAudio
Corsair AX850 Corsair 650D Logitech Tried and True Edition Hifiman HE-400i
Audio
SCHIIT STACK Modi/Magni
  hide details
Reply
post #5 of 15
Great review. Makes me glad I got a Silver Arrow and didn't wait for an Archon
post #6 of 15
Thread Starter
Quote:
Originally Posted by tw33k View Post
Great review. Makes me glad I got a Silver Arrow and didn't wait for an Archon
Thanks for the comment!
The Mutt
(13 items)


CPUMotherboardGraphicsRAM
Intel i5 6600K MSI Gaming M5 EVGA GTX 1080  Corsair 2x 4gb 1600Mhz
Hard DriveCoolingMonitorKeyboard
A lot. Corsair H75 QNIX 1440p Steelseries 6Gv2
PowerCaseMouseAudio
Corsair AX850 Corsair 650D Logitech Tried and True Edition Hifiman HE-400i
Audio
SCHIIT STACK Modi/Magni
  hide details
Reply
The Mutt
(13 items)


CPUMotherboardGraphicsRAM
Intel i5 6600K MSI Gaming M5 EVGA GTX 1080  Corsair 2x 4gb 1600Mhz
Hard DriveCoolingMonitorKeyboard
A lot. Corsair H75 QNIX 1440p Steelseries 6Gv2
PowerCaseMouseAudio
Corsair AX850 Corsair 650D Logitech Tried and True Edition Hifiman HE-400i
Audio
SCHIIT STACK Modi/Magni
  hide details
Reply
post #7 of 15
Nice review. Now all we need is a twin tower Archon muahaha!
post #8 of 15
GReat review!!!! makes me feel like I made a good purchase with my D-14 tongue.gif.. however I my be replacing it with water this spring/summer suggestions welcome.. pm me don'w wanna hijack the thread
post #9 of 15
Hmm. The previous reviews put this ahead of the Silver Arrow, the D14 and the rest. These are very interesting results.

One thing I would like to know: could you measure the thickness of the contact block? The part that sits on the cpu. It would be nice to be able to mount an Archon or a Silver Arrow with a Prolimatech or a Noctua mount.
alpha updated
(19 items)

secundus
(14 items)


CPUMotherboardGraphicsRAM
i7 4790k Gigabyte GA-Z97X Gaming-7 Intel HD4600 Crucial Ballistix Sport Very Low Profile 8GB Ki...
Hard DriveCoolingOSMonitor
Samsung 840 EVO 500GB Prolimatech Megahalems Rev. C Windows 8.1 Home Premium 64-bit Acer K242HL
KeyboardPowerCaseMouse
Dell SK-8110 (PS/2) Seasonic X460 Fanless motherboard tray from CM ATCS 840 Logitech MX 1100
Mouse PadAudio
Dell Creative SoundBlaster X-Fi MB3
CPUMotherboardGraphicsRAM
i7 860 Gigabyte GA P55M UD2 ZOTAC/NVidia GTX 650 Ti 2GB 4x4GB G.Skill Ripjaws DDR3-1333 CAS9
Hard DriveOptical DriveCoolingOS
Samsung 1TB Spinpoint F3 7200.12 Plextor 24x DVD burner Cooler Master Hyper Z600R Win7 64-bit
MonitorKeyboardPowerCase
Dell E207WFP 20-inch flat panel Logitech Wireless 510 Seasonic X-650 fully modular 80+ Gold Lian Li PC-7FN
MouseMouse PadAudio
Wireless Mouse WACOM Intuos 3 generic
  hide details
Reply
alpha updated
(19 items)

secundus
(14 items)


CPUMotherboardGraphicsRAM
i7 4790k Gigabyte GA-Z97X Gaming-7 Intel HD4600 Crucial Ballistix Sport Very Low Profile 8GB Ki...
Hard DriveCoolingOSMonitor
Samsung 840 EVO 500GB Prolimatech Megahalems Rev. C Windows 8.1 Home Premium 64-bit Acer K242HL
KeyboardPowerCaseMouse
Dell SK-8110 (PS/2) Seasonic X460 Fanless motherboard tray from CM ATCS 840 Logitech MX 1100
Mouse PadAudio
Dell Creative SoundBlaster X-Fi MB3
CPUMotherboardGraphicsRAM
i7 860 Gigabyte GA P55M UD2 ZOTAC/NVidia GTX 650 Ti 2GB 4x4GB G.Skill Ripjaws DDR3-1333 CAS9
Hard DriveOptical DriveCoolingOS
Samsung 1TB Spinpoint F3 7200.12 Plextor 24x DVD burner Cooler Master Hyper Z600R Win7 64-bit
MonitorKeyboardPowerCase
Dell E207WFP 20-inch flat panel Logitech Wireless 510 Seasonic X-650 fully modular 80+ Gold Lian Li PC-7FN
MouseMouse PadAudio
Wireless Mouse WACOM Intuos 3 generic
  hide details
Reply
post #10 of 15
Thread Starter
Quote:
Originally Posted by ehume View Post
Hmm. The previous reviews put this ahead of the Silver Arrow, the D14 and the rest. These are very interesting results.

One thing I would like to know: could you measure the thickness of the contact block? The part that sits on the cpu. It would be nice to be able to mount an Archon or a Silver Arrow with a Prolimatech or a Noctua mount.
Yeah, I noticed that. The HARD[OCP] review of it showed it being 3C hotter than the Silver Arrow with 1.45v. Although they were using a temperature sensor placed between the CPU IHS and the cooler base.

And yeah, I'll get the thickness for you. It's actually the exact same as the HR-02 and the Silver Arrow. I've been using the same mounts on all of them.
