Help! On EP45-UD3P 1.6 w/ Q9550 - Page 2

post #11 of 24
Thread Starter
oO rly... thx.. i'll try that.. Im running on 4ghz now.. 471fsb x 8.5
My System
(13 items)


CPUMotherboardGraphicsRAM
2600K 4.8ghz HT Asus P8P67 Deluxe 1503 980TI Classy @ 1462Mhz Sammy DDR3L 8GB @ 1866 9-9-9-24-1
Hard DriveOSMonitorPower
850 Pro Win8.1 64Bit PG278Q Cossair RM850X
Case
Enthoo Pro
  hide details
Reply
My System
(13 items)


CPUMotherboardGraphicsRAM
2600K 4.8ghz HT Asus P8P67 Deluxe 1503 980TI Classy @ 1462Mhz Sammy DDR3L 8GB @ 1866 9-9-9-24-1
Hard DriveOSMonitorPower
850 Pro Win8.1 64Bit PG278Q Cossair RM850X
Case
Enthoo Pro
  hide details
Reply
post #12 of 24
Quote:
Originally Posted by xxlap1xx View Post
oO rly... thx.. i'll try that.. Im running on 4ghz now.. 471fsb x 8.5
Good work
Dell Optiplex 745
(10 items)


CPUMotherboardGraphicsRAM
Q6600 (incoming) Dell proprietary Intel Q965 Express Chipset XFX HD 5770 (incoming) 4GB Patriot DDR2 800
Hard DriveOptical DriveCoolingOS
Hitachi Deskstar 160GB 7200RPM DVDRW Stock Windows XP 32 (for the time being)
MonitorPower
Dell 22" 1680x1050 Corsair CX430
  hide details
Reply
Dell Optiplex 745
(10 items)


CPUMotherboardGraphicsRAM
Q6600 (incoming) Dell proprietary Intel Q965 Express Chipset XFX HD 5770 (incoming) 4GB Patriot DDR2 800
Hard DriveOptical DriveCoolingOS
Hitachi Deskstar 160GB 7200RPM DVDRW Stock Windows XP 32 (for the time being)
MonitorPower
Dell 22" 1680x1050 Corsair CX430
  hide details
Reply
post #13 of 24
Thread Starter
oh rly.. I'll give that a try.. im running 4ghz now.. 8.5 x 471
My System
(13 items)


CPUMotherboardGraphicsRAM
2600K 4.8ghz HT Asus P8P67 Deluxe 1503 980TI Classy @ 1462Mhz Sammy DDR3L 8GB @ 1866 9-9-9-24-1
Hard DriveOSMonitorPower
850 Pro Win8.1 64Bit PG278Q Cossair RM850X
Case
Enthoo Pro
  hide details
Reply
My System
(13 items)


CPUMotherboardGraphicsRAM
2600K 4.8ghz HT Asus P8P67 Deluxe 1503 980TI Classy @ 1462Mhz Sammy DDR3L 8GB @ 1866 9-9-9-24-1
Hard DriveOSMonitorPower
850 Pro Win8.1 64Bit PG278Q Cossair RM850X
Case
Enthoo Pro
  hide details
Reply
post #14 of 24
65nm vcore max is 1.5 and 45nm vcore max is 1.4 give or take some.
Water Clockster
(23 items)

Gaming/Movies Rig
(19 items)

Asus G46VW
(11 items)

CPUMotherboardGraphicsRAM
i7 3770 Asrock Z77 WS XFX Radeon HD6990 G-Skill RipJaws Z 16GB (2x8GB)1866MHz
Hard DriveHard DriveHard DriveHard Drive
ADATA SX900 Seagate Barracuda LP Seagate Momentus XT SSHD Samsung Spinpoint
Hard DriveOptical DriveOSMonitor
Seagate 7200.14 LG (BH12) BluRay Reader/ReWriter Windows 7 Ultimate 64 Bit Prima 37" (1920x1200)
KeyboardPowerCaseMouse
Acer Wireless Corsair HX850M Antec Eleven Hundred Logitech G500
Mouse PadAudioAudio
Rocketfish Control/Speed JVC AX-R87X Amplifier/Paisley SPL Monitor Tower... Creative X-Fi Titanium Sound Card
CPUMotherboardGraphicsRAM
i7 3820QM Asus H77 GTX660M 16GB (2x8GB) Kingston HyperX 1600MHz CL9
Hard DriveHard DriveOSMonitor
Crucial M500 240GB MSATA (O/S) Seagate Momentus XT Hybrid 750GB Windows 7 Ultimate 64Bit 14" HD+ 1600x900 LED
MouseAudioOther
Logitech G9x Realtek Asus PCE-AC66 802.11AC Wireless/Qualcomm Athero...
  hide details
Reply
Water Clockster
(23 items)

Gaming/Movies Rig
(19 items)

Asus G46VW
(11 items)

CPUMotherboardGraphicsRAM
i7 3770 Asrock Z77 WS XFX Radeon HD6990 G-Skill RipJaws Z 16GB (2x8GB)1866MHz
Hard DriveHard DriveHard DriveHard Drive
ADATA SX900 Seagate Barracuda LP Seagate Momentus XT SSHD Samsung Spinpoint
Hard DriveOptical DriveOSMonitor
Seagate 7200.14 LG (BH12) BluRay Reader/ReWriter Windows 7 Ultimate 64 Bit Prima 37" (1920x1200)
KeyboardPowerCaseMouse
Acer Wireless Corsair HX850M Antec Eleven Hundred Logitech G500
Mouse PadAudioAudio
Rocketfish Control/Speed JVC AX-R87X Amplifier/Paisley SPL Monitor Tower... Creative X-Fi Titanium Sound Card
CPUMotherboardGraphicsRAM
i7 3820QM Asus H77 GTX660M 16GB (2x8GB) Kingston HyperX 1600MHz CL9
Hard DriveHard DriveOSMonitor
Crucial M500 240GB MSATA (O/S) Seagate Momentus XT Hybrid 750GB Windows 7 Ultimate 64Bit 14" HD+ 1600x900 LED
MouseAudioOther
Logitech G9x Realtek Asus PCE-AC66 802.11AC Wireless/Qualcomm Athero...
  hide details
Reply
post #15 of 24
Thread Starter
Um... how long am i suppose to run intel burn test? 5mins?
My System
(13 items)


CPUMotherboardGraphicsRAM
2600K 4.8ghz HT Asus P8P67 Deluxe 1503 980TI Classy @ 1462Mhz Sammy DDR3L 8GB @ 1866 9-9-9-24-1
Hard DriveOSMonitorPower
850 Pro Win8.1 64Bit PG278Q Cossair RM850X
Case
Enthoo Pro
  hide details
Reply
My System
(13 items)


CPUMotherboardGraphicsRAM
2600K 4.8ghz HT Asus P8P67 Deluxe 1503 980TI Classy @ 1462Mhz Sammy DDR3L 8GB @ 1866 9-9-9-24-1
Hard DriveOSMonitorPower
850 Pro Win8.1 64Bit PG278Q Cossair RM850X
Case
Enthoo Pro
  hide details
Reply
post #16 of 24
Quote:
Originally Posted by xxlap1xx View Post
Um... how long am i suppose to run intel burn test? 5mins?
run it for 20 passes with least 3/4 of your memory
Dell Optiplex 745
(10 items)


CPUMotherboardGraphicsRAM
Q6600 (incoming) Dell proprietary Intel Q965 Express Chipset XFX HD 5770 (incoming) 4GB Patriot DDR2 800
Hard DriveOptical DriveCoolingOS
Hitachi Deskstar 160GB 7200RPM DVDRW Stock Windows XP 32 (for the time being)
MonitorPower
Dell 22" 1680x1050 Corsair CX430
  hide details
Reply
Dell Optiplex 745
(10 items)


CPUMotherboardGraphicsRAM
Q6600 (incoming) Dell proprietary Intel Q965 Express Chipset XFX HD 5770 (incoming) 4GB Patriot DDR2 800
Hard DriveOptical DriveCoolingOS
Hitachi Deskstar 160GB 7200RPM DVDRW Stock Windows XP 32 (for the time being)
MonitorPower
Dell 22" 1680x1050 Corsair CX430
  hide details
Reply
post #17 of 24
Thread Starter
you mean 20 times?? default is 5.. is that where i put 20 at?
My System
(13 items)


CPUMotherboardGraphicsRAM
2600K 4.8ghz HT Asus P8P67 Deluxe 1503 980TI Classy @ 1462Mhz Sammy DDR3L 8GB @ 1866 9-9-9-24-1
Hard DriveOSMonitorPower
850 Pro Win8.1 64Bit PG278Q Cossair RM850X
Case
Enthoo Pro
  hide details
Reply
My System
(13 items)


CPUMotherboardGraphicsRAM
2600K 4.8ghz HT Asus P8P67 Deluxe 1503 980TI Classy @ 1462Mhz Sammy DDR3L 8GB @ 1866 9-9-9-24-1
Hard DriveOSMonitorPower
850 Pro Win8.1 64Bit PG278Q Cossair RM850X
Case
Enthoo Pro
  hide details
Reply
post #18 of 24
Run IBT high for 20 runs (just put 20 and let it run). After 20 runs and it's stable, it somewhat means that your voltages are ok. However, I recommend running prime95 large fft after finding appropriate vcore. I found out that I can pass small fft and even IBT but a worker would fail within the first 30 mins of large fft.

Anyway, here are my settings for 4GHz (using asus p5q deluxe):
CPU Ratio Setting: 8.5
FSB Frequency: 471 MHz
FSB Strap to North Bridge: 400 MHz
DRAM Frequency: 943 MHz
DRAM Timings: Auto (default 5-5-5-18-52)

CPU Voltage: 1.275v
CPU GTL Voltage Reference (0/2): AUTO
CPU GTL Voltage Reference (0/2): AUTO
CPU PLL Voltage: 1.56v
FSB Termination Voltage: 1.26v
DRAM Voltage: AUTO
NB Voltage: 1.32v
NB GTL Reference: Auto

Load-Line Calibration: Enabled

Hope this helps! I was only able to stabilize my 4GHz yesterday. Btw, my vid's 1.2v but I think you'll be able to get 4GHz out of 1.3v (vcore)
post #19 of 24
Thread Starter
Quote:
Originally Posted by pipnasty View Post
Run IBT high for 20 runs (just put 20 and let it run). After 20 runs and it's stable, it somewhat means that your voltages are ok. However, I recommend running prime95 large fft after finding appropriate vcore. I found out that I can pass small fft and even IBT but a worker would fail within the first 30 mins of large fft.

Anyway, here are my settings for 4GHz (using asus p5q deluxe):
CPU Ratio Setting: 8.5
FSB Frequency: 471 MHz
FSB Strap to North Bridge: 400 MHz
DRAM Frequency: 943 MHz
DRAM Timings: Auto (default 5-5-5-18-52)

CPU Voltage: 1.275v
CPU GTL Voltage Reference (0/2): AUTO
CPU GTL Voltage Reference (0/2): AUTO
CPU PLL Voltage: 1.56v
FSB Termination Voltage: 1.26v
DRAM Voltage: AUTO
NB Voltage: 1.32v
NB GTL Reference: Auto

Load-Line Calibration: Enabled

Hope this helps! I was only able to stabilize my 4GHz yesterday. Btw, my vid's 1.2v but I think you'll be able to get 4GHz out of 1.3v (vcore)
Thanks..I might try out your settings and see how it works on mind.. BTW how long does a test usually takes in IBT? I got my result for the 1st test for the first 100 sec..Im currently running my second test, and it seems like im stuck there..it's been running for like 10mins.. nothing crashed..cpu usage is still high.. im just not getting my results..
My System
(13 items)


CPUMotherboardGraphicsRAM
2600K 4.8ghz HT Asus P8P67 Deluxe 1503 980TI Classy @ 1462Mhz Sammy DDR3L 8GB @ 1866 9-9-9-24-1
Hard DriveOSMonitorPower
850 Pro Win8.1 64Bit PG278Q Cossair RM850X
Case
Enthoo Pro
  hide details
Reply
My System
(13 items)


CPUMotherboardGraphicsRAM
2600K 4.8ghz HT Asus P8P67 Deluxe 1503 980TI Classy @ 1462Mhz Sammy DDR3L 8GB @ 1866 9-9-9-24-1
Hard DriveOSMonitorPower
850 Pro Win8.1 64Bit PG278Q Cossair RM850X
Case
Enthoo Pro
  hide details
Reply
post #20 of 24
Are you using it on "high"?

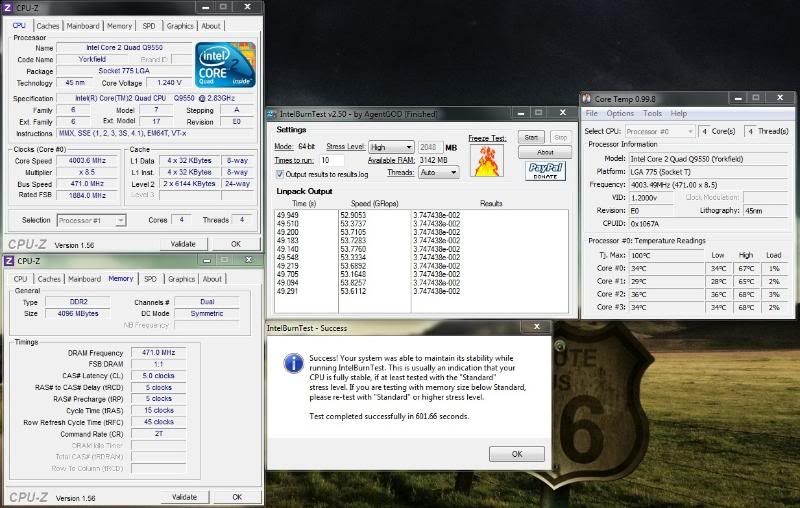

Mine does high for less than 50 sec per run:


Maybe you have a lot of background programs running?
