*56k Warning* How to Install a EVGA Backplate on a GTX480 with AXP cooler

post #1 of 11
Thread Starter
Hey all...

As Promised

Here is my instructions on how to Install this cooler on a GTX 480 with a EVGA Backplate

Edit: This should work on all 480s with reference PCBs

And also some pics of my system with SLI 480s with this setup on both cards

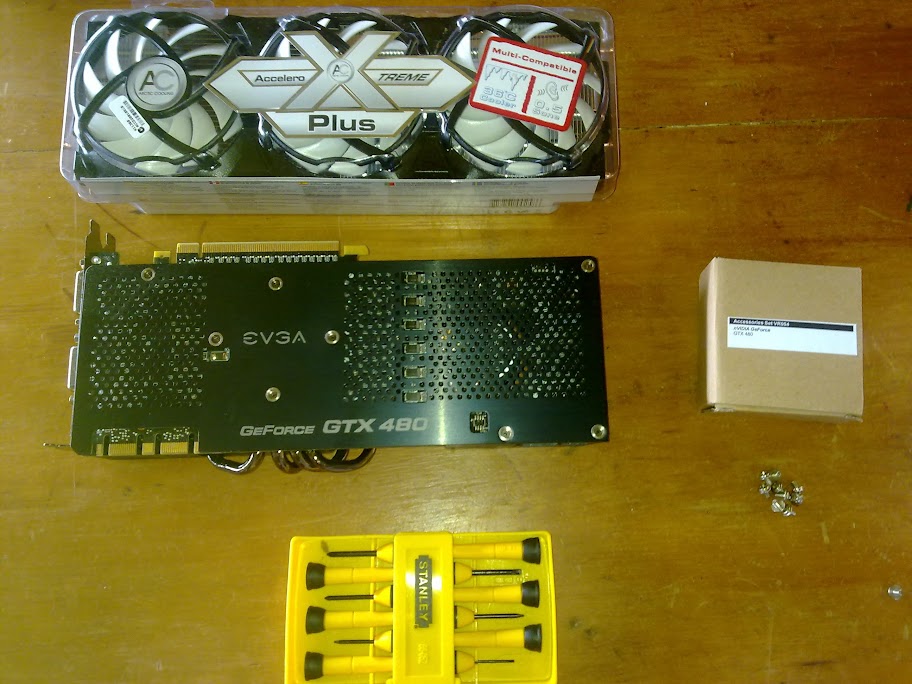

Things you will need-

EVGA Backplate
GTX 480
AXP cooler
VR004 Kit for AXP
A Small phillips head screwdriver
Drill
a Drill Piece about 1cm thick
Some small Screws that will be able to be screwed into the backplate


Step 1:

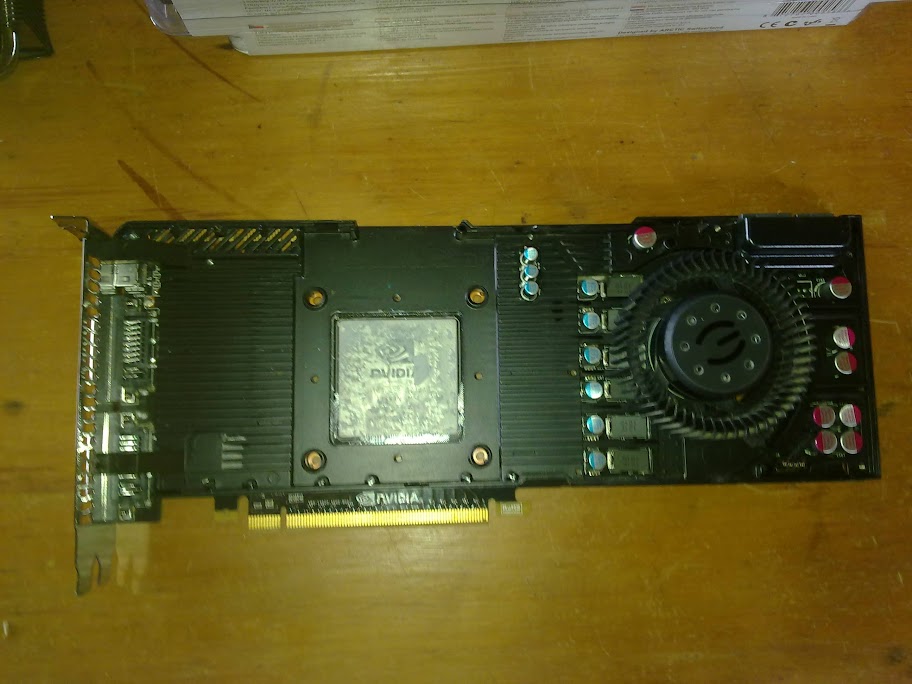

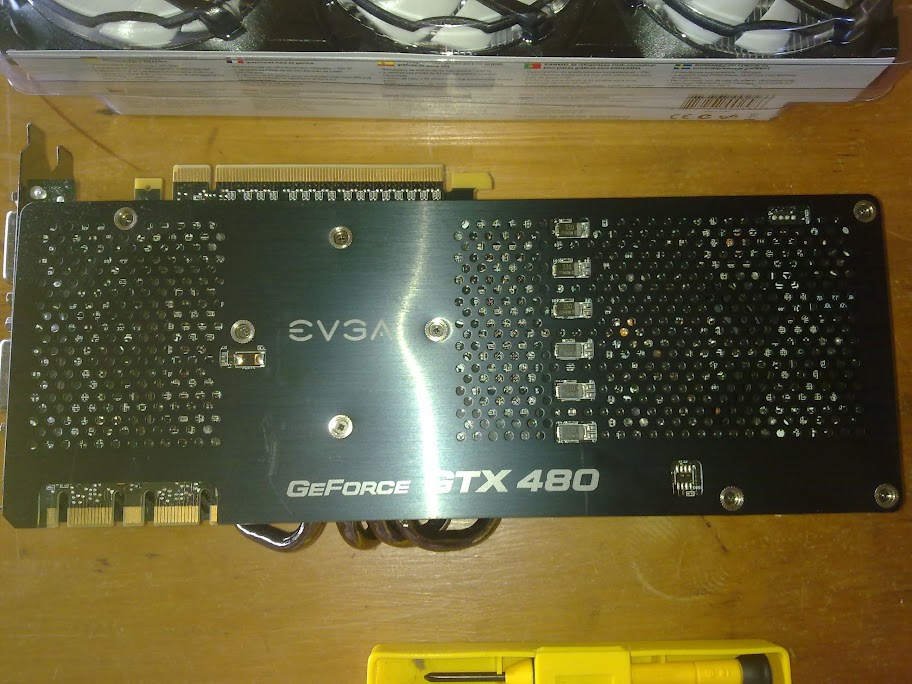

Unscrew all the screws off the backplate (image below) and remove backplate


Step 2:

Unscrew the remaining screws (image Below)


Step 3:

Remove the shroud by unclipping these tabs in images below



Step 4:

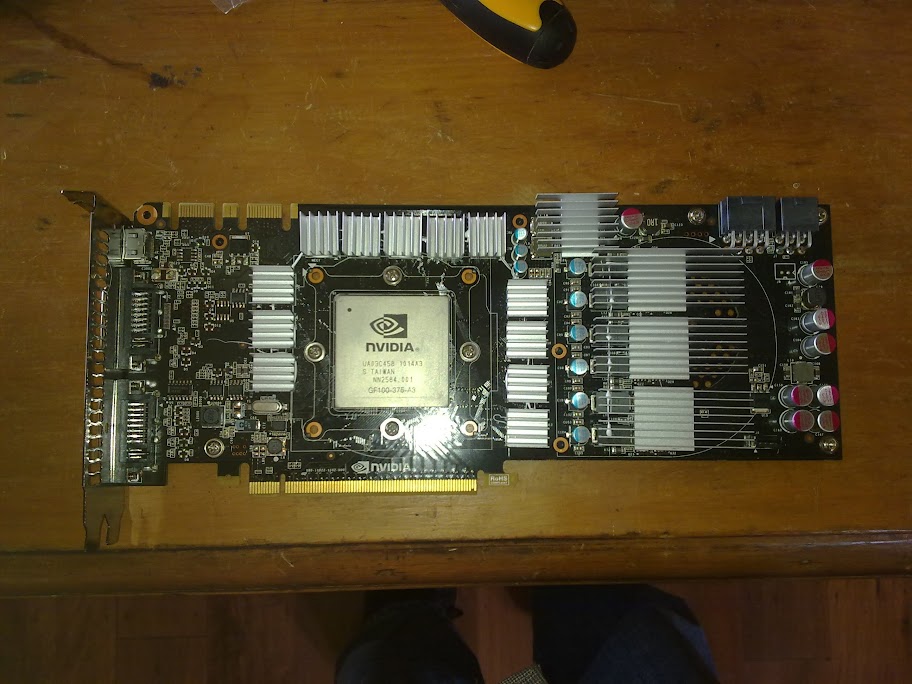

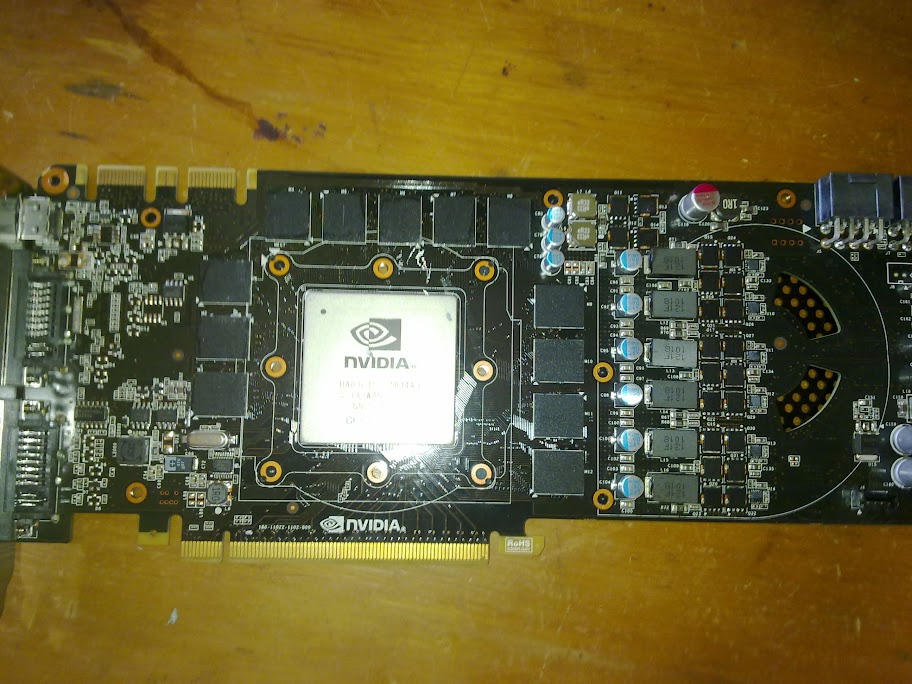

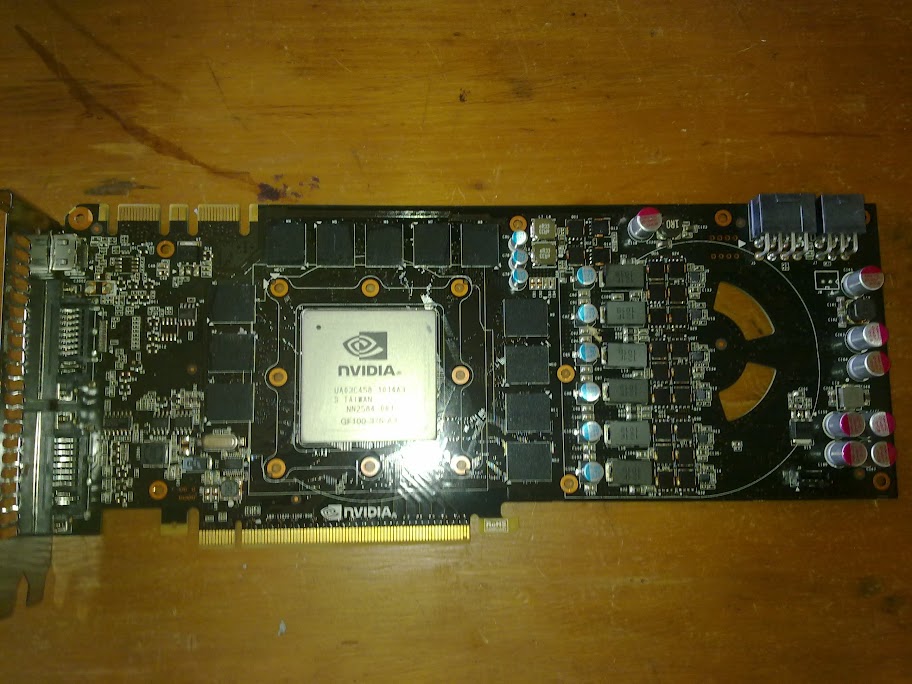

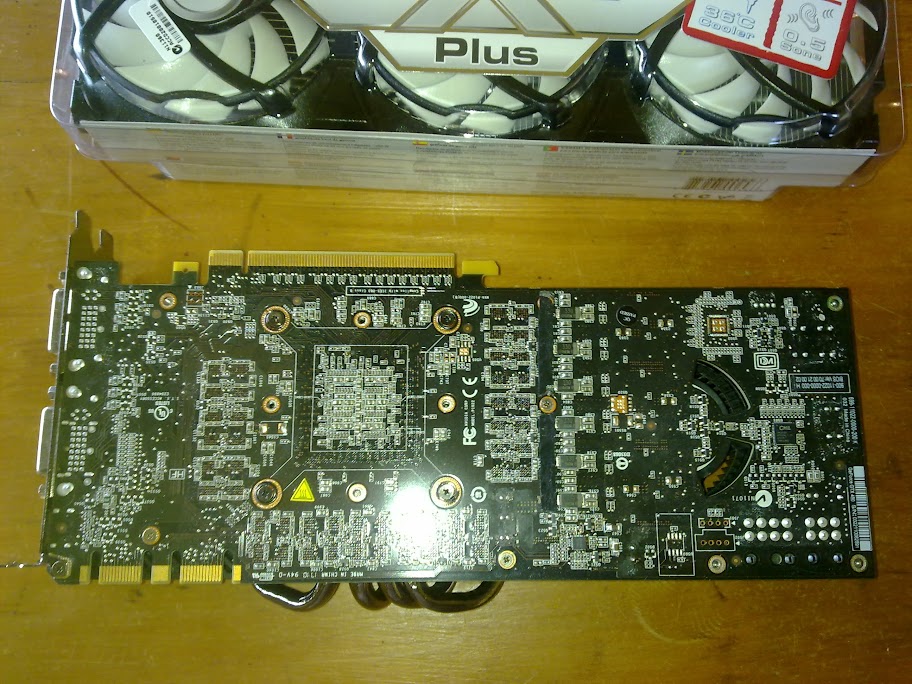

Remove Stock Heatsink and Ram/VRM sink



Step 5:

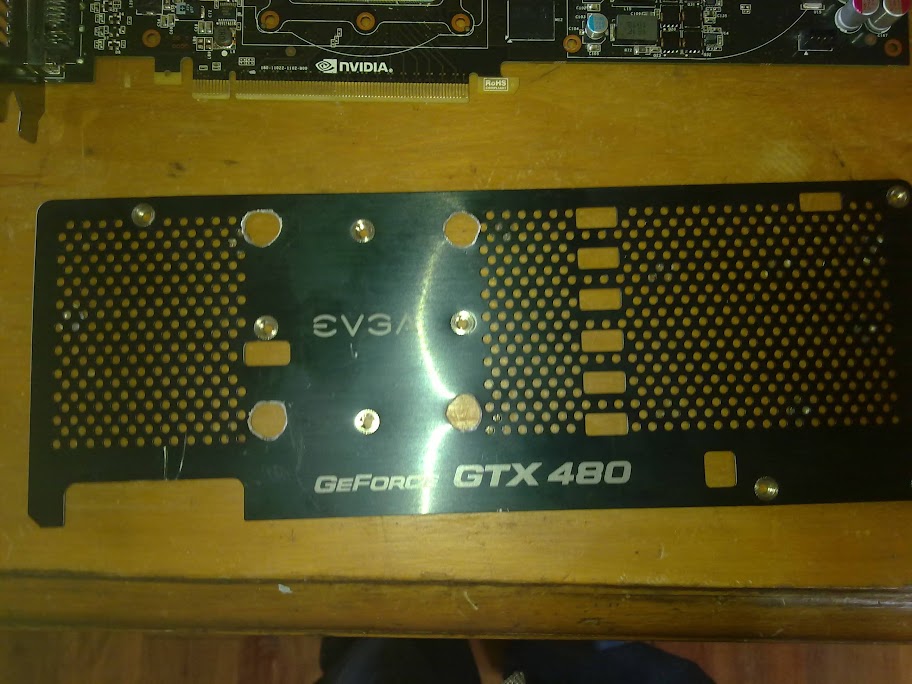

Line up the backplate with all the screw hole and use a screwdriver to mark the 4 holes that are needed for the AXP cooler

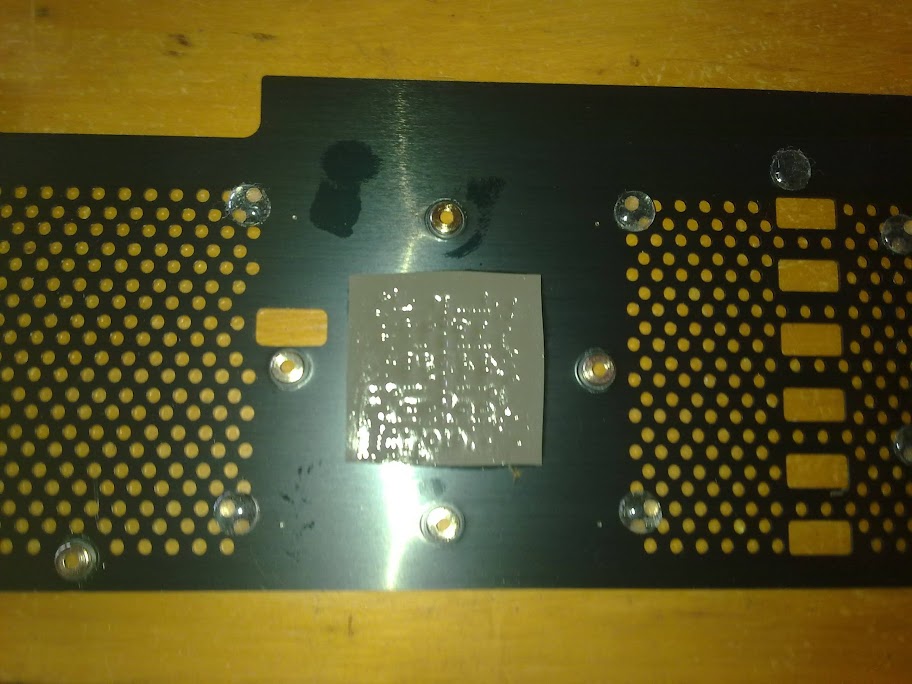

Here is another pic of just the backplate with the 4 marks to be drilled out


Step 6:

Drill out the backplate in the spots that you marked

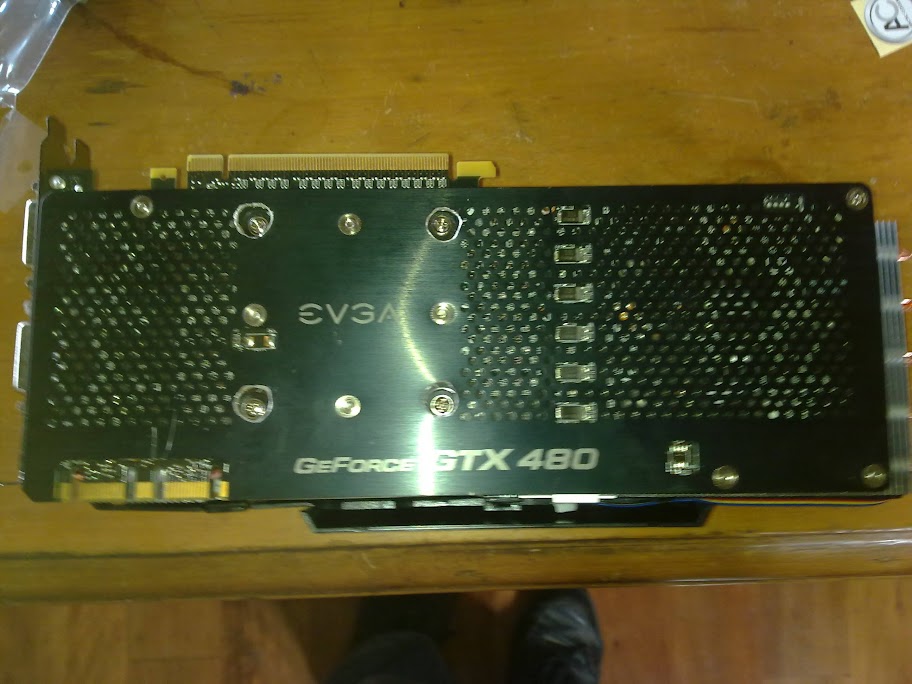

You will end up with something like this


Step 7:

Pre Tread all the holes on the backplate with a screw


Step 8:

Attach the backplate onto the card using the small screws i mentioned before


Step 9:

Apply Thermal Glue onto the VRMs and VRAM, and apply the heatsinks


Step 10:

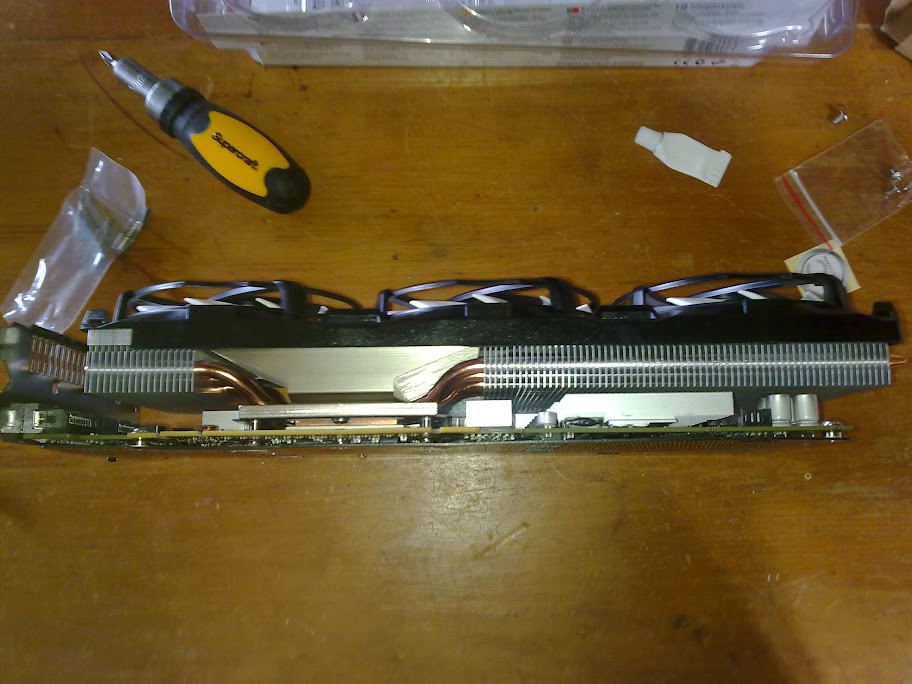

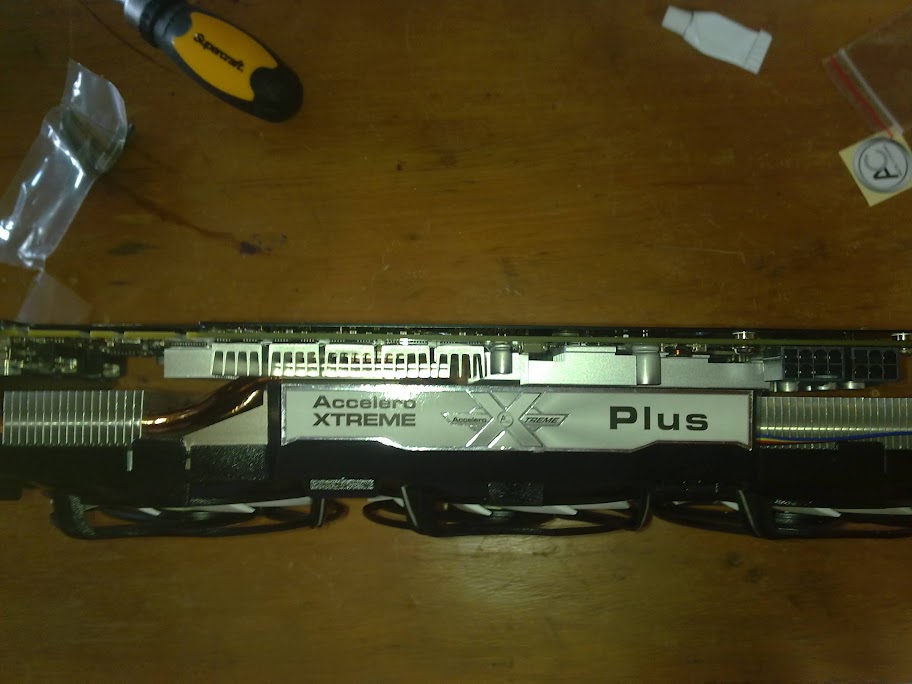

Screw on the main AXP cooler


And there you go...

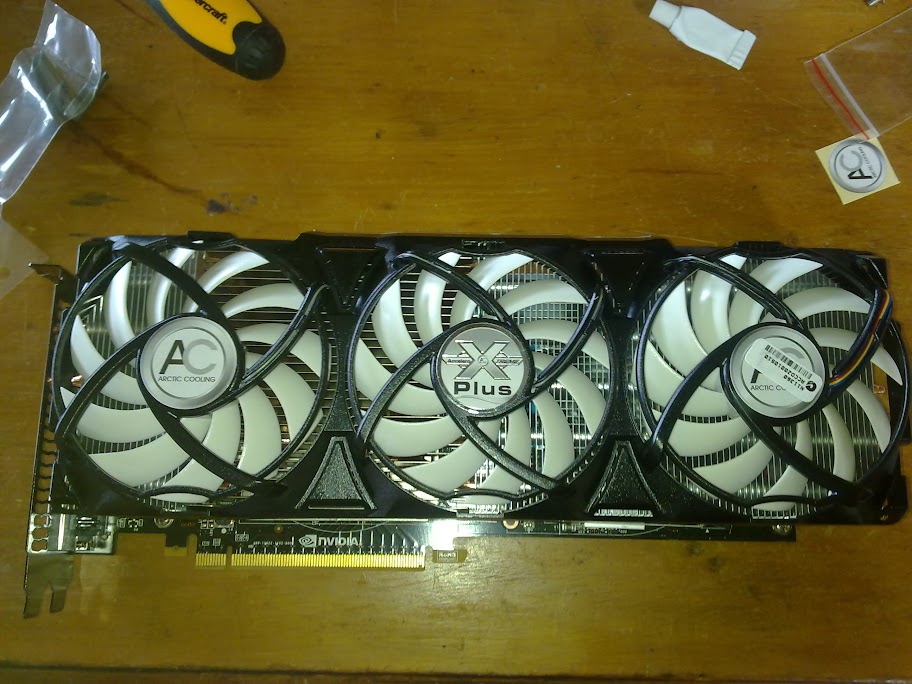

One GTX 480 with a AXP cooler and EVGA backplate

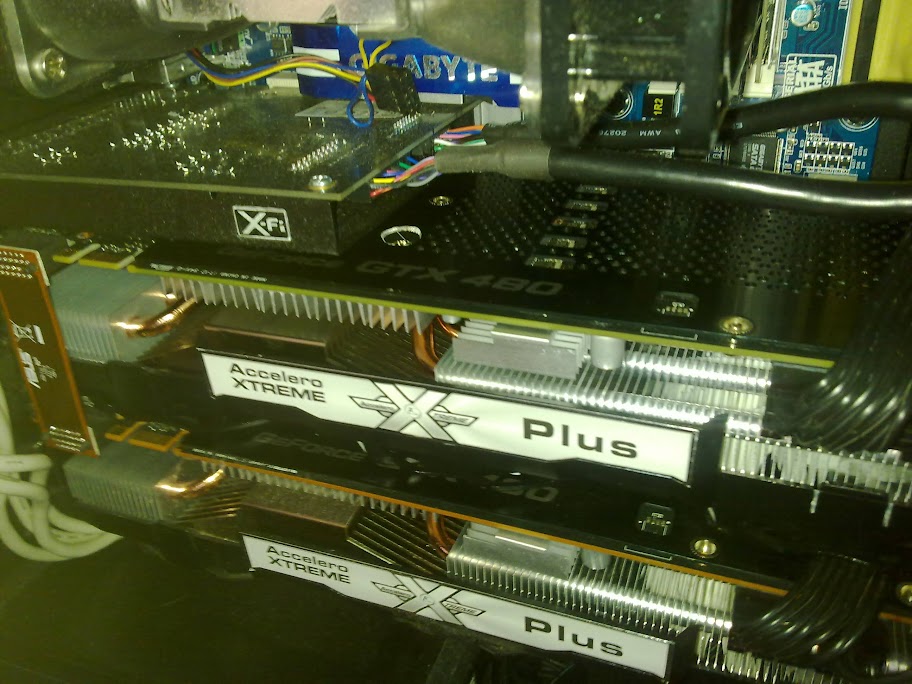

Also here is some pics of my 2x 480s in SLI with this Heatsink setup



Edit:

If there is anything you don't understand about the instructions... or you know of someway that i can improve them...

please let me know

Edit:

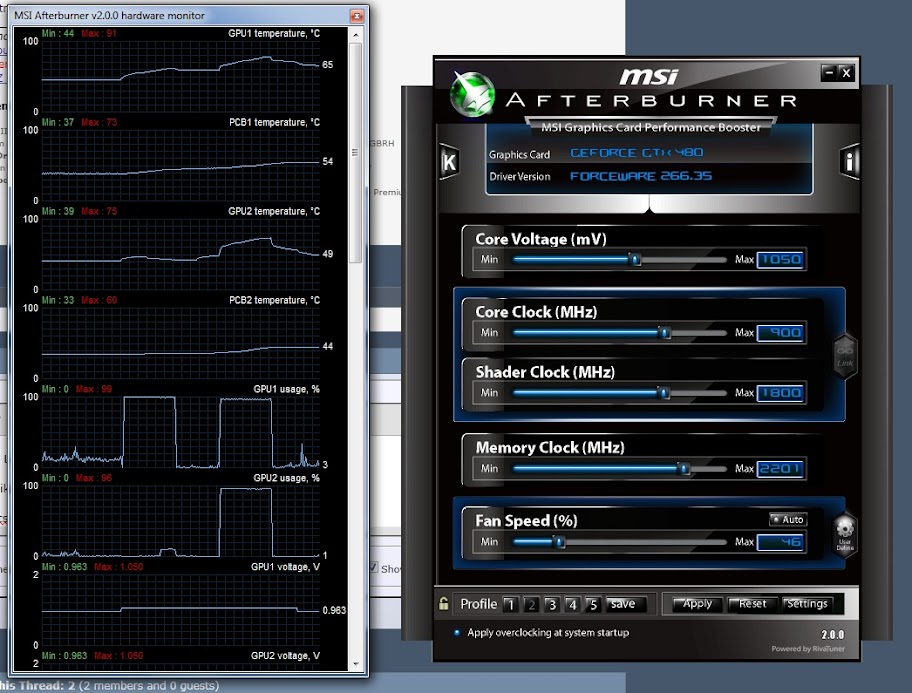

Temps

45 Deg C Idle Temps

69 Deg C Load Temps

On Top card

44 Deg C Idle

65 Deg C Load

On bottom Card

Btw it is like 40 Deg C here atm!!


Also this is with my Max OC

900/1800/2200
Edited by hodgoes2001 - 1/16/11 at 3:20am
