Brand new Phenom II 970.. Sanded to awsomeness

post #1 of 7
Thread Starter
So I decided to see how concave the Stock HS and IHS was on the new 970's..
Unfortunately I did not take pictures throughout the process... Just final products.. Its Lapped to 1500. The IHS had a huge bump in the center I used 2 full sheets of 600 grit to get it flat....... The HS Had the same issue Huge bump in the middle. It also came With the contact point sanded with like 220ish.. It was a horribly rough surface...

Out of box the CPU with default Clock and Volt settings could not run prime... It comes stock clocked 3.5 @ 1.4v... Wich in testing is about .750v too high. The chip runs 5 hours prime stable 3.5 @ 1.325v

So I will have to write a follow up in a week. Im using AS5 tim.. So final temps will not be correct until it fully cures.

Unlapped fresh AS5
Prime95 Exceeded TJMAX 3.5 @ 1.325v
Folding 24/7 - 57-58c

Unlapped Cured AS5
Prime95 1 hour - 57-58c 3.5 @ 1.325v
Prime95 1 hour - 59-60c 3.75 @ 1.365v
24/7 Folding 54-55c 3.5 1.325v
24/7 Folding 59-60 3.75 @ 1.365v

Lapped fresh AS5
Prime95 1 hour 57-58c 3.5 @ 1.325v
Prime95 1 hour 59-61 tjmax 3.75 @ 1.365v
24/7 Folding 52-53 3.5 @ 1.325v
24/7 folding 57-58 3.75 @ 1.365v

Lapped Cured AS5
Pending...

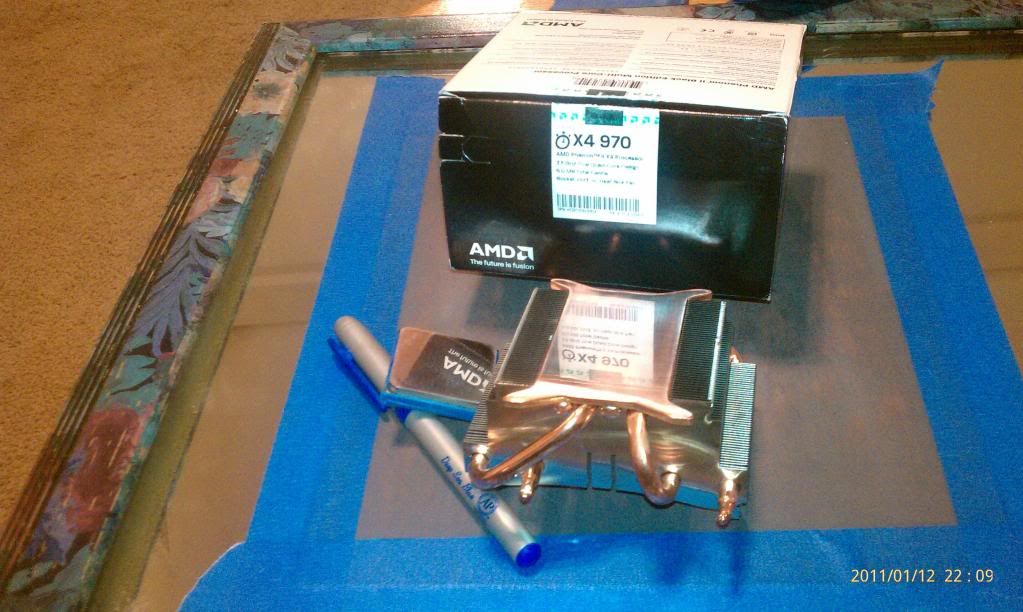

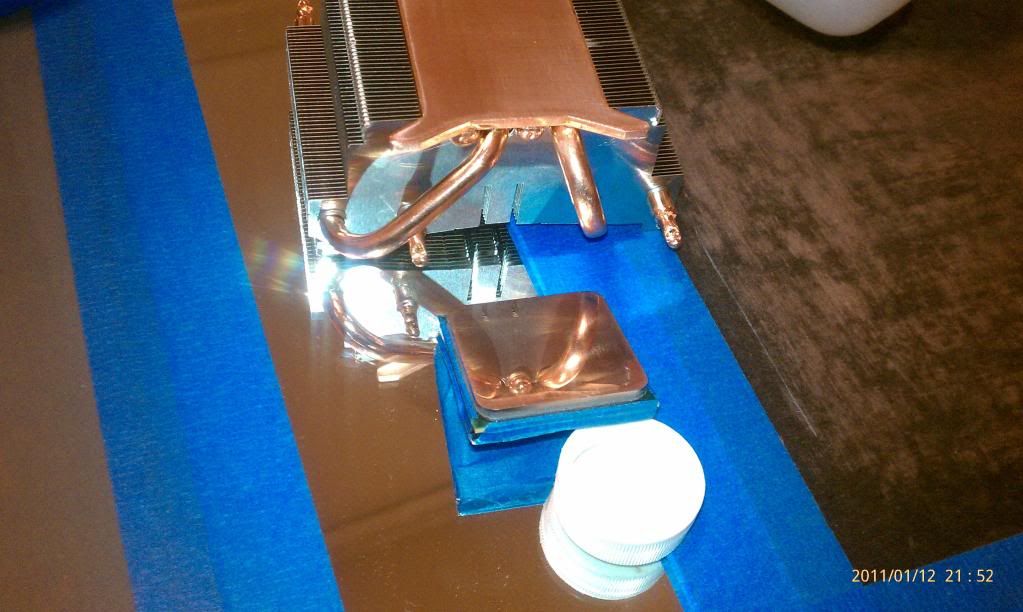

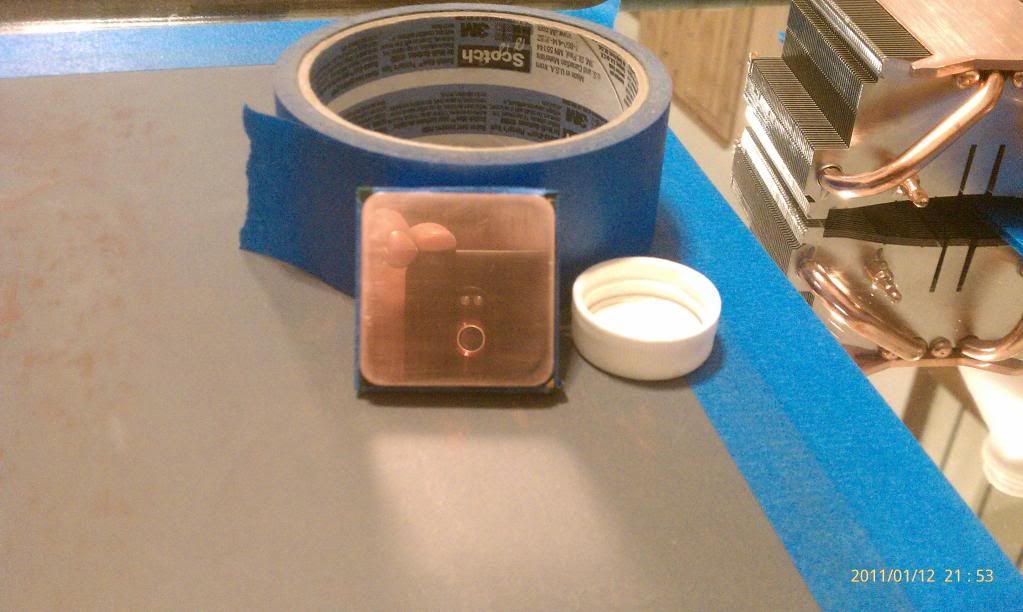

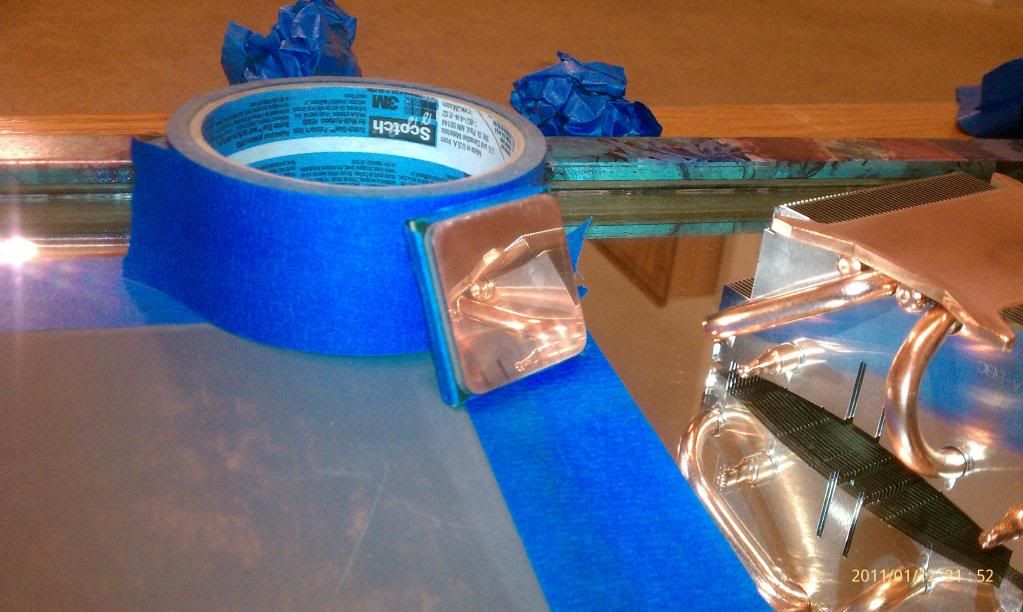

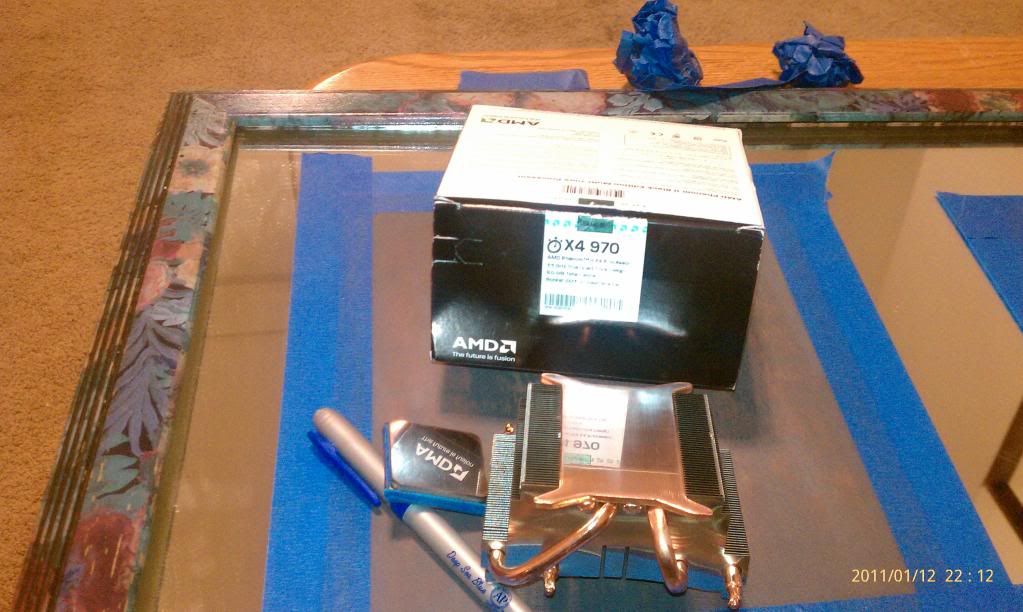

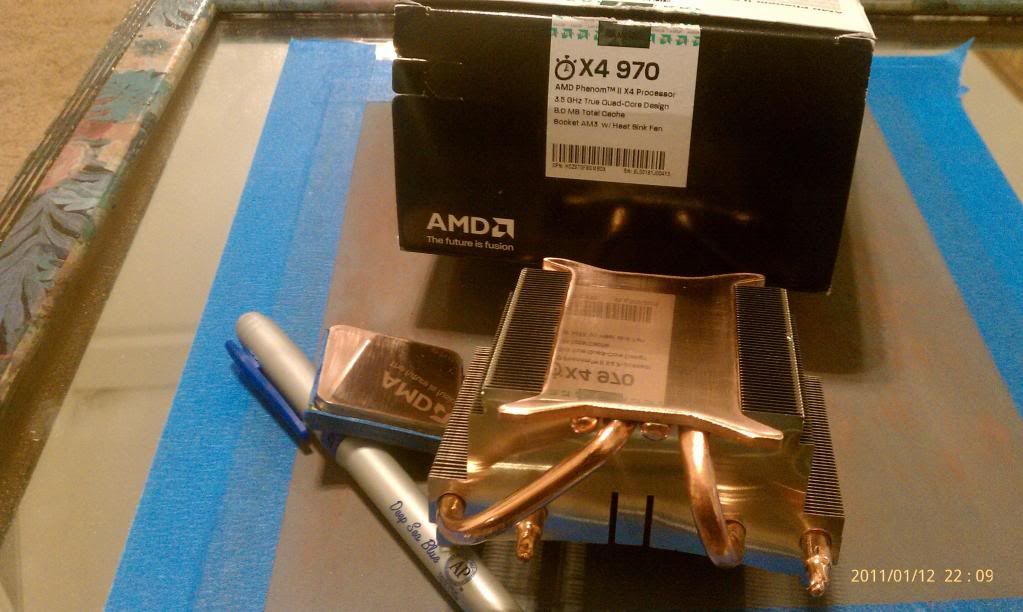

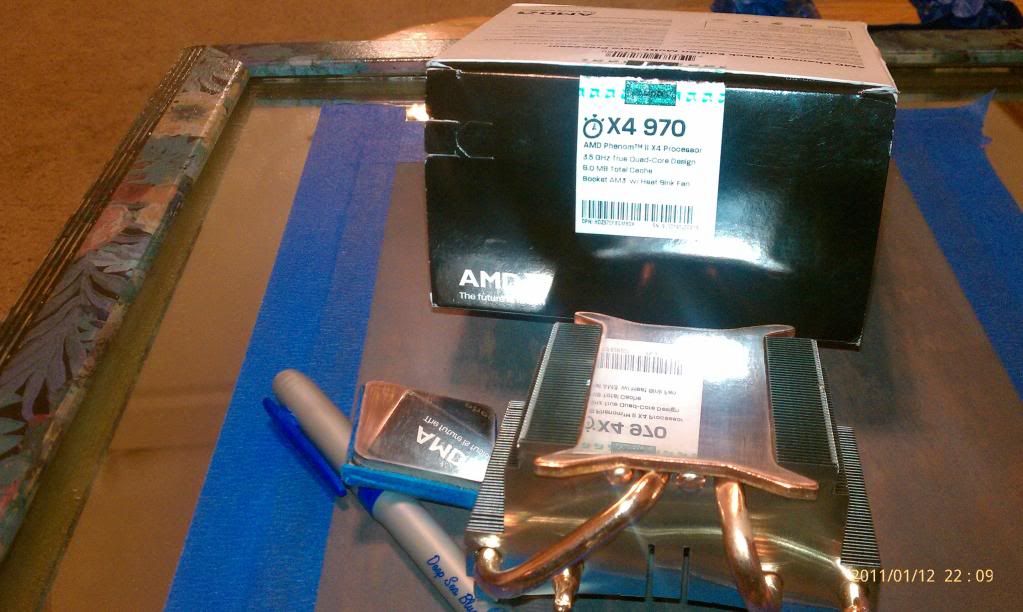

Pictures!










Edited by G.E.Nauticus - 1/13/11 at 11:31am
MsiAmdMania
(15 items)


CPUMotherboardGraphicsRAM
FX Vishera 8350  MSI 990FXA-GD80 MSI 270x Crossfire Corsair Dominator
Hard DriveCoolingOSMonitor
Western Digital Caviar Black 1TB Corsair H80 Windows 7 Ultimate 64-Bit 24" Acer 2ms
KeyboardPowerCaseMouse
Microsoft Reclusa Corsair 750 Raidmax Blackstorm - Black Razer Death adder
Mouse PadAudio
Some generic one that was FREEEEEE Corsair Vengence 2100
  hide details
Reply
MsiAmdMania
(15 items)


CPUMotherboardGraphicsRAM
FX Vishera 8350  MSI 990FXA-GD80 MSI 270x Crossfire Corsair Dominator
Hard DriveCoolingOSMonitor
Western Digital Caviar Black 1TB Corsair H80 Windows 7 Ultimate 64-Bit 24" Acer 2ms
KeyboardPowerCaseMouse
Microsoft Reclusa Corsair 750 Raidmax Blackstorm - Black Razer Death adder
Mouse PadAudio
Some generic one that was FREEEEEE Corsair Vengence 2100
  hide details
Reply
post #2 of 7
Good Work, I'll let my buddy know you run 3.7 on a stock cooler and he has thermal issues with his H50 haha.
High Voltage
(13 items)


CPUMotherboardGraphicsRAM
Core I7 920 4.4GHZ Evga X58 3X SLI XFX RADEON HD 7970 6 gigs of ocz 1600 ddr3
Hard DriveOptical DriveOSPower
2 60 gb phoenix pros raid 0 samsung W7 64 bit Corsair 950 TX
Case
HAF 922
  hide details
Reply
High Voltage
(13 items)


CPUMotherboardGraphicsRAM
Core I7 920 4.4GHZ Evga X58 3X SLI XFX RADEON HD 7970 6 gigs of ocz 1600 ddr3
Hard DriveOptical DriveOSPower
2 60 gb phoenix pros raid 0 samsung W7 64 bit Corsair 950 TX
Case
HAF 922
  hide details
Reply
post #3 of 7
Thread Starter
The CPU IHS Was ridiculously concave... The hump in the middle was so bad on the first pass showed copper in center with 600 grit....
MsiAmdMania
(15 items)


CPUMotherboardGraphicsRAM
FX Vishera 8350  MSI 990FXA-GD80 MSI 270x Crossfire Corsair Dominator
Hard DriveCoolingOSMonitor
Western Digital Caviar Black 1TB Corsair H80 Windows 7 Ultimate 64-Bit 24" Acer 2ms
KeyboardPowerCaseMouse
Microsoft Reclusa Corsair 750 Raidmax Blackstorm - Black Razer Death adder
Mouse PadAudio
Some generic one that was FREEEEEE Corsair Vengence 2100
  hide details
Reply
MsiAmdMania
(15 items)


CPUMotherboardGraphicsRAM
FX Vishera 8350  MSI 990FXA-GD80 MSI 270x Crossfire Corsair Dominator
Hard DriveCoolingOSMonitor
Western Digital Caviar Black 1TB Corsair H80 Windows 7 Ultimate 64-Bit 24" Acer 2ms
KeyboardPowerCaseMouse
Microsoft Reclusa Corsair 750 Raidmax Blackstorm - Black Razer Death adder
Mouse PadAudio
Some generic one that was FREEEEEE Corsair Vengence 2100
  hide details
Reply
post #4 of 7
Pics would be nice
DT421
(10 items)


CPUMotherboardGraphicsRAM
Intel® Xeon® Processor X3430  ASRock p55de3 AMD Radeon 7950 G.Skill RipjawsX 1866
Hard DriveHard DriveCoolingOS
SanDisk Ultra Plus SDSSDHP WD 500GB Blue Enermax ETS-T40-TB Windows 10 x64
PowerCase
BFG 1000 Watt CM 690 II Advanced
  hide details
Reply
DT421
(10 items)


CPUMotherboardGraphicsRAM
Intel® Xeon® Processor X3430  ASRock p55de3 AMD Radeon 7950 G.Skill RipjawsX 1866
Hard DriveHard DriveCoolingOS
SanDisk Ultra Plus SDSSDHP WD 500GB Blue Enermax ETS-T40-TB Windows 10 x64
PowerCase
BFG 1000 Watt CM 690 II Advanced
  hide details
Reply
post #5 of 7
Thread Starter
Pics up
MsiAmdMania
(15 items)


CPUMotherboardGraphicsRAM
FX Vishera 8350  MSI 990FXA-GD80 MSI 270x Crossfire Corsair Dominator
Hard DriveCoolingOSMonitor
Western Digital Caviar Black 1TB Corsair H80 Windows 7 Ultimate 64-Bit 24" Acer 2ms
KeyboardPowerCaseMouse
Microsoft Reclusa Corsair 750 Raidmax Blackstorm - Black Razer Death adder
Mouse PadAudio
Some generic one that was FREEEEEE Corsair Vengence 2100
  hide details
Reply
MsiAmdMania
(15 items)


CPUMotherboardGraphicsRAM
FX Vishera 8350  MSI 990FXA-GD80 MSI 270x Crossfire Corsair Dominator
Hard DriveCoolingOSMonitor
Western Digital Caviar Black 1TB Corsair H80 Windows 7 Ultimate 64-Bit 24" Acer 2ms
KeyboardPowerCaseMouse
Microsoft Reclusa Corsair 750 Raidmax Blackstorm - Black Razer Death adder
Mouse PadAudio
Some generic one that was FREEEEEE Corsair Vengence 2100
  hide details
Reply
post #6 of 7
Nice! It's too bad of all my years of overclocking and a member of this forum for close to 5 years i'm still to chicken to lap my cpu/heatsinks. I keep thinking i'm going to mess it up somehow lol.

CPUMotherboardGraphicsRAM
Phenom II X4 955BE C3 CACAC(4.0Ghz 1.5 vcore) Gigabyte GA-MA790GPT-UD3H AM3 XFX 9800 GT 512MB (700/1750/1000) A-DATA GS 4GB DDR3 1600@8-8-8-24-1
Hard DriveOptical DriveCoolingOS
Kingston 64GB SSD, WD cav black 500GB Raid 0 Lite-on DVD multi Corsair H100 Push/Pull Windows 7 64bit
MonitorPowerCase
Samsung Syncmaster B2030 Corsair 550W Antec 300 illusion
  hide details
Reply

CPUMotherboardGraphicsRAM
Phenom II X4 955BE C3 CACAC(4.0Ghz 1.5 vcore) Gigabyte GA-MA790GPT-UD3H AM3 XFX 9800 GT 512MB (700/1750/1000) A-DATA GS 4GB DDR3 1600@8-8-8-24-1
Hard DriveOptical DriveCoolingOS
Kingston 64GB SSD, WD cav black 500GB Raid 0 Lite-on DVD multi Corsair H100 Push/Pull Windows 7 64bit
MonitorPowerCase
Samsung Syncmaster B2030 Corsair 550W Antec 300 illusion
  hide details
Reply
post #7 of 7
Thread Starter
The key is to plan on spending 2-4 hours doing it.... And doing it nice and slow.... put on one of the old 3 hour star wars movie and your be done before you know it...
