Literally "hacked" this heat sink. ;) HD4890 + Accelero

post #1 of 14
Thread Starter
Hello, all. How did I do? smile.gif

Pictured: Sapphire HD4890 with Arctic Cooling Accelero. I had to cut the heat sink to make it fit. RAM heat sinks attached with Arctic Alumina permanent adhesive. Used Shin Etsu thermal compound for the GPU sink. 120mm fan attached, blows toward card.

Top view.

Side view.

HD-4890 Enterprise? ~Isometric view.

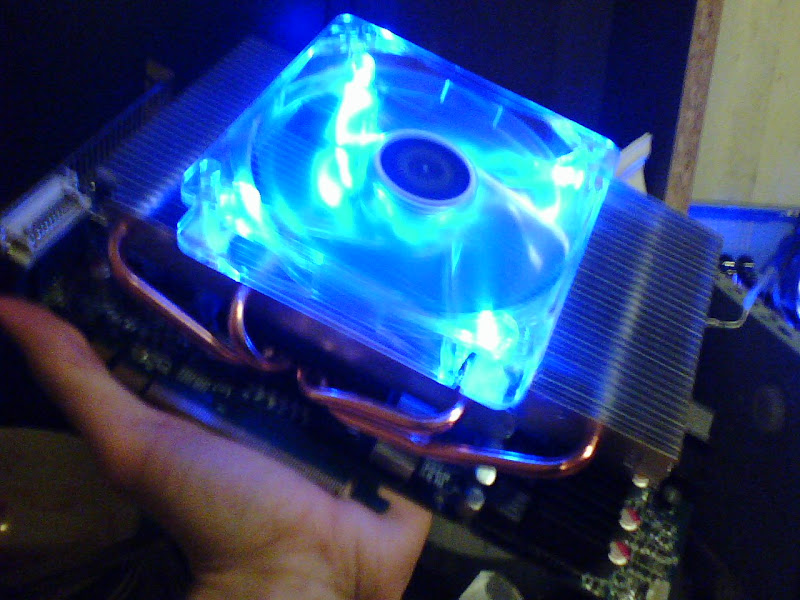

Fan attached. Note the creepy perspective on my hand.

Anchors. One of them uses double-sided tape because the fan was in the way. LoL yes, it's very effective and safe when used properly. There's a lot of it in this project, holding the fan to the heat sink very securely. I can lift the whole unit by holding the fan.

Finished!

SCROLL DOWN TO POST 8 FOR TEMPERATURES.
