Is it cool enough?

post #1 of 10
Thread Starter
Hi all, new member here. I recently put together a system and I'm just wondering if the temps are with in acceptable limits compared to the norm.
Here's my setup:

Cooler Master HAF 932 black edition
4 fans + CPU fan:
1x200mm fan on the top which is connected directly to the PSU since i didn't have enough space on the MB to plug it in to.
3x120mm fans, one on the back of the case, 2 at the front (one of them installed behind the 5.25" drive covers)
Cooler Master V8 CPU cooler.

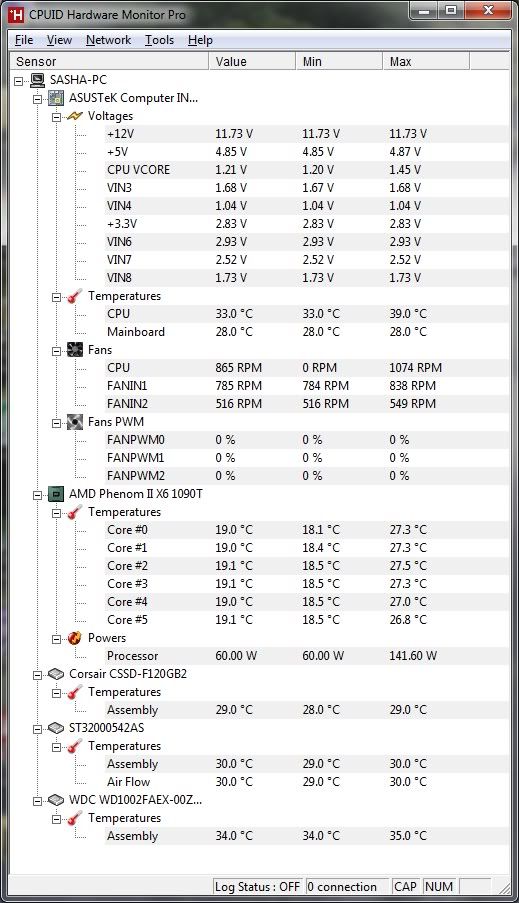

I haven't done any over clocking to the system and these are some of the numbers I've seen so far at idle and some light gaming: (Sorry if the picture is big, couldn't figure out how to make it smaller without loss of quality)



As you can see, HWMonitor Pro doesn't recognize 1 of my fans and the speeds don't go very high. I've tried a program called AMD OverDrive to change the speeds but no luck.

Anyway, that's not why I'm here. What I'd like to know is that according to the setup I have, are those temps ok? or should I be working to bringing them down more. A thought that I had was the 200mm fan on top of the case is messing up the air flow since it's spinning at full speed since it's connected directly to the PSU. Could that be a problem?
My System
(13 items)


CPUMotherboardGraphicsRAM
AMD Phenom II X6 1090T 3.2Ghz ASUS M4A89GTD PRO USB3.0 EVGA GTX 570 SuperClocked Corsair 8GB (2x4GB) DDR3 1600
Hard DriveOptical DriveOSMonitor
Corsair F120 SSD, WD 1TB 7200, Seagate 2TB 7200 DVD-RW combo w/lite scribe Windows 7 64-bit Ultimate Samsung Syncmaster 24" LED
KeyboardPowerCaseMouse
Logitec MX5500 Revolution Cooler Master Silent Pro Gold 1000W Cooler Master HAF 932 Black Edition Logitec MX5500 Revolution
  hide details
Reply
My System
(13 items)


CPUMotherboardGraphicsRAM
AMD Phenom II X6 1090T 3.2Ghz ASUS M4A89GTD PRO USB3.0 EVGA GTX 570 SuperClocked Corsair 8GB (2x4GB) DDR3 1600
Hard DriveOptical DriveOSMonitor
Corsair F120 SSD, WD 1TB 7200, Seagate 2TB 7200 DVD-RW combo w/lite scribe Windows 7 64-bit Ultimate Samsung Syncmaster 24" LED
KeyboardPowerCaseMouse
Logitec MX5500 Revolution Cooler Master Silent Pro Gold 1000W Cooler Master HAF 932 Black Edition Logitec MX5500 Revolution
  hide details
Reply
post #2 of 10
Welcome to OCN and you're temps are fine.
First Build
(13 items)


CPUMotherboardGraphicsRAM
i5 750 3.8ghz P7P55D-E DELUXE GTX 470 Kingston hyperX 8gb ddr3
Hard DriveOSPowerCase
vertex 2 60gb and other random hard drives Windows 7 64-bit Corsair hx 750w Coolermaster 690
  hide details
Reply
First Build
(13 items)


CPUMotherboardGraphicsRAM
i5 750 3.8ghz P7P55D-E DELUXE GTX 470 Kingston hyperX 8gb ddr3
Hard DriveOSPowerCase
vertex 2 60gb and other random hard drives Windows 7 64-bit Corsair hx 750w Coolermaster 690
  hide details
Reply
post #3 of 10
wow those temps are pretty good from what i see, my i5 runs at 40C
Triggers broom
(18 items)


CPUMotherboardGraphicsRAM
Intel i7 920 Gigabyte GA-EX58-UD3R  Gigabyte GTX460 Super Talent 1600
Hard DriveOptical DriveCoolingCooling
Seagate Barracuda LG DVD+/-RW SATA Drive EK Supreme LXT EK 240 Rad
CoolingOSMonitorKeyboard
EK big res and 2.2 pump Windows 7 Ultimate x64 HP 2159v  Razer Arctosa
PowerCaseMouseMouse Pad
Corsair CX600 Xigmatek Midgard Razer Abyssus Steelseries cheapo one
AudioOther
Sony TA-D607 iPhone 4
  hide details
Reply
Triggers broom
(18 items)


CPUMotherboardGraphicsRAM
Intel i7 920 Gigabyte GA-EX58-UD3R  Gigabyte GTX460 Super Talent 1600
Hard DriveOptical DriveCoolingCooling
Seagate Barracuda LG DVD+/-RW SATA Drive EK Supreme LXT EK 240 Rad
CoolingOSMonitorKeyboard
EK big res and 2.2 pump Windows 7 Ultimate x64 HP 2159v  Razer Arctosa
PowerCaseMouseMouse Pad
Corsair CX600 Xigmatek Midgard Razer Abyssus Steelseries cheapo one
AudioOther
Sony TA-D607 iPhone 4
  hide details
Reply
post #4 of 10
Try speedfan to monitor or adjust your fans.

http://www.overclock.net/downloads/138458-speedfan.html

whatever fans are connected to your motherboard you will have control over.
post #5 of 10
Thread Starter
Thanks for the welcome and the quick replies. Good to know things are fine
I'm trying my hand at a few programs related to fan control and temp monitoring. Got lots to learn.

Thanks again
My System
(13 items)


CPUMotherboardGraphicsRAM
AMD Phenom II X6 1090T 3.2Ghz ASUS M4A89GTD PRO USB3.0 EVGA GTX 570 SuperClocked Corsair 8GB (2x4GB) DDR3 1600
Hard DriveOptical DriveOSMonitor
Corsair F120 SSD, WD 1TB 7200, Seagate 2TB 7200 DVD-RW combo w/lite scribe Windows 7 64-bit Ultimate Samsung Syncmaster 24" LED
KeyboardPowerCaseMouse
Logitec MX5500 Revolution Cooler Master Silent Pro Gold 1000W Cooler Master HAF 932 Black Edition Logitec MX5500 Revolution
  hide details
Reply
My System
(13 items)


CPUMotherboardGraphicsRAM
AMD Phenom II X6 1090T 3.2Ghz ASUS M4A89GTD PRO USB3.0 EVGA GTX 570 SuperClocked Corsair 8GB (2x4GB) DDR3 1600
Hard DriveOptical DriveOSMonitor
Corsair F120 SSD, WD 1TB 7200, Seagate 2TB 7200 DVD-RW combo w/lite scribe Windows 7 64-bit Ultimate Samsung Syncmaster 24" LED
KeyboardPowerCaseMouse
Logitec MX5500 Revolution Cooler Master Silent Pro Gold 1000W Cooler Master HAF 932 Black Edition Logitec MX5500 Revolution
  hide details
Reply
post #6 of 10
Quote:
Originally Posted by Naberus View Post
Thanks for the welcome and the quick replies. Good to know things are fine
I'm trying my hand at a few programs related to fan control and temp monitoring. Got lots to learn.

Thanks again
Speedfan and HWmonitor are my personal favorites.
First Build
(13 items)


CPUMotherboardGraphicsRAM
i5 750 3.8ghz P7P55D-E DELUXE GTX 470 Kingston hyperX 8gb ddr3
Hard DriveOSPowerCase
vertex 2 60gb and other random hard drives Windows 7 64-bit Corsair hx 750w Coolermaster 690
  hide details
Reply
First Build
(13 items)


CPUMotherboardGraphicsRAM
i5 750 3.8ghz P7P55D-E DELUXE GTX 470 Kingston hyperX 8gb ddr3
Hard DriveOSPowerCase
vertex 2 60gb and other random hard drives Windows 7 64-bit Corsair hx 750w Coolermaster 690
  hide details
Reply
post #7 of 10
temps are nice, but the core voltage is kinda scary
1.45-1.21v is alot of vdroop (.24v)

fill out the form here so we can help you better
http://www.overclock.net/specs.php?do=addsystem
post #8 of 10
Thread Starter
Hi ffejrxx, I updated that list you linked the best I could. I don't know anything about voltages and such. I haven't touched them and probably won't until i get a firm grasp over the concept. What you see is what I got out of the box.

Not sure if this is relevant but in the motherboard manual it didn't mention my RAM as one of the compatible ones but there was one that was very close size and speed wise. Only difference was that My RAM needed 1.65Vs and in the manual it said 1.5v or something. But I popped them in and they ran without any problems.

I'll try searching the forums for some info on voltages, but any help with understanding why mine are high and how to fix'em will be appreciated.
My System
(13 items)


CPUMotherboardGraphicsRAM
AMD Phenom II X6 1090T 3.2Ghz ASUS M4A89GTD PRO USB3.0 EVGA GTX 570 SuperClocked Corsair 8GB (2x4GB) DDR3 1600
Hard DriveOptical DriveOSMonitor
Corsair F120 SSD, WD 1TB 7200, Seagate 2TB 7200 DVD-RW combo w/lite scribe Windows 7 64-bit Ultimate Samsung Syncmaster 24" LED
KeyboardPowerCaseMouse
Logitec MX5500 Revolution Cooler Master Silent Pro Gold 1000W Cooler Master HAF 932 Black Edition Logitec MX5500 Revolution
  hide details
Reply
My System
(13 items)


CPUMotherboardGraphicsRAM
AMD Phenom II X6 1090T 3.2Ghz ASUS M4A89GTD PRO USB3.0 EVGA GTX 570 SuperClocked Corsair 8GB (2x4GB) DDR3 1600
Hard DriveOptical DriveOSMonitor
Corsair F120 SSD, WD 1TB 7200, Seagate 2TB 7200 DVD-RW combo w/lite scribe Windows 7 64-bit Ultimate Samsung Syncmaster 24" LED
KeyboardPowerCaseMouse
Logitec MX5500 Revolution Cooler Master Silent Pro Gold 1000W Cooler Master HAF 932 Black Edition Logitec MX5500 Revolution
  hide details
Reply
post #9 of 10
its not too high, just dropping alot
its normal to drop some, .05-.1, but dropping .2 or more could cause problems

your psu is nice, same with the board, i dont see a reason for it do be doing that

amd says 1.125-1.4v, most phenom ii max around 1.55v tho
as long as it stays above 1.2v and temps are below 62c itll be fine
http://products.amd.com/en-us/Deskto...=True&f12=True
post #10 of 10
Thread Starter
Ah alright I gotcha. Thanks for the info. I'll keep an eye on it to make sure it doesn't cause problems.
