PCIEx1 Sound Card in PCIE2.0x16 slot?

post #1 of 12
Thread Starter
I am thinking of getting an i3-540 and Gigabyte H55M-UD2H, it appears as though it has 2 PCIE2.0x16 slots, however it has no PCIEx1 slots, which brings up an issue for my PCIEx1 Interface Creative X-Fi Xtreme Audio Sound Card... Does anyone know if it is possible to insert a PCIEx1 Interface Card in a PCIE2.0x16 slot? If so it would be PERFECTION!!!
post #2 of 12
Yea it'll work.

I've got a PCI-Ex1 TV Tuner card in a PCI-Ex16 slot.
/hwaw
(20 items)


CPUMotherboardGraphicsGraphics
Intel Core i7 3770k @ 4.3ghz 1.160v ASRock Z77 Extreme6 Gigabyte R9 290 Windforce Sapphire R9 290
RAMHard DriveHard DriveHard Drive
2x4gb Samsung RAM @ 2000mhz 9-10-9-28 1.425v OCZ Vertex 4 Hitacho Deskstar Crucial M550
CoolingCoolingCoolingOS
Corsair H80 (CPU) Thermalright Spitfire (GPU) Gelid Icy Vision (GPU) Windows 7 Ultimate 64-bit
MonitorMonitorKeyboardPower
BENQ GW2450 Asus PB278Q Cooler Master Quickfire Rapid Seasonic 750w
CaseMouseMouse Pad
Black Interior HAF 932 Roccat Kone  Artisan Hien Hard
  hide details
Reply
/hwaw
(20 items)


CPUMotherboardGraphicsGraphics
Intel Core i7 3770k @ 4.3ghz 1.160v ASRock Z77 Extreme6 Gigabyte R9 290 Windforce Sapphire R9 290
RAMHard DriveHard DriveHard Drive
2x4gb Samsung RAM @ 2000mhz 9-10-9-28 1.425v OCZ Vertex 4 Hitacho Deskstar Crucial M550
CoolingCoolingCoolingOS
Corsair H80 (CPU) Thermalright Spitfire (GPU) Gelid Icy Vision (GPU) Windows 7 Ultimate 64-bit
MonitorMonitorKeyboardPower
BENQ GW2450 Asus PB278Q Cooler Master Quickfire Rapid Seasonic 750w
CaseMouseMouse Pad
Black Interior HAF 932 Roccat Kone  Artisan Hien Hard
  hide details
Reply
post #3 of 12
Thread Starter
Quote:
Originally Posted by hyujmn View Post
yea it'll work.

I've got a pci-ex1 tv tuner card in a pci-ex16 slot.
sweet!!!
post #4 of 12
Quote:
Originally Posted by hyujmn View Post
Yea it'll work.

I've got a PCI-Ex1 TV Tuner card in a PCI-Ex16 slot.
correct!

i have a pci-e x1 sound card in a x16 slot.

no problem at all
Daily Driver
(10 items)


CPUMotherboardGraphicsRAM
Intel I7 6700k ASUS Hero VIII EVGA GTX 980 TI Corsair Ballistx Sport DDR4 16GB
Hard DriveCoolingOSMonitor
Samsung 250GB SSD Custom Water loop Windows 10 enterprise XB270UH
PowerCase
EVGA G2 750w Thermaltake Core P5
  hide details
Reply
Daily Driver
(10 items)


CPUMotherboardGraphicsRAM
Intel I7 6700k ASUS Hero VIII EVGA GTX 980 TI Corsair Ballistx Sport DDR4 16GB
Hard DriveCoolingOSMonitor
Samsung 250GB SSD Custom Water loop Windows 10 enterprise XB270UH
PowerCase
EVGA G2 750w Thermaltake Core P5
  hide details
Reply
post #5 of 12
As hyujmn and whipple16 mentioned, yes it will work. PCIe x16 slots are physically compatible with x16/x8/x4/x1 cards. However, the reverse isn't true (you can't fit a x16 card in a x1 slot unless you cut the slot).
post #6 of 12
Also 16x slots are physically different than 8x slots.
X99 Main Rig
(10 items)


CPUMotherboardGraphicsRAM
Intel 5960X Extreme Edition @ 4.5GHz Always Changing VisonTek R9 290 G.Skill Ripjaws 4 16GB (4x4GB) DDR4 @ 3200MHz
Hard DriveHard DriveHard DriveCooling
Samsung 128GB M.2 PCI-E 4x SSD Apotop 256GB SSD 1.82TB NAS Noctua NH-D15 with both fans
OSPower
Win7 Pro Enermax 1000W
  hide details
Reply
X99 Main Rig
(10 items)


CPUMotherboardGraphicsRAM
Intel 5960X Extreme Edition @ 4.5GHz Always Changing VisonTek R9 290 G.Skill Ripjaws 4 16GB (4x4GB) DDR4 @ 3200MHz
Hard DriveHard DriveHard DriveCooling
Samsung 128GB M.2 PCI-E 4x SSD Apotop 256GB SSD 1.82TB NAS Noctua NH-D15 with both fans
OSPower
Win7 Pro Enermax 1000W
  hide details
Reply
post #7 of 12
btw the second slot on the H55 is only 4x PCI-E gen 1 but that should be plenty of bandwidth for a sound card
The 775 Legend
(13 items)


CPUMotherboardGraphicsRAM
E8600 @ 5.8 -- 1.736v Rampage Formula! GTX550ti Vmod! OCZ D9's @ 1200+ cas 5
OSMonitorPowerCase
XPEEEEEEEEEEEEEEEEEEEEEEE XGA 800x600 TR2-RX 850W Neoprene sheet
  hide details
Reply
The 775 Legend
(13 items)


CPUMotherboardGraphicsRAM
E8600 @ 5.8 -- 1.736v Rampage Formula! GTX550ti Vmod! OCZ D9's @ 1200+ cas 5
OSMonitorPowerCase
XPEEEEEEEEEEEEEEEEEEEEEEE XGA 800x600 TR2-RX 850W Neoprene sheet
  hide details
Reply
post #8 of 12
Quote:
Originally Posted by SimpleTech View Post
As hyujmn and whipple16 mentioned, yes it will work. PCIe x16 slots are physically compatible with x16/x8/x4/x1 cards. However, the reverse isn't true (you can't fit a x16 card in a x1 slot unless you cut the slot).
Correct me if I'm wrong, but if you did cut the slot (which people do) a PCI-E x16 card will function normally in an x1 slot. It will be greatly reduced in bandwidth but no processing power will be lost or damage will be done to the card. This is useful in a situation where bandwidth is not too important. For example, rendering or other GPGPU computations (like Folding) only need to send the data to the card once and then it is stored in graphics memory until the task is completed. The initial transfer would be slower but once the data was transferred, the card would have no other slowdowns.
Edited by IEATFISH - 1/19/11 at 10:45pm
Gunmetal Tower
(23 items)


CPUMotherboardGraphicsRAM
Intel 2600K ASUS P8Z68-V GEN3 Asus GTX 580 CORSAIR Vengeance 16GB 1600
Hard DriveHard DriveOptical DriveCooling
Samsung 830 256GB Western Digital Caviar Black 640GB LG DVD Corsair H80
OSMonitorMonitorKeyboard
Microsoft Windows 8.1 Professional 64 Bit Asus PB278Q Dell 1907FPc  Ducky 9008-G2 Browns and Reds
PowerCaseMouseMouse Pad
ABS SL1050 1050W Antec P280 Logitech G700 Mionix Propus 380
AudioAudioAudioAudio
HT | OMEGA Claro Halo Audio Technica ATH-A900X Audio Technica ATH-AD900 M-Audio AV 40
OtherOtherOther
Logitech USB Desktop Microphone APC Back-UPS XS 1500 Wacom Intuos4
  hide details
Reply
Gunmetal Tower
(23 items)


CPUMotherboardGraphicsRAM
Intel 2600K ASUS P8Z68-V GEN3 Asus GTX 580 CORSAIR Vengeance 16GB 1600
Hard DriveHard DriveOptical DriveCooling
Samsung 830 256GB Western Digital Caviar Black 640GB LG DVD Corsair H80
OSMonitorMonitorKeyboard
Microsoft Windows 8.1 Professional 64 Bit Asus PB278Q Dell 1907FPc  Ducky 9008-G2 Browns and Reds
PowerCaseMouseMouse Pad
ABS SL1050 1050W Antec P280 Logitech G700 Mionix Propus 380
AudioAudioAudioAudio
HT | OMEGA Claro Halo Audio Technica ATH-A900X Audio Technica ATH-AD900 M-Audio AV 40
OtherOtherOther
Logitech USB Desktop Microphone APC Back-UPS XS 1500 Wacom Intuos4
  hide details
Reply
post #9 of 12
^ Also done for folding.
>.<
(13 items)


CPUMotherboardGraphicsRAM
i7 930 4.0ghz 1.27v EVGA E758 3-Way (black/gray) Evga GTX 480 / Evga 9800gtx+ (physx&folding) Corsair Dominator 6gb 1600 8-8-8-24
Hard DriveOSMonitorPower
x25-M SSD 80gb + 1TB F3 + 2x2TB WD Green Win 7 64bit Viewsonic 20" + Samsung 40" Corsair 1000w
Case
Haf 932 (modded) - Now caseless
  hide details
Reply
>.<
(13 items)


CPUMotherboardGraphicsRAM
i7 930 4.0ghz 1.27v EVGA E758 3-Way (black/gray) Evga GTX 480 / Evga 9800gtx+ (physx&folding) Corsair Dominator 6gb 1600 8-8-8-24
Hard DriveOSMonitorPower
x25-M SSD 80gb + 1TB F3 + 2x2TB WD Green Win 7 64bit Viewsonic 20" + Samsung 40" Corsair 1000w
Case
Haf 932 (modded) - Now caseless
  hide details
Reply
post #10 of 12
Quote:
Originally Posted by IEATFISH View Post
Correct me if I'm wrong, but if you did cut the slot (which people do) a PCI-E x16 card will function normally in an x1 slot. It will be greatly reduced in bandwidth but no processing power will be lost or damage will be done to the card. This is useful in a situation where bandwidth is not too important. For example, rendering or other GPGPU computations only need to send the data to the card once and it is store in graphics memory until the task is completed. The initial transfer would be slower but once the data was transferred, the card would have no other slowdowns.
You're absolutely right, done it myself for folding purposes.

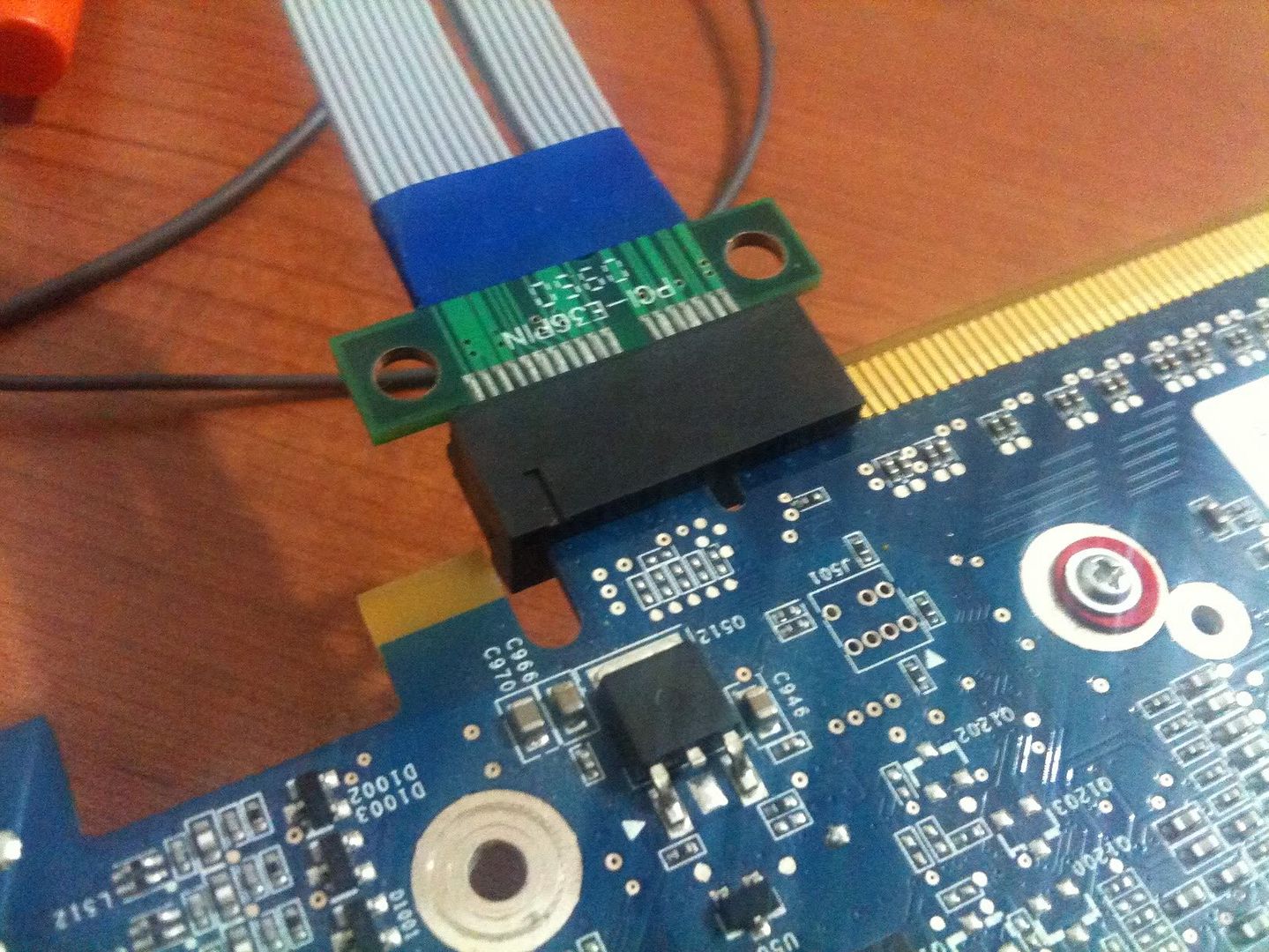

Here's a pic with my 8800GT
